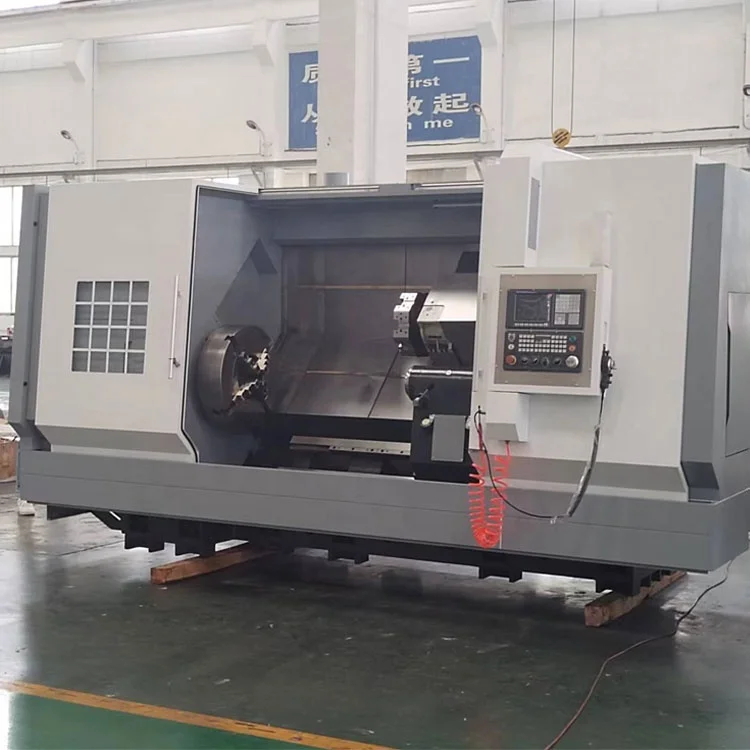

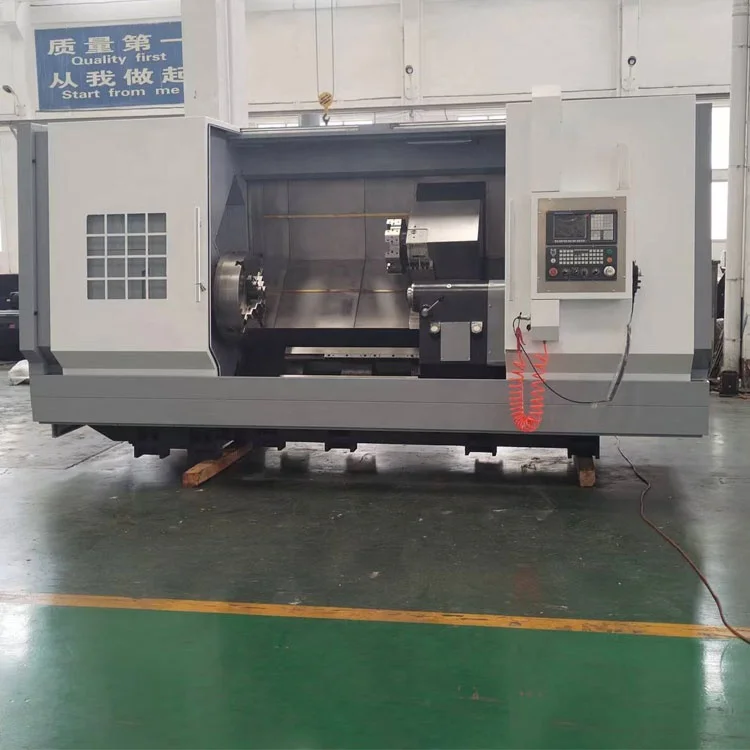

Высокоточный токарный станок с ЧПУ
- Категория: >>>
- Поставщик: Shandong Jiucheng Machine Tool Co. Ltd.
Сохранить в закладки 1600636297724:
Описание и отзывы
Характеристики
The main structural features of the machine tool:
1. This series of machine tools is a mature product mainly exported by the company. The whole machine has compact structure, beautiful and pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.

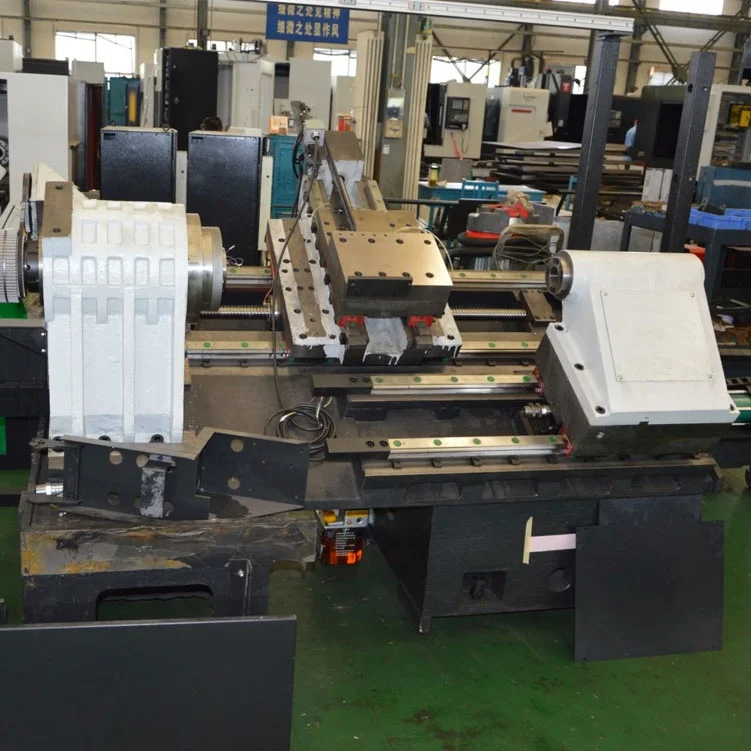

2. Adopting 45° overall inclined bed structure, equipped with high-precision Taiwan linear rolling guide, the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
3. The spindle adopts high-precision spindle bearing group and has been precisely assembled and dynamically balanced to ensure high precision, low noise and strong rigidity of the spindle.
4. Adopting the tool arrangement method, the tool change speed is fast and the positioning accuracy is high.

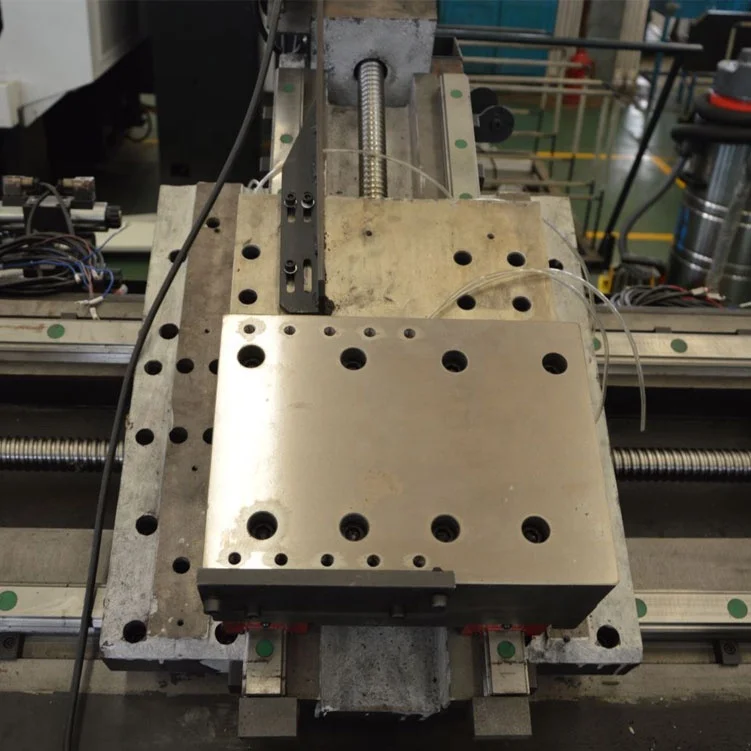

5. The feed in the X and Z directions is directly connected to the lead screw by a servo motor through a high-torque low-inertia elastic coupling to ensure positioning accuracy and repeat positioning accuracy.
6. Adopt advanced centralized automatic lubricating device, regular and quantitative automatic intermittent lubrication, stable and reliable work.
7. Standard configuration adopts hydraulic collet.
8. The protection of the machine tool adopts a full protection design, which is highly pleasant, reliable in waterproof and chip prevention, and convenient in maintenance.
SPECIFICATION | UNIT | TCK700 |
Max. swing dia. over bed | mm | 700 |
Max. swing dia. over slide | mm | 500 |
Center distance | mm | 1000/1500 |
Spindle nose | - | A2-8/A2-11 |
Diameter of spindle through hole | mm | 88/105 |
Spindle speed range | r/min | 2500/1800 |
Spindle shift mode | - | Stepless speed regulation |
Motor power of spindle | kw | 15/18.5 |
Chuck size | lnch | 12 |
X axis rapid traverse | m/min | 20 |
Z axis rapid traverse | m/min | 20 |
X axis servo motor torque | N.m | 18 |
Z axis servo motor torque | N.m | 18 |
X axis travel | mm | 350 |
Z axis travel | mm | 1100/1650 |
Guide way type | - | linear guide rail |

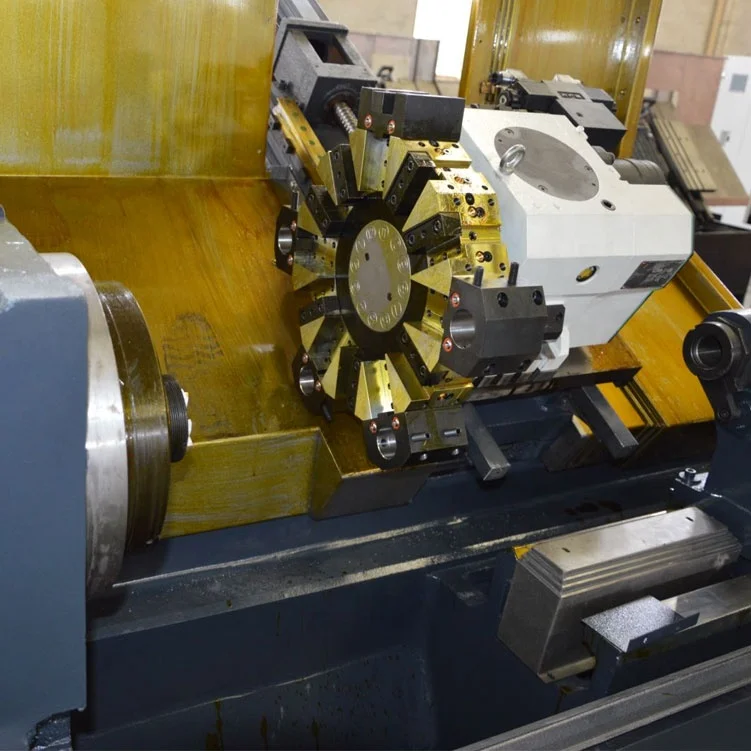

Tool post type | - | 8/12 Station |
Tool shank size (square cutting tool/boring cutting tool) | mm | 25*25/Ø32 |
Tail stock type | - | hydraulic |
Tail stock quill dia | mm | 150 |
Tail stock quill trave | mm | 150 |
Tail stock quill taper | - | MT5# |
Net weight | kg | 7000/7500 |
Machine dimension (L×W×H) | mm | 5000/5500*2250*2200 |
Standard configurations:
GSK CNC controller
4-station turret/tool post
Manual chuck
Manual tailstock
Lighting system
Cooling system
Automatic lubrication system
4-station turret/tool post
Manual chuck
Manual tailstock
Lighting system
Cooling system
Automatic lubrication system
Optional configuration:
Siemens, FANUC, KND, Syntec, Mitsubishi CNC controller
6/8 station turret/tool post
Hydraulic tailstock or pneumatic tailstock
Hydraulic chuck or pneumatic chuck
Chip conveyor
Bar auto-feeding
6/8 station turret/tool post
Hydraulic tailstock or pneumatic tailstock
Hydraulic chuck or pneumatic chuck
Chip conveyor
Bar auto-feeding
Q: What is the minimum order quantity (MOQ)?
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.
Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines?
A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms?
A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.
Q: Where is your factory located?
A: Our factory is located in Tengzhou, Shandong province, China.
Q: What's the main products of your company?
A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage?
A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service.
Q: What is the package? Is it suitable for shipment?
A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

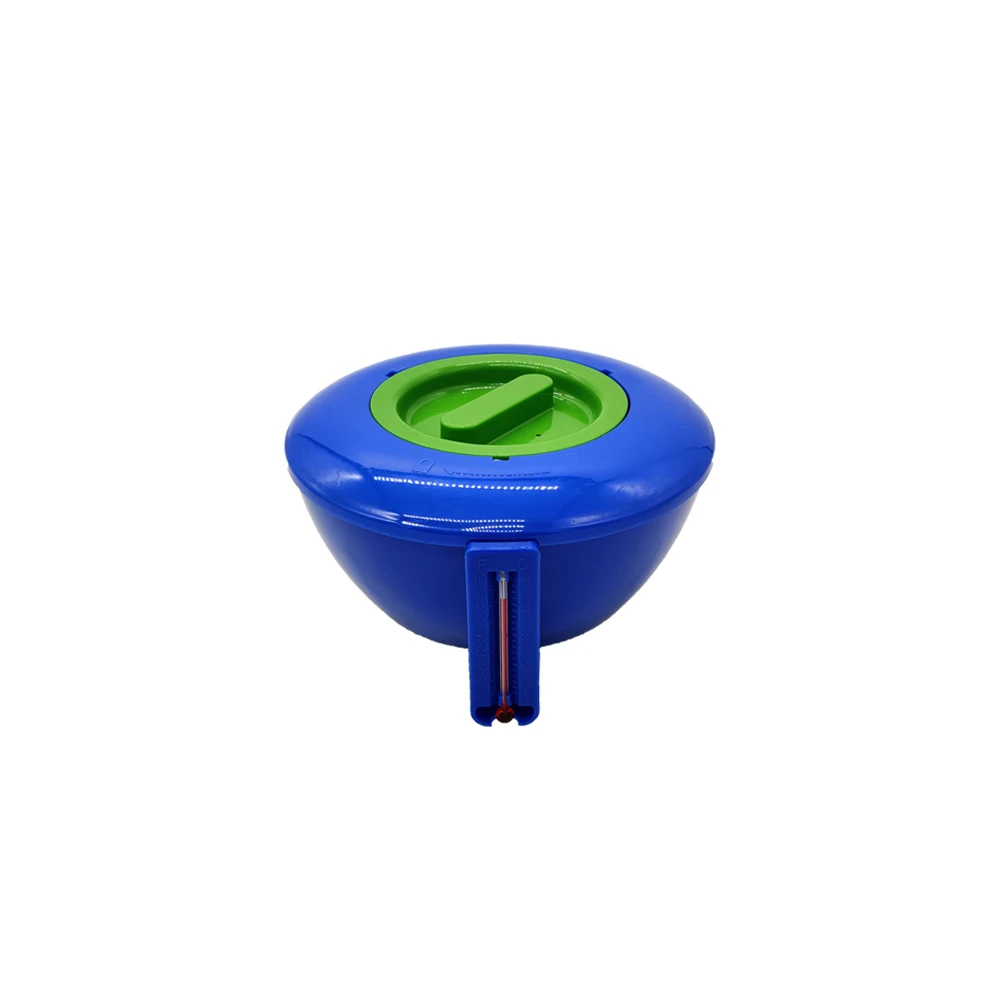

Автоматические покрывающие приспособления плавучий бассейн таблетки хлора дозатор для жидкого хлора плавающей

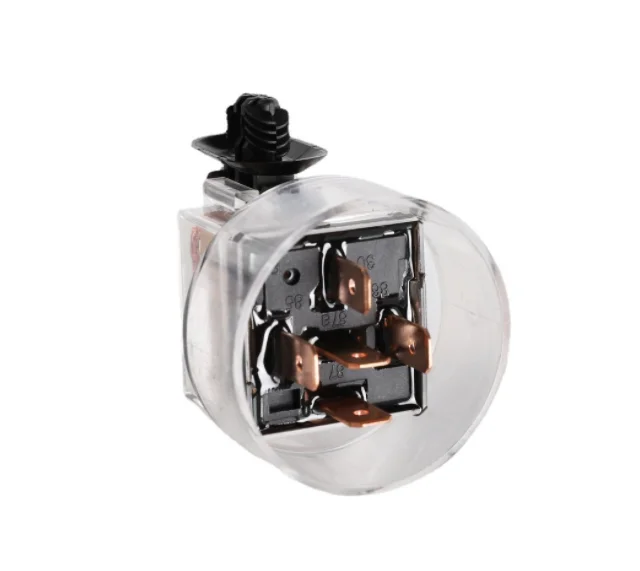

12V /24V 80A 5 pin Реле вентилятора 80 Ампер 5-контактный разъем dual-контакт реле звукового сигнала
