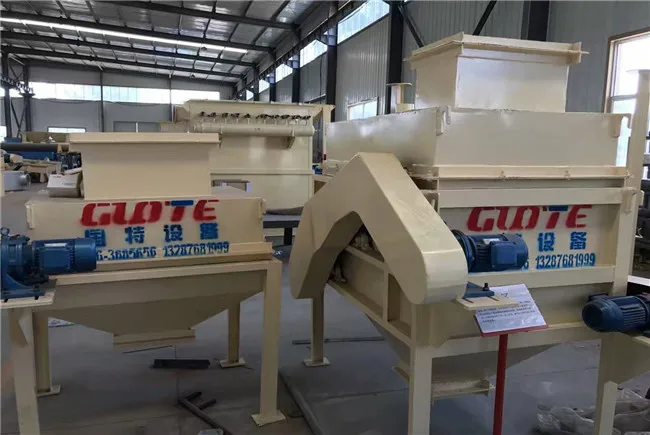

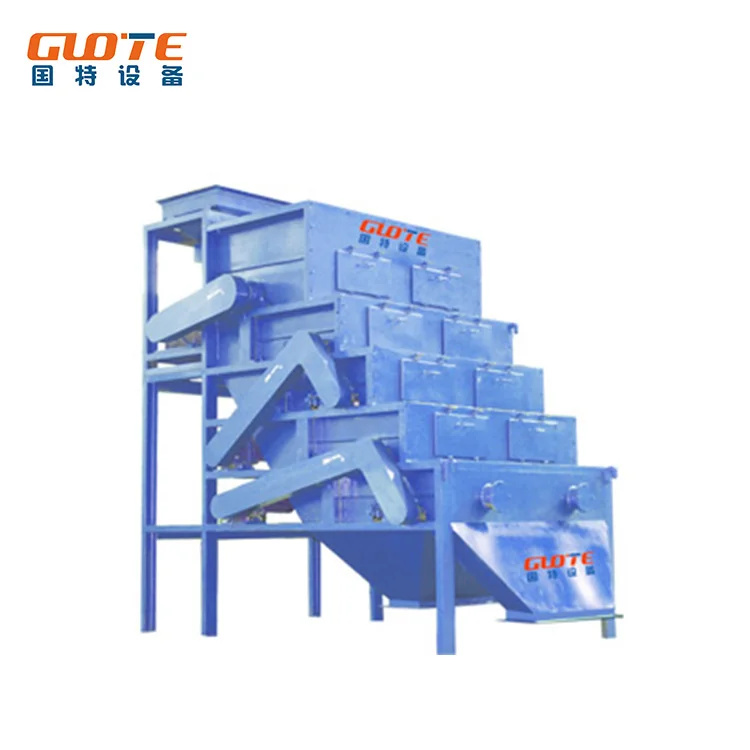

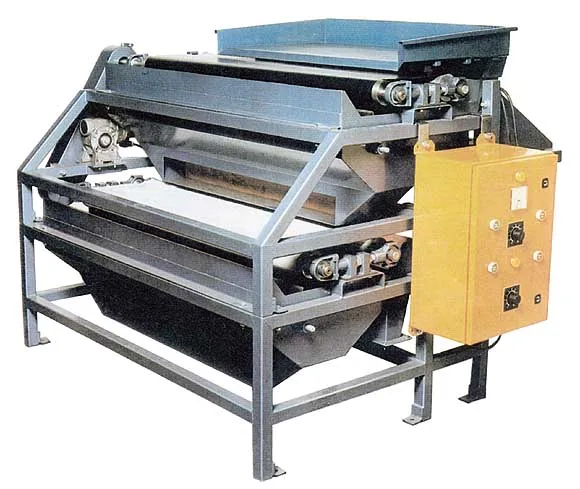

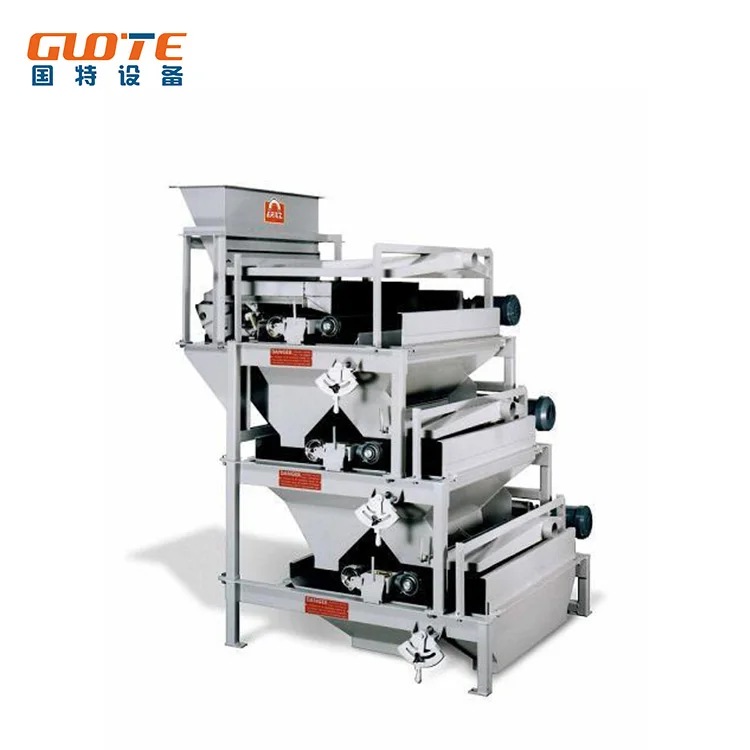

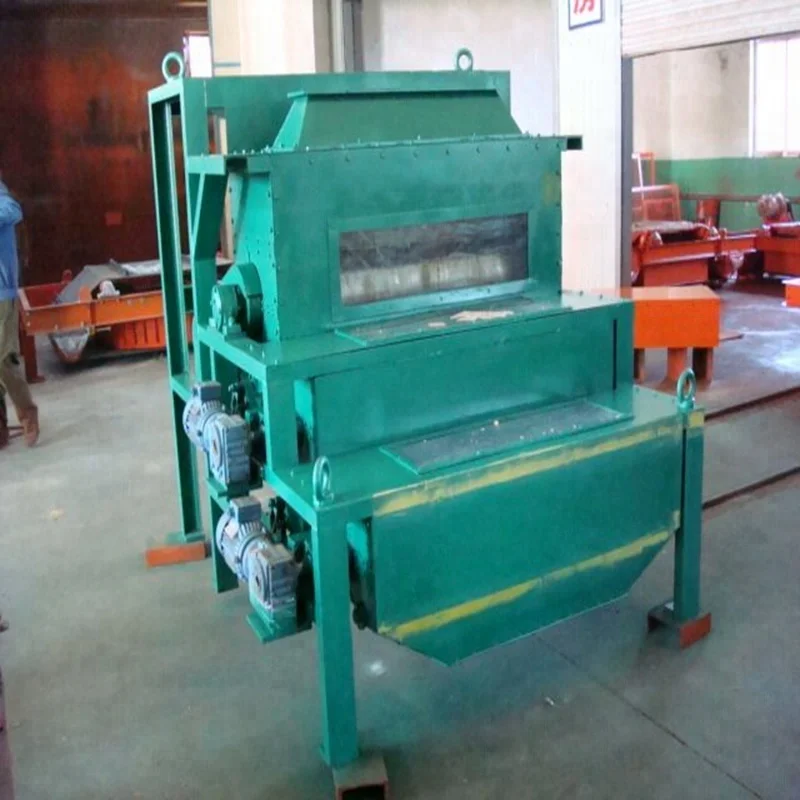

Высокомагнитный многоступенчатый роликовый магнитный сепаратор для неметаллической руды калия

Сохранить в закладки 1600637144301:


Цена:15 695,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


magnetic magnet 45 kw motor,magnetic separator for waste sorting plant


magnetic separator machine of Input size:≤0-1.5 mm
Dry Type High Intensity Permanent Rare Earth Magnetic Roller Separator Supplier for weakly magnetic mine Silica Powder Industry has Capacity:0.5-10 TPH
Magnetic strengthof Fine Mining Equipment Powder Dry Rare Earth High Intensity  Iron Ore Magnetic Roller Separation Magnetic Separator can reach15000gs

Usage :magnetic separator nonferrous removes iron impurity for sand
high intensity magnetic separator is used for iron removal from particles and coarse powder materials, It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral,And It's apply to purification of chemical, food, medicine and purification, hematite, feldspar and manganese.

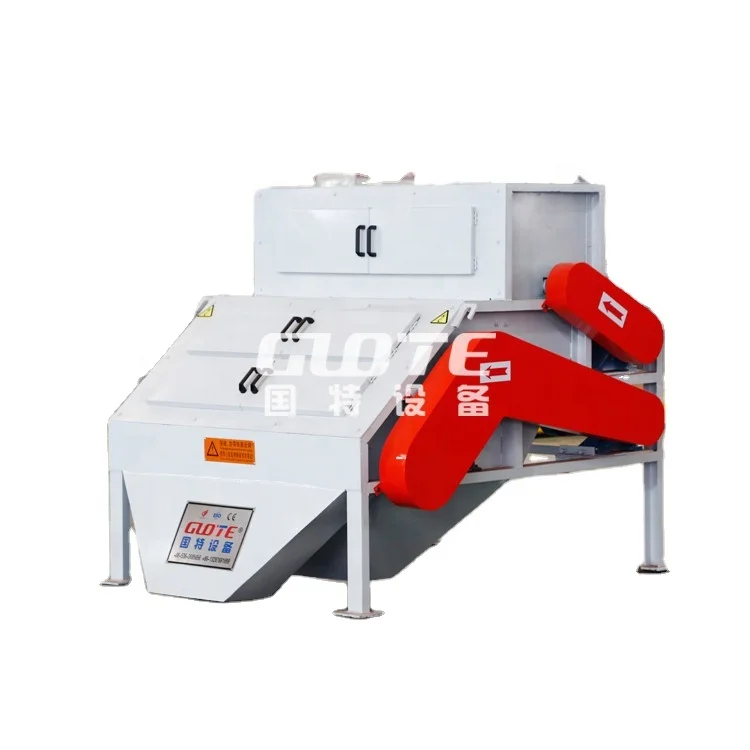

GCT-1

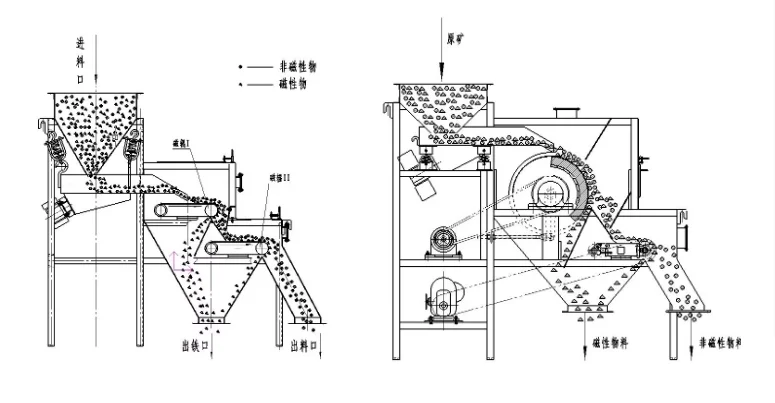

.png








Technical Features







1.Cylinder and roller reasonablely combined, iron removal more efficient.

2.Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger

3. Drum magnetic system can be turning block type, efficient more higher

4. Surface magnet field up to 8000GS

5.Cylinder and roller's speed is variable frequency regulation

6.Magnetic roller adopted polymer composite magnetic system,magnetic field up to 20000GS, higher gradient 7. Belt made with special materials, high wear resistance

8.Controllable feeding system ensure the uniformity of material when it go through magnetic field

9. Self-clean weakly magnetic oxide,long life work

10.Dust discharged only by dust collector, so it can meet the environmental protection requirements








Technical Data









































































Model



Capacity

(t/h)


Magnetic field strength of roller(Gs)


Magnetic field strength of drum(Gs)


Belt thickness

(mm)


Material size(μm)


Drum driving power(kw)


GCT/F-3


0.4-0.6


15000-20000


4000-10000


0.1-2


83-5000


0.75*2


GCT/F-5


0.8-0.1


15000-20000


4000-10000


0.1-2


83-5000


0.75*2


GCT/F-8


1.2-2


15000-20000


4000-10000


0.1-2


83-5000


1.1*2


GCT/F-10


2-3.5


15000-20000


4000-10000


0.1-2


83-5000


1.5*2


GCT/F-12


4-7


15000-20000


4000-10000


0.1-2


83-5000


2.2*2


GCT/F-15


7-10


15000-20000


4000-10000


0.1-2


83-5000


3*2

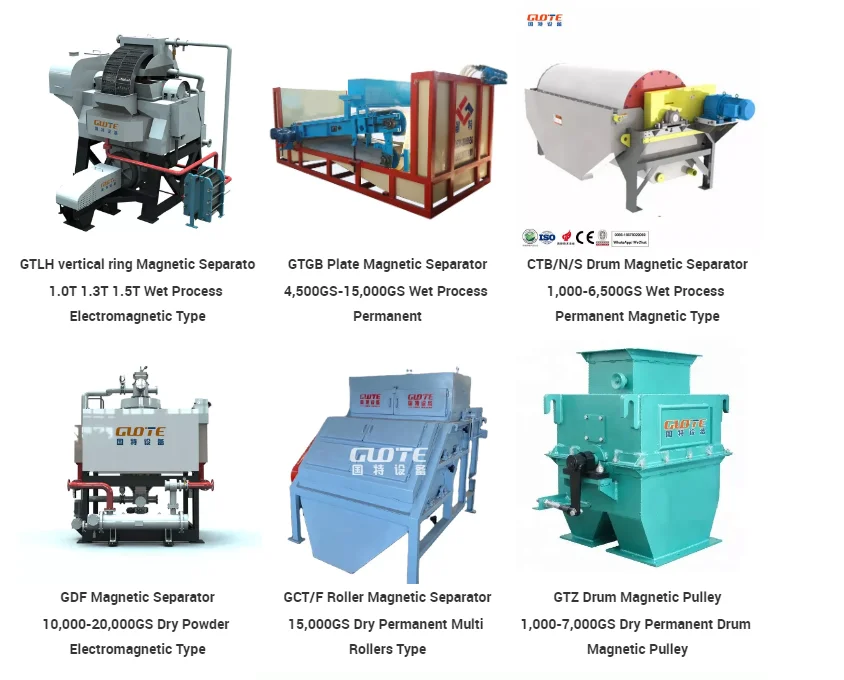

Recommend Products
