SCU 30 кВт @ 1000 в ev модуль зарядки OEM ODM dc питания для быстрой с сертификацией CE зарядного устройства OCPP
- Категория: >>>
- Поставщик: Sicon Chat Union Electric Co. Ltd.
Сохранить в закладки 1600638443882:
Описание и отзывы
Характеристики
VR
Product Overview

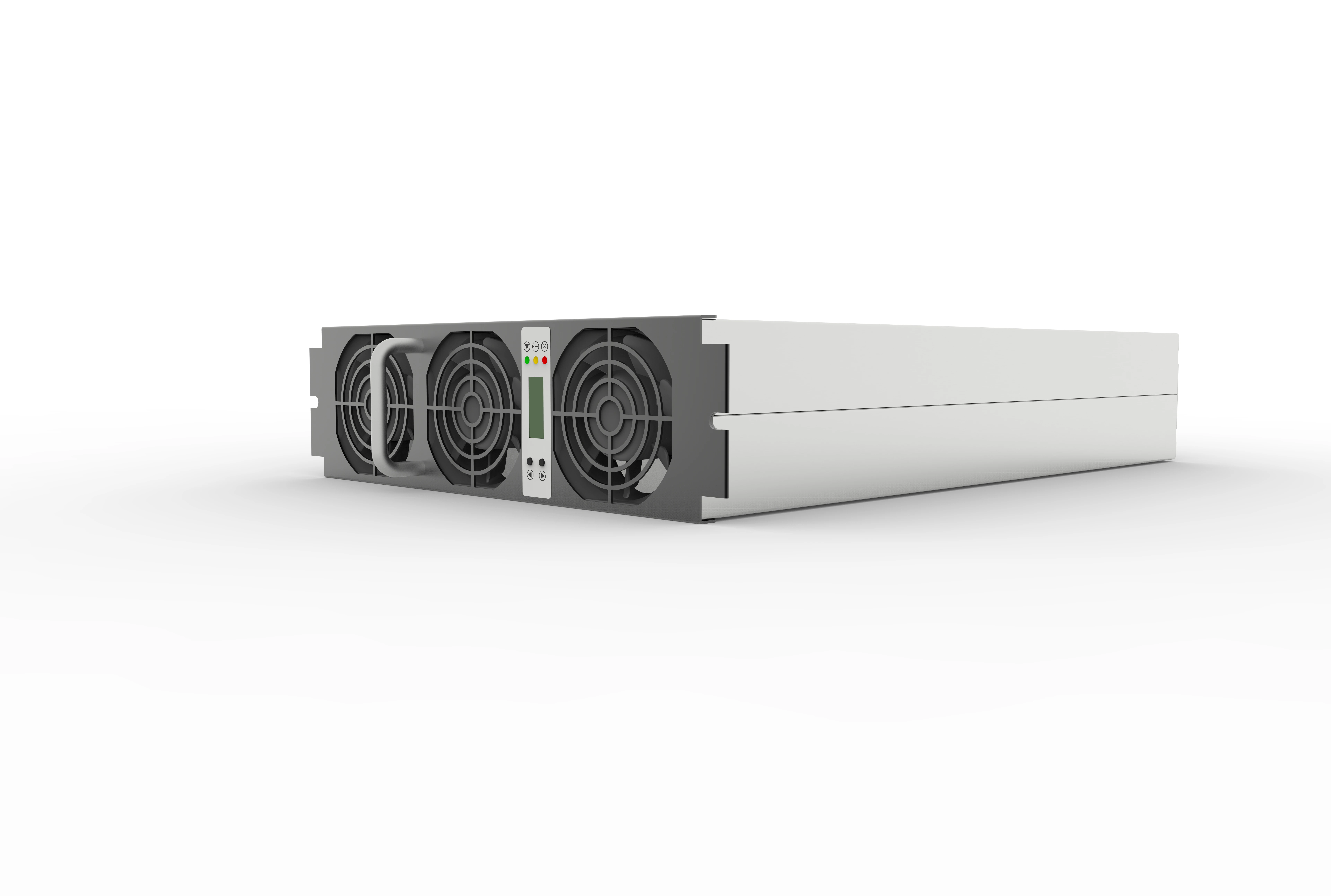

30kw EV charger module
New energy electric vehicles have an urgent demand for high-power and fast charging. As the core component of the DC charging pile, DC electric vehicle charger module is the key to the stability and reliability of the EV charger post. The SCU DC fast EV module has high reliability, high availability and high maintainability, which can meet the voltage requirements of different battery packs, reduce the potential safety hazard and greatly save the operation and maintenance cost of life cycle.
FEATURES AT A GLANCE
■Output capacity: 30kW；Efficiency: 96%
■ Output voltage range:50V-750VDC, 50V-1000VDC■ Constant power range: 300V-750VDC,300V-1000VDC
■ Compatible standard: CCS, CHAdeMO, Combo, GB/T
■ Cooling: forced air cooling
■ Cooling: forced air cooling

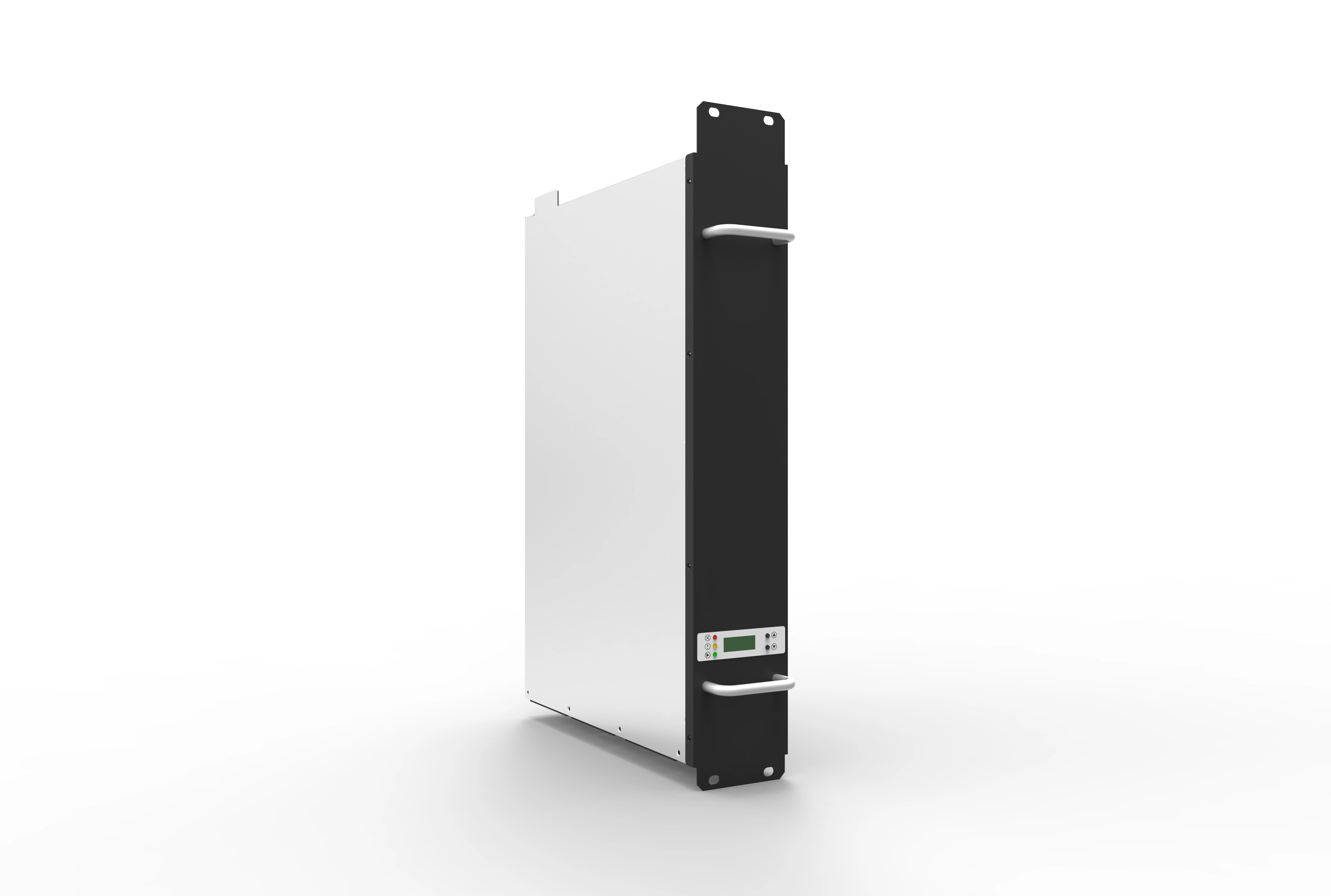

Right view

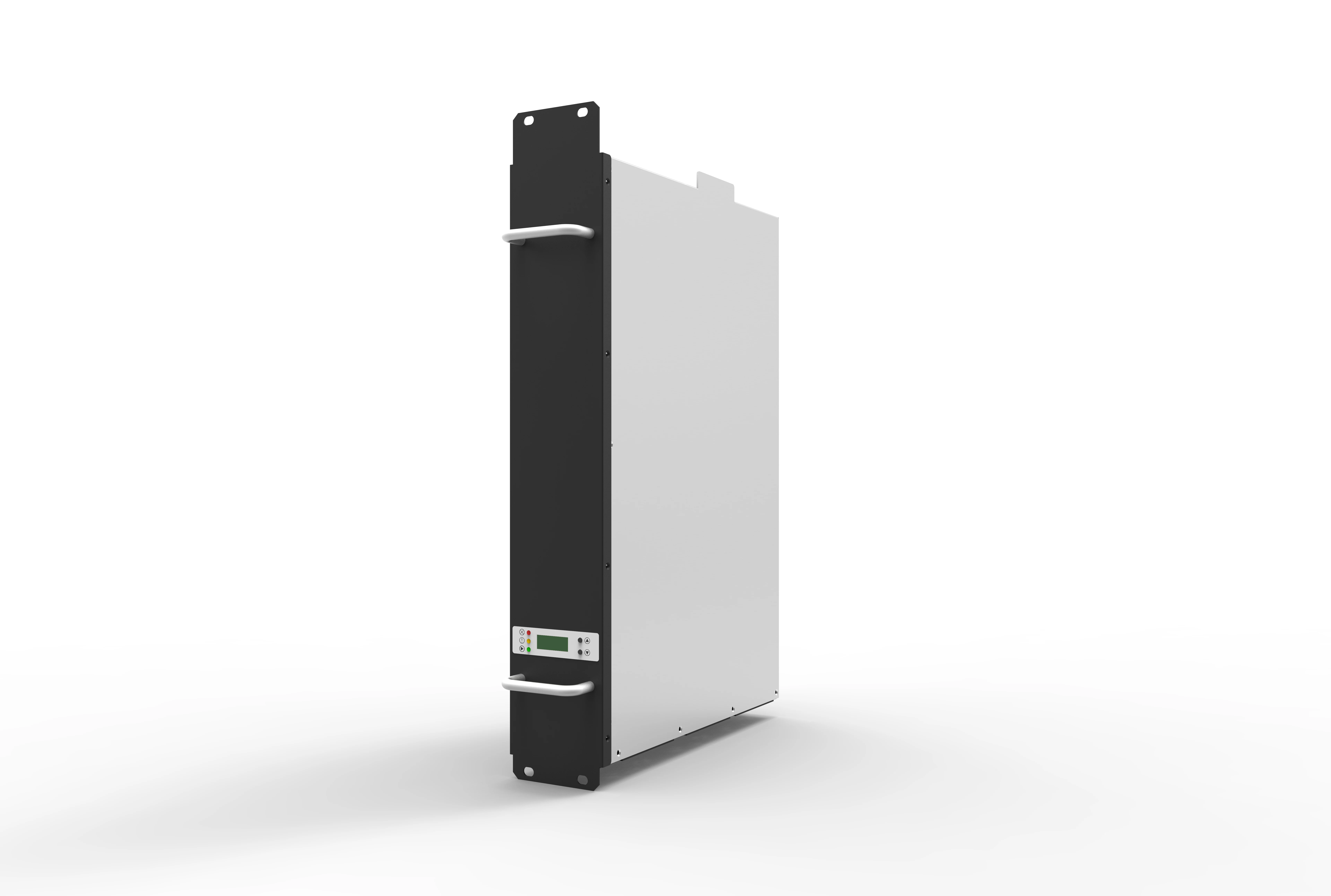

Left view
Front view
PRODUCT SPECIFICATIONS
Model | DPM1000/16 | DPM-135/150 | DPM1000/30C | ||
Output capacity | 15kW | 20kW(Low-voltage) | 30kW | ||
Output voltage range | 50-1000VDC | 40V-100VDC, 40V-135VDC | 50V-750VDC, 50V-1000VDC | ||
Constant power range | / | 100V-135VDC | 300V-750VDC, 300V-1000VDC | ||
Efficiency | 95% | 95% | 96% | ||
Compatible standard | CCS, CHAdeMO, Combo, GB/T | ||||
Communication | CAN | ||||
Cooling | Forced air cooling | ||||
SIMILAR PRODUCTS
Successful Project
Project in Thailand
Project in India
Project in Russia
Company Profile
FAQ
FAQ
1. About SCU Technology?
Sicon R&D Staff ratio exceeds 30%, annual investment exceeds 10% of sales. As the core of Sicon, R&D team shoulders crucial
responsibilities in research, developing new products, and perfecting existing products. As the power leader, Sicon is dedicated
in not only electrical and power electronic technology, but also social responsibility of building a green, sustainable and
intelligent world.
.....................................................................................................................................................................................................
2. About Quality Control?
We make use of automatic and visual inspection throughout the complete production process. To ensure our ongoing quality, Sicon
operations are certified to ISO9001:2001 and ISO14001:2004 standard. All our product solutions carry TLC and CE Certification.
.....................................................................................................................................................................................................
3. About Warranty?
The manufacture warrants its products to be free from defects in materials and workmanship for a period of two years from the date
of purchase.
....................................................................................................................................................................................................
4. About Service?
We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the
best perfect service.
....................................................................................................................................................................................................
Sicon R&D Staff ratio exceeds 30%, annual investment exceeds 10% of sales. As the core of Sicon, R&D team shoulders crucial
responsibilities in research, developing new products, and perfecting existing products. As the power leader, Sicon is dedicated
in not only electrical and power electronic technology, but also social responsibility of building a green, sustainable and
intelligent world.
.....................................................................................................................................................................................................
2. About Quality Control?
We make use of automatic and visual inspection throughout the complete production process. To ensure our ongoing quality, Sicon
operations are certified to ISO9001:2001 and ISO14001:2004 standard. All our product solutions carry TLC and CE Certification.
.....................................................................................................................................................................................................
3. About Warranty?
The manufacture warrants its products to be free from defects in materials and workmanship for a period of two years from the date
of purchase.
....................................................................................................................................................................................................
4. About Service?
We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the
best perfect service.
....................................................................................................................................................................................................
