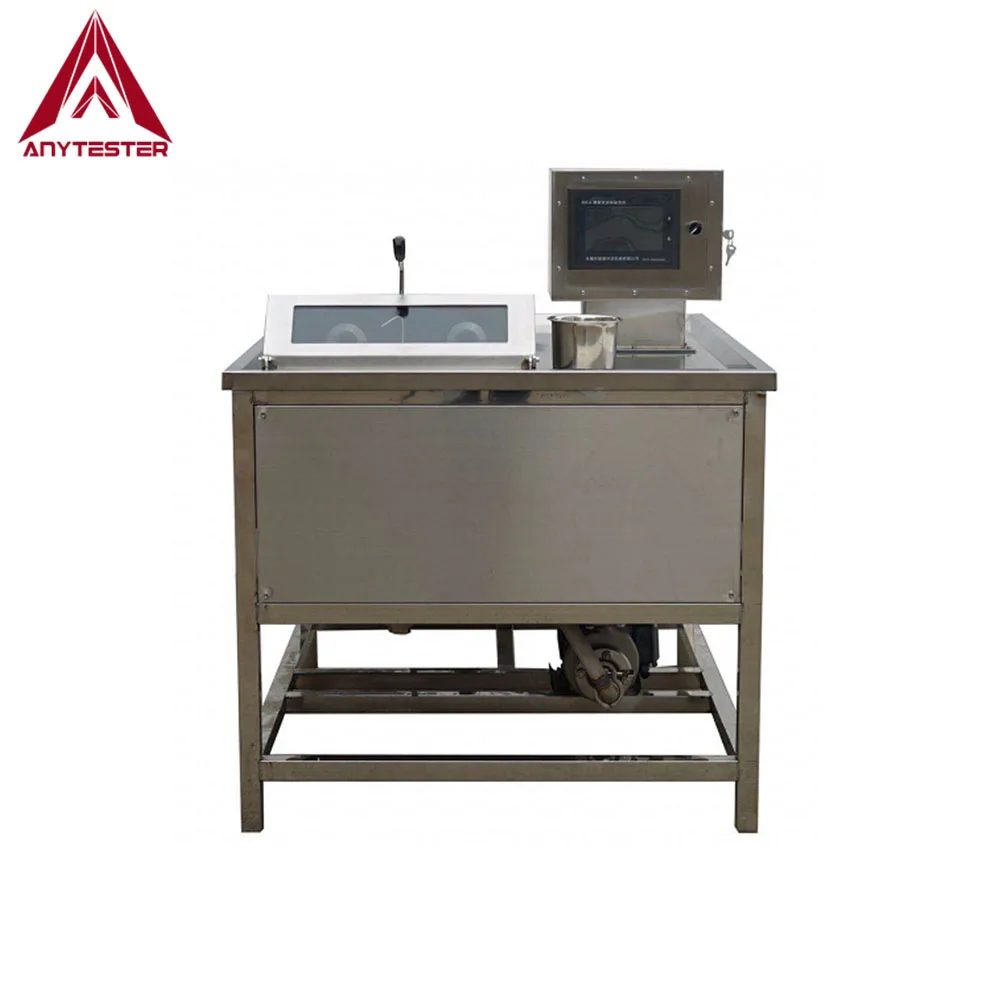

Лёгкая в эксплуатации электрическая нагревательная лабораторная Зажимная машина для окрашивания подходящая машины хлопкового льняного

Лёгкая в эксплуатации электрическая нагревательная лабораторная Зажимная машина для окрашивания подходящая машины хлопкового льняного

Категория: Textile Dyeing Machines >>>
Поставщик: Anytester (hefei) Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

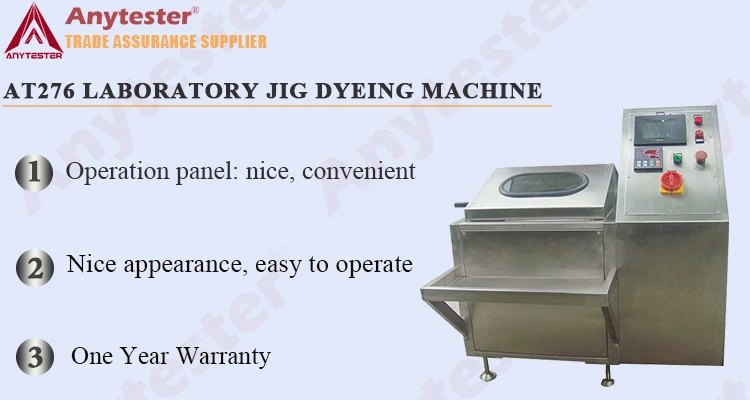

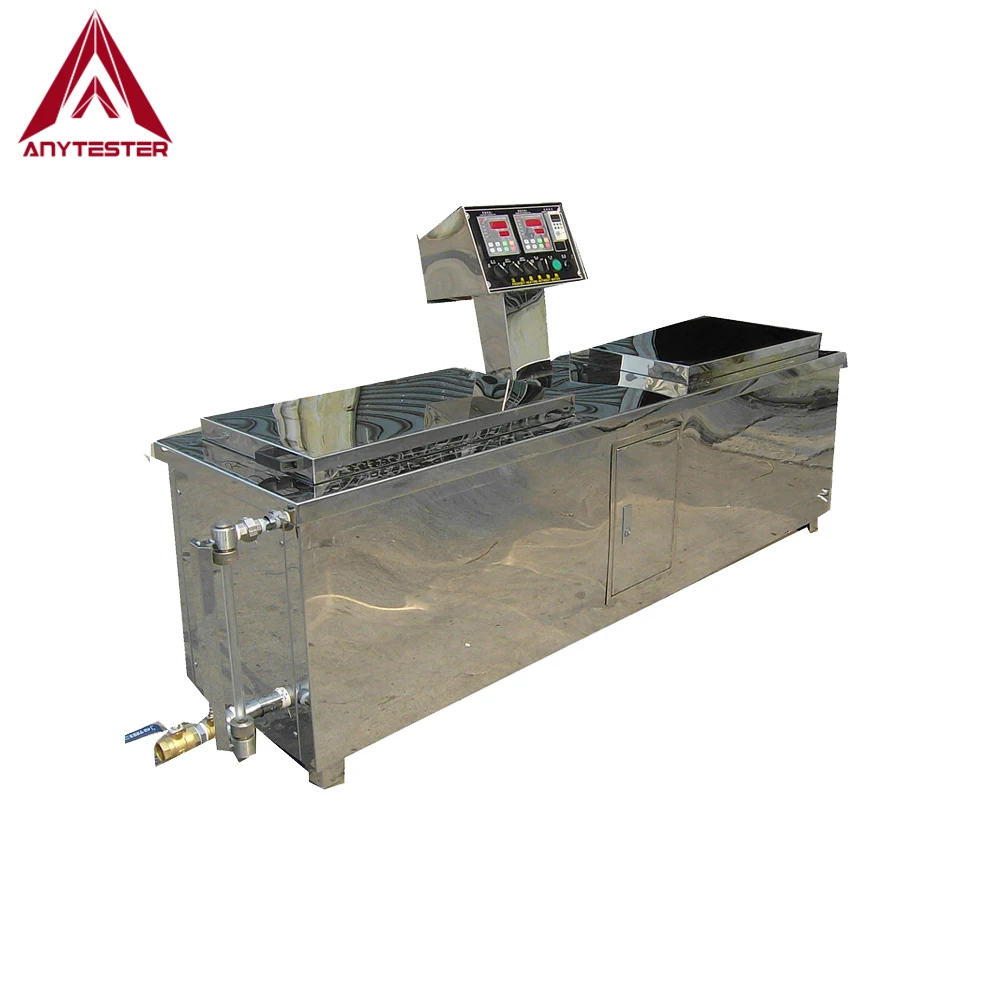

AT276 Laboratory Jig Dyeing Machine is special designed for lab normal temperature jig dyeing. It’s applicable to retreatment, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving. This jig dyeing machine is an ideal solution to cut down the waste of time and invest due to bad dyeing technology. It’s also helping you to develop new dyeing formula.

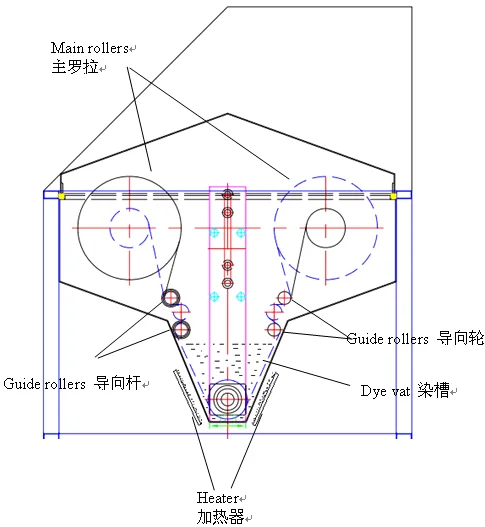

Structure

Specification

Model	AT276
Operation mode	Touch screen operation
Heating Method	electric heating (steam heating optional)
Rolling diameter	Φ57~200mm
Rolling width	≤500mm
Speed range	0~10m/min±0.01m/min, settable
Temperature range	R.T ~ 98℃±2℃
Temperature accuracy	±2℃
Heating Power	＜3kw
Liquid dosage	Approx. 1.8L
Machine power	Approx. 3kw
Power supply	3 Phase 220/380V, 50Hz
Dimensions	910×720×1150mm
Weight	Approx. 180kg

Details & Features

The main body adopts stainless steel material, nice appearance, easy to operate.

★Controller: industrial automation components, integrated optimization of process performance, integrated automatic control system with excellent high reliability.

★ Operation panel: nice, convenient, simple and intuitional.

★Constant cloth speed guarantee: adopts the two-roller mechanical constant-speed technology to basically guarantee the consistent speed of the cloth.

★Temperature control: digital display automatic temperature control system, accurately measure and control the temperature of dye liquid in the dyeing tank.

★Tension control: adopts two separate synchronous rollers control system, manual preset mechanical synchronization, ensures the system keeping a constant tension.

★ Motor: 2 sets of 180w precision control gear motor and 400w frequency converter control systems.

★ Dyeing tank: imported SUS304 stainless steel, more durable; trapezoidal structure, small liquid dosage.

★ Dye liquid circulation mode: automatic stirring, keep the dye liquid more even.

★ Winding cycles: automatically record, can be preset and measured & controlled.

★ Direction of rotation: automatically rotate backward and forward according to the cloth length and number of cycles.

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery

Packaging
Dimensions	14009001600mm
Weight	200kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
