XHC Ethernet Mach3 коммутационная плата 3 4 6 осей управления движением карты частота 2000 кГц контроллер для Токарный станок с ЧПУ гравировальный
- Категория: >>>
- Поставщик: Changzhou Relia Electric Co. Ltd.
Сохранить в закладки 1600640459360:
Описание и отзывы
Характеристики
Product Overview

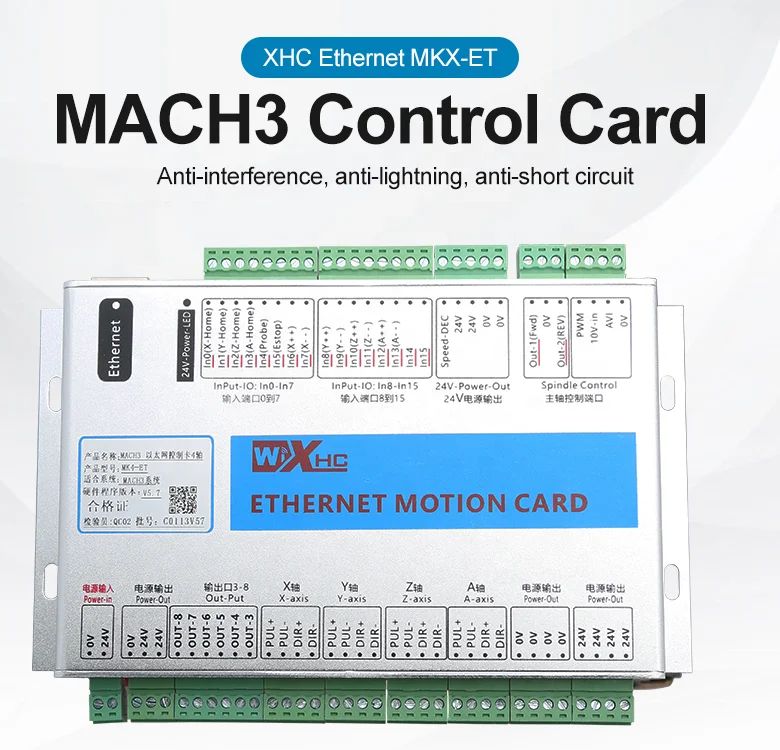

Mach3 ; 3 4 6-Axis Ethernet Motion Control Card
Application:
MKX-ET has 3 series:
1. MK3-ET: 3-axis motion card.
2. MK4-ET: 4-axis motion card.
3. MK6-ET: 6-axis motion card.
Applicable to Mach3 CNC system under all windows platform
Advantages of Ethernet control card:
1. Compared with USB transmission, it has better stability
2. Direct connection supports Ethernet cable of up to 10 meters, which is controlled by the switch, and the transmission distance
is longer
1. MK3-ET: 3-axis motion card.
2. MK4-ET: 4-axis motion card.
3. MK6-ET: 6-axis motion card.
Applicable to Mach3 CNC system under all windows platform
Advantages of Ethernet control card:
1. Compared with USB transmission, it has better stability
2. Direct connection supports Ethernet cable of up to 10 meters, which is controlled by the switch, and the transmission distance
is longer
Basic parameters
Brand:
WiXHC/core synthesis
Name: WINDOWS computer system control engraving
Warranty period: 1 year

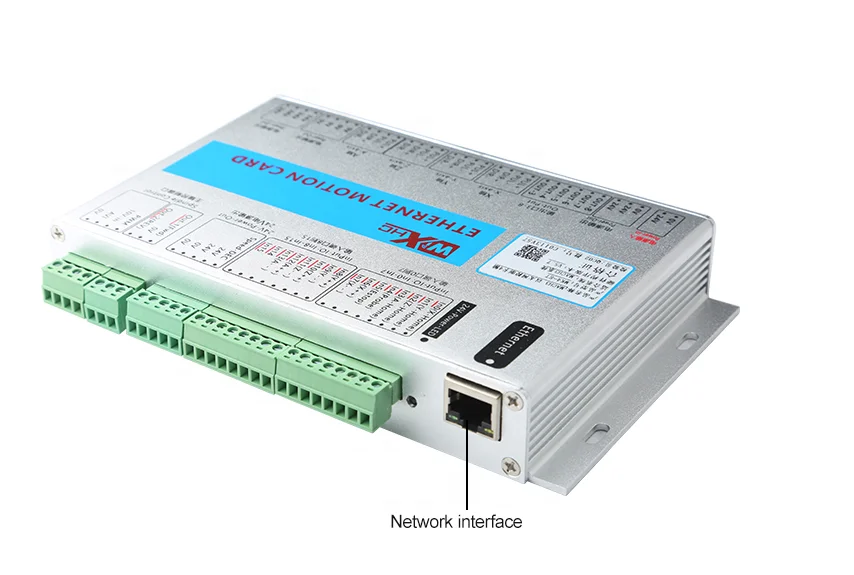

Interface: LAN interface
Input IO port: 16
Output IO port: 8
Pulse output speed: 2000KHZ
Support multi-axis linkage: 3-axis/4-axis/6-axis linkage
Software language: Chinese/English
Brand:
WiXHC/core synthesis
Name: WINDOWS computer system control engraving
Warranty period: 1 year
Interface: LAN interface
Input IO port: 16
Output IO port: 8
Pulse output speed: 2000KHZ
Support multi-axis linkage: 3-axis/4-axis/6-axis linkage
Software language: Chinese/English
Main features:
1. Supports all versions of Mach3, only applicable to Windows operating system, only supports Ethernet interface, and requires IP
communication address settings.
2. Support spindle speed feedback function.
3. Support power failure recovery function.
4. Support up to 10 meters of network cable, no need to install a driver, plug and play;
5. Support up to 6-axis linkage, including jog 6-axis linkage. (Depending on the model, the number of shafts is different)
6. With 2000KHz pulse output, the maximum step pulse frequency is 2000KHz, 16 general inputs and 8 outputs.
7. Support differential signal output
8. Support servo/step motor.
9. With status indicator, it can prompt the connection status, Mach3 connection status, running status, and various statuses at a
glance.

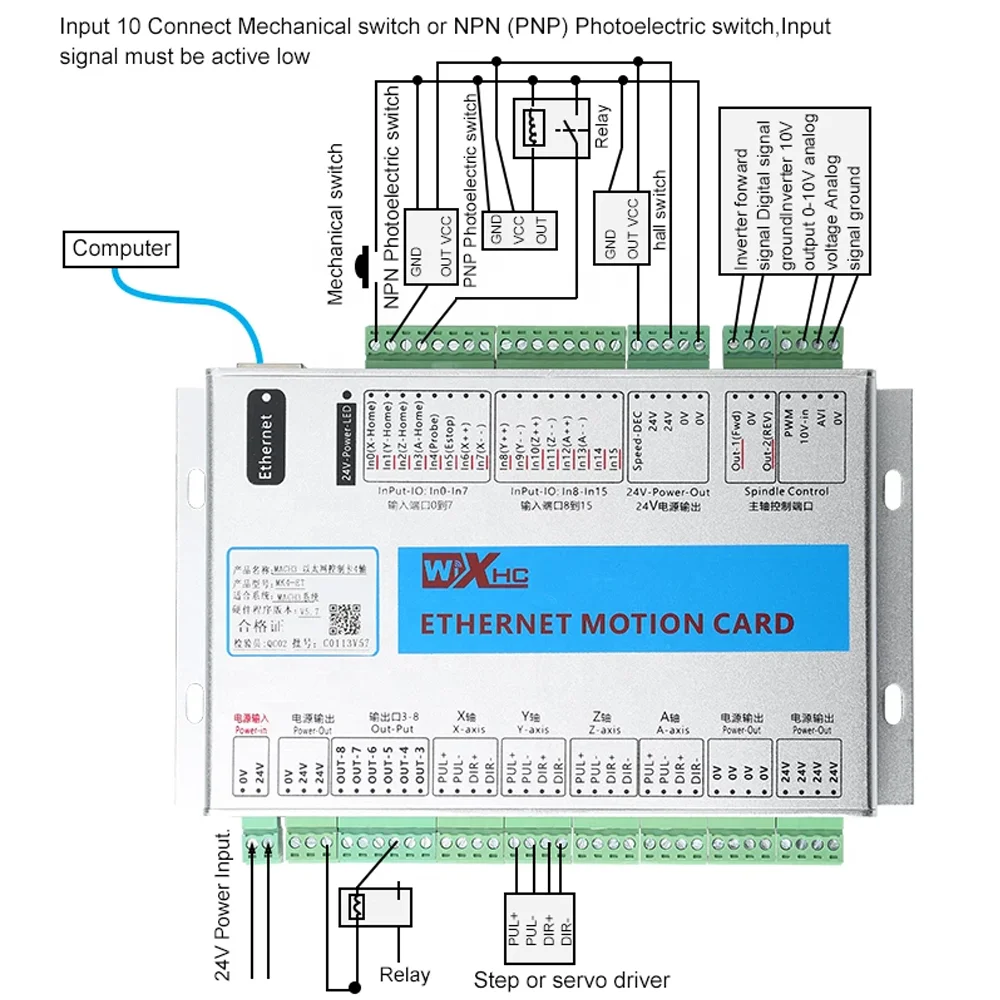

10. It has 16 input ports and 8 output ports, supports extended input and output isolation of all IO ports, strong
anti-interference and stable performance.
11. Support spindle PWM speed output; support spindle pulse and direction output;
12. Support spindle 0～10V analog voltage output.

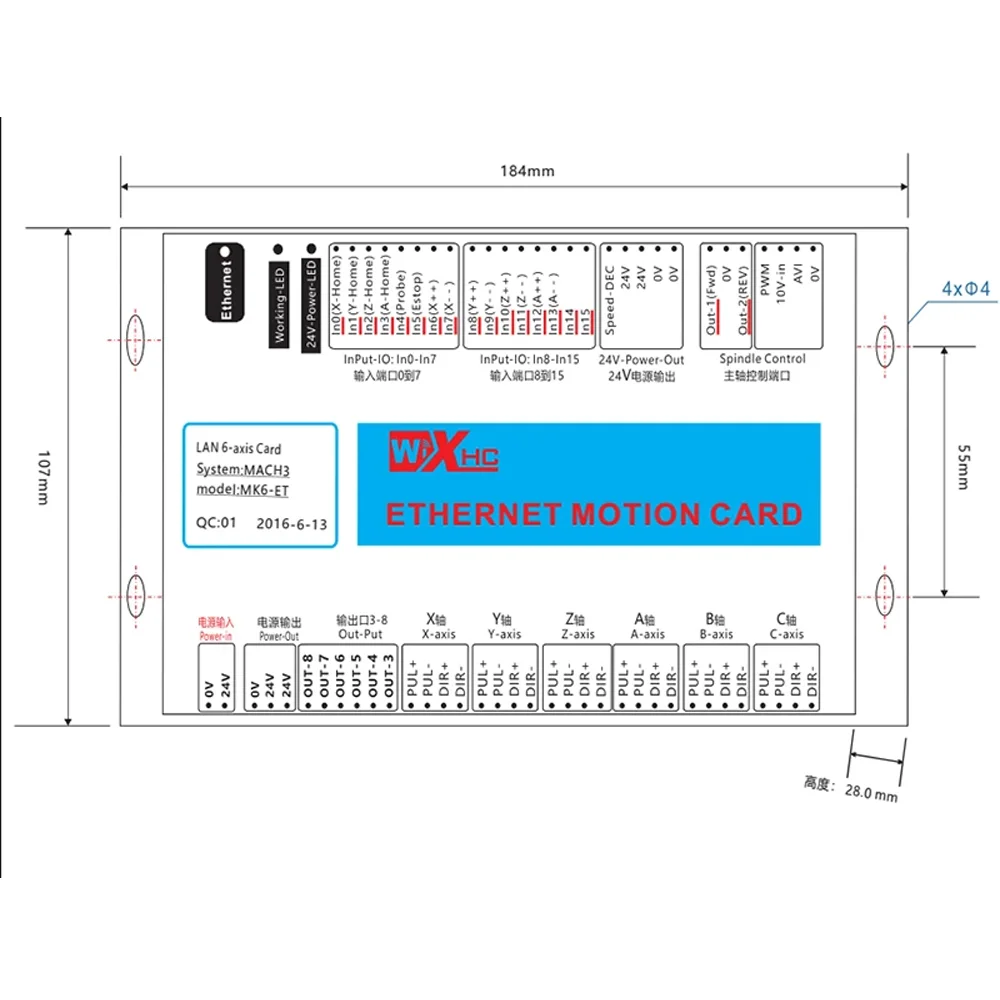

13. 184x127x30 mm, aluminum shell, shielding interference, stable and reliable.
1. Supports all versions of Mach3, only applicable to Windows operating system, only supports Ethernet interface, and requires IP
communication address settings.
2. Support spindle speed feedback function.
3. Support power failure recovery function.
4. Support up to 10 meters of network cable, no need to install a driver, plug and play;
5. Support up to 6-axis linkage, including jog 6-axis linkage. (Depending on the model, the number of shafts is different)
6. With 2000KHz pulse output, the maximum step pulse frequency is 2000KHz, 16 general inputs and 8 outputs.
7. Support differential signal output
8. Support servo/step motor.
9. With status indicator, it can prompt the connection status, Mach3 connection status, running status, and various statuses at a
glance.
10. It has 16 input ports and 8 output ports, supports extended input and output isolation of all IO ports, strong
anti-interference and stable performance.
11. Support spindle PWM speed output; support spindle pulse and direction output;
12. Support spindle 0～10V analog voltage output.
13. 184x127x30 mm, aluminum shell, shielding interference, stable and reliable.
