Products Description
Product Description:
Farmers are having hard time in maintaining the cow shed to clean the cow dung, they have to spend more time or they have to hire workers for more money.Once during a visit to a dairy farm we observed the hesitation of collecting cow dung by hand. It is a tough job cleaning the huge dung of so many cows every day.While interacting with the dairy farmer, we came to know that there was always shortage of manpower due to the nature of work involved.
This motivated make us to work on developing a machine to remove and collect cow dung without any physical contact.
This motivated make us to work on developing a machine to remove and collect cow dung without any physical contact.
Function:Removal the cow or beef cattle's dung.and trasport the dung to some place you need.
The Capacity range is customized from 3 cubic meter to 13 cubic meter.
Model | Dimension(L*W*H) (mm) | Engine | Power(HP) | Loading Weight(kg) | Machine Weight(kg) | Applicable Cow Farm Scale |
QF-3 | 4400x1800x2100 | YUNNEI 490 | 55 | 3000 | 2800 | 100-300 Cows |
QF-4 | 5000x1800x2100 | YUNNEI 490 | 55 | 4000 | 3500 | 300-500 Cows |
QF-8 | 5800x2100x2700 | YUNNEI 4102 | 64 | 8000 | 5000 | 500-1000 Cows |
QF-10 | 6000x2400x2700 | YUNNEI 4102T | 81 | 10000 | 6000 | 1000-2000 Cows |
QF-13 | 6200x2400x2800 | YUNNEI 4105 | 90 | 12000 | 7000 | 2000-3000 Cows |
Why do you need a cow dung collector?
A comfortable experience for the cows
The cows – and yourself – will experience little to no hindrance from the Discovery. The machine does not require cables or gutters. This ensures a more secure living environment for the cows. Thanks to its compact design the Collector can easily navigate in between the cows, , the sorting gates and around the cubicle passages and waiting area.
The cows – and yourself – will experience little to no hindrance from the Discovery. The machine does not require cables or gutters. This ensures a more secure living environment for the cows. Thanks to its compact design the Collector can easily navigate in between the cows, , the sorting gates and around the cubicle passages and waiting area.

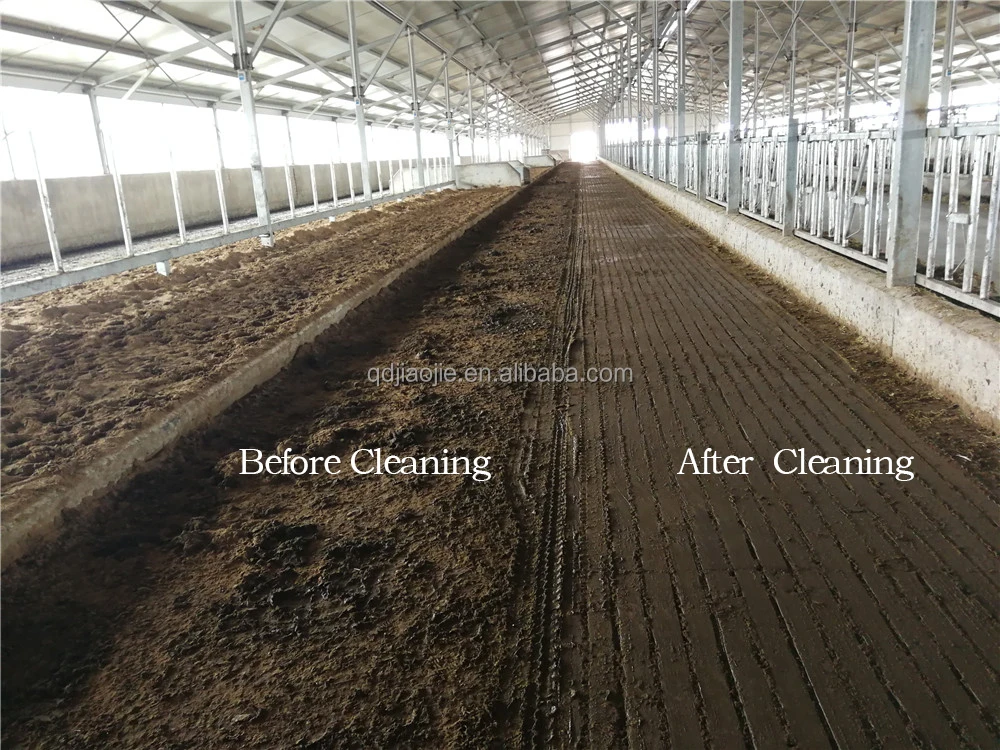

A cleaner floor results in cleaner hooves
The Collector is specifically designed for barns with solid floors and takes a revolutionary diverse approach when
compared to traditional manure scrapers. The Collector does not push manure, but use auger and chain to transmit it.
compared to traditional manure scrapers. The Collector does not push manure, but use auger and chain to transmit it.
This makes the build-up of manure –in which cows stand – a thing of the past. This not only makes for a cleaner floor, it also ensures the cows’ hooves remain cleaner. This improves both cow health and the well-being of the animals.

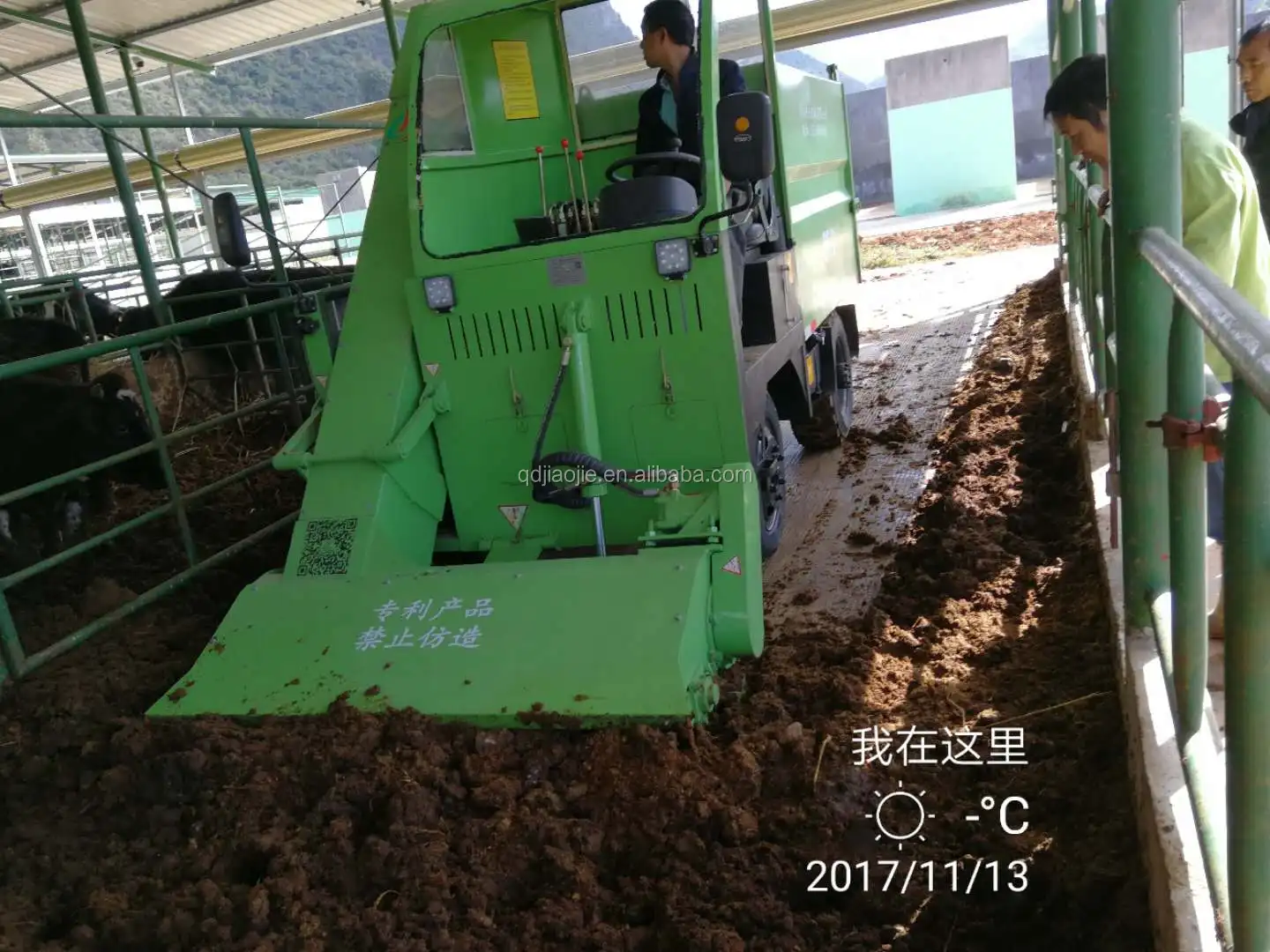

Save a lot of labor
It needs only one worker to operate and can finished 1000 cows farm's manure collecting within 2 hours which makes this job easier.It is very effective and labor saving. It can load and unload automatically,after the dung/manure collect work is over, you can transport the dung/manure to where you need it.
Details Images

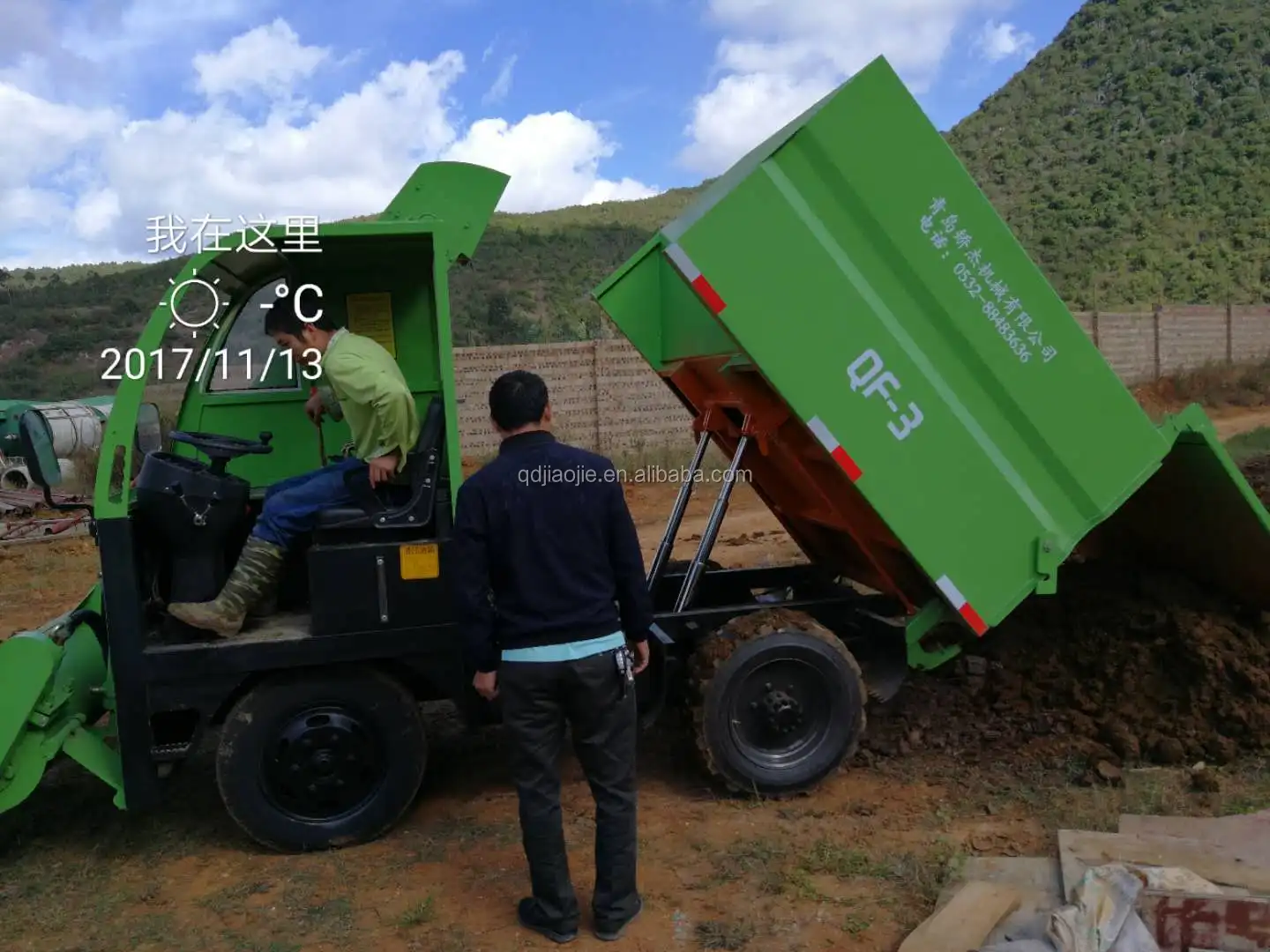

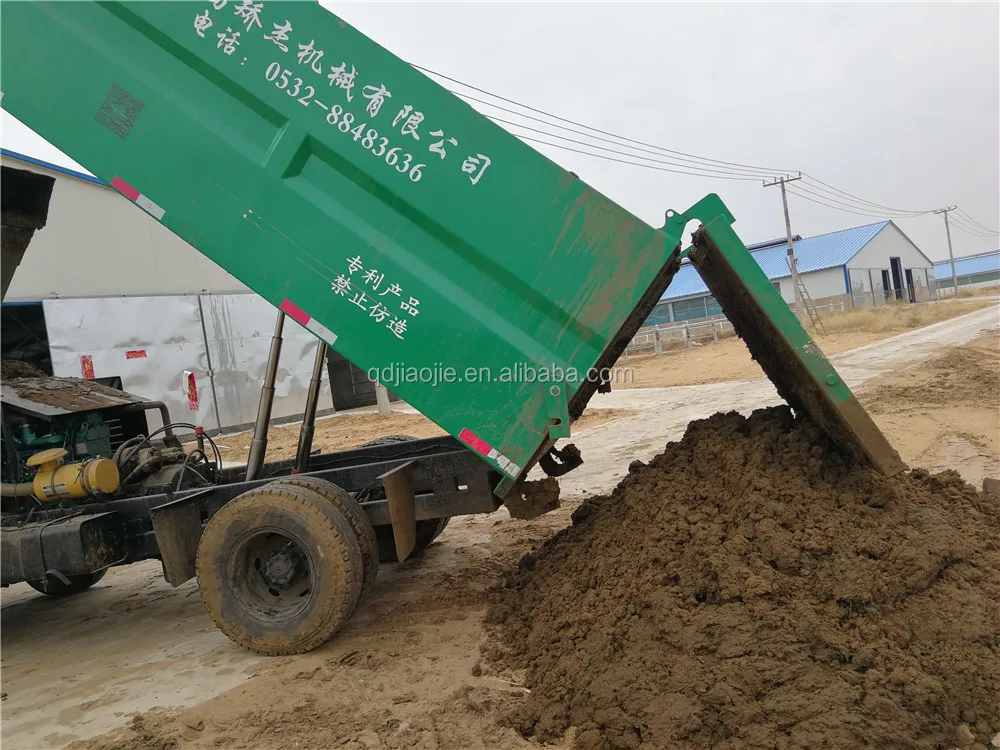

Self-unload Rod
The driver can operate the rear bucket rod to lift it up,the hydraulic jack will lift the bucket up enough,and the rear door will be automatically opened,without any physical contact.
Diesel Engine
YUNNEI 490/4102/4105 powerful diesel engine
4 cyclinder,strong power and low fuel consumption,easy maintenance
Type
Strong grip capacity, large loading tonnage
Bottom Wheel
Make the shovel slide to rub the ground with the ground to reduce resistance, no hurt the ground,and lower energy consumption.
Camera
The camera is distributed in 3 positions:
Front side
Rear side
Above the rear bucket box
Front side
Rear side
Above the rear bucket box
Monitor display
The 3 cameras form a complete monitoring system. The driver can clearly observe the situation on the front and right side,Reversing, and the rear bucket inside. No blind spot.
Operate Rod
Only need one driver sit on the cab to push and pull the rod to complete the dung work, save labor a lot.Easy to operate.
Chain Lifting
When the shovel collect some dung/manure, they will be transported into the rear back through the chain and rubber plates.

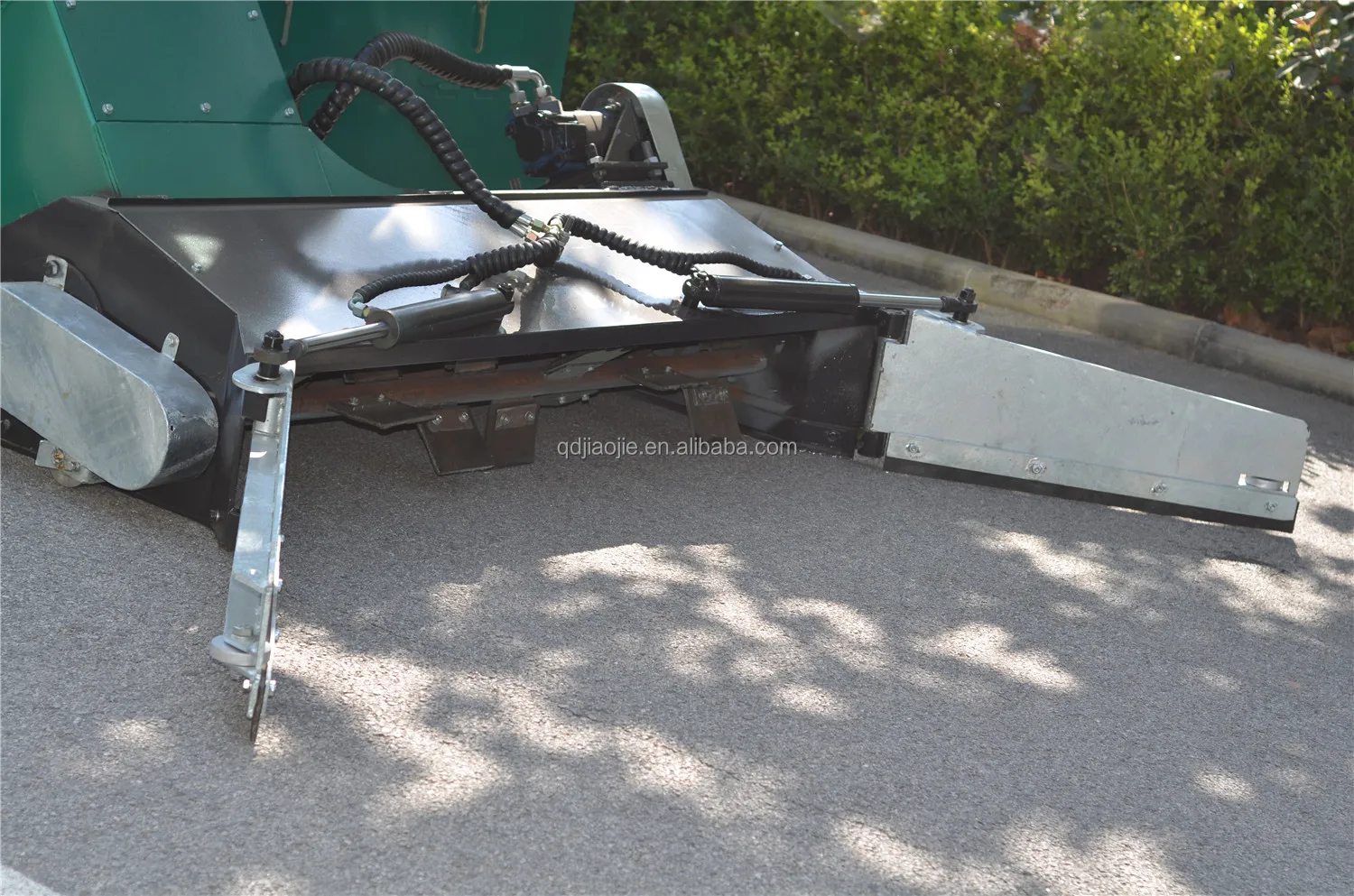

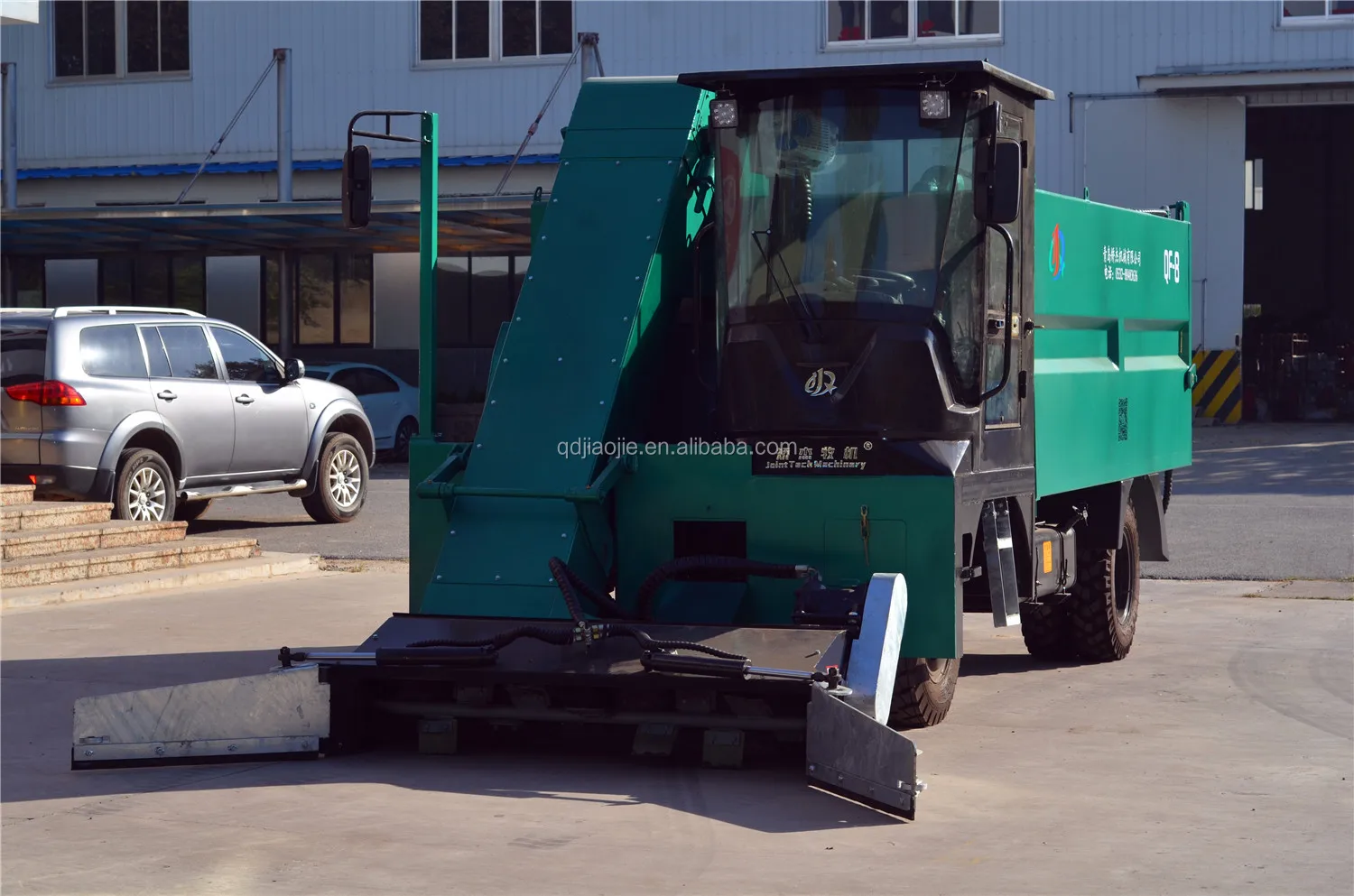

Flexible working width
The hydraulic oil cylinder expands the steel plate to both sides, which can freely adjust the width of the work. The maximum cleansing width can reach 3.6 meters,which greatly improves the work efficiency.
Air Conditioner,Fan
Comfortable working condition
3m3 Capacity:

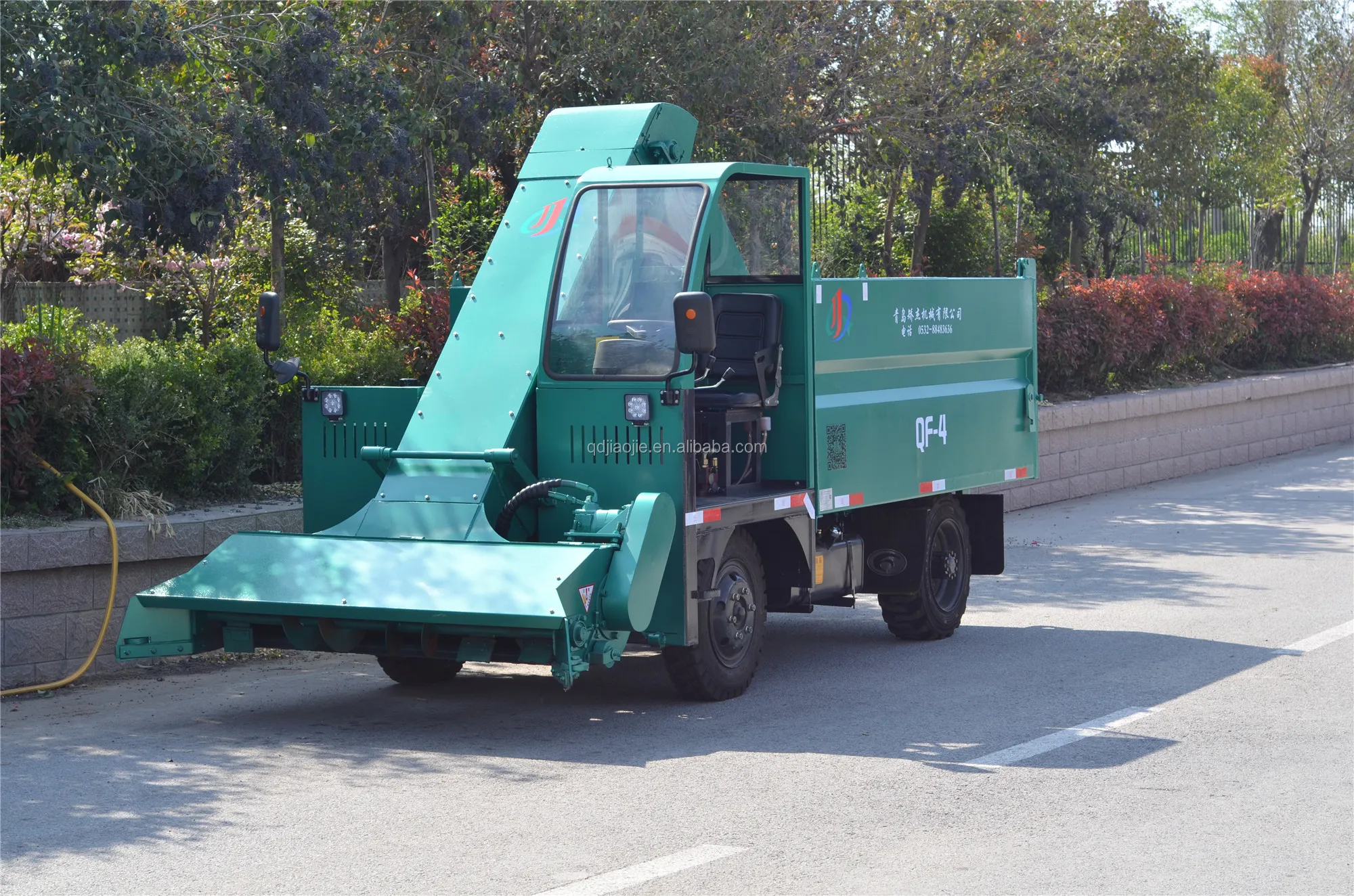

4m3 Capacity:

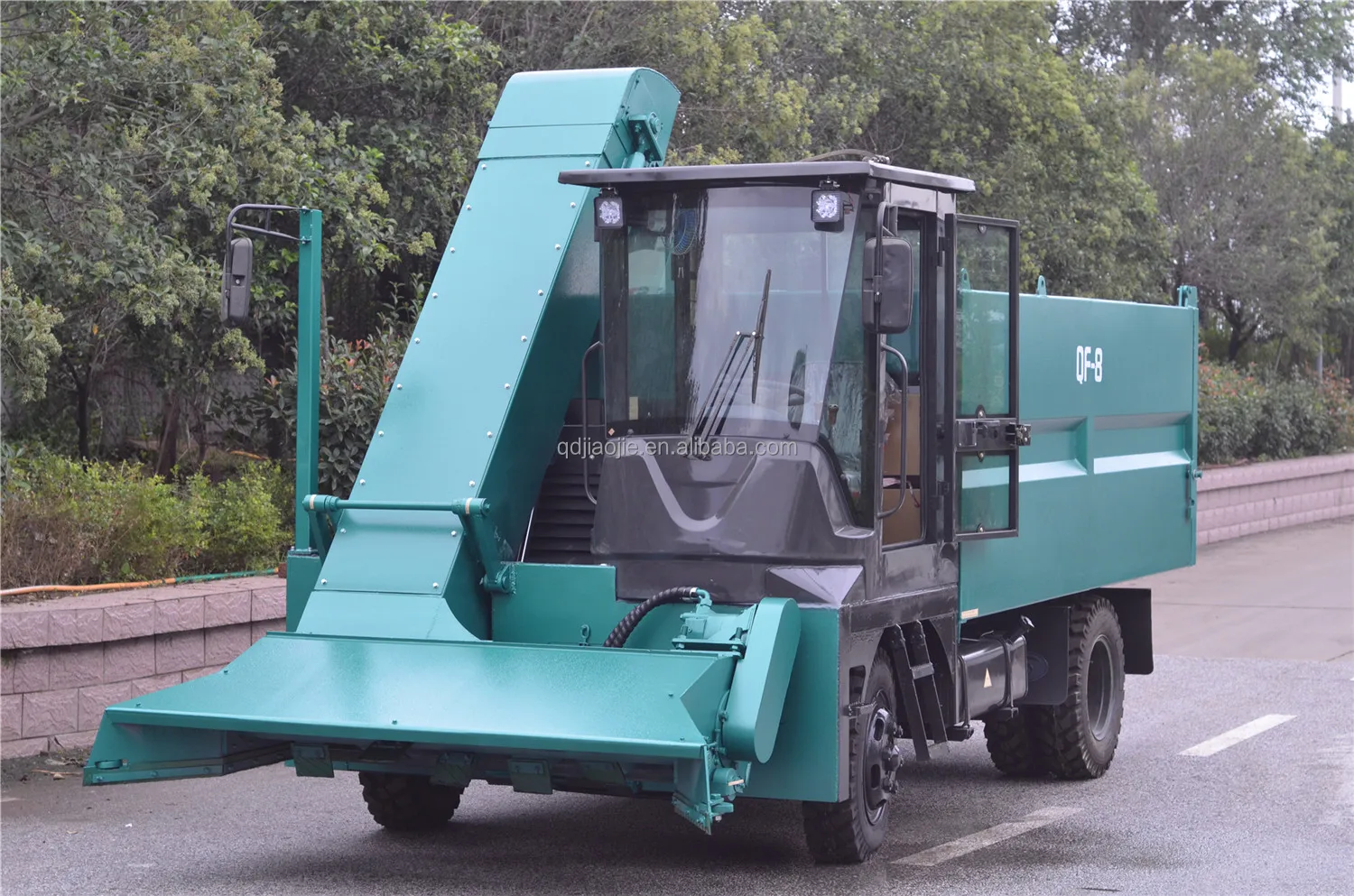

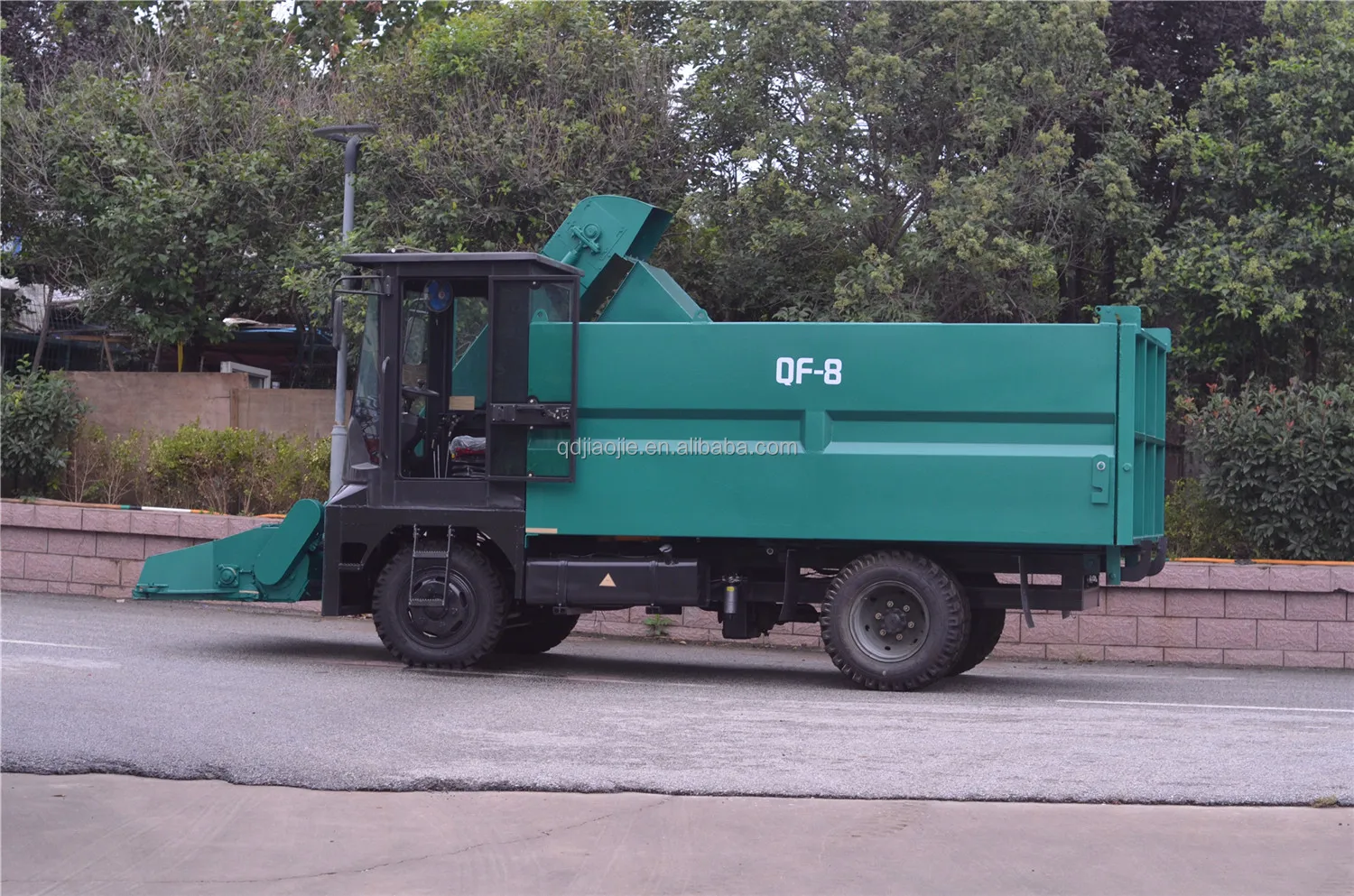

8m3 Capacity:
Production in workshop:
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
JointTech Around The World
It serves customers in the United States, Canada, Mexico, Peru, Spain, Israel, Malaysia,Pakistan, and other more than 30 countries world-wide.
Do you want to become a Dealer?
Here you will find Stationary type,Tractor mounted type and Self-propelled type feed mixers. Our TMR feed mixers are available in different sizes and with various discharge options, so you will always find the right mixer machine for your situation.Livestock feeding has never been this easy.
If you would like more information or you have any questions about being a Dealer, do not hesitate to get in touch using the contact form, by Email: jointtech_mary@163.com or by phone on +86 183 6627 2016.
Payment and Shipping
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 10 years of experience in this industry.
2.Q: How can I get to your company?
A: You can get a flight to Qingdao Airport. We are just about 40- 50mins away from Qingdao Airport.
3.Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer's side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
Похожие товары
Лидер продаж скребок для навоза домашней птицы автоматический куриных ферм система удаления куриного
62 537,01-66 272,36 ₽
Простая в эксплуатации машина для очистки скребка навоза свиньи курицы коровы
16 507,85-18 676,76 ₽
Оборудование для молочной фермы машина очистки навоза бычьего животного удаления
Машина для очистки коровьего навоза
240 990,40-265 089,44 ₽
Распродажа бензиновый двигатель очиститель навоза для свиней машина очистки коровьего сборщик конского
359 075,70-386 789,60 ₽

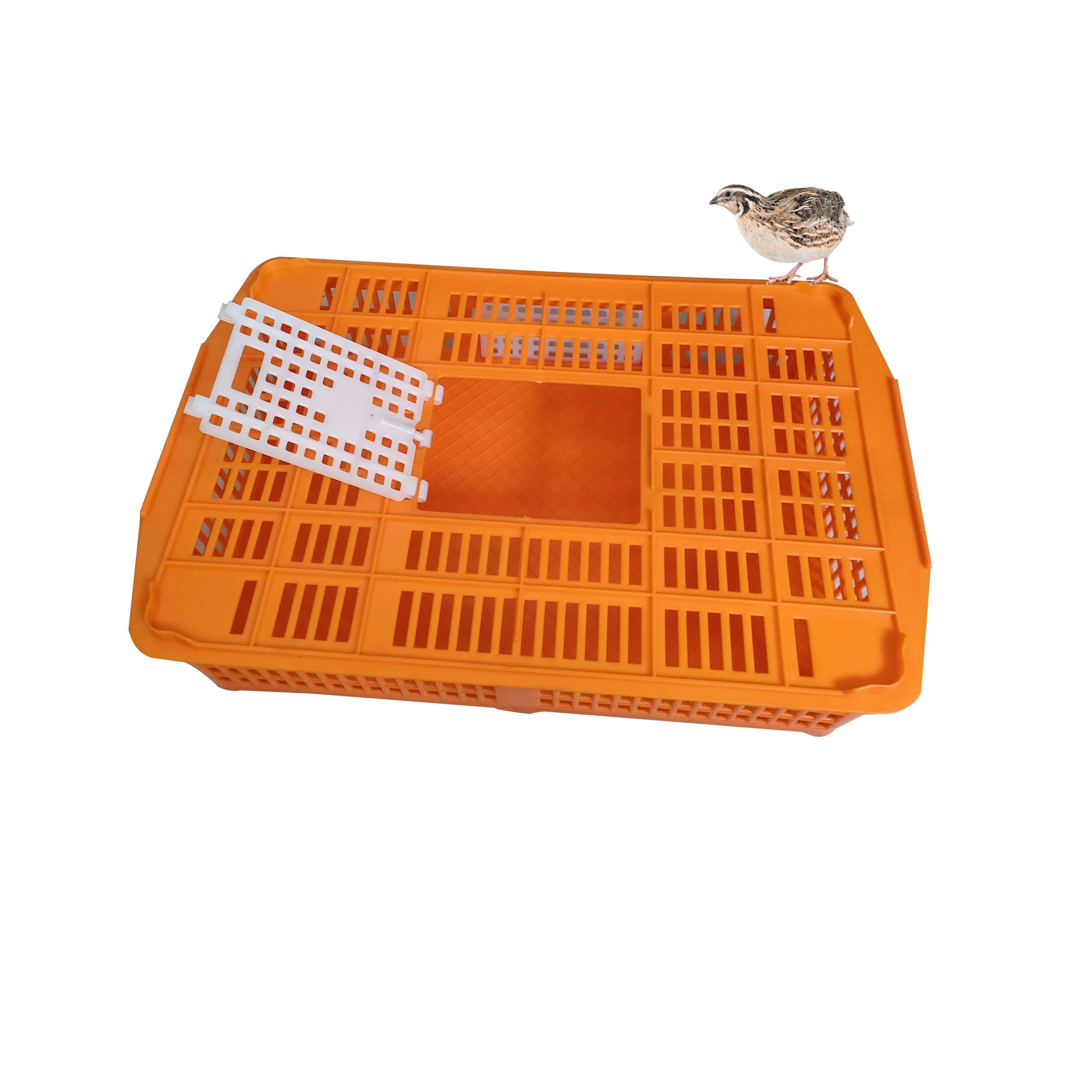

LMC-03 ящик для перевозки птиц пластиковая клетка перепелов корзина мелких
