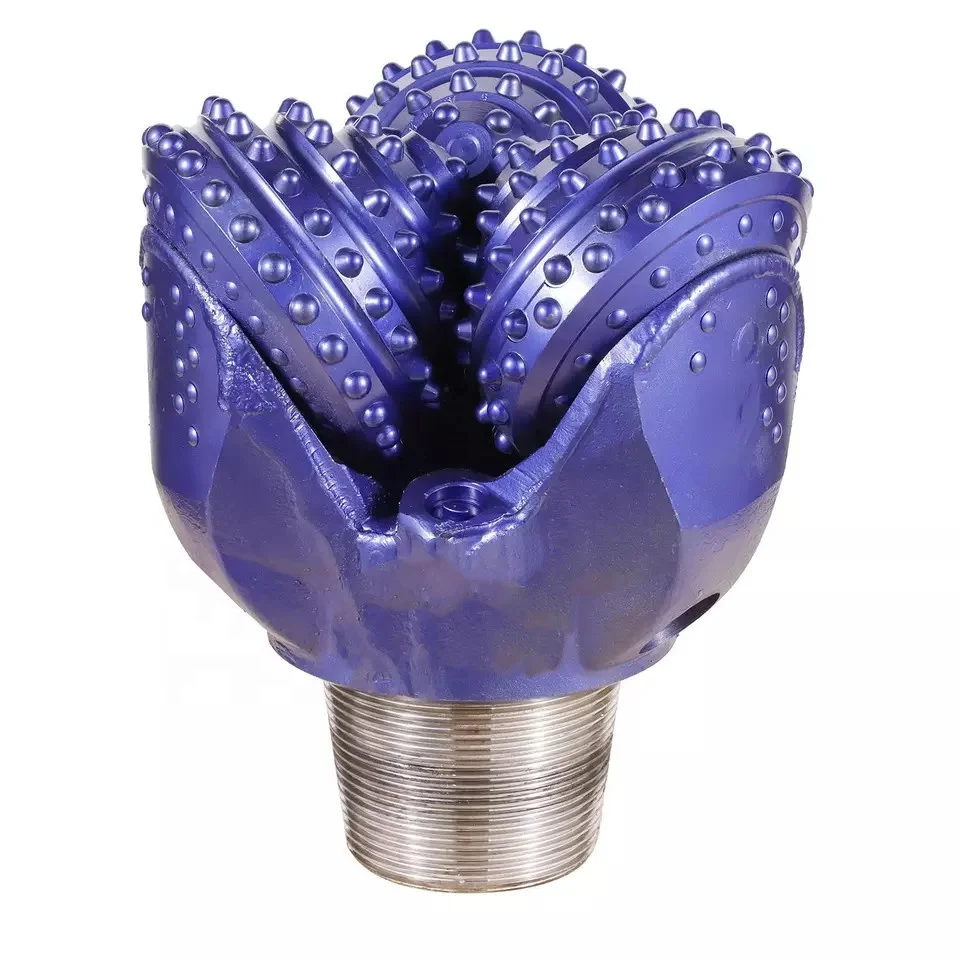

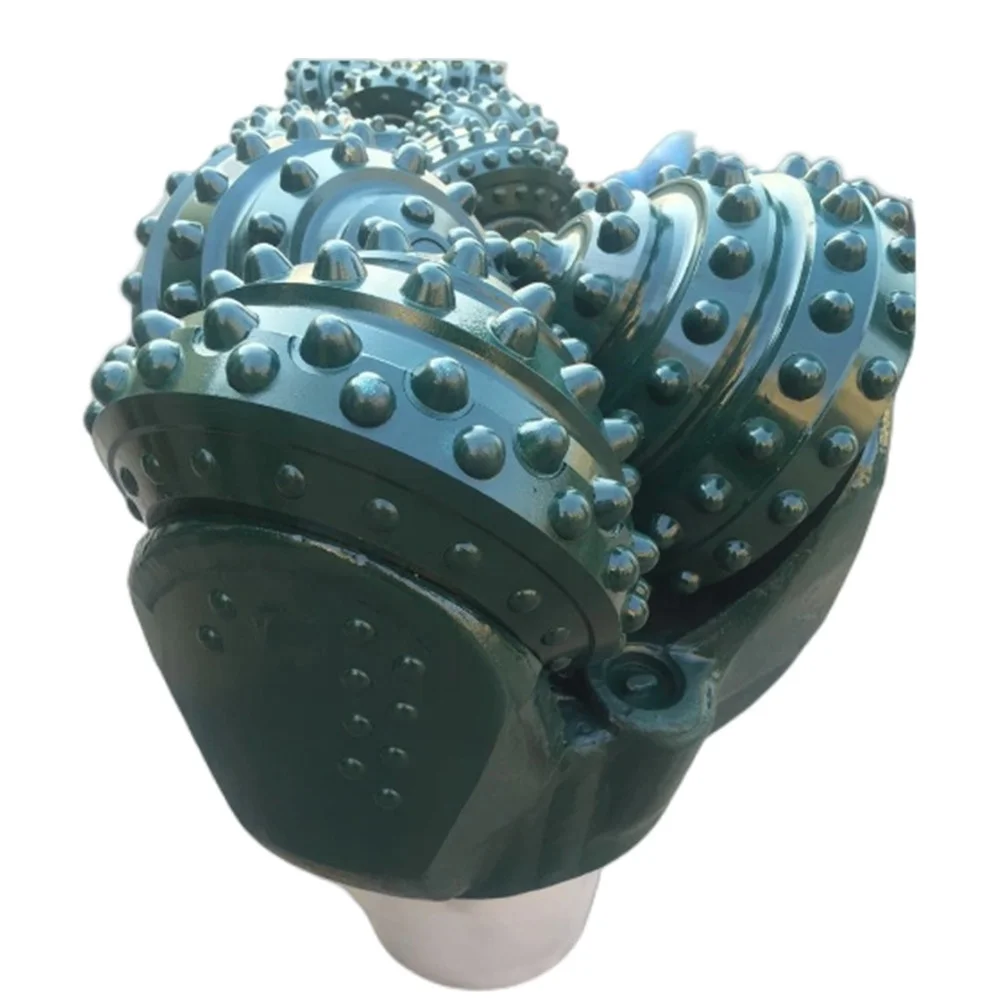

Трехшарошечное долото IADC637 API 12 дюймов 5/8 дюйма трехшарошечное для бурения нефтяных месторождений
- Категория: >>>
- Поставщик: Hunan Tianying Drilling Machine Manufacturing Co. Ltd.
Сохранить в закладки 1600640704788:
Описание и отзывы
Характеристики
Product Overview
12 5/8 Inch IADC637 API Tricone Hard Rock Bit Open Or Sealed Bearing Tricone Bit Three Cone Bits For Oilfiled
Rock drilling tools factory Hunan Tianying drilling tools manufacture a complete line of tricone, bicone bit which are available in new tungsten carbide insert, size from 6”(152.4mm) to 17-1/2”(445mm) for use in all formations, with any bearing/seal type, and a wide range of additional custom features.
Regular Models of Tricone Bits | ||||||
Regular Sizes | Regular IADC | API Reg Pin | Make-up Torque(N.m) | |||
3 7/8"(98.4mm) | 126/216/517/537/637 | 2 3/8 | 4100~4700 | |||
4 5/8"(117.4mm) | 126/216/517/537/637 | 2 7/8 | 6100~7500 | |||
5 1/2"(139.7mm) | 126/216/517/537/617/637 | 3 1/2 | 9500~12200 | |||
5 5/8"(142.8mm) | 126/216/517/537/617/637 | 3 1/2 | 9500~12200 | |||
5 7/8"(149.2mm) | 126/216/517/537/617/637 | 3 1/2 | 9500~12200 | |||
6"(152.4mm) | 126/127/216/517/537/617/637 | 3 1/2 | 9500~12200 | |||
6 1/4"(158.7mm) | 126/127/216/517/537/617/637 | 3 1/2 | 9500~12200 | |||
6 1/2"(165mm) | 126/127/216/517/537/617/637 | 3 1/2 | 9500~12200 | |||
7 1/2"(190mm) | 126/216/517/537/637 | 4 1/2 | 16300~21700 | |||
7 5/8"(193mm) | 126/216/517/537/637 | 4 1/2 | 16300~21700 | |||
7 7/8"(200mm) | 126/216/517/537/637 | 4 1/2 | 16300~21700 | |||
8 1/2"(215.9mm) | 117/127/217/437/517/537/617/637 | 4 1/2 | 16300~21700 | |||
9 1/2"(241.3mm) | 117/127/217/437/517/537/617/637 | 6 5/8 | 38000~43400 | |||
9 7/8"(250.8mm) | 117/127/217/437/517/537/617/637 | 6 5/8 | 38000~43400 | |||
10 5/8(269.8mm) | 117/127/137/217/517/537/617/637 | 6 5/8 | 38000~43400 | |||
11 5/8(295.3mm) | 117/127/137/217/517/537/617/637 | 6 5/8 | 38000~43400 | |||
12 1/4"(311.1mm) | 114/127/217/437/517/537/617/637 | 6 5/8 | 38000~43400 | |||
13 5/8"(346.0mm) | 127/217/517/537/617/637/737/837 | 6 5/8 | 38000~43400 | |||
14 3/4"(374.6mm) | 127/217/517/537/617/637/737/837 | 7 5/8 | 46100~54200 | |||
17 1/2"(444.5mm) | 114/115/125/215/515/535/537/615/635 | 7 5/8 | 46100~54200 | |||
20''(508.0mm) | 114/115/125/215/515/535/537/615 | 7 5/8 | 46100~54200 | |||
22''(558.8mm) | 114/115/125/215/515/535/537/615 | 7 5/8 | 46100~54200 | |||
24''(609.6mm) | 114/115/125/215/515/535/537/615 | 7 5/8 | 46100~54200 | |||
26"(660.4mm) | 114/115/125/215/515/535/537/615 | 7 5/8 | 46100~54200 | |||
FEATURES AT A GLANCE
12 5/8 Inch IADC637 API Tricone Hard Rock Bit Open Or Sealed Bearing Tricone Bit Three Cone Bits For Oilfiled
1. The tricone roller bit working life is according the drilling formation and the drilling rig.
2. Rock formation: Very soft with low compressive strength and high drillability, such as shale, clay, sandstone and conglomerate,
etc.
3. Journal bearing. Hard faced bearing surface. Inner hole of cone is silver-plated. The load capacity and seizure resistance of
the bearing is greatly improved.
4. O ring seal is made of the more wear resistant and high saturated buna-N with the increased seal section and precisely designed
scaling flange in the cone sealing area has increased the reliability of the seal.
5. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication
system and this provides the bearing system with good assurance of lubrication.
6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high
strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped
compacts. For steel booth bit, the tooth surface is hard faced with new type of wear resistant material and thus has extended
working life of the cutting structure while still maintaining high ROP.
2. Rock formation: Very soft with low compressive strength and high drillability, such as shale, clay, sandstone and conglomerate,
etc.
3. Journal bearing. Hard faced bearing surface. Inner hole of cone is silver-plated. The load capacity and seizure resistance of
the bearing is greatly improved.
4. O ring seal is made of the more wear resistant and high saturated buna-N with the increased seal section and precisely designed
scaling flange in the cone sealing area has increased the reliability of the seal.
5. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication
system and this provides the bearing system with good assurance of lubrication.
6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high
strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped
compacts. For steel booth bit, the tooth surface is hard faced with new type of wear resistant material and thus has extended
working life of the cutting structure while still maintaining high ROP.
PRODUCT SPECIFICATIONS
No | Item | 12 5/8 Inch IADC637 API Tricone Hard Rock Bit Open Or Sealed Bearing Tricone Bit Three Cone Bits For Oilfiled |
1 | IADC | 637 |
2 | Diameter | 12 5/8" |
3 | Bearing type | Sealed bearing |
4 | WOB(KM/MM) | 0.5~3.2 |
5 | RPM (r/min) | 80~40 |
6 | Applicable formation | Hard formation with high compressive strength ,such as hard shale,sandstone,dolomite, hard gypsum,chert,granite,etc. |
7 | Weight | 120 kg |
Application
SIMILAR PRODUCTS
FAQ
Похожие товары
Подушки и подушки из полиэфирного штапельного волокна 3D 32 мм HCS
Углеродистая сталь горячекатаная мягкая сталь MS круглый бар SS400 SAE1020 SAE1045
478,00 $ - 642,00 $
Красная зеленая синяя желтая фиолетовая розовая цветная светодиодная лампа 3528 SMD LED
0,07 $ - 0,08 $
Разборки портативный 20 куб складное полипропиленовое хранилище панели DIY гостиная спальня Одежда хранения Организатор гардероб из пластикового шкафа
24,00 $ - 29,50 $
Эко-сольвентный принтер R1390, чернильный коврик L1800 1400 1300 R1430 1500 Вт, укупорочная станция для EPs-машины
8,00 $ - 8,50 $
Тонкие водонепроницаемые чехлы для мобильных телефонов, трендовый противоударный мягкий чехол с гальваническим покрытием для Huawei Nova 10 из ТПУ, настраиваемый чехол для телефона
0,69 $ - 0,74 $

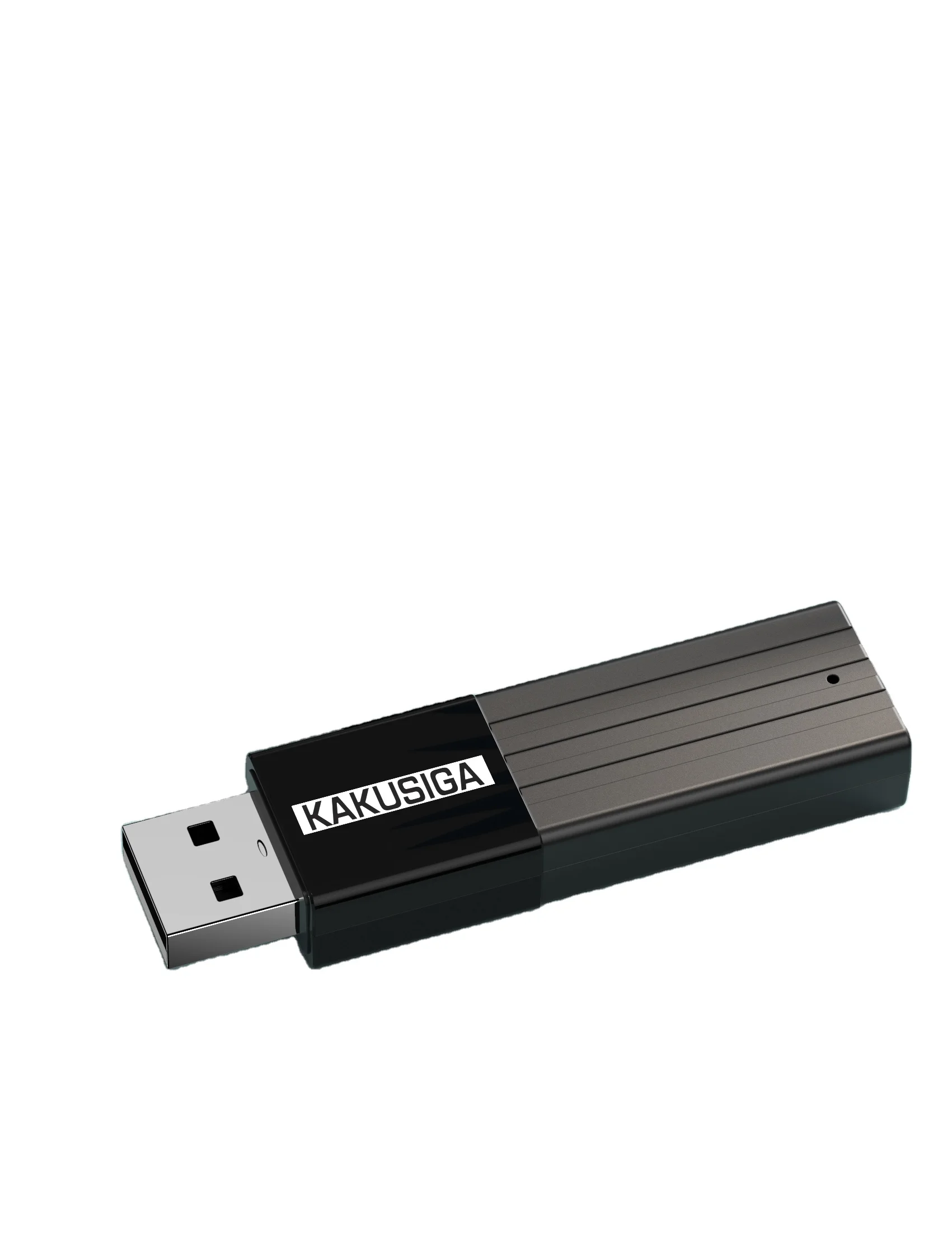

2 в 1 кард-ридер USB2.0 KAKU/KAKUSIGA Новое поступление OTG ABS 480 м/с 5В USB TF Card Reader слот для карт памяти адаптер конвертер
