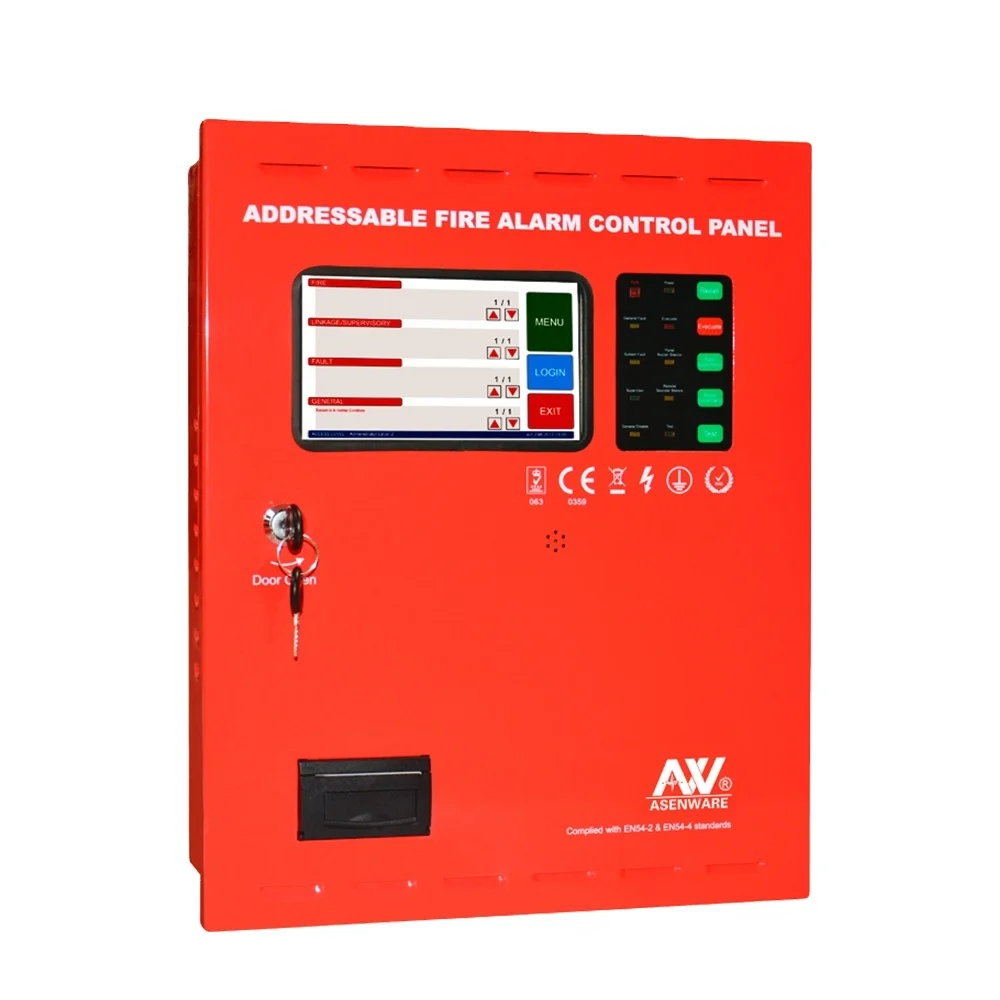

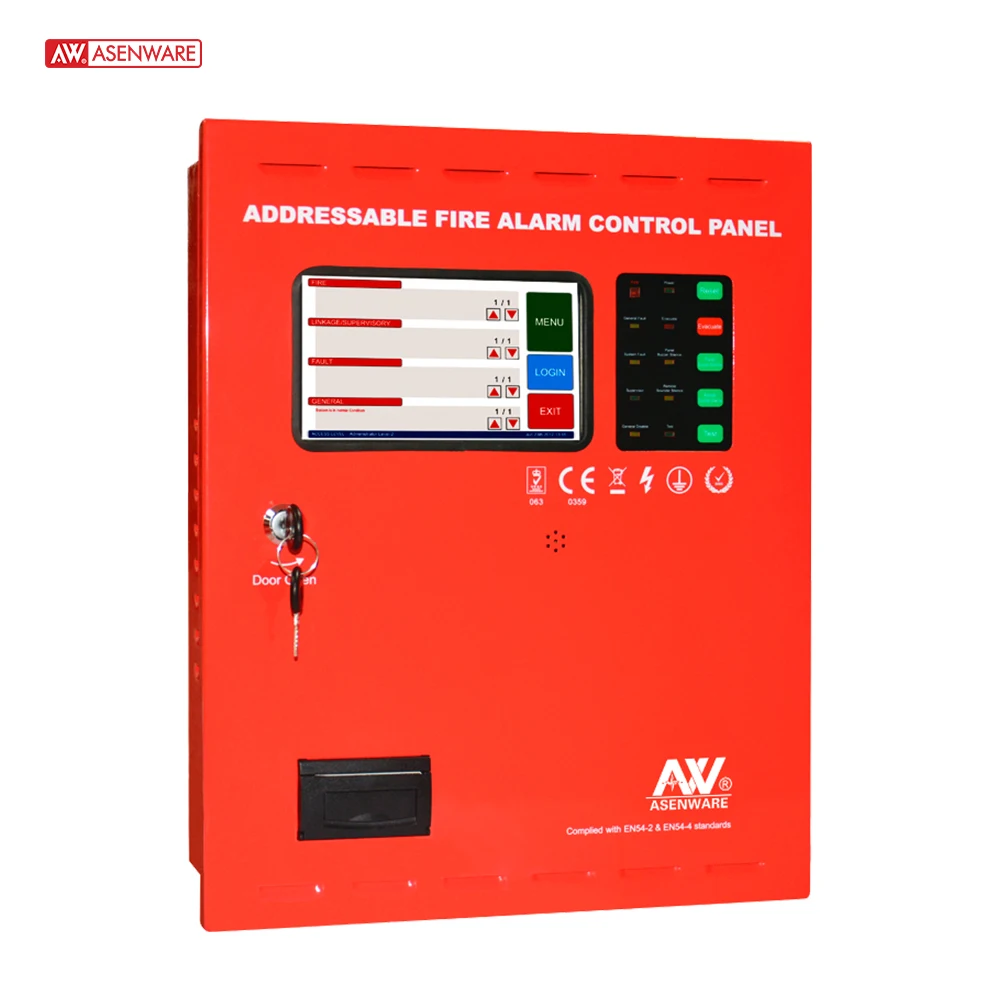

Адресная пожарная сигнализация с многоязычной сенсорной панелью
- Категории: Fire Alarm Control Panels >>>
- Поставщик: Zhongshan,Guta,Fire,Equipment,Technology,Co.,Ltd.
Сохранить в закладки:
Описание и отзывы
Характеристики
Product Description
Model | AW-FP100 |
Main Voltage | 220VAC 50HZ/60HZ |
Batteries | 2*12V/ 2.3Ah sealed lead acid gel, self-regulated |
Battery low-voltage protection | 21V |
Max points (detector and MCP) of zone | 20detectors with 10 MCPs |
Zone alarm current | 6mA minimum/ 27mA maximum |
Sounder output | 2*0.15A maximum |
Relay contacts rating | 1A @24VDC |
EOL resistor for zone and outputs | 6.8K ohm 1W |
Environmental | Class A temperature range: -5 to 40°C (23~104°F) Humidity: 5 to 95% RH, non-condensing |
Fuse for AC Power | 1 A/ 250V glass tube fuse slow blow 5 X 20mm |
Fuse for DC Power | 500mA/ 250V glass tube fuse fast blow 5 X 20mm |
Terminal blocks rating | All terminals rated for 12 to18 AWG(0.75 to 2.5 mm²) |
Why choose us
Certifications
Company Profile
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.
