35 мм рейку напряжение переменного тока передатчик 220V 2 провода 3 4
- Категория: Sensors >>>
- Поставщик: Anhui Qidian Automation Technology Co. Ltd.
Сохранить в закладки 1600643099309:
Описание и отзывы
Характеристики
Product Description

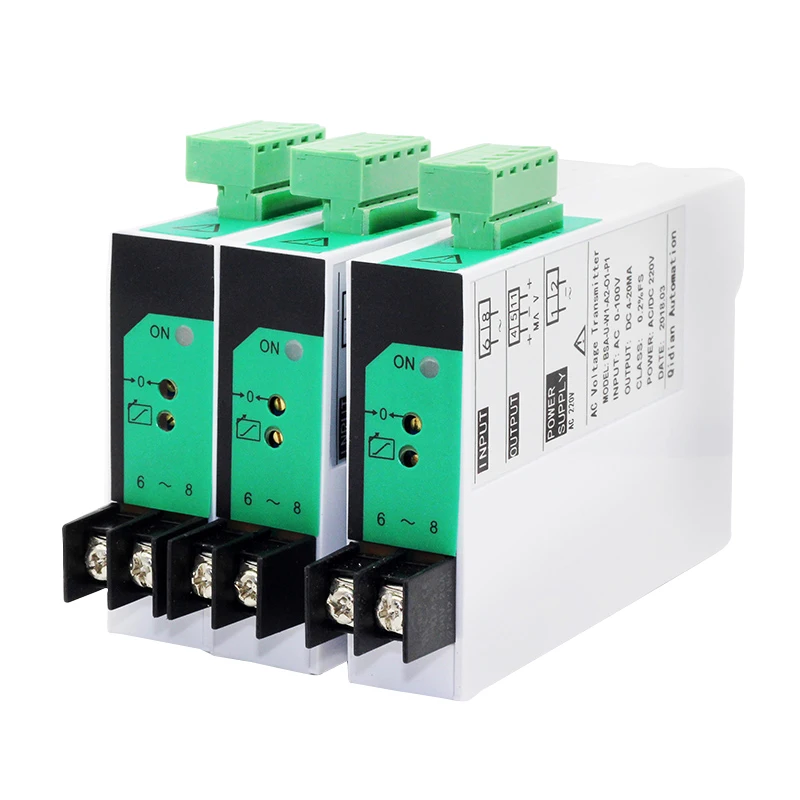

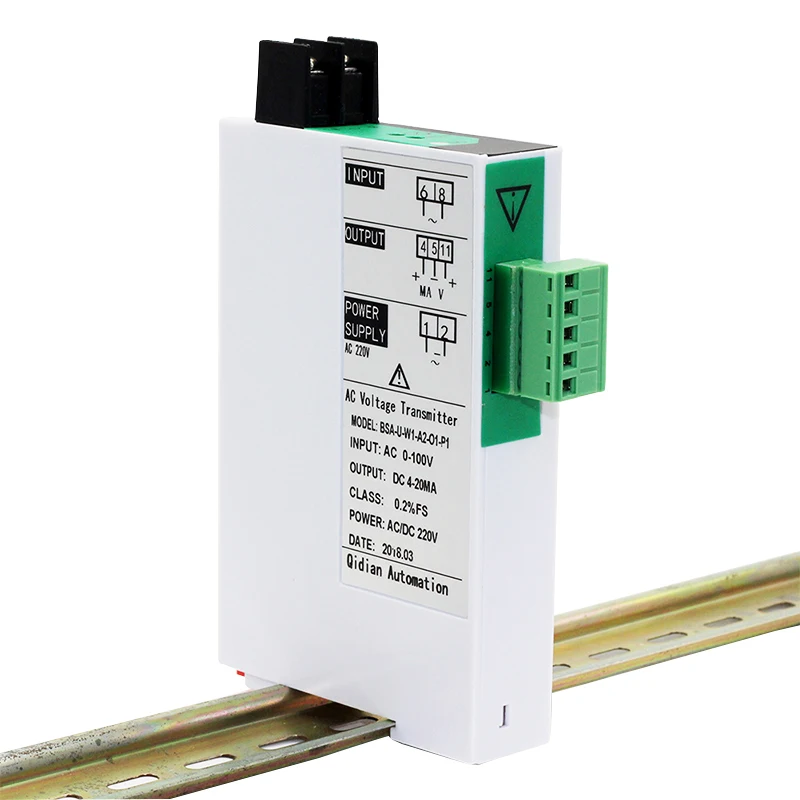

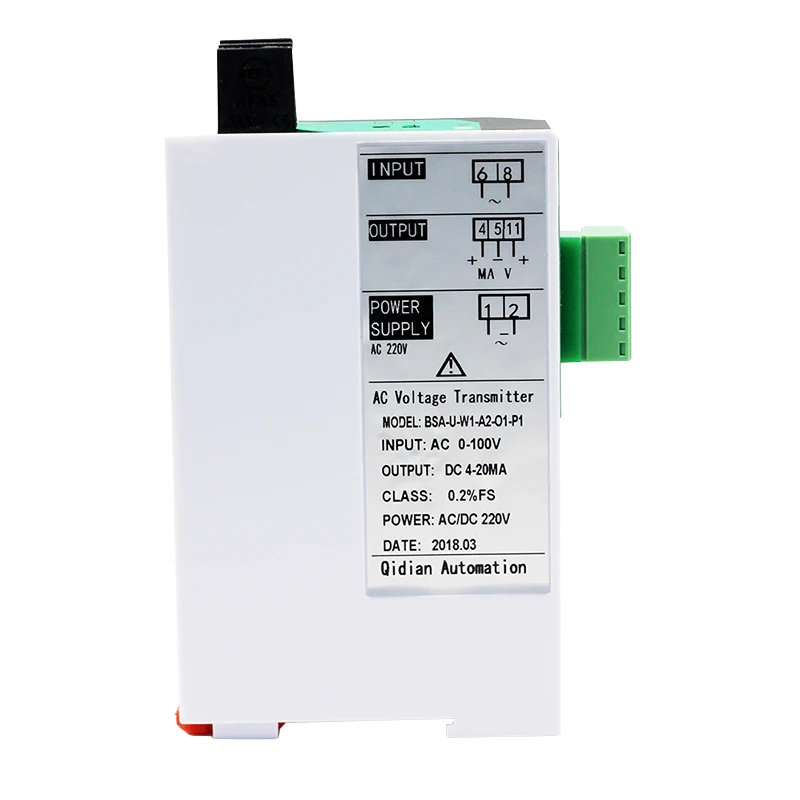

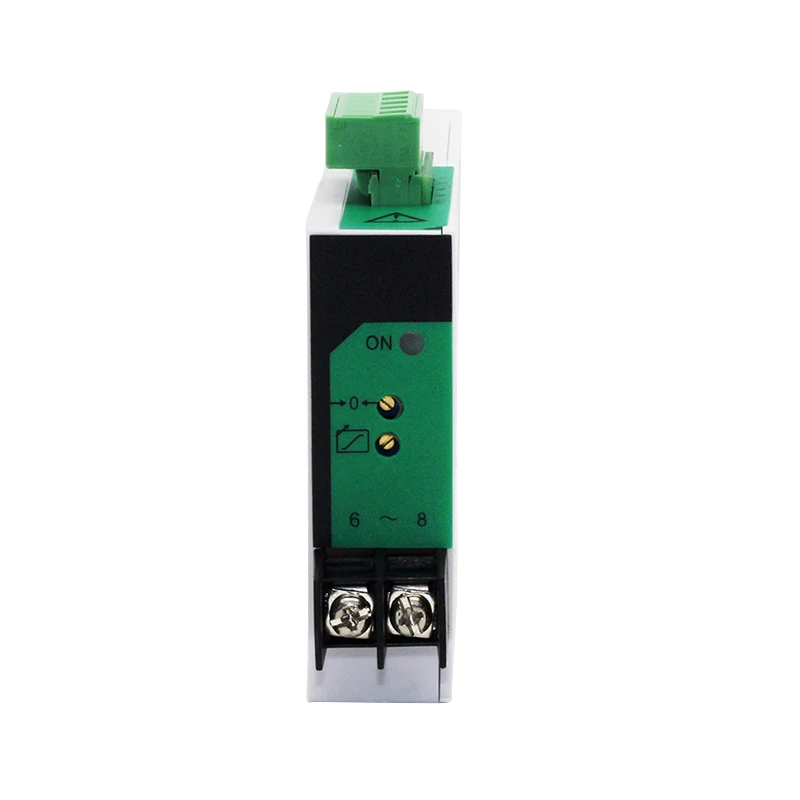

<1>. BSA-U AC voltage transmitter, it converts AC voltage signals from AC transformers into standard process signals.
<2>. It is used for monitoring the power supply line and its voltage,and monitoring the overload of nonstandard pressure drop.
<3>. The input,output and power supply are isolated from each other.
<4>. Standard 35mm DIN rail independent mounting.Full channel configuration,Parameter customizable.
<2>. It is used for monitoring the power supply line and its voltage,and monitoring the overload of nonstandard pressure drop.
<3>. The input,output and power supply are isolated from each other.
<4>. Standard 35mm DIN rail independent mounting.Full channel configuration,Parameter customizable.
Product Paramenters
Input | ||
Input Voltage Range | AC 0-1000V; Customized | |
Frequency Range | 40Hz-60Hz | |
Output | ||
Output Signal | 4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Customized | |
Output Load Resistance | RL≤500Ω(output current signal) | |
RL≥10KΩ(output voltage signal) | ||
Other Parameters | ||
Power Supply | AC85-265V or DC24V,±10% | |
Accuracy | 0.2%F.S. | |
Temperature Drift | 0.02%F.S./℃ (-20℃~+55℃) | |
Respond Time | ≤400mS(0-90%) (TYP) | |
Rated Power Consumption | ≤1W(1 in 1 out,DC24V power supply,output 20mA); ≤1.5W(1 in 1 out,AC220V power supply,output 20mA); | |
Isolation Intensity | 2000V AC/1min(between input-ouput-power) | |
Insulation Resistance | ≥100MΩ(between input-ouput-power) | |
Working Temperature & Humidity | -20℃~+55℃ | |
EMC | Complies with GB/T 18268.1(IEC61326-1) | |
Product Dimensions
Product Details
WIRING DIGRAM
SELECTION
Company Profile
FAQ
1.How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3.:How about the quality of the magnets?
5. Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you
we will contact you in 2 hours as soon as we can.
2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3.:How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4.How is the price?
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.
5. Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you
.6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
Похожие товары

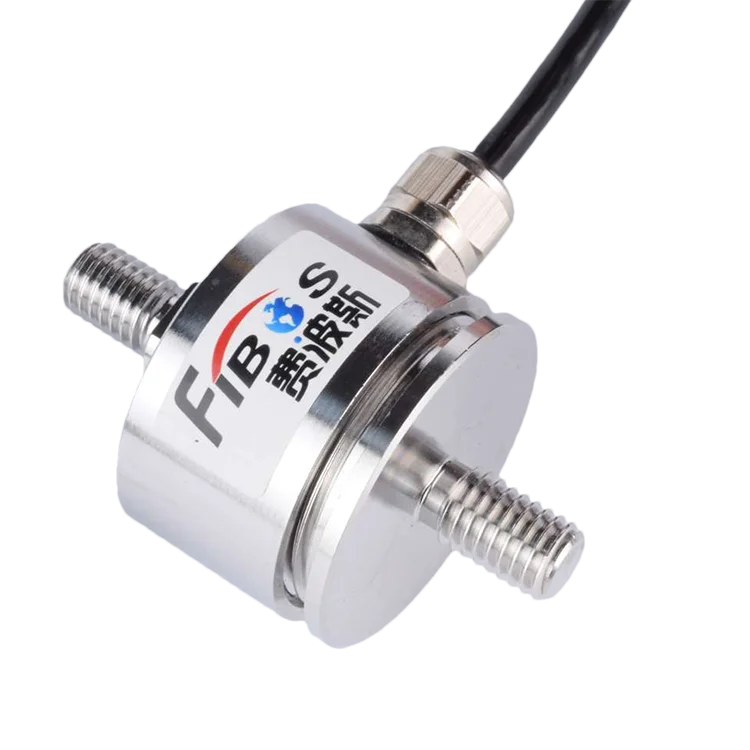

FA205 Fibos винтовое натяжение 50100200500 1000 кг датчик силы
115,00 $

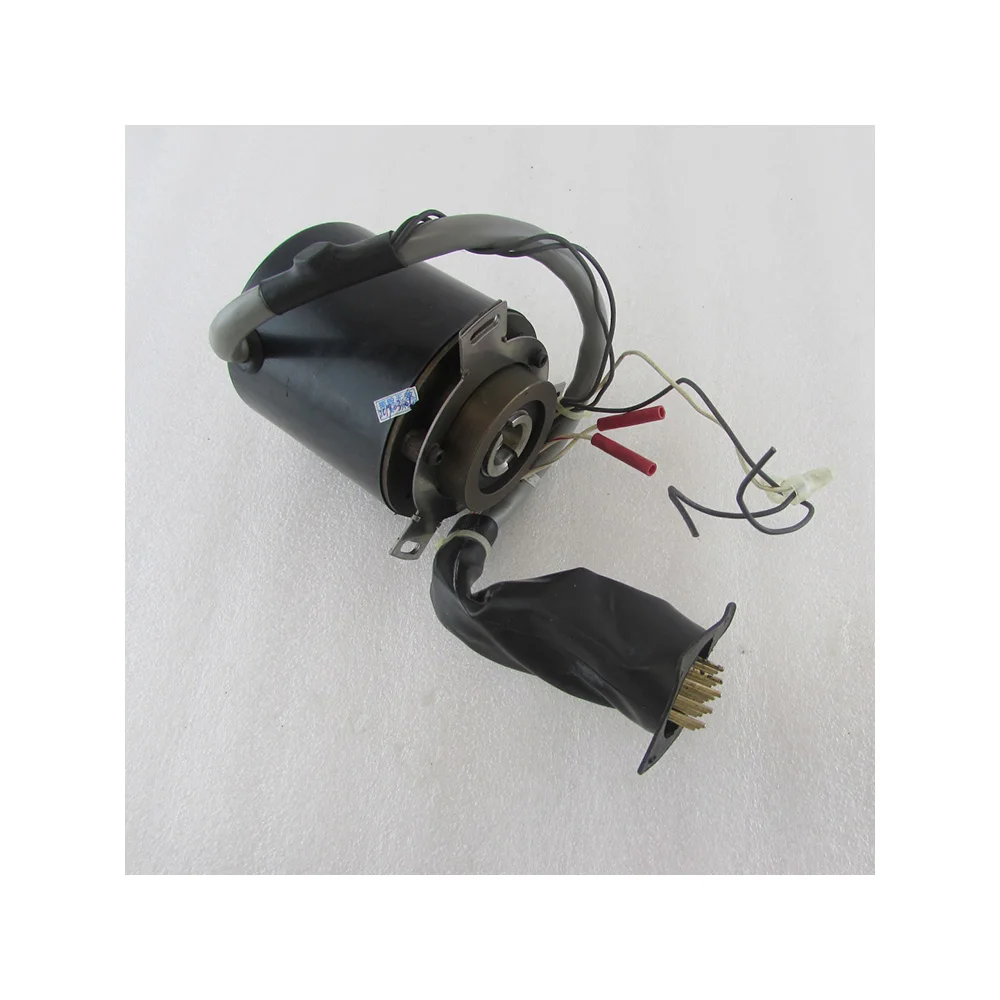

Fanuc servo кодер A860-2110-V001
Новый датчик приближения NBN12 NBB8-18GM50-E2/GM60/40-E0/A2/A0/WS/Z0/Z4-V1 Гарантия один год на

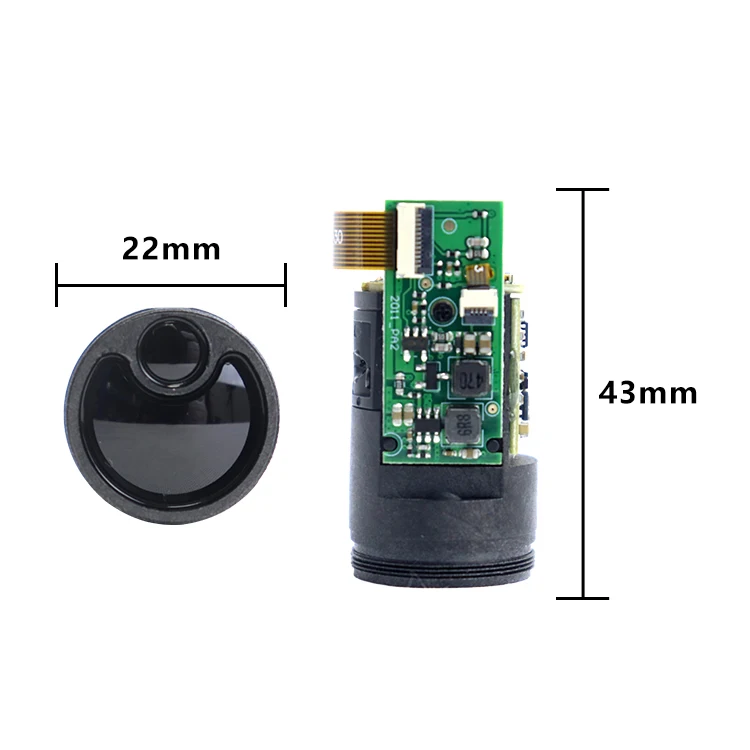

Датчик дальнего действия малые измерительные метры лазерный дальномер модуль 700m UART
103,00 $ - 140,00 $

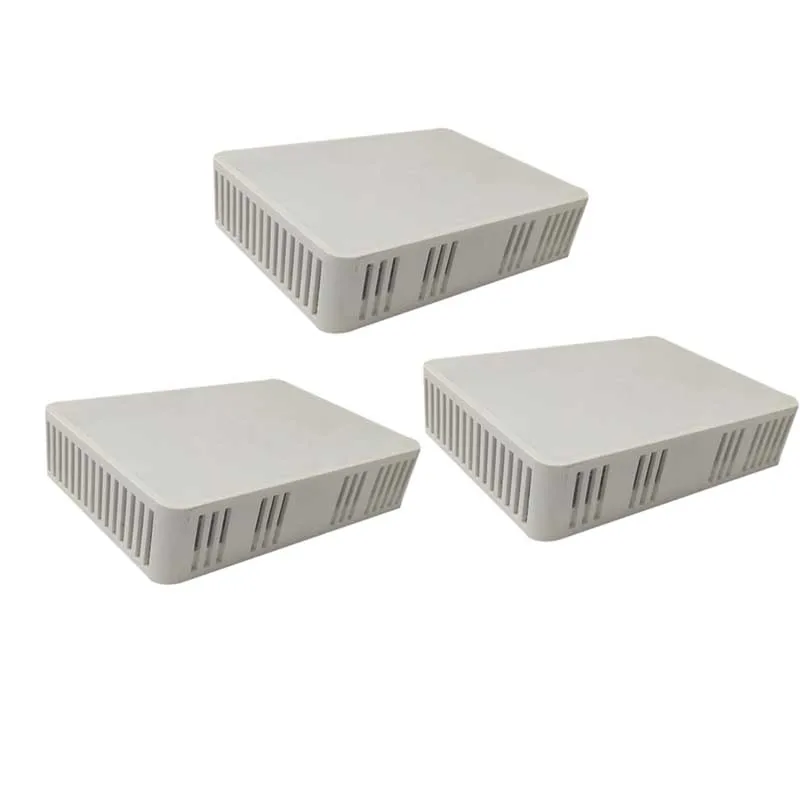

Высокопроизводительный Корпус датчика температуры и влажности 4-20

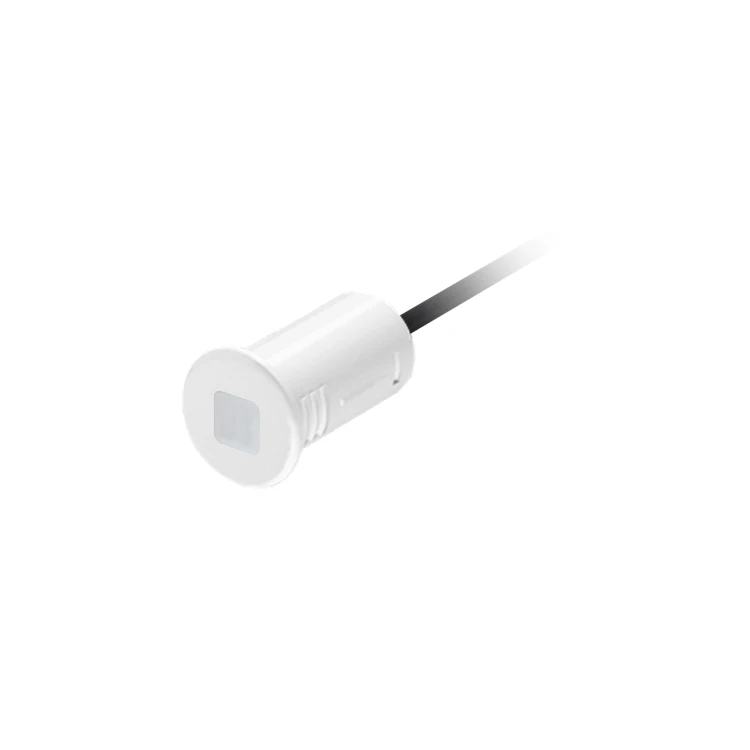

Интеллектуальный пассивный инфракрасный датчик движения с поверхностным креплением и дистанцией обнаружения 3 метра для управления светодиодным

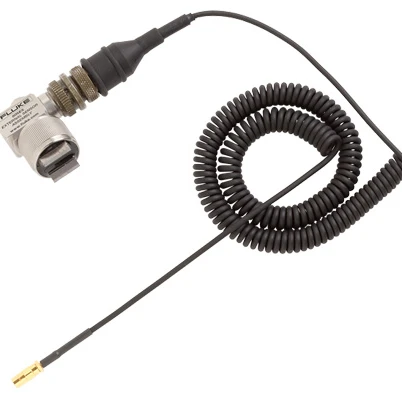

Внешний датчик в сборе 805ES для измерителя вибрации модели
