Самосмазывающаяся ударопрочная СВМПЭ доска контейнер для угля UPE пластиковая цветная
- Категория: >>>
- Поставщик: Guangzhou Engineering Plastics Industries (group) Co. Ltd.
Сохранить в закладки 1600650197661:
Описание и отзывы
Характеристики
Products Description
UHMW-PE（Ultra high Molecular Weight Polyethylene）is a thermoplastic engineering plastic with the average molecular weight more than 9.2 million (100% Virgin UHMW-PE Raw Material). This kind of material with five top performance of high-wear-resistance,good-chemical resistance, low- temperature resistance, self-lubrication and high-impact resistance, which is regarded as a “surprised” engineering plastic of excellent comprehensive capacity and competitive price.
Special Properties of UHMW-PE sheet
1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE 2. Very high anti-impact resistance,two times impact resistance than PC, five times than ABS.
3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Very high-inadhesion resistance,the surface of product hardly affixes other material.
6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
7. Good low temperature resistance, in liquefied nitrogen (- 196℃), it still has the prolongation.few other materials can reach to this performance.
8. Non-toxic and clean property, UHMW-PE material that made by Guangdong Engineering
Plastics Industries (Group) Company, which meets the Food and Drug Administration and United States Department of Agriculture permit to apply in food and medicine fields.
Regular size

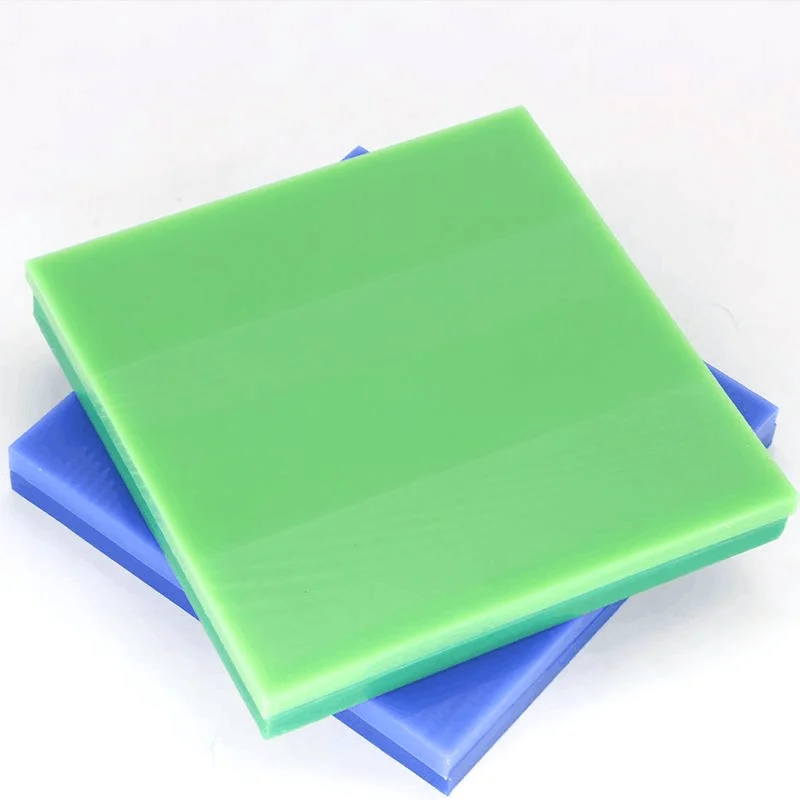

Sheet Size: 1000X2000X(Thickness:1-300mm）、1030X2270X(Thickness:1-300mm)
1250X3130X(Thickness:1-300mm）、1250X4250X(Thickness:1-300mm) 1500X3000X(Thickness:1-300mm）、2030X8200X(Thickness:1-300mm)
1250X3130X(Thickness:1-300mm）、1250X4250X(Thickness:1-300mm) 1500X3000X(Thickness:1-300mm）、2030X8200X(Thickness:1-300mm)

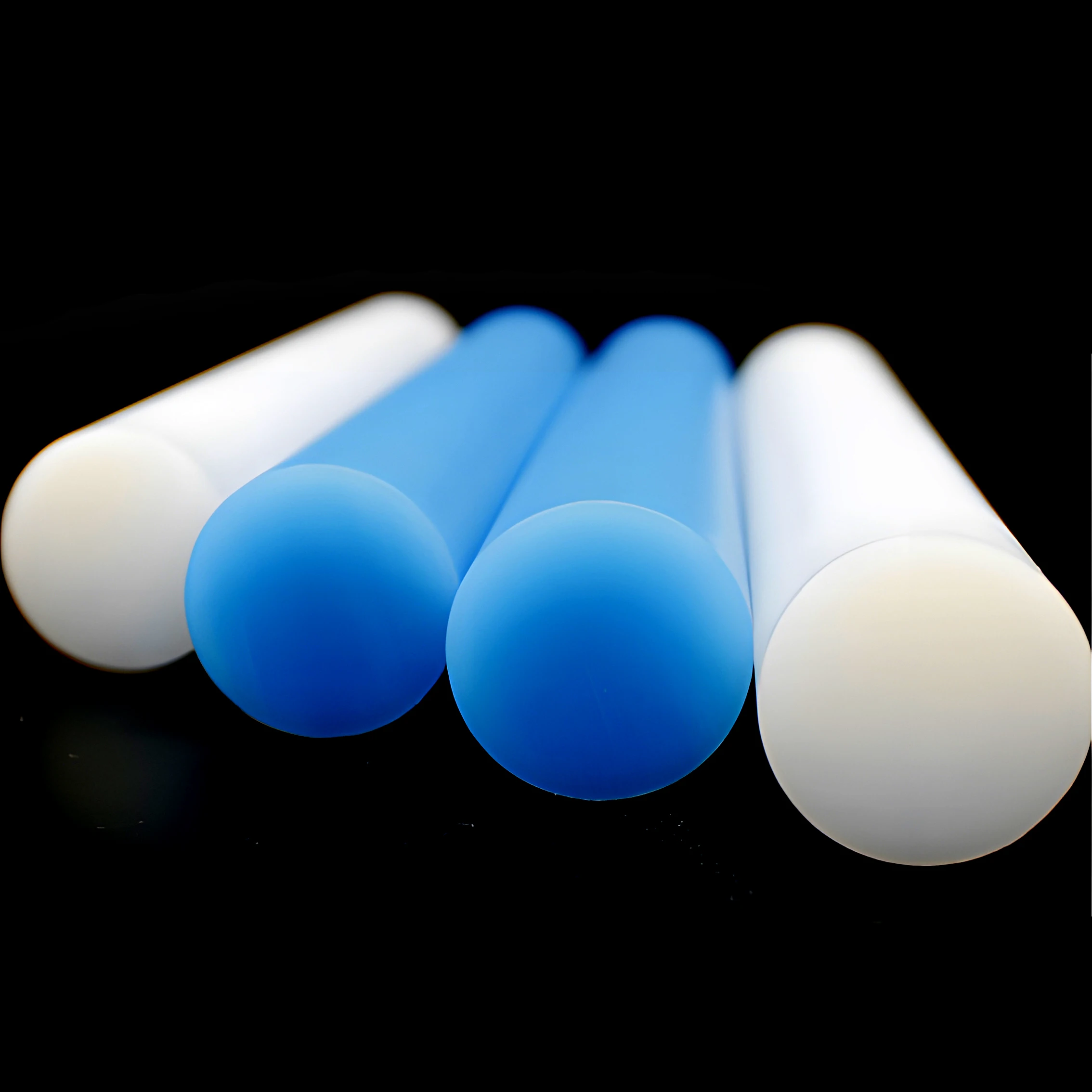

Rod Size: Φ10-Φ500X1000mm
Tube Size: (OD)30-1200 X (ID)10-1100 X Length(1000-2000mm)

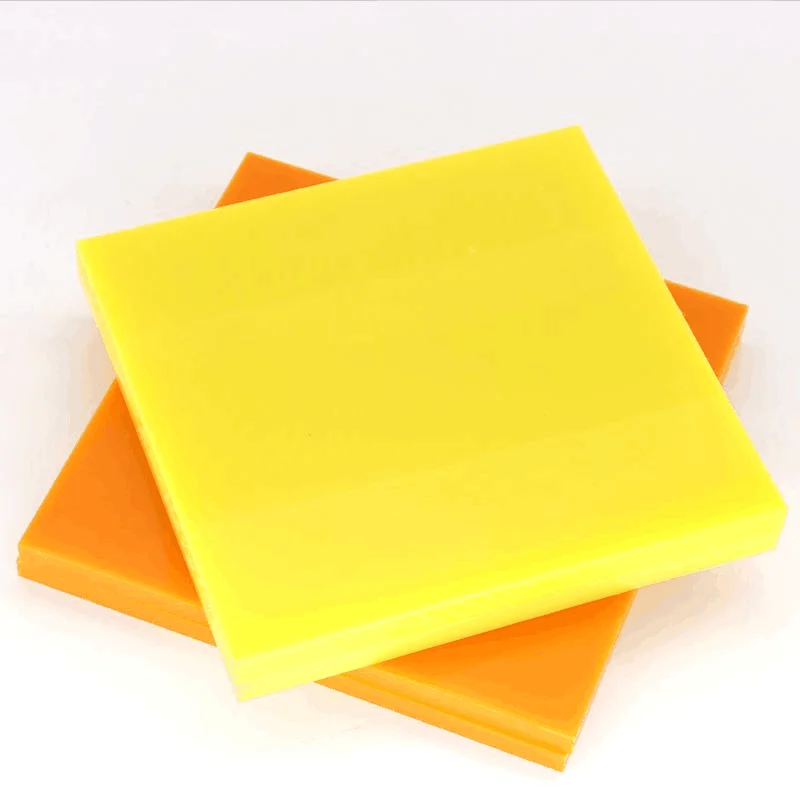

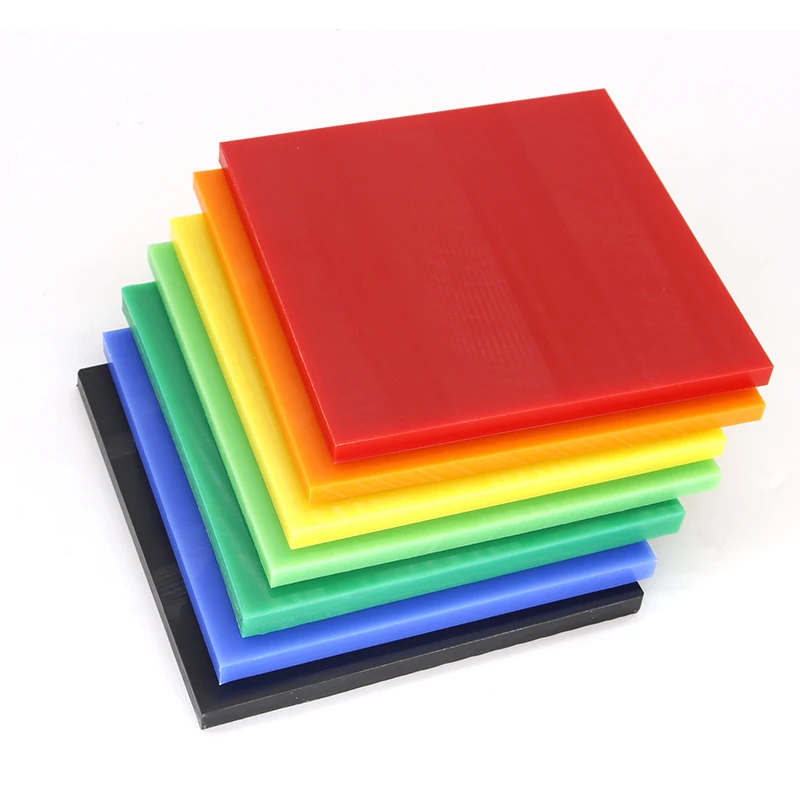

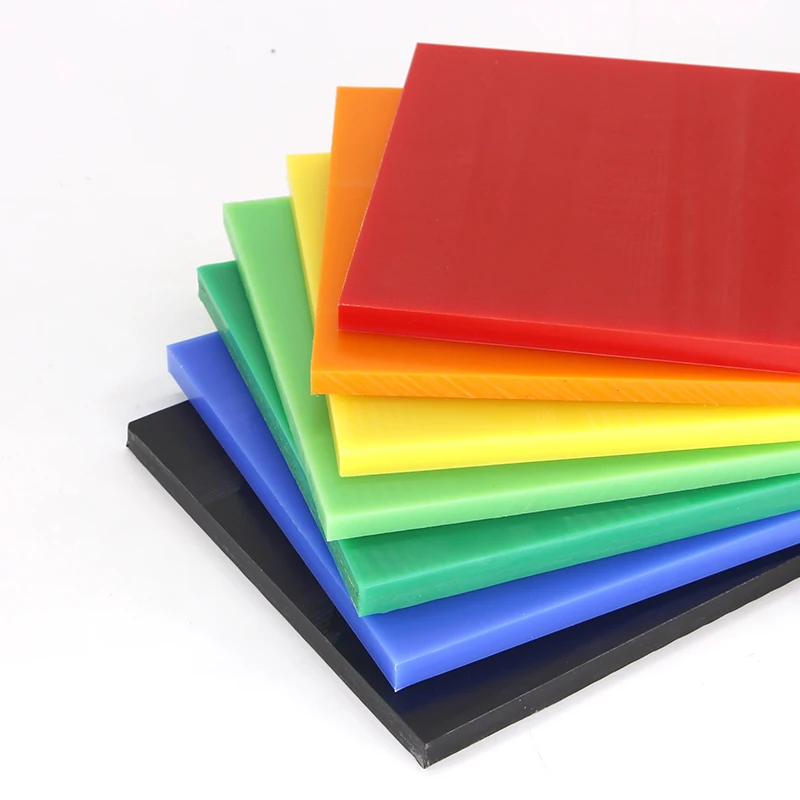

Product Display
Prouduct Parameters
Property | Item No. | Unit | Value | ||
1 | Density | g/cm3 | 0.94-0.96 | ||
2 | average molecular weight | g/mol | 9.2X106 | ||
3 | Tensile strength (23℃ in air) | MPa | 22 | ||
4 | Breaking strength | MPa | 42 | ||
5 | Tensile strain at break | ％ | 600 | ||
6 | Charpy impact strength (notched) | mJ/mm2 | No break | ||
7 | Ball indentation hardness | N/mm2 | 42 | ||
8 | Shore D hardness | -- | D65 | ||
9 | Abrading（sand slurry experiment） | -- | 100 | ||
10 | Coefficient of Friction | -- | 0.09~0.1 | ||
Customized Service
NO.1 Mail Samples
Customized samples, our engineers can make exactly the same products according to the samples you provide, measure the specifications and test the product materials.
NO.2 Provide Drawings
We support CAD drawings, PDF files, 3D formats for customization, such as STP, STEP, X-T, etc.Confidential handling of products according to your needs.
NO.3 Provide Photos
If there are only photos and no detailed drawings and samples, you can provide detailed size specifications of the product, and we can also help you process and produce the product.
Customized samples, our engineers can make exactly the same products according to the samples you provide, measure the specifications and test the product materials.
NO.2 Provide Drawings
We support CAD drawings, PDF files, 3D formats for customization, such as STP, STEP, X-T, etc.Confidential handling of products according to your needs.
NO.3 Provide Photos
If there are only photos and no detailed drawings and samples, you can provide detailed size specifications of the product, and we can also help you process and produce the product.
Finished Product Display
We can provide customized UHMWPE accessories and profiles to meet customer needs.
We are a company that focuses on the research, manufacture, and sale of engineering and high-performance plastics. At the same time, we offer machined plastic components. If you have any problems or want to get the quoted price of any plastics or machined components, please feel free to contact us. Our engineers will reply to you as soon as possible.
Company Profile
About Us
Guangdong Engineering Plastics Industries (Group) Co. Ltd. We have the professional engineer teams and sales teams, and we have technology and experiences in engineering plastic industry for more than 15 years! Our company is located in Huangpu District,Guangzhou City, China, where the logistics is developed! With the rich experiences and technology for manufacture, design,research and development ability, support personalized customization.
Test Creatificate
Factory Tour
The plant covers an area of 10,000 square meters, and the production equipment includes Haas imported from the United States, CNC machining centers, wire cutting, spark machines, punching machines, injection molding machines, CNC engraving and milling
machines, CNC gear hobbing machines, CNC lathes, CNC milling machines, grinding machines and other machinery equipment .
machines, CNC gear hobbing machines, CNC lathes, CNC milling machines, grinding machines and other machinery equipment .
Our company is developing in the mode of quality for survival,brand for development and customer's demand,welcome new and old customers to visit our factory for guidance
Our Exhibition
The company has rich experience, strong strength and participated in many high-end exhibitions;Many partners from other countries are visiting.
Q1. We don't have drawings, can we produce according to the samples we provide?
A1. OK.
Q2. How to customize plastic parts?
A2. Customized according to drawings.
Q3. Can I make a sample for testing first?
A3. OK.
Q4. How long is the proofing cycle？
A4. 2-5 days
Q5. What are your processing equipment？
A5. CNC machining center, CNC lathe, milling machine, engraving machine, injection molding machine, extruder, molding machine.
Q6. What craftsmanship do you have for processing accessories？
A6. According to different products, different processes are used, such as machining, extrusion, injection molding, etc.
Q7. Can injection products be surface treated? What are the surface treatments?
A7. OK. Surface treatment: spray paint, silk screen, electroplating, etc.
Q8. Can you help assembling the product after it is made？
A8. OK.
Q9. How much temperature can the plastic material withstand？
A9. Different plastic materials have different temperature resistance, the lowest temperature is -40℃, and the highest temperature is 300℃. We can recommend materials according to the working conditions of your company.
Q10. What certifications or qualifications does your company have？
A10. Our company’s certificates are: ISO, Rohs, product patent certificates, etc.
Похожие товары
Большое количество оптимальной поддержки для тестирования 7 бутылок спирторастворимого прополиса 40% экстракта прополиса

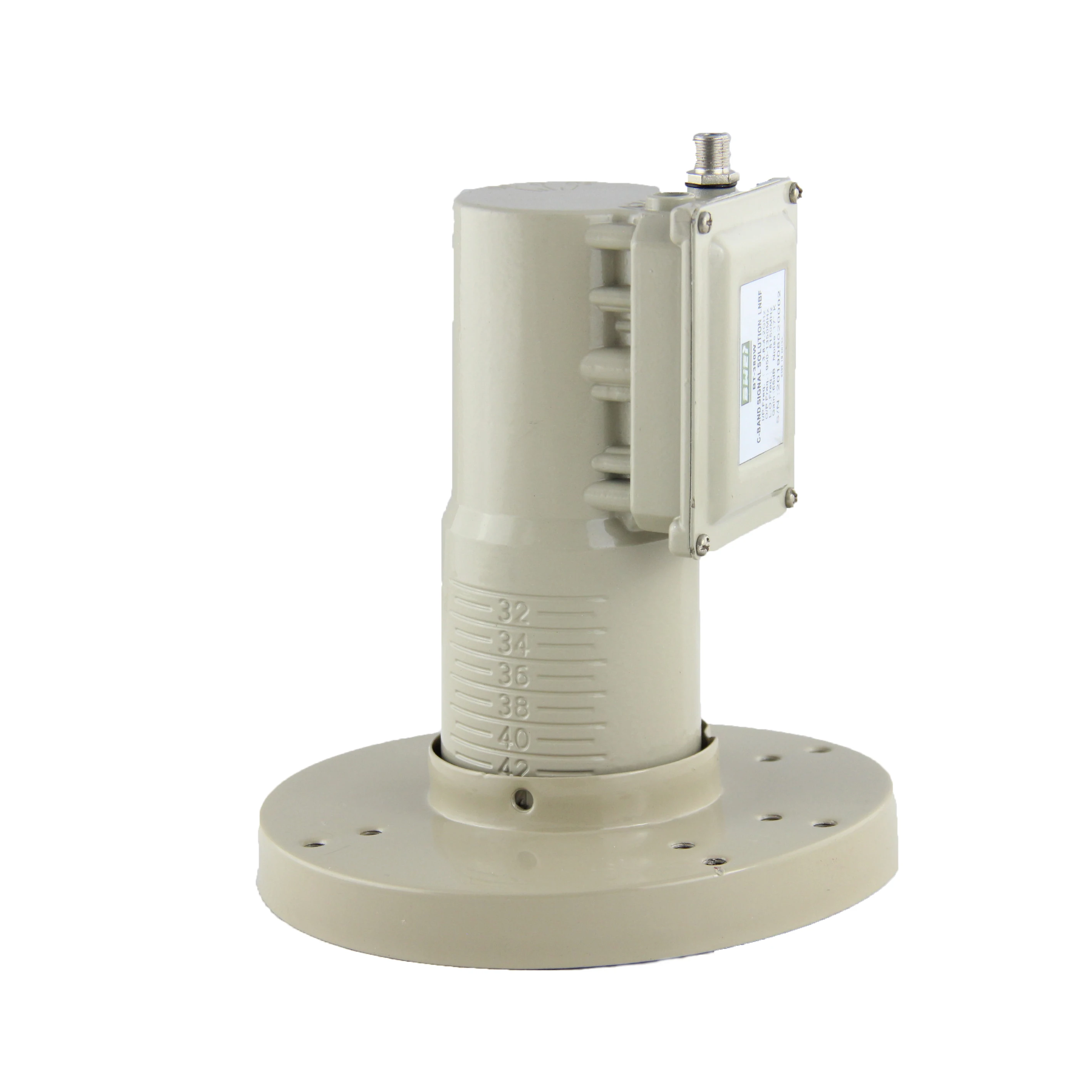

5G Высококачественный C-образный однодиапазонный Lnb 5150 МГц с защитным фильтром
6,99 $ - 14,90 $

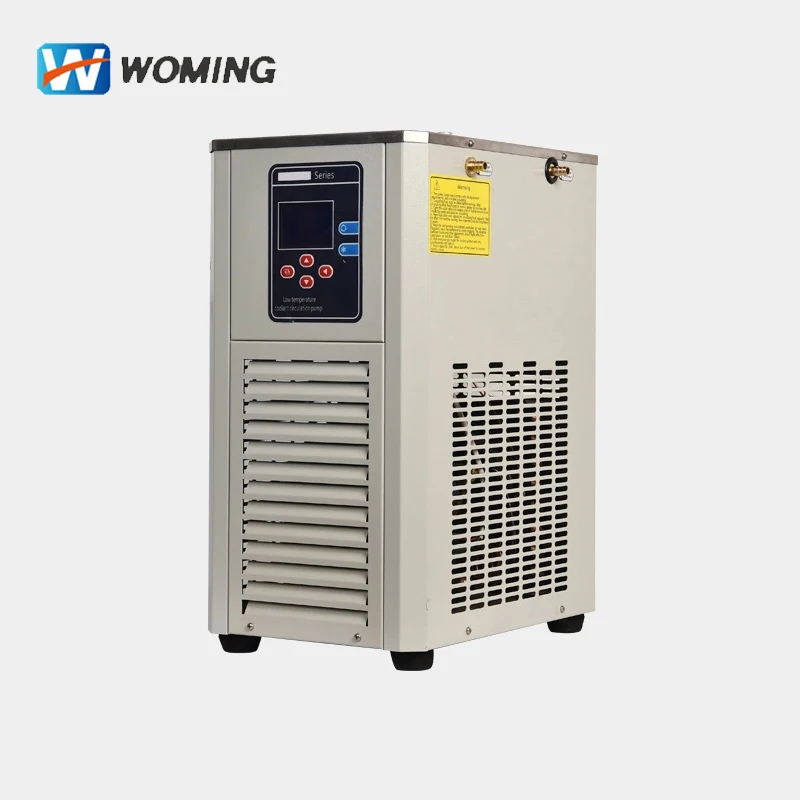

Охладитель с циркулирующим охлаждением, многофункциональный, простой в эксплуатации циркулирующий насос с водяным охлаждением-100 градусов по Цельсию
