Высокоточное оборудование для пластмассы 15 кГц ультразвуковая сварочная
580,00 $ - 780,00 $

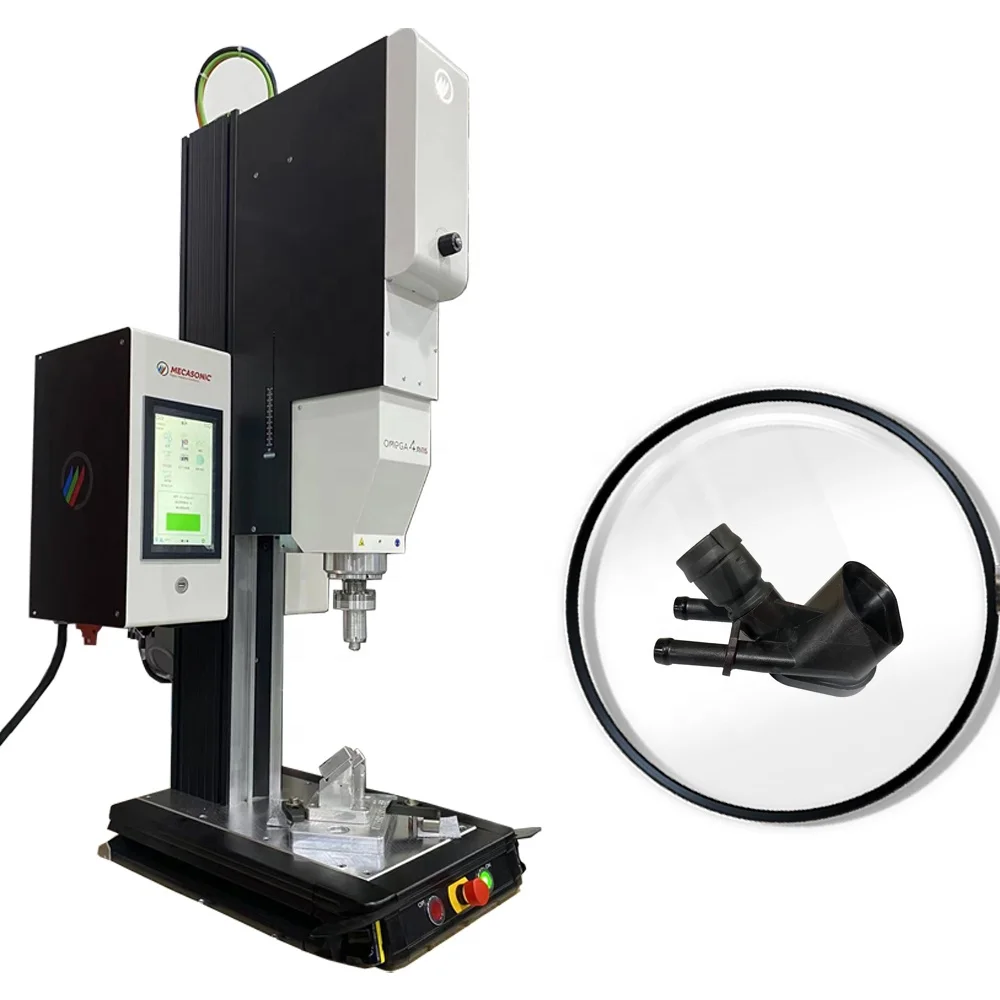

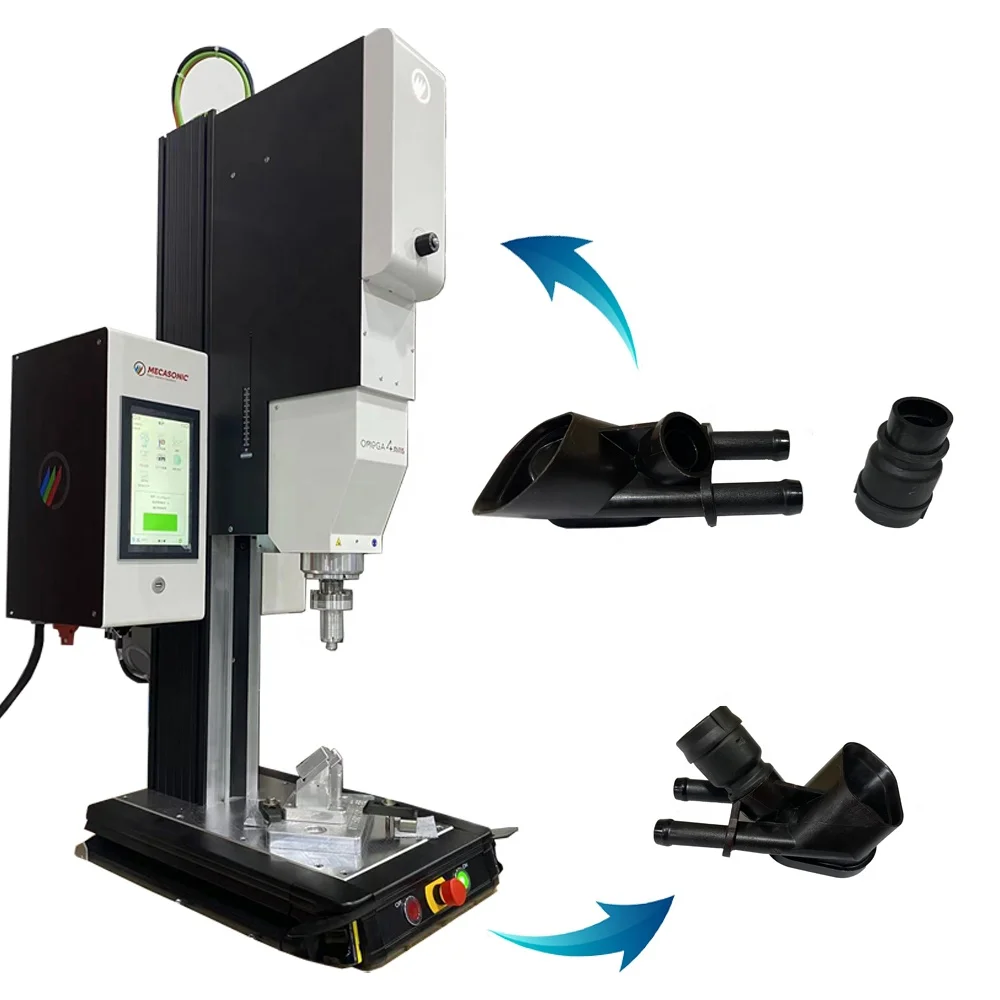

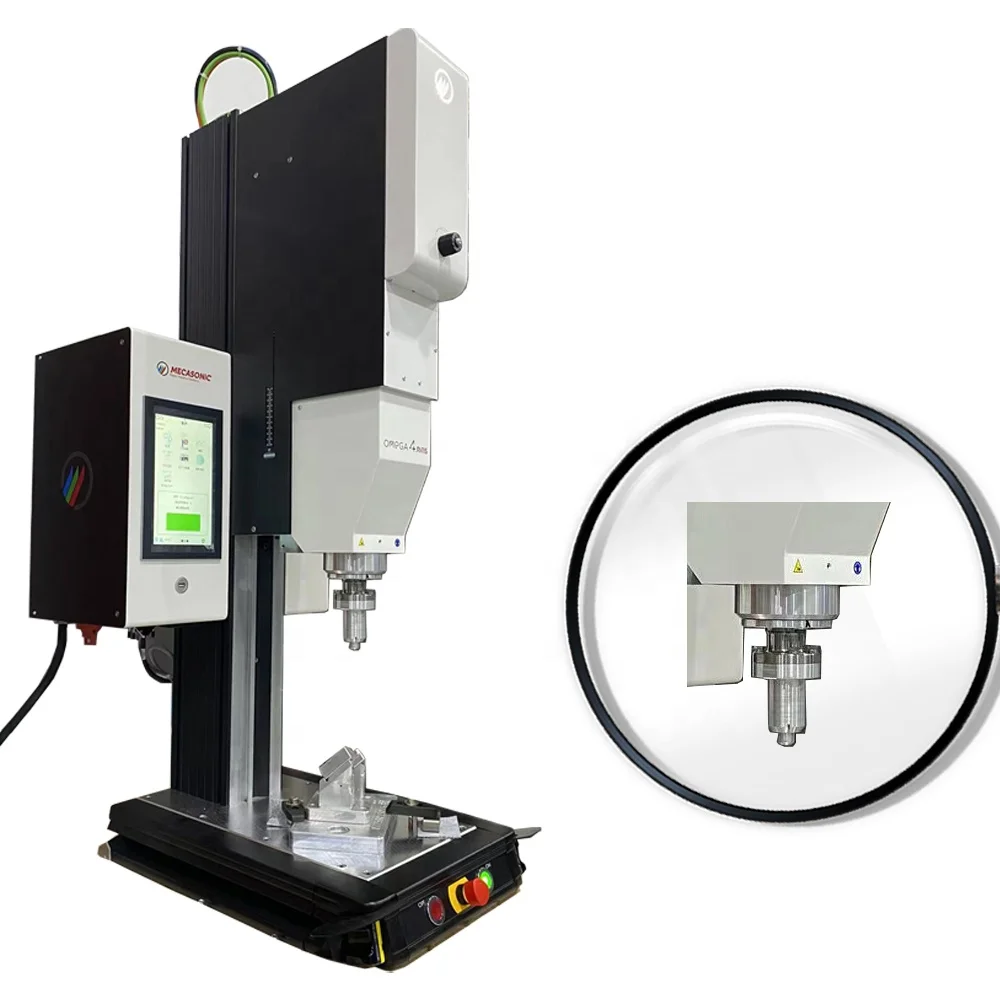

Спиннинговая сварка для пластика и термопластичных материалов omega 4
- Категория: Plastic Welders >>>
- Поставщик: Shanghai Suyu Electronics Co. Ltd.
Сохранить в закладки 1600650228016:
Описание и отзывы
Характеристики
Product Overview

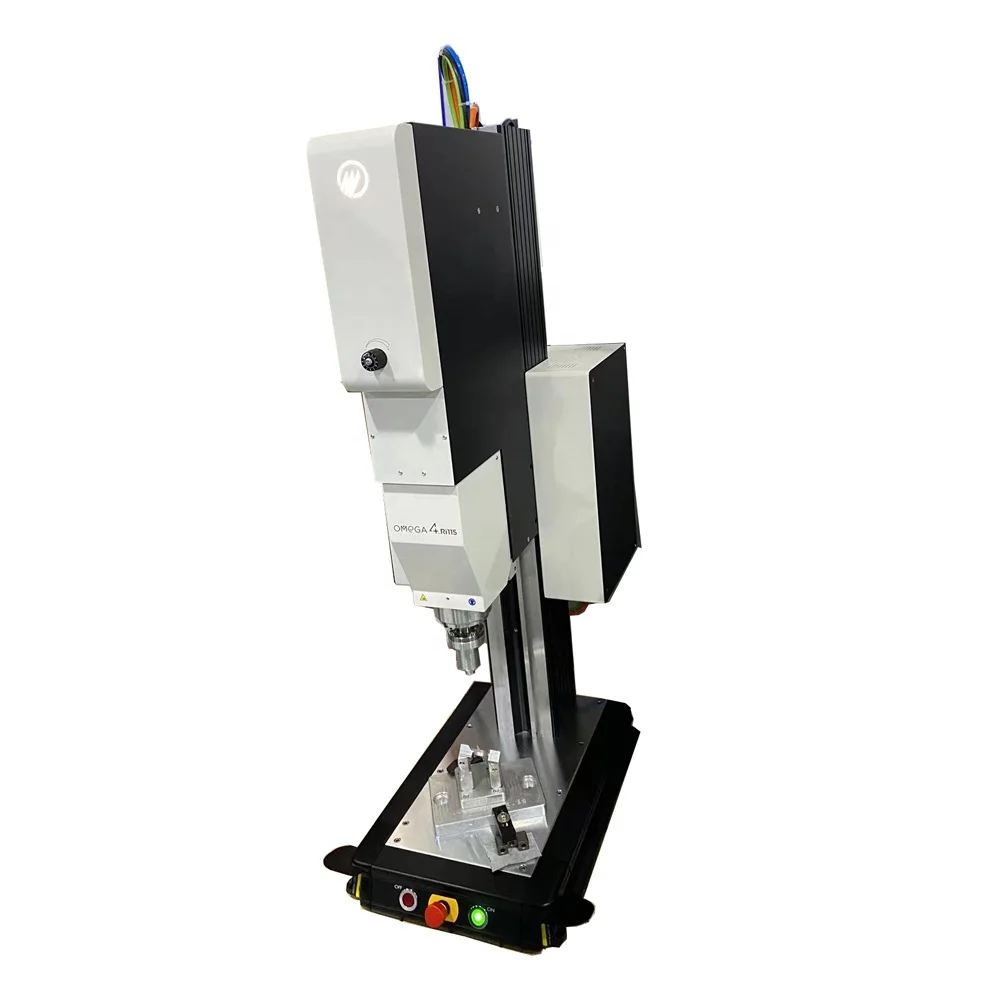

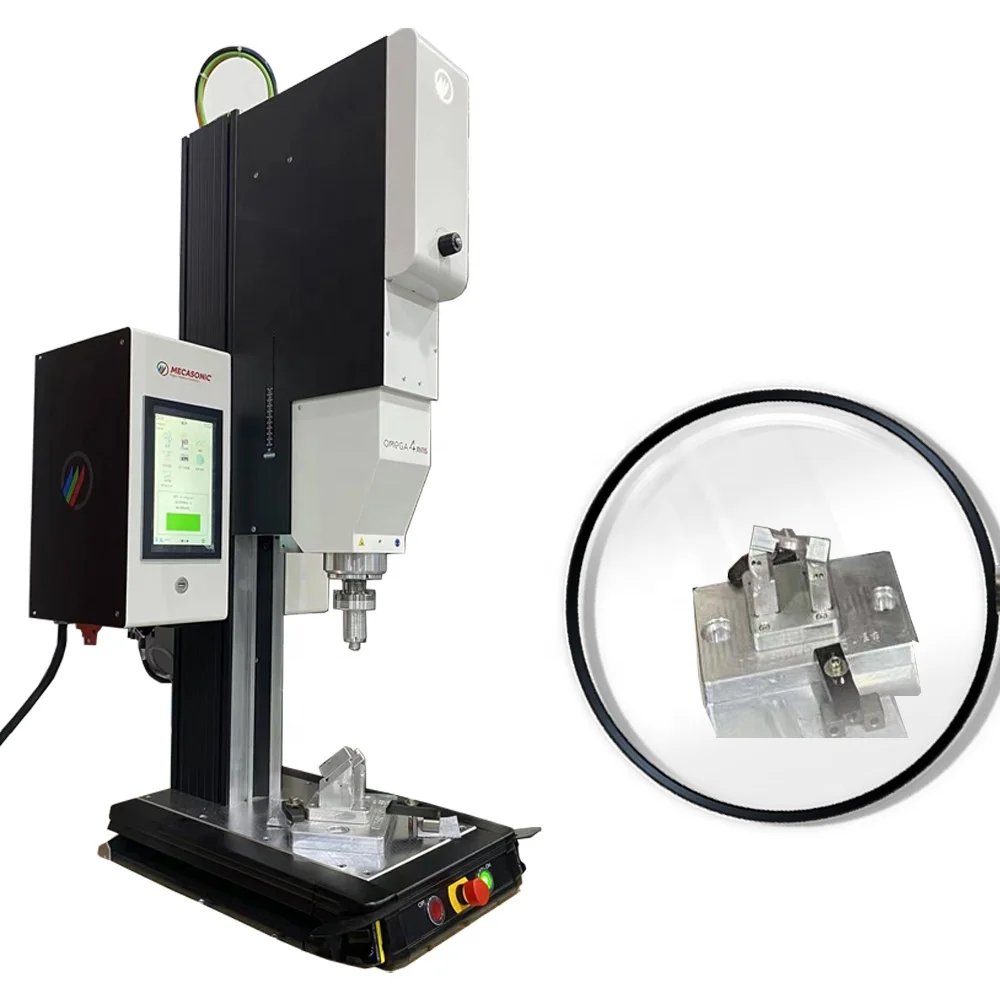

Spin welding for plastic and thermoplastic materials
The process of spin welding consists of generating heat by rotational friction to weld thermoplastic parts with circular joints. The spin welding machine applies force axially while rotating one part against its stationary mate. The resulting friction generates heat that melts the parts at the interface. Once rotation stops, the material cools and solidifies, forming a welded assembly. For cases where the parts must be oriented in a particular manner with respect to each other, the welder stops the rotation at a precise angular orientation.
FEATURES AT A GLANCE
1.Rotation welder provides accurate and reliable thermoplastic part welding.
The many options available with the machine can be used for a wide range of thermoplastic
welding issues.
2.The Omega 4R is composed of several modular elements and is available in a variety of motor torque and speed versions.
The many checks carried out during the welding process make it possible to obtain high quality welded parts.
3.The Omega 4 is designed to be integrated and operated by a skilled operator in its floor stand configuration, providing very comfortable use. Controlled by a state-of-the-art colour touch screen PLC, operator safety is provided by a specific safety PLC built into the welding machine.
4.its standard USB, Ethernet, FTP and OPC/UA connectivity allows the Omega 4R to be used in a highly communicative Industry 4.0 environment.
The many options available with the machine can be used for a wide range of thermoplastic
welding issues.
2.The Omega 4R is composed of several modular elements and is available in a variety of motor torque and speed versions.
The many checks carried out during the welding process make it possible to obtain high quality welded parts.
3.The Omega 4 is designed to be integrated and operated by a skilled operator in its floor stand configuration, providing very comfortable use. Controlled by a state-of-the-art colour touch screen PLC, operator safety is provided by a specific safety PLC built into the welding machine.
4.its standard USB, Ethernet, FTP and OPC/UA connectivity allows the Omega 4R to be used in a highly communicative Industry 4.0 environment.
PRODUCT SPECIFICATIONS
Module | MCRI 37 | MCRI 4 | MCRI 115 | Non-standard workstation | Non-standard product line |
Size(mm) L*P*H (MAX) | 480*680*1200 | 480*680*1240 | 480*680*1670 | ||
Weight | 84 | 119 | 125 | ||
Controlled rotational speed (max-t/mn) | 13000 | 6000 | 4000 | ||
Controlled rotational speed (max-t/mn) | ±0.5° | ±0.5° | ±0.5° | ||
Angular resolution | ±0.02 | ±0.02 | ±0.02 | ||
Angular move resolution(mm) | ±0.02 | ±0.02 | ±0.02 | ||
Diameter stroke valve* | 32 50 | 40 100 | 63 200 | ||
Height adjustment(mm) | 660 | 450 | 690 | ||
Voltage(v) | 220 | 3*400v+N+T | 3*400v+N+T | ||
Rate current(amp) | 6 | 10 | 12 | ||
Compressed air(bar) | 6 | 6 | 6 |
WELDING MACHINE SPARE PARTS
MARKETS SERVED
Our company
SUYUSONIC
Founded in 2005, Shanghai Suyu Electronic Co., Ltd. is a professional plastic welding equipment and tooling manufacturer integrating R & D, production, sales and service.
Our products include ultrasonic welding machine, hot plate welding machine, rotary friction welding machine, hot riveting welding machine, infrared wire welding machine, laser welding machine and automatic assembly welding detection line.
We are located in Shanghai with convenient transportation. We have our own manufacturing plant and four subsidiaries in China.We have established a branch office in India and a service department in Brazil.Our company is committed to strict quality control and considerate customer service.
Successful Project
Oil mist separator/Cylinder cover assembly/Testing line
National Ⅵ canister assembly and testing line
Intake manifold/Cylinder cover assembly/Inspection line
Net pipe/Dirty pipe/Presure pipe
Assembly welding inspection workstation
Assembly welding inspection workstation
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2005,sell to Domestic Market,Southeast Asia,South America.
There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Automatic Assembly and Welding Detection Line,Ultrasonic Welding Machine,Filter Paper Welding Machine,Hot Plate Welding Machine,Spin Friction Welding Machine.
4. Why should you buy from us not from other suppliers?
Our company has rich experience in the design, manufacture and commissioning of "Plastic Welding" and "Industrial Automated Assembling and Testing" systems.Such as hot plate welding, ultrasonic welding, infrared welding and new technologies and so on.
5. What information do you need to provide to receive a quote?
After the initial discussion to determine we are a good fit for your requirement, we will then ask you to provide us the component specifications, samples/drawings, production speeds and design specifications.
We are based in Shanghai, China, start from 2005,sell to Domestic Market,Southeast Asia,South America.
There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Automatic Assembly and Welding Detection Line,Ultrasonic Welding Machine,Filter Paper Welding Machine,Hot Plate Welding Machine,Spin Friction Welding Machine.
4. Why should you buy from us not from other suppliers?
Our company has rich experience in the design, manufacture and commissioning of "Plastic Welding" and "Industrial Automated Assembling and Testing" systems.Such as hot plate welding, ultrasonic welding, infrared welding and new technologies and so on.
5. What information do you need to provide to receive a quote?
After the initial discussion to determine we are a good fit for your requirement, we will then ask you to provide us the component specifications, samples/drawings, production speeds and design specifications.
Похожие товары

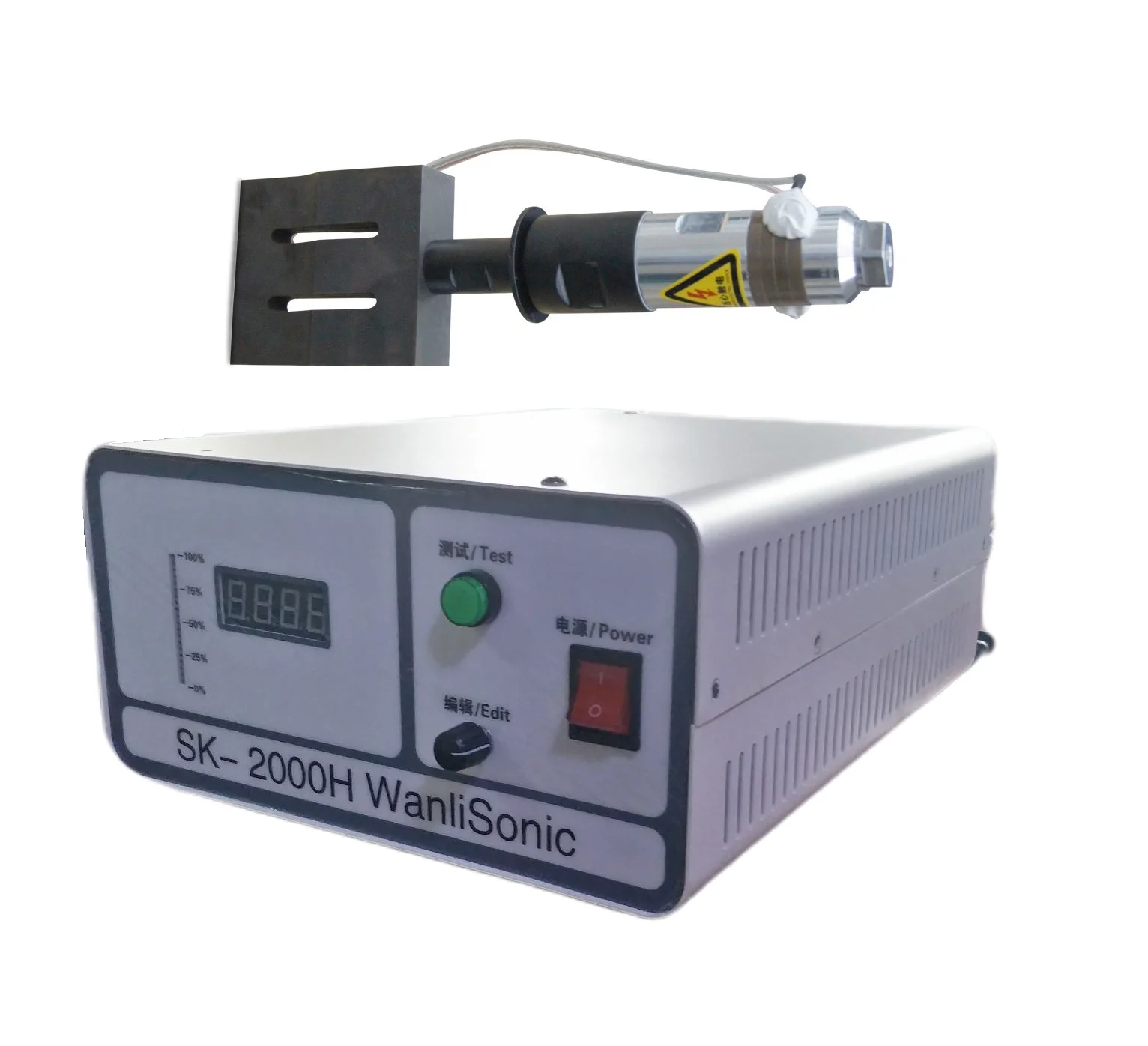

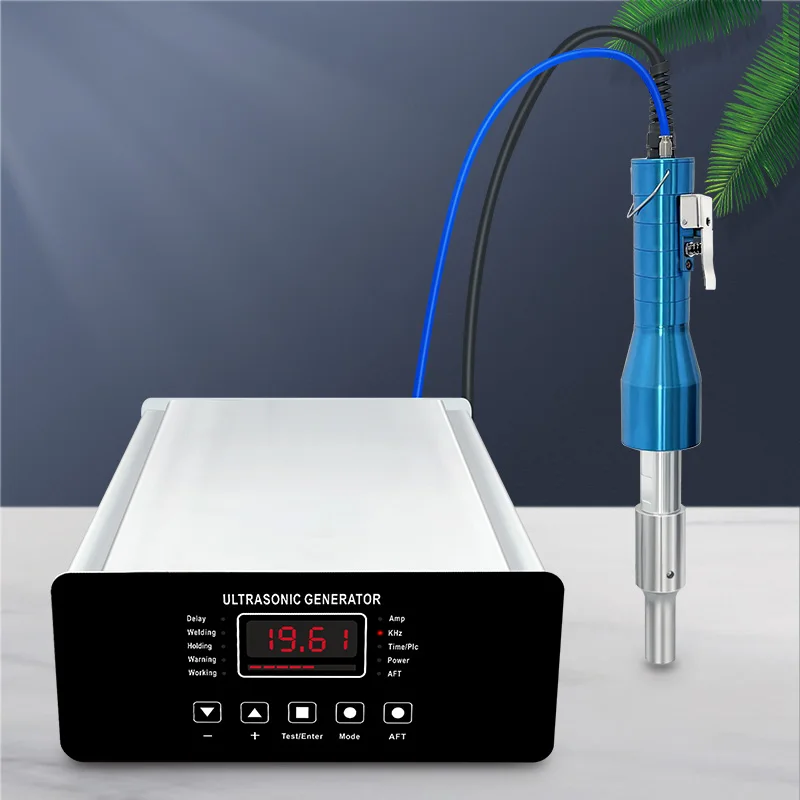

20 кГц 2000 Вт ультразвуковой генератор точечной сварки сварочный аппарат
1 360,00 $ - 1 430,00 $

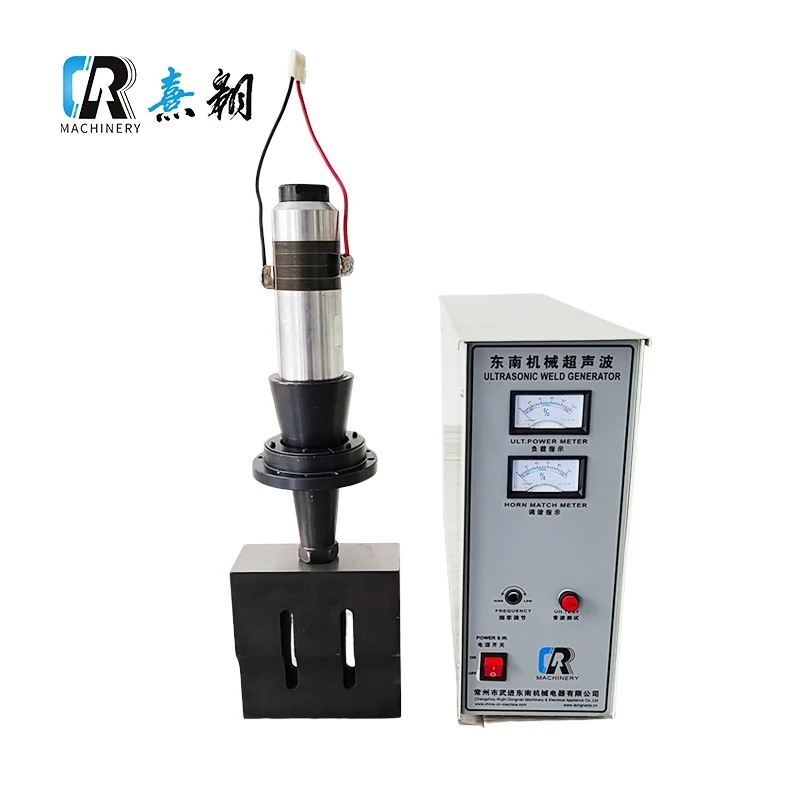

Ультразвуковой сварочный аппарат портативного типа по оптовой
800,00 $ - 1 800,00 $

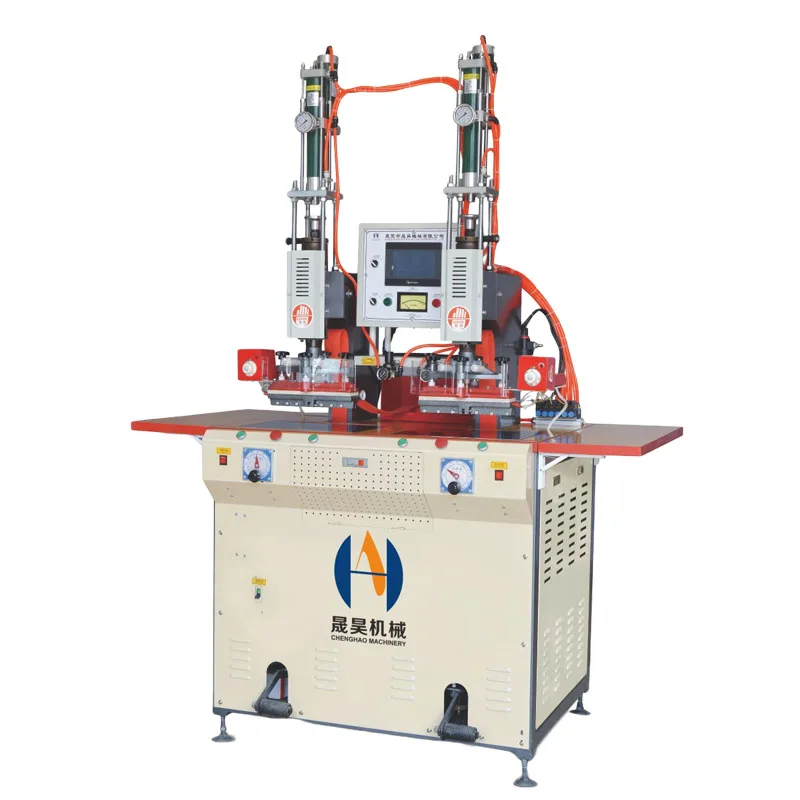

Односторонняя двойная головка высокочастотная машина для тиснения полиуретана сварочный аппарат из ПВХ и
5 400,00 $ - 5 800,00 $

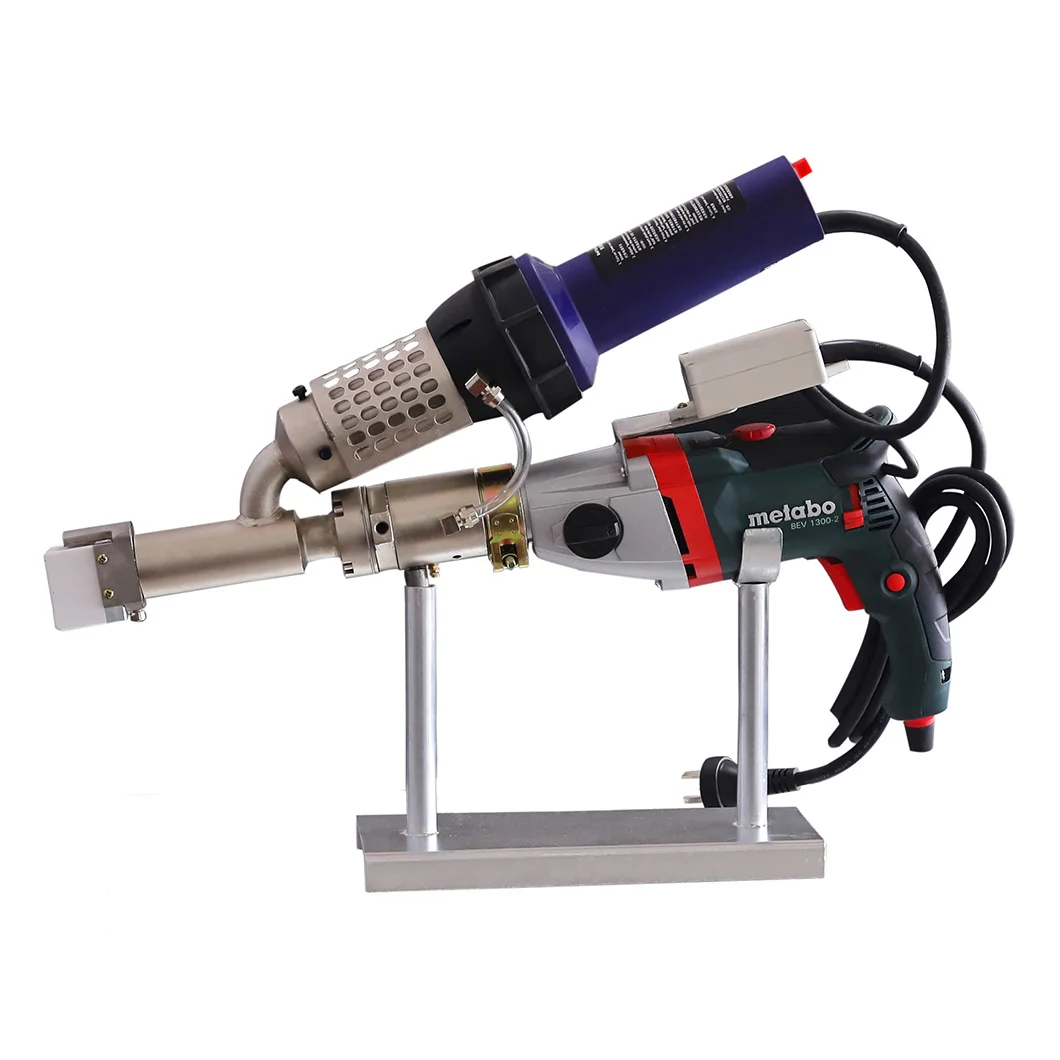

ПНД трубы пластиковые экструзионный сварочный аппарат ПВХ ручной
1 015,00 $ - 1 100,00 $

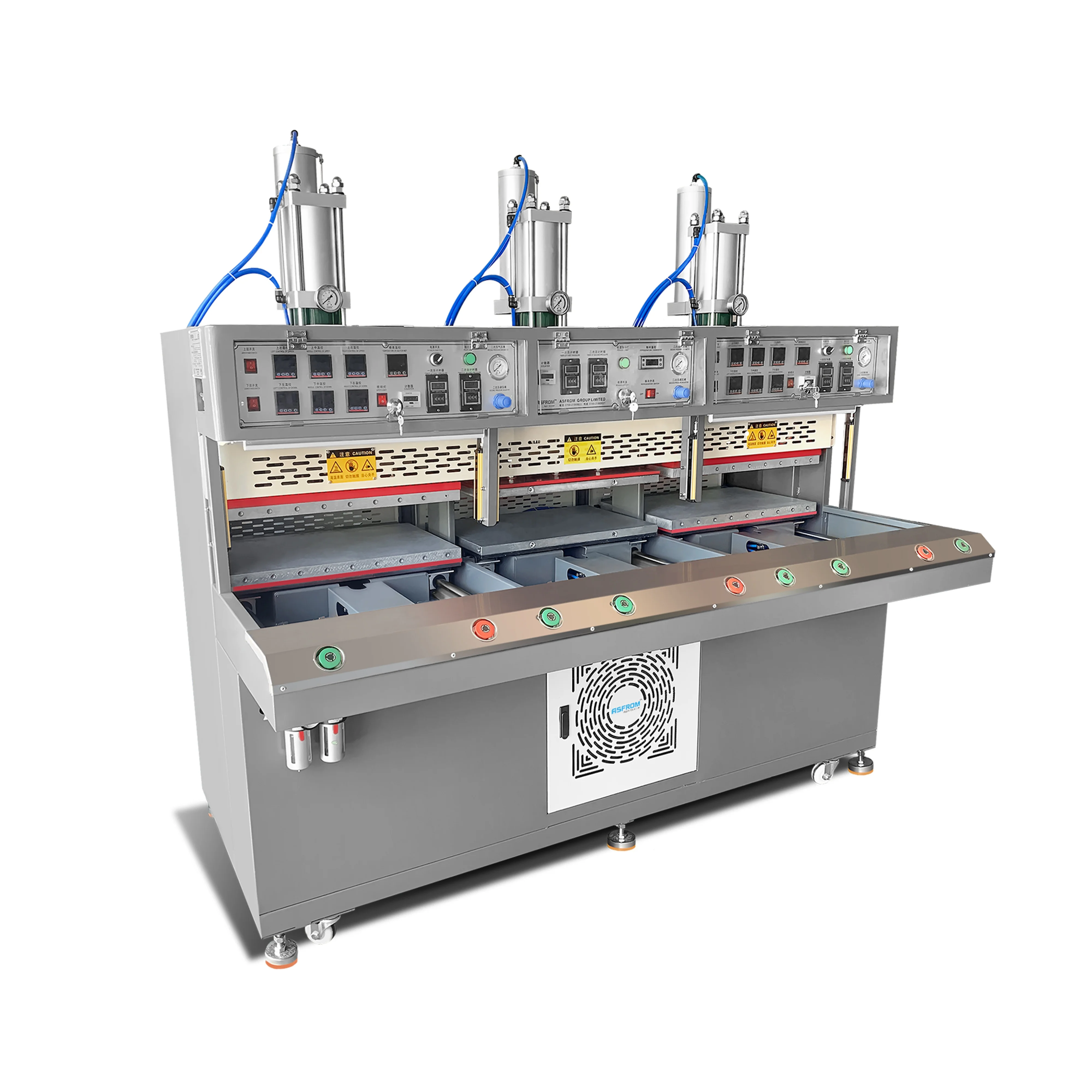

Бесшовная машина ASFROM для спортивной обуви с тремя рабочими
Продажа с завода различные широко используемые Портативные Сварочные машины горячего воздуха для пластика

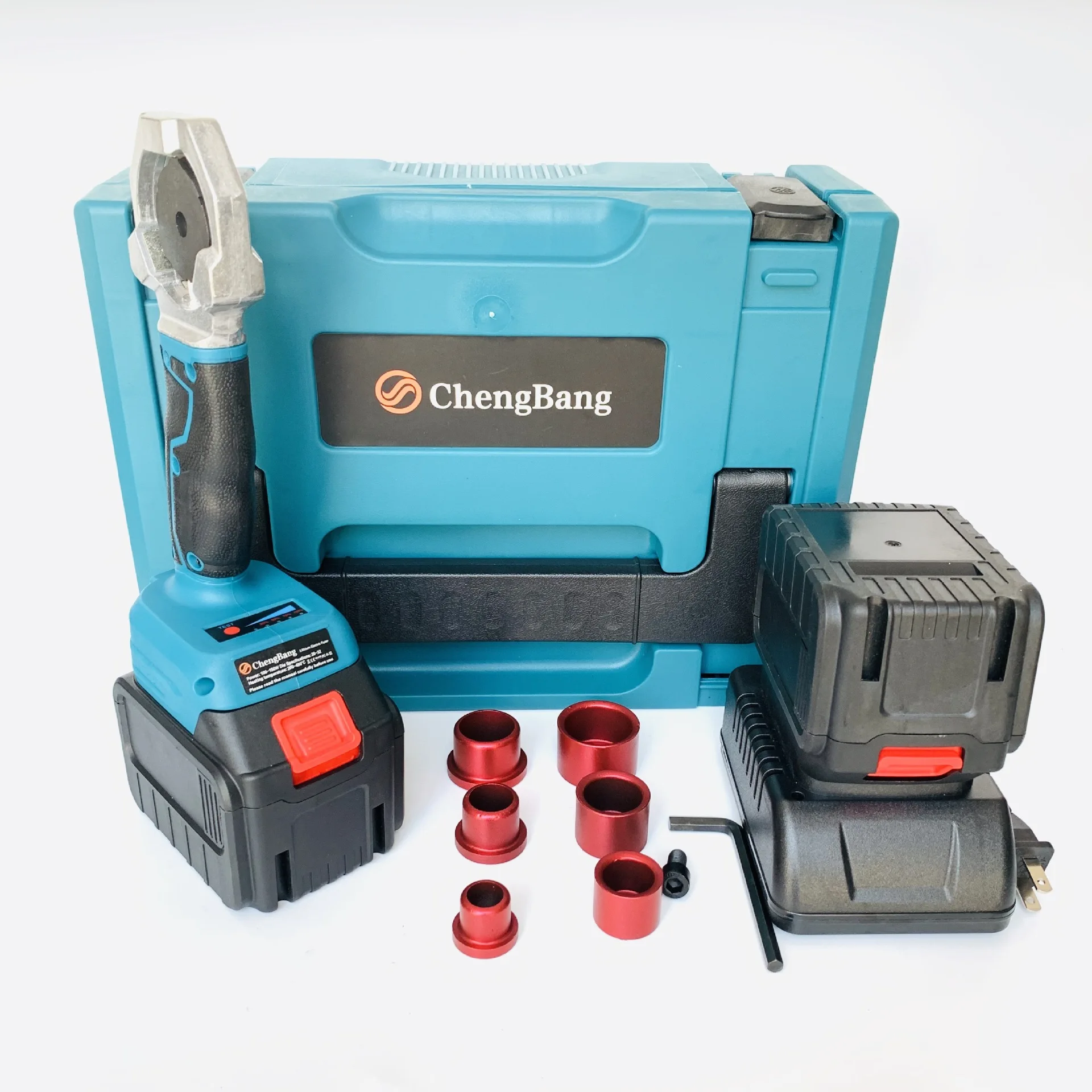

Портативная перезаряжаемая Беспроводная электронная термостатическая трубка 20 в 150 Вт Нагревательный фьюзер пластиковый PPR сварочный термоплавкий станок набор
