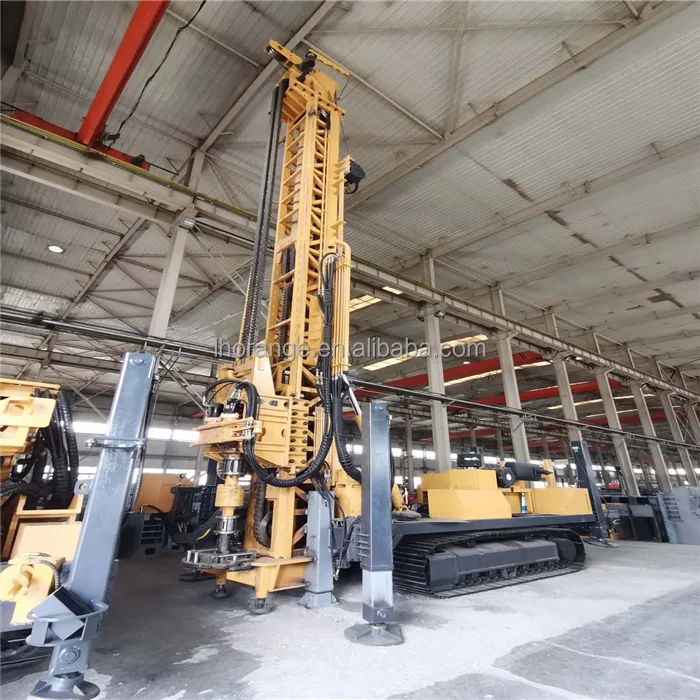

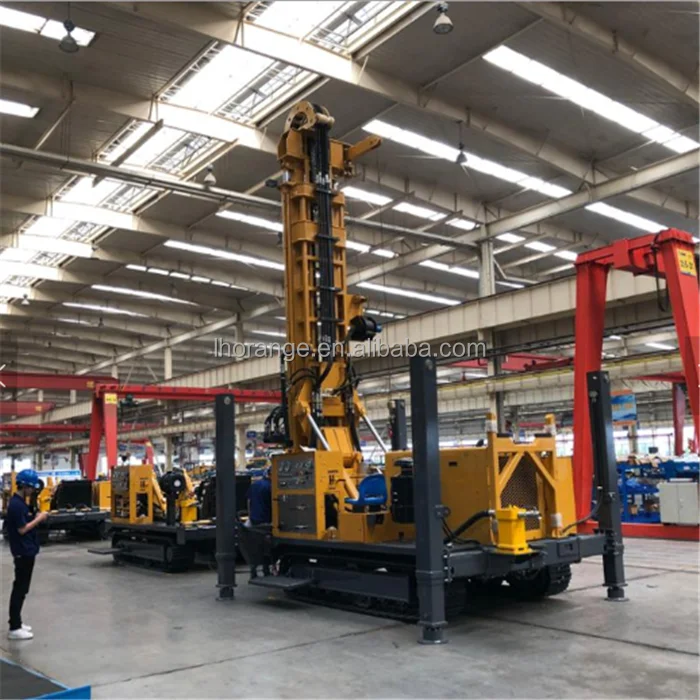

   High-efficiency mast ground-contacting crawler-type full-hydraulic drilling rig can meet the requirements of 45-90° straight and inclined hole drilling, Adopt advanced rope coring method. Efficiency is greatly improved

Widely used: oil, natural gas, shale gas, geothermal water exploration, coal mine, non-ferrous metals, etc.It is used to explore geological conditions such as rocks, strata, structures, minerals, hydrology, landforms, etc.

Advantage:

1. Convenient for coring and effective control of drilling skewness
2. There is no need to raise the drill bit and drilling tool, use the thin wire rope to lower the overshot to take out the core
3. More complete coring and higher quality

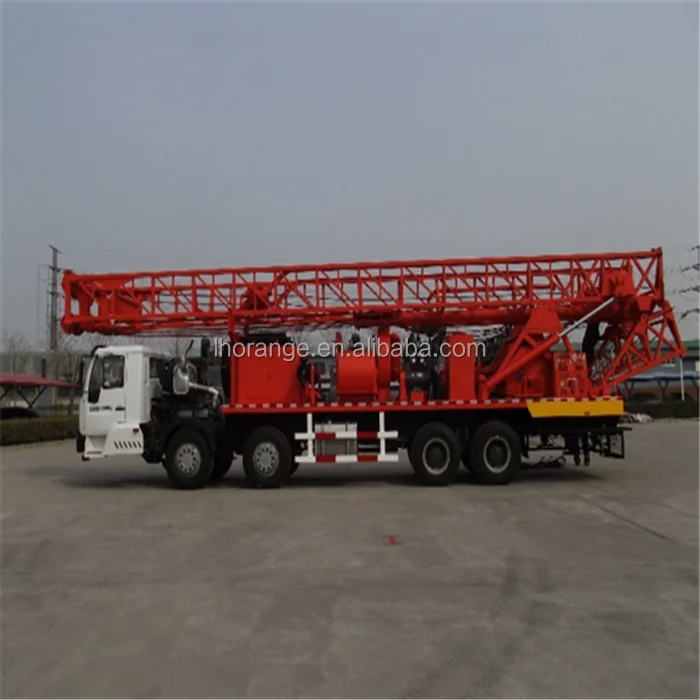

MULTI-FUNCTION TOP HEAD DRIVE LARGE APERTURE WELL/MINE RESCUE/BRIDGE PILE

CDC-600JK
Depth:600M
Aperture:50MM-2000MM
Truck: sino truck 6×4
Dimensions;11500mm×2500MM×4300MM
Total Weight:28000KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
Drill tower load:50T
Drill tower height:10M
Pull up-Pull down cylinder:Pull down:15T Pull up:35T
Diesel engine:144KW
MUD PUMP 1100L/MIN 5MPA
Power head:Torque:15000NM Revolutions:0-236 RPM
Air compressor:350PSI 1200CFM
Control box:lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.

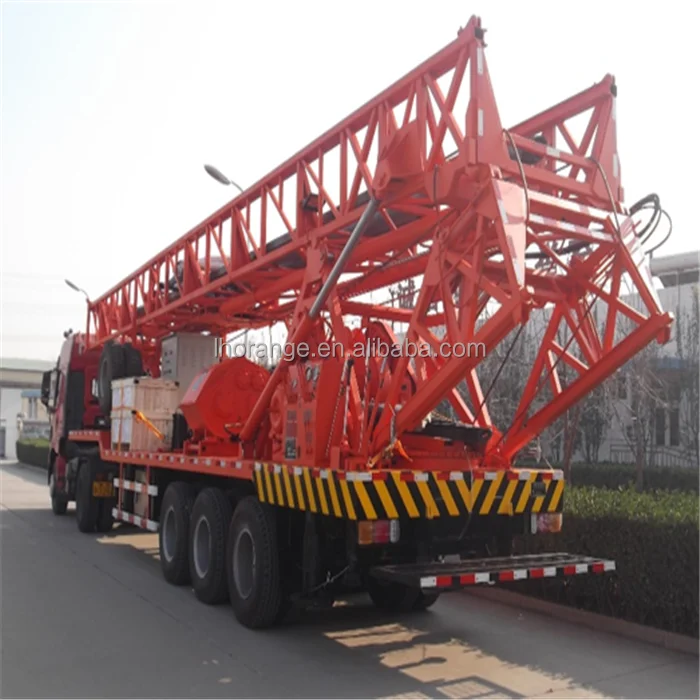

CZC-800
Depth:800M
Aperture:50MM-2000MM
Truck: sino truck 6×4
Dimensions;11500mm×2500MM×4300MM
Total Weight:28000KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
Drill tower load:50T
Drill tower height:12M OR 15M
Hook:8T×6ROOT=48T
Diesel engine:215KW
MUD PUMP 1200L/MIN 8MPA
Rotary table:Torque:17000NM Revolutions:0-236 RPM

CZC-600
Depth:600M
Aperture:50MM-2000MM
Truck: 6×4
Dimensions;11500mm×2500MM×4300MM
Total Weight:28000KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
Drill tower load:50T
Drill tower height:12M OR 15M
Hook:8T×6ROOT=48T
Diesel engine:144KW
MUD PUMP 1100L/MIN 5MPA
Rotary table:Torque:17000NM Revolutions:0-236 RPM

CDC-300K
Depth:300M
Aperture:400MM
Dimensions;7500mm×1900MM×3270MM
Total Weight:11500KG
Truck:6×4 Or 4×4
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
Drill tower load:20T
Drill tower height:6M
Pull up-Pull down cylinder:Pull down:12T Pull up:15T
Diesel engine:PTO 120HP
Power head:Torque:5500NM Revolutions:0-90 RPM
Air compressor:300PSI 700CFM
Control box:lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.
Optional:
MUD PUMP :720L/MIN 3MPA
