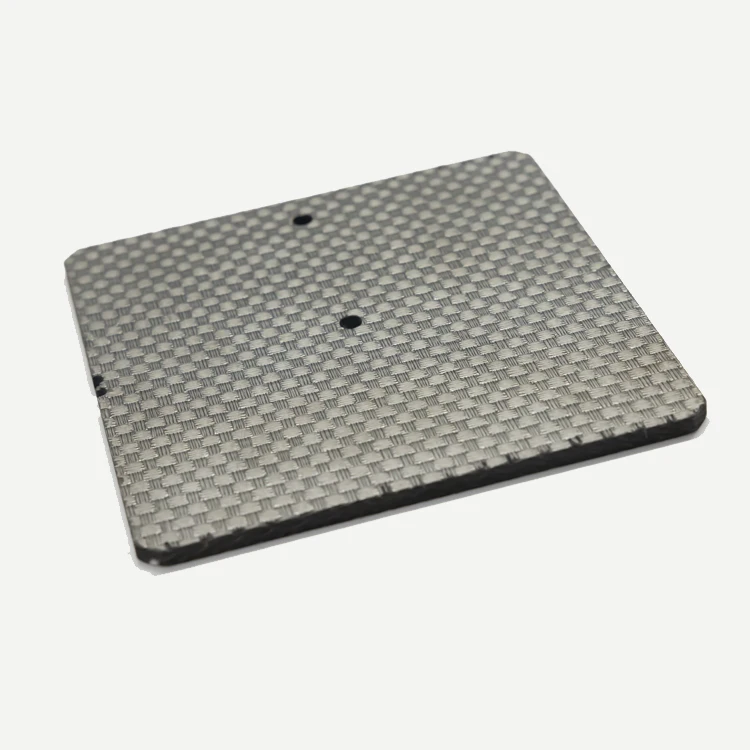

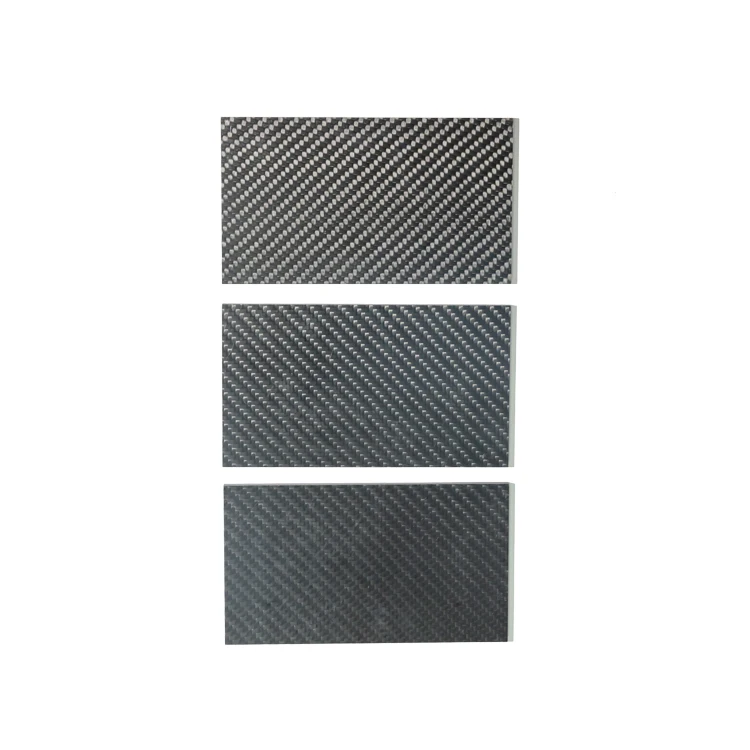

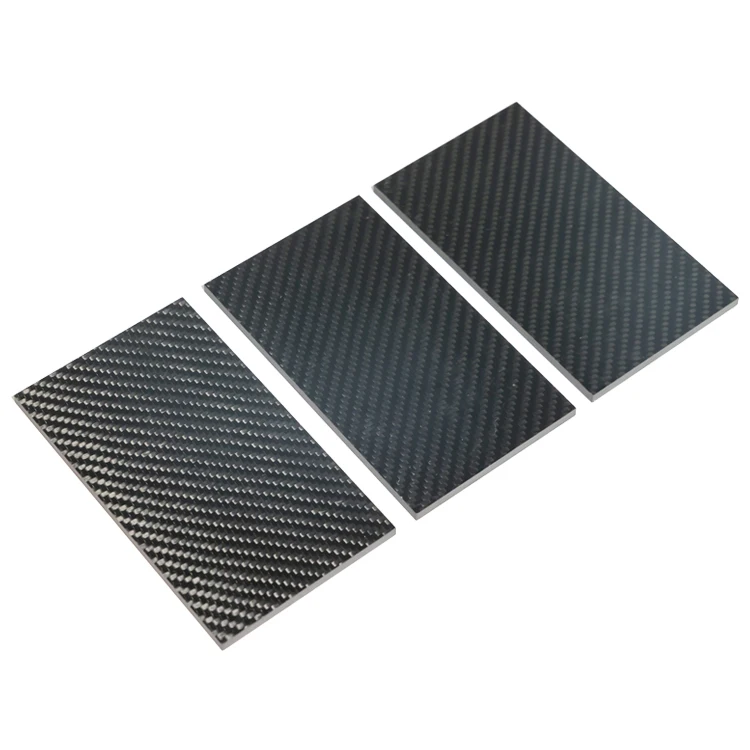

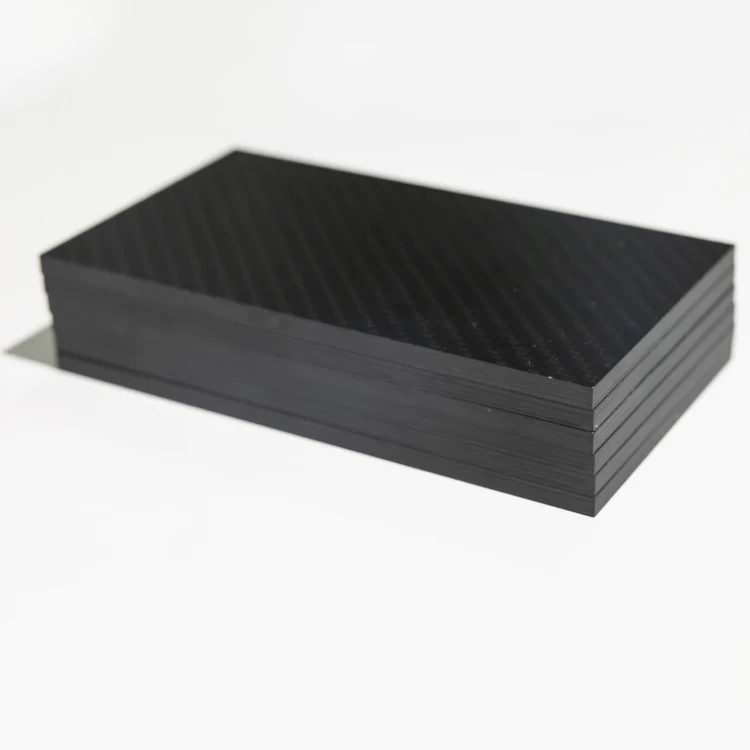

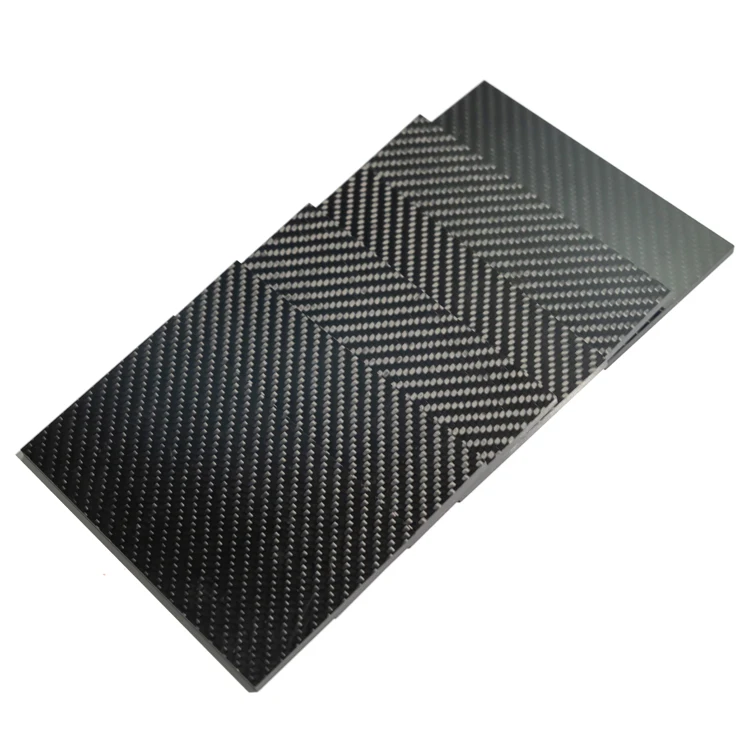

2022 высококачественный продукт однонаправленная кованая углеродная пластина углеродный лист 2 мм 4 5
1 470,64-1 696,89 ₽
Горячая продажа хорошее качество Препрег Углеродного Волокна пластины для промышленности
- Категория: >>>
- Поставщик: Jiangxi Dasen Technology Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1600652920422:
Описание и отзывы
Характеристики
Product Description
A new composite material choice for the 21st century--Carbon Fiber Fabric
Carbon fiber prepreg is a composite material made of reinforcement, such as carbon fiber filaments, resin matrix, release paper and other materials, processed by coating, hot pressing, cooling, laminating, rolling and other processes.
Carbon Fiber Fabric is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins.
Feature
1. High strength, low density, light weight，strength can reach 6-12 times of steel, density is only one quarter of steel.
2. High fatigue strength.
3. High dimensional stability.
4. Excellent electrical and thermal conductivity.
5. Excellent vibration attenuation performance.
6. Excellent heat resistance.
7. The friction coefficient is small and the wear resistance is excellent.
8. Corrosion resistant and long life.
9. X-ray permeability is large.
10. Good plasticity, can be made into any shape according to the shape of the mold, easy to form and easy to process.
2. High fatigue strength.
3. High dimensional stability.
4. Excellent electrical and thermal conductivity.
5. Excellent vibration attenuation performance.
6. Excellent heat resistance.
7. The friction coefficient is small and the wear resistance is excellent.
8. Corrosion resistant and long life.
9. X-ray permeability is large.
10. Good plasticity, can be made into any shape according to the shape of the mold, easy to form and easy to process.
Specification
Woven carbon fiber prepreg | ||||||||||||||||
Type | Reinforcement Yarn | Weave | Fiber Count(Wmm) | Weight | Thickness (mm) | Width | ||||||||||
Warp Yarn | Weft Yam | Warp Ends | Weft Picks | (g/m2) | (mm) | |||||||||||
DSN-1K-P | 1K | 1K | Plain | 9 | 9 | 120 | 0.16 | 1000 | ||||||||
DSN-1K-X | 1K | 1K | Twill | 9 | 9 | 120 | 0.16 | 1000 | ||||||||
DSN-1K-P | 1K | 1K | Plain | 10.5 | 10.5 | 140 | 0.17 | 1000 | ||||||||
DSN-1K-X | 1K | 1K | Twill | 10.5 | 10.5 | 140 | 0.17 | 1000 | ||||||||
DSN-3K-P | 3K | 3K | Plain | 5 | 5 | 200 | 0.3 | 1000 | ||||||||
DSN-3K-X | 3K | 3K | Twill | 5 | 5 | 200 | 0.3 | 1000 | ||||||||
DSN-3K-P | 3K | 3K | Plain | 6 | 6 | 240 | 0.32 | 1000 | ||||||||
DSN-3K-X | 3K | 3K | Twill | 6 | 6 | 240 | 0.32 | 1000 | ||||||||
DSN-3K-P | 3K | 3K | Plain | 7 | 7 | 280 | 0.34 | 1000 | ||||||||
DSN-3K-X | 3K | 3K | Twill | 7 | 7 | 280 | 0.34 | 1000 | ||||||||
DSN-6K-P | 6K | 6K | Plain | 4 | 4 | 320 | 0.38 | 1000 | ||||||||
DSN-6K-X | 6K | 6K | Twill | 4 | 4 | 320 | 0.38 | 1000 | ||||||||
DSN-6K-P | 6K | 6K | Plain | 5 | 5 | 400 | 0.42 | 1000 | ||||||||
DSN-6K-X | 6K | 6K | Twill | 5 | 5 | 400 | 0.42 | 1000 | ||||||||
DSN-12K-P | 12K | 12K | Plain | 2.5 | 2.5 | 400 | 0.46 | 1000 | ||||||||
UD carbon fiber prepreg | ||||||||||
Type | carbon fiber Weight（g/㎡） | Resin weight（%） | Total weight（g/㎡） | Thickness （mm） | Width （mm） | |||||
DSN-UD030 | 30 | 55 | 76 | 0.03 | 1000 | |||||
DSN-UD050 | 50 | 45 | 91 | 0.06 | 1000 | |||||
DSN-UD100 | 75 | 38 | 121 | 0.08 | 1000 | |||||
DSN-UD125 | 100 | 33 | 150 | 0.10 | 1000 | |||||
DSN-UD150 | 125 | 33 | 187 | 0.13 | 1000 | |||||
DSN-UD150 | 150 | 33 | 224 | 0.15 | 1000 | |||||
DSN-UD175 | 175 | 33 | 261 | 0.18 | 1000 | |||||
DSN-UD200 | 200 | 33 | 298 | 0.20 | 1000 | |||||
Production Line
Application:
Carbon fiber tubes
Roll wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation robotics, telescoping poles, idler rollers, and UAV components. The standard finish is cello-wrapped gloss, but a smooth sanded finish is also available.
Carbon fiber bicycle accessories
Carbon fiber bicycle has 5 advantages, so more and more bicycles use carbon fiber prepreg material
1 Light weight: effectively reduce the overall weight of the bike, cyclists can reduce the physical loss of riding, riding speed faster, riding distance farther.
2 Good rigidity: carbon fiber bicycle because of the excellent strength, rigidity, conducive to the transformation of the driving force, improve the maneuverability of the whole bike, enhance the comfort of riding.
3 Good shock resistance: The carbon fiber composite material comes with good damping, which can improve the shock resistance and provide cushioning for the ups and downs that occur during the ride, making the ride more comfortable.
4 High safety: carbon fiber bicycle has good impact resistance and will not be damaged in a general collision.
5 Good durability: Carbon fiber bicycle has good resistance to acid and alkali, corrosion, salt spray and oxidation, which prolongs the service life of the bicycle.
1 Light weight: effectively reduce the overall weight of the bike, cyclists can reduce the physical loss of riding, riding speed faster, riding distance farther.
2 Good rigidity: carbon fiber bicycle because of the excellent strength, rigidity, conducive to the transformation of the driving force, improve the maneuverability of the whole bike, enhance the comfort of riding.
3 Good shock resistance: The carbon fiber composite material comes with good damping, which can improve the shock resistance and provide cushioning for the ups and downs that occur during the ride, making the ride more comfortable.
4 High safety: carbon fiber bicycle has good impact resistance and will not be damaged in a general collision.
5 Good durability: Carbon fiber bicycle has good resistance to acid and alkali, corrosion, salt spray and oxidation, which prolongs the service life of the bicycle.
Carbon fiber insole/ liners
Many well-known sports shoe brands use carbon fiber insoles or liners in their shoes.
1 Reduce the weight of the shoe to make it lighter to wear . The carbon material is a lightweight material with good toughness and strength .
2 improve the elasticity of the shoe, which can make the sportsman react faster. The liner makes the shoes more highly elastic and can provide a thrust for the sportsman.
3 strenuous exercise carbon fiber insole or liner does not deform, can protect the feet of athletes from injury.
1 Reduce the weight of the shoe to make it lighter to wear . The carbon material is a lightweight material with good toughness and strength .
2 improve the elasticity of the shoe, which can make the sportsman react faster. The liner makes the shoes more highly elastic and can provide a thrust for the sportsman.
3 strenuous exercise carbon fiber insole or liner does not deform, can protect the feet of athletes from injury.
Other application
At present, civil carbon fiber prepreg has been widely used in:
1 Leisure sports: fishing rod, bow and arrow, kayak, ski, water ski, golf club, bicycle, dragon boat, kite skeleton, punching boat, lifeboat, etc.
2 competitive sports: bicycles, kayaks, diving boards, spreader bars, etc.
3 Life products: helmets, drone skins, masks, toys, luggage , etc.
4 Construction engineering: bridges, structural beams, building repair, gymnasium roof, etc.
5 Automobile manufacturing: bumpers, dashboards, baseboards, door frame versions, hoods, roof panels, air pressure tanks, etc.
6 Electronic Products: phone case, watch strap, laptop/pad bracket, CPU cooling fan, etc.
1 Leisure sports: fishing rod, bow and arrow, kayak, ski, water ski, golf club, bicycle, dragon boat, kite skeleton, punching boat, lifeboat, etc.
2 competitive sports: bicycles, kayaks, diving boards, spreader bars, etc.
3 Life products: helmets, drone skins, masks, toys, luggage , etc.
4 Construction engineering: bridges, structural beams, building repair, gymnasium roof, etc.
5 Automobile manufacturing: bumpers, dashboards, baseboards, door frame versions, hoods, roof panels, air pressure tanks, etc.
6 Electronic Products: phone case, watch strap, laptop/pad bracket, CPU cooling fan, etc.
Packing & Delivery
Packed with plastic bag and cartons/pallets.
The prepreg requires storage at temperatures below -18℃.
Our factory support package, logo customization when more than 600 Square meters.
Related Products
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 7-10 days, mass production time needs 4 weeks If need a big quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7 days to arrive.
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 7-10 days, mass production time needs 4 weeks If need a big quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7 days to arrive.
Airline and sea shipping also optional,need to consult the freight forwarder by address/ port.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on carton?
A: Yes. Please inform us formally before our production and confirm the design.
Q6: What is your terms of payment ?
A: Payment<=10000 USD , 100% in advance.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on carton?
A: Yes. Please inform us formally before our production and confirm the design.
Q6: What is your terms of payment ?
A: Payment<=10000 USD , 100% in advance.
Payment>=10000 USD , 50% T/T in advance ,balance before shipping.
If you have another question, please feel free to contact us !
If you have another question, please feel free to contact us !
