Spot UV LED Lamp with 395nm Fast Curing for Adhesive

1. General precautions
In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
Under the standard test conditions, the bending performance of the cable is satisfied.
However, its performance under any conditions of actual use cannot be guaranteed.
Do not disassemble, modify or set up inside.
Breakdown, modification and use caused by failure, damage and other circumstances, will not be within the scope of warranty.
2. Install the environment
● Installation and use of ambient temperature and humidity 0℃ -+ 45℃, ≤85%RH (no condensation, freezing)
● Temperature and humidity of storage environment -10℃ -+ 60℃, ≤85%RH (non-condensation, freezing)
● Dust, soot, conductive dust, corrosive, flammable gas, salt, iron, etc
● No contact with water, oil, medicine and other places
● No severe temperature change and vibration, impact of the place without direct sunlight, no strong magnetic field, strong electric field
3. About power supply and wiring
● Please supply single-phase 200V-240V (frequency 50Hz-60Hz) power supply voltage, and grounding.
● Do not use the same power cord with the motor and the induction machinery or the high-power device.
● For the wiring between the controller and the LED irradiation head, please use the attached cable and connect. In the attached connection cable, the LED irradiation head connection cable can be used to be bent.
● When used in bending, as a minimum bending radius greater than 110mm, please execute the design of the system. Bending with radius less than recommended, there is a possibility of rupture occurring in a very short time period.
4. About installation
● When installing the controller and irradiation head, keep it level. Do not tilt, tip or reverse install. Otherwise, it may lead to fever and damage.
● Do not install in a confined space. Do not block the radiator vents.
5. Precautions for power connection
● Before switching on the power supply, please confirm all connections are correct.

Zhongshan Enbo Optoelectronics Co., Ltd. is a manufacturer specializing in the production of LED functional lighting used in professional equipment. We have more than ten years of LED production and 8 years of foreign trade experience, and have been actively recognized and trusted by many partners. In recent years, we have begun to focus on the provision of professional equipment lighting solutions, and continue to optimize and innovate products. Our products are all CE and ROHS certificated , some of our lights are UL compliant, we strictly follow EU electrical safety standard. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

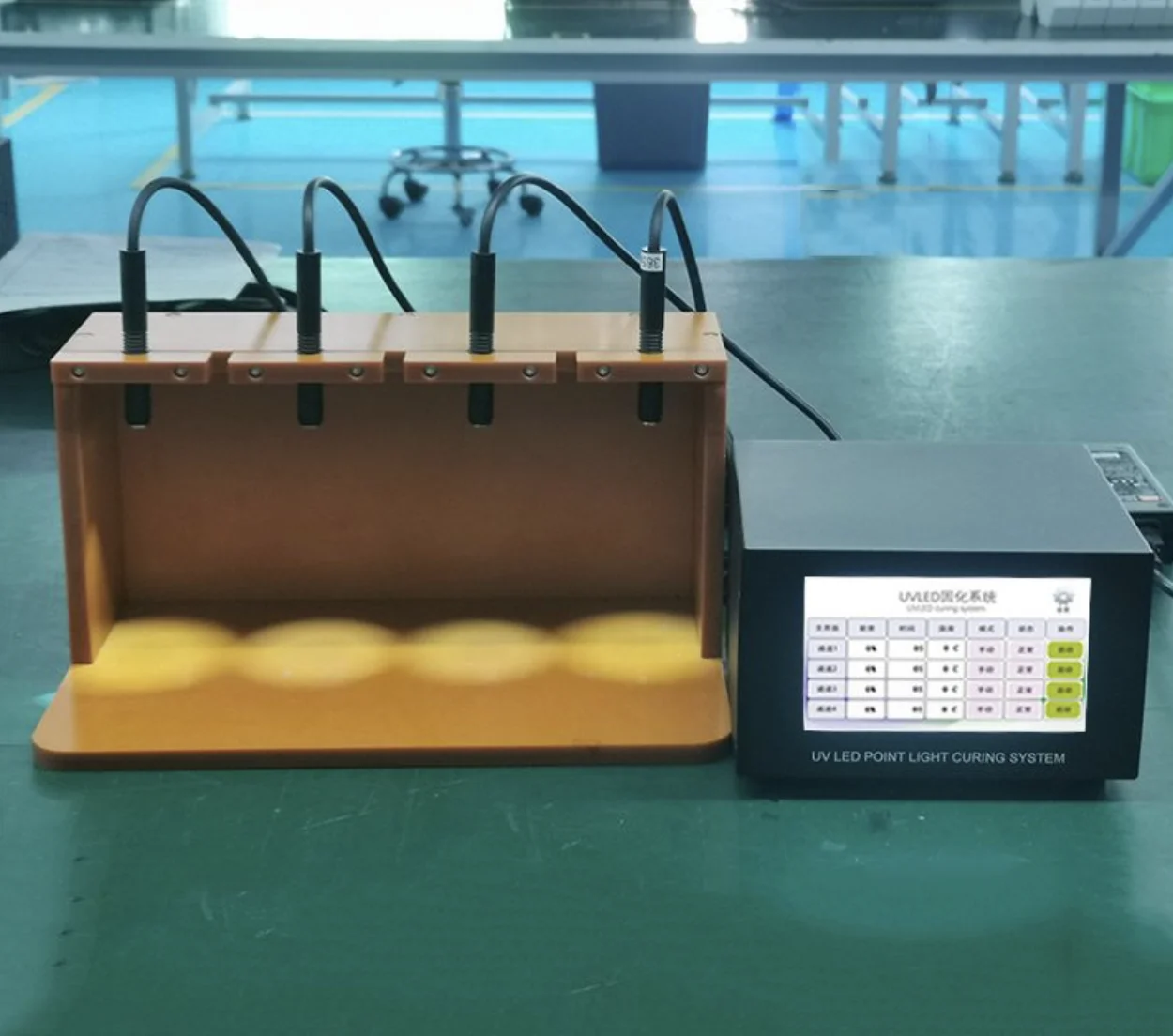

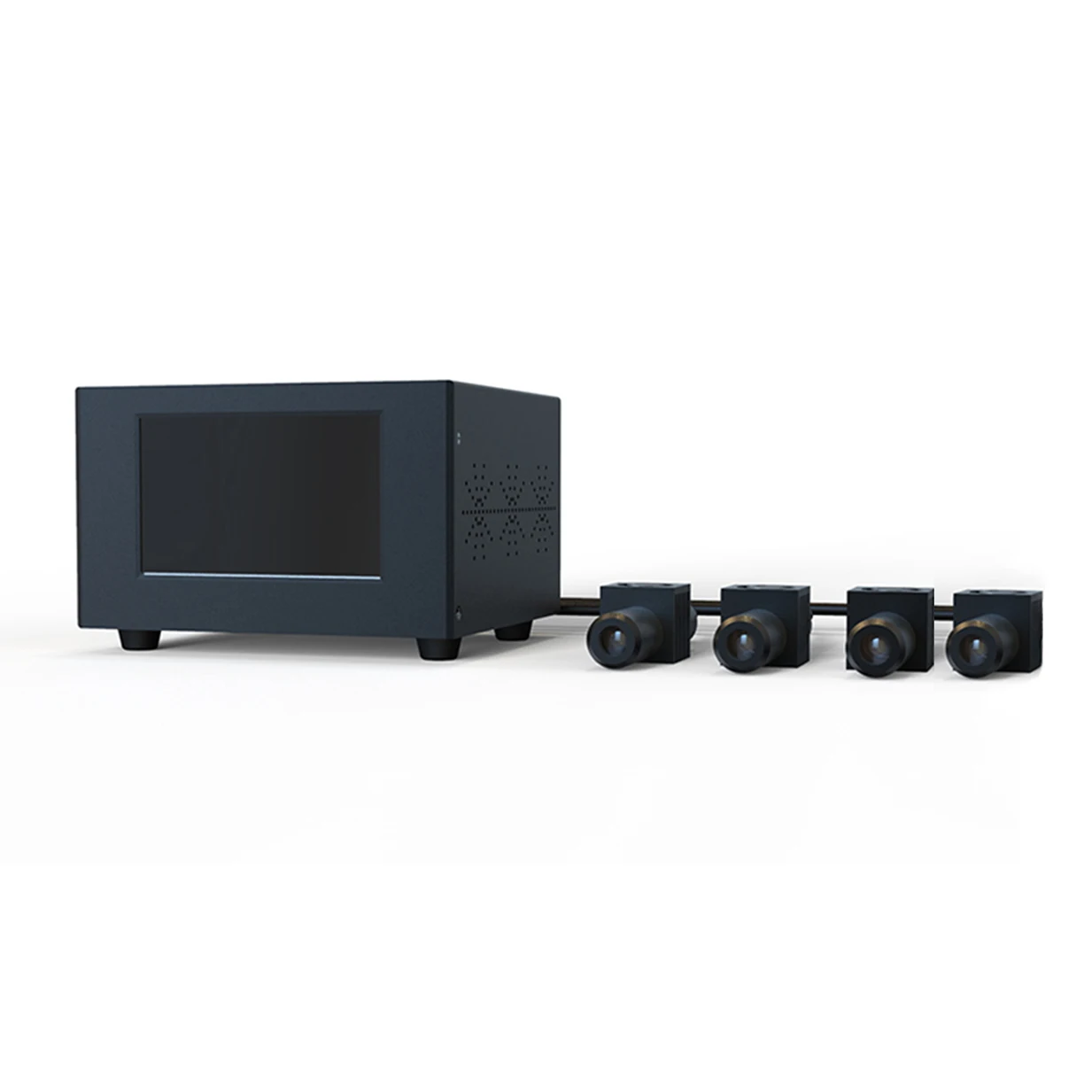

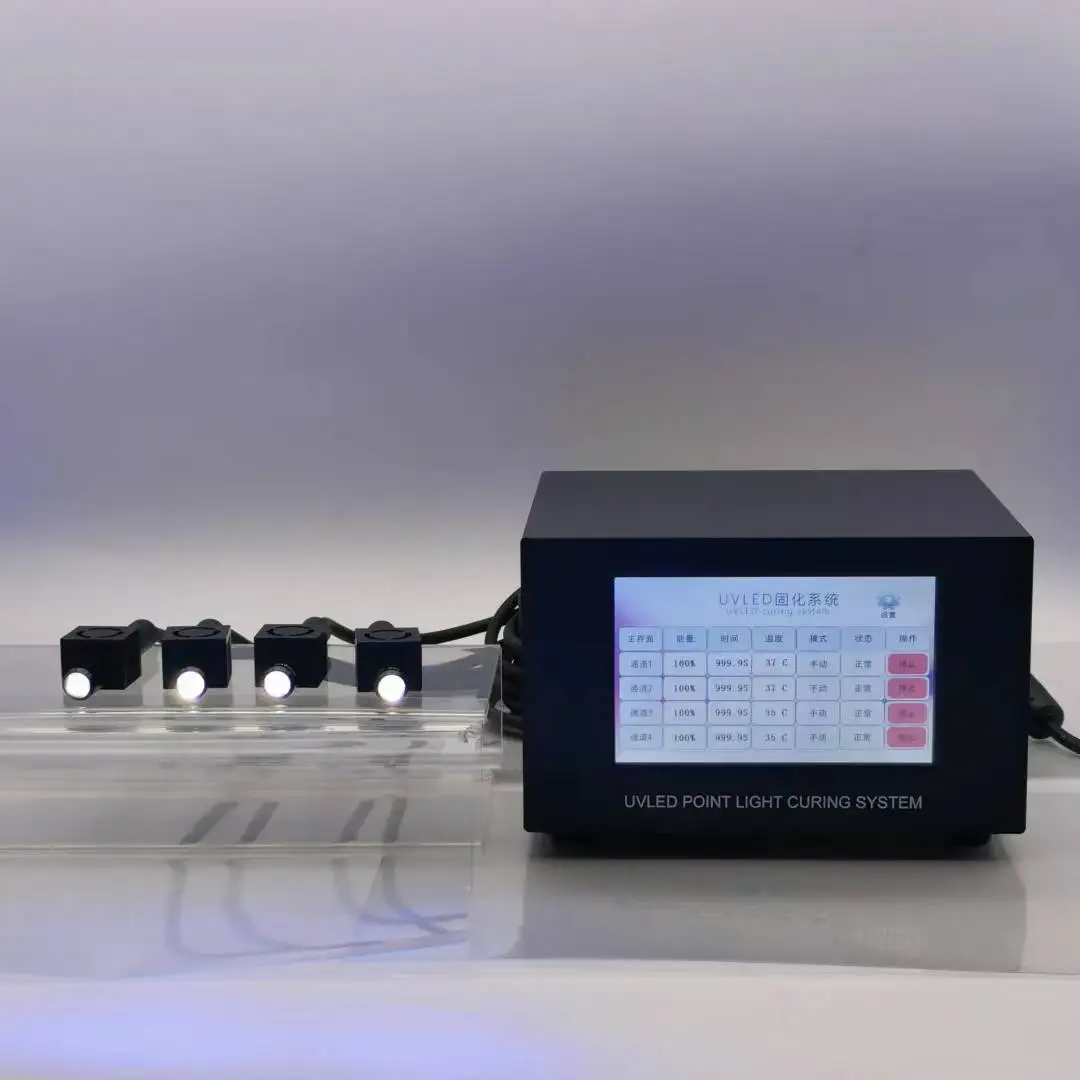

1. What's the whole UV LED curing system including?
The whole UV LED curing system including UV LED lamp+ UV LED control system

2. Can I use my own PLC and Electric cabinet?
Yes, of coures. Our UV LED driver provide RS485 communication.

3.How to proceed an order for UV LED curing system?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
