Портативный сварочный аппарат 4 в 1 многофункциональный MIG TIG CUT MMA и Flux
- Категория: >>>
- Поставщик: Shaodong Lida Tools Co. Ltd.Shaodong Ltd.
Сохранить в закладки 1600653692299:
Описание и отзывы
Характеристики
Product Parameters
Model | MCU MIG-160E | MCU MIG-200E | MCU MIG-250E | ||
Rated input Voltage (V) | 1*220V-240V | 1*220V-240V | 1*220V-240V | ||
Rated input power (KVA) | 4.5 | 6.1 | 7.2 | ||
Current range (MMA) (A) | 10~140 | 10~180 | 10~180 | ||
Current range (MIG) (A) | 30~160 | 30~200 | 30~230 | ||
Voltage range (MIG) (V) | 11~22 | 11~26 | 11~28 | ||
No-Load voltage (V) | 60 | 60 | 60 | ||
Wire Feed speed (m/min) | 1.5~16 | 1.5~16 | 1.5~16 | ||
Wire diameter (mm) | 0.6/0.8/0.9 | 0.6/0.8/0.9/1.0 | 0.6/0.8/0.9/1.0 | ||
Rated Duty Cycle (%) | 60 | 60 | 60 | ||
Frequency (Hz) | 50/60 | 50/60 | 50/60 | ||
Efficiency (%) | 85 | 85 | 85 | ||
Power Factor | 0.75 | 0.75 | 0.75 | ||
Protective class | IP21S | IP21S | IP21S | ||
Dimension (mm) | 490*220*390 | 490*220*390 | 490*220*390 | ||
Weight (Kg) | 14 | 15 | 16 | ||
Accessories | 15AK TORCH WITH 3M CABLE, ELECTODE HOLDER WITH 2M CABLE, EARTH CLAMP WITH 2M CABLE, 3M GAS HOSE, 2PCS HOSE CLAMP. | ||||
Moq | 100Pcs | 100Pcs | 100Pcs | ||
Product Description

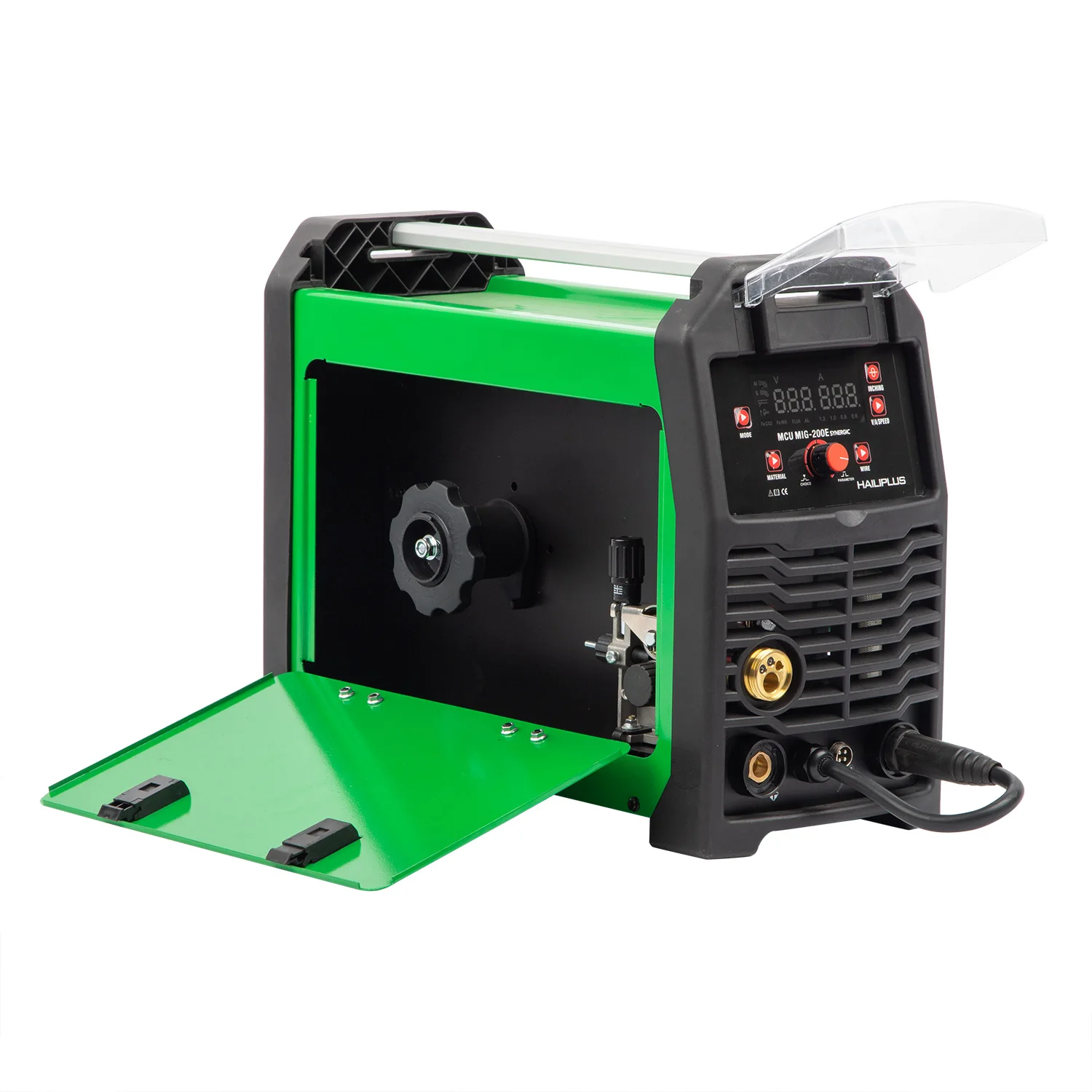

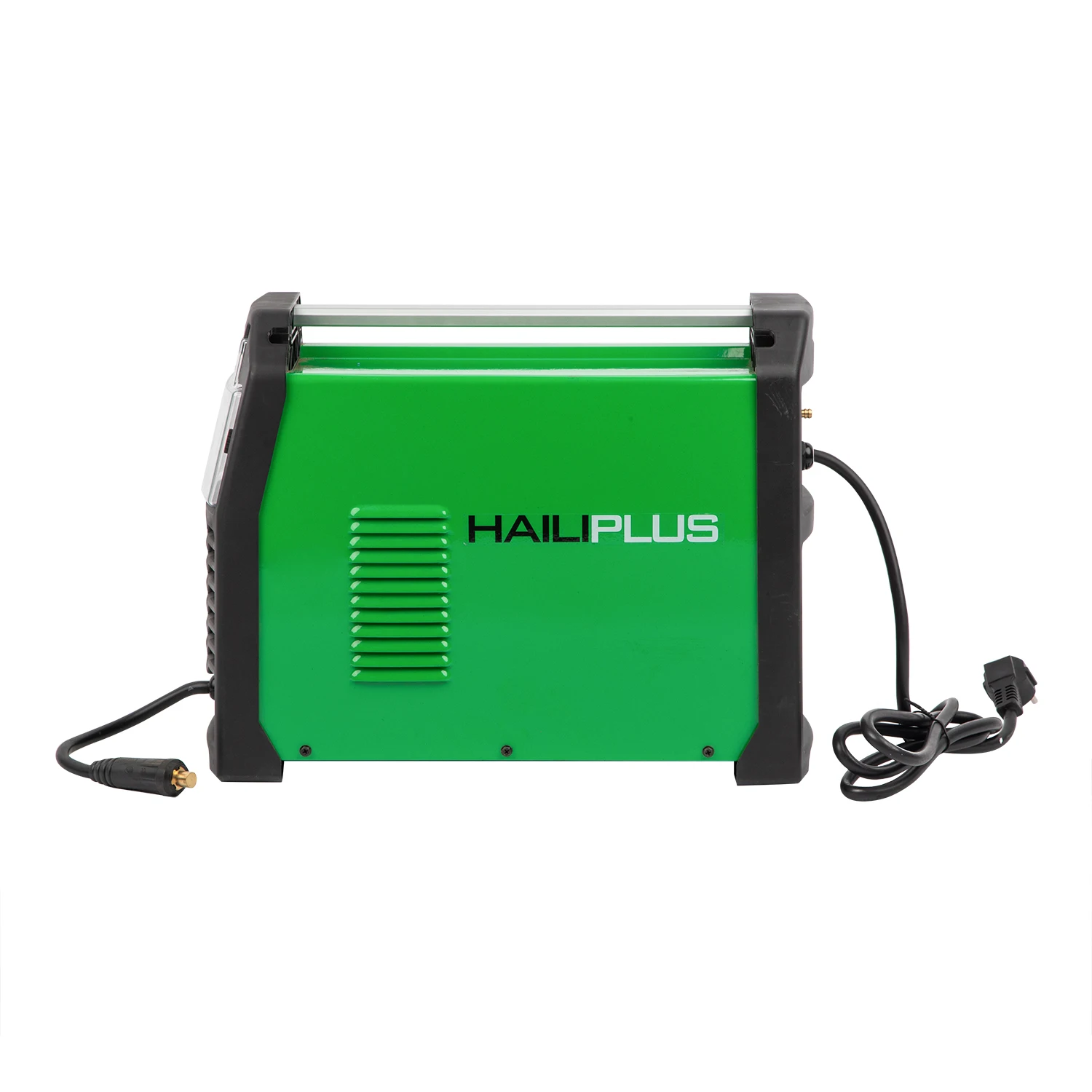

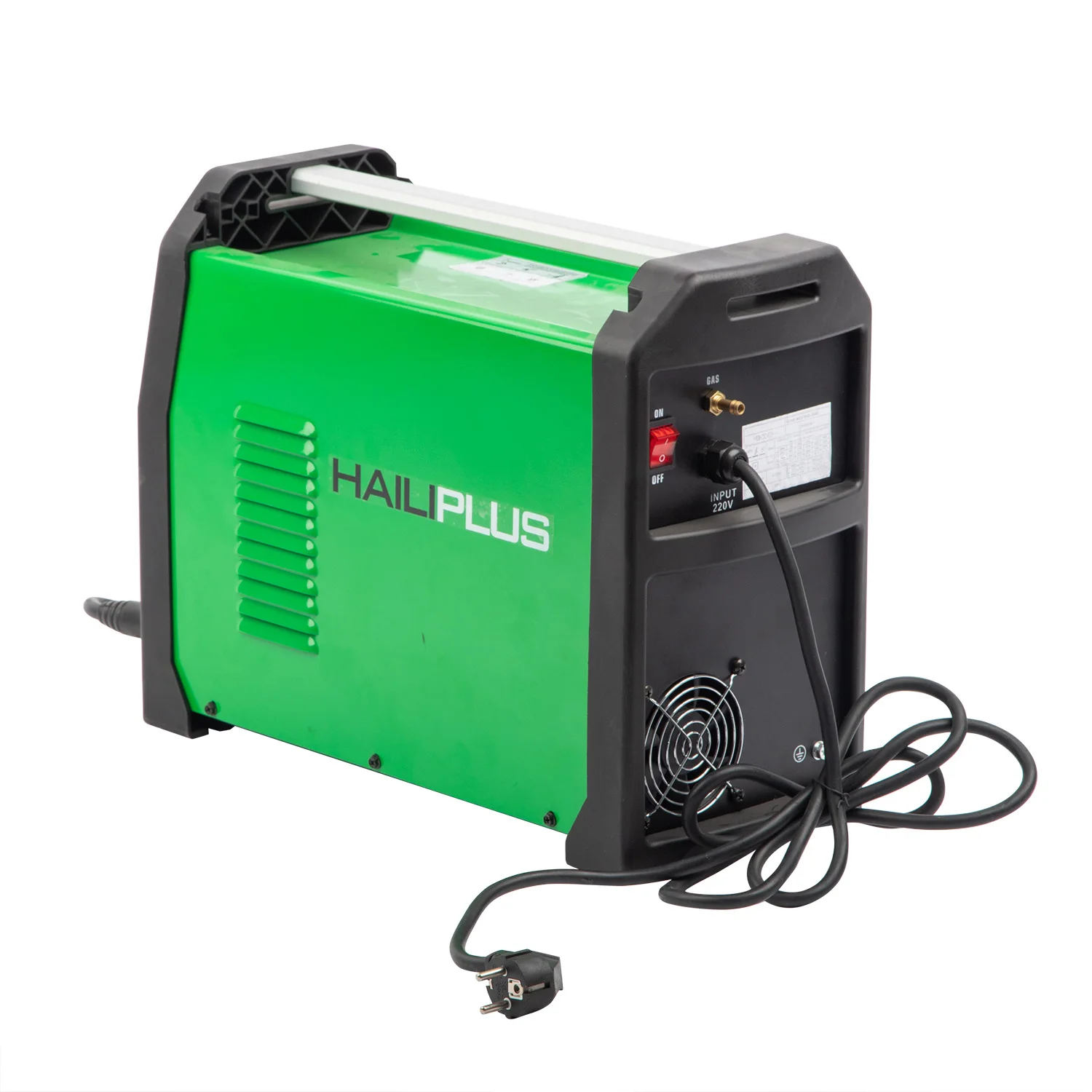

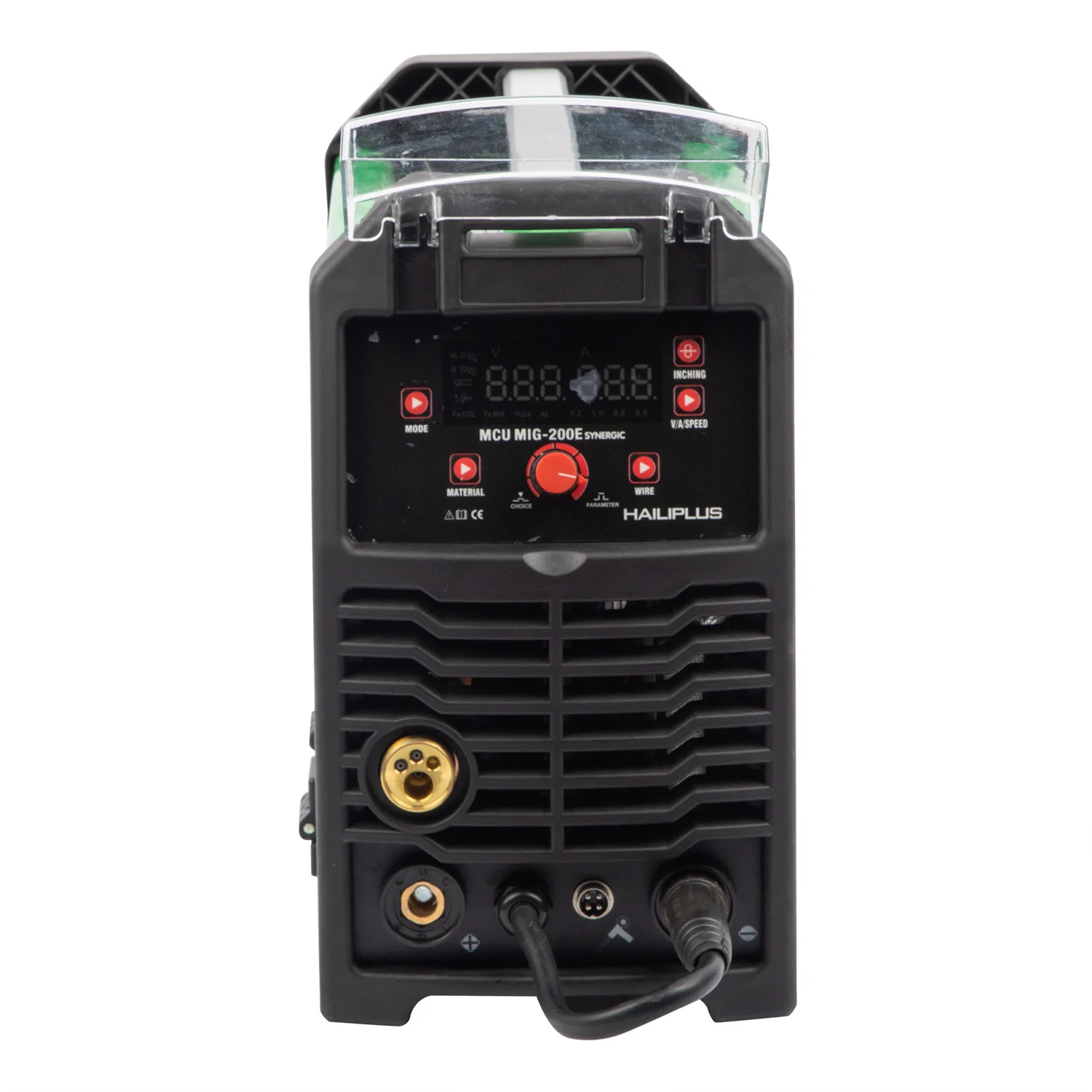

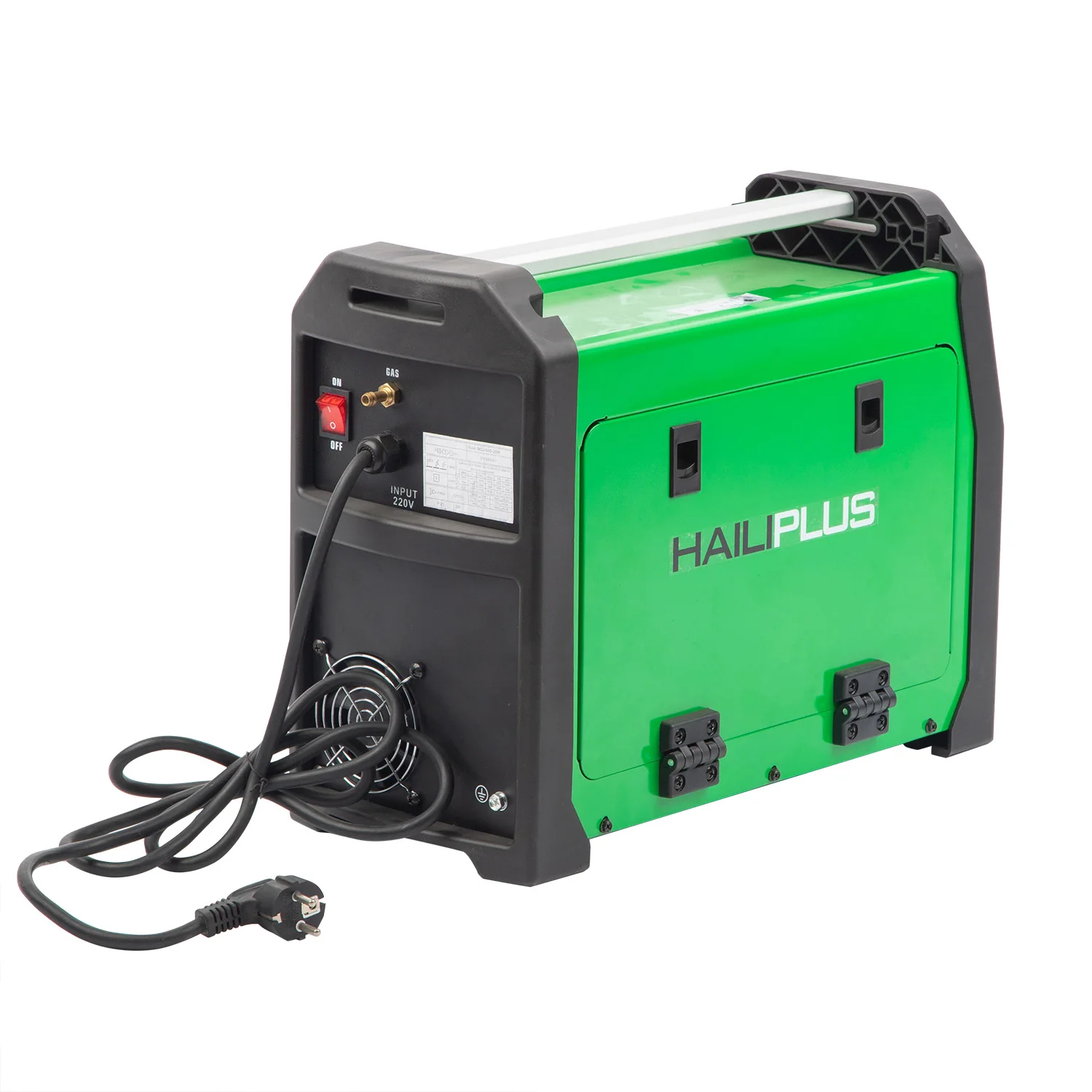

Smart Portable 4 in 1 Welding Machine MIG TIG CUT MMA and Flux Welding Without Gas Multifunction Welding Machine
Features:
1), 110V/220V dual voltage can be optional.
Adopt High performance 32-bit MCU digital technology and IGBT & advanced PWM inverter technology.
2), DC MIG, Lift-TIG, MMA, 2T/4T, VRD, Support Spool Gun and multi-process functions, 5Kgs spool holder with Inching wire function, easy to install welding wire.
3), 100*35MM big and friendly display with impact resistance.
4), Outstanding welding performance, especially for thin plate welding.
5), Easy-to-user interface, Synergic Home Function, dynamic control Digital display with very simple operations.
Synergic MIG, Manual adjustment MIG, MMA, Lift-TIG different welding mode.
Preset synergic database: Argon+CO2 Mixed for solid wire,100% CO2 solid wire, Flux wire, Aluminum wire to choose different input gas and welding material.
0.6-0.8-1.0-1.2MM different welding wire diameter.
2T/4T torch operate mode.
Adjustable arc length, Hot Start, inductance, burn-back, VRD, ARC force and Anti-stick.
With these super functions and can let user without any experience also can operate machine very well only need 1 minute.
6), MIG welding voltage and wire speed also can be manual setting for skilled user.
7), Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.
8), Premium 35-50MM2 cable connector, and easy to change polarity conversion, can suit Solid wire (Gas welding) or Flux wire (Gasless welding).
9), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.
10), Compact, lightweight, little splash, portable, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.
11), Spool gun can be optional.
1), 110V/220V dual voltage can be optional.
Adopt High performance 32-bit MCU digital technology and IGBT & advanced PWM inverter technology.
2), DC MIG, Lift-TIG, MMA, 2T/4T, VRD, Support Spool Gun and multi-process functions, 5Kgs spool holder with Inching wire function, easy to install welding wire.
3), 100*35MM big and friendly display with impact resistance.
4), Outstanding welding performance, especially for thin plate welding.
5), Easy-to-user interface, Synergic Home Function, dynamic control Digital display with very simple operations.
Synergic MIG, Manual adjustment MIG, MMA, Lift-TIG different welding mode.
Preset synergic database: Argon+CO2 Mixed for solid wire,100% CO2 solid wire, Flux wire, Aluminum wire to choose different input gas and welding material.
0.6-0.8-1.0-1.2MM different welding wire diameter.
2T/4T torch operate mode.
Adjustable arc length, Hot Start, inductance, burn-back, VRD, ARC force and Anti-stick.
With these super functions and can let user without any experience also can operate machine very well only need 1 minute.
6), MIG welding voltage and wire speed also can be manual setting for skilled user.
7), Unique housing design with high-strength plastic All-around corner protection, innovative human engineering handle.
8), Premium 35-50MM2 cable connector, and easy to change polarity conversion, can suit Solid wire (Gas welding) or Flux wire (Gasless welding).
9), With Wide Voltage Function, work well and stable between voltage 150V-270V or together with Generator.
10), Compact, lightweight, little splash, portable, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.
11), Spool gun can be optional.
Certifications
Exhibition
Lida Tools attends Canton Fair, Beijing Welding & Essen fair, Germany Welding & Essen fair every time.
To know local markets and service our partners better, we visit Poland, Thailand, Brazil, Peru, Russia etc every year.
YouTube channel: Lida Tools
Packing & Delivery
- Package standard: Export Carton with Foamed Plastic or Plywood with Honeycomb carton.
- We offer OEM package as per your request.
FAQ
Q1: Why choose us?
1.We are China Leading manufacturer and export to more than 50 counrties all over the world.
2. We have high-experience R&D team, we can adjust the parameter and panels design as per your request3. A full professional team to handle OEM/ODM project.
3.100% QC inspection before shipping.
4.14 months warranty, life-long technical support and design service.
5. Europe is our main market, accounts for more than 45%. We can send a full series of CE certuficates.
1.We are China Leading manufacturer and export to more than 50 counrties all over the world.
2. We have high-experience R&D team, we can adjust the parameter and panels design as per your request3. A full professional team to handle OEM/ODM project.
3.100% QC inspection before shipping.
4.14 months warranty, life-long technical support and design service.
5. Europe is our main market, accounts for more than 45%. We can send a full series of CE certuficates.
Q2: How is your quality control?
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Each machine loading test at least 20 minute.
Q3: what voltage could you provide?
110/220v, 220/380V, 230V etc. We can adjust it as per your country voltage.
Q4: How long is the production lead time?
After receiving your 30% deposit , generally it is 5-10days if the goods are in stock, or 25-30 days if not .
Q5: What's your payment way?
T/T, Trade Assurance.
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Each machine loading test at least 20 minute.
Q3: what voltage could you provide?
110/220v, 220/380V, 230V etc. We can adjust it as per your country voltage.
Q4: How long is the production lead time?
After receiving your 30% deposit , generally it is 5-10days if the goods are in stock, or 25-30 days if not .
Q5: What's your payment way?
T/T, Trade Assurance.
Q6: Can I get customized sample?
Yes, we can adjust the circuit board and structure as per your request and send you samples.
Yes, we can adjust the circuit board and structure as per your request and send you samples.
