Козловой кран Rtg козловые краны Rtg/Rmg козловой

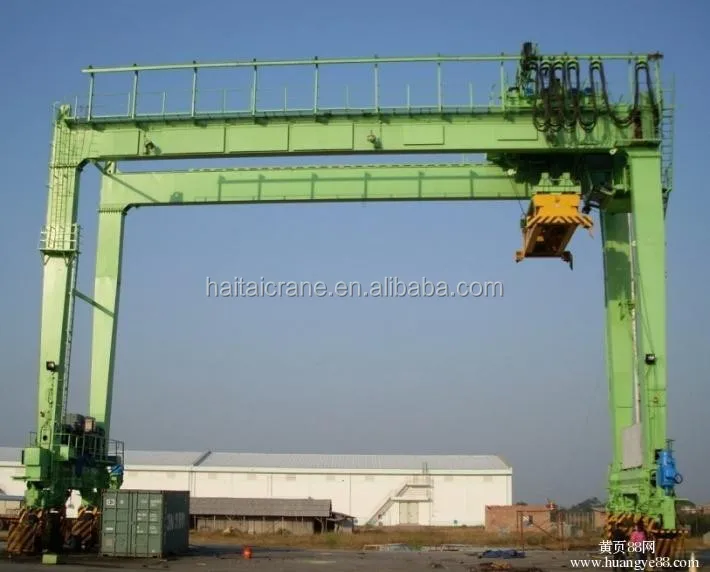

Rubber Tyred 20ft 40ft Container Gantry Crane

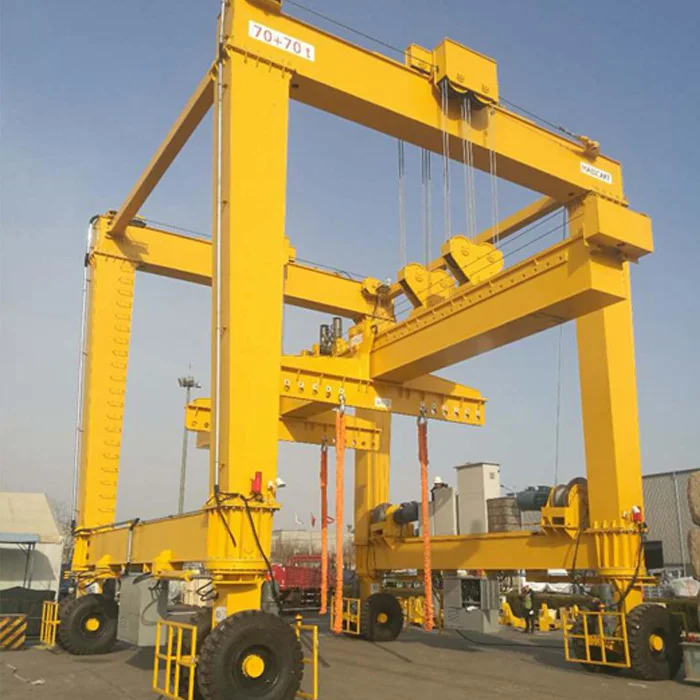

Professional Heavy Load Electric Trolley Gantry Crane 95 Ton is the most flexuble and robust heavy-duty lifting equipment in industrial area.The height and width of Rubber Type Gantry Crane can be customized to adapt to almost any loading and unloading application,such as the wind power industry,prefabricated concrete,industrial tank etc.

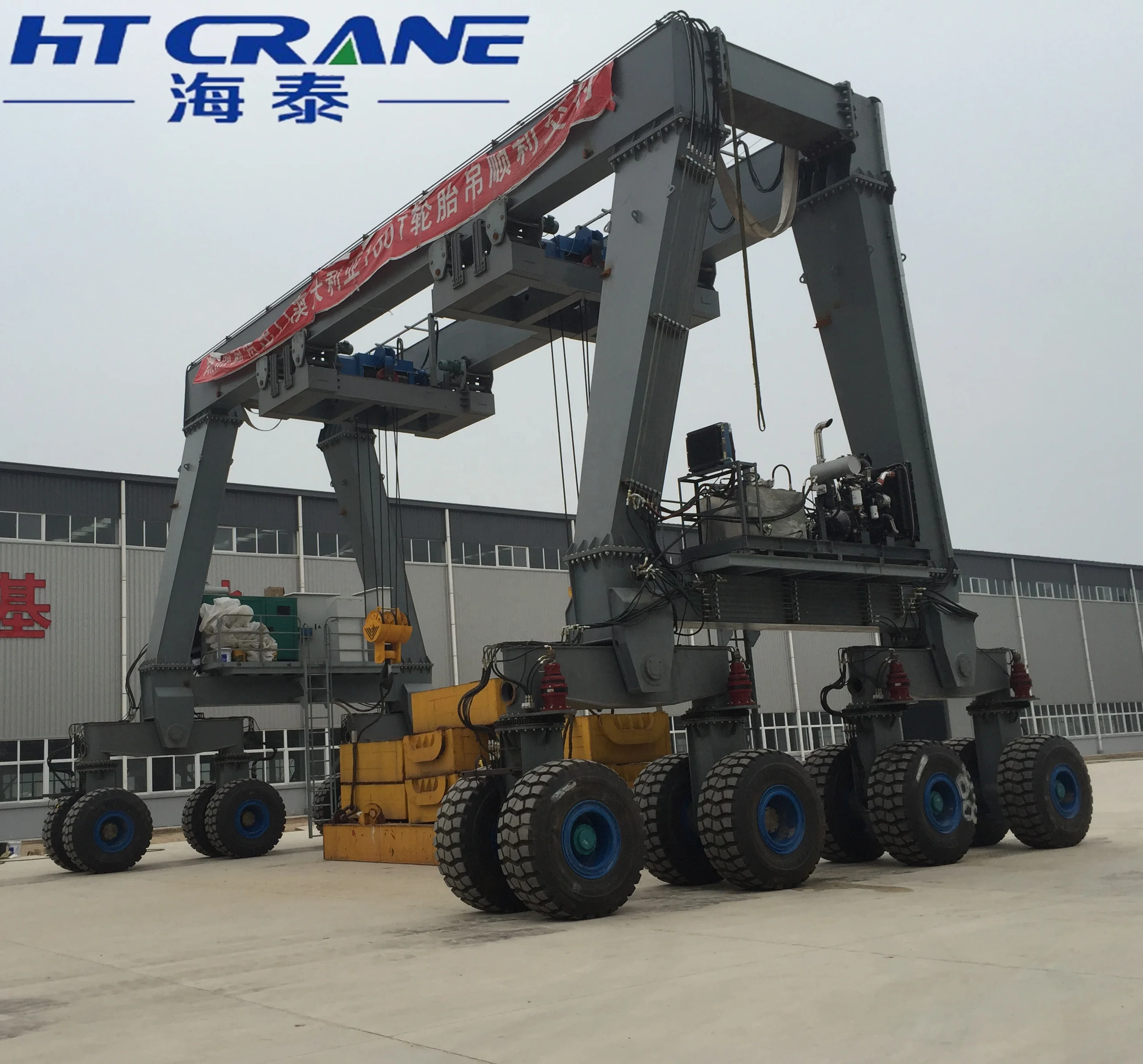

Mobile Rubber Type Gantry Crane is composed of gantry,crane crab,trolley traveling mechanism,cab and electric control system.

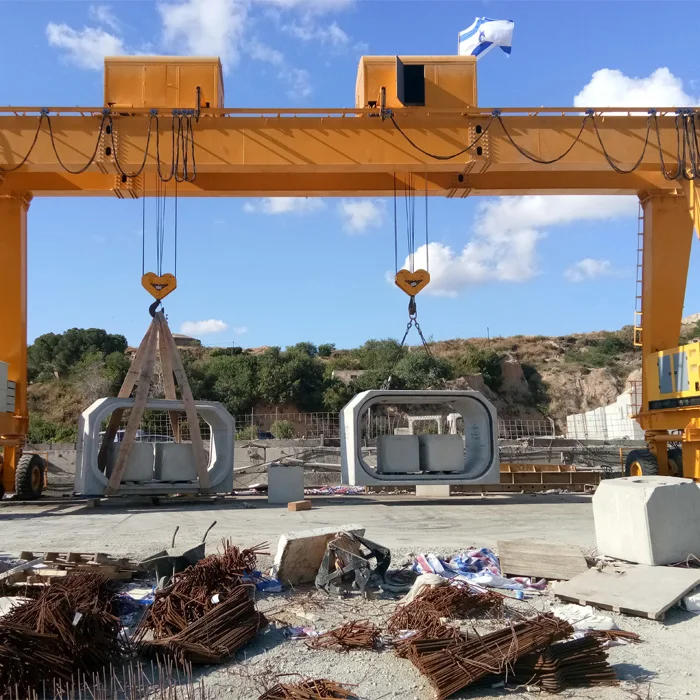

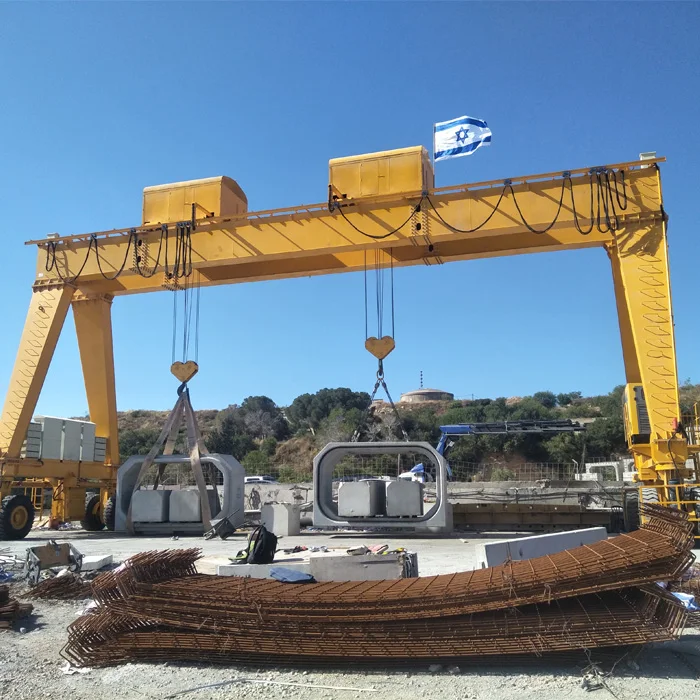

Mobile Rubber Type Gantry Crane can work independent,or two units work synchronously to lift longer items.

Main Components Of Mobile Rubber Type Gantry Crane

1.-Running system

2.-Turning system

3.-Crane span structures

4.-Hoisting system

5.-Dynamical system

6.System of hydraulic and electric control

The gantry is of a box-shape structure,there are single girder and double girder 2 types based on the user's requirments.

Details:

	Using the most advanced systems and spare parts for mobile equipment to minimize potential leaks.
	Mobile Rubber Type Gantry Crane turning pivot is equipped with slewing bearing, which can simplify maintenance operations, thus reducing maintenance costs and prolonging the service life of the equipment.   With the movement of flashlight and acoustooptic alarm, everyone in the working area will know that the crane has been started, so as to better ensure the safety of operators and other workers.
	Operation Mode Of Rubber Type Gantry Crane: Wireless remote control, cab. Two operation modes can be both equipped.

Technical Parameter:

Note:The above data is only for reference. Lifting capacity,span,lifting height,spare parts brand could be customized according to your requirements.

Rubber Type Gantry Crane Technical Data Need To Be Confirmed

1.Lifting capacity:Includes the hoisting material load and the spreader(grab,hook etc) weight.

2.Lifting height:Includes the sum of the lifting height above the rail and below the rail.

3.Working speed:Should be determined on the basis of the required productivity.

Model Selection Parameters Need

--Single Girder / Double girder

--The object dimension (length x width x height)

--The hoisting height from the ground
