Product Overview
MOOGE Efficient Plastic recycling machine
MOOGE MT series Efficient plastic recycling machine is mainly used to recycling the waste PET bottles, water bottles,cola bottles, PET sheet and PET packing containers. The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes. All your requirements of the Recycled waste cola bottle PET recycling machine will be customized.
Products Description
We have 500-5000 kg/h MT Series Efficient plastic recycling machine.and We can design the layout according to your requirements .
Model | Capacity | Installed Power | Steam Use | Water Supply | Manpower | Area Required |
MT-500 | 500 kg/hr | 190 KW | Optional | 4-5 m3/hr | 4-6 Person | 60*5*5 m |
MT-1000 | 1000 kg/hr | 260 KW | Optional | 6-8 m3/hr | 8-10 Person | 80*8*5 m |
MT-2000 | 2000 kg/hr | 400 KW | Suggest Use | 10-15 m3/hr | 10-12 Person | 80*8*5 m |
MT-3000 | 3000 kg/hr | 600 KW | 80,000 Kcal | 20-30 m3/hr | 12-16 Person | 100*8*10 m |
MT-4000 | 4000 kg/hr | 800 KW | 100,000 Kcal | 30-40 m3/hr | 15-20 Person | 135*10*10 m |
MT-5000 | 5000 kg/hr | 1000 KW | 120,000 Kcal | 40-50 m3/hr | 15-20 Person | 135*10*10 m |
Features At-A-Glance
De-Baling machine
Function :Opening the PET bottle bales
With 4 roller cylinder to feeding the bottles equally
Claw steel is very strong and the thickness is 20mm
Machine chamber made by solid strong steel
Working chamber size can above 1600x1600mm(depth x width)
Machine fixed with support over the sorting table
Claw steel is very strong and the thickness is 20mm
Machine chamber made by solid strong steel
Working chamber size can above 1600x1600mm(depth x width)
Machine fixed with support over the sorting table
Label Remover Machine
Function:remove the labels from the bottle and separate label out from bottles.
Blade made by alloyed steel for long time use Blade is fixed by screw on the rotor easy to adjustable and changeable .
The barrel is designed with doors opening on it very easy to opening and maintenance .
The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use.
Plastic Crusher Machine
Function: crushing the bottles to PET flakes.
With water inlet do wet crushing
Chamber opened by screw motor
Specially designed PET bottle Crusher Machine can easily get high
output and with water doing wet grinding can extension the blades use life, reduce the dust generation.
output and with water doing wet grinding can extension the blades use life, reduce the dust generation.
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.
Hot Washing Tank
Function: with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam,
You can buy a steam boiler to produce the steam.
The boiler can heating up by gas/diesel/petrol/LPG
Final “Zig-zag” label separator
Function:Remove the final labels，dust and other mini material from the flakes to guarantee the PVC content.
Blower can be adjusted by invertor,
With invertor to control the air flux of blower.
Zig zag main chamber one set made by stainless steel.
Chamber with plexiglass window to open and check inside

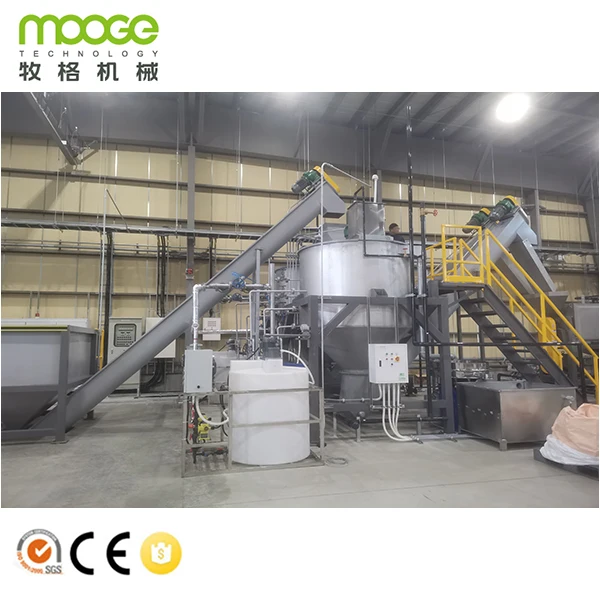

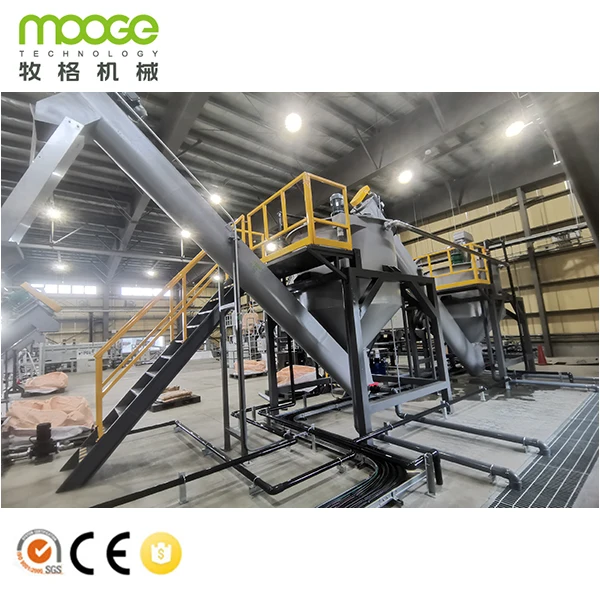

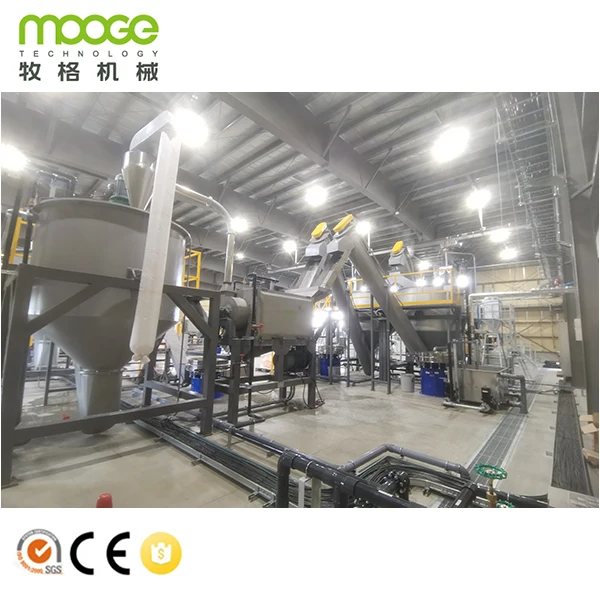

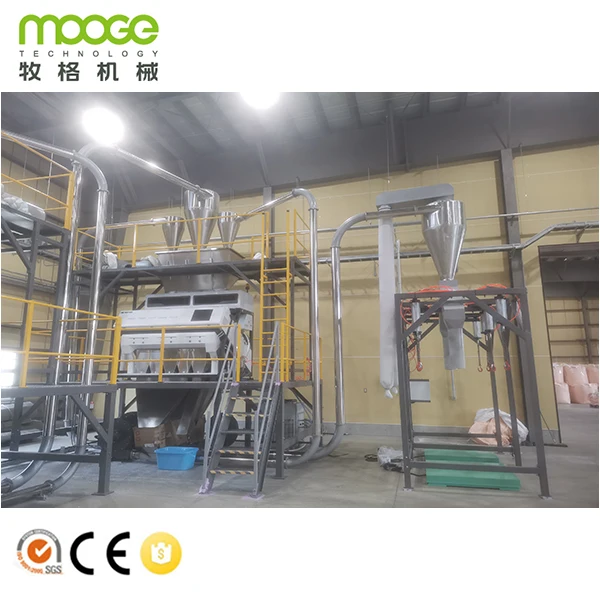

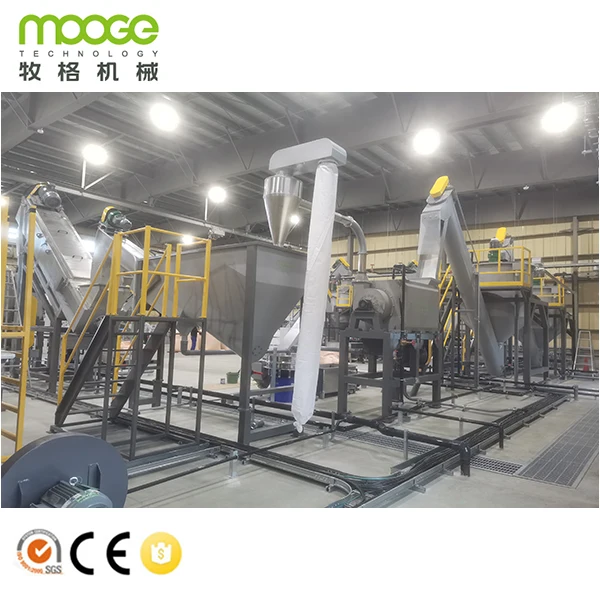

Customer Onsite
MT-500 PET recycling machine in Myanmar
MT-1000 PET bottle recycling washing machine in Korea
MT-2000 PET bottle recycling washing machine in Mexico
MT-3000 PET bottle recycling washing machine in Turkey
MT-4000 PET bottle recycling washing machine in China
MT-5000 PET bottle recycling washing machine in Algeria
Company Profile
MOOGE TECH is a professional machine manufacturer dedicated to designing and developing the high technology plastic machine with more than 10 years' experience. Our developing concept is do better and better.
We attend the CHINAPLAS every year (in Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
We attend the CHINAPLAS every year (in Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
Product packaging
1- For the loose cargo we will packing by Wooden box
2- For the Full container loading we are packing the machine by film and some on pallet accordingly
3- We can shipping the goods by air or by sea
4- We will send pictures of cargo loading to our client to check and keep recording
5- we can send cargo to client’s warehouse to loading
3- We can shipping the goods by air or by sea
4- We will send pictures of cargo loading to our client to check and keep recording
5- we can send cargo to client’s warehouse to loading
Our Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity (kg/h) do you want?
• What is the final size (mm) of flakes you want?
• Other special requirements about the pet bottle plastic recycling machine?
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity (kg/h) do you want?
• What is the final size (mm) of flakes you want?
• Other special requirements about the pet bottle plastic recycling machine?
