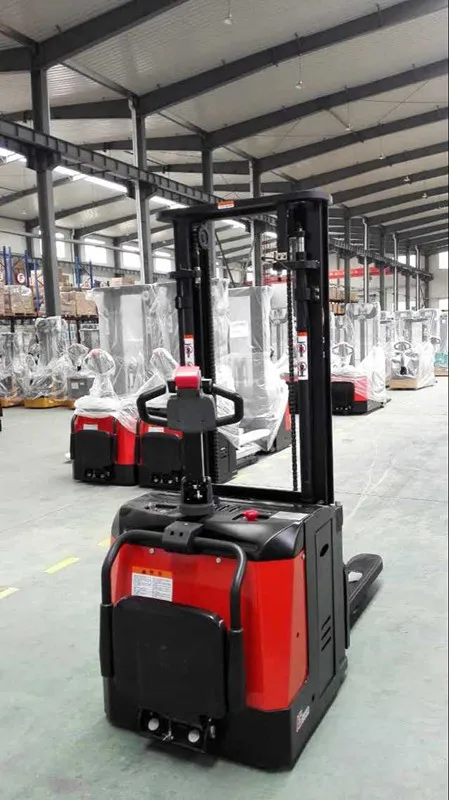

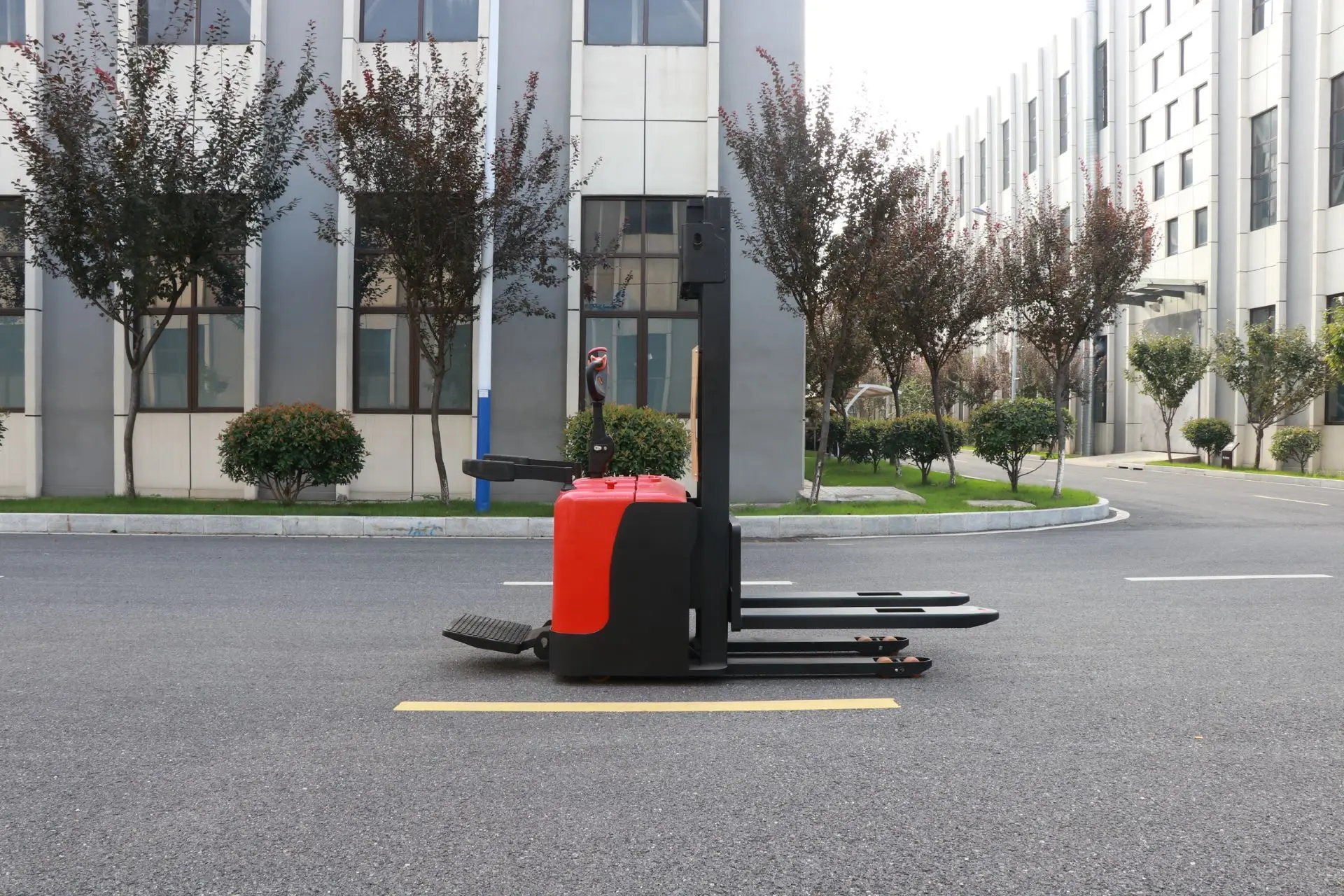

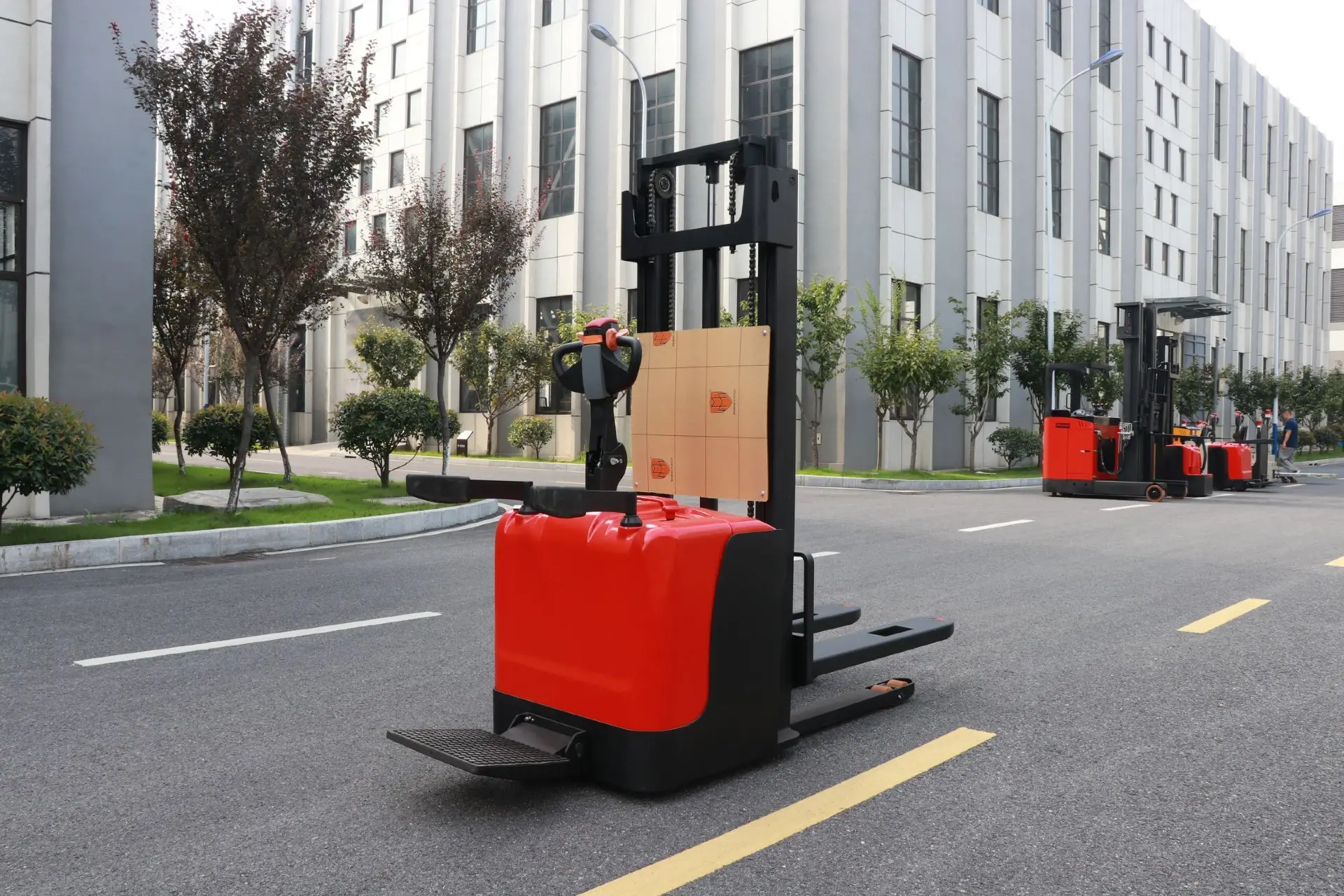

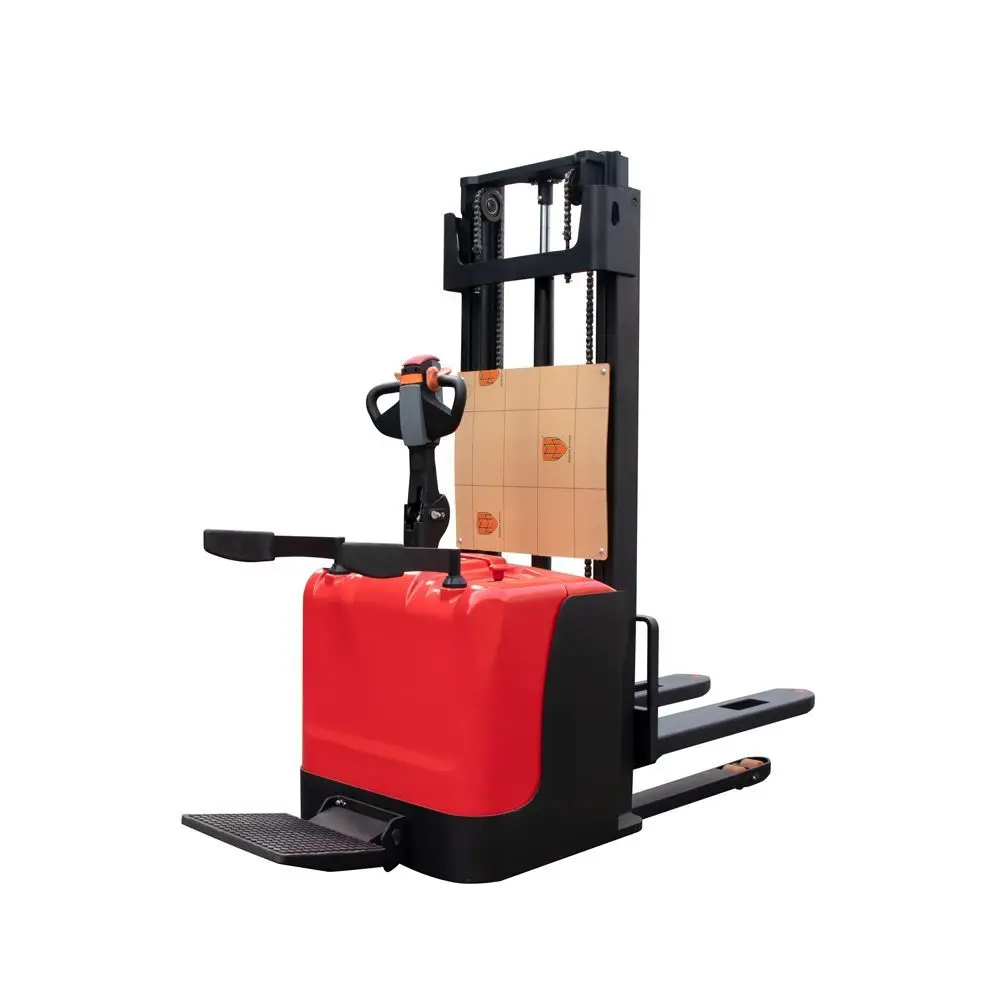

Electric 3 Way Reach Forklift Self-propelled Work Platform Pallet Forklift Order Picker Truck Autonomous Agv Forklift Price
1. Durable and rigid frame construction ensure the stackers to handle heavy loads.
2. Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3. Sideway battery exchange to reduce intervals,ensure working efficiency and productivity.
4. A wide choice of battery capacity and size enable the truck to be correctly configurated to match application needs.
5. Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.
6. Limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.
7. Robust and rigid mast configuration optimize stackers lifting stability and safety.
8. Safe Grid covered on the mast to protect operator from any injured risk.
| Characteristics | |||
| 1.1 | Manufacturer | HYTGER | |
| 1.2 | Model designation | ES16-16RA | |
| 1.3 | Drive unit | Battery | |
| 1.4 | Operator type | Rider stand | |
| 1.5 | Load capacity | Q (kg) | 1600 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance | x (mm) | 713 |
| 1.9 | Wheelbase | y (mm) | 1394 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 1400 |
| 2.2 | Axle loading, laden operator/load side | kg | 940/ 2060 |
| 2.3 | Axle loading, unladen operator/load side | kg | 890/ 510 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | mm | 230x75 |
| 3.3 | Tyre size, load side | mm | 85x70 |
| 3.4 | Balance wheels (dimensions) | 130x60 | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x+ 2/ 4 | |
| 3.6 | Tread, operator side | b10 (mm) | 634 |
| 3.7 | Tread, load side | b11 (mm) | 380 |
| Dimensions | |||
| 4.2 | Height, mast lowered | h1 (mm) | 2019 |
| 4.3 | Free lift | h2 (mm) | 100 |
| 4.4 | Lift height | h3 (mm) | 4000 |
| 4.5 | Height, mast extended | h4 (mm) | 3529 |
| 4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 1007/ 1412 |
| 4.15 | Fork height, lowered | h13 (mm) | 85 |
| 4.19 | Overall length | l1 (mm) | 2003/ 2525 |
| 4.20 | Length to face of forks | l2 (mm) | 860 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 60/ 190/ 1150 |
| 4.25 | Outside fork width, minimum/ maximum | b5 (mm) | 570 |
| 4.32 | Ground clearance | m2 (mm) | 30 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2521 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2454 |
| 4.35 | Outer turning radius | Wa (mm) | 1613 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 7.5/ 8.5 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.15/ 0.18 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.20/ 0.15 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 8/ 16 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 280 |
| 6.5 | Battery weight (with box) | kg | 350 |
| Battery compartment dimensions l/ w/ h | mm | 815/ 222/ 630 | |
| Battery type | Industry battery | ||
| Others | |||
| 8.1 | Type of drive control | AC | |
| Manufacturer | CURTIS | ||
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
For the details of customized configurations and options, please contact with us.
HYTGER professional service will be impressed on you!
Since the foundation, Shanghai Hytger Industry & Trade Co., Ltd. has striven to offer you high-class material handling solutions and high-class services. HYGTER has specialized in manufacturing and selling forklift trucks, stackers, pallet trucks, loader trucks, container cranes, tire presses, dock ramps, aerial work platforms and other hydraulic equipment and their parts. After many years of successful development, HYGER has grown to be a strong global supplier of material handling equipment and construction machinery.
| Why choose HYTGER? |
| 1. Manufacturing experience |
| More than 10 years |
| 2. Advantage: |
| Quality control in every detail of product. We supply spare parts to almost all forklift brands in China. |
| 3. What we produce: |
| Every spare part, and the assembly of the forklift. |
| 4. Our commitment to customer: |
| The best quality and most reasonable price, not the lowest price. |
| 5. Special characteristics: |
| HYTGER diesel forklift can meet the various specific requirements for engines, masts, optional cabin. |
Contact us
Похожие товары

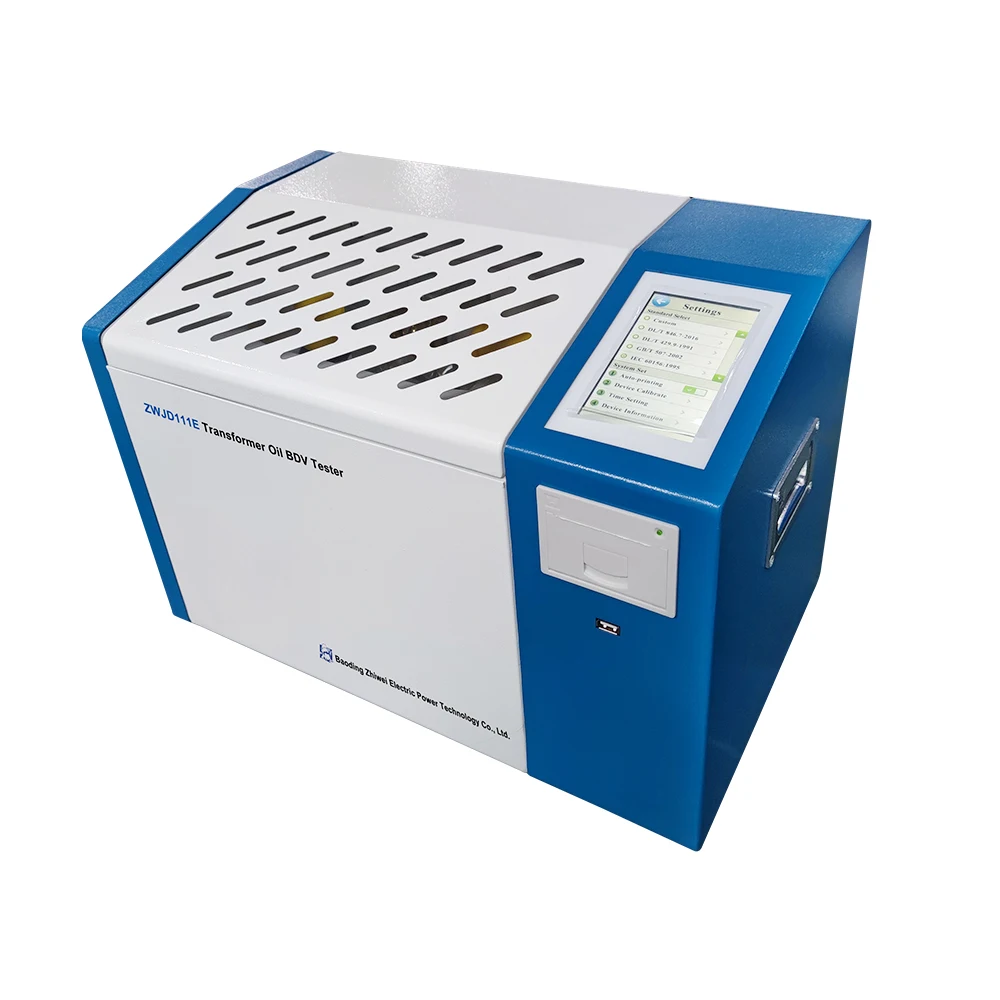

80 кв 100 IEC60156 Astm D1816 D877 трансформаторное масло бдв тестер для диэлектрического изоляционного
Мужские футболки для бега Cationic из 100% полиэстера, оптовая продажа, индивидуальная цифровая печать, футболка с коротким рукавом и круглым вырезом, сухая посадка
6,20 $ - 9,63 $

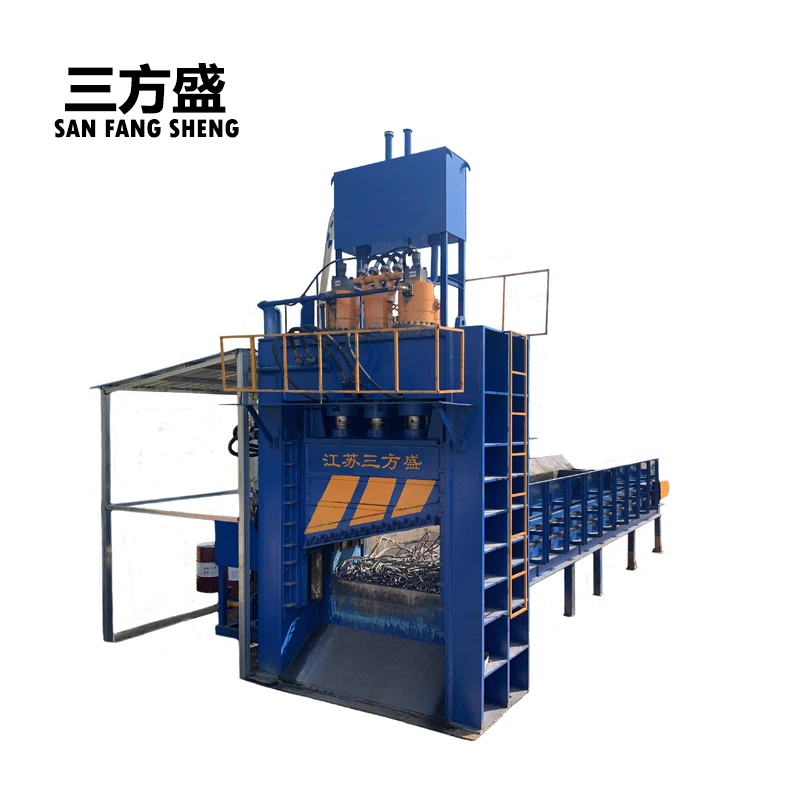

Q91-630 автоматическая гидравлическая машина для резки металла
107 500,00 $ - 108 600,00 $
XD S1282-1285 Стерлинговое Серебро 925 пробы, Многожильная застежка 2/3/4/5, прядь застежки для браслетов, ювелирных изделий

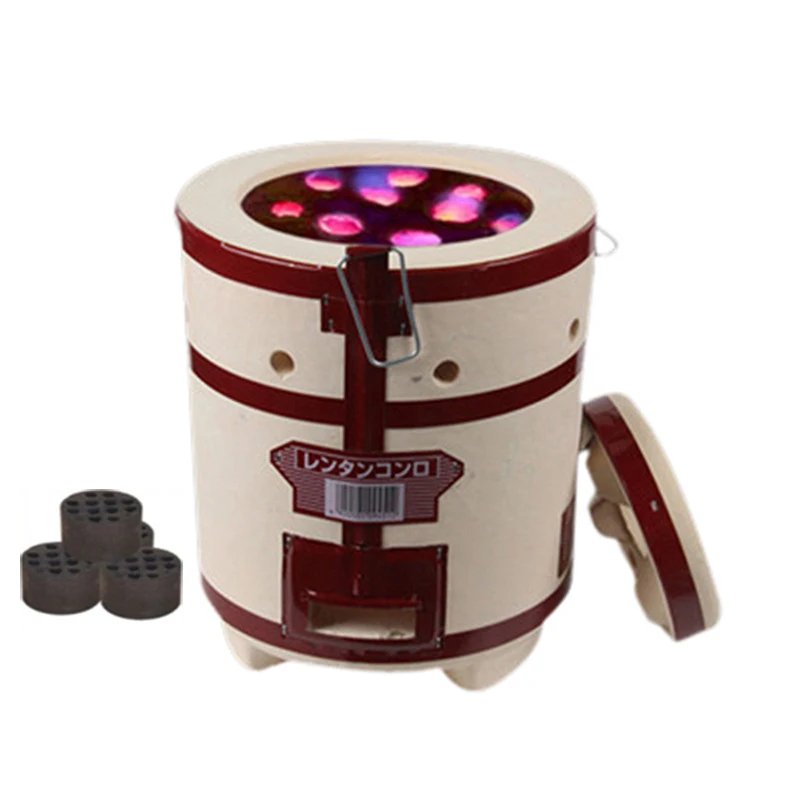

Цилиндрическая брикетная печь в японском стиле, домашняя цилиндрическая печь Yeontan, корейский гриль для барбекю Ondol для приготовления пищи

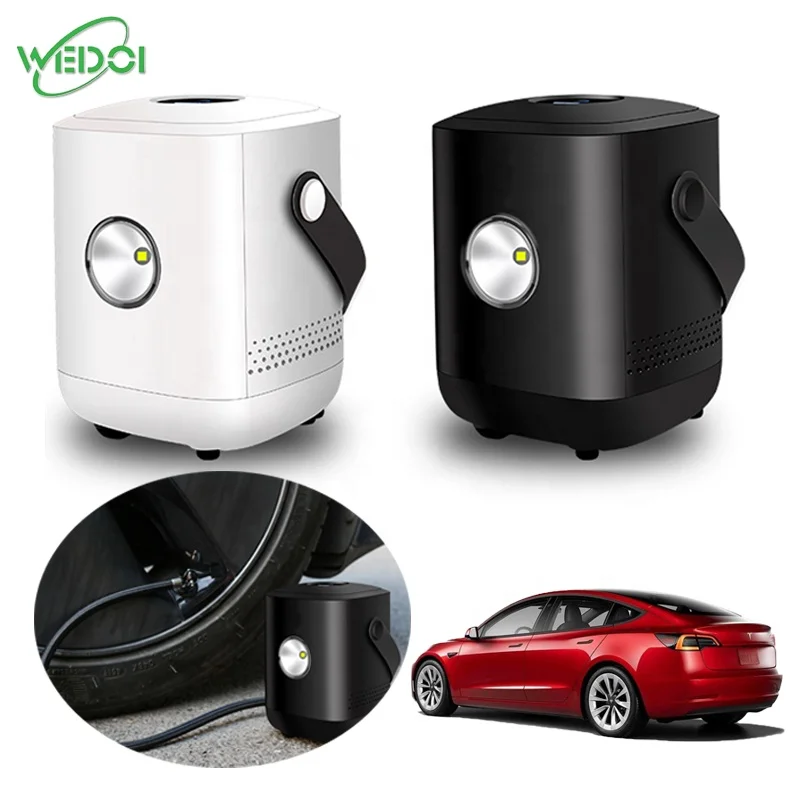

Портативный компрессор для накачивания шин Tesla Model 3/Y/S/X, беспроводной насос для шин с 12 В, автомобильный адаптер питания для модели 3
34,69 $ - 40,00 $

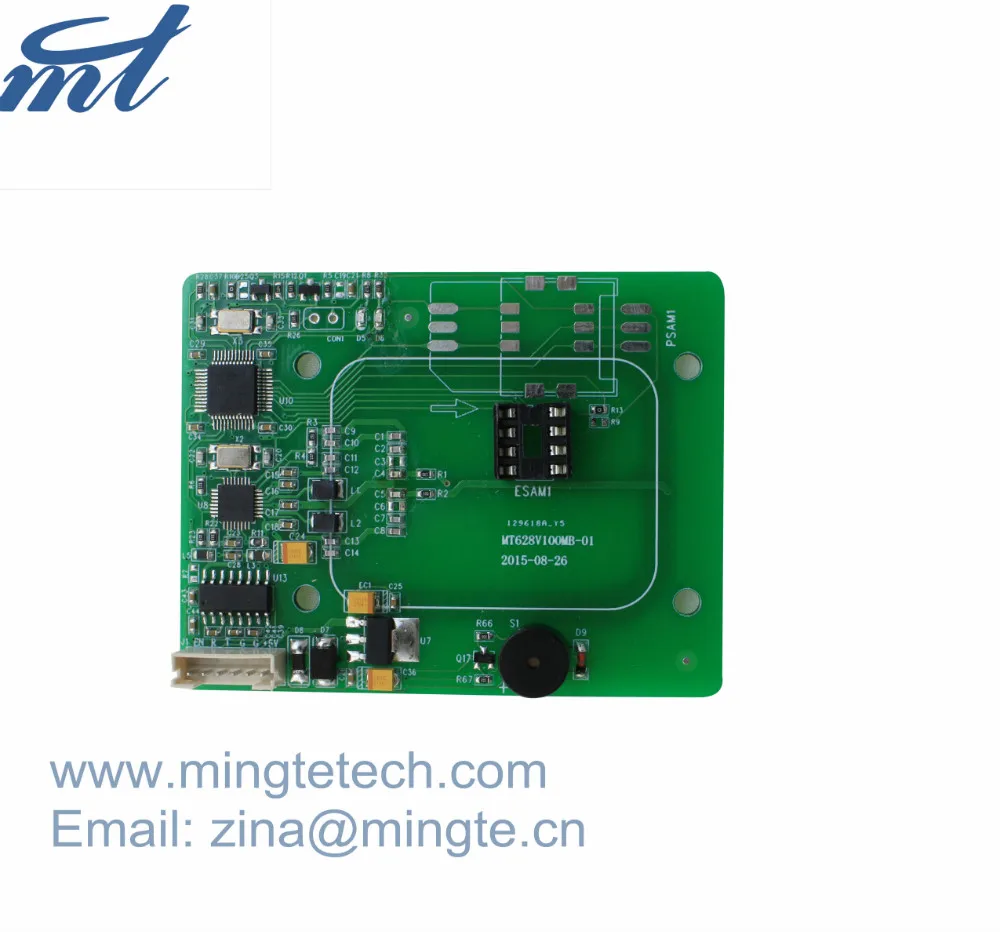

Кард-Ридер для RFID с RS232/TTL(uart)-кабель MT318-628
