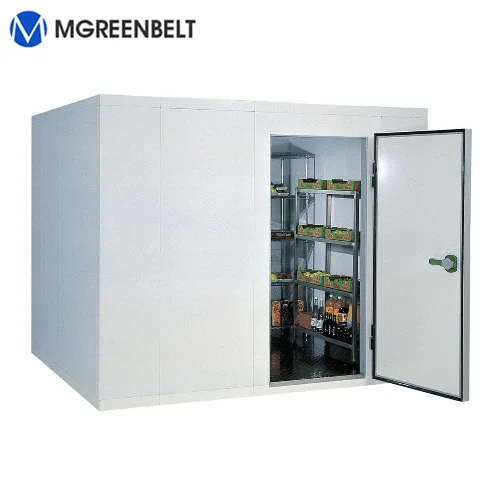

Компрессор Bitzer одна остановка холодной комнаты с подгонянным размером
- Категория: >>>
- Поставщик: Jinan Mgreenbelt Machinery Co. Ltd.
Сохранить в закладки 1600655594083:
Описание и отзывы
Характеристики
Product Overview

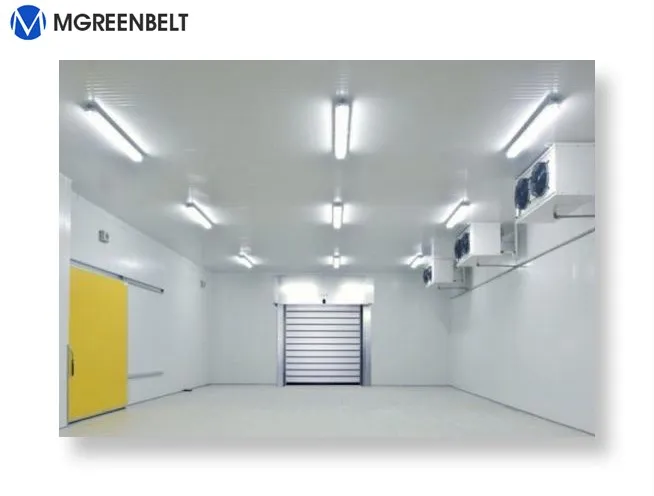

Cold storage, the use of refrigeration equipment to cool the space to create the appropriate temperature of the stored food warehouse. Cold storage project, also known as cold storage and freezer, is a place for processing and storage of agricultural and livestock products. It can get rid of the influence of local climate and extend the storage and preservation period of agricultural and livestock products to regulate the market supply. So its in tropical areas, such as Africa, South America, North America, Oceania, etc. have a very wide demand.
Product Paramenters
Dimension | Length(m)*Width(m)*Height(m) Customized | ||||||
Fireproof | polyurethane insulation panel 40kg/m³ Fire Prevention B2 Engineering Grade | ||||||
Thickness of panel | 50mm, 75mm, 100mm, 120mm, 150mm, 200mm, optional | ||||||
Steel cover of cold room | Stainless steel plates color steel plates embossed aluminum plates | ||||||
Panel Connection | Cam lock type use hexagonal key to assemble and disassemble | ||||||
Refrigeration Units | Bitzer Copeland | ||||||
Refrigeration Type | air cooled 404a or R22 | ||||||
Fittings of cold room | all necessary fittings are included optional | ||||||
Voltage of cold room | 220V/50HZ 220V/60HZ 380V/50HZ optional | ||||||
PRODUCT CONFIGURATION
PUR Panel
Cam-lock PUR Panel (PPGI)
-- ceiling & wall & floor panel
-Thickness: 120 mm
-Thickness of metal: 0.5 mm
-Density of PU: 42±2 kg/m³
-New Material: cyclopentane (CFC free )
-Cam lock connection,waterproof rate
Condensing Unit
Model: MGBT03U-C- Low temp
-Compressor HP: 2HP : 2FES-2Y
-Compressor brand : America original Bitzer
-Refrigerant: R404a
-SDT : +40 ℃ SST : -25℃
-Condenser: h type with anti-corrosion fins / blue fins
Evaporator— Air cooler
Model: MGBT03U-A
-With CE ceitificate
-Blue fins
Factory production
Successful Project
Blast Freezer For
Slaughter House in Kenya
Cold Room Project for
Seafood Factory in Argentina
Cold Storage for Philippines
Why Choose Us
The extensive Mgreenbelt chiller product line was developed based on decades of knowledge and industry leadership, and includes piston, screw and scroll compressor chillers, ranging in capacities from 2 to 300+ tons.
Mgreenbelt chillers are relied upon for both suitable and process applications in many countries.
Our products are mainly exported to the US, Canada, Australia, Malaysia, Brazil, Russia, South Africa, UAE, Saudi Arabia, Israel, India, Thailand, Singapore, Vietnam, Philippine and South Korea etc.
We have already provided corollary equipment and technical support to 3500 domestic and international factories.
Our mission is to provide customers the best products and services through our wide range of equipment, parts, and services. Our goal is to be a one-stop-shop for your water system needs.
Our mission is to provide customers the best products and services through our wide range of equipment, parts, and services. Our goal is to be a one-stop-shop for your water system needs.
Certificates
FAQ
As a professional cold storage solution provider, we will make different cold storage solution according to your working need, so if you can not choose the right model, please kindly inform us the follows details:
1. What's the cold room dimension need? L*W*H (mm)
1. What's the cold room dimension need? L*W*H (mm)
2. What's the product capacity you put in per hour? may you use Ton?
3. What's the temperature input ? and what's the temperature you need to freezing to?
4. What's the power supply need? Phase/voltage/frequency
5. What's your ambient temperature as usual?
We can send you the complete cold storage solution, with full technical details and quotation.
3. What's the temperature input ? and what's the temperature you need to freezing to?
4. What's the power supply need? Phase/voltage/frequency
5. What's your ambient temperature as usual?
We can send you the complete cold storage solution, with full technical details and quotation.
Click to find
More Cold Rooms
You can send inquiry to us.
We will reply as soon as possible.
e-mail: hope@mgreenbelt.com
whatsapp: +86 186 1558 9076
You can send inquiry to us.
We will reply as soon as possible.
e-mail: hope@mgreenbelt.com
whatsapp: +86 186 1558 9076
Похожие товары

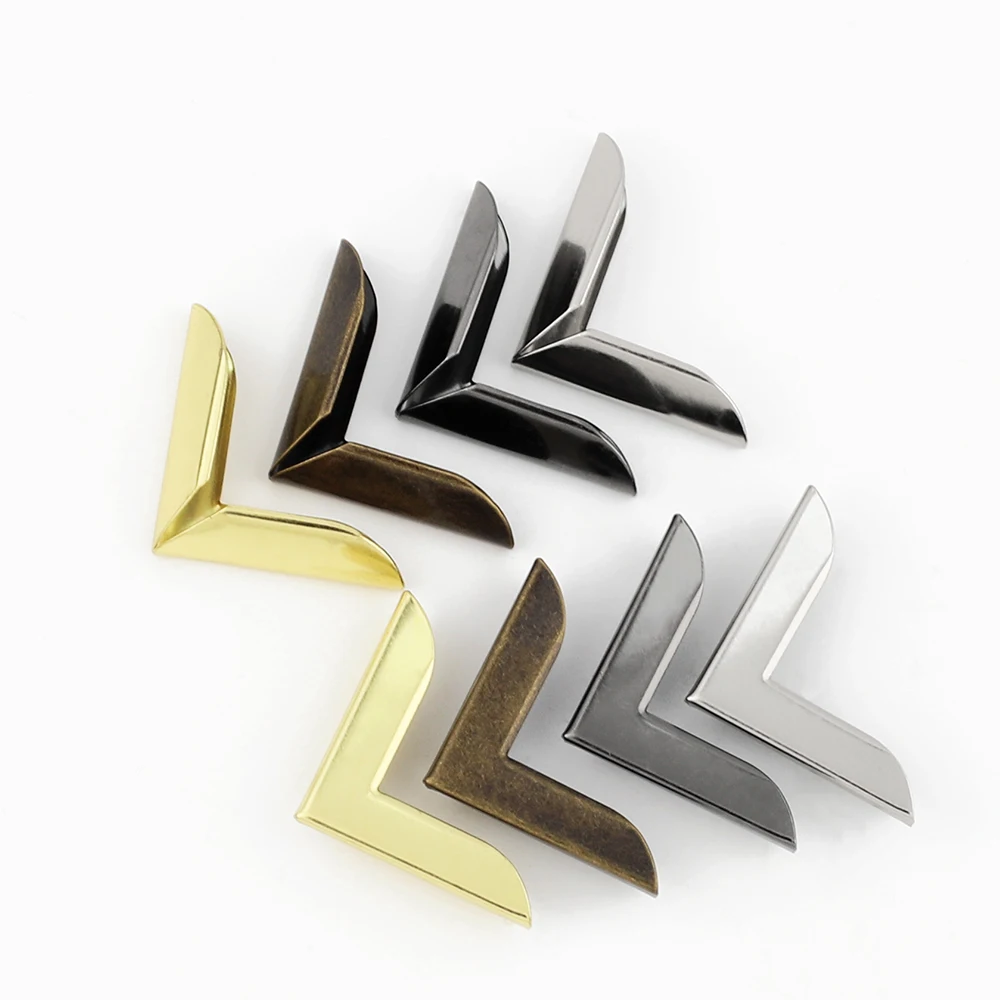

Защитные уголки для фотографий, 30 х30 мм
0,06 $ - 0,07 $
Облегающая шапка Rasta в рубчик с короткими полями
1,43 $ - 1,45 $
Без косточек, лайм, зеленый цвет, натуральный вьетнамский лимон, свежие фрукты, модель, цитрусовые, ва, 0084972678053

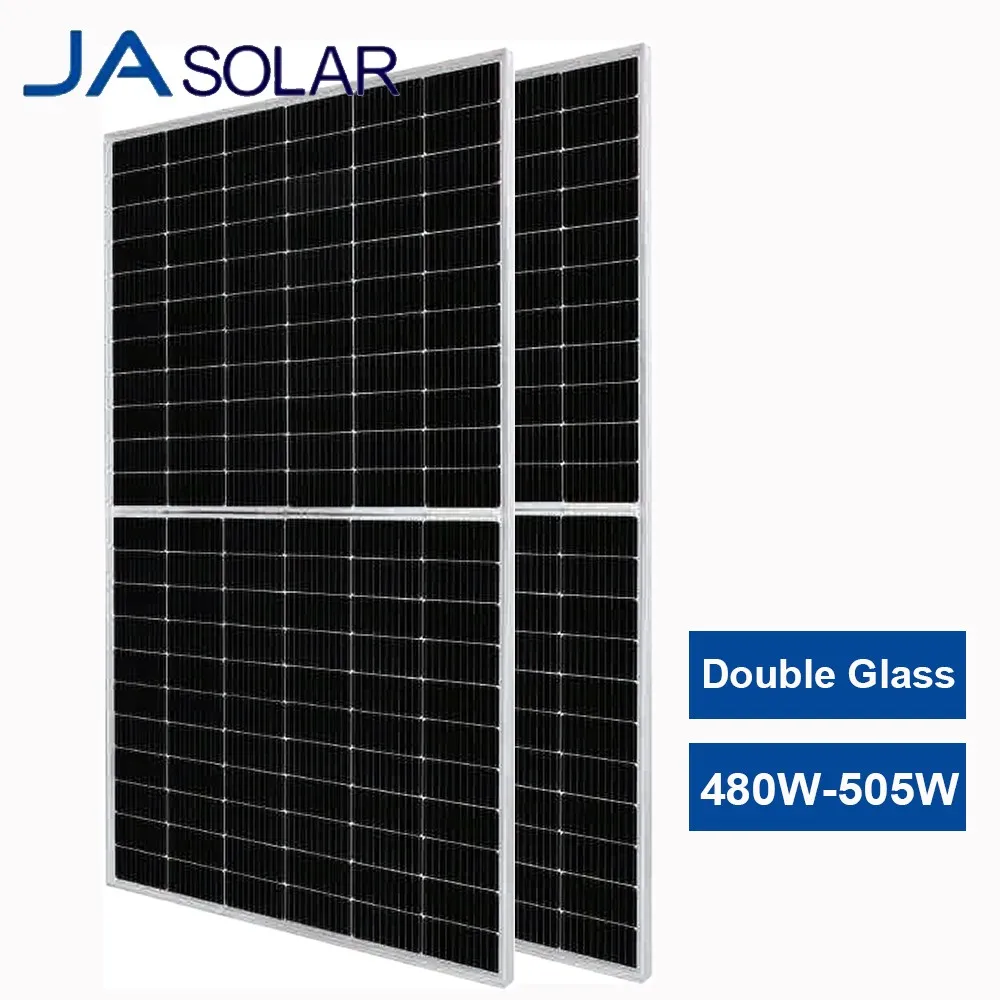

Фотоэлектрическая солнечная панель JA на заказ, 480 Вт, 490 Вт, 500 Вт, завод по производству солнечных панелей
0,17 $ - 0,20 $

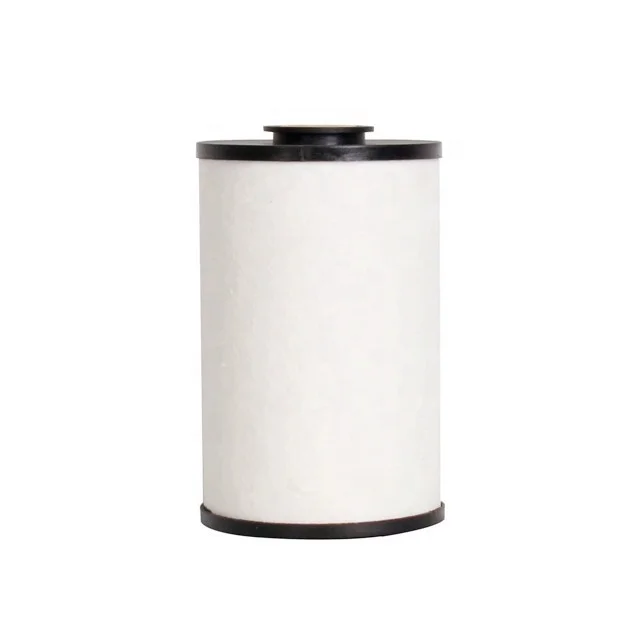

Заводская цена части двигателя топливный фильтр 01181060 01181061
6,66 $ - 8,88 $

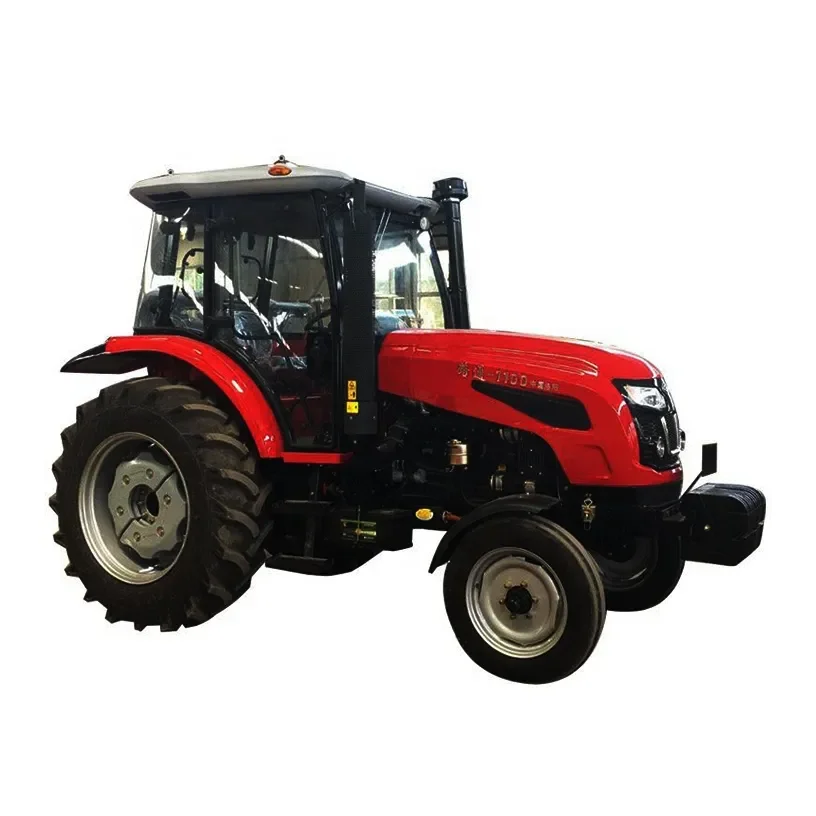

LUTONG 90HP сельскохозяйственный трактор LT904 новый китайский сельскохозяйственный трактор LT904 с несколькими функциями
9 000,00 $ - 10 000,00 $

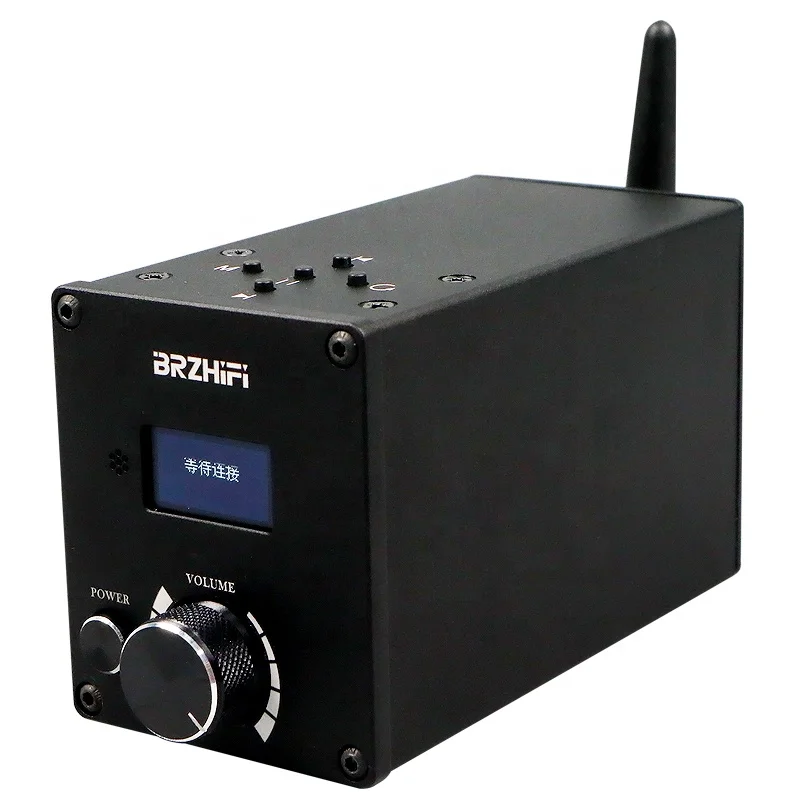

Brzhifi C50 BT 5,0 Infineon MA12070 плеер карты цифровой усилитель мощности 160W USB TF карты мини стерео усилитель 2 канала
