Газовая горелка Riello 40 FS 10 с клапаном MVDLE205/5 промышленная мини горелка низкотемпературная
- Категория: Boiler Parts >>>
- Поставщик: Shenzhen Jate Burners Co. Ltd.
Сохранить в закладки 1600655872711:
Описание и отзывы
Характеристики
Riello 40 FS 10 With MVDLE205/5 Group Valve Gas Burner Mini Low Temperature Jet Burners Industrial Burner
Product Overview
Model | FS10 |
Gross Weight | about 25kg |
Air supply pressure | 34/24mbar |
Environment temperature | 40℃ |
Standard application | Boiler: hot water boiler, steam boiler, heat transfer oil boiler |
Riello 40 FS 10 With MVDLE205/5 Group Valve Gas Burner Mini Low Temperature Jet Burners Industrial Burner
The RIELLO 40 FS series of first stage gas burners is a full range of products that can adapt to any needs of light industrial applications. The RIELLO 40 FS series is available in five different models with outputs ranging from 11 to 220KW in four different structures.
All models use the same components that RIELLO designed for the RIELLO40FS series. High quality ensures safe work. The RIELLO 40 FS burner is equipped with a microprocessor based flame control panel with diagnostic functions.
When developing these burners, special attention was paid to reducing noise, simplifying installation and adjustment, and achieving the smallest size to meet the needs of any type of boiler on the market.
All models are licensed to the EN 676 European standard and comply with the European EMC, Low Voltage, Machine and Boiler Efficiency Directives. All RIELLO40FS burners are tested before leaving the factory.
All models use the same components that RIELLO designed for the RIELLO40FS series. High quality ensures safe work. The RIELLO 40 FS burner is equipped with a microprocessor based flame control panel with diagnostic functions.
When developing these burners, special attention was paid to reducing noise, simplifying installation and adjustment, and achieving the smallest size to meet the needs of any type of boiler on the market.
All models are licensed to the EN 676 European standard and comply with the European EMC, Low Voltage, Machine and Boiler Efficiency Directives. All RIELLO40FS burners are tested before leaving the factory.
The burner is adapted to supply gas from the left or right.
According to the gas flow and gas supply pressure, the correct gas valve group should be selected to match the system requirements.
The gas valve block is an integral valve, which integrates the main components into a whole. With the exception of the MBC65 DLE model, a valve leak detector (as an accessory) can be fitted to this integral gas manifold.
MBC65 DLE integral gas valve group can only be installed on the left side of the burner

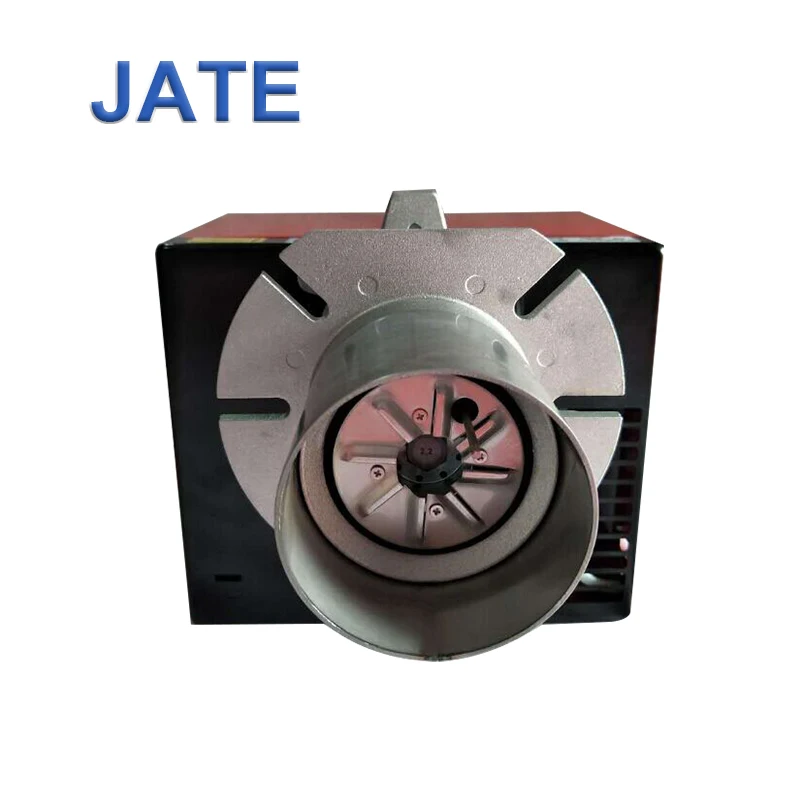

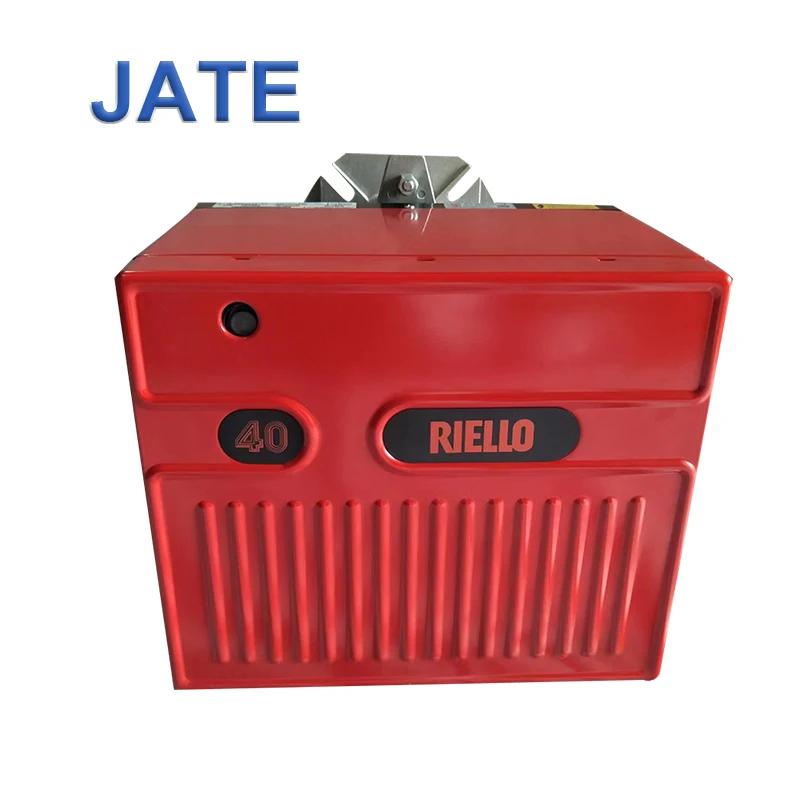

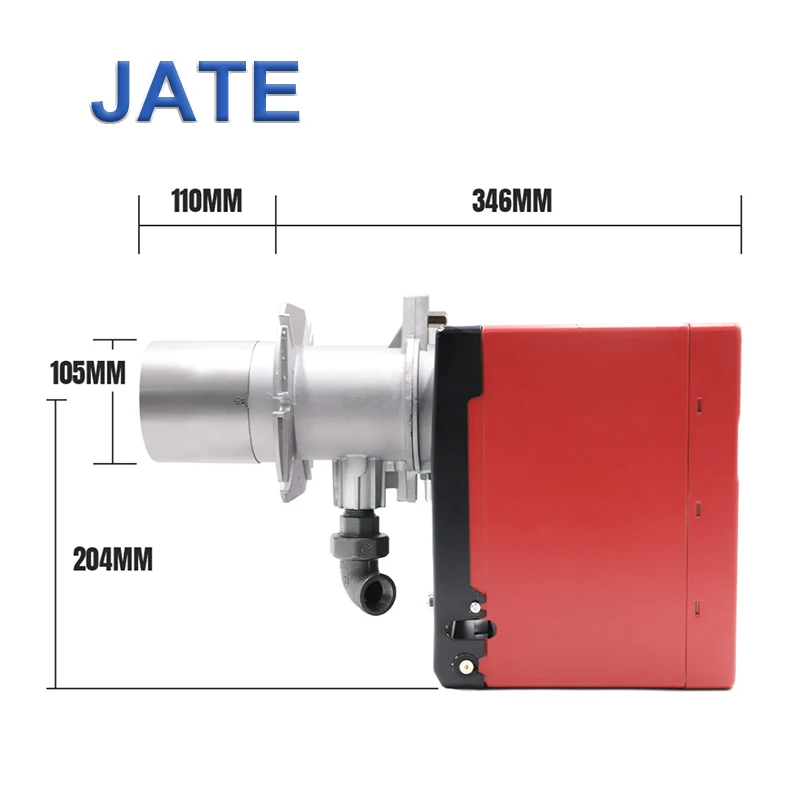

Front Image

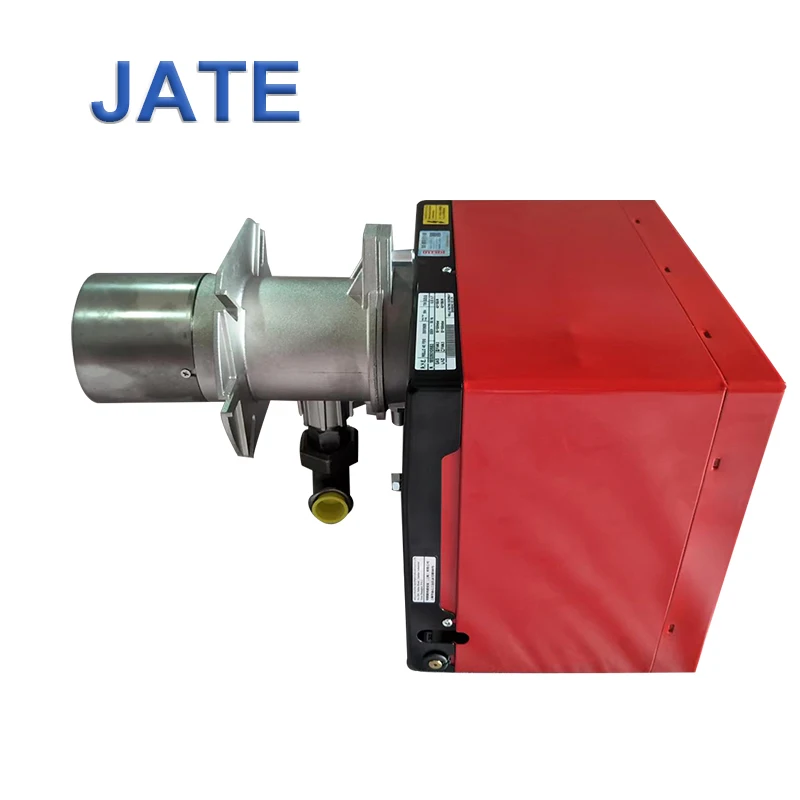

Back Image

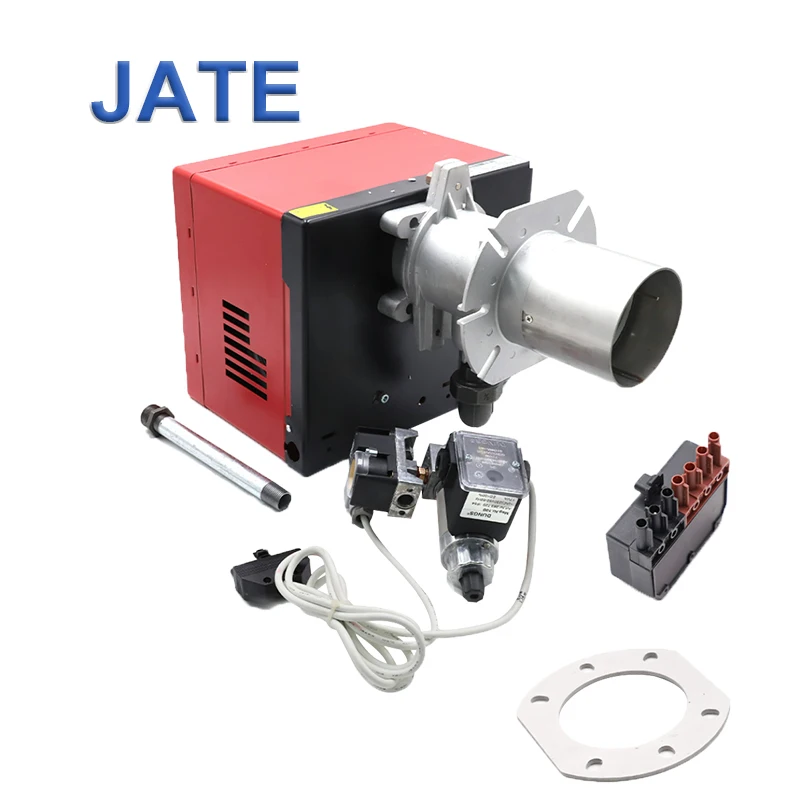

Real Image
The FS10 and FS20 models are also equipped with an RMG 88.620 A2 microprocessor control panel for intermittent operation monitoring.
To help with debugging and maintenance, there are two main elements here.
Switch: The lockout reset button is the central control element for resetting the burner control and activation/deactivation diagnostic functions. switch
Light: The multi-color LED is the central indicator element for visual diagnostics and interface diagnostics.
To help with debugging and maintenance, there are two main elements here.
Switch: The lockout reset button is the central control element for resetting the burner control and activation/deactivation diagnostic functions. switch
Light: The multi-color LED is the central indicator element for visual diagnostics and interface diagnostics.
GAS TRAINS:
The burners are fitted with a butterfly valve to regulate the fuel, controlled by the main management module
of burner through a high precision servomotor.
Fuel can be supplied either from the right or left sides, on the basis of the application requirements.
A maximum gas pressure switch stops the burner in case of excess pressure in the fuel line.
The gas train can be selected to best fit system requirements depending on the fuel output and pressure in
the supply line.
The gas trains are with or without seal control.
of burner through a high precision servomotor.
Fuel can be supplied either from the right or left sides, on the basis of the application requirements.
A maximum gas pressure switch stops the burner in case of excess pressure in the fuel line.
The gas train can be selected to best fit system requirements depending on the fuel output and pressure in
the supply line.
The gas trains are with or without seal control.
SIMILAR PRODUCTS
Successful Project
Project in Malaysia
Project in India
Project in Russia
Shipping Display
About Us
Похожие товары
Лидер продаж лидер итальянский товар серии RS25/M BLU модулирующая газовая
Программируемый контроллер для горелки повышенной масляной PRESS GW запасные части
Горячая Распродажа 2023 популярная газовая горелка 1 8/2
2,80 $ - 14,00 $
Коммерческое промышленное Специальная автоматическая фаст-фудов Электрический аппарат для чистки паром питания котла
2 580,00 $
Фитинги для горелки масляного насоса серии Riello продаются напрямую на китайских фабриках и доступны во всех
Оригинальный пресс для горелок Riello серии N обеспечивает диапазон обжига от 171 до 1140
300,00 $ - 800,00 $

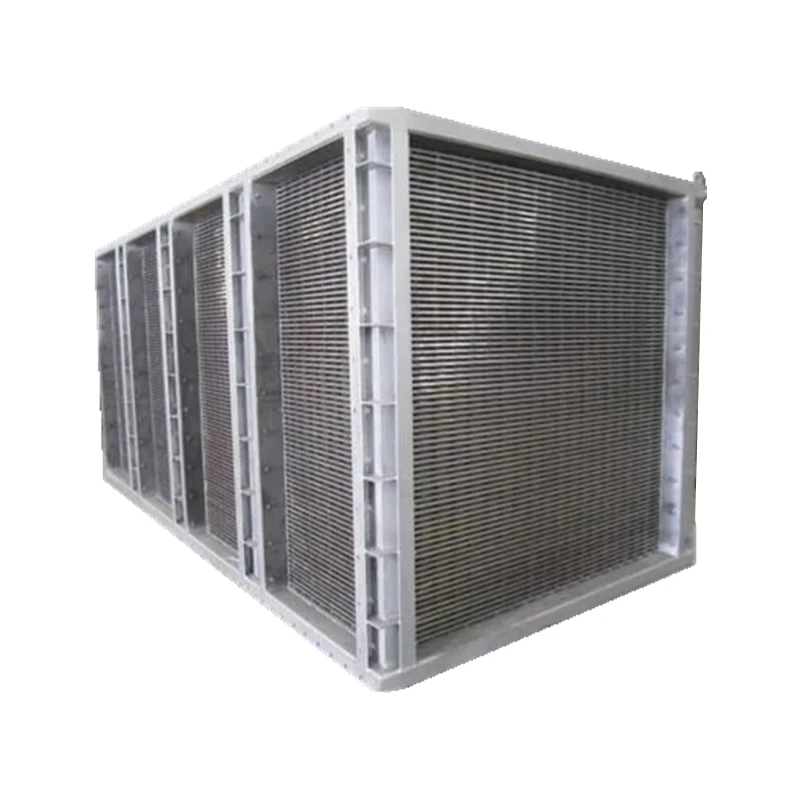

Подогреватель воздуха используется для передачи тепла газа к
