8mm 100m Fiberglass Duct Rodder FRP Push Rod Cable Pusher for Laying Cable

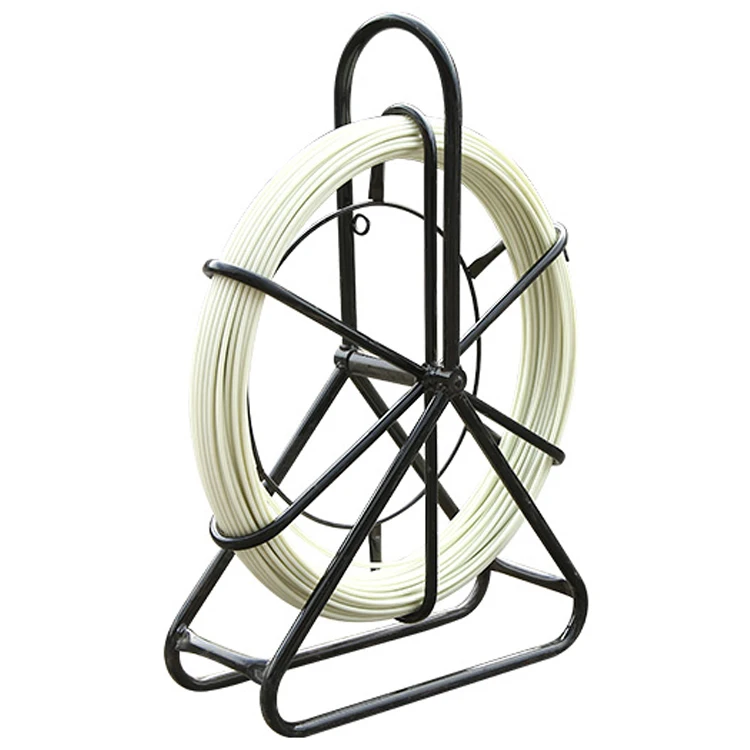

The fiberglass duct rodder is mainly made of glass fiber and high strength resin through high temperature pultrusion into FRP rods, which cover it with HDPE to make the surface smooth and enhance wear resistance, aging resistance, acid and alkali resistance. High-strength FRP rods have very high tensile strength while maintaining flexible bending performance. The duct rodder is equipped with steel frame with wheels or without wheels. The color of FRP rod and steel frame both can be customized.

Application:

This product is widely used in pulling the guiding ropes in pipelines, as well as laying communication cables, power cables, network cables, video cables, etc. It is easily to operate to greatly improve the working efficiency. It is mainly used in the early part of the wall under the traction, and later developed into a sewer cable line and so on the line of traction. Glass fiber, non conductive, anti rust and anti-corrosion, excellent tensile strength.Using high quality steel, strong and durable, with good compression resistance and capacity, the appropriate structure of welding, under strong pressure to maintain its deformation. It has the advantages of time saving, labor saving, improved work efficiency, etc, and can be used for the cleaning and the optical cable, the cable and the plastic tube of the telecommunication pipeline.

Features:

1. Fiberglass rod inner: Extruded process made of E-fiberglass and high quality UPR at high temperature.

2. Fiberglass rod outer: Developed composite materials.

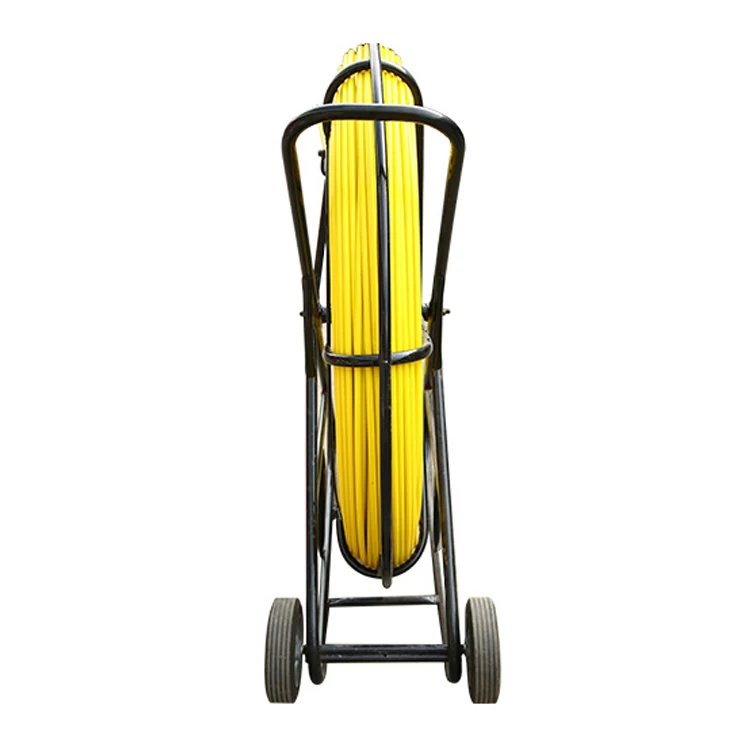

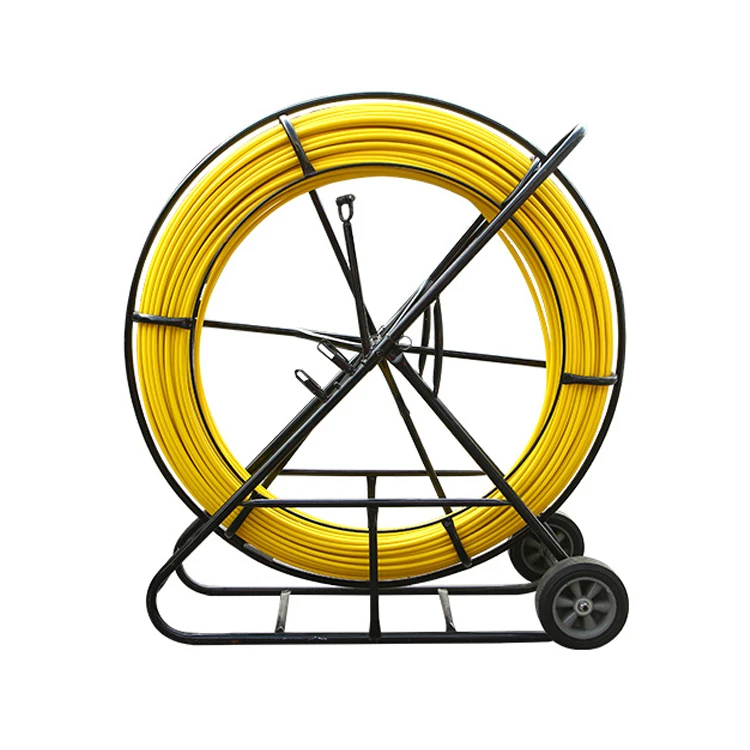

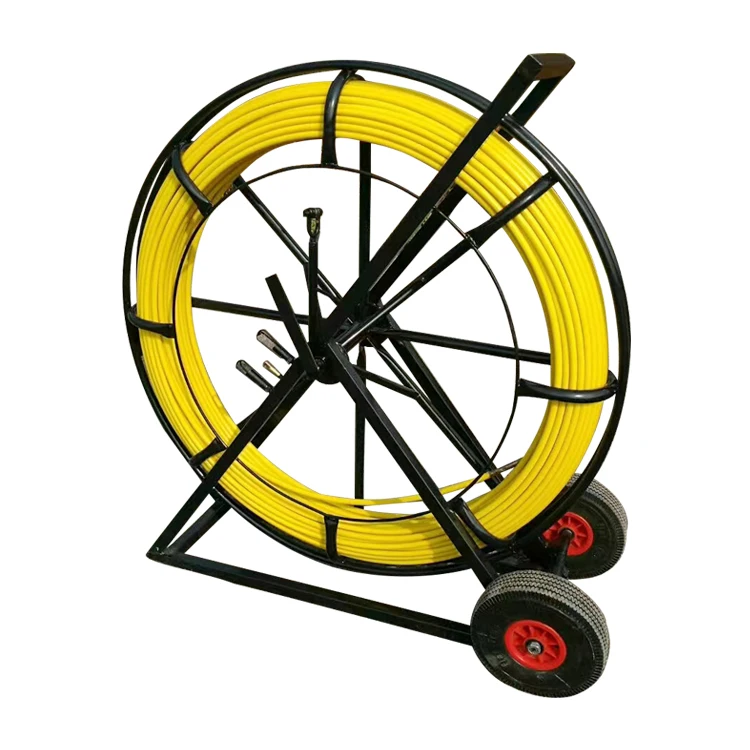

3. Assembly: Metal frame sprayed paint, rubber wheels assembly for easy transportation, guide rollers for rotary coupling, parking brake for the flexible rod control.

4. Copper wire inside is optional, which is for tracing easily or other professional usage.

5. Rolling bearing cage (wheel transport) for mobility will be light and easy to use.

6. Feed device allows rod to feed out or be back with easy push or pull of rod.

7. Rustproof bull-nose pulling eye and accessories.
