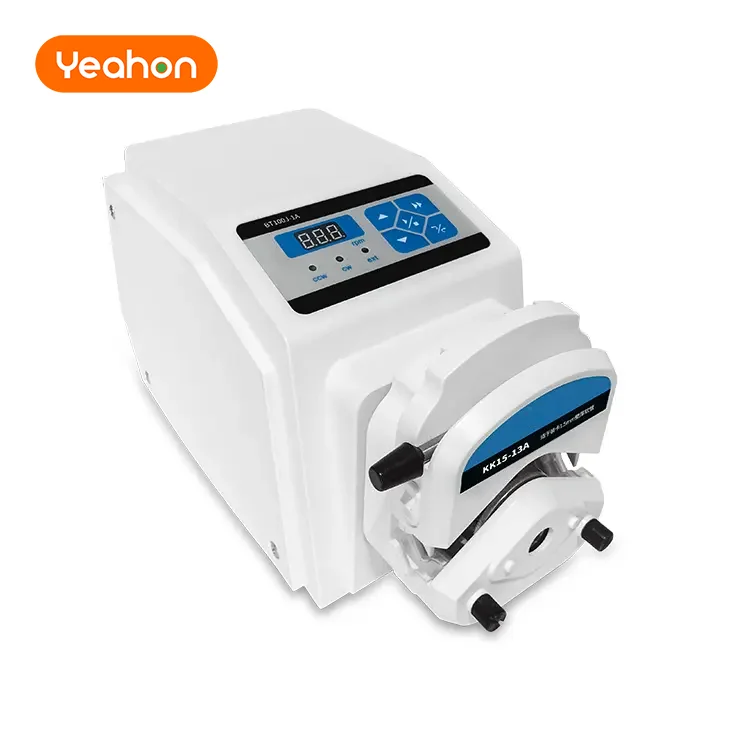

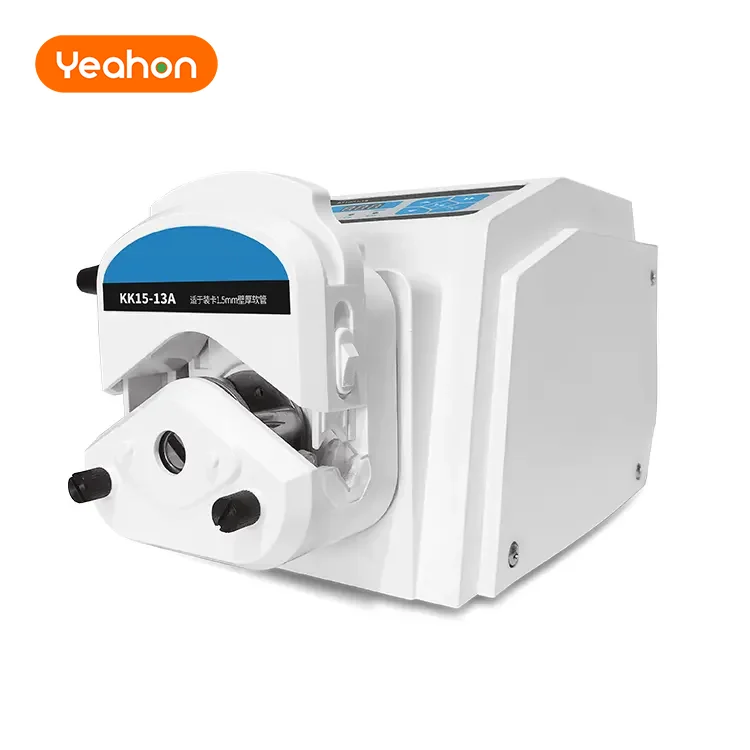

Насос для наполнения воздуха, Прямая поставка от производителя
183 426,26 ₽
Устойчивый к высоким температурам перистальтический насос с регулируемой скоростью и большим потоком
- Категория: >>>
- Поставщик: Shanghai Yuhua Instrument Equipment Co. Ltd.
Сохранить в закладки 1600658370423:
Описание и отзывы
Характеристики
Peristaltic pump is a kind of precision instrument. Compared with other pump products, peristaltic pump has become a rapidly developing positive displacement pump product.
The operation principle of peristaltic pump is very simple, just like squeezing a hose full of fluid with your finger, and moving the fluid in the pipe forward with your finger. The end driven pump is just this principle. The roller instead of the finger conveys fluid by alternately squeezing and releasing the elastic conveying hose of the pump. With the rolling of the roller, negative pressure is formed in the pipe, and the liquid flows with it. A section of pump pipe between the two rollers of the peristaltic pump forms a "pillow" shaped fluid. The volume of the "pillow" depends on the inner diameter of the pump pipe and the geometric characteristics of the roller. The flow depends on the rotational speed of the pump head, and the product of the three parameters: the size of the "pillow" and the number of "pillows" generated by each revolution of the rotor. For the same pump head, the size of "sleeper" is generally constant.
The operation principle of peristaltic pump is very simple, just like squeezing a hose full of fluid with your finger, and moving the fluid in the pipe forward with your finger. The end driven pump is just this principle. The roller instead of the finger conveys fluid by alternately squeezing and releasing the elastic conveying hose of the pump. With the rolling of the roller, negative pressure is formed in the pipe, and the liquid flows with it. A section of pump pipe between the two rollers of the peristaltic pump forms a "pillow" shaped fluid. The volume of the "pillow" depends on the inner diameter of the pump pipe and the geometric characteristics of the roller. The flow depends on the rotational speed of the pump head, and the product of the three parameters: the size of the "pillow" and the number of "pillows" generated by each revolution of the rotor. For the same pump head, the size of "sleeper" is generally constant.
Product Description

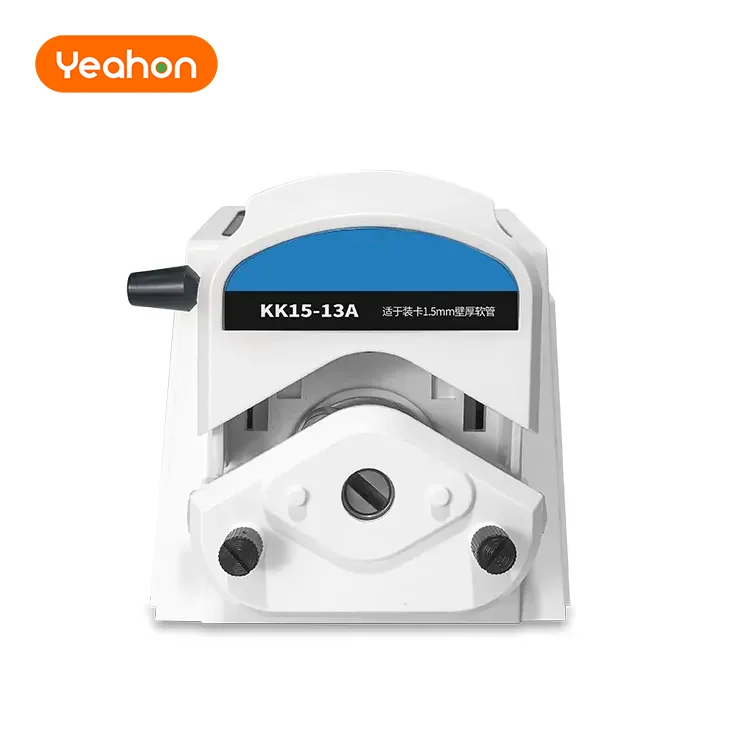

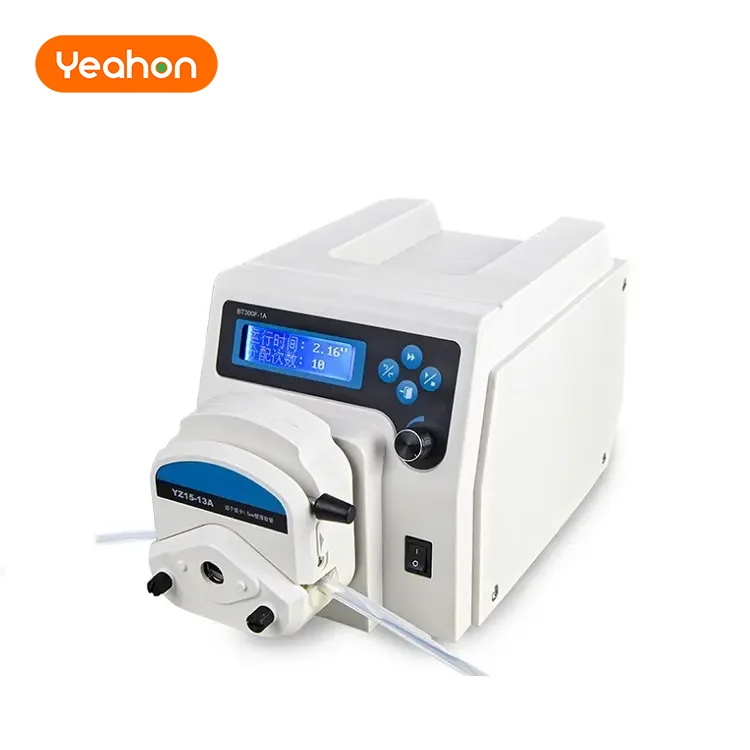

Peristaltic pump
The shell is made of food grade and sanitary grade engineering plastics.
Different pump heads and pipe numbers can be replaced.
Electromagnetic stepping motor
Precise position control, precise speed, forward and reverse rotation emergency stop and locking functions, precise position control under low speed conditions, and longer service life.
revent cross contamination and other problems, isolate pollution sources, improve cleanliness, and ensure good sealing.
Easy to install and maintain
One body design, easy to install and fix, easy to clean and move.
Accurate display
Microprocessor control technology, adjustable speed resolution.
Two way transmission fluid
With two-way equal flow transmission function, multiple pump heads can be installed to prevent backflow.
It can transport various liquids
Capable of conveying mixed liquid.
Specifications
Speed range: 0.1-100RPM, resolution: 0.1RPM | SS-10L | SS-20L | SS-30L | SS-50L | ||||
Running direction: forward/reverse, corresponding indicator light is CW (green)/CCW (blue) | 10L | 20L | 30L | 50L | ||||
Display mode: three digit LED digital tube displays the current speed | 3L | 6L | 10L | 16L | ||||
External control interface: start stop control, direction control, speed control (O-5V/O-10V, 4-20MA, O-10KHZ) | -0.1~0.49Mpa. | |||||||
Communication mode: RS485 half duplex | 0.098Mpa | |||||||
Applicable power supply: applicable to a wide range of voltage 90-260V AC, 50/60HZ | Stainless steel serpentiform condenser | |||||||
Power: ≤ 30W | DN32 Ball valve | |||||||
Working environment: ambient temperature 0-40 ° c, relative humidity | Φ14 Four-blads, two layer, other styles are available | |||||||
Weight: 2.5KG | 304 Stainless steel | |||||||
Overall dimension: 245 ×155 × 160 (long × wide × Height) MM | DN25 Male Thread | |||||||
Protection grade: IP31 | 700*600*2030 | 750*650*2150 | 750*650*2450 | 750*650*2450 | ||||
More types
We have many kinds of peristaltic pumps and different pump heads for customers to choose, corresponding to different flows and functions. Feel free to contact us for more details.
Packing
About us
Yeahon was founded in 2008 and based in Shanghai, committed to providing lab and pilot apparatus applied in biochemical, fine chemical and research filed. We have 2 factories in Shanghai and Henan, covering an area of nearly 10,000 square meters, with short production cycle, high quality and low price, and guaranteed quality!
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
FAQ
Q1. What is your products range?
• Rotary Evaporator, Glass Reactor, Recirculating Cooling Chiller, Circulating Water/oil Bath, Short Path Distillation, Molecular Distillation Equipment, Electric Stirrer, Vacuum Pump, Hydrothermal Synthesis Reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have two factories located in Shanghai and Henan.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is 10 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
• Rotary Evaporator, Glass Reactor, Recirculating Cooling Chiller, Circulating Water/oil Bath, Short Path Distillation, Molecular Distillation Equipment, Electric Stirrer, Vacuum Pump, Hydrothermal Synthesis Reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have two factories located in Shanghai and Henan.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is 10 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Contact us
Shanghai Yuhua Instrument Equipment Co.,Ltd
Email: judy@shyhyy.com
Whatsapp: +86 18569916957
Phone NO.: +86 18569916957
Add: Chuigui Road, Huangdu Industrial Park, Jiading District, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Email: judy@shyhyy.com
Whatsapp: +86 18569916957
Phone NO.: +86 18569916957
Add: Chuigui Road, Huangdu Industrial Park, Jiading District, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Похожие товары

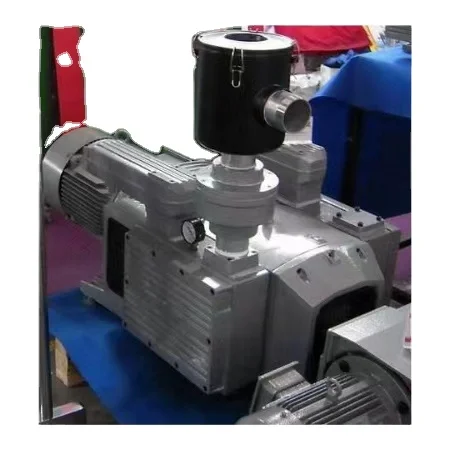

Прямая Продажа с завода, роторный вакуумный насос мощностью 40 К 1,8 кВт для полиграфической промышленности и станков с ЧПУ
65 817,66 ₽ - 67 975,62 ₽

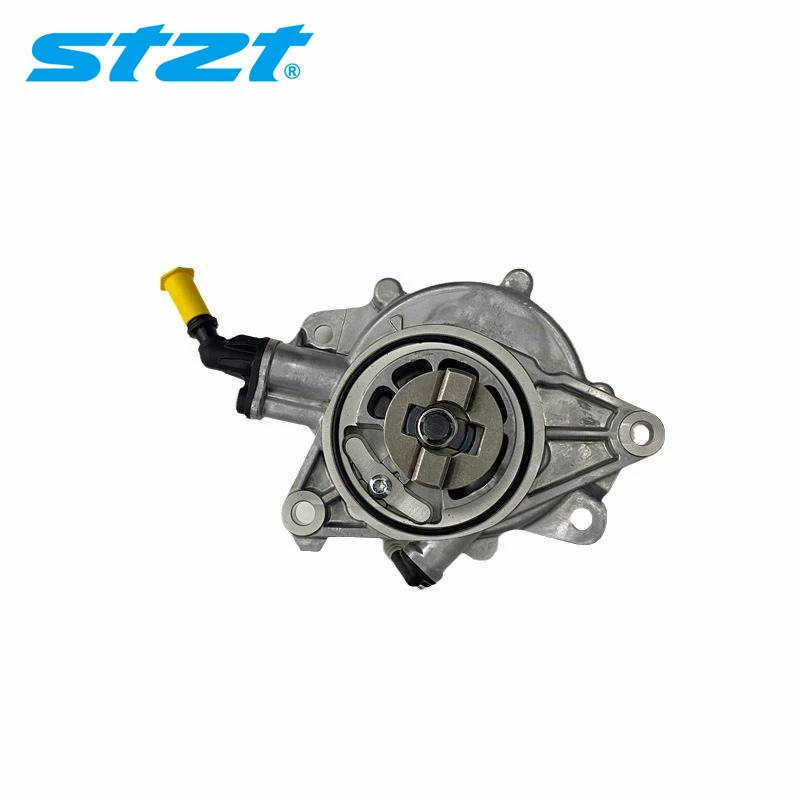

Автомобильный тормозной вакуумный насос STZT 11667519458 для BMW 1357 серии F01 F02 E60 E90 E71 Z4 1166 7519 458, тормозной вакуумный насос
2 805,35 ₽ - 3 021,14 ₽

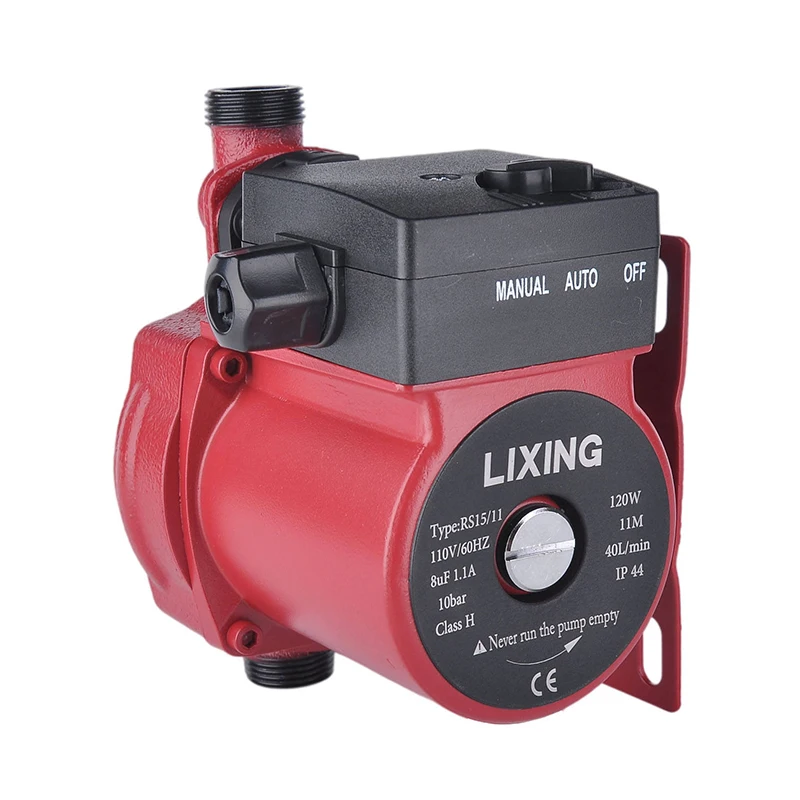

Водяной насос 25-4 для подогрева воды, для Северной зоны, для повышения давления горячей и холодной воды, небольшой циркуляционный насос
1 644,37 ₽ - 1 677,82 ₽
Насос для горячей воды
1 801,90 ₽ - 1 855,85 ₽

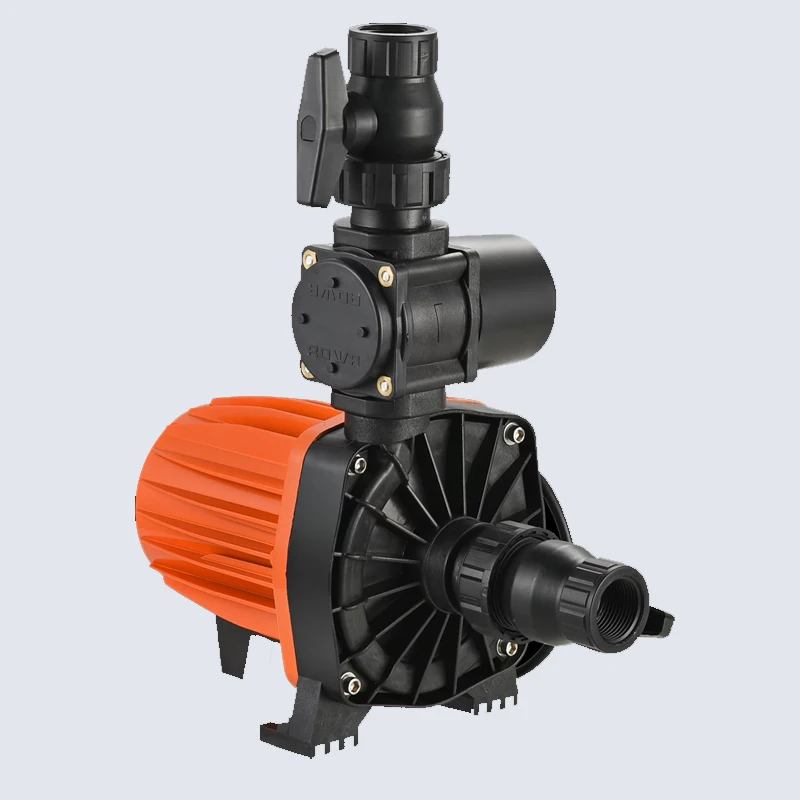

Водяной насос, добавленный во впускной центробежный насос для ковша, электрический насос для повышения давления воды
14 026,72 ₽

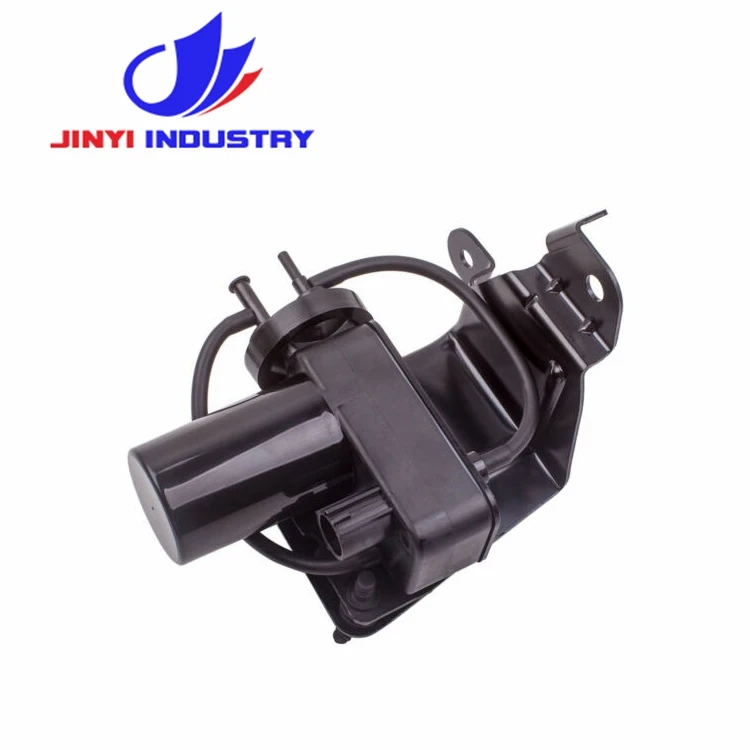

Вакуумный насос подходит для BMW FORD E-350 2000-2003 FORD E-450 2000-2003 6C3Z2A451A 904-214 6C3Z-2A451-A
3 776,43 ₽ - 4 315,92 ₽

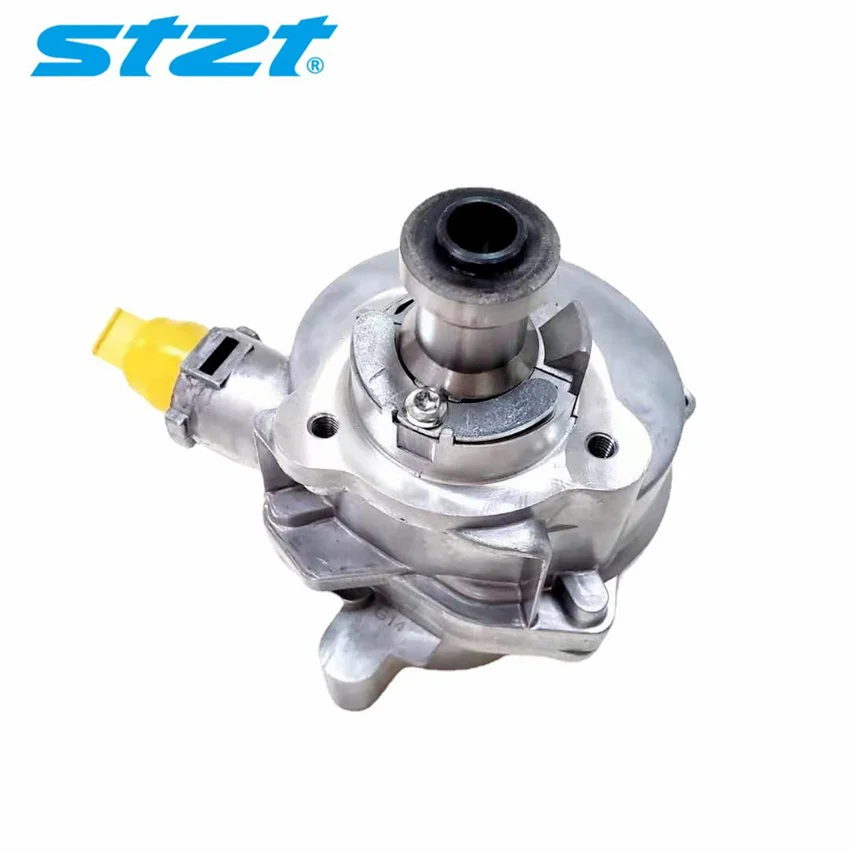

Автомобильная запчасть stzt 11667586424, тормозной вакуумный насос, автомобильный тормозной насос для BMW R60 1166 7586 424
