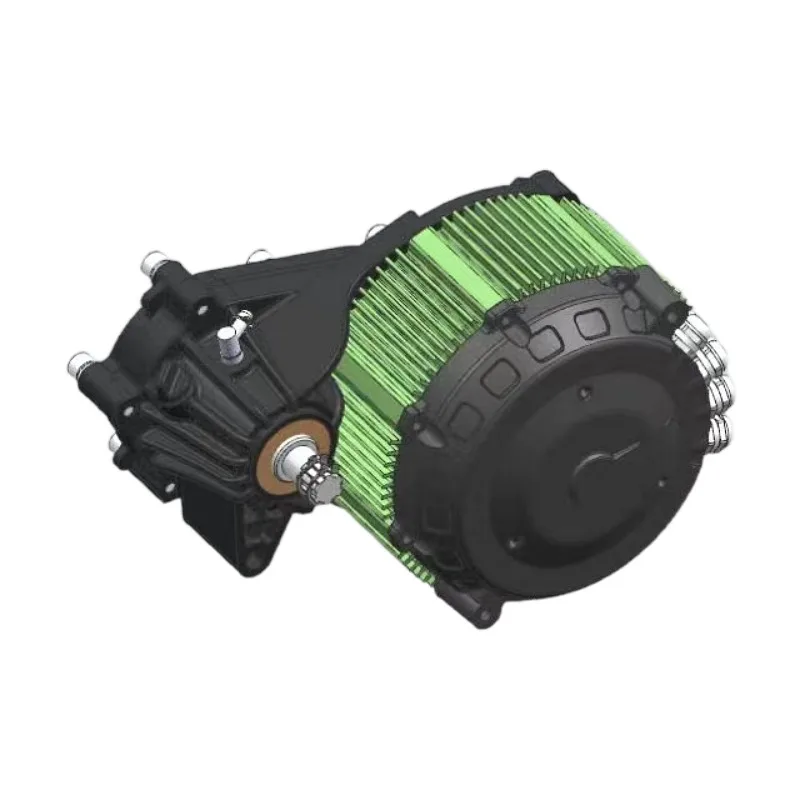

Комплект для преобразования электродвигателя с контроллером 60 в 3500
- Категория: >>>
- Поставщик: Nanjing Resonance Intelligent Technology Co. Ltd.
Сохранить в закладки 1600659414828:
Описание и отзывы
Характеристики
Products Description
Our drive system is adopted with the international advanced flat wire hairpin technology, and the motor is made of square-section hard copper wire to make winding. Compared to the traditional round wire motor, it is easier to be used for automatic mass production, with the features of better homogeneity of product, higher occupation rate and greater power density.
Furthermore, the Hairpin motor can reduce the effective material cost by 8%-12%.
Product number | Permanent magnet synchronous |
Rating bus voltage (V) | 60 |
Rated power (KW) | 3.5 |
Peak power (KW-30s) | 7 |
Rated torque (NM) | 8 |
Peak torque (NM) | 45 |
Rating speed (RPM) | 4180 |
Peak speed (RPM) | 6000 |
Position sensor rotation change Outer diameter *length (mm) | 206 * 274 |
Weight (KG) | 13.5 |
Electric installation position cooling method | Self -cold |
Maximum efficiency | 94 |
Speed ratio ratio | 2.46: 1 |
Core Competitiveness
Three-in-one technology of electric drive assembly
Development trend of new energy electric drive system: integration, modular, miniaturizationProduct characteristics: high power density, high power volume and high cost performance
Core Technology
Our drive system is adopted with the international advanced flat wire hairpin technology, and the motor is made of square-section hard copper wire to make winding.Compared to the traditional round wire motor, it is easier to be used for automatic mass production, with the features of better homogeneity of product, higher occupation rate and greater power density.
Furthermore, the Hairpin motor can reduce the effective material cost by 8%-12%.
◆High power density and torque density: The flat copper wire increases the cross-sectional area of the copper, so that the slot full rate is higher and the total current carried is larger.
◆High efficiency: Under the condition of the same slot area, the proportion of copper in the slot of the generator motor is larger, the phase resistance is relatively reduced, and the copper loss is reduced.
◆Good heat dissipation performance: The filling degree in the slot is high, and the flat copper wire, the insulating paper and the iron core are fully contacted, which is conducive to heat conduction.
◆Good product consistency: The rigid flat copper wire has stable forming and convenient clamping, and the process can be automated to ensure product consistency.
◆Good heat dissipation performance: The filling degree in the slot is high, and the flat copper wire, the insulating paper and the iron core are fully contacted, which is conducive to heat conduction.
◆Good product consistency: The rigid flat copper wire has stable forming and convenient clamping, and the process can be automated to ensure product consistency.
◆Low vibration and noise: The consistency of the hairpin conductors in the slot and at the ends is relatively good.
Motor Production
Motor Performance Lab
Testing facilities
Our Company
The company has a professional r&d team of high-tech automotive supplies, strong technical force, stable partners, both spot sales and customization. the products currently distributed include 5g-v2x terminals, intelligent connected car test equipment,motor series,car seat covers,dog car seat covers,back seat organizers,car trunk organizer,steering wheel covers,travel pillows,car mats,car accessories. the company is also actively
expanding sales channels and successively expanding sales channels on major online sales platforms.
FAQ
Q1. what is your terms of packing?
A: generally, we pack our goods in neutral white boxes and brown cartons. if you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. what is your terms of payment?
A: t/t 30% as deposit, and 70% before delivery. we'll show you the photos of the products and packages . before you pay the balance.
Q3. how about your delivery time?
A: generally, it will take 30 to 60 days after receiving your advance payment. the specific delivery time depends . on the items and the quantity of your order.
Q4. can you produce according to the samples?
A: yes, we can produce by your samples or technical drawings. we can build the molds and fixtures.
Q5. what is your sample policy?
A: we can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. do you test all your goods before delivery?
A: yes, we have 100% test before delivery.
A: generally, we pack our goods in neutral white boxes and brown cartons. if you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. what is your terms of payment?
A: t/t 30% as deposit, and 70% before delivery. we'll show you the photos of the products and packages . before you pay the balance.
Q3. how about your delivery time?
A: generally, it will take 30 to 60 days after receiving your advance payment. the specific delivery time depends . on the items and the quantity of your order.
Q4. can you produce according to the samples?
A: yes, we can produce by your samples or technical drawings. we can build the molds and fixtures.
Q5. what is your sample policy?
A: we can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. do you test all your goods before delivery?
A: yes, we have 100% test before delivery.
Похожие товары

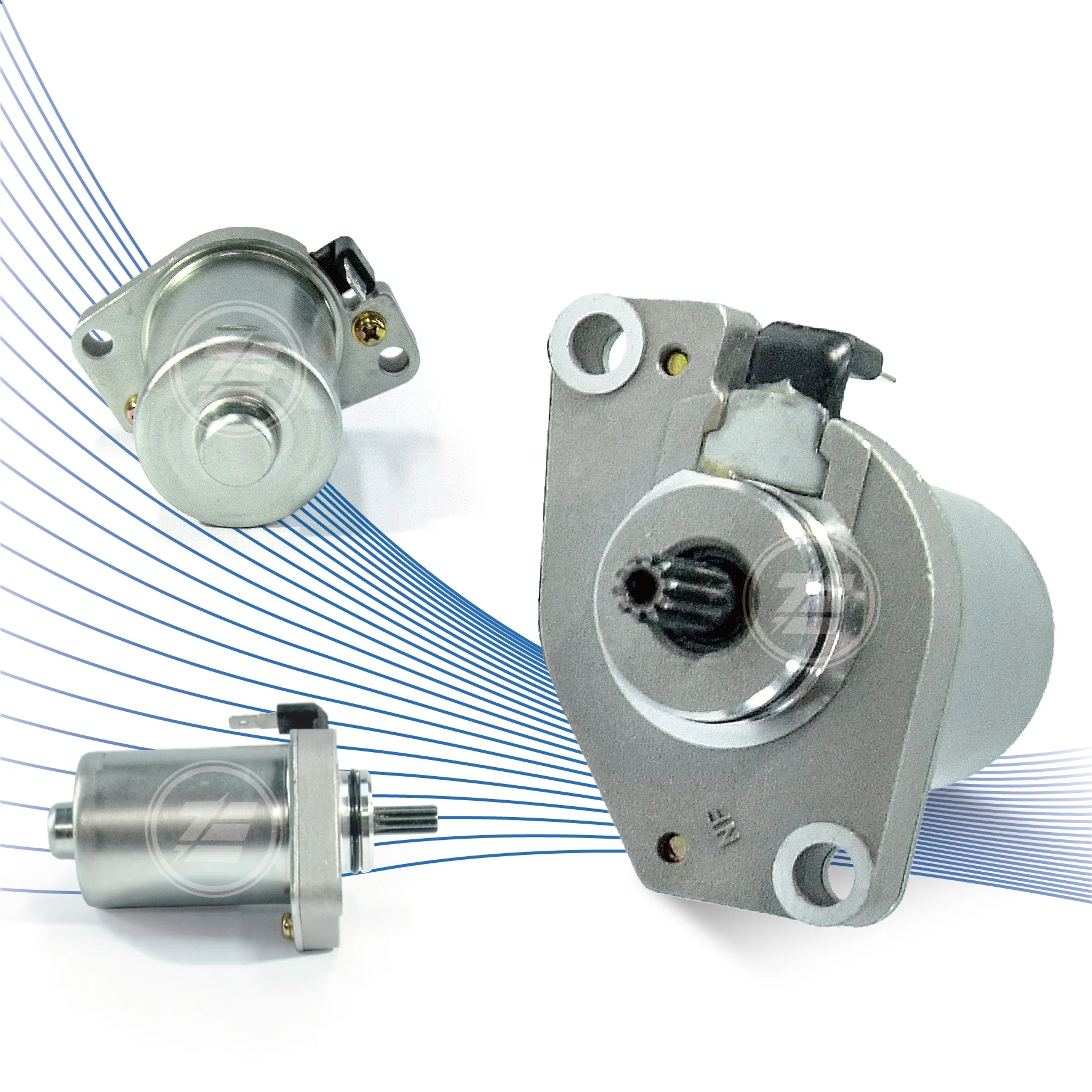

KTD высокопроизводительный выдающийся двигатель стартера мотоцикла
10,00 $
32100 куб. См детали двигателя мотоцикла магнитный генератор 23420-проволочный Магнитный Статор для
7,98 $ - 8,32 $
Электромотор ступицы колеса для тачки и велосипеда 1000 Вт 48
172,00 $ - 180,00 $

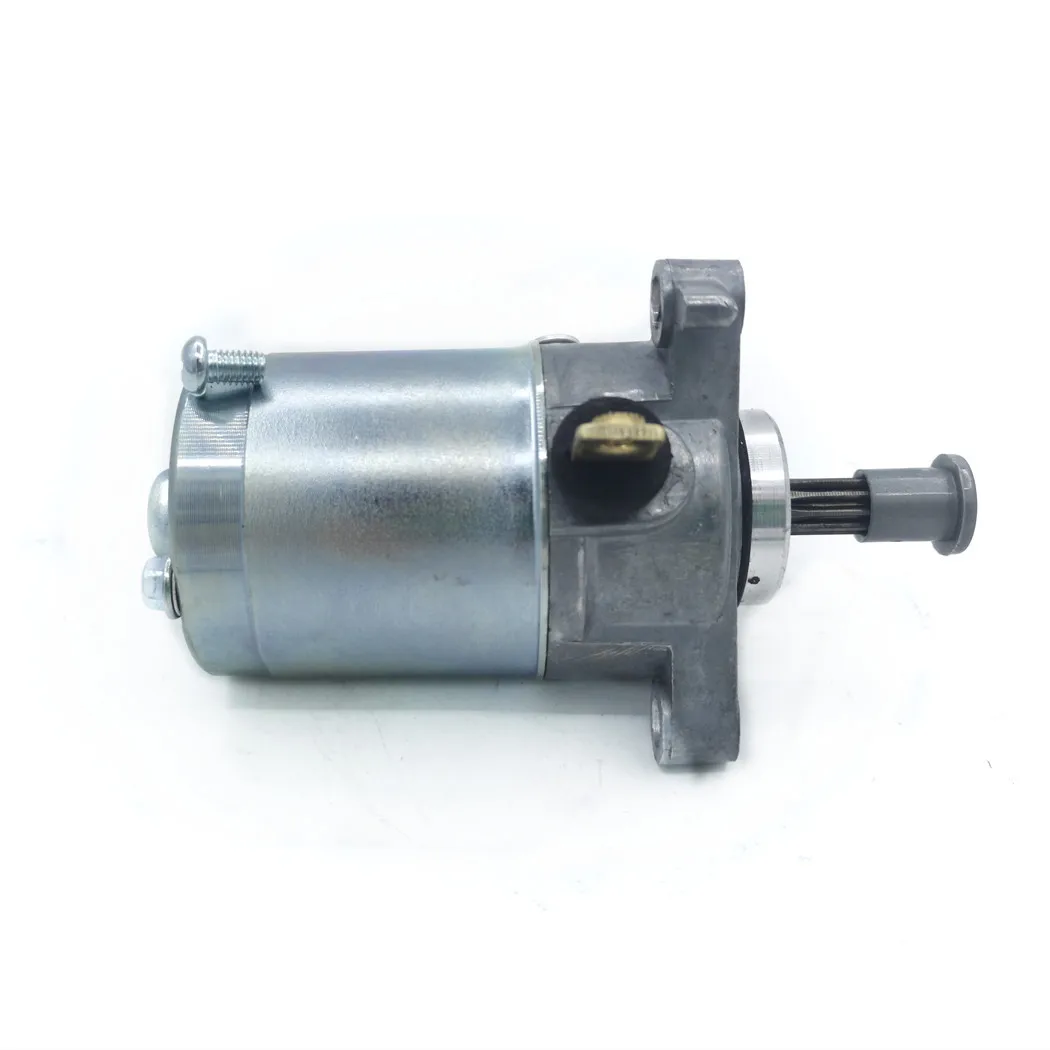

12 В CCW 10T двигатель стартера мотоцикла для YAMAHA(BOOSTER50/JOG-50) OEM(19240011A0 33-00420 650239 0450532
