24-футовый большой вентилятор, большой коммерческий вентилятор, Мексика
1 620,00 $ - 1 710,00 $
Самые популярные HVLS большие промышленные потолочные вентиляторы улучшают циркуляцию
- Категория: Fans >>>
- Поставщик: Jiangsu Dawang Ventilation Machinery Co. Ltd
Сохранить в закладки 1600659506870:
Описание и отзывы
Характеристики
Products Description
W.Fans is new large HVLS energry-saving industrial fan based on PMSM (permanent magnet synchronous motor) principle developed by Dawang.With 260N.m torque,the driving force is more stronger and the torque is more stable.Save 30% energy,IE4 high efficiency.The fan diameter from 2.5M to 7.3M,14850m³/min air volume,free maintain for life,no need to change oil and seal. 20-years reliablelife,W.Fans series solves the problem of ventilation and cooling in large spaces with better performance,lower energy consumption and longer life.
Motor system:pmsm motor
1.More stronger:260N.m torque,more stronger,more stabler torque,air volume increases 30%.
2.More efficient:Unique outer rotor high torque design,higher accuracy.
3.More energy saving:30% energy saving,up to IE4 high-efficiency energy-saving
standards,GB30253-2013 national energy efficiency new standard.
4.Free maintenance for life :Totally sealed,no need to replace lubricating oil,seals and other
accessories,more cost-effective.
5.Lower noise:38db lower noise,more comfortable.
6.Lower temperature：Motor raised temperature lower than 35℃,longer life.
2.More efficient:Unique outer rotor high torque design,higher accuracy.
3.More energy saving:30% energy saving,up to IE4 high-efficiency energy-saving
standards,GB30253-2013 national energy efficiency new standard.
4.Free maintenance for life :Totally sealed,no need to replace lubricating oil,seals and other
accessories,more cost-effective.
5.Lower noise:38db lower noise,more comfortable.
6.Lower temperature：Motor raised temperature lower than 35℃,longer life.
Vfd:vector converter
1.More stronger:260N.m torque,more stronger,more stabler torque,air volume increases 30%.
2.More efficient:Unique outer rotor high torque design,higher accuracy.
3.More energy saving:30% energy saving,up to IE4 high-efficiency energy-saving
standards,GB30253-2013 national energy efficiency new standard.
4.Free maintenance for life :Totally sealed,no need to replace lubricating oil,seals and other
accessories,more cost-effective.
5.Lower noise:38db lower noise,more comfortable.
6.Lower temperature：Motor raised temperature lower than 35℃,longer life.
2.More efficient:Unique outer rotor high torque design,higher accuracy.
3.More energy saving:30% energy saving,up to IE4 high-efficiency energy-saving
standards,GB30253-2013 national energy efficiency new standard.
4.Free maintenance for life :Totally sealed,no need to replace lubricating oil,seals and other
accessories,more cost-effective.
5.Lower noise:38db lower noise,more comfortable.
6.Lower temperature：Motor raised temperature lower than 35℃,longer life.
Blades- Airflow components
1.Blade design-Streamline variable cross-section
Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows（304-186mm) and thins(43mm-21mm) from root to tip till tail then widen,the air is more even and uniform.
2.Blade material-Aviation aluminum alloy
1.5mm thickness No.5052H32 aviation aluminum alloy original plate,precision CNC molding,high strength and flexibility ensure the blade not to be broken.
3.Blade weight-More lighter and safer
6.7kg per blade(24ft),less blades,lighter weight,it can reduces the motor load,prolong the life,more safe and cost-efficient.
Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows（304-186mm) and thins(43mm-21mm) from root to tip till tail then widen,the air is more even and uniform.
2.Blade material-Aviation aluminum alloy
1.5mm thickness No.5052H32 aviation aluminum alloy original plate,precision CNC molding,high strength and flexibility ensure the blade not to be broken.
3.Blade weight-More lighter and safer
6.7kg per blade(24ft),less blades,lighter weight,it can reduces the motor load,prolong the life,more safe and cost-efficient.
Connection:patented full mortise and tenon structural design to ensure the whole fan safety:
1.Blade and petiole
Mortise and tenon connection:
The convex petiole with concave buffer device form the Joint engaged,eliminate the
centrifugal force from the blades when the fan is running and the shear force when the fan
starts and stops.
The transverse screw is the same direction with fan running track to avoiding the shear in
order to ensure the blade will not broken,eliminate the possible Safety hazards radically.
The convex petiole with concave buffer device form the Joint engaged,eliminate the
centrifugal force from the blades when the fan is running and the shear force when the fan
starts and stops.
The transverse screw is the same direction with fan running track to avoiding the shear in
order to ensure the blade will not broken,eliminate the possible Safety hazards radically.
2.Petiole and wheel hub
The petiole and hub/motor are integrated by the stepped concave-convex sections to
engage each other.The overall structure is used to withstand the centrifugal force during
running,and all fasteners are not stressed.
engage each other.The overall structure is used to withstand the centrifugal force during
running,and all fasteners are not stressed.

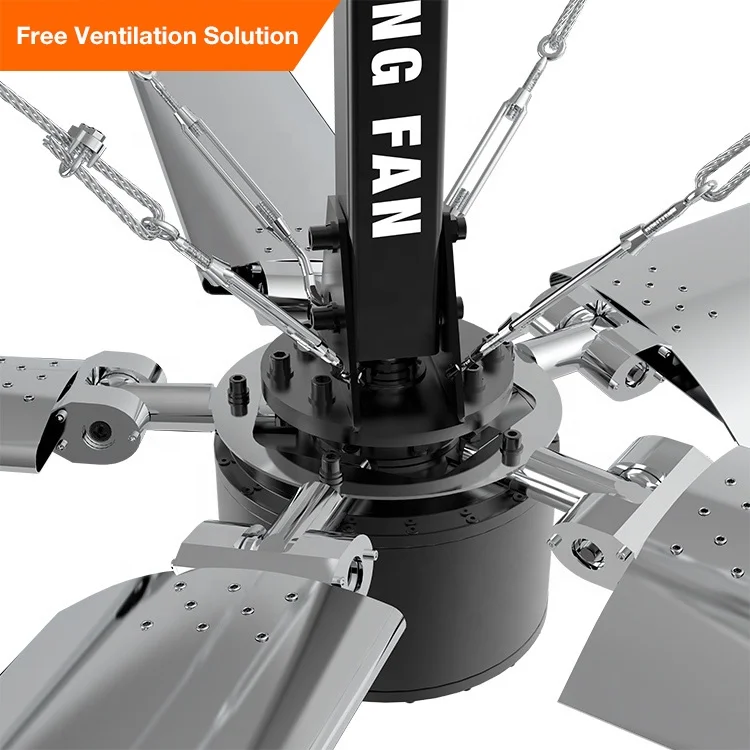

3.Motor and flange roulette
Safety ring:Connect the 5 petioles and motor upper cover form the whole,adopt the occlusion structural to even the force of the whole fan.
Anti-falling roulette:The concave flange roulette engaged with the convex anti-falling ring each other under the gravity to ensure the reliable connection between the flange roulette and motor.
Anti-falling roulette:The concave flange roulette engaged with the convex anti-falling ring each other under the gravity to ensure the reliable connection between the flange roulette and motor.
Blade shape- Streamlined variable cross-section
The blade section is from wide to narrow (304-186mm),from thick to thin (43mm-21mm).Adopts the equal chord length principle and relative linear velocity characteristics to ensure the balance pressure of the whole blade to achieve the tip,middle and roots air evenly including the middle.
Blade shape- transverse section,equal width section
The blade length is equal with cross section ,blade width is 19CM.High air resistance is not conducive to pushing airflow, holes in the middle, high energy consumption.
The blade length is equal with cross section ,blade width is 19CM.High air resistance is not conducive to pushing airflow, holes in the middle, high energy consumption.
Blade material- aviation aluminum sheet
Adopt NO.5052H32 1.5mm thickness aviation high grade density aluminum alloy original plate,with high strength and flexibility,bright and durable.
Adopt NO.5052H32 1.5mm thickness aviation high grade density aluminum alloy original plate,with high strength and flexibility,bright and durable.
Blade material-Low grade aluminum
Low grade aluminum mixed with recycled aluminum for secondary processing, low density, impurities, pores, low toughness and easy to break
Low grade aluminum mixed with recycled aluminum for secondary processing, low density, impurities, pores, low toughness and easy to break
Blade weight-light
Each blade 6.7KG,total weight for 5pcs 33.5KG.Smaller blades ,lighter weight, reducing the motor load and extend service life, low energy consumption.
Each blade 6.7KG,total weight for 5pcs 33.5KG.Smaller blades ,lighter weight, reducing the motor load and extend service life, low energy consumption.
Blade weight-heavy
Cross section width equal to the blades, Each blade 10KG,normal 6pcs or 8pcs.Heavy weight, large motor load, high energy consumption.
Cross section width equal to the blades, Each blade 10KG,normal 6pcs or 8pcs.Heavy weight, large motor load, high energy consumption.
Blade and petiole -- full mortise and tenon connection
The convex petiole and concave buffer device are locked with bolts, each blade is riveted with buffer device by 16 rivets,forming the blade, buffer device and petiole as a whole, torque and shear less and less.
The convex petiole and concave buffer device are locked with bolts, each blade is riveted with buffer device by 16 rivets,forming the blade, buffer device and petiole as a whole, torque and shear less and less.
Blade weight-heavy
Cross section width equal to the blades, Each blade 10KG,normal 6pcs or 8pcs.Heavy weight, large motor load, high energy consumption.
Cross section width equal to the blades, Each blade 10KG,normal 6pcs or 8pcs.Heavy weight, large motor load, high energy consumption.
Buffer device-Rubber mat
The rubber pad between mounting hole of buffer device and shaped inserts to achieve the flexible connection between petiole and chassis.Rubber mat absorb the most of vibration, improve the motor shaft work conditions, extend the life, more quieter
The rubber pad between mounting hole of buffer device and shaped inserts to achieve the flexible connection between petiole and chassis.Rubber mat absorb the most of vibration, improve the motor shaft work conditions, extend the life, more quieter
Buffer device-No
Vibration cannot be weakened, resulting petiole and blades loosen,heavy loading, high noise.
Vibration cannot be weakened, resulting petiole and blades loosen,heavy loading, high noise.
Wheel chassis-Integrated hub
Special-shaped mounting hole and inserts locked each other to prevent the blade from swinging
Special-shaped mounting hole and inserts locked each other to prevent the blade from swinging
Wheel chassis structure-die cast
Gravity die-casting aluminum wheel chassis or separated wheel hub, low strength, poor fatigue resistance.
Gravity die-casting aluminum wheel chassis or separated wheel hub, low strength, poor fatigue resistance.
1.Streamlined variable cross-section
Conform to aerodynamic equal chord length theory,combined with the relative linear velocity principle,the blade narrows and thins from root to tip till tail then widen,the air is more even and uniform.
2.Aviation aluminum plate
1.5mm thickness 5052 Ultra-high toughness aviation aluminum plate can load more than 3Ton tensile to ensure the blade can deform quickly and absorb external force effectively, It can prevent the blade from breaking,avoid the damage to the motor and other structural parts greatly.
3.Blade high-strength connection
Each blade is fixed with the buffer cavity by 16pcs high-strength rivets, each rivet can load 1.5 ton shear force.
4.Buffer device
The blade and petiole flexible connects with buffer device, the rubber absorbs the most vibration from
blades when running.
blades when running.
5.Anti-falling ring
The concave flange are engaged with the convex anti-falling ring each other under the gravity to ensure a reliable connection between the flange and motor.
6.Safety ring
Connect the 5 petioles into a whole to form the sleeve with the frame lower hub to prevent the petioles from falling.
7.Mortise and tenon petiole connection
The convex petiole with concave buffer device form the Joint engaged,eliminate the centrifugal force from the blades when the fan is running and the shear force when the fan starts and stops.
8.High-tensile strength petiole
6061-T6 petiole,high strenght,HB90 hardness,it has good corrosion resistance with 205MPa tensile strength.
9.Wire rope wind protection
Mounting bracket and I Beam winded with 1000KG tensile wire rope to prevent sliding and falling.
10.Wire rope balance protection
Four wire ropes are fixed with building traction to prevent shaking and falling.
11.Abnormal alarm system
The VFD system comes with accident protection.It will automatically alarm and stop work.
12.Real-time monitor and initiative maintenance
Dawang intelligent remote control system realtime monitor the fan operating parameters,motor
temperature rise ,fan horizontal level and so on.
temperature rise ,fan horizontal level and so on.
Specification
Item | W.Fans | ||||||||||||||
Models | W26 | W24 | W22 | W20 | W18 | W16 | W14 | W12 | |||||||
Diameter（m) | 8 | 7.3 | 6.7 | 6.1 | 5.5 | 4.9 | 4.2 | 3.6 | |||||||
Speed（rpm) | 0-45 | 0-55 | 0-60 | 0-60 | 0-70 | 0-75 | 0-80 | 0-85 | |||||||
Air Volume（m³/min) | 15072 | 13804 | 11630 | 9639 | 7836 | 6220 | 4570 | 3357 | |||||||
Coverage（m²) | 2462 | 2123 | 1809 | 1520 | 1256 | 1017 | 804 | 615 | |||||||
Consumption（kw/h) | ≤1.2 | ≤0.8 | ≤0.6 | ||||||||||||
Weight（kg) | 108 | 92 | 90 | 73 | 63 | 60 | 57 | 42 | |||||||
Noise（dB) | ≤38 | ||||||||||||||
Blade Nos(pcs) | 5 | ||||||||||||||
Rated Power（kw) | 1.5 | 1.1 | 0.75 | ||||||||||||
Full Load Current（A) | 4.5/3.0 | 3.0 | 2.5 | ||||||||||||
Power Supply（V) | 220-380 | 220 | |||||||||||||
Custom is available | |||||||||||||||
