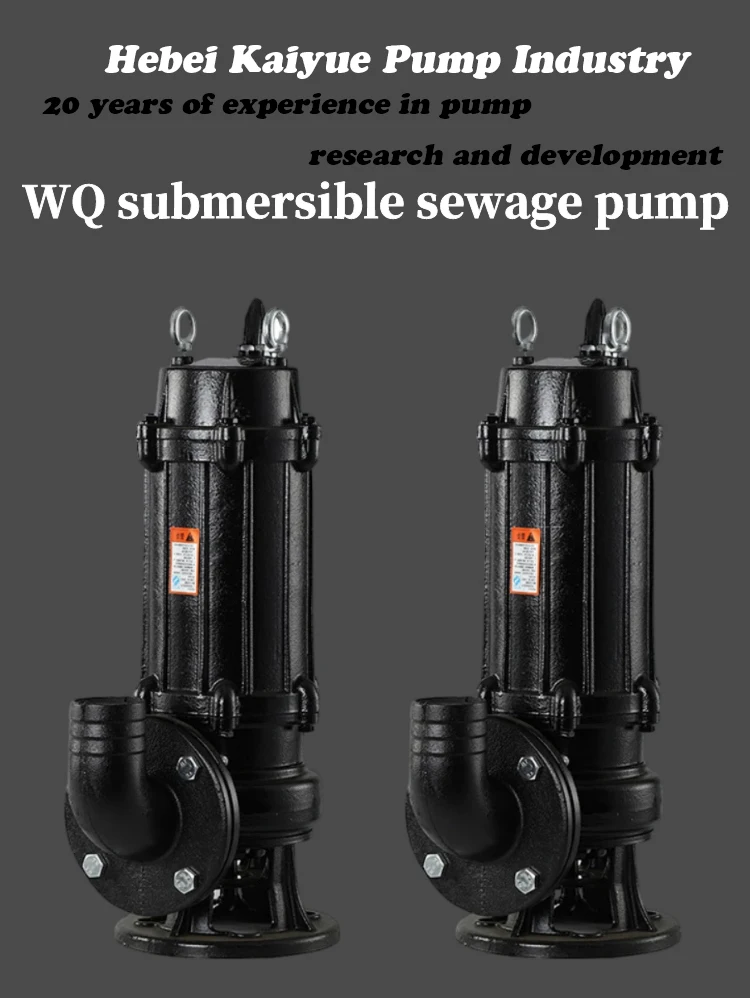

Погружные насосы для сточных вод Серии WQ л.с. 60 л.с. насос

Погружные насосы для сточных вод Серии WQ л.с. 60 л.с. насос

Категория: >>>
Поставщик: Hebei Kaiyue Industrial Pump Manufacturing Co. Ltd.Hebei Ltd.

Цена:24 099,04-93 986,26 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

25WQ8-22-1.1
25	qutlet diamter（mm）
WQ	submerged pump
8	flow rate（m³/h）
22	head lift（m）
1.1	motor power（kw）

25WQ8-22-1.1	150WQ210-7-7.5	300WQ600-20-55
32WQ12-15-1.1	150WQ 145-9-7.5	300WQ 800-20-75
40WQ15-15-1.5	150WQ 110-15-7.5	300WQ 950-20-90
40WQ15-30-2.2	150WQ 200-10-15	300WQ 1000-25-110
50WQ20-7-0.75	150WQ 180-15-15	300WQ 800-32-110
50WQ10-10-0.75	150WQ 140-18-15	300WQ 800-36-132
50WQ25-10-1.5	150WQ 200-14-18.5	350WQ1200-8-45
50WQ20-15-1.5	150WQ 180-20-18.5	350WQ 1100-10-55
50WQ27-15-2.2	150WQ 150-25-18.5	350WQ 1300-12-75
50WQ15-25-2.2	150WQ 200-22-22	350WQ 1500-15-90
50WQ18-30-3	150WQ 180-25-22	350WQ 1200-18-90
50WQ24-20-4	150WQ 130-30-22	350WQ 1100-28-132
50WQ25-32-5.5	150WQ 250-22-30	350WQ 1000-36-160
50WQ30-30-7.5	150WQ 180-30-30	400WQ1760-7.5-55
50WQ20-40-7.5	150WQ 200-30-37	400WQ 1300-10-55
65WQ42-9-2.2	150WQ 150-35-37	400WQ 2600-6-75
65WQ25-15-2.2	150WQ 160-45-37	400WQ 1500-10-75
65WQ37-13-3	200WQ360-6-11	400WQ 2200--9-110
65WQ25-30-4	200WQ 300-7-11	400WQ 2000-15-132
65WQ40-30-7.5	200WQ 400-7-15	400WQ 1600-20-130
65WQ30-40-7.5	200WQ 250-11-15	400WQ 1700-22-160
65WQ35-50-11	200WQ 350-10-18.5	400WQ 1500-26-160
65WQ35-60-15	200WQ 400-10-22	400WQ 2000-22-200
8 0WQ 40-7-2.2	200WQ 310-13-22	400WQ 1700-30-200
8 0WQ 30-8-2.2	200WQ 300-15-22	400WQ 1800-32-250
8 0WQ 50-10-3	200WQ 400-13-20	400WQ 2000-30-280
8 0WQ 43-13-3	200WQ 360-15-30	500WQ2500-10-110
8 0WQ 60-13-4	200WQ 250-22-30	500WQ 2000-15-110
8 0WQ 40-15-4	200WQ 350-25-37	500WQ 2800-10-132
8 0WQ 80-15-7.5	200WQ 400-25-45	500WQ 3600-10-160
80WQ 65-25-7.5	200WQ 380-28-45	500WQ 2600-15-160
100WQ100-7-4	200WQ 250-35-45	500WQ 2000-20-160
100WQ 80-10-4	200WQ 400-30-55	500WQ 3000-15-200
100WQ 110-10-5.5	200WQ 250-40-55	500WQ 2500-20-200
100WQ 65-15-5.5	200WQ 350-40-75	500WQ 2800-15-220
100WQ 100-15-7.5	250WQ600-9-30	500WQ 2400-22-220
100WQ 85-20-7.5	250WQ 500-10-30	500WQ 2400-22-220
100WQ 50-22-7.5	250WQ 700-10-37	500WQ 4000-15-250
100WQ 100-25-11	250WQ 600-12-37	500WQ 2600-24-250
100WQ 70-22-11	250WQ 600-15-45	550WQ3000-12-160
100WQ 50-35-11	250WQ 600-20-55	550WQ 4200-10-185
100WQ 87-28-15	250WQ 700-20-75	550WQ 3000-16-200
100WQ 100-30-15	250WQ600-25-75	550WQ 5000-10-220
100WQ100-35-18.5	250WQ600-30-90	600WQ3500-12-185
125WQ130-15-11	300WQ900-8-37	600WQ 5500-10-250
125WQ130-20-15	300WQ800-12-45	600WQ 3750-17-250
150WQ140-7-5.5	300WQ500-15-45	600WQ 6000-10-280
150WQ120-10-5.5	300WQ800-15-55	700WQ9000-6-250

Related Products

Our company's main business: ZJ, ZJL, ZGB series slurry pumps, SPR type submerged slurry pumps, fractional slurry pumps, ZJE, SYA filter press special feed pumps and supporting products

filter press pump

ZJ slurry pump

Fractional Slurry Pump

ZJL, SP vertical submerged slurry pump

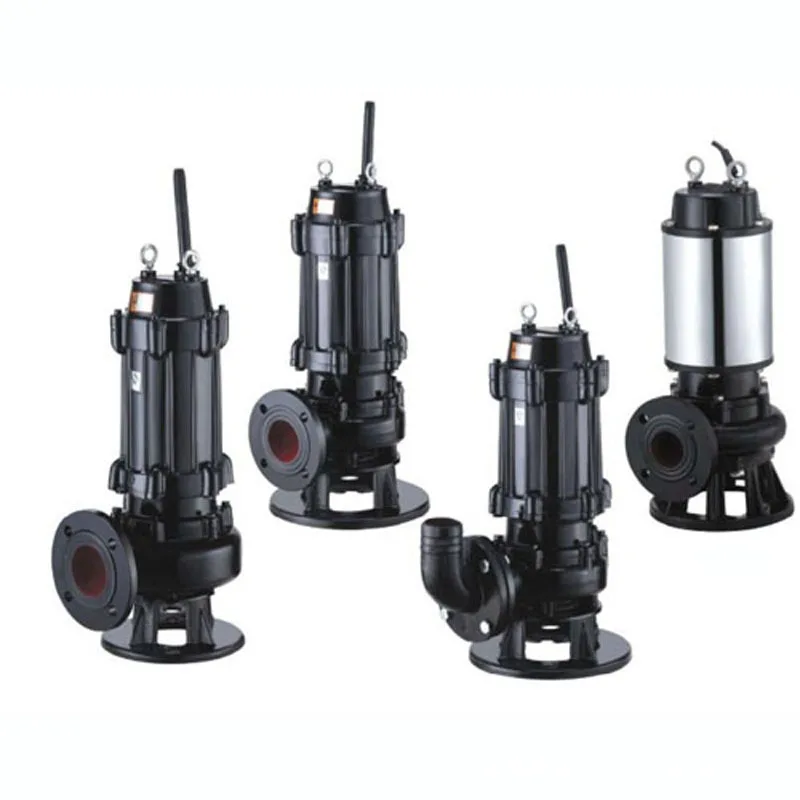

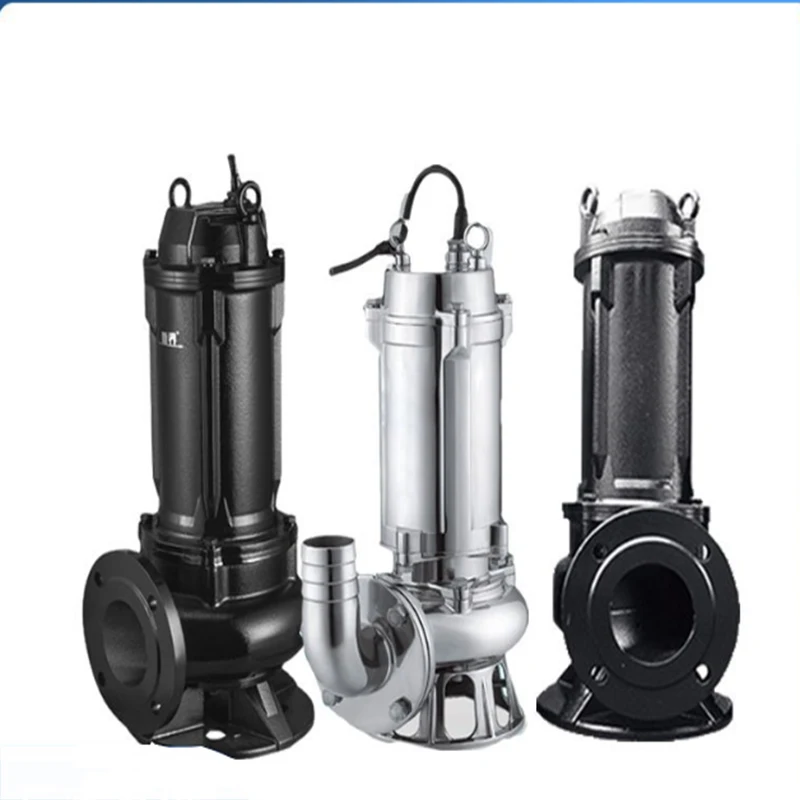

WQ submersible sewage pump

ZJQ submersible slurry pump

Company Profile

Hebei Kaiyue Industrial Pump Manufacturing Co., Ltd. is a leading enterprise specializing in the production of industrial pump products. It is a professional pump production company integrating design, research and development. Strong capital strength and good corporate integrity are the guarantee for the company's development.
The company has strong strength, specializing in the research and development of high wear-resistant alloy materials, hired top domestic professional talents, and established long-term cooperative relations with relevant colleges and universities, so that the research and development of high wear-resistant alloy materials has hired domestic professional Top talents, and established long-term cooperative relations with relevant colleges and universities, making a breakthrough in the service life of high wear-resistant alloy materials.
The ZGB, ZJ, ZJL, ZGB series slurry pump products produced by our company have reached the domestic advanced level. Mining Company, Ningmei Group, Luneng Electric Power Company, Jinchuan Company, Jilin Metal Co., Ltd., Jinzhou Mining Company, Baiyin Co., Ltd. and other enterprises provide a large number of slurry pump products.

Testing equipment

In stock

Production equipment

Certificate

All products have been tested by professional institutions, so that customers can buy more assured

Exhibition

Packaging and Shipping

FAQ

Q:Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years

Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation

Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )

Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.
Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material
ordering time which is normally 10-15 days

Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide

Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable.
The sample order payment with Paypal,Western union are both ok.

Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by
air, 28-35 days by sea.) →After-sale service.
