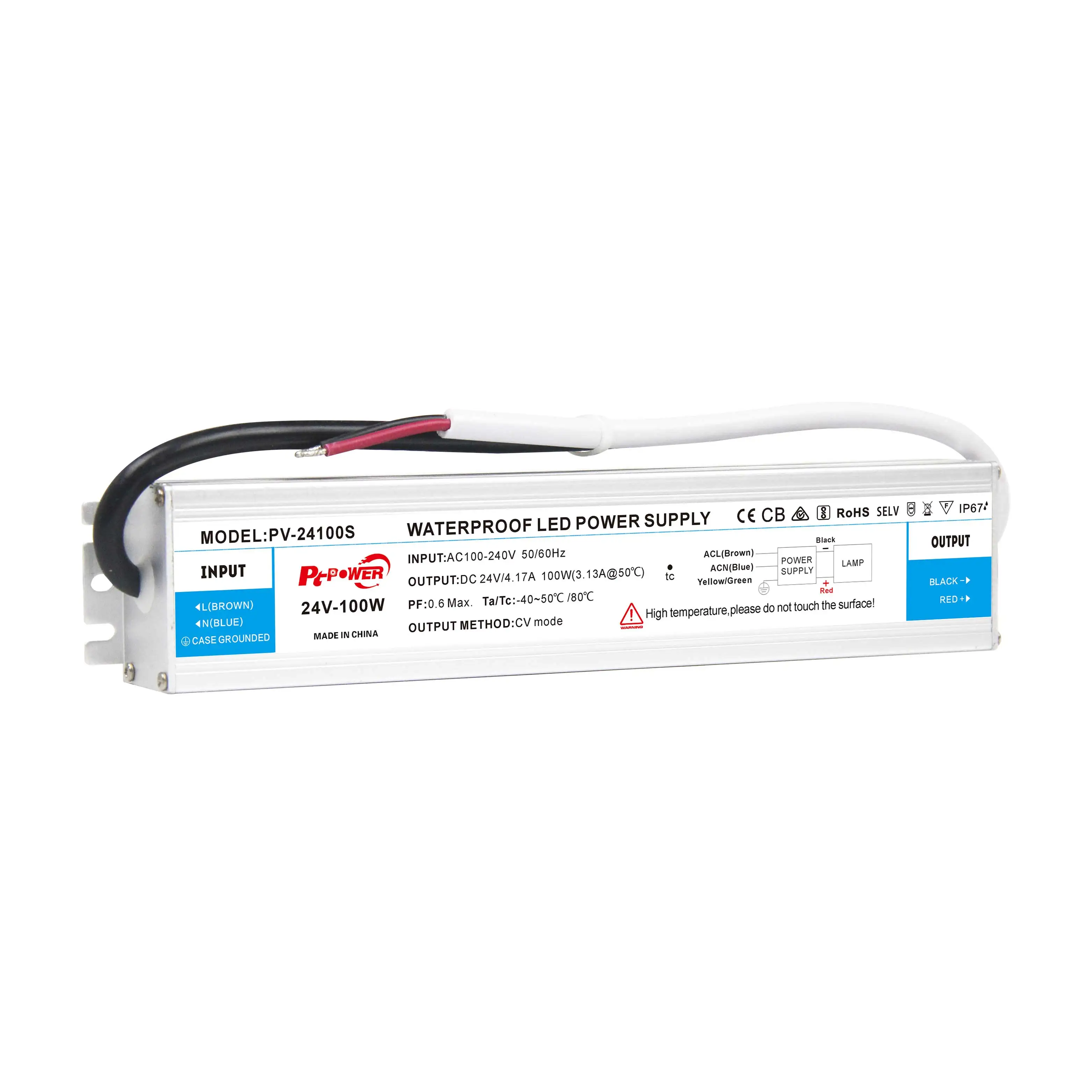

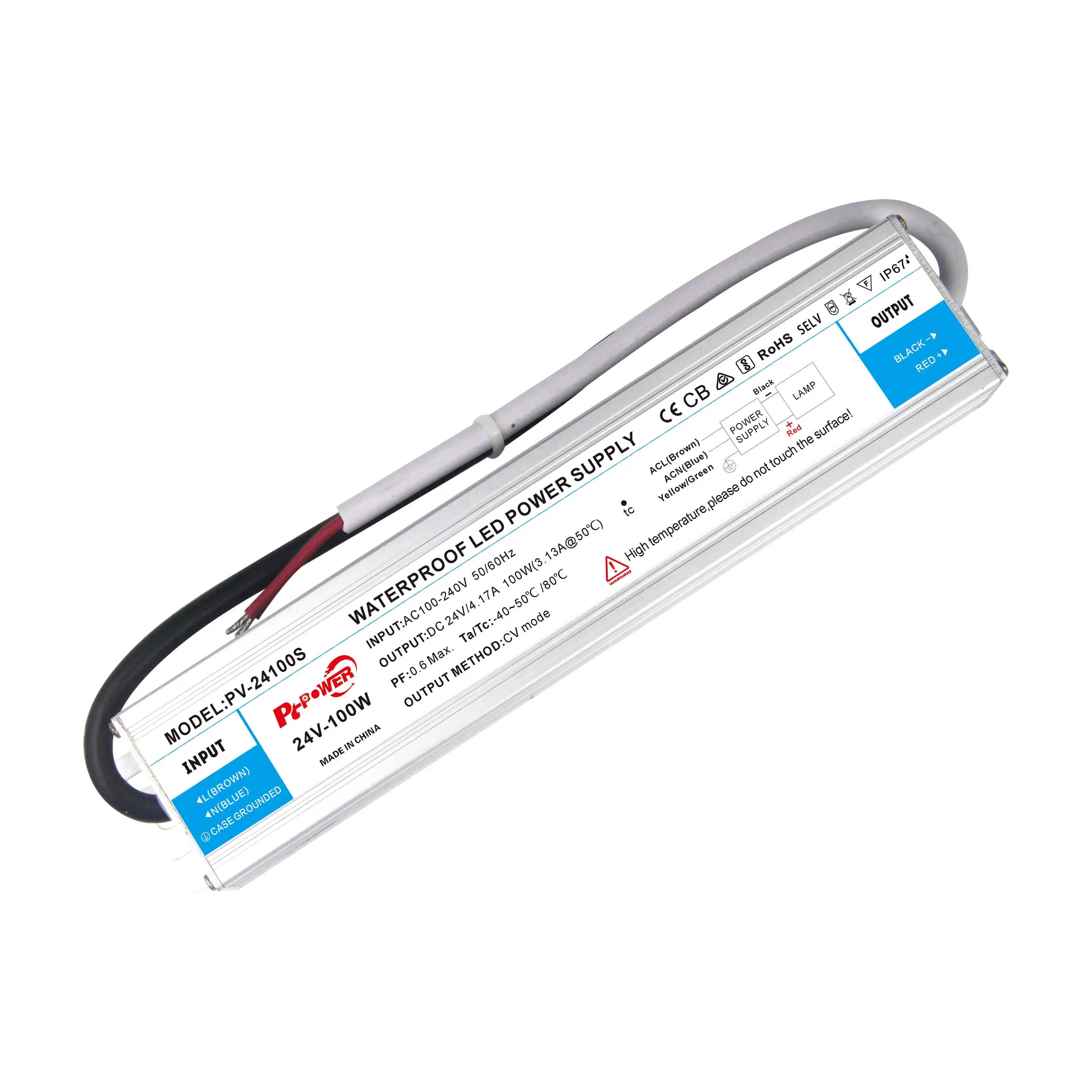

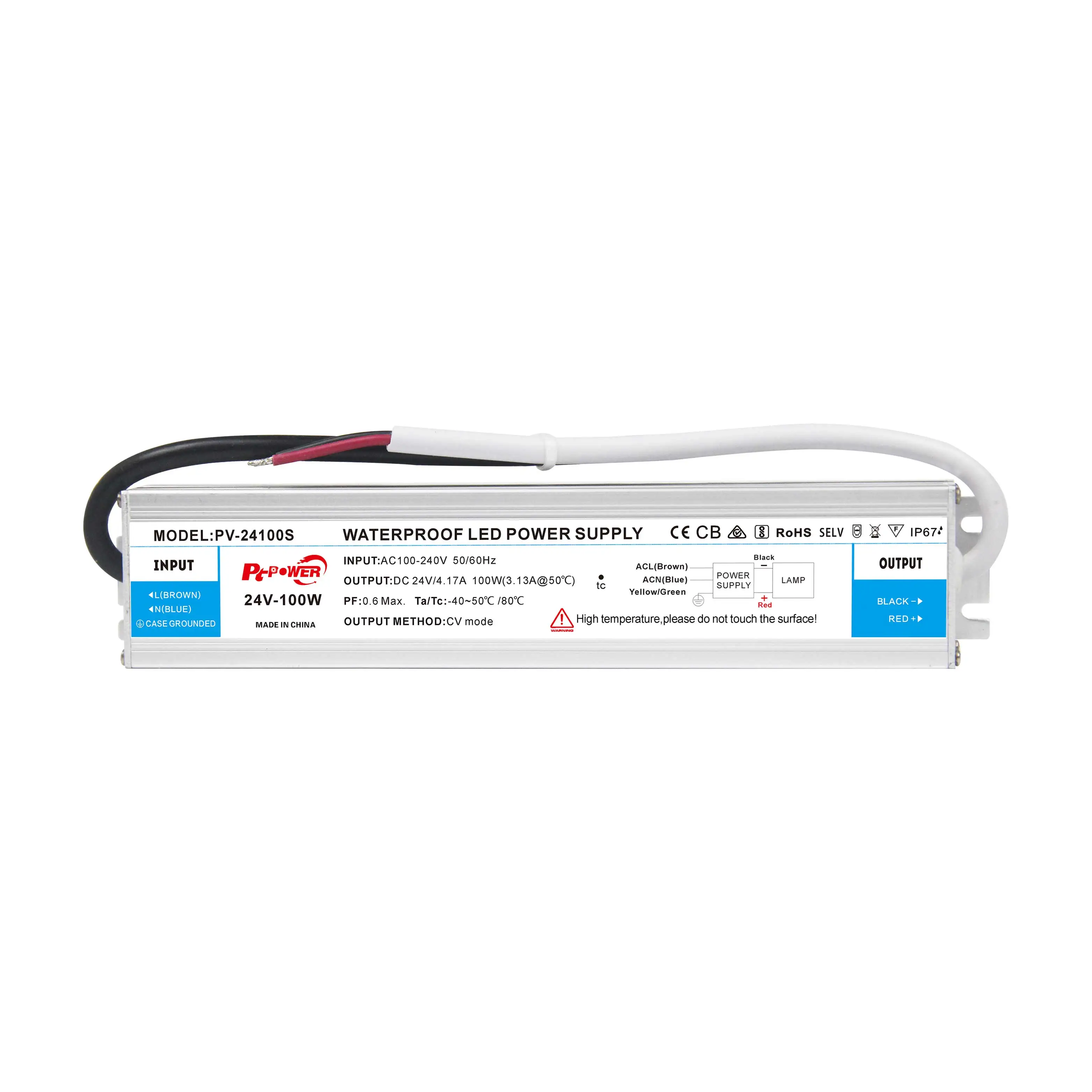

100 Вт Светодиодный источник питания 24 В адаптер трансформатора EMC водонепроницаемый светодиодный драйвер
- Категория: >>>
- Поставщик: Zhuhai Pt Power Technology Co. Ltd.
Сохранить в закладки 1600660444508:
Описание и отзывы
Характеристики
Product Features:
* Constant Voltage design(CV Mode)
* Universal AC input* Sealed inside with plastic irrigation. Conform with IP67 rating.
*Withstand 300VAC surge input for 5 seconds
* Built-in Protections: Short circuit/Overload
* Cooling by free air convection* 100%
Full Load Burn-in Test
Full Load Burn-in Test
* High performance
* 3-Years warranty; replacement upon rejection during warranty period.
Model No.： | PV-12100S | PV-24100S | ||||||||||
Output | Rated Output Voltage | 12V | 24V | |||||||||
Output current Range | 0-8.33A | 0-4.17A | ||||||||||
Rated Output Power | 100W | |||||||||||
Output Voltage Precision | ±3% | |||||||||||
Output Ripple and Noise | ＜240mVP-P | <480mVP-P | ||||||||||
Load Regulation | ±2% | |||||||||||
Start/Rise Time | <1000ms/230VAC | |||||||||||
Retention Time | 20ms/230VAC | |||||||||||
Input | Input Voltage Range | 100-240VAC | ||||||||||
Input Frequency Range | 50-60HZ | |||||||||||
Power Efficiency | >86% | |||||||||||
Leak Current | ＜3mA/230VAC | |||||||||||
Protection | Overload Protection | When the load current exceeds 110-140% of the output current, the power supply will enter protection state. Protection Mode: Hiccup Mode. | ||||||||||
Short Circuit Protection | Protection mode: hiccup mode. When the short-circuit fault is removed, the power supply will automatically resume work. | |||||||||||
Working Environment Protection | Working Temperature | -40℃-70℃ | ||||||||||
Storage Temperature | -40℃-80℃ | |||||||||||
Ingress Protection Rating | 90%RH non condensing, refer to IP67 | |||||||||||
Shockproof Character | 10-500HZ,2G 10min/1cycle,period for 60min,each along X,Y,Z axes | |||||||||||
Temperature Coefficient | ±0.03%℃ (0-50℃) | |||||||||||
Security Features | Security Standard | IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1 | ||||||||||
Withstand Voltage | I/P-O/P:2KVAC,I/P-FG:2KVAC,O/P-FG:1.5KVAC | |||||||||||
Insulation Resistance | I/P-O/P:>100M Ohms/500VDC/25℃/70% RH | |||||||||||
Others | Wires | Input：《VDE》 H03VV-F 300/500V 3x0.75mm² L=200mm Output：《VDE》 H05RR-F 300/500V 2x1.0mm² L=200mm | ||||||||||
Outter Size | 210*42*30mm(L*W*H) | |||||||||||
Weight/PCS | 430g | |||||||||||
FAQ
Q1. Are you manufacturer? If yes, in which city?
A2: We have products with 2 years, 3 years and 5 years warranty to meet various market requests.
Q3. Do you offer free samples?
A3: Yes. Free samples are available, but the shipping cost should be on the buy's side.
Q4. Do your LED power supplies are original?
A4: Yes, all of our power supplies are 100% originally brand new.
Q5. Do you provide high copy LED power supplies?
A5: Yes, we provide all brand original and OEM LED power supplies to meet different requirements from different buyers.
Q6. What is your delivery date?
A6: The product delivery date is about 3~15 days after receipt of payment according to your order quantity.
Q7. Can you help me make my own design? How about the sample fee and sample time?
A7: Sure We have a professional development team to design new projects. We provide many customers with OEM and ODM products. You can tell me your thoughts or provide us with drawings. We develop it for you. As for the sample, the time period is around 15~30 days. The sample fee is charged according to the material and size of the product. If the sample is satisfied from your side, the sample fee can be refunded after regular mass orders.
A1:Yes, Zhuhai Pt Power Technology Co., Ltd. welcome your visiting. Please kindly tell me your schedule before you here, we will prepare to pick you up.
Q2. What is the warranty for your LED power supplies? A2: We have products with 2 years, 3 years and 5 years warranty to meet various market requests.
Q3. Do you offer free samples?
A3: Yes. Free samples are available, but the shipping cost should be on the buy's side.
Q4. Do your LED power supplies are original?
A4: Yes, all of our power supplies are 100% originally brand new.
Q5. Do you provide high copy LED power supplies?
A5: Yes, we provide all brand original and OEM LED power supplies to meet different requirements from different buyers.
Q6. What is your delivery date?
A6: The product delivery date is about 3~15 days after receipt of payment according to your order quantity.
Q7. Can you help me make my own design? How about the sample fee and sample time?
A7: Sure We have a professional development team to design new projects. We provide many customers with OEM and ODM products. You can tell me your thoughts or provide us with drawings. We develop it for you. As for the sample, the time period is around 15~30 days. The sample fee is charged according to the material and size of the product. If the sample is satisfied from your side, the sample fee can be refunded after regular mass orders.
