Автономный солнечный инвертор с инвертором тока 12 В постоянного в 220 переменного батареи из Китая
- Категория: >>>
- Поставщик: Shanghai Younatural New Energy Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600660543792:
Описание и отзывы
Характеристики
An Innovative Manufacturer and Trusted Partner
Located in Maryland, USA and Shanghai, China, we are committed to promoting the development of green new energy. We have more than 20 years’ industry experience and professional technicians, dedicated to providing customized energy storage system solutions. We are mainly engaged in lithium-ion battery product series: single cell lithium-ion, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, etc.
Top Service | High Quality | OEM/ODM Customized | After Sales |
We will test all products and send test videos or pictures to customer for confirmation. | Our products have obtained UL, CE, UN38.3, MSDS, IEC and other international certifications. | More than 20 years industry experience, provide customized energy storage system solutions. | We are committed to providing you with high-quality, reliable products and services. |
Product Description
Introduction

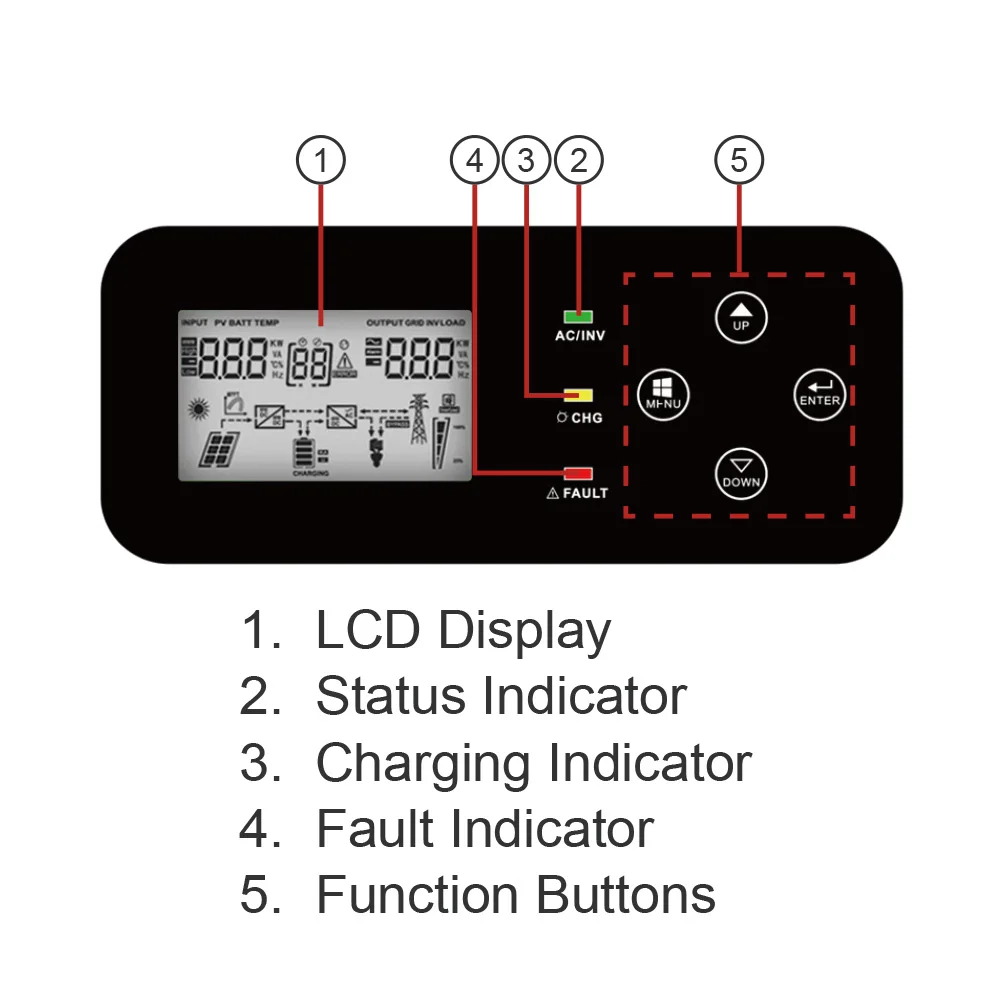

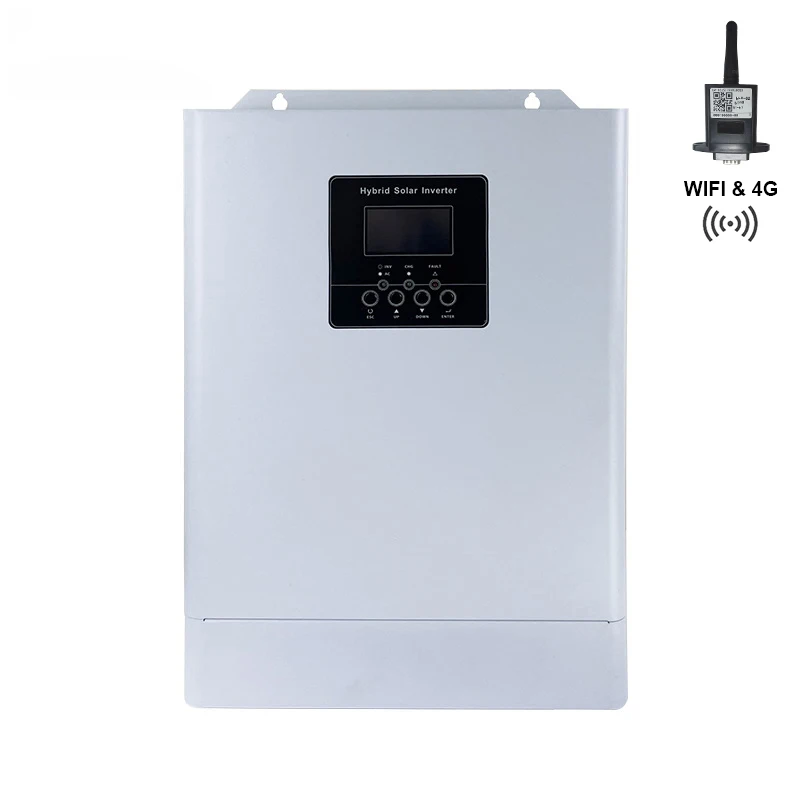

PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
*Rated power : 2KW -5.5KW
*Pure sine wave solar inverter
*Output power factor 1
*Built-in 80A MPPT solar charger
*Built-in anti-dust kit for harsh environment
*Support parallel operation up to 3 units (available for 3KW-5.5KW 48V)
*WIFI remote monitoring (optional)
*Compatible to generator
*Pure sine wave solar inverter
*Output power factor 1
*Built-in 80A MPPT solar charger
*Built-in anti-dust kit for harsh environment
*Support parallel operation up to 3 units (available for 3KW-5.5KW 48V)
*WIFI remote monitoring (optional)
*Compatible to generator

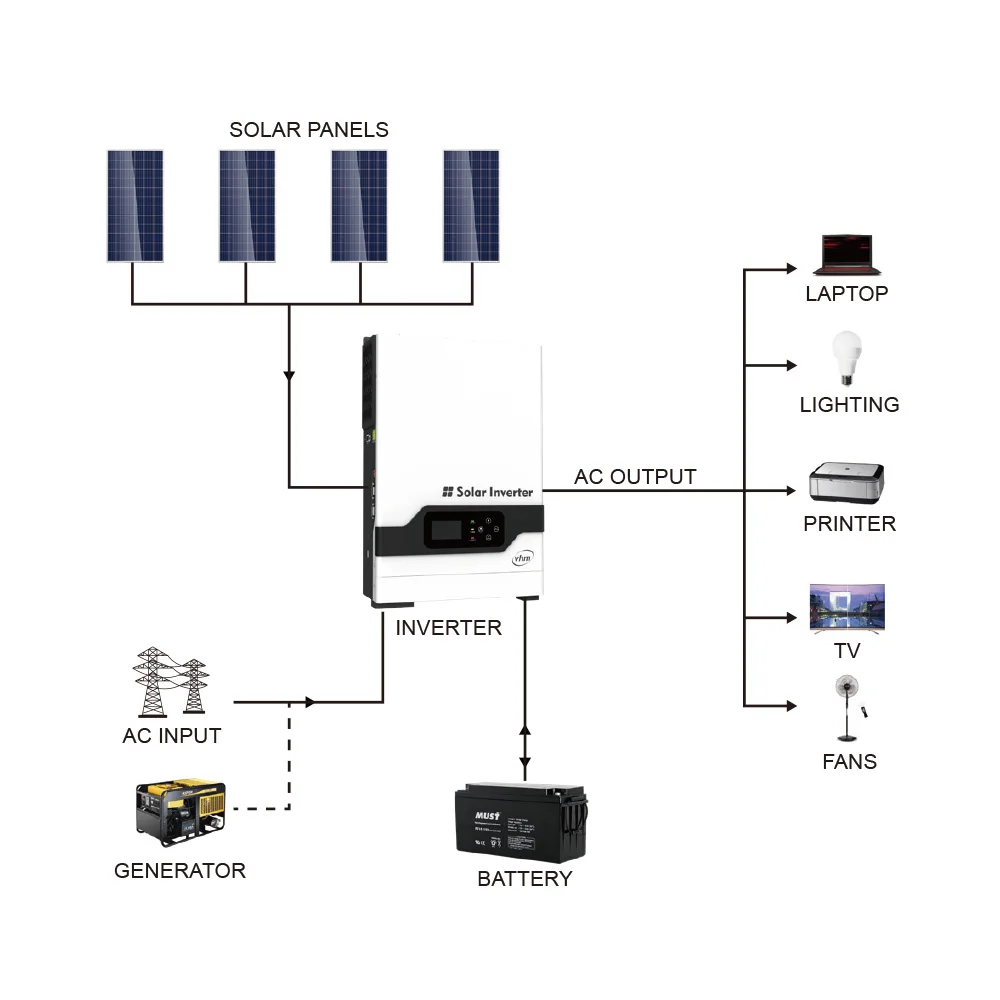

Solar system connection

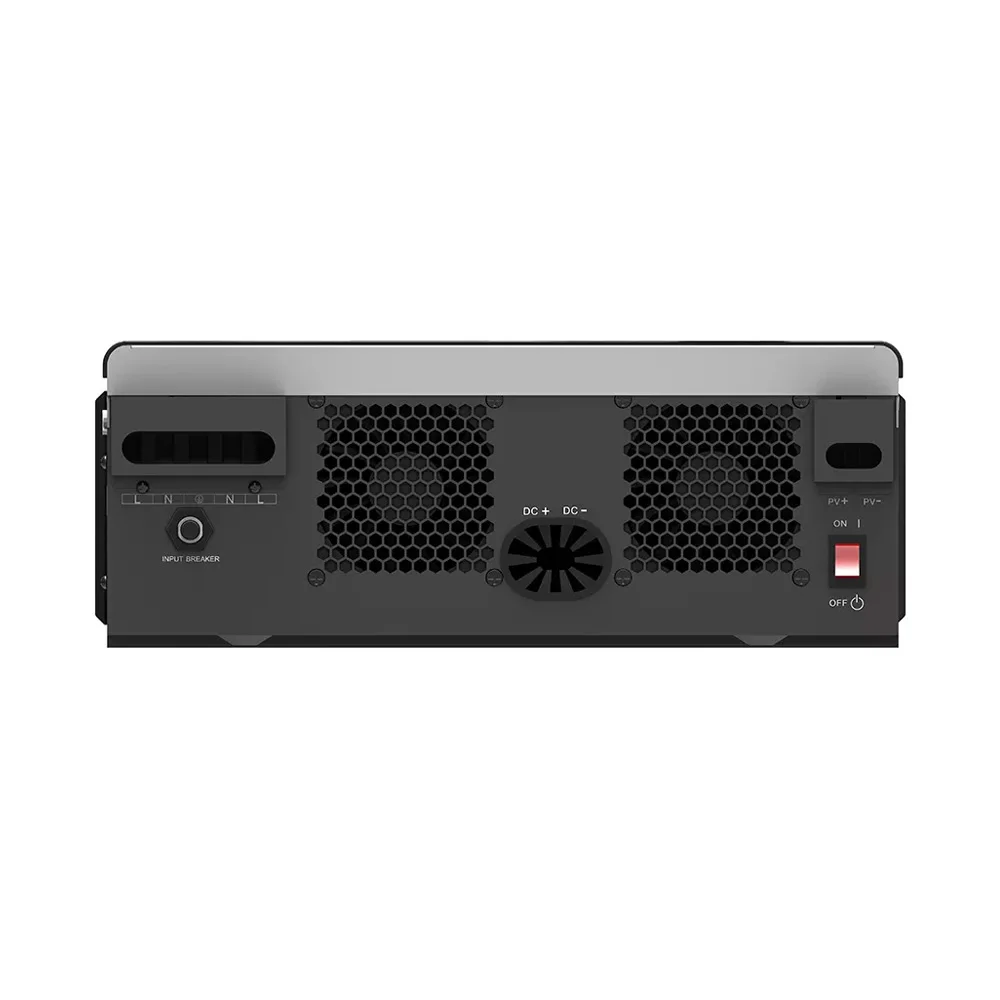

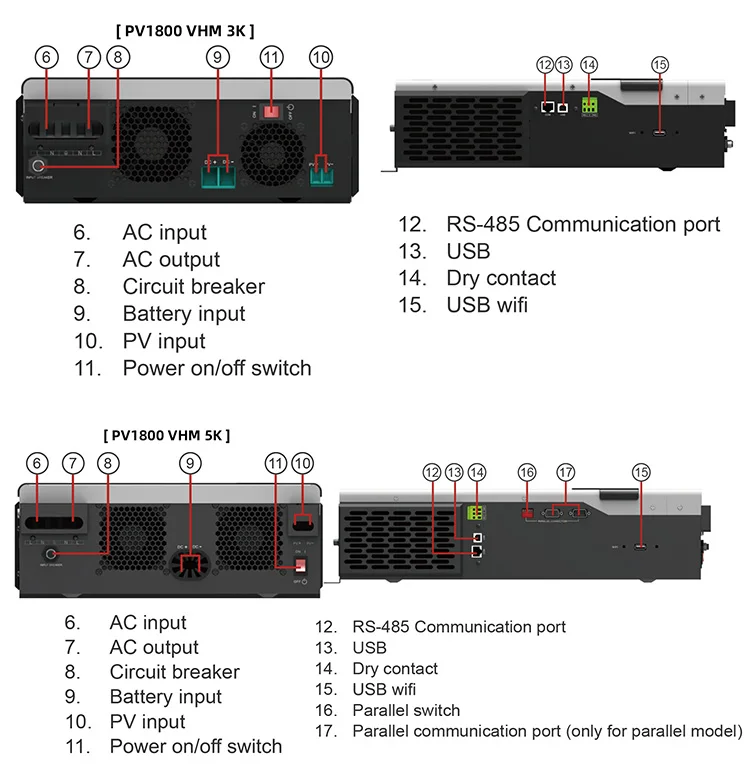

Back panel printing description
Product Paramenters
MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048 VHM | PV18-5548 VHM | ||||||
Nominal Battery System Voltage | 24VDC | 48VDC | ||||||||||
Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W | ||||||
Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W | ||||||
Waveform | Pure Sine Wave | |||||||||||
AC Voltage Regulation (Batt.Mode) | (220VAC~240VAC)±5% | |||||||||||
Inverter Efficiency(Peak) | 93% | |||||||||||
Transfer Time | 10ms (UPS / VDE4105) 20ms (APL) | |||||||||||
Voltage | 230VAC | |||||||||||
Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE4105) | |||||||||||
Frequency Range | 50Hz / 60Hz(Auto sensing) | |||||||||||
BATTERY | Normal Voltage | 24VDC | 48VDC | |||||||||
Floating Charge Voltage | 27.4VDC | 54.8VDC | ||||||||||
Overcharge Protection | 30VDC | 60VDC | ||||||||||
& AC CHARGER | Maximum PV Array Open Circuit Voltage | 145VDC | ||||||||||
PV Array MPPT Voltage Range | 30~130VDC | 60~130VDC | ||||||||||
Standby Power Consumption | 2W | |||||||||||
PV Input Power | 2000W | 4000W | ||||||||||
Maximum Solar Charge Current | 80A | |||||||||||
Maximum Effciency | 98% | |||||||||||
Maximum AC Charge Current | 20A/30A | 60A | ||||||||||
Maximum Charge Current | 80A | 140A | ||||||||||
MECHANICAL SPECIFICATIONS | Machine Dimensions(W*H*D)(mm) | 300*414*116 | 329*485*134 | |||||||||
Package Dimensions(W*H*D)(mm) | 423*599*257 | 426.5*507*250 | ||||||||||
Net Weight(kg) | 10 | 11 | 12 | |||||||||
Gross Weight(kg) | 11.7 | 12 | 13.5 | |||||||||
Humidity | 5% to 95% Relatiy Humidity (Non-condensing) | |||||||||||
Operating Temperature | 0°C~50°C | |||||||||||
Storage Temperature | -15°C ~60°C | |||||||||||

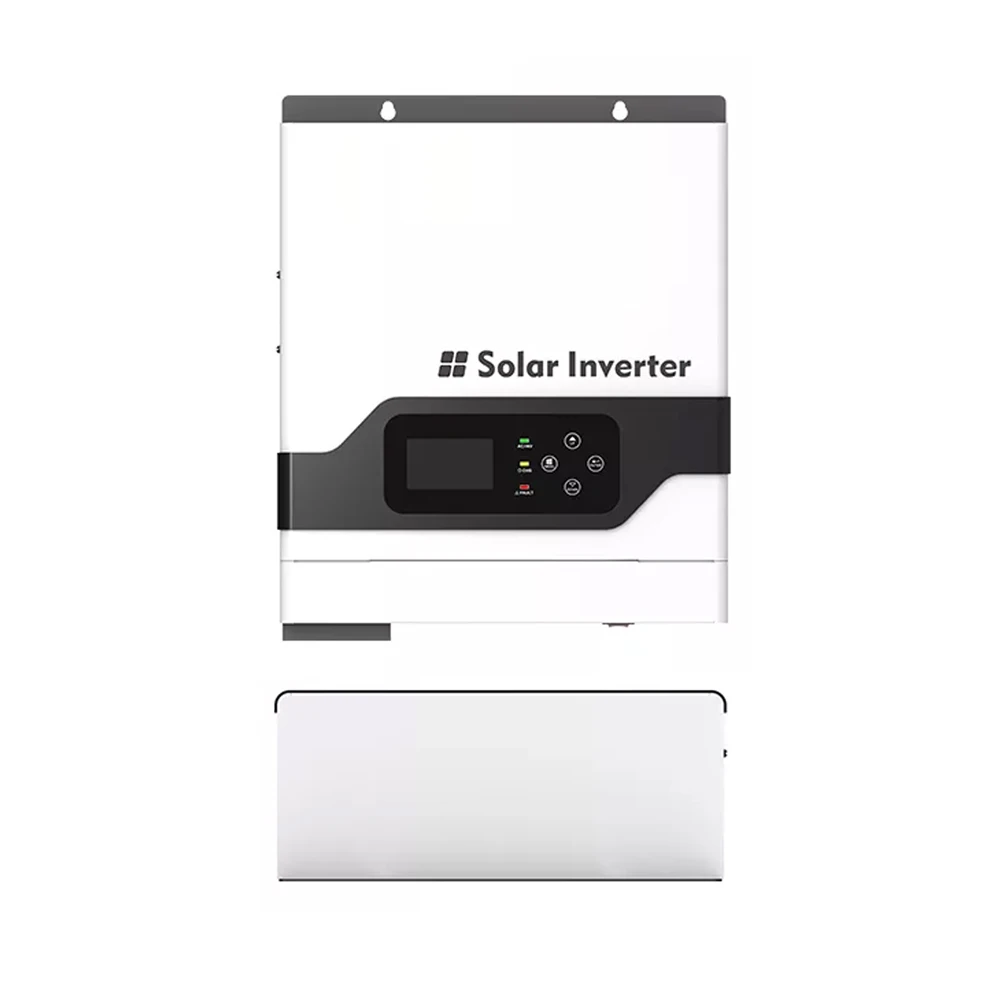

Product Display
Certifications
UL, CE, UN38.3, MSDS, IEC and other international certifications
About us
Battery pack manufacturing facility
With the developement of economy, more and more people would like customized battery packs to meet their demand. Small quantity,fast delivery brings huge challenge to flexible production. We keep several semi-automatic production lines for small orders, protypes and samples. We also have a fully-automatic production line for standard on-shelf batteries.
Workshop
Quality System
Quality is first in our business because we value our customer satisfaction. We strive to provide our customers with products and services which meet and even exceed their expectations. We are committed to continuous improvement and have a Top Operation in the business. Our Operating Philosophy is the based on seek development for the enterprise, create value for customers, seek benefits for employees, and contribute to social as well as dedicating to be Pioneering in innovative, improvement
FAQ
1: How can we guarantee quality? |
A: Always a pre-production sample before mass production; Always final Inspection before shipment. |
2: What can you buy from us? |
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable energy storage power system, etc. |
3: Can you have a sample order? |
A: Yes, we welcome sample order to test and check quality. |
4: What about the lead time? |
A: Sample needs 10-15 days, mass production time needs 5-8 weeks, it depends on order quantity. |
5: How about you payment and delivery items? |
A: Payment items: By T/T, 50% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal, Western Union. |
6: What kind of certificates could you provide for these batteries? |
A: We have CE,CB,KC,MSDS,UN38.3 for most our current products, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded. |
Contact us
Похожие товары
Модифицированный синусоидальный инвертор мощностью 1500 Вт (пик 3000 Вт) безопасно преобразует аккумулятор 12 В постоянного тока в источник питания переменного 230
65,00-68,30 $
Солнечный оптимизатор 600 Вт солнечный pv SUN2000-600W-P
50,00 $
Новый Лидер продаж оптимизатор солнечной энергии 700 Вт
35,00-42,00 $

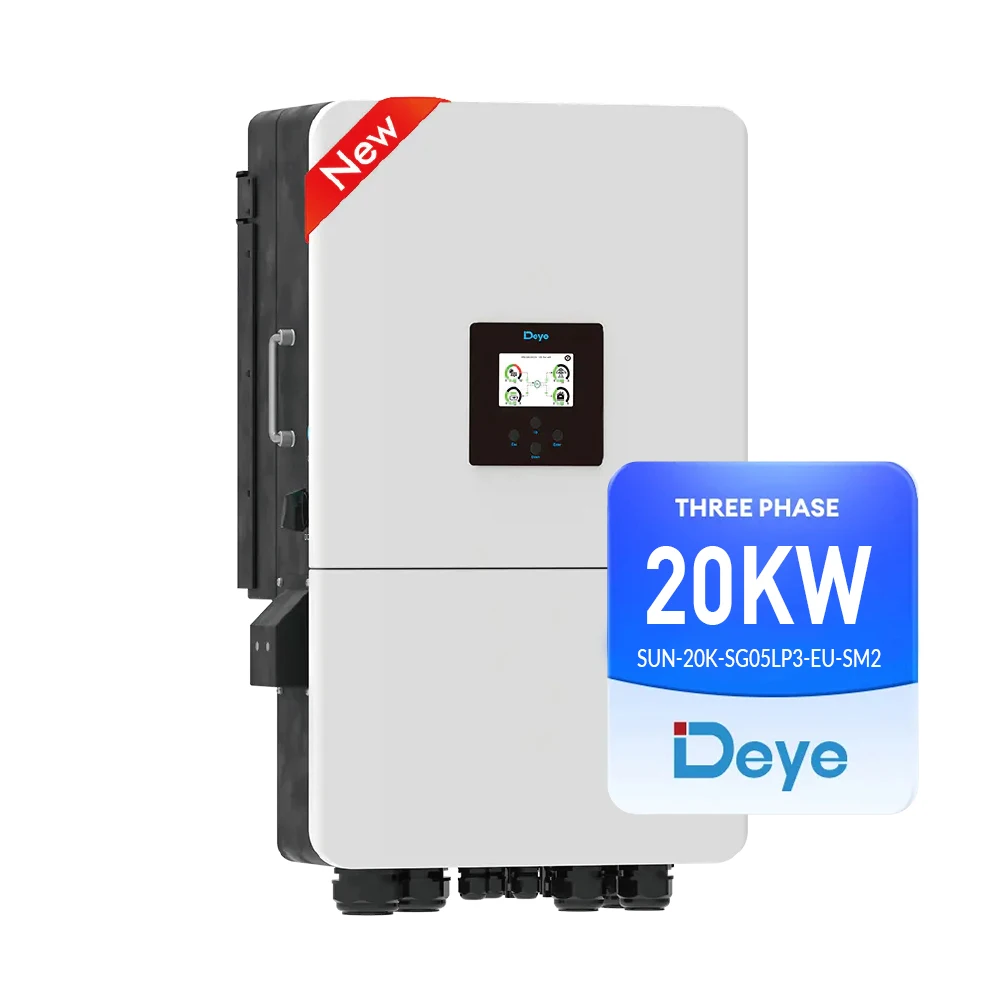

Гибридный инвертор Deye с низким напряжением 12 кВт 15 20 25 гибридный солнечный 3 фазы
2 099,00-2 300,00 $

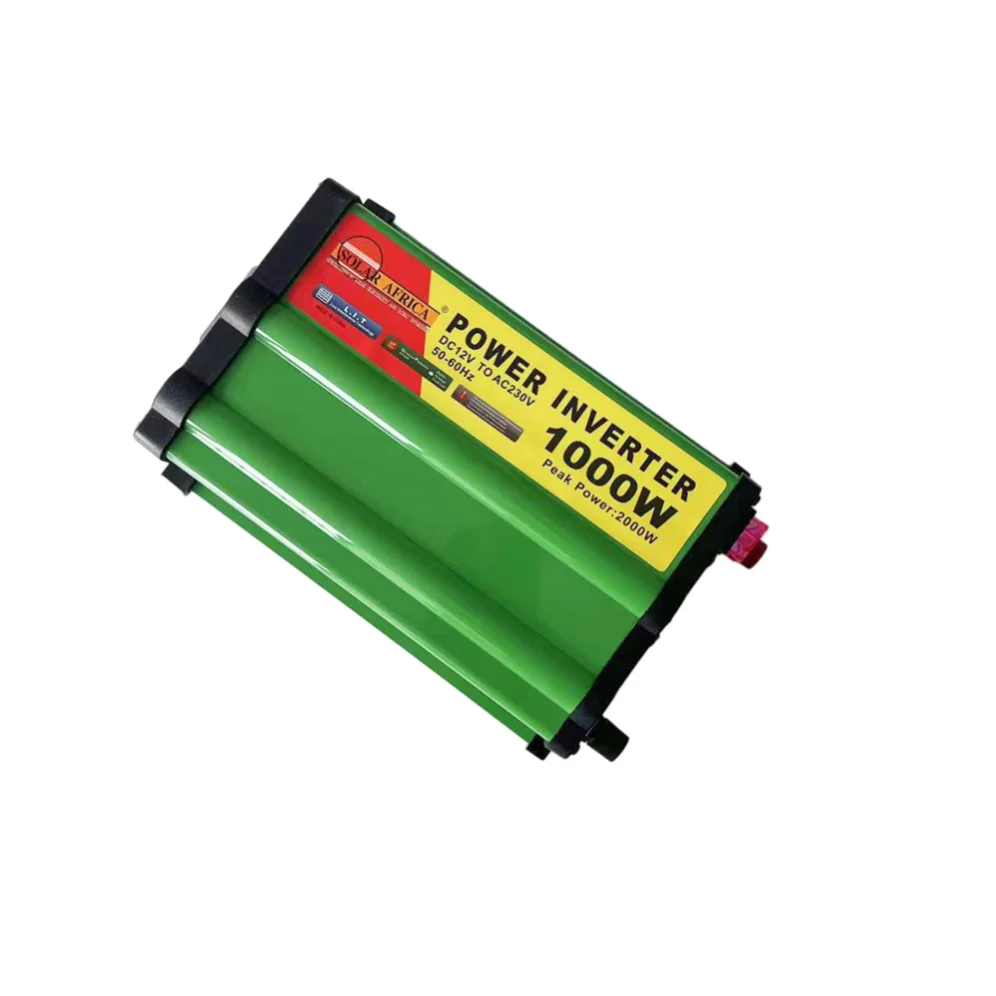

Инвертор 12 В 220 5000 Вт 1000 инвертор солнечный Hibrido вне сетки модифицированный синусоидальный преобразователь
16,50-17,50 $
48 В до 120 в 3000 Вт чистый синусоидальный инвертор 12 110 зарядное устройство 50 Гц Солнечный

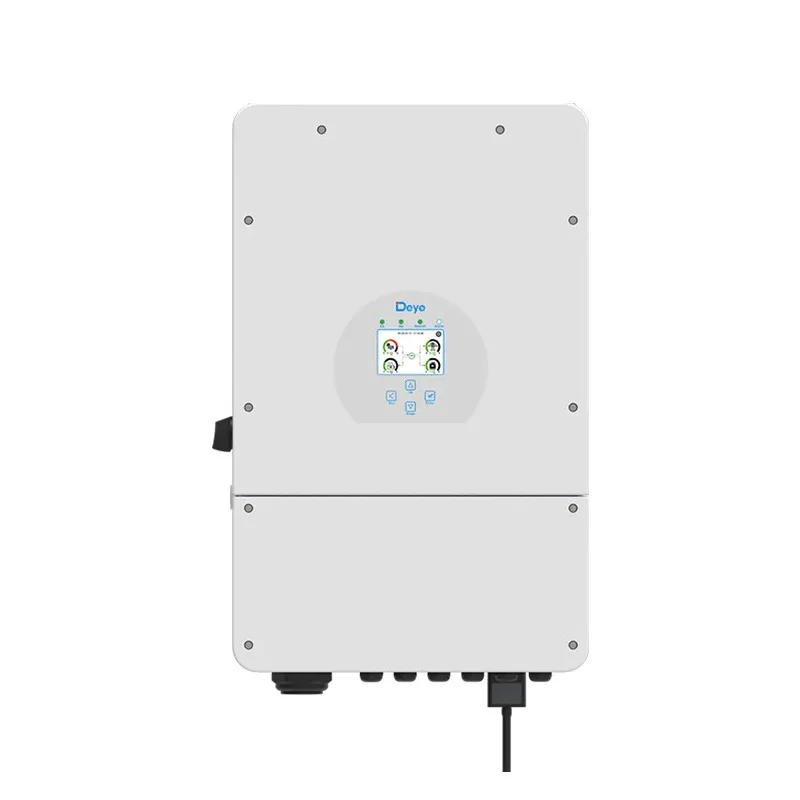

Deye SUN-3 6/5/6/7/7.6/8K-SG05LP1-EU 3 6 k 5k 6k 7k 8k 10k 12k однофазный Гибридный инвертор deye SUN-6K-SG05LP1-EU
