Сменный объектив SCULPFUN S30 Pro 10 Вт встроенный воздушный помощник модуль лазерной гравировальной машины для чистой резки S9 S6pro

Сменный объектив SCULPFUN S30 Pro 10 Вт встроенный воздушный помощник модуль лазерной гравировальной машины для чистой резки S9 S6pro

Категория: >>>
Поставщик: Shenzhen Sculpfun Technology Co. Ltd.

Цена:26 340,51 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

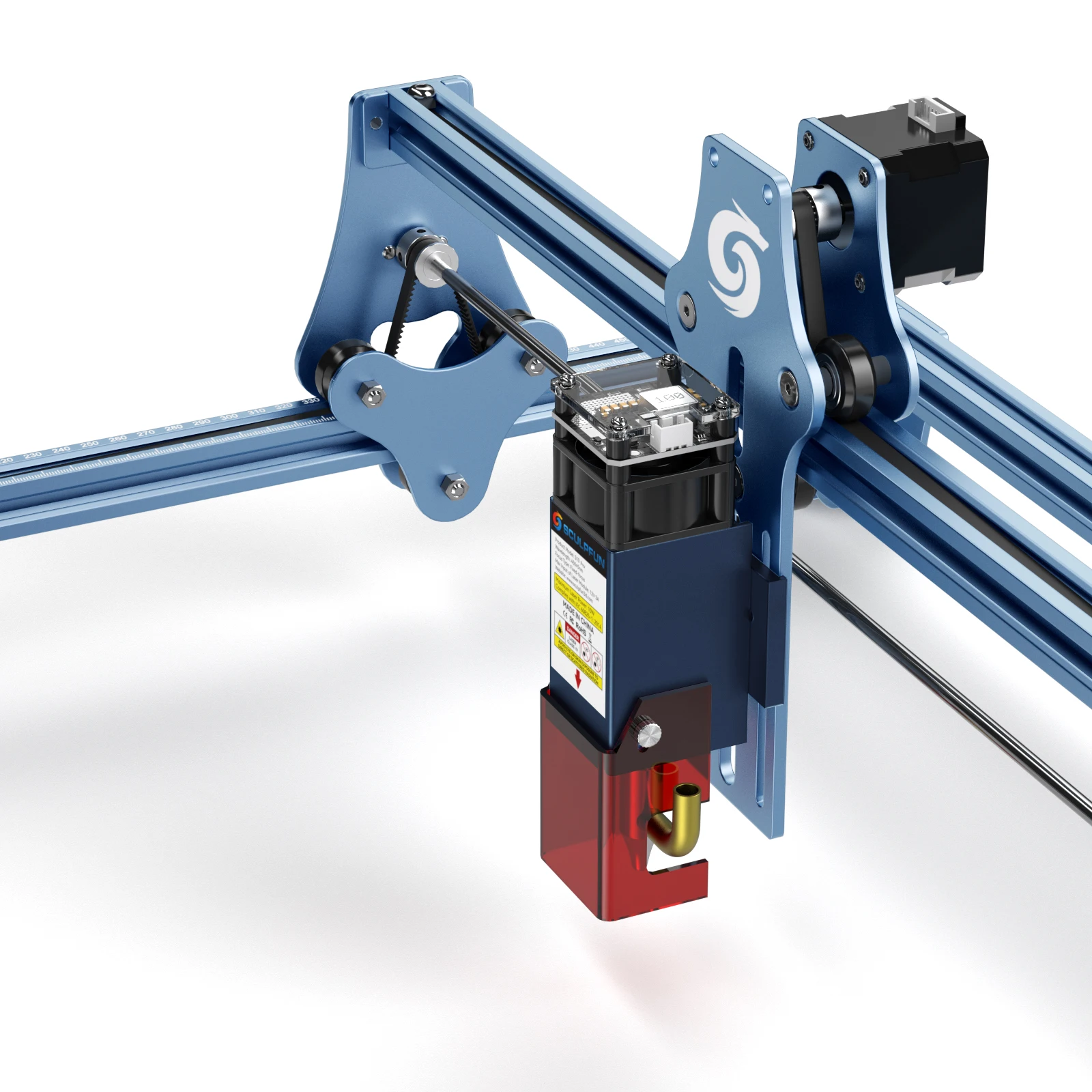

SCULPFUN S30 Pro Laser Module
Product Model	SCULPFUN S30 Pro Laser module Set
Laser output power	10W (light energy)
Inner diameter of air pipe	7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm) Laser wavelength 455±5nm
Laser type and fixed focus	fixed focus laser, fixed focus through 50mm measuring column
Laser protection cover	Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Laser shell material	aluminum alloy
Laser circuit board parameters
Circuit Board Size	40*40mm
Circuit Board	12V/PWM modulation board
Input voltage	12V
Max Input of laser module	12V 5A
Wire Rod	HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
Fan	12V 0.15A 4020 fan
Fan speed	15000 rpm
Operating temperature	-20 ℃ to 70 ℃

Main feature:

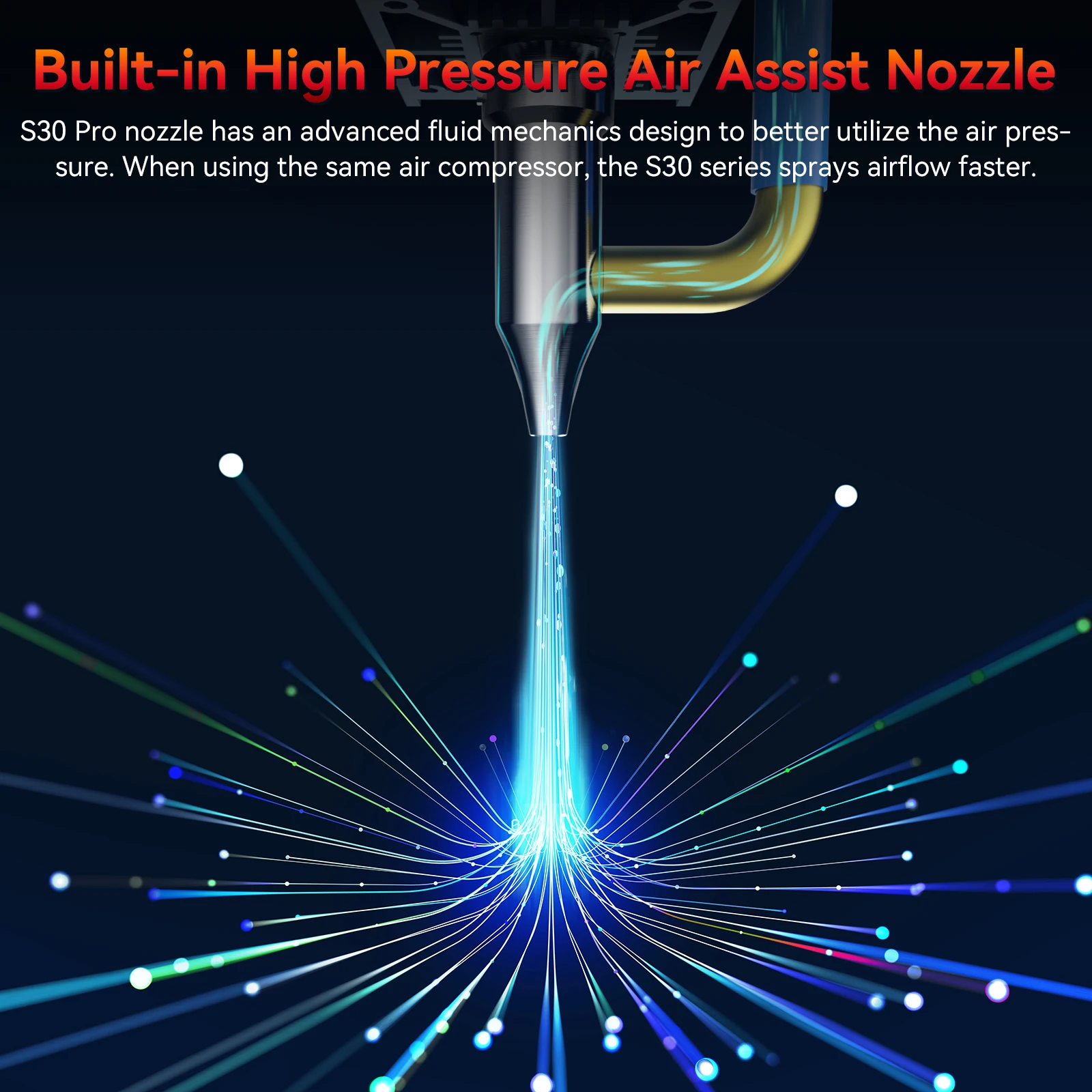

1. Built-in high-pressure air-assisted nozzle

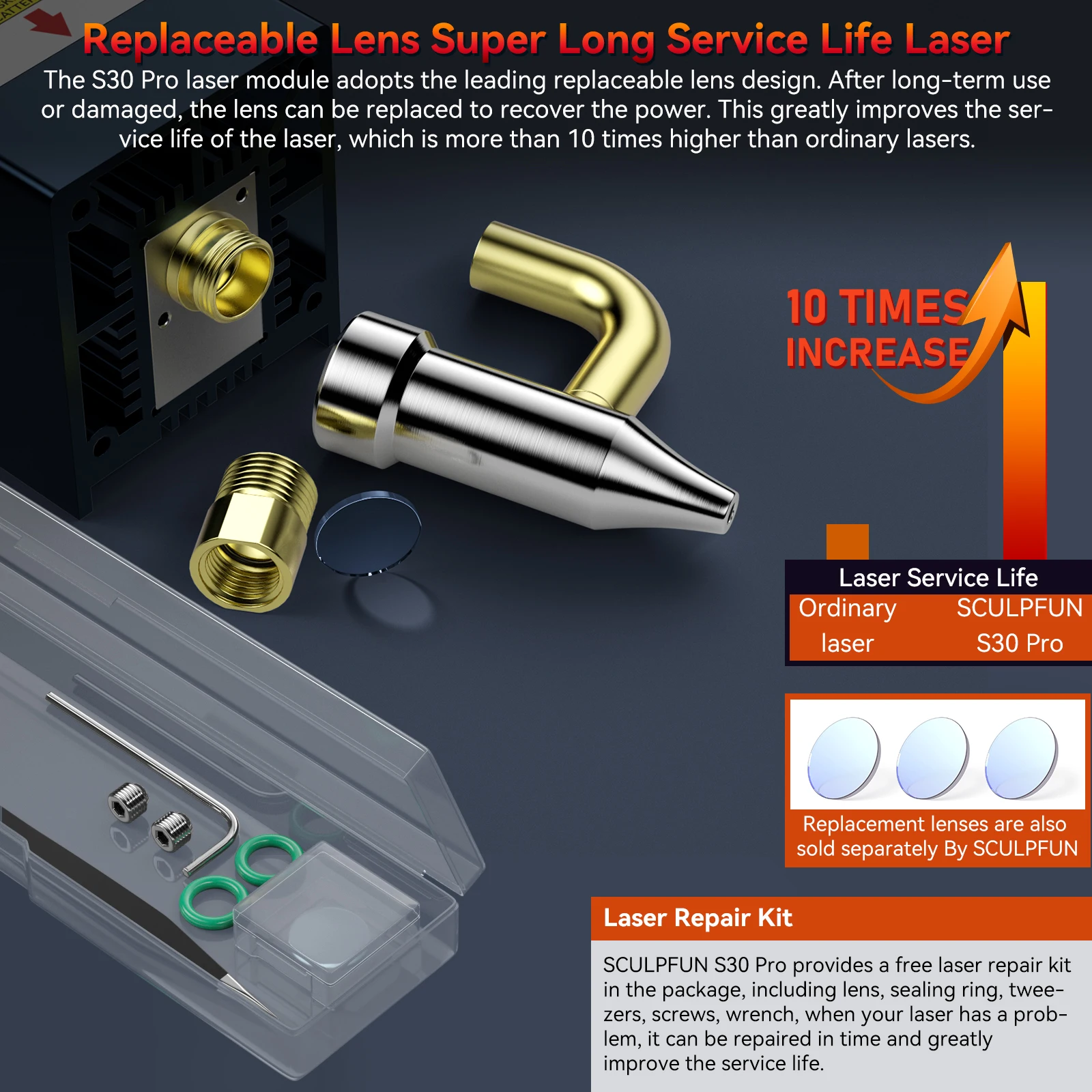

2.Replaceable protective lens

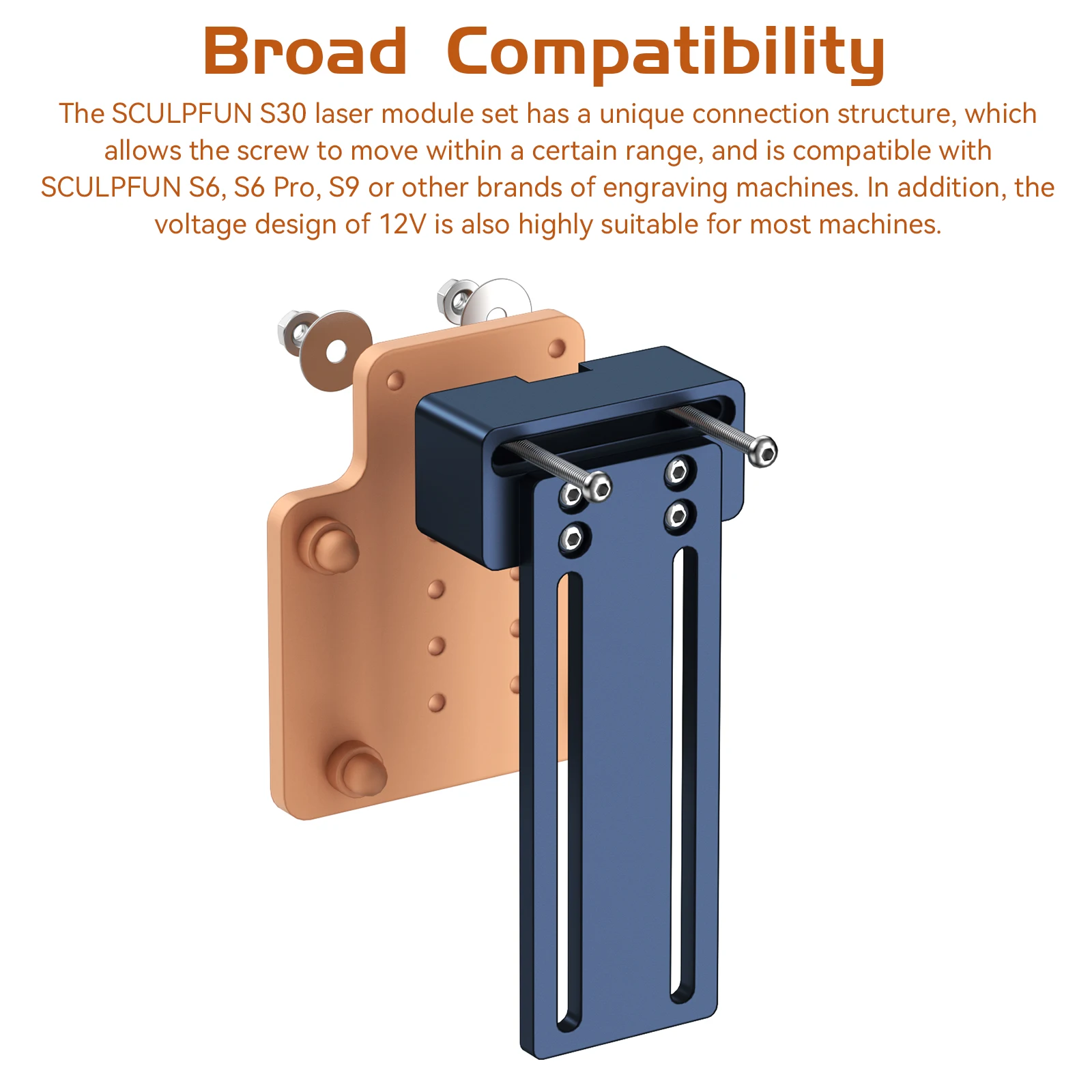

3. Highly compatible design

4. Ultra-fine and high-density 10W laser shaping technology

5. Faster, stronger and cleaner

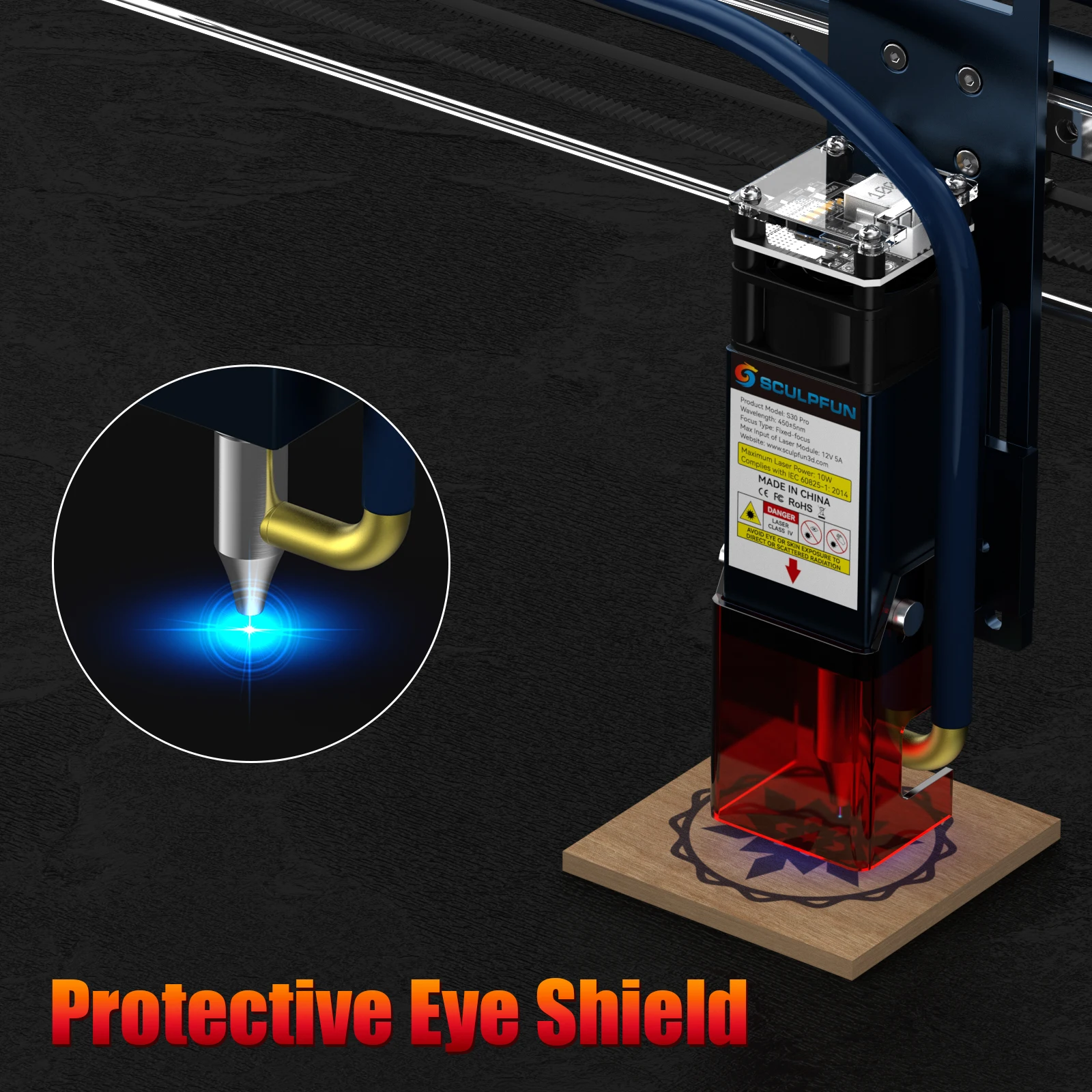

6. Detachable laser eye shield

7. Universal 12V/PWM modulation board

Applicable machines:

laser engraving machines such as SCULPFUN S9/S6pro/S6、ATOMSTACK(A5/A5Pro)、ORTUR(12V Version), ELEKSMAKERor DIY 3D printers, CNC machine tools.

How to judge whether the S30 Pro laser is suitable for use? You need to pay attention that the input voltage of the S30 Pro laser is 12V, and the S30 Pro is a 3pin interface

Engraving/cutting materials:
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone

Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards

S30 Pro laser module packing list:
7.5mm inner diameter air tube
acrylic protective cover
S30 Pro Laser head*1
Multi-function connector*1
50mm measuring column*1
Screw and tool kit*1

Note:
●Because of the powerful laser of S30 Pro, it is forbidden to run the engraving machine unattended. Pause it if you're not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.
●Do not use the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.

Details Images

Certifications

ROHS

FCC

IEC

About Us

Shenzhen Sculpfun Technology Co., Ltd. is a company focusing on sculpture product. The company's SCULPFUN brand is committed to creating the best household hobby engraving machine. We hope you can bring you and your family the fun of sculpting through our products. SCULPFUN means "SCULPT YOUR FUN".

The company cooperates with China's top diode laser companies to conduct in-depth research on laser miniaturization and solutions to consumer sculpture needs. And in-depth cooperation with a number of laser research institutes for the future use of lasers, we keep researching how lasers can facilitate people's lives.

Our company's product S6/S6 Pro and S9/S10/S30 series laser engraving machines have been sold on major e-commerce /Splatforms such as Amazon, eBay, AliExpress, and Banggood. It has been praised many times for "most comfortable", "Easy to use" "Extremely Solid"and "very capable" among users and testers around the world. There are detailed usage demonstrations on YouTube and other websites.

Our company attaches great importance to "customer first". On the one hand, we strive for the most comfortable customer experience. On the other hand, the factory strictly controls the production quality. Every machine will be tested and sent out to ensure consumer rights.

Production Process

Quality Control
