Product Description




A new composite material choice for the 21st century--Carbon Fiber Fabric
Carbon fiber prepreg is a composite material made of reinforcement, such as carbon fiber filaments, resin matrix, release paper and other materials, processed by coating, hot pressing, cooling, laminating, rolling and other processes.

Carbon Fiber Fabric is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins.






Feature
1. High strength, low density, light weight，strength can reach 6-12 times of steel, density is only one quarter of steel.
2. High fatigue strength.
3. High dimensional stability.
4. Excellent electrical and thermal conductivity.
5. Excellent vibration attenuation performance.
6. Excellent heat resistance.
7. The friction coefficient is small and the wear resistance is excellent.
8. Corrosion resistant and long life.
9. X-ray permeability is large.
10. Good plasticity, can be made into any shape according to the shape of the mold, easy to form and easy to process.


Specification


Woven carbon fiber prepreg
Type
Reinforcement Yarn
Weave
Fiber Count(Wmm)
Weight
Thickness (mm)
Width
Warp Yarn
Weft Yam
Warp Ends
Weft Picks
(g/m2)
(mm)
DSN-1K-P
1K
1K
Plain
9
9
120
0.16
1000
DSN-1K-X
1K
1K
Twill
9
9
120
0.16
1000
DSN-1K-P
1K
1K
Plain
10.5
10.5
140
0.17
1000
DSN-1K-X
1K
1K
Twill
10.5
10.5
140
0.17
1000
DSN-3K-P
3K
3K
Plain
5
5
200
0.3
1000
DSN-3K-X
3K
3K
Twill
5
5
200
0.3
1000
DSN-3K-P
3K
3K
Plain
6
6
240
0.32
1000
DSN-3K-X
3K
3K
Twill
6
6
240
0.32
1000
DSN-3K-P
3K
3K
Plain
7
7
280
0.34
1000
DSN-3K-X
3K
3K
Twill
7
7
280
0.34
1000
DSN-6K-P
6K
6K
Plain
4
4
320
0.38
1000
DSN-6K-X
6K
6K
Twill
4
4
320
0.38
1000
DSN-6K-P
6K
6K
Plain
5
5
400
0.42
1000
DSN-6K-X
6K
6K
Twill
5
5
400
0.42
1000
DSN-12K-P
12K
12K
Plain
2.5
2.5
400
0.46
1000
DSN-12K-X
12K
12K
Plain
3
3
480
0.52
1000
DSN-12K-P
12K
12K
Twill
3
3
480
0.52
1000
DSN-12K-X
12K
12K
Twill
4
4
640
0.64
1000


UD carbon fiber prepreg
Type
carbon fiber Weight（g/㎡）
Resin weight（%）
Total weight   （g/㎡）
Thickness （mm）
Width （mm）
DSN-UD030
30
55
76
0.03
1000
DSN-UD050
50
45
91
0.06
1000
DSN-UD100
75
38
121
0.08
1000
DSN-UD125
100
33
150
0.10
1000
DSN-UD150
125
33
187
0.13
1000
DSN-UD150
150
33
224
0.15
1000
DSN-UD175
175
33
261
0.18
1000
DSN-UD200
200
33
298
0.20
1000
DSN-UD225
225
33
337
0.23
1000
DSN-UD250
250
33
374
0.25
1000


Production Line






Application:


Carbon fiber tubes
Roll wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation robotics, telescoping poles, idler rollers, and UAV components. The standard finish is cello-wrapped gloss, but a smooth sanded finish is also available.

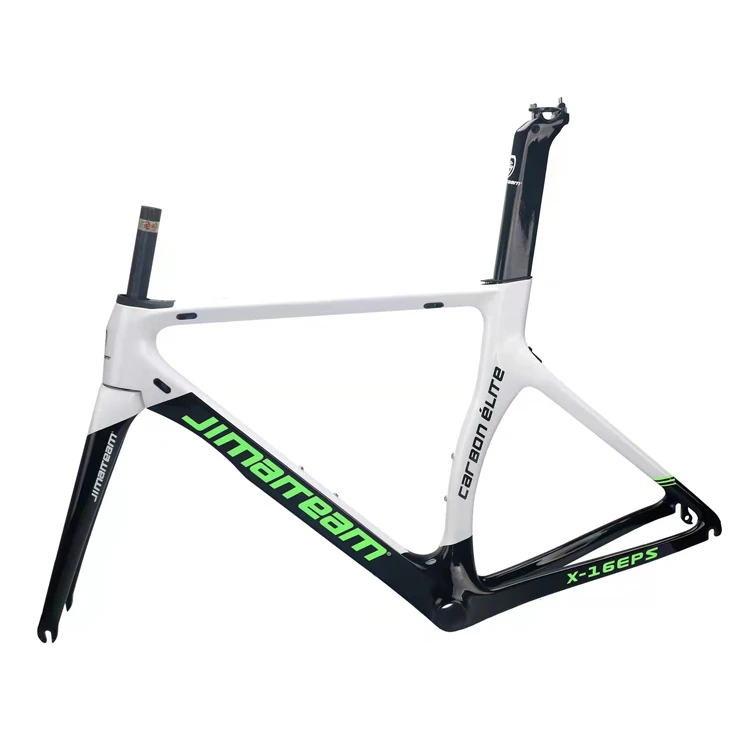

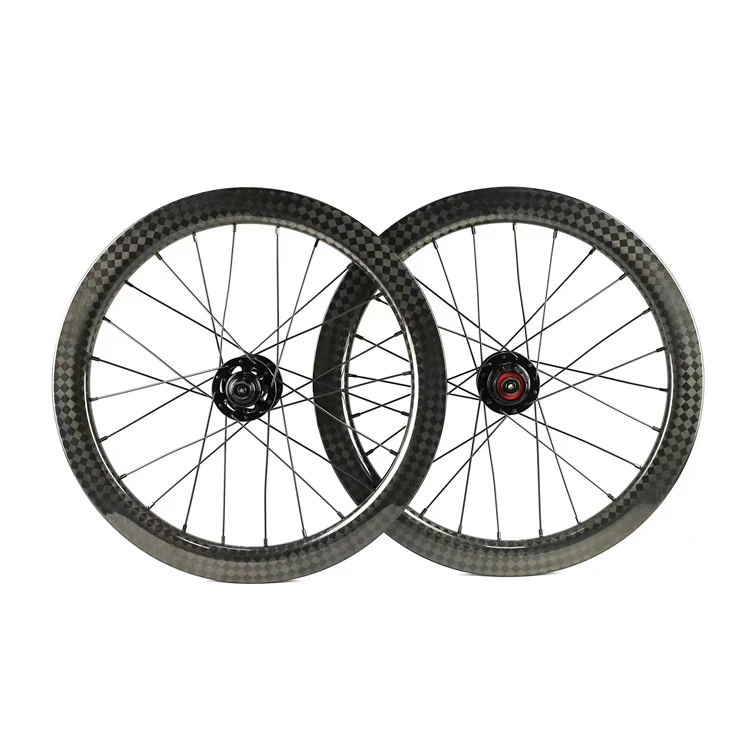

Carbon fiber bicycle accessories
Carbon fiber bicycle has 5 advantages, so more and more bicycles use carbon fiber prepreg material
1 Light weight: effectively reduce the overall weight of the bike, cyclists can reduce the physical loss of riding, riding speed faster, riding distance farther.
2 Good rigidity: carbon fiber bicycle because of the excellent strength, rigidity, conducive to the transformation of the driving force, improve the maneuverability of the whole bike, enhance the comfort of riding.
3 Good shock resistance: The carbon fiber composite material comes with good damping, which can improve the shock resistance and provide cushioning for the ups and downs that occur during the ride, making the ride more comfortable.
4 High safety: carbon fiber bicycle has good impact resistance and will not be damaged in a general collision.
5 Good durability: Carbon fiber bicycle has good resistance to acid and alkali, corrosion, salt spray and oxidation, which prolongs the service life of the bicycle.




Carbon fiber insole/ liners
Many well-known sports shoe brands use carbon fiber insoles or liners in their shoes.
1 Reduce the weight of the shoe to make it lighter to wear . The carbon material is a lightweight material with good toughness and strength .
2 improve the elasticity of the shoe, which can make the sportsman react faster. The liner makes the shoes more highly elastic and can provide a thrust for the sportsman.
3 strenuous exercise carbon fiber insole or liner does not deform, can protect the feet of athletes from injury.








Other application
At present, civil carbon fiber prepreg has been widely used in:
1 Leisure sports: fishing rod, bow and arrow, kayak, ski, water ski, golf club, bicycle, dragon boat, kite skeleton, punching boat, lifeboat, etc.
2 competitive sports: bicycles, kayaks, diving boards, spreader bars, etc.
3 Life products: helmets, drone skins, masks, toys, luggage , etc.
4 Construction engineering: bridges, structural beams, building repair, gymnasium roof, etc.
5 Automobile manufacturing: bumpers, dashboards, baseboards, door frame versions, hoods, roof panels, air pressure tanks, etc.
6 Electronic Products: phone case, watch strap, laptop/pad bracket, CPU cooling fan, etc.


Packing & Delivery






Packed with plastic bag and cartons/pallets.
The prepreg requires storage at temperatures below -18℃.
Our factory support package, logo customization when more than 600 Square meters.


Related Products




FAQ


Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A:Sample needs 7-10 days, mass production time needs 4 weeks If need a big quantity.

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7 days to arrive.
Airline and sea shipping also optional,need to consult the freight forwarder by address/ port.

Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5. Is it OK to print my logo on carton?
A: Yes. Please inform us formally before our production and confirm the design.

Q6: What is your terms of payment ?
A: Payment<=10000 USD , 100% in advance.
Payment>=10000 USD , 50% T/T in advance ,balance before shipping.

If you have another question, please feel free to contact us !


Похожие товары
Китайская фабричная ткань из углеродного волокна с эпоксидной смолой 3k / 12k

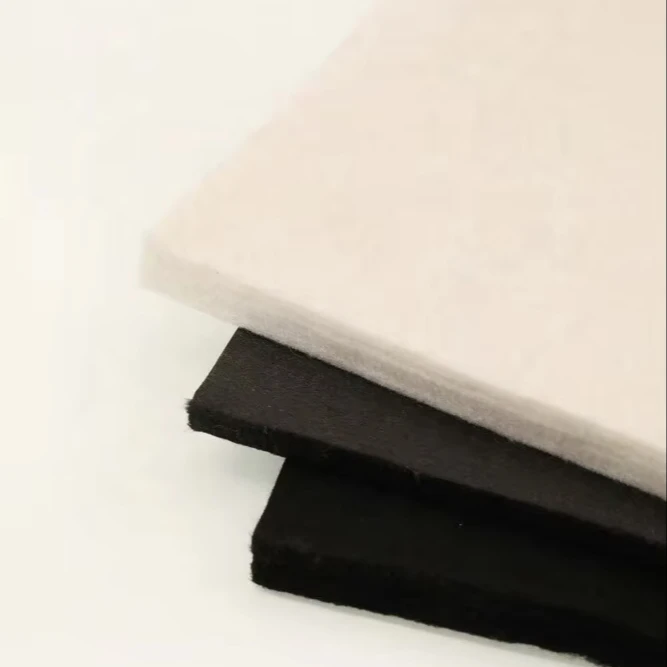

Предварительно окисленное волокно войлочный черный пунш игла активированный сковорода волокна углеродного войлок для дома
40,00-50,00 $
Углеродное волокно
60,00-80,00 $
Высокопрочное углеродное волокно 12K 200G простая ткань из углеродного волокна
7,29-9,83 $
Высокая электрическая проводимость теплоотвод графитовый лист для мобильного телефона
Высокая электрическая проводимость теплоотвод графитовый лист для мобильного телефона

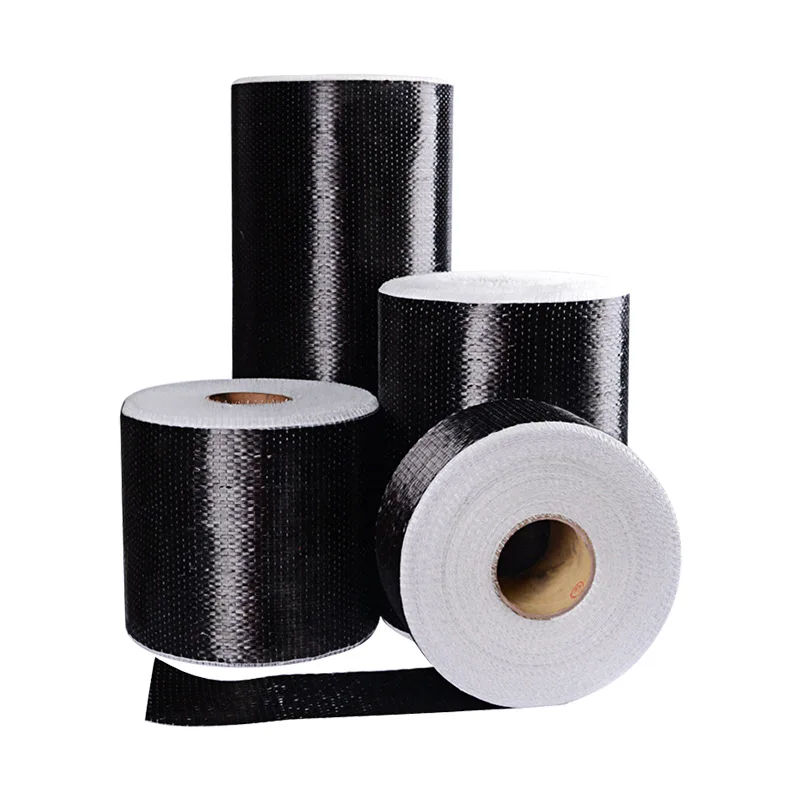

Высокая прочность на растяжение 3K220G рулон ткани из углеродного волокна для строительства и инфраструктуры
