Высокоскоростной завод по производству ПВХ потолочных плит делая машину края ленты экструдер производственная
22 000,00 $ - 28 000,00 $
Экструдер для пластиковых
- Категория: Plastic Extruders >>>
- Поставщик: Ruian Litai Machinery Co. Ltd.
Сохранить в закладки 1600664751355:
Описание и отзывы
Характеристики
*Pictures and related technical parameters of products will be updated continuously without prior notice.The right of final
interpretation of this information belongs to our company.
interpretation of this information belongs to our company.
Product Paramenters
Model | TJ-750 |
Suitable Sheet | PP,PS,PET |
Max. Sheet Width | 770mm |
Sheet Thickness Range | 0.3-2.0mm |
Screw Rod Dia. (Main machine) | 95mm |
Screw Rod Dia. (Auxiliary machine) | 65mm |
Screw L/D ratio (Main machine) | 32:1 |
Screw L/D ratio (Auxiliary machine) | 32:1 |
Main Motor Power | 75kw |
Max. Output | 240kg/hr |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Dimension | L14000*W2600*H1800mm |
Weight | About 9T |
Products Description
Application:

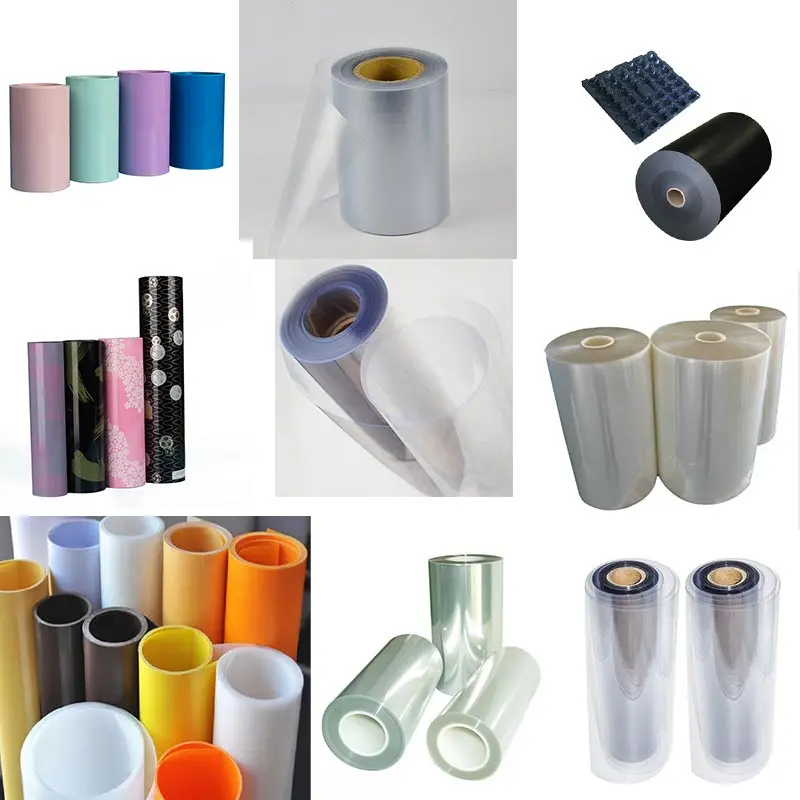

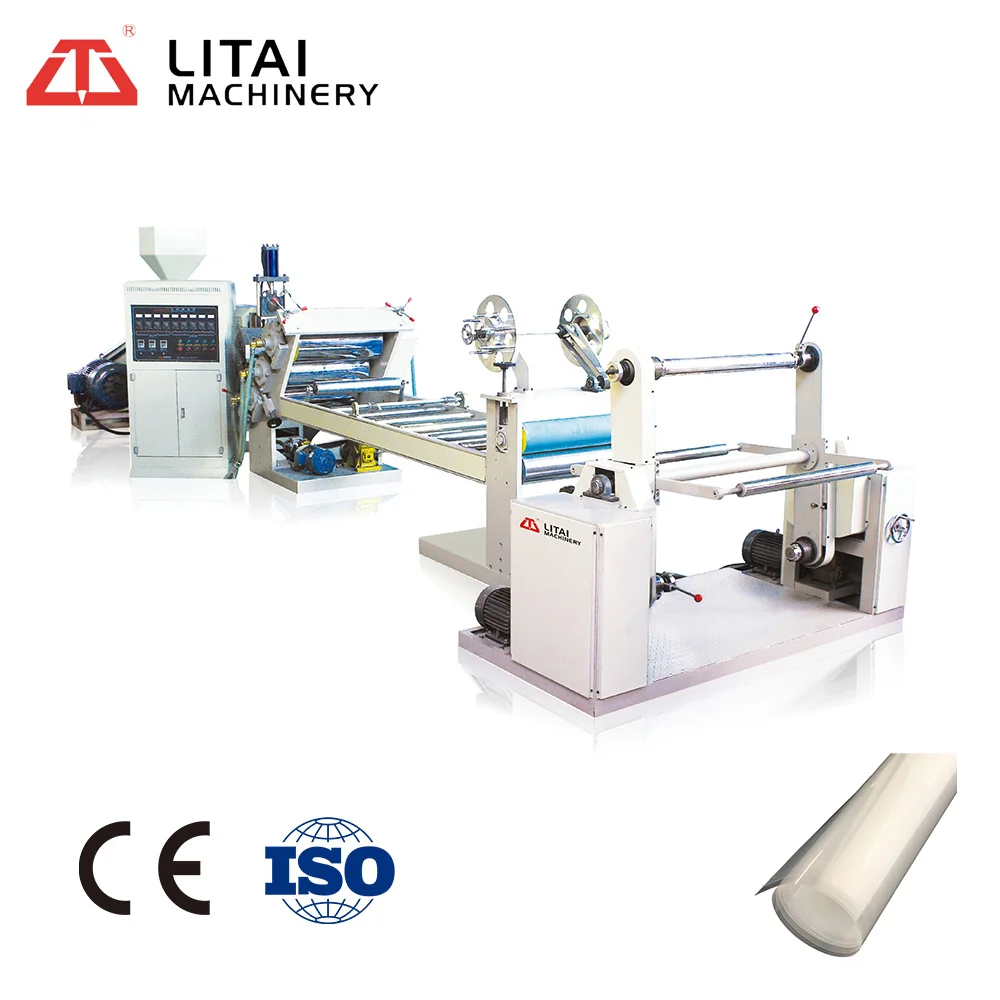

The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.
SUMMARY OF MACHINE
1、EXTRUDER PART: 1 SET
Output: Max. 240kg/h Screw Dia: Ф95 L/D: 32:1
Screw & Barrel Material: 38 CrMoAlA
After nitrogen treatment with optimum hardness, strong corrosion resistance and long service lifetime. Screw Rotate Speed:0-70r.p/min.

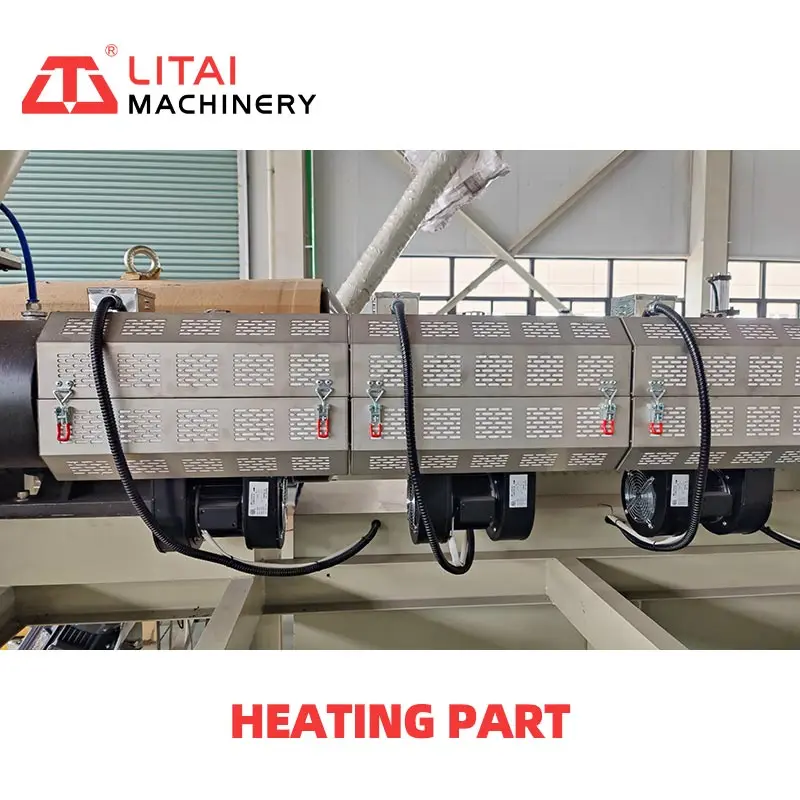

Main Motor Power: 75.0KW Heating way: Aluminium-casted heater. Heating Power: 15.0KW.
Screw & Barrel Material: 38 CrMoAlA
After nitrogen treatment with optimum hardness, strong corrosion resistance and long service lifetime. Screw Rotate Speed:0-70r.p/min.
Main Motor Power: 75.0KW Heating way: Aluminium-casted heater. Heating Power: 15.0KW.
2、DIE HEAD PART: 1 SET
Sheet Structure: 1 layer Heating Way: Aluminum-casted heater.
T-die Design: like cloth-hanger, enable the melting material be flowed evenly from the outlet.
Die Head Width: 900mm Finished Sheet Width: 770mm Sheet Thickness: 0.3mm-2mm.
T-die Design: like cloth-hanger, enable the melting material be flowed evenly from the outlet.
Die Head Width: 900mm Finished Sheet Width: 770mm Sheet Thickness: 0.3mm-2mm.
3、FILTER PART: 1 SET
FILTER PART: Worm-Gear Case: 1 pcs Filter Size: 300mm x 40 mm Net Dia.: Ф3-3.5mm Heating power: 7.2kw
4、Three rolls calendering: 1 SET
Roller Dia./ Length: 345mm/770mm Roller No.: 3 pcs Rollers reach to ''mirror surface'' standard
Roller linear speed: 0-14m/min Drive motor: 4.0kw Roller part movement: by motor, 1.1kw
The cooling way: It's gyroidal way (not linear way) to cool each rollers as inside roller has many channel irons.
The cooling way: It's gyroidal way (not linear way) to cool each rollers as inside roller has many channel irons.
Roller layout: According to the level type, each roller is arranged side by side. Cooling method: Since there are many trough irons inside each drum, a spiral method (not a linear method) is used to cool each drum.

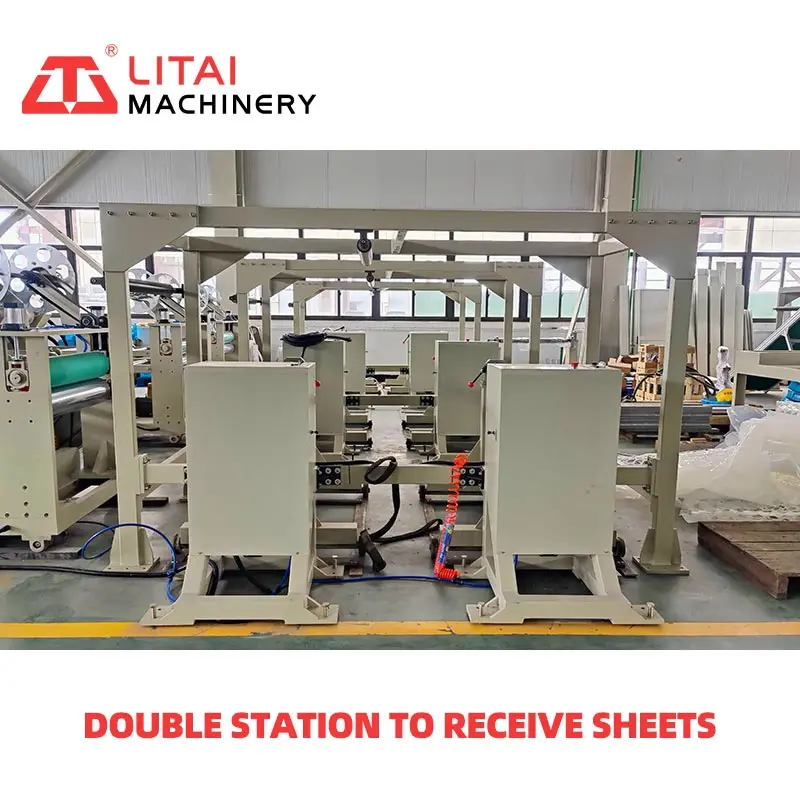

5、DOUBLE WORKING STATION
Double working station is easy to receive sheet, if one roller is full, we can use another roller , and save time.
6、ROTARY ROLL WINDER
The scrap rewinder is used to rewind the scrap for recycling.
Contact us
Facebook
https://pse.is/3urql5
LinkedIn
https://pse.is/3ythvl
YouTube
https://pse.is/3zkhvj
Instagram
https://pse.is/3yhe6m
Pinterest
https://pse.is/3vd57m
Tiwtter
https://pse.is/3z675l
Official website
//www.litai.cc/
Tik Tok
LITAIMACHINERY
Made in China
https://pse.is/3rh2nv
Company Profile
Exhibition
Long-term Cooperation Brand
Product Packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 13months calculated from the date of shipment from our factory.During warranty period,
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
except the artificial factor, the spares are free to maintenance, beyond the warranty time, the
buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and
technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Ruian city, near to Wenzhou airport, about 40minutes to our factory by car. We will provide transporation service during your visit at our factory.
