3.5m3 мини грузовик бетоносмеситель Автопогрузчик автобетоносмеситель

3.5m3 мини грузовик бетоносмеситель Автопогрузчик автобетоносмеситель

Категория: >>>
Поставщик: Shandong Eagle Construction Machinery Co. Ltd.

Цена:2 808 161,20 ₽ - 3 024 173,60 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

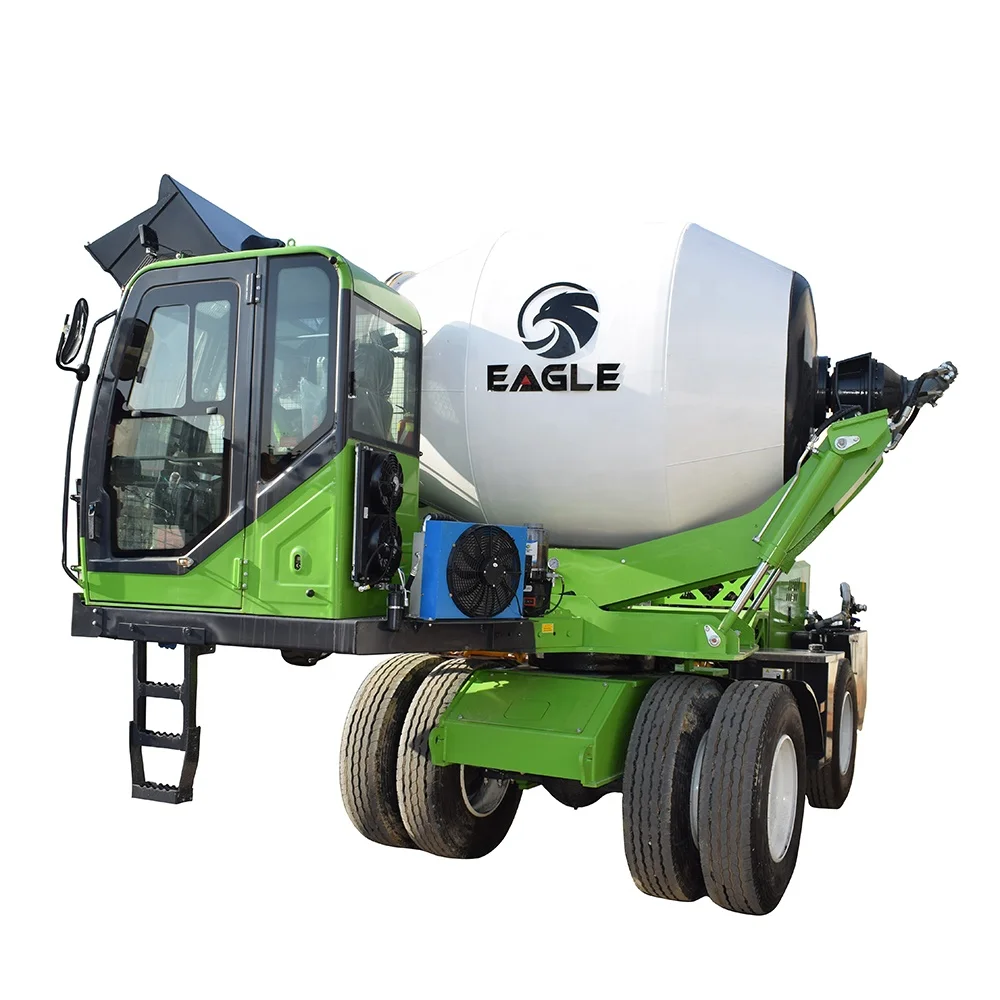

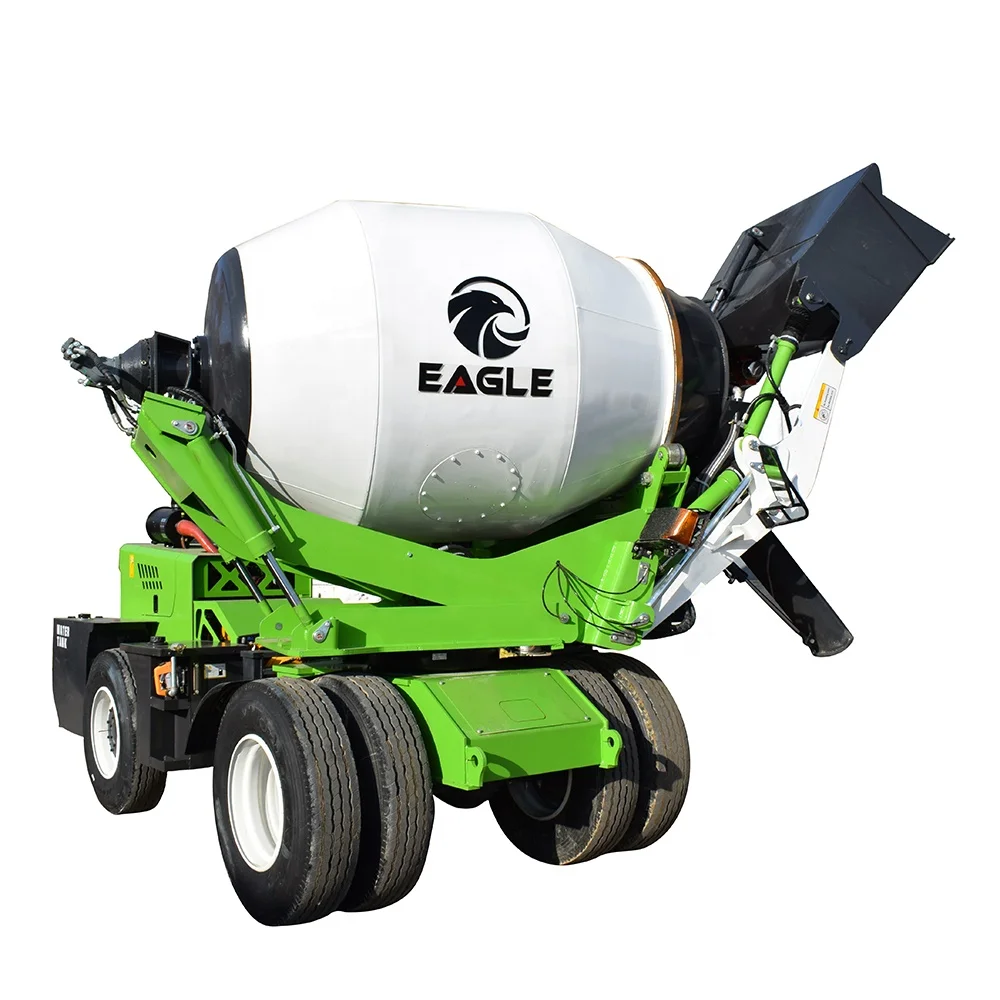

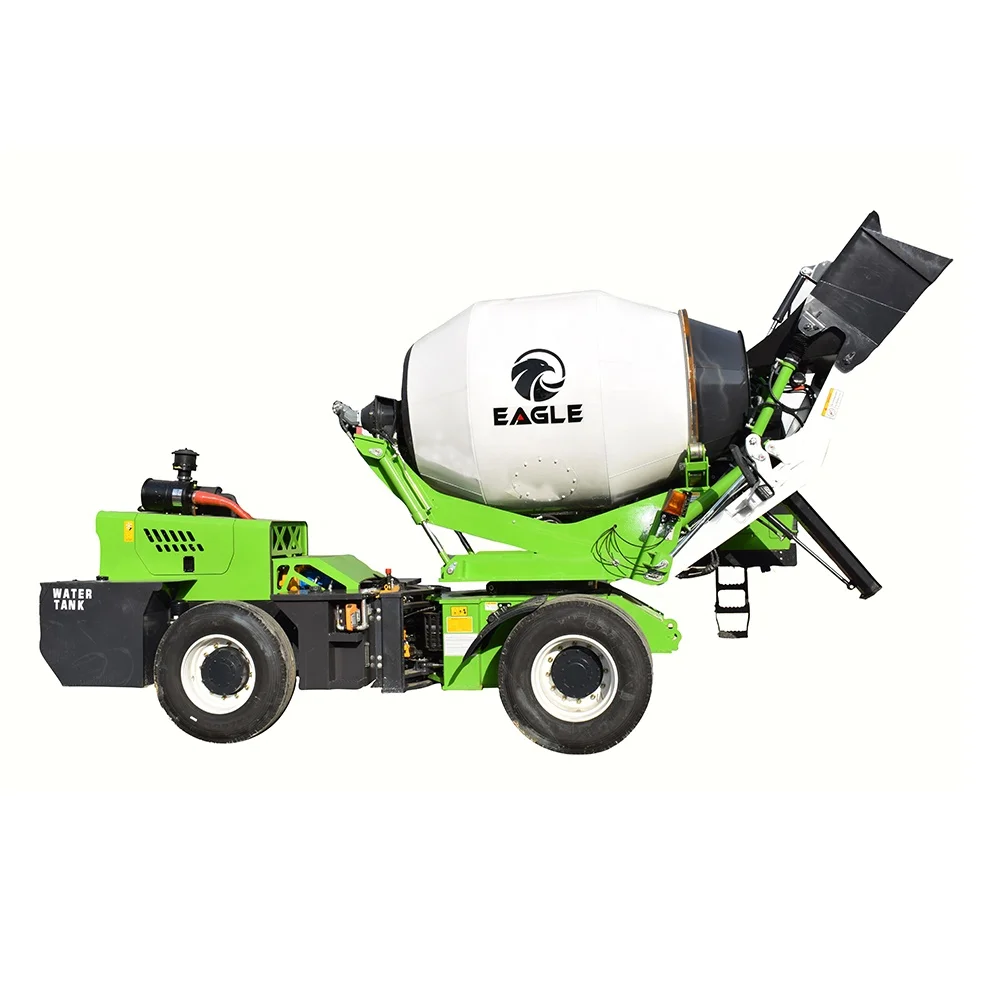

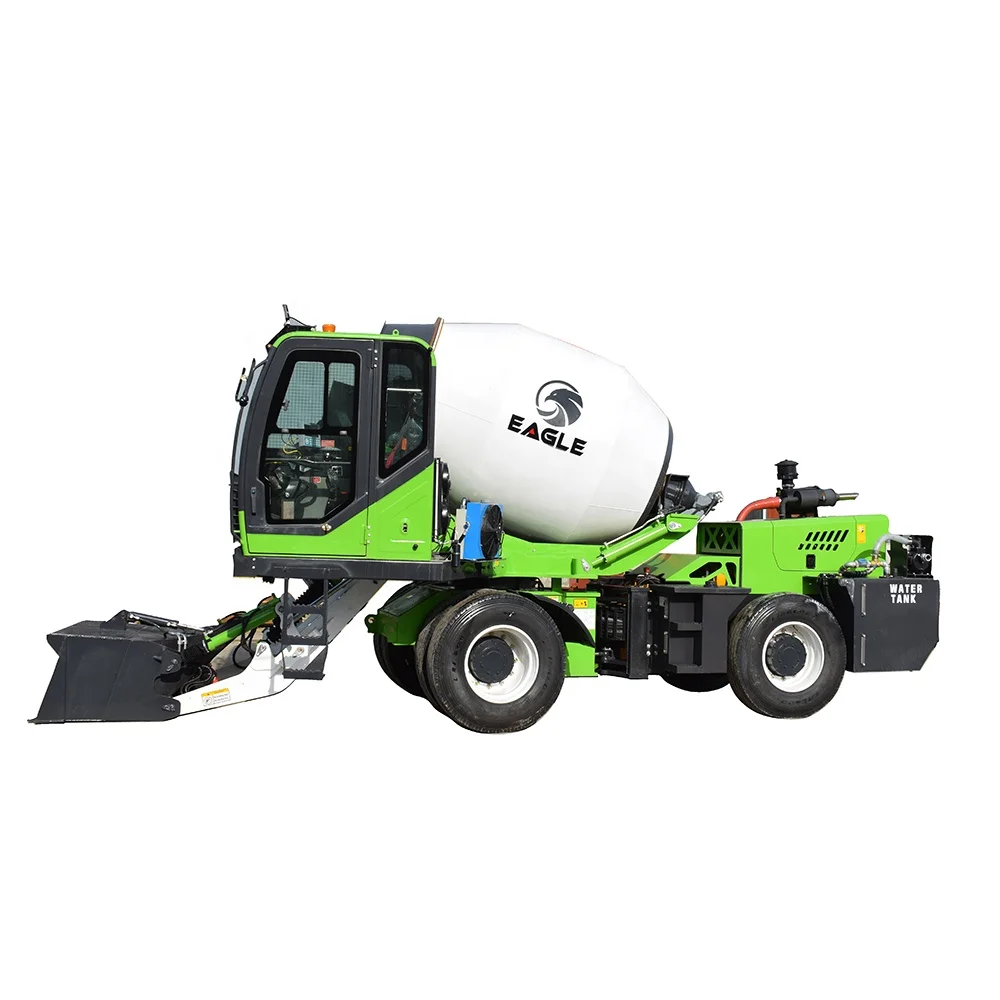

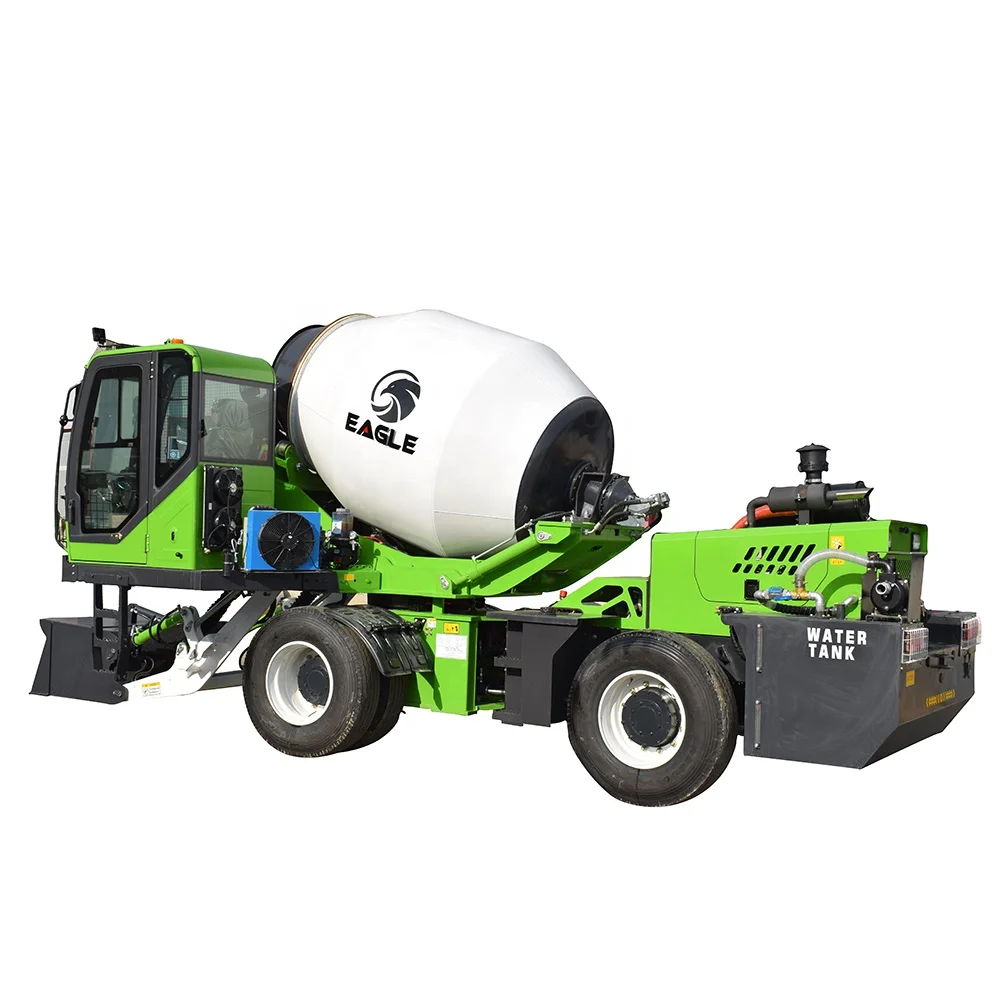

Product Application for SLM3500RW Self Loading Concrete Mixer

SLM3500RW Self Loading Concrete Mixer is a kind of multi-functional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI,85 kW Diesel engine and 4 wheel drive , the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing drum and cabin could slew together through 270° for high discharge over 2 m on the three sides of the vehicle.

The the Geometric Volume of Mixing Drum is 5.2m³. The concrete output is 3.5m3 per Batch, 14 m3 per Hour. The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 112m³ of concrete) and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.

Specifications for SLM3500RW Self Loading Concrete Mixer
Mixing Drum	Mixing Volume	3500 L
		Geometric Volume	5200 L
		Concrete Output	4 batch / hour ,14 m3/ hr
		Inclination Angle	16°
		Max. Slewing Angle	270°
		Rotating Speed	0~20 rpm
		Body /Bottom Thickness	5 mm/8 mm(Q345B)
		Overall Size	Φ1700x 3210 mm
Discharging Chute	Max. Slewing Angle	180°
		Tilting Method	Hydraulically
		Length	1500 mm
Diesel Engine	Brand/Model	YUCHAI/YCD4J22T-115
		Rated Power/Speed	85 kW (115HP) /2600 rpm
		Max.Torque/ Speed	390 N.m/1600 rpm
		Bore x Stroke	105 mm x125 mm
		Displacement	4.33 L
		Type	4-Cylinder,In-line,Turbo Charged, Water-cooled
		Emission Standard	Euro II
Hydraulic System	Hydraulic Pump Displacement	80/40 mL/r
Hydraulic System		Hydraulic Motor Displacement	56 cm3/rev
Water Supply System	Water Tank Volume	2 x 310 L
Water Supply System		Water Supply Mode	Self-contained, Hydraulic Driven water pump
Chassis Parameter	Structure	Articulated Structure
		Drive Type	4 Wheel Drive
		Transmission	Auto Transmission, 4 F+4R Shift
		Wheelbase	2770 mm
		Tread	1700 mm
		Loading Shovel Capacity	600 L
		Brake Type	Air Brake
		Tyre Size	16/70R22.5
Vehicle Parameter	Drum and Shovel Control	Hydraulic Joystick Control
		Driver’s Cab	Air-conditioner Inside
		Max. Drive Speed	40 km/h
		Grade Ability	40 %
		Mini Turning Radius	5300 mm
		Max. Payload	8,500 kg
		Curb Weight	8,200 kg
		Overall Size	7710x2900x3260 mm

Main Features

Main Features of 3.5 M3 Self Loading Concrete Mixer

1.China TOP Brand YUCHAI Diesel Engine as standard Power, CUMMINS Engine is Optional

2. Two-way driving without turning seat
3. Bucket can overturn at high position

4. Hydraulically Controlled Discharge Chute
5. Detachable Cab Window
6. Full-load at 40% Gradeability
7. High Rotating Speed of Drum
8.Closed Circuit Hydraulic Rotation System
9. Spacious Driver's Cab with Deluxe Seat, A/C and Fire Extinguisher inside

China TOP Brand YUCHAI Diesel Engine as standard Power, CUMMINS Engine is Optional

This self loading concrete mixer is driven by YUCHAI ,85kW (115 HP), 4 Cylinder, Turbo-charged, Water-cooled diesel engine, which is featured by high reliablity and low fuel consumption. The CUMMINS(125 HP) Engine is optional upon request.

Two-way driving without Turning Seat

The Cabin and Drum of this mixer could slew together up to 270° for discharge of material over 1m on the three sides of vehicle. By means of turning the drum and cab to 180°, it can achieve backward driving in the front direction of driver, making the reverse driving process more easier and safer. It is the first mixer which achieves two-way driving without turning the seat in the cab.

Bucket can overturn at high position

The bucket of this mixer could overturn when lifted to high position, loading and discharging material like wheel loader. It could be a substitute for wheel loader to some extent, combining the function of wheel loader, concrete mixer and concrete mixer truck together.

Hydraulically Controlled Discharge Chute

The discharge chute can be lifted up and down through controlling the hydraulic cylinder underneath, which is more convenient than that traditional pin attached chute

Detachable Cab Window

The cab's front window is equipped with sliding way and can be detached to upper position, which makes driver have broad and clear view during operation.

Full-load at 40% Gradeability

The mixer with full load could climb steep slope up to 40% gradient, which is very useful for the driving and operation process in the mountainous area.

High Rotating Speed of Mixing Drum

The rotating speed of our mixing drum reached 20 rounds per minutes, which has improved working efficiency by 30% compared to our competitors in the industry

Closed Circuit Hydraulic Rotation System

The mixing drum is rotated by means of planetary reducer and USA Brand Sunny hydraulic piston motor in closed circuit, which is more much stable than that equipped with gear pump and motor.

Excavator Style Spacious Driver's Cab

Our driver's cab is much more spacious than other's. It is a kind of crawler excavator style cab. The anatomic seat is with function of flexible suspension and height adjustment .One set of joystick control system is situated on the right side of driver's seat. The panoramic color monitor is near the steering wheel. The operation situation from the four sides of machine could be shown clearly on the colored monitor, which increase the driving safety . Fire Extinguisher , Safety Hammer and Air Conditioner are also equipped inside the cab.

Application Scene

Packing & Delivery

Container Shipping for SLM3500RW Self Loading Concrete Mixer

Nude Packing. 1 Set Per 40 HQ. The mixing drum, one unit of front tyre and driver's cab have to be dismantled and put on the floor of container.

Worldwide Sales, Marketing and Service Network

Worldwide Sales, Marketing and Service Network

During the past 15 years, we have exported over 5,000 units of different kinds of construction equipment to over 50 countries in Southeast Asia, Middle East, Africa, Europe, Australia and South America. Our overseas authorized dealers and service dealers are all around the world.

Certifications

Exhibition

Why Choose Us

Shandong Eagle Construction Machinery Co.Ltd. Is the leading enterprise specializing in sales and manufacturing of construction machinery and equipment in China. Through many years’ development, , our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.

The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.

With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.

We have been constantly improving and updating our products according to customer’s feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatch inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer’s trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan,Mongolia, Thailand,Indonesia, Middle East, Kenya, Uganda, Algeria and Poland etc.

To develop more customers, we would like to give the following preferable policies:
1. OEM/ODM orders and customer's design are welcomed.
2. No minimum order limit.
3. One-year Quality Warranty .

Shandng Eagle Construction is ready to work for you. Let our many years of production experience and extraordinary service ensure that the goods you take out your pocket to buy is well worth.
