Впускной и выпускной клапан аксессуары для резервуара унитаза нижний вход регулируемый воды

Сохранить в закладки 1600667830371:


Цена:170,82-282,82 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

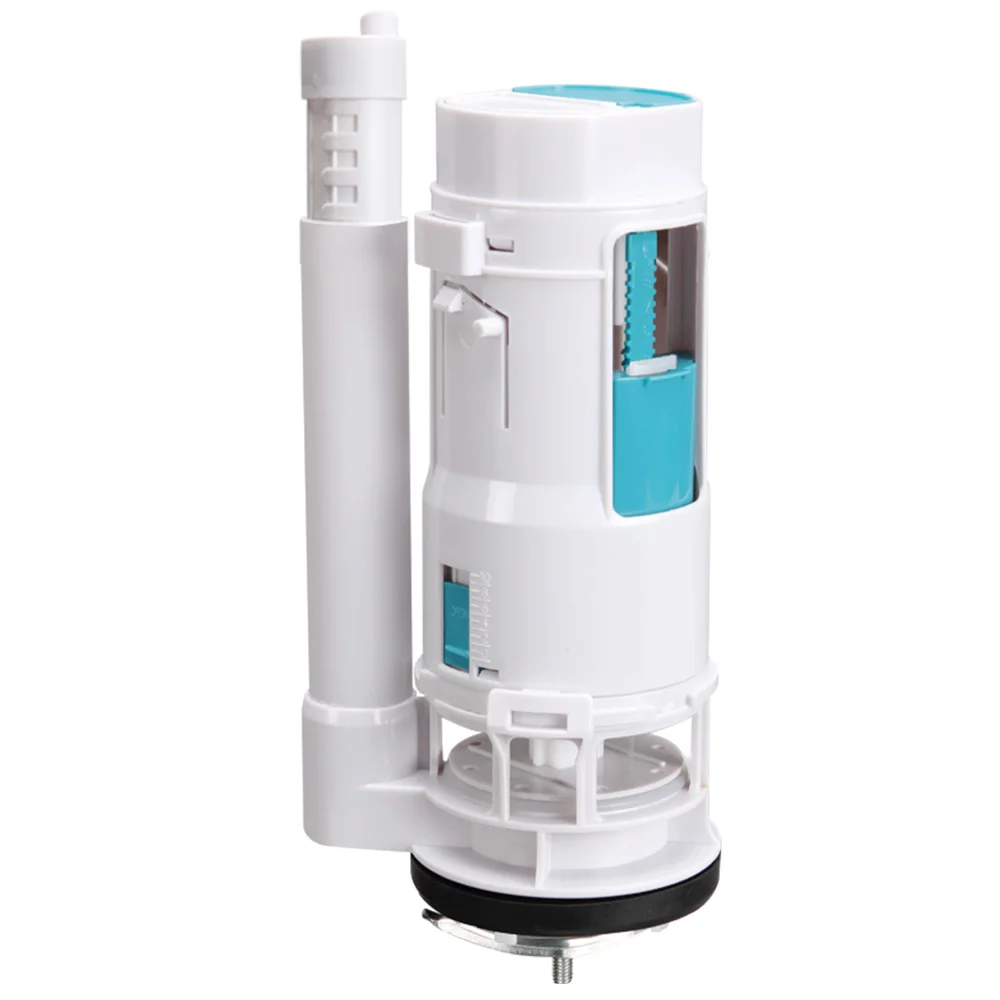

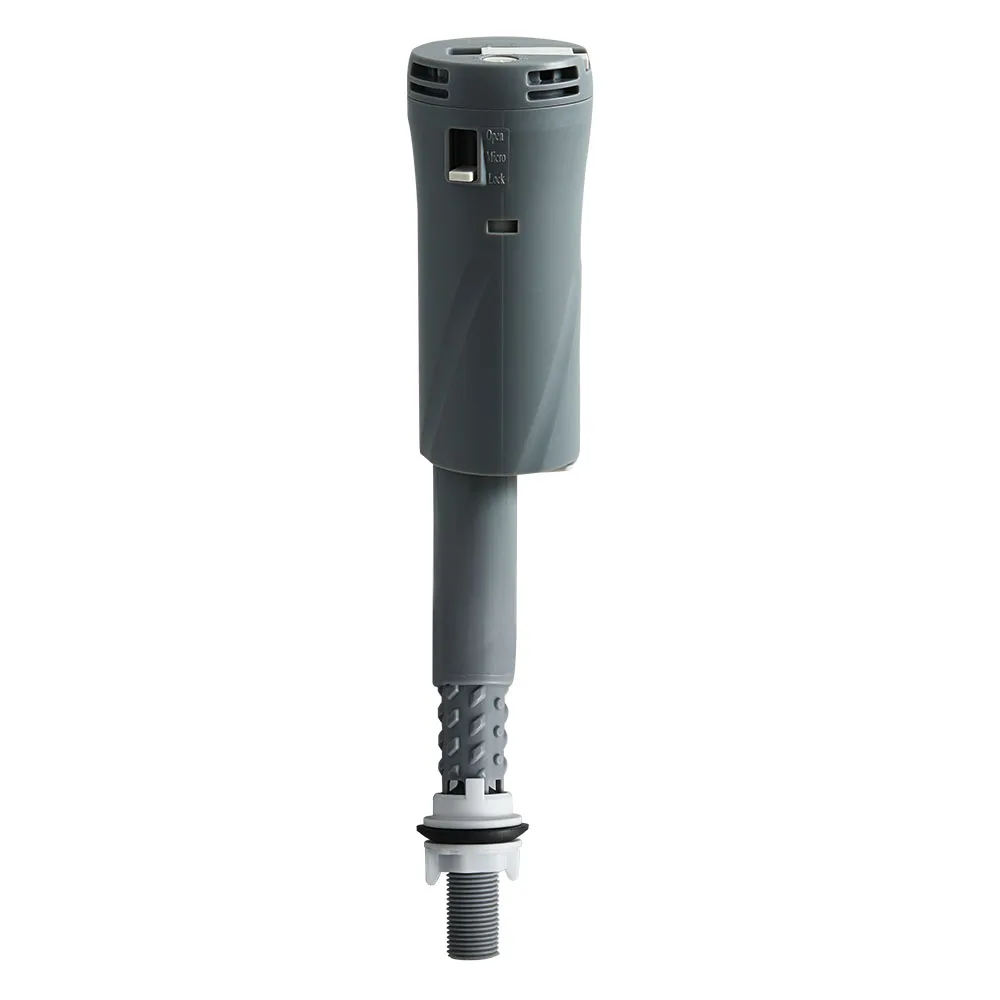

Inlet and outlet valve toilet tank accessories bottom entry adjustable water cistern valve


























































































 Name


Inlet and outlet valve toilet tank accessories bottom entry adjustable water cistern valve


 Model


A109+C2111L+P2607


Brand


NUCA


Material


ABS,POM


Application


Toilet


Color


White or customized


Water inlet way


Bottom

 Thread Size
G1/2" Or 3/8"


Thread material


Brass


Filling rate


4.5L/M AT 0.5BAR   >1.8L/M AT 0.1BAR


Refill Rate


0-28%


Installation height(H)


7-10"/9-12"/10-13"


Float


2pcs float


Water pressure range


0.1-16BAR


Flush Valve Outlet


2"/1.5"

   Flushing rate

  ≥2.3L/S





  Stability water level

 Tolerance 0.5mm





  Overflow ability

 The highest water level will not be higher than overflow port over 20MM.





  Overflow pipe

 fixed or adjustable height(Adjustable:20-28cm,22-34cm)





  Applicable toilet type

 1-pc toilet





  Span Life

 200,000 times













Company Information


 company profile011.jpg




Compas (Xiamen) Plumbing Technology Co.,ltd. is a professional manufacturer in plumbing industry with more than 15 years experience. Our products covers toilet tank fittings, concealed cistern and intelligent toilet, alrady certified by CE, cUPC, WRAS, Watermark, Sirim, CQC,etc.

We build up healthy cooperative relatioship with many domestic ceramic suppliers, and also export our products to more than 30 countries and regions around the word.

We adhere to create value to our customers and help them to better develop through persistent proudct innovation,high standard product technology, improving quality control system and optimizing our managment platform.


Production


Certification





Packaging & Shipping























FAQ


 A) Are you a Factory?






Yes, we are the professional manufacturer being in this industry since 2006, New High-Tech Enterprise awarded,equipped with self-developed RD team, US & CN invention patented technology on mechanism providing complaint-free sales to you. Welcome to visit us, virtual visiting also works.



B) What is the material of your products?



Main material is POM for fill valve, ABS for flush valve.



C)What is the guarantee on your proudcts?



Our mechanisms are 100% tested before shipment, 200,000times life span, providing 5-year-guarantee



D)How about the delivery time?



noramlly 20-35days depends on per order details/quantity, special arrangement on delivery time is available as per customers'requirement;



E)Is special color requirement acceptable?



Yes, product with special color request is accepted, MOQ will be 3000pcs/model



F)Customized LOGO available:



Yes, OK to show your brand name on product/packing



G)Sample availabe for testing?



Yes, sampels will be provided for testing upon request, contacting us for more details about sample policy.
