Низкая цена вертикальная автоматическая машина NeoDen 10 для монтажа печатных плат ручная pnp
- Категория: Electronics Production Machinery >>>
- Поставщик: Zhejiang Neoden Technology Co. Ltd.
Сохранить в закладки 1600669629874:
Описание и отзывы
Характеристики

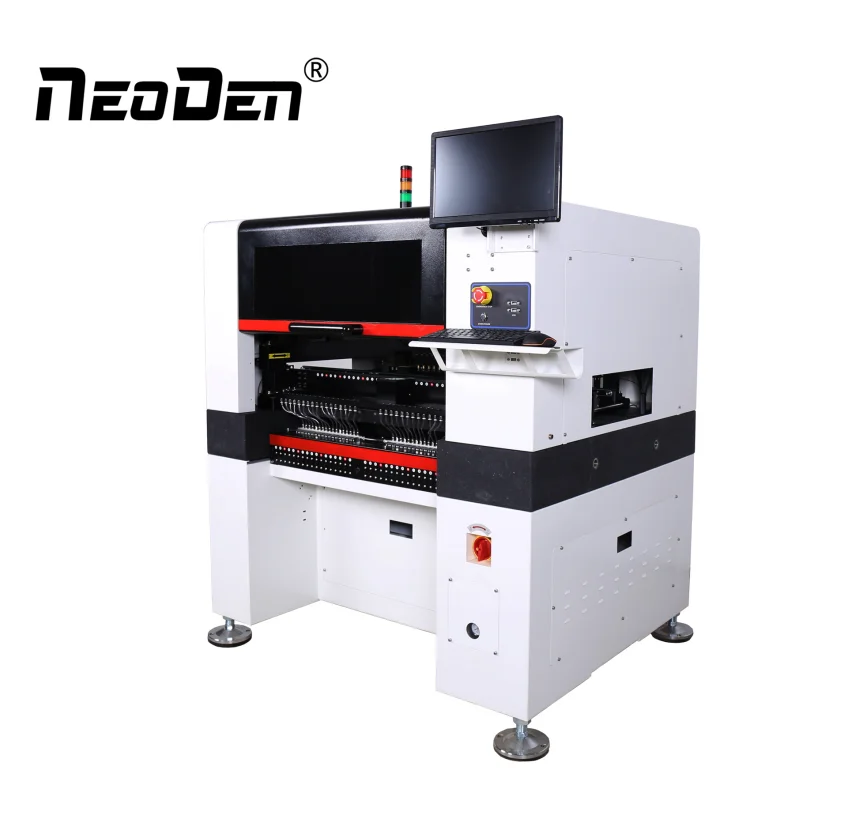

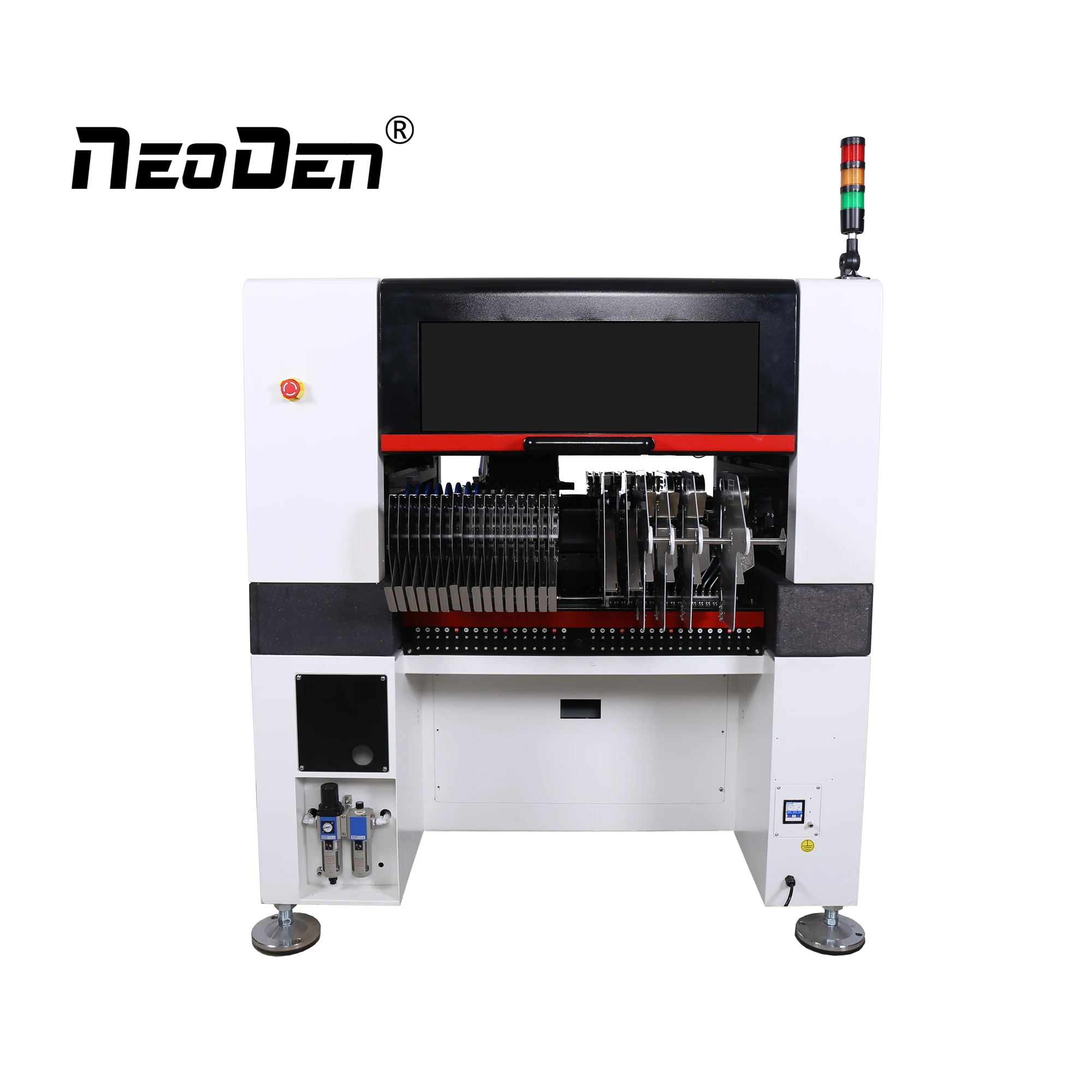

NeoDen10 new pick and place machine smd mountering machine pcb manufacturing equipment
Specification
Model | NeoDen10 | ||||||
Nozzle Qty | 8 nozzles | ||||||
Reel Tape Feeder Qty(Max) | 66 (Electric / Pneumatic) | ||||||
IC Tray Feeder Qty | 20 | ||||||
Placement Area | 500mm*300mm(1500mm*300mm optional) | ||||||
MAX Mounting Height | 16mm | ||||||
Mark camera recognition system | 2 Groups (left and right) / US ON sensors | ||||||
Flying camera recognition system | 2 Groups (front and rear) / US ON sensors | ||||||
Operation System | Patented SMT Mouting Operation System V1.0 | ||||||
XY Motion feedback control | right-left/left-right SPM/IBG magnetic linear encoder | ||||||

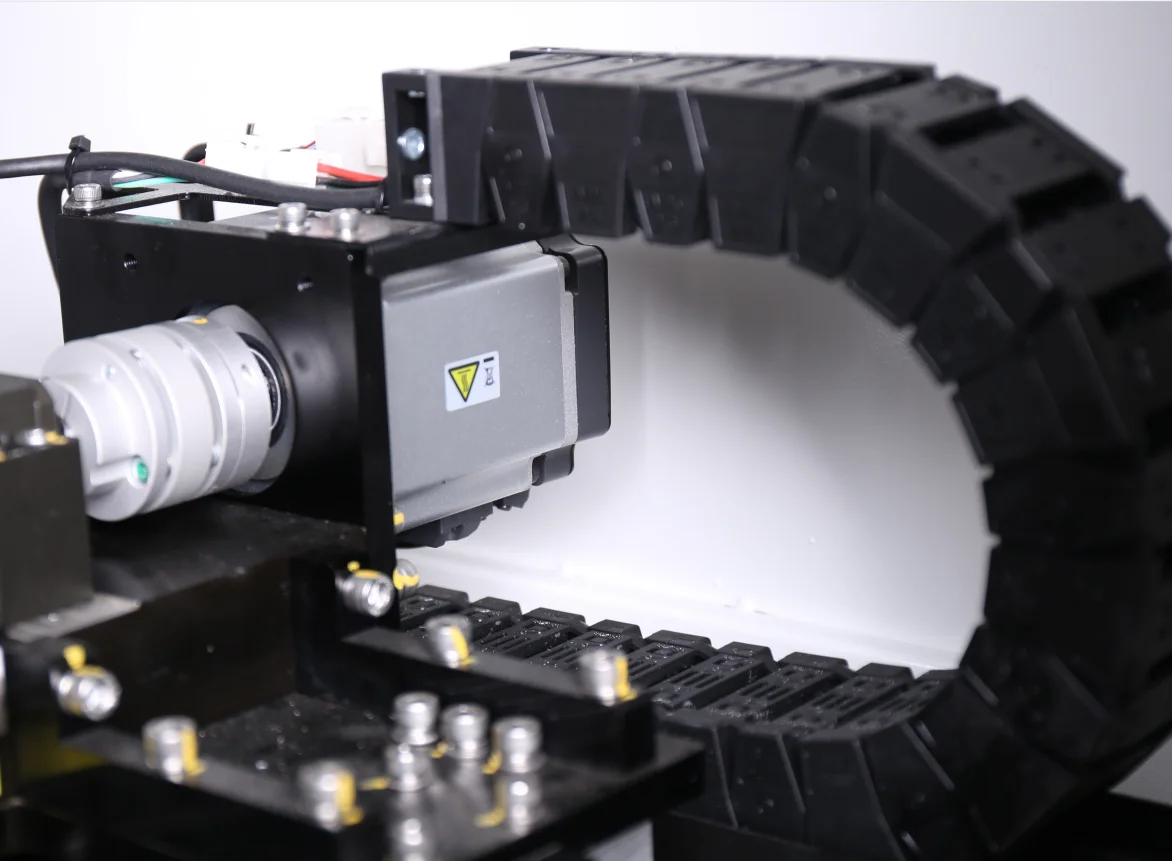

XY Drive motor | servo motor | ||||||
Repeat Position Accuracy | 0.01mm | ||||||
Maximum Mounting Speed | 18000CPH | ||||||
Average Mounting Speed | 13000CPH | ||||||
X/Y Drive Type | WON Linear Guide / THK Grinding screw C5 - 2040 | ||||||
Compressed Air | >0.6Mpa ,Max. flow rate 37L/min | ||||||
Voltage | AC110V/220V，50HZ/60HZ | ||||||
Net Weight | 1100KGS | ||||||
Machine Dimension | L1300mm*W1100mm*H1375mm | ||||||
Product Description

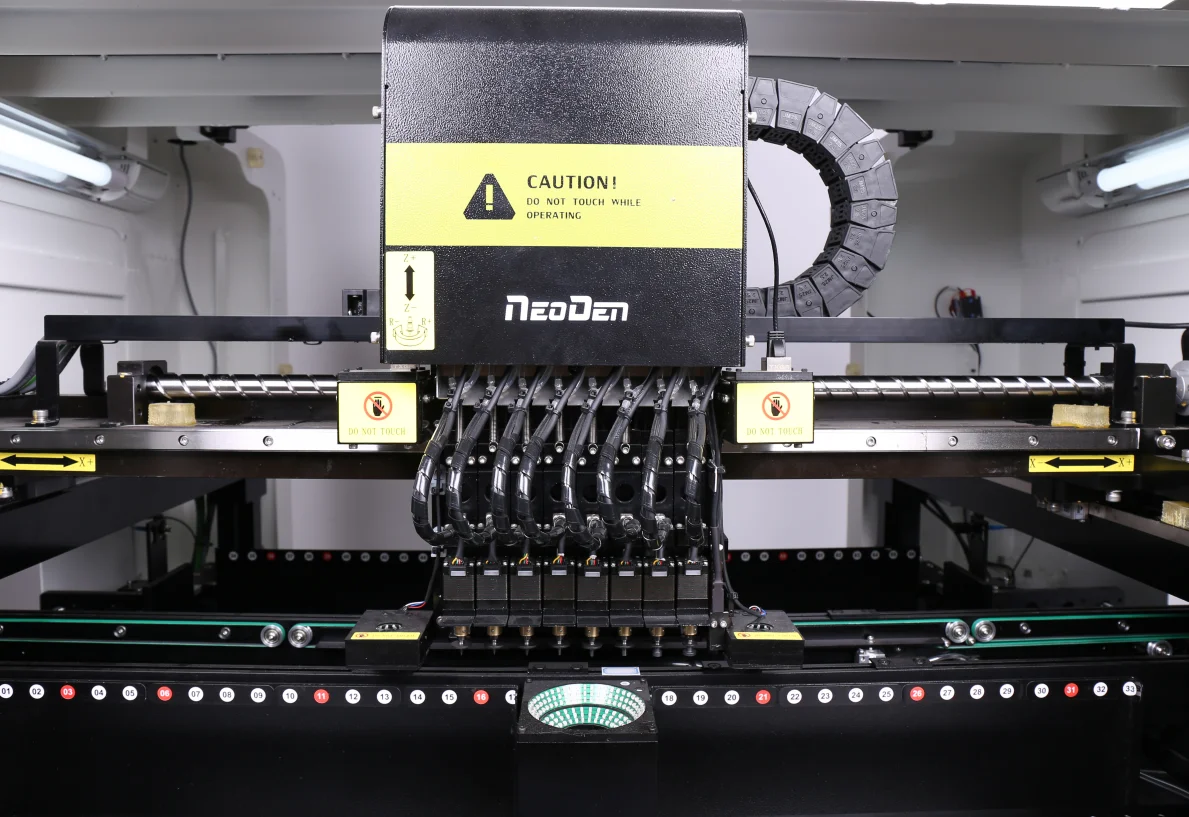

NeoDen10 is a ball screw pick and place machine with 8 simultaneous pick-up heads, max 66 tape reel feeder capacity, max 18000CPH placement rate, which is suitable for scale PCB/LED assembly production in SMT line with fast speed and high accuracy.

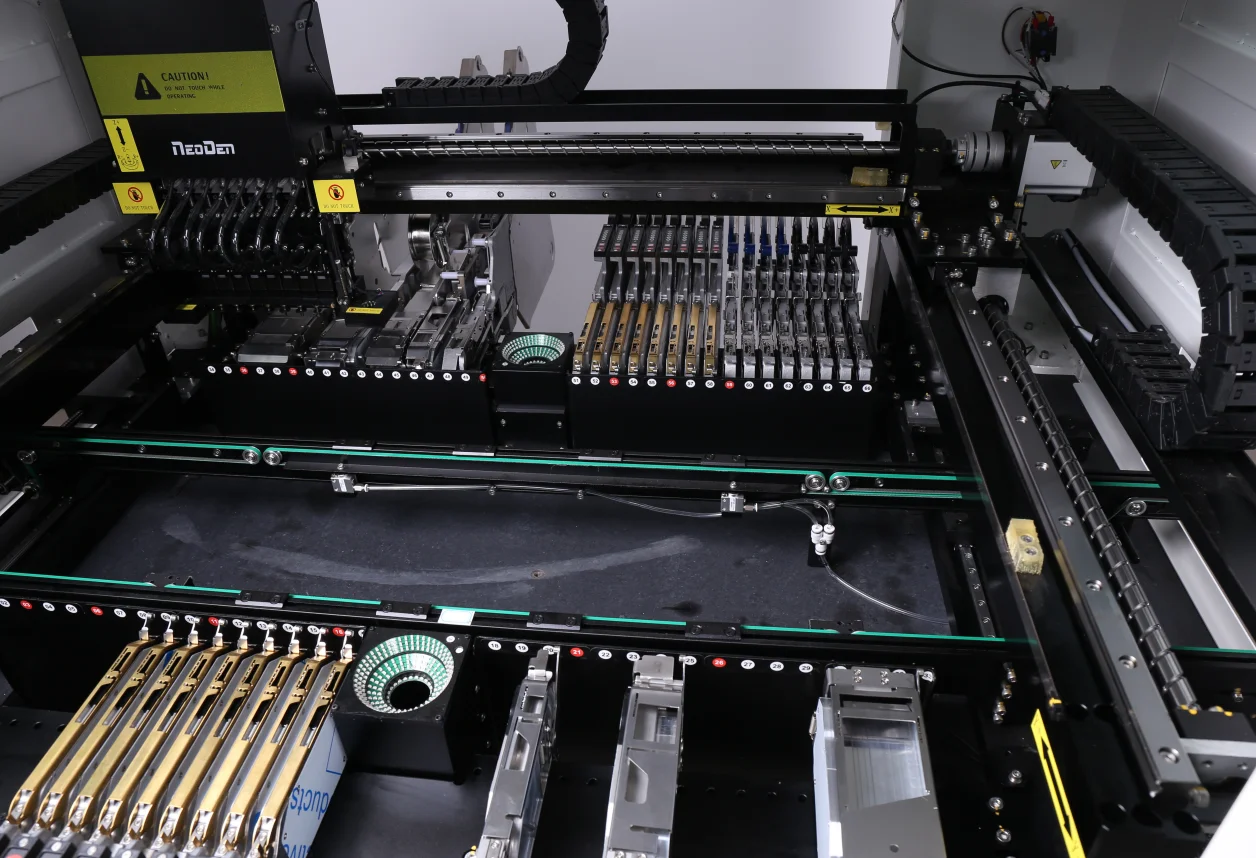

It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for component which needs high accuracy, such as 0201, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for component which needs high accuracy, such as 0201, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
Highlights
Placement Effect
Related Products
SMT Pick and Place Machine
NeoDen K1830
SMT Pick and Place Machine
NeoDen4
SMT Pick and Place Machine
NeoDen9
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show
Workshop
Exhibition
Certification
Payment & Shipping
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, NeoDen10 needs air supply.
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, NeoDen10 needs air supply.
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, NeoDen10, In6, IN12, IN12C and 1 year for all other models with lifetime after-sale support.
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
You want to know more? I am always here.
