Компрессор воздуха без масла смазанный инвертор типа безмасляный 37Kw 50Hp 55Kw 75Hp винтовой воздушный
- Категория: Industrial Compressors & Parts >>>
- Поставщик: Dongguan Qianwei Mechanical Equipment Technology Limited
Сохранить в закладки 1600669689639:
Описание и отзывы
Характеристики
Product Specification
Compresor De Aire Sin Aceite Water Lubricated Inverter Type Oilless 37Kw 50Hp 55Kw 75Hp Oil Free Screw Air Compressor
Keyword:
37kw oil free air compressor
oilless air compressor
water lubricated oil free screw air compressor
Certification | CE |
Brand Name | Airstone |
Model Number | OF-37PMC |
Capacity | 1.91-6.5m3/min |
Voltage | 220V/380V/415V/460V |
Working pressure | 7/8/10/12bar |
Cooling method | air cooled, water cooled |
MOQ | 1 set |
Customized solution | Color, Logo |
Warranty | 1 year |
Advantages:
5. Volumetric efficiency is more higher based on isothermal compression. More than 15% energy is averagely saved compared with dry type two stage compression oil-free screw air compressors, more than 25% energy is averagely saved compared with the dry type one stage compression, the running temperature is less than 50 °C, and there is no risk of being burned.
1.with the fifth generation of oil-free screw airend technology.The compression airend and system adopt stainless steel alloy,thus the technolygical transcendence from the copper airend to the stainless steel airend is realized.
2.Integrated design is adopted for the whole machine.There are no complex pipelines and lines,and the fault points are less and more stable.
3.Less maintenance consumables (air filter,water filter),easy maintenance,no professional staff is required to operate it,and less maintenance costs.
4.There is absolutely no oil in compressor system,without any oil pollution risk,it gives guarantee of no oil in generated compressed air.
6.Wider pressure ranges: 2-40 Bar.
7.The full intelligent CNC precise machining technology keeps the airend working smoothly, which can ensure lower noise, smaller vibration, and longer service life.
8.Averagely more than 10% air delivery is generated for the same power of water lubricating screw air compressors than the same power dry type oil-free screw air compressor.
9.More simple and convenient operation. PLC intelligent control is adopted. Automatic fault detection, fault warning, mai ntenance reminder, fault reminder, automatic protection function It can realize 24 hours unattended and remote control function.
10.Compressed air is more clean through cleaned by lubricating water, it can be directly used for breathing. The dew point ot saturated compressed air is lower, and the water content of compressed air is lower by more than 25% than that of an ordinary dry type oil-free screw air compressor.
11.The airend patent (patent number: ZL 2014 20251586.4) optimized design, large rotor, low rotary speed (within 3000r/min), without gearbox, direct connection drive, it has lower rotary speed and longer life compared with dry oil-free screw air compressor (10000r/min-20000r/min).
12.The function of automatic water exchange and automatic system cleaning can be realized, and the interior of the compressor is more clean and sanitary.
13.Can make customization: frigid region.high region options intelligent heating system.

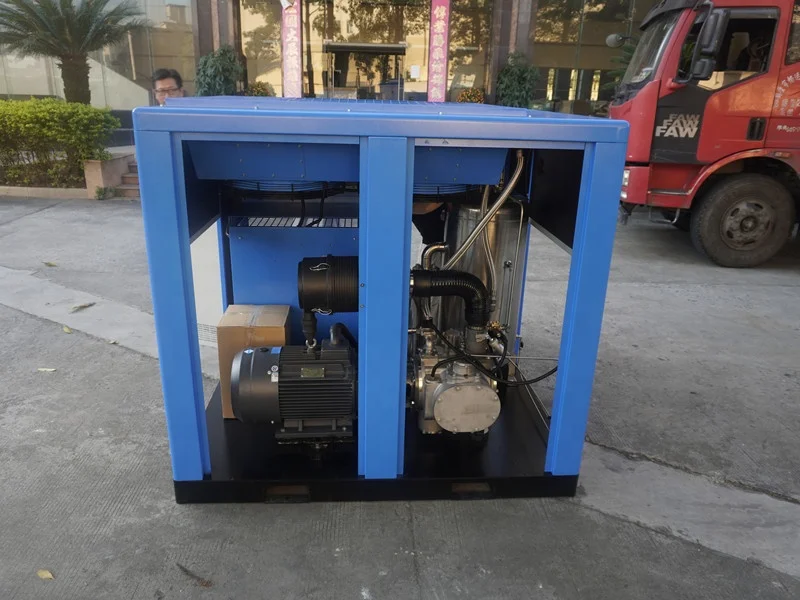

Product Configuration
Airend
The life and safety of the machine parts is greatly improved,to prevent water erosion mainly to host 304 stainless steel or other corrosion-resistant material.
Coupling
Imported high temperature resistant elastomer rubber material,to ensure resilient and reliable connection when the host and the motor drive

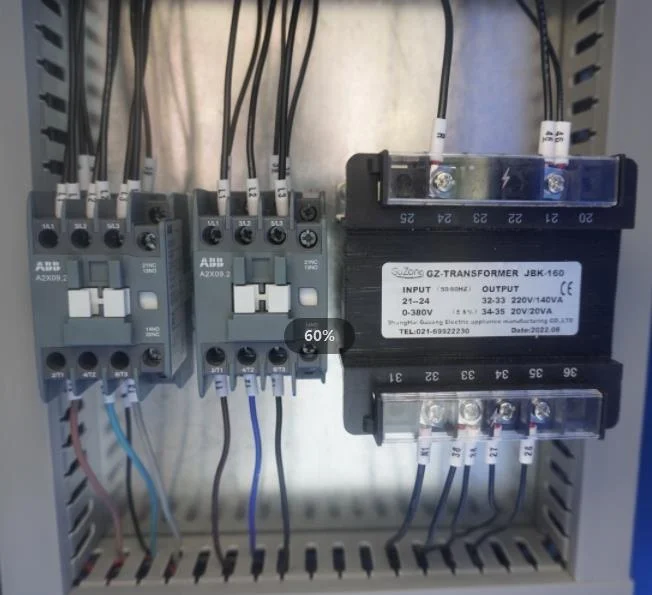

All key electrial compoents
Such as a full range of models contacts with ABB.
Meanwhile individually designed electrical box and separates the compressed high temperature,to ensure life of the electronic components
Stainless steel pipe
The whole machine system is made of stainless steel alloy to ensure durability,anti-corrision with long service life,ensuring the "0" pollution,more energy-saving,stable,green environmental protection.
High efficiency and high performance motor
Two moto IP54 protection class,F class insulation custom technical standards to ensure equipment available 24 hours,365 days of work to run uninterrupted
304 stainless steel manufactured
Using a gas separation barrel,to ensure efficient separation of gas oil ingenious structural design.

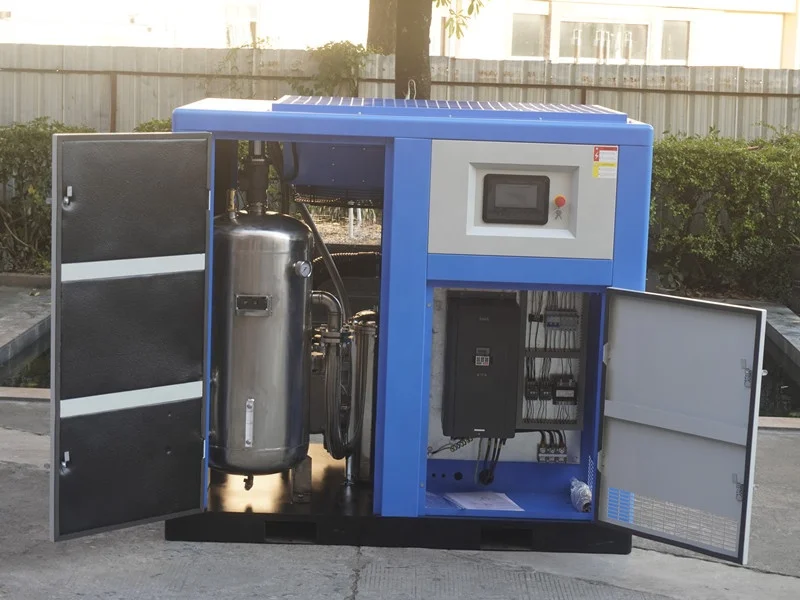

Product Description
1.Air End: Inheriting the full-stainless steel oil-free air end.
2.Motor: With the high-quality motor of well-known brand, IP code of IP54, Level F of insultation, SKF bearing, high efficiency,the special design of the machine can be conducted according to the requirements of the users.
3.Vapor seperator: The delicate design of the full stainless steel vapor seperating tank makes the vapor completely separate inside.

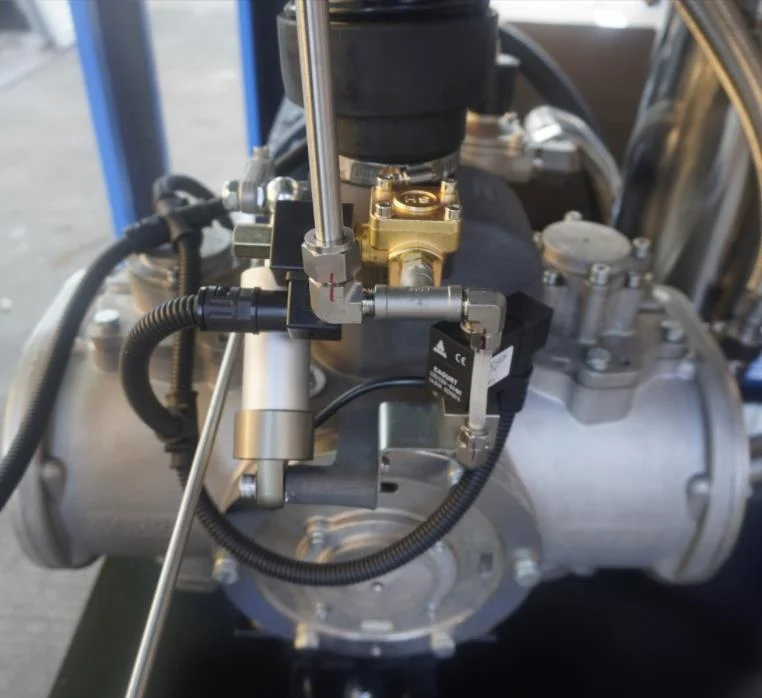

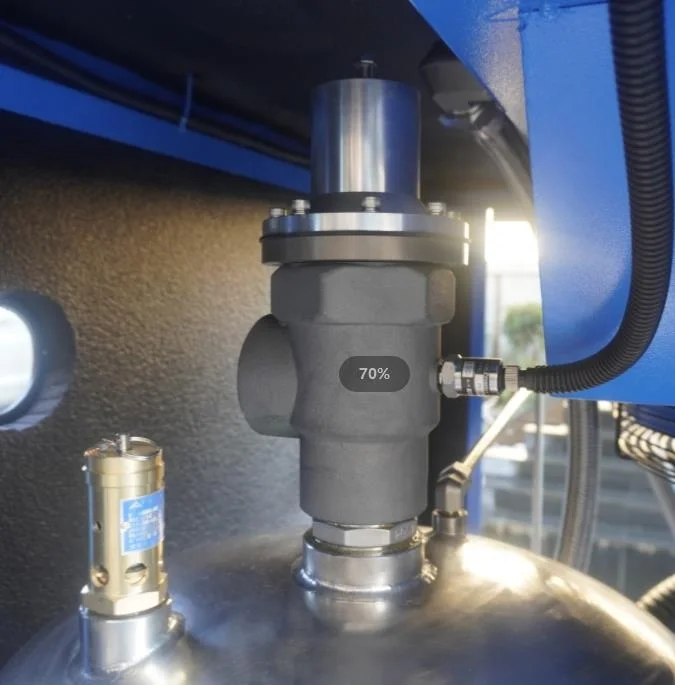

4.Air inlet valve: Patent air inlet valve 100% reliability.
5. Water screw controller: The advanced controlling and monitoring system can display all operational situation of the whole unit,together with RS485 interface fulfilling remote control.
* World top-level compressor structure——Z screw air end
* Oil free——100% oil free
* Use water for lubricating,sealing and cooling
* Isothermal compression
* Large capacity , low speed
* Low temperature compression(about 40℃)
* Inter-cooler & after cooler unnecessary
* Low noise level , low vibration , no speed up gear
* Low viscosity of lubricated water
* Separate from air easily
* No need to dispose the waste oil as we don't use oil
* No oil filters & air/oil separator , which are energy saving and good to the environment as there is no industrial waste
* Less spare parts , easy to dismantle & assemble , reduce the maintenance cost & save time
1.Air End: Inheriting the full-stainless steel oil-free air end.
2.Motor: With the high-quality motor of well-known brand, IP code of IP54, Level F of insultation, SKF bearing, high efficiency,the special design of the machine can be conducted according to the requirements of the users.
3.Vapor seperator: The delicate design of the full stainless steel vapor seperating tank makes the vapor completely separate inside.
4.Air inlet valve: Patent air inlet valve 100% reliability.
5. Water screw controller: The advanced controlling and monitoring system can display all operational situation of the whole unit,together with RS485 interface fulfilling remote control.
* World top-level compressor structure——Z screw air end
* Oil free——100% oil free
* Use water for lubricating,sealing and cooling
* Isothermal compression
* Large capacity , low speed
* Low temperature compression(about 40℃)
* Inter-cooler & after cooler unnecessary
* Low noise level , low vibration , no speed up gear
* Low viscosity of lubricated water
* Separate from air easily
* No need to dispose the waste oil as we don't use oil
* No oil filters & air/oil separator , which are energy saving and good to the environment as there is no industrial waste
* Less spare parts , easy to dismantle & assemble , reduce the maintenance cost & save time
Application
The application range of water lubricated oil free screw air compressor is very wide: heavy,light industry, mining, hydropower, seaport, engineering construction, oil and gas fields, railways, transportation, shipbuilding, energy, military industry and other industries.
Hot sale Products
Contact us
Похожие товары
Компрессоры с двойным винтом аппарат воздушного компрессора цены на
2 445,00 $ - 2 680,00 $

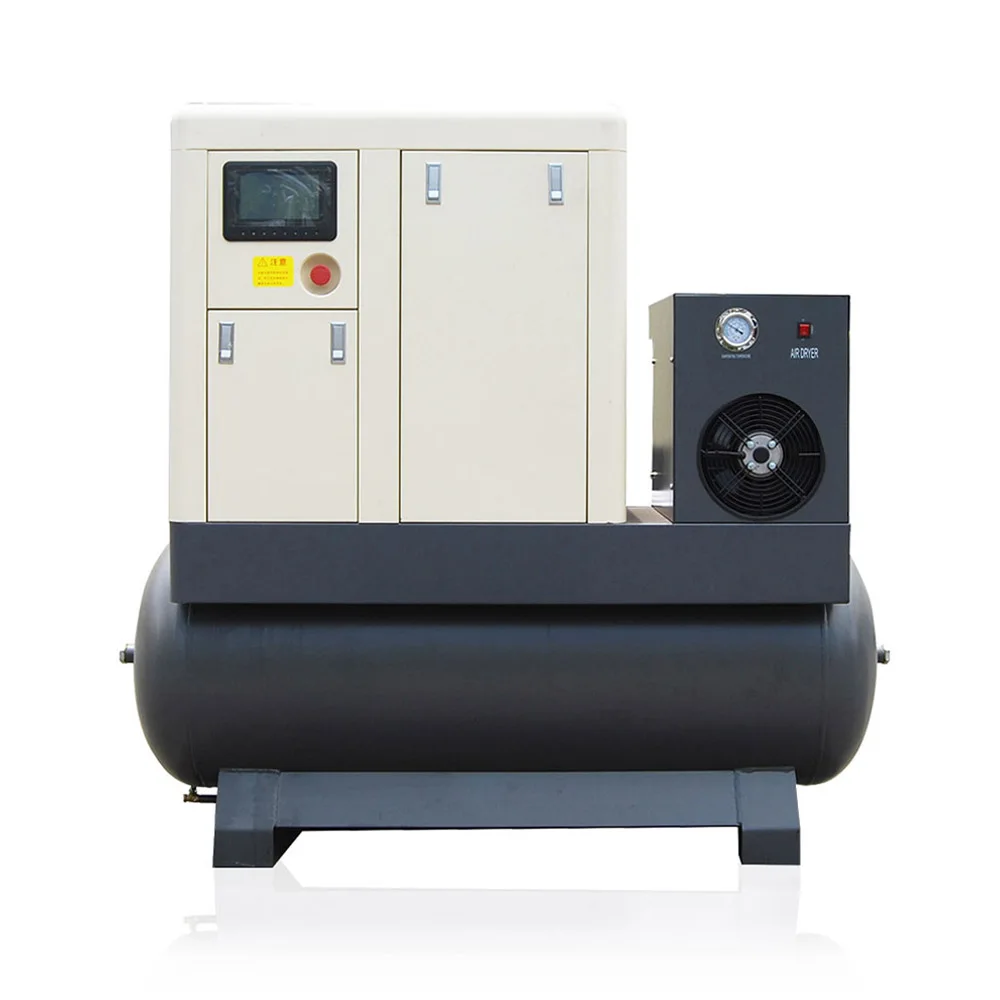

JFPM15ATD-20ATD постоянный магнит винтового типа воздушный компрессор с сушкой на бретелях
6 800,64 $ - 7 687,68 $

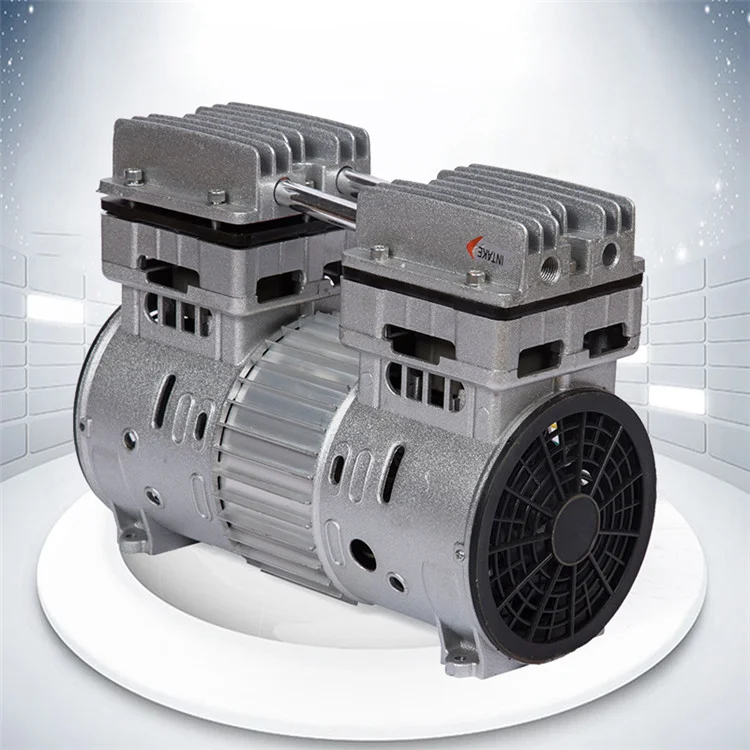

Низкая цена безмасляный воздушный компрессор насос портативный

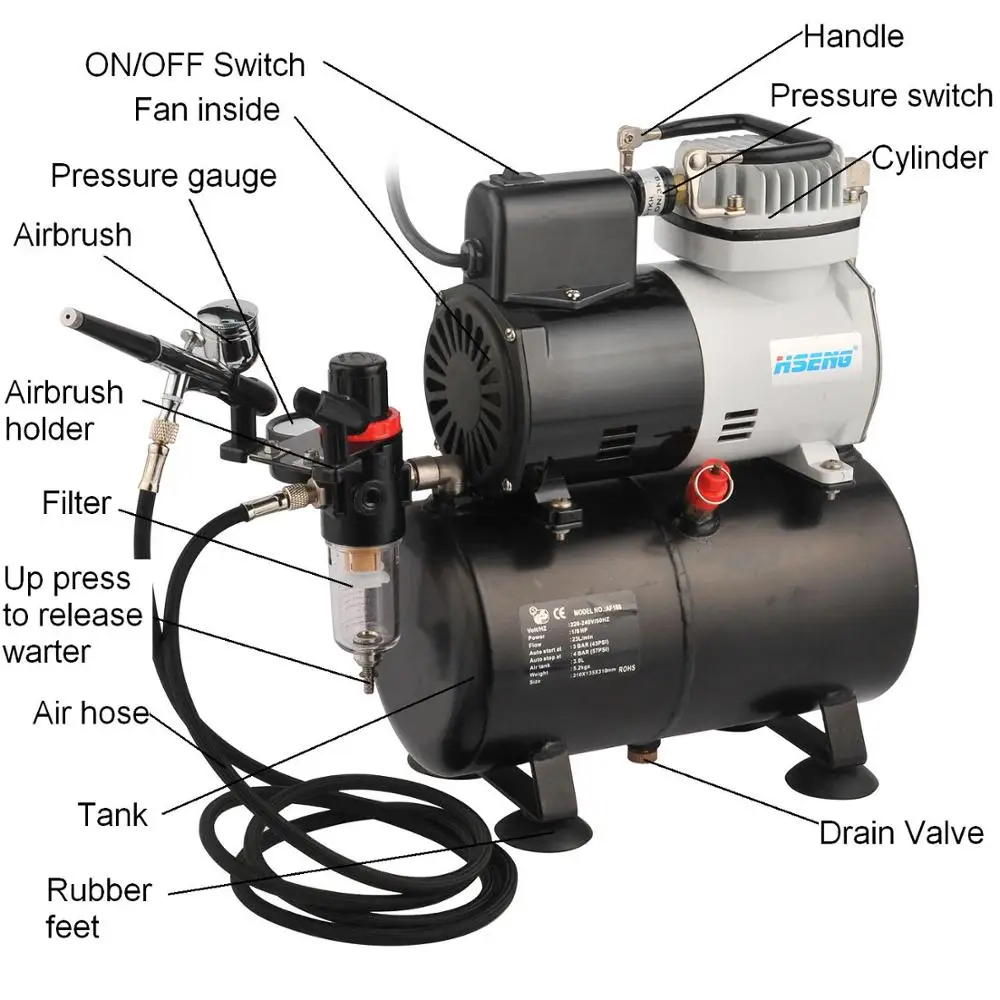

Аэрограф палочка боди-арт временная татуировка с
65,00 $ - 75,00 $
LA-185GA/W с прямым приводом 760CFM винтовой воздушный компрессор масла

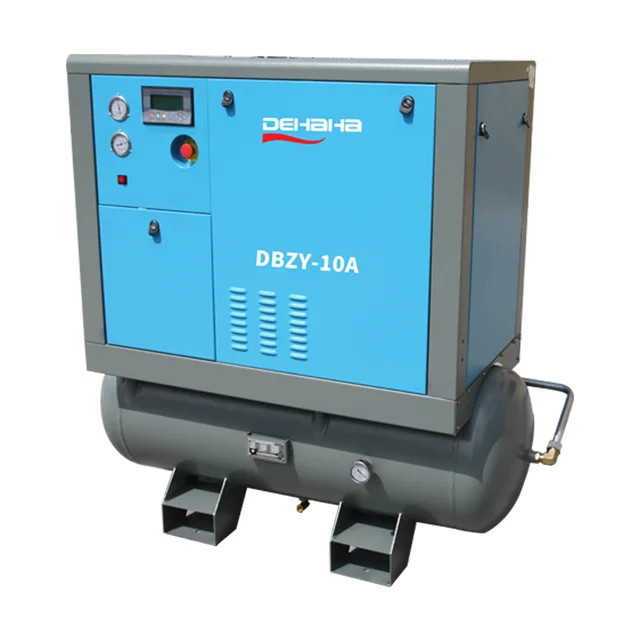

Новейшие технологии небольшой Электрический 16 бар винтовой воздушный компрессор машина DBZY-10A
