Sunboost 7 кВт 8 кВт 10 кВт гибридный солнечный инвертор на сетке солнечный инвертор с литиевой батареей без сетки солнечный инвертор 8 кВт
19 518,47 ₽ - 50 748,01 ₽
Конкурентоспособная цена 5 ква 24 В 1 кВт 48 в 4000 Вт Солнечный инвертор Mppt зарядное устройство 220 3000 12 до вольт
- Категория: >>>
- Поставщик: Guangdong Xindun Power Technology Co. Ltd.
Сохранить в закладки 1600671087554:
Описание и отзывы
Характеристики
Feature
1. High frequency design, high power density, small size, high efficiency, low no-load loss.
2. Built-in MPPT solar charge controller optional.
3. Pure sine wave output,any types of loads adaptable.
4. Battery charge and discharge voltage parameters adjustable,suitable for different types of
batteries,can prolong the life of the battery and improve system performance.
5. Three working modes adjustable:AC first,Battery first,PV first.
6. Output voltage/frequency adjustable function,adapt to different grid environment.
7. Extra wide voltage and frequency input range, support mains or generator.
8. LED+LCD display, easy operation and data checking,can set each function and data directly.
9. Multi-protection function(overload,over temperature,short circuit protection and so on).
10. RS485 communication port/APP optional.
2. Built-in MPPT solar charge controller optional.
3. Pure sine wave output,any types of loads adaptable.
4. Battery charge and discharge voltage parameters adjustable,suitable for different types of
batteries,can prolong the life of the battery and improve system performance.
5. Three working modes adjustable:AC first,Battery first,PV first.
6. Output voltage/frequency adjustable function,adapt to different grid environment.
7. Extra wide voltage and frequency input range, support mains or generator.
8. LED+LCD display, easy operation and data checking,can set each function and data directly.
9. Multi-protection function(overload,over temperature,short circuit protection and so on).
10. RS485 communication port/APP optional.
Highlight
Product Detail
Specification
Model:HP PRO-T | 32224 | 50248 | |||||
Rated Power | 3200W | 5000W | |||||
Battery Voltage | 24VDC | 4SVDC | |||||
Product Size (L*W*Hmm) | 420x290x110 | 460x304x110 | |||||
Package Size (L*W*Hmm) | 486x370x198 | 526x384x198 | |||||
N.W (Kg) | 8.5 | 9.5 | |||||
G.W (Kg) | 9.5 | 10.5 | |||||
Installation Method | Wall-Mounted | ||||||
PV | Charging Mode | MPPT | |||||
Rated PV input voltage | 360VDC | ||||||
MPPT tracking voltage range | 120V-450V | ||||||
Max PV Input Voltage Voc (At the lowest temperature) | 500V | ||||||
PV Array Maximum Power | 4000W | 6000W | |||||
MPPT tracking channels (input channels) | 1 | ||||||
Input | DC Input Voltage Range | 21-30VDC | 42-60VDC | ||||
Rated AC input voltage | 220VAC / 230VAC /240VAC | ||||||
AC Input Voltage Range | 170VAC-280VAC (UPS mode) / 120VAC-280VAC (INVmode) | ||||||
AC Input Frequency Range | 45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz) | ||||||
Output | Output efficiency(Battery/PV Mode) | 94% (Peakvalue) | |||||
Output Voltage(Battery/PV Mode) | 220VAC+2% /230VAC±2% /240VAC±2% | ||||||
Output Frequency(Battery/PV Mode) | 50Hz±0.5or60Hz±0.5 (INVmode) | ||||||
Output Wave(Battery/PV Mode) | Pure Sine Wave | ||||||
Efficiency(AC Mode) | 299% | ||||||
Output Voltage(AC Mode) | Follow input | ||||||
Output Frequency(AC Mode) | Follow input | ||||||
Output waveform distortion Battery/PV Mode) | ≤3%(Linear load) | ||||||
No load loss(Battery Mode) | ≤1% rated power | ||||||
No load loss(AC Mode) | ≤0.5% rated power(charger does not work in AC mode) | ||||||
Battery | Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) | ||||
Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) | ||||||
Max AC Charging Current | 60A | 60A | |||||
Max PV Charging Current | 100A | 100A | |||||
Maximum charging current (mains + PV) | 100A | 100A | |||||
Charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||
Protection | Battery low voltage alarm | Battery undervoltage protection value+0.5V(Single battery voltage) | |||||
Battery low voltage protection | Factory default: 10.5V(Single battery voltage) | ||||||
Battery overvoltage alarm | Constant charge voltage+0.8V(Single battery voltage) | ||||||
Battery over voltage protection | Factory default: 17V(Single battery voltage) | ||||||
Battery over voltage recovery voltage | Battery overvoltage protection value-1V(Single battery voltage) | ||||||
Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
Temperature protection | >90°C(Shut down output) | ||||||
Working Mode | Mains pnority/Solar pnority/Battery priority(Can be set) | ||||||
Transfer Time | ≤4ms | ||||||
Display | LCD+LED | ||||||
Thermal method | Cooling fan in intelligent control | ||||||
Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | ||||||
Wiring Diagram
1. We offer 3 optional working modes (transfer time≤4ms):
1) AC priority mode (d0)
. When the mains power is normal , on the one hand, the mains power charges the battery ; on the other hand, only the mains power supplies power to the load;
. When the mains power is abnormal, the inverter will switch to the battery mode, and the battery will supply power to the load .
2) PV priority mode (d1)
. When the solar is normal, if the solar power is greater than the power of the load, the load is completely powered by solar, when the solar power is less than the power of the load, the insufficient part is supplemented by the battery, and the solar and the battery supply power to the load together. If the battery is low volage due to the load, then the inverter will turn to the AC mode for power supply, and the solar will only charge the battery;
. When the solar is abormal, the inverter will directly switch to the AC mode for power supply, and the mains power will charge the battery.
3) Battery priority mode (d2)
. When the inverter has no low-voltage battery alarm, even if the mains power input is normal, the inverter will switch to the battery mode, and the battery will supply power to the load.
. When the battery is low voltage (i.e. the voltage of a conventional single battery is 11vdc) and the mains power input is normal, the inverter will switch to the AC mode and the mains power will supply power to the load completely, while the solar energy will charge the battery but the mains power does not charge the battery.
1) AC priority mode (d0)
. When the mains power is normal , on the one hand, the mains power charges the battery ; on the other hand, only the mains power supplies power to the load;
. When the mains power is abnormal, the inverter will switch to the battery mode, and the battery will supply power to the load .
2) PV priority mode (d1)
. When the solar is normal, if the solar power is greater than the power of the load, the load is completely powered by solar, when the solar power is less than the power of the load, the insufficient part is supplemented by the battery, and the solar and the battery supply power to the load together. If the battery is low volage due to the load, then the inverter will turn to the AC mode for power supply, and the solar will only charge the battery;
. When the solar is abormal, the inverter will directly switch to the AC mode for power supply, and the mains power will charge the battery.
3) Battery priority mode (d2)
. When the inverter has no low-voltage battery alarm, even if the mains power input is normal, the inverter will switch to the battery mode, and the battery will supply power to the load.
. When the battery is low voltage (i.e. the voltage of a conventional single battery is 11vdc) and the mains power input is normal, the inverter will switch to the AC mode and the mains power will supply power to the load completely, while the solar energy will charge the battery but the mains power does not charge the battery.
Application
Packing & Delivery
Package

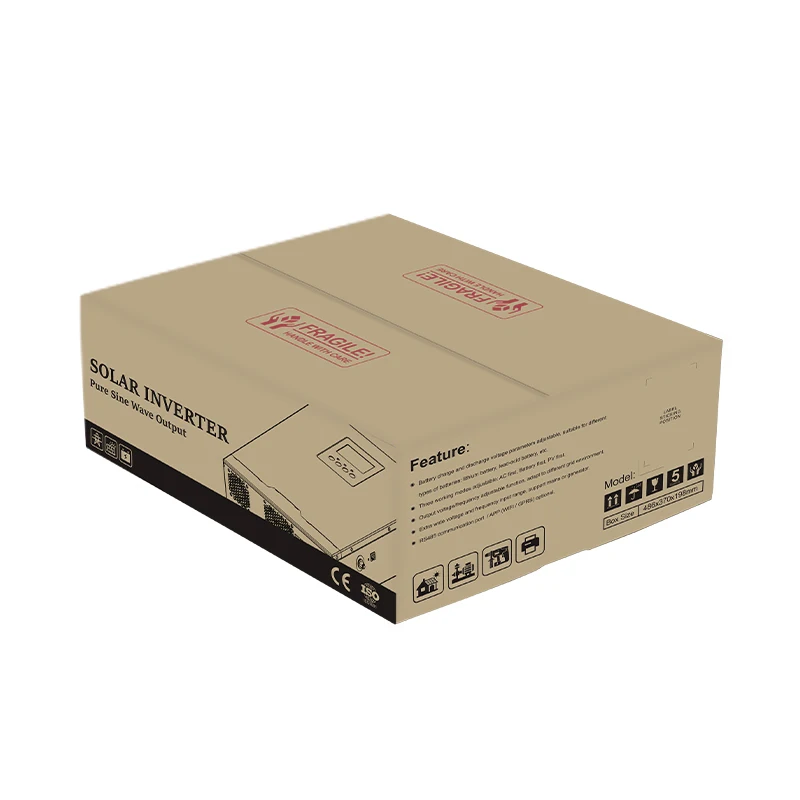

Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment | ||||
T/T | EXW | 30% T/T in advance, balance paid before dispatch | ||
FOB | ||||
CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |||
CIF | ||||
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||||
Company Profile
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar generator, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

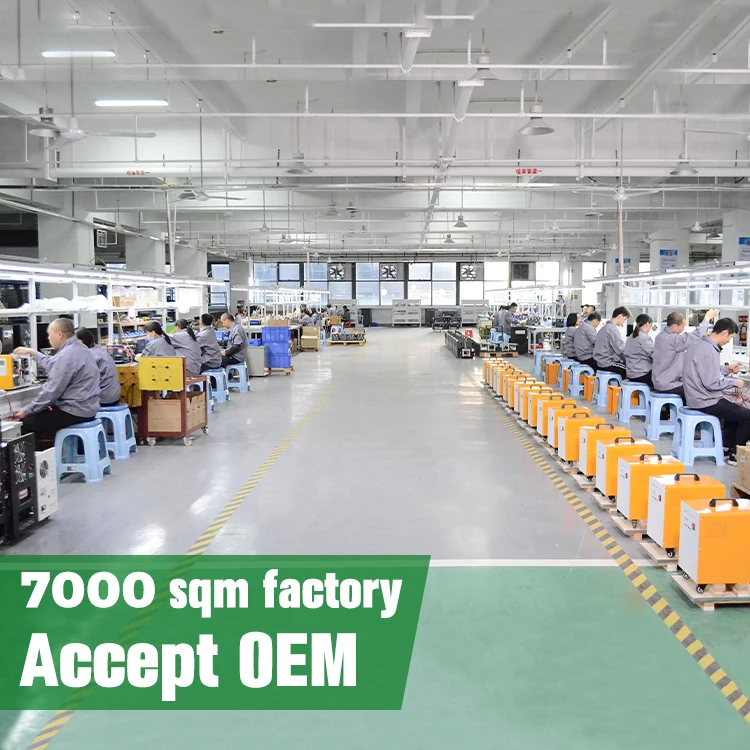

Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO 14001:2015, CE, IEC, etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
