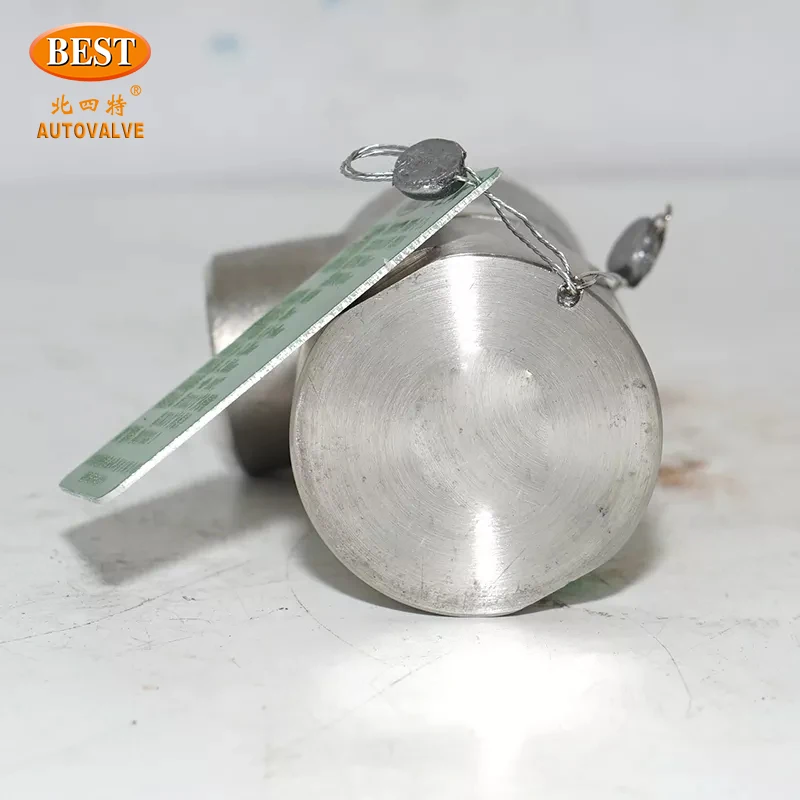

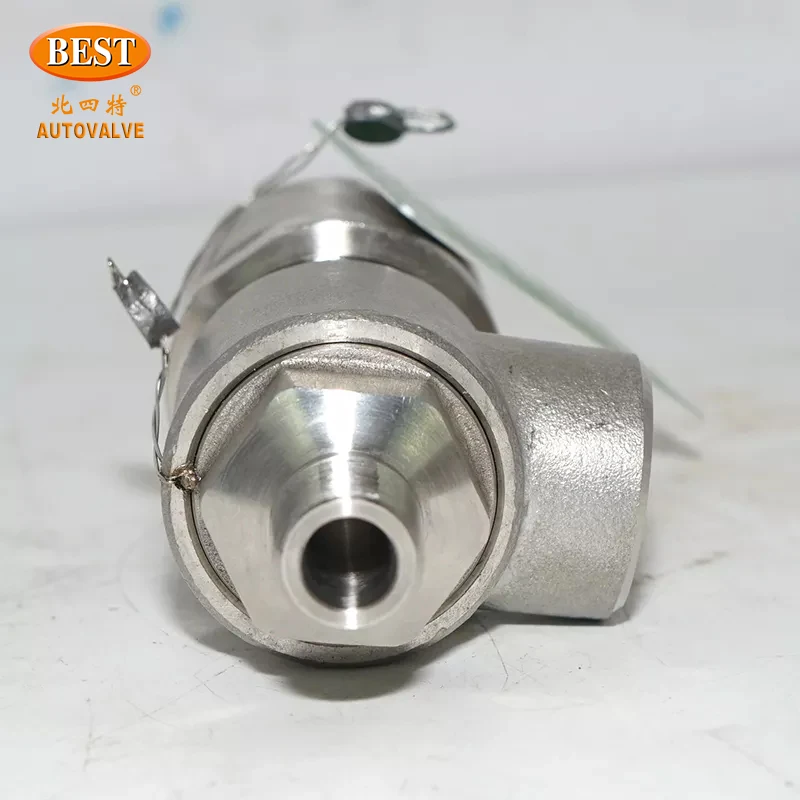

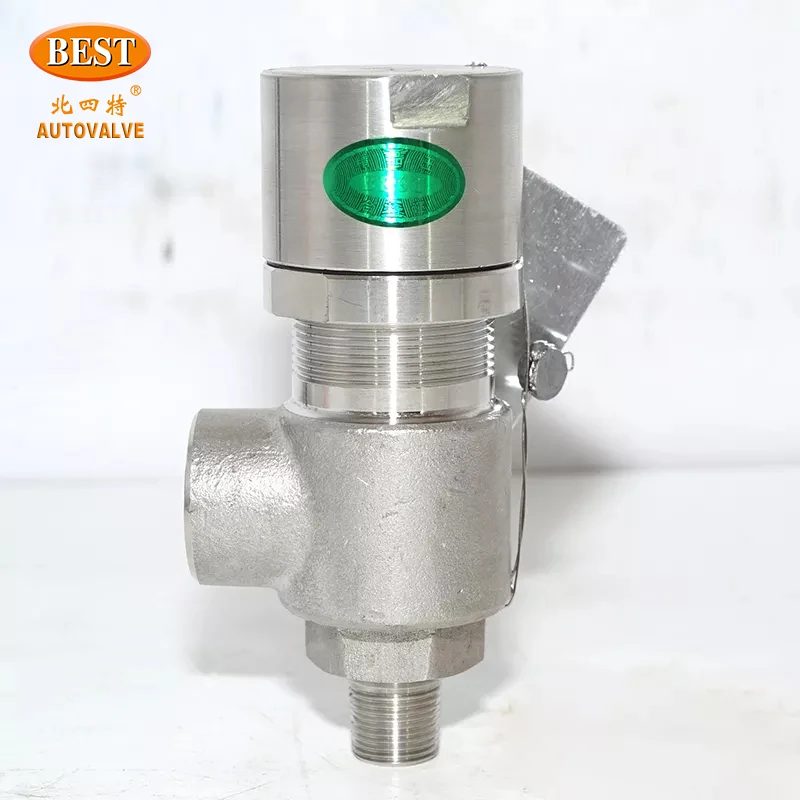

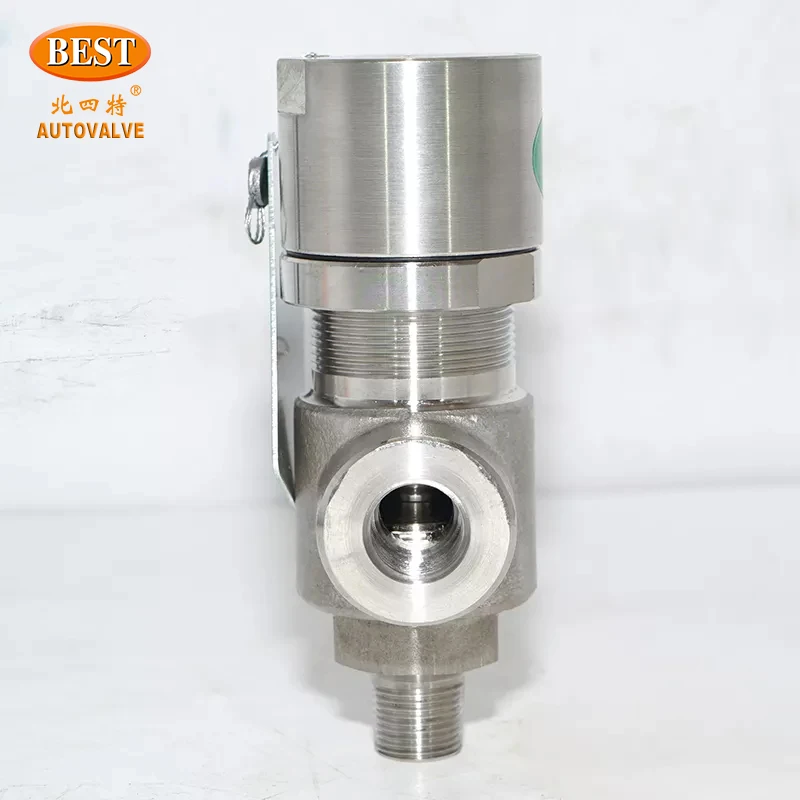

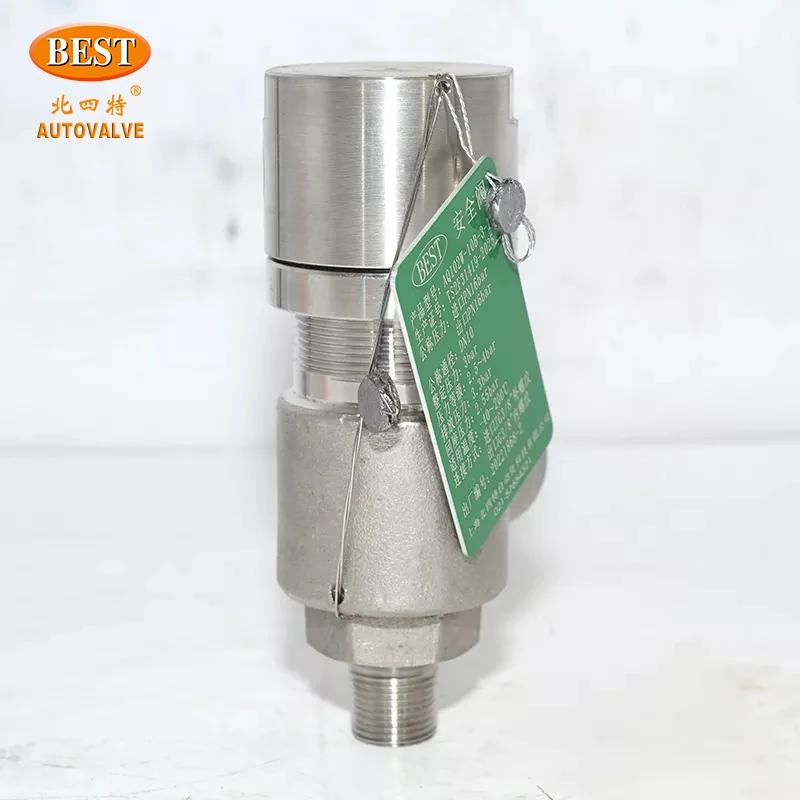

Клапаны сброса давления AQ102 B серии из нержавеющей стали высокого Пружинный Предохранительный клапан низкого подъема
- Категория: >>>
- Поставщик: Shanghai Best Automation Technology Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1600672864945:
Описание и отзывы
Характеристики
Other recommendations for your business
Product Overview
Manufacturer | Item | Size | Place of Origin |
BEST | safety valve | DN15~25 | Shanghai,China |
Key Specifications/Special Features:
01. Full closed, inlet is butt welding with joint, outlet is female thread(remove joint, inlet is metric male thread)
02. This series's inlet is normally ZG male thread without welding joint
03. Spring low lift type, valve disc value lift d0/40~d0/20(d0 is throat diameter)
04. Applicable temp.:carbon steel normally Ⅳa:-29~200℃, specially Ⅴa:-29~300℃, Ⅲa:-29~150℃,
stainless steel Ⅳb:-40~200℃, specially Ⅴb:-40~300℃, Ⅲb:-40~150℃
05. Applicable pressure:0.06~32MPa(see for more details on page 11 Safety Valve's Setting Pressure Level)
06. Setting pressure deviation:≤5bar ±0.15bar
＞5～23bar ±3%×setting pressure
＞23～40bar ±0.7bar
07. Return pressure:85～90%setting pressure
08. Must be installed vertically, otherwise valve spool will return to the seat abnormally
09. Valve body material:cast steelWCB(code:C), SS304(code:B), SS316(code:R), SS316L(code:L)
10. Valve disc sealing material: normally metal sealing---hard alloy(code:Y), alloy steel(code:H), body material(code:W),
specially soft sealing---PTFE(PTFE,code:P)
02. This series's inlet is normally ZG male thread without welding joint
03. Spring low lift type, valve disc value lift d0/40~d0/20(d0 is throat diameter)
04. Applicable temp.:carbon steel normally Ⅳa:-29~200℃, specially Ⅴa:-29~300℃, Ⅲa:-29~150℃,
stainless steel Ⅳb:-40~200℃, specially Ⅴb:-40~300℃, Ⅲb:-40~150℃
05. Applicable pressure:0.06~32MPa(see for more details on page 11 Safety Valve's Setting Pressure Level)
06. Setting pressure deviation:≤5bar ±0.15bar
＞5～23bar ±3%×setting pressure
＞23～40bar ±0.7bar
07. Return pressure:85～90%setting pressure
08. Must be installed vertically, otherwise valve spool will return to the seat abnormally
09. Valve body material:cast steelWCB(code:C), SS304(code:B), SS316(code:R), SS316L(code:L)
10. Valve disc sealing material: normally metal sealing---hard alloy(code:Y), alloy steel(code:H), body material(code:W),
specially soft sealing---PTFE(PTFE,code:P)
FEATURES AT A GLANCE
Products Description
Strong Core Factory
Company Profile
Company Introduction
Year of Incorporation: 2003
BEST’s Market: Overseas and domestic
BEST’s Sales Methods: ODM, OEM, through licensed agents
Research and Development Team: 15 Research and design specialists
Sales Network: More than 20 countries including the US, CanadaGermany, the UK, the Netherlands, Italy, Ukraine, Dubai, and Japan
Certificates: IS09001-2015 certified
Company Strength
With the concept of ‘be humane first; win the war by comprehensive strength’, BEST people put pioneered technology, elaborate crafts, product quality and customers' benefit first, and it develops during practice to be better, more professional and more economic!
Customer case
Our products are widely used in all walks of life and have been unanimously recognized by customers
World Expo 2010 Shanghai
High-speed rail application
Ship and warship application
Powder tanker/vehicle
New type fuel boiler
Textile machinery industry
Conveying equipment/automatic storage industry
Office automation industry
Medical chemical industry
Rubber machinery/machine tool industry
Solar industry
Other equipment manufacturing industries
Honors and Qualifications
In 2020, our company was rated as one of the top ten honest enterprises by the government
CE Certificate
CE Certificate
CE Certificate
Business License
Certificate of Honor
Trademark Registration Certificate
Certification of ISO9001
Quality Management System
Quality Management System
Production License of Special
Equipment for Safety Valve
Equipment for Safety Valve
Production License of Special
Equipment for Ordinary Valve
Equipment for Ordinary Valve
FAQ
• Standard payment terms:pay50% deposit in advance. 50% balance before shipment.
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
We are manufacturer, we have produced valves for more than 20 years. So we have competitive price. OEM ODM OBM are optional.
2. What's your payment terms?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3. What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece. We also can provide the samples.
4. What about the delivery time?
Sample needs about 3 working days, for large order, delivery time will be according to your quantity.
5. Would you have a discount if l have a large order?
A:Yes. We could offer different discount according to your order quantity.
6. Where is the factory located?
Welcome to visit our factory in Shanghai.
Contact:
SHANGHAI BEST AUTOMATION TECHNOLOGY Co.,Ltd.
Address:8th Floor, Oriental Auto Parts City 3rd New Office Building, No.35, Dingbian Road, Jiading District, Shanghai, China
Email :pollyanna(at)bestautovalve.com / sale01(at)bestautovalve.com Pollyanna
Address:8th Floor, Oriental Auto Parts City 3rd New Office Building, No.35, Dingbian Road, Jiading District, Shanghai, China
Email :pollyanna(at)bestautovalve.com / sale01(at)bestautovalve.com Pollyanna
Похожие товары
Заводской клапан AB712 из углеродистой стали пружинный низкий подъем DN15 DN20 DN25 DN50 водяной паровой воздушный резьбовой рычаг предохранительный сброса давления
905,01-1 018,14 ₽
Клапан сброса давления воздуха высококачественный предохранительный клапан
9 694,87-11 369,13 ₽
Заводская цена криогенный предохранительный клапан DA-10A1 предохранительных клапанов регулируемый сброса давления
5 882,54-6 108,79 ₽

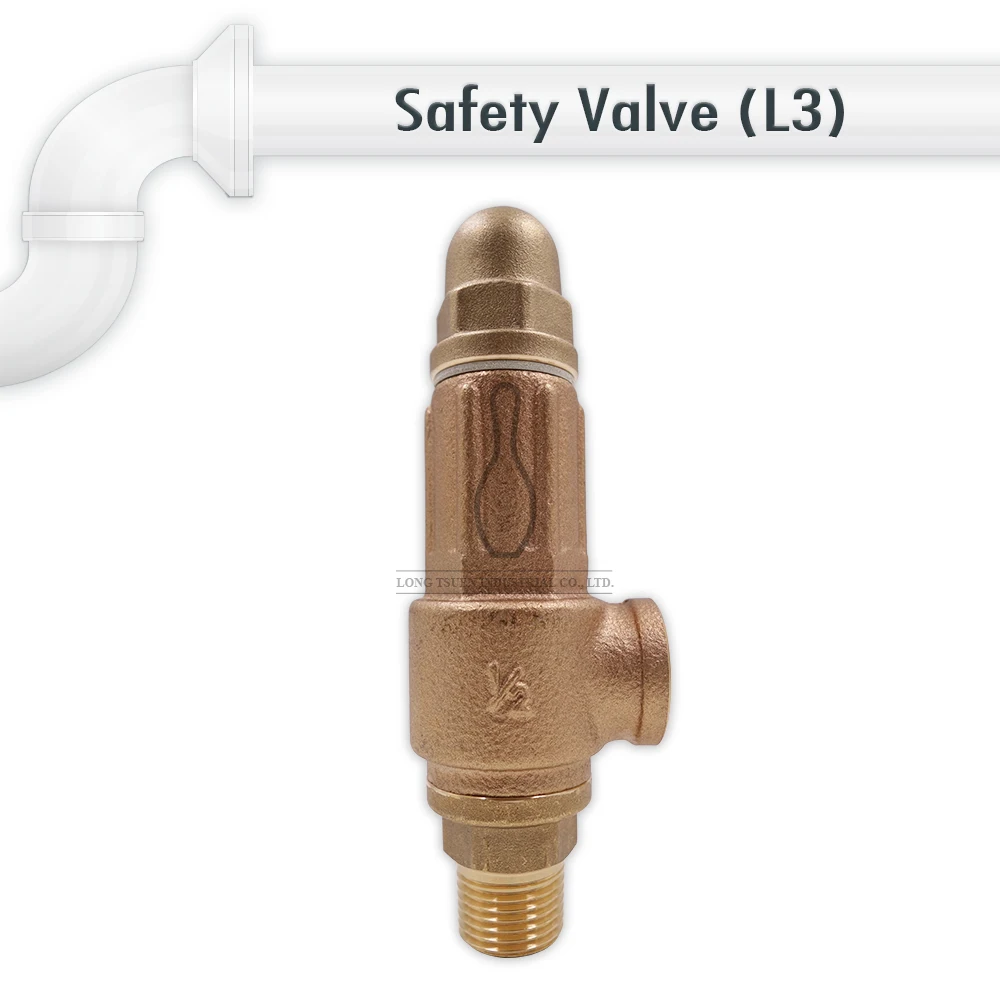

Сброс давления Модель уплотнение низкий подъем с Без Рычага бронзовые предохранительные клапаны
Предохранительный клапан высокого давления DN50 200 мм предохранительный
214,94-237,57 ₽

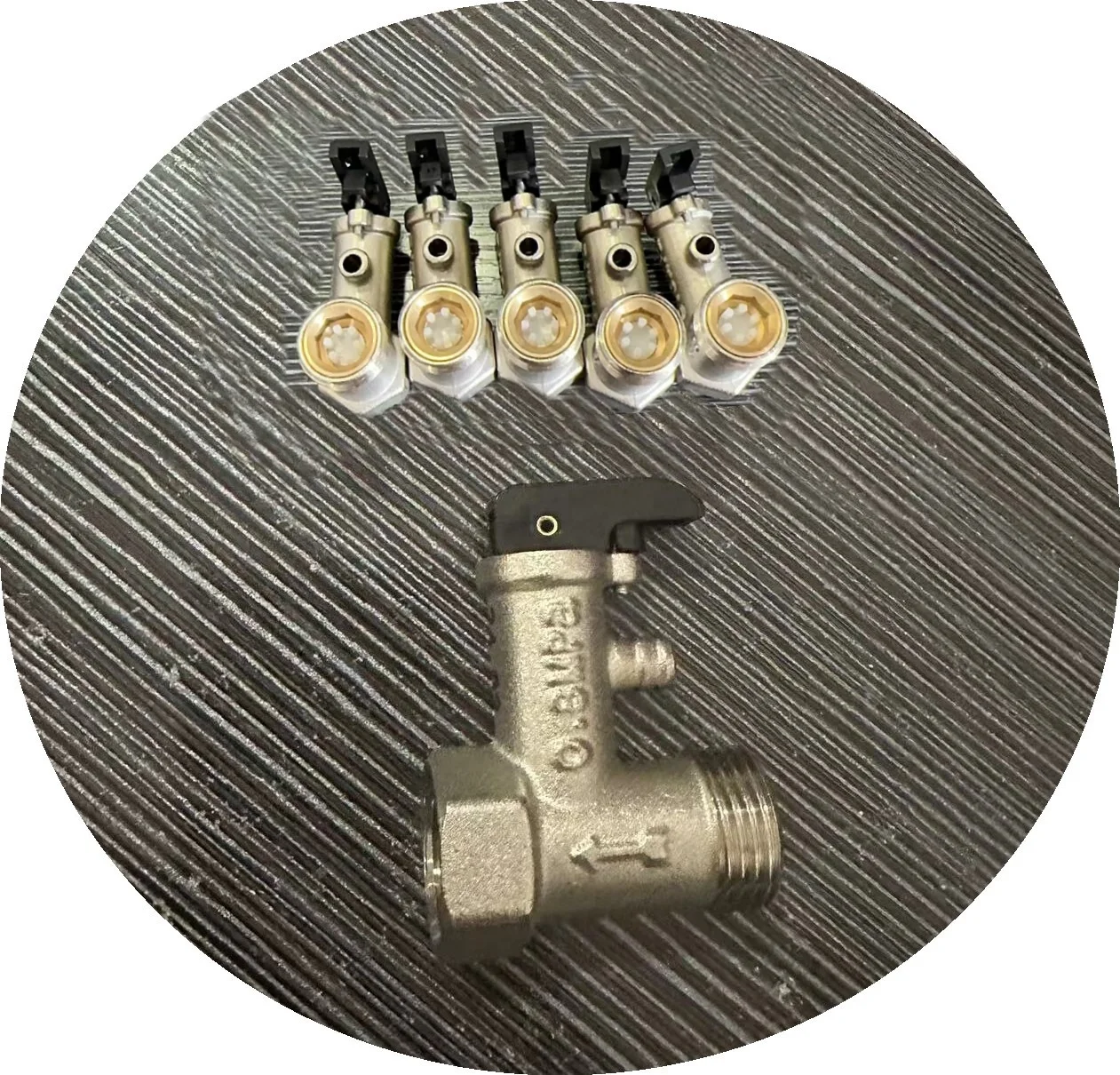

Температурный предохранительный клапан для водонагревателей
90,51-113,13 ₽

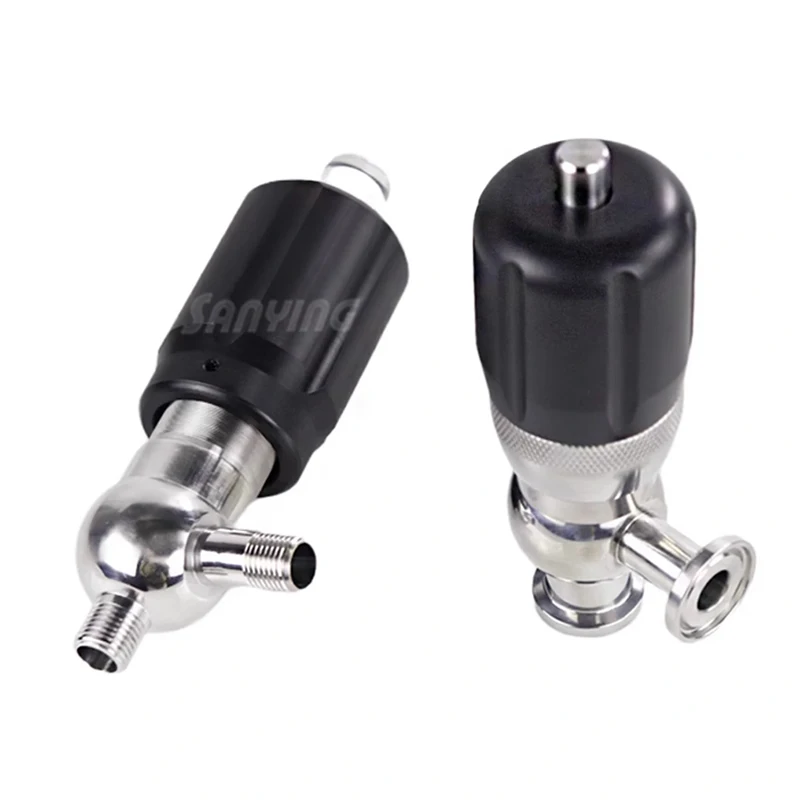

Нержавеющая сталь мини-тип сброса давления санитарный Пружинный Предохранительный Клапан небольшой с зажимным концом
