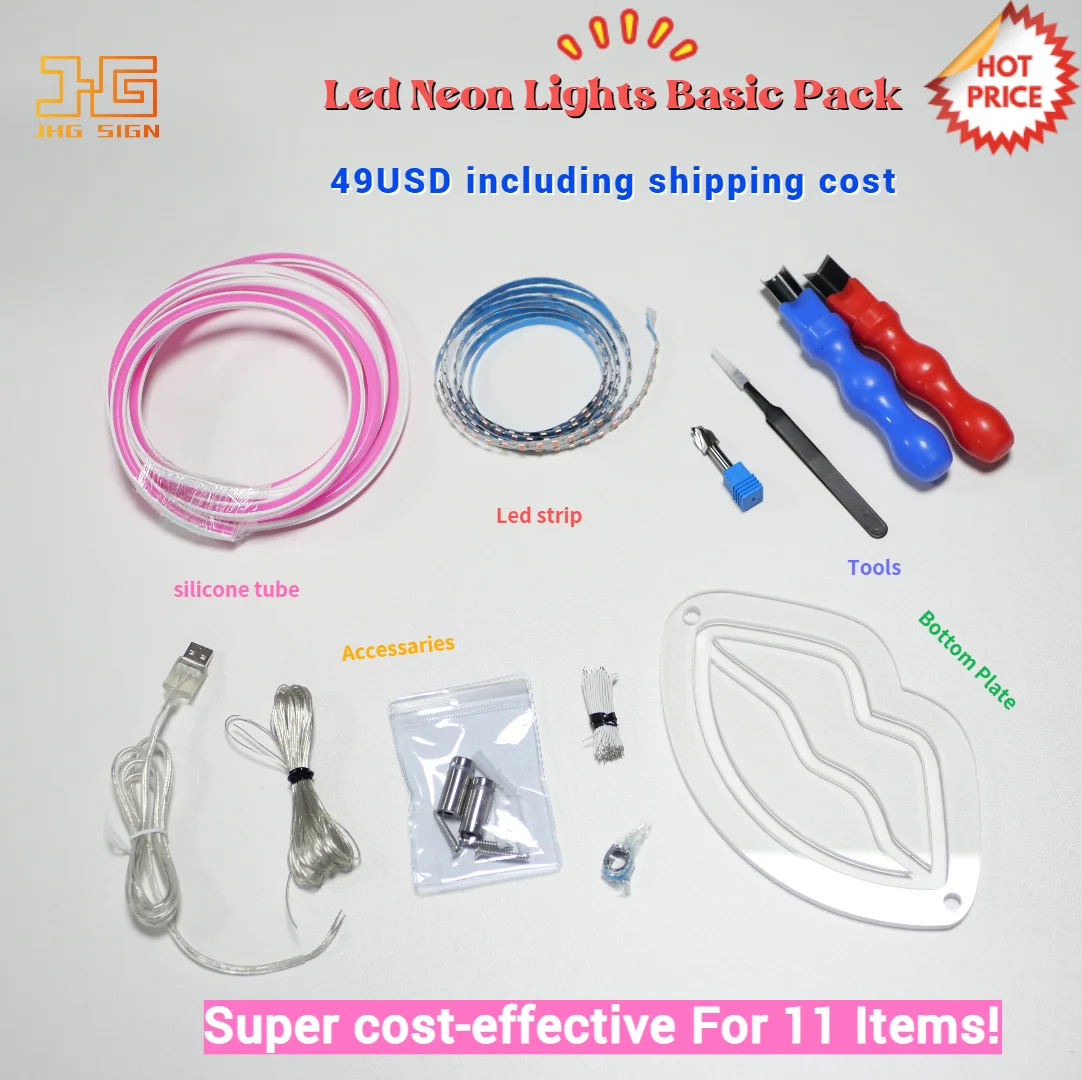

Basic kit
Have you ever met following issues when making led neon signs?
No perfect connections
The interface doesn't look perfect because of the limitations of the wires and the need for glue to hold it together End caps needed
Each independent part of the flex tube needs to stick on the end cap,otherwise the light leakage will affect the overall effect.
Cutting length limit
The strips have a 1cm or 2.5cm cut limit.It is not easy to make complicated or small size of designs.And the carving files.
Now we have 2nd generation solution for led neon sign making!
Which can let you make neon sign easily.
Step 1-Acrylic carving
Carving acrylic backboard with our milling cutter
Carving depth 4.2mm for over 5mm acrylic;
Carving depth 5.8mm for over 7mm acrylic;
Step 2-Lay led strips
Colored led strips with colored silicone tubes;
Colored led strips with white silicone tubes;
Both can work
Step 3-Connection wires
Ensure that the solder joints are round and have no spurs, and blow out foreign objects on the PCB board to avoid the risk of short circuits;
Step 4-install silicone tubes
Cut silicone tubes with our hand tools;
Silicone tubes can be locked into acrylic without any glue process；
Step 5-Neon sign Aging
Aging time： 12-24 hours；
When aging, check whether the led strip has dark spots, and leave all problems in the factory to solve;
Step 6-install neon sign
Common installation methods are hoisting and wall installation. For outdoor use, you need to add a waterproof process;
Products Description

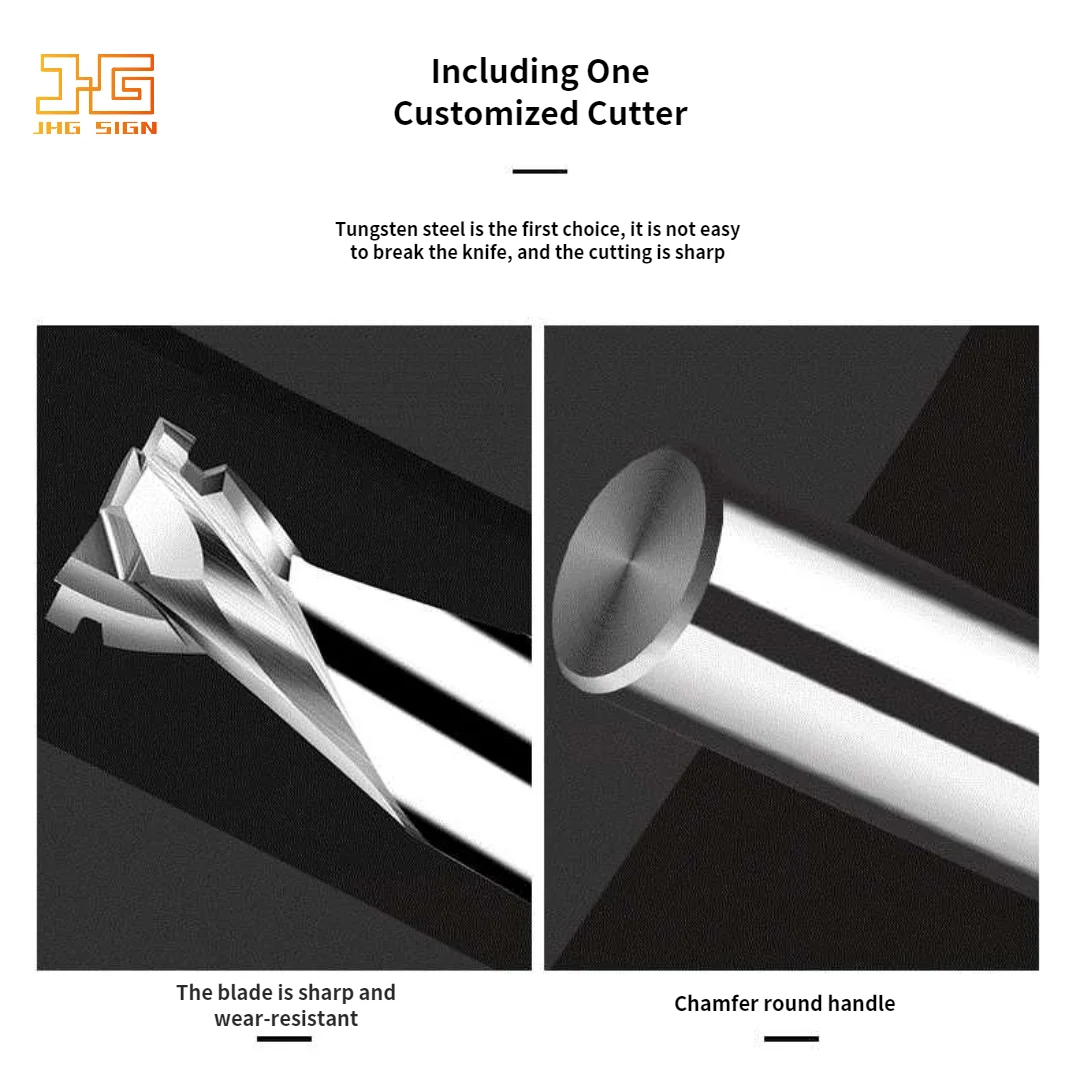

Milling Cutter
Size | Applicable silicone tubes size | Shank Diameter | Carving depth | Applicable acrylic thickness |
6*4.2mm | 6mm tubes | 6mm/10mm | 4.2mm | 5mm |
6*5.8mm | 6mm tubes | 6mm/10mm | 5.8mm | 7mm |
8*4.2mm | 8mm tubes | 6mm/10mm | 4.2mm | 5mm |
8*5.8mm | 8mm tubes | 6mm/10mm | 5.8mm | 7mm |
12*5.8mm | 12mm tubes | 6mm/10mm | 5.8mm | 5mm |
led strips
Voltage | DC 12V | DC 5V | DC 24V |
Package | 10m/roll | 10m/roll | 10m/roll |
Led quantity | 120 led/M | 120 led/M | 120 led/M |
Cut length | 2.5cm/1cm | 2.5cm | 5cm |
Power | 8W/M | 8W/M | 8W/M |
PCB width | 6.7mm | 6.7mm | 6.7mm |
Color | 14 types | 14 types | 9 types |
Waterproof glue
Accessary
Remote dimmer
Wall mounted sapcers
Hanging accessaries
Manual dimmer
DC connector
Power supply
Why Choose Us
We have own two production lines of silicone tube extrusion and two LED strips, with a daily supply of 30,000 meters. we only focus on the 2nd generation of neon material production research and development, better service more professional.
Led neon production department
In addition to silicone tube extrusion and LED strip production lines, we also have a production department for finished neon lights. We are familiar with everything from the carving files, engraving, laying led strips, install silicone tube and final products.
That's why we can solve the problems from clients.
Because the focus so professional.
Drop shipping support
FAQ
1.How efficient are the workers in this new process?
install silicone tubes: 200-300meters/day/worker
lay led strips: 100meters/day/worker
2. What kind of backboard do you use mostly? and which thickness?
matt black 17mm forex board/5-8mm acrylic/ 7mm Polystyrene which is lower cost than acrylic.
3. How do you make outdoor neon signs?
We pour liquid AB glue into the grooves, then install silicone tubes right away. After 6-8 hours, it will be curing. We have
detailed videos which can be shared.
4. Why it doesn't need glue?
We need to carve the backboard with customized milling cutter,
then the buckle on the silicone tube is perfectly stuck with the carving groove,so glue is not needed.
5. I'm a beginner, do you have technical support?
Never worry about this point, we provide process teaching from making files to finished product!
install silicone tubes: 200-300meters/day/worker
lay led strips: 100meters/day/worker
2. What kind of backboard do you use mostly? and which thickness?
matt black 17mm forex board/5-8mm acrylic/ 7mm Polystyrene which is lower cost than acrylic.
3. How do you make outdoor neon signs?
We pour liquid AB glue into the grooves, then install silicone tubes right away. After 6-8 hours, it will be curing. We have
detailed videos which can be shared.
4. Why it doesn't need glue?
We need to carve the backboard with customized milling cutter,
then the buckle on the silicone tube is perfectly stuck with the carving groove,so glue is not needed.
5. I'm a beginner, do you have technical support?
Never worry about this point, we provide process teaching from making files to finished product!
