Jntech 2 дюйма Dc погружной водяной насос на солнечной батарее для сельскохозяйственной ирригации 0.4HP
- Категория: >>>
- Поставщик: Jntech Renewable Energy Co. Ltd.Jntech Ltd.
Сохранить в закладки 1600674899682:
Описание и отзывы
Характеристики
Product Description

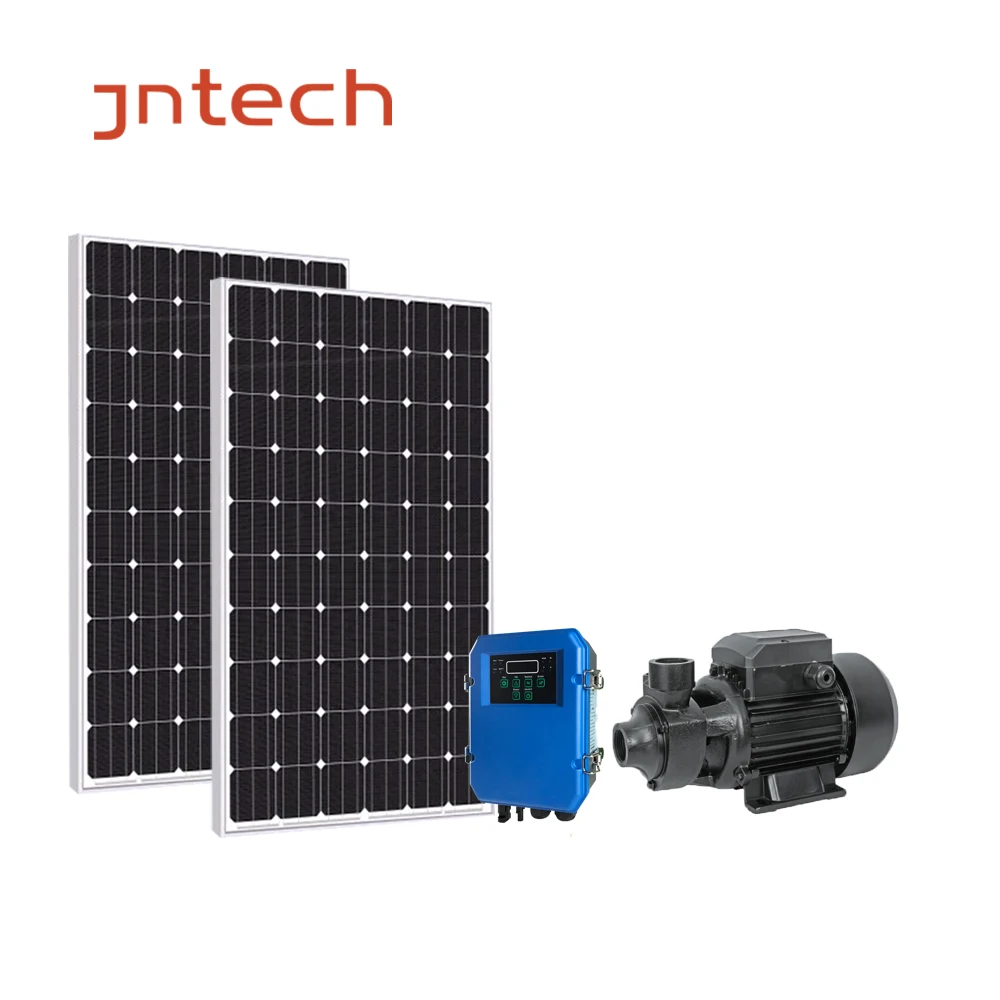

JNTECH 0.3kw solar pump system 0.4 hp domestic solar pump system
Jntech solar pump system consists solar panels, MPPT solar pump inverter, AC pump, and water storage device. Jntech solar pump system covers any AC pumps from 370w to 132kw, mainly application for agricultural irrigation, village water supply, desert control, animal drinks, water treatment and so on.
Main Equipment Details
Solar Panel | ||
PV Module Type | Poly Crystalline | |
PV Module Number | RSM72-6-330P | |
Max. Power at STC (Pmax) | 330 W | |
Short Circuit Current（Isc） | 9.25A | |
Open Circuit Voltage（Voc） | 38.1V | |
Max. Power Current (Impp) | 8.7A | |
Max. Power Voltage（Vmpp） | 38.1V | |
Module Efficiency | 17.1% | |
Power Tolerence | 0 ~ + 3W | |
STC: 1000W/m2 irridiance, 25℃ cell temperature, AM=1.5 | ||
Solar Mounting Structure
The modules support structure is mild steel,
hot dipped galvanized.
It is of adequate strength and appropriate
design, which can withstand load of modules
and high wind velocities up to 150 km/h.
All nuts and bolts are made of very good
quality and are corrosion resistant.
Structure is easy replacement of any module. Fabricated can be grouted,rooftop, carpacking
style.
hot dipped galvanized.
It is of adequate strength and appropriate
design, which can withstand load of modules
and high wind velocities up to 150 km/h.
All nuts and bolts are made of very good
quality and are corrosion resistant.
Structure is easy replacement of any module. Fabricated can be grouted,rooftop, carpacking
style.

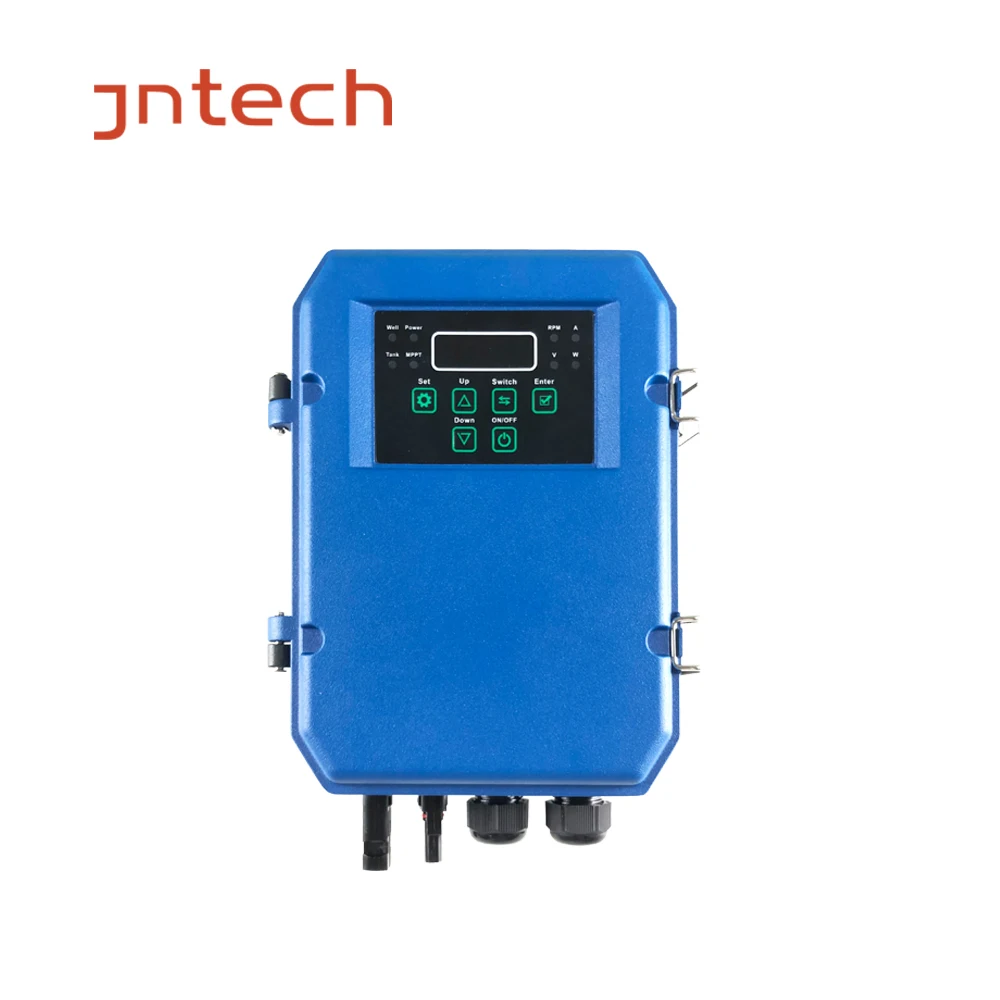

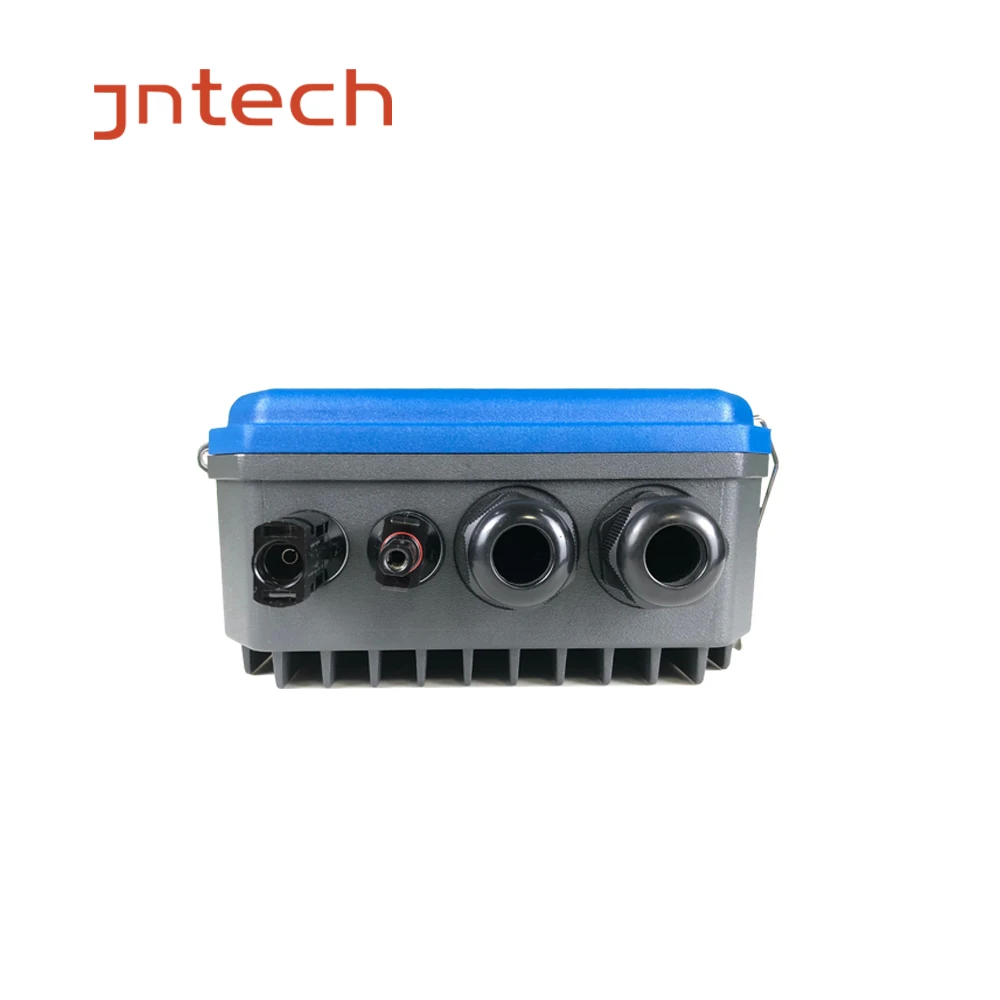

Solar Pump Inverter | ||
Power Capacity | 300W | |
Voltage | 24V | |
Optimum input voltage(DC) | 30V-48V | |
Max.Flow | 1.7m3/h | |
Max.Head | 45m | |
Outlet | 0.75" | |
Certificate | TUV, CE | |
Environment temperature | -25℃-+60℃ | |
Automatic start and shut off according to solar intensity. No need manual operation once started.
Soft start controlling in rush current, to avoid motor burning.
IP65 design for outdoor application. Against raining, dust.
No need derate the power capacity for pump matching. The matching power with pump is 1:1.
Protection:
Dry protection to protect motor
overflow protection
short circuit protection
reverse polarity protection
under-voltage, weak sunshine, over-current, over-load, shortage-phase output Protection.
Password can be set before going into parameters setting interface, in case non-professional wrong operation;
Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
PV Cable
Item:PV1-F 1×4mm2
Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage 1000VDC
Maximum operating current 8A
Environment: -40℃~+120℃
Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage 1000VDC
Maximum operating current 8A
Environment: -40℃~+120℃
AC Cable
Model: JHS Waterproof
No. of cores: 4 cores
Rated power-frequency voltage: 300/500V
No. of cores*sectional area: 3*35mm2+1*6mm
Insulation thickness(mm)\t1.0+1.0
Sheath thickness(mm)\t2.0
admissible operating temperature of the conductor:-20~+65℃
No. of cores: 4 cores
Rated power-frequency voltage: 300/500V
No. of cores*sectional area: 3*35mm2+1*6mm
Insulation thickness(mm)\t1.0+1.0
Sheath thickness(mm)\t2.0
admissible operating temperature of the conductor:-20~+65℃
By sea | Delivery from Shanghai or Ningbo or Nanjing seaport |
By air | Departure from Shanghai Pudong Airport |
By express | By TNT/DHL/FedEx |
Recommend Products
Projects
Company Introduction

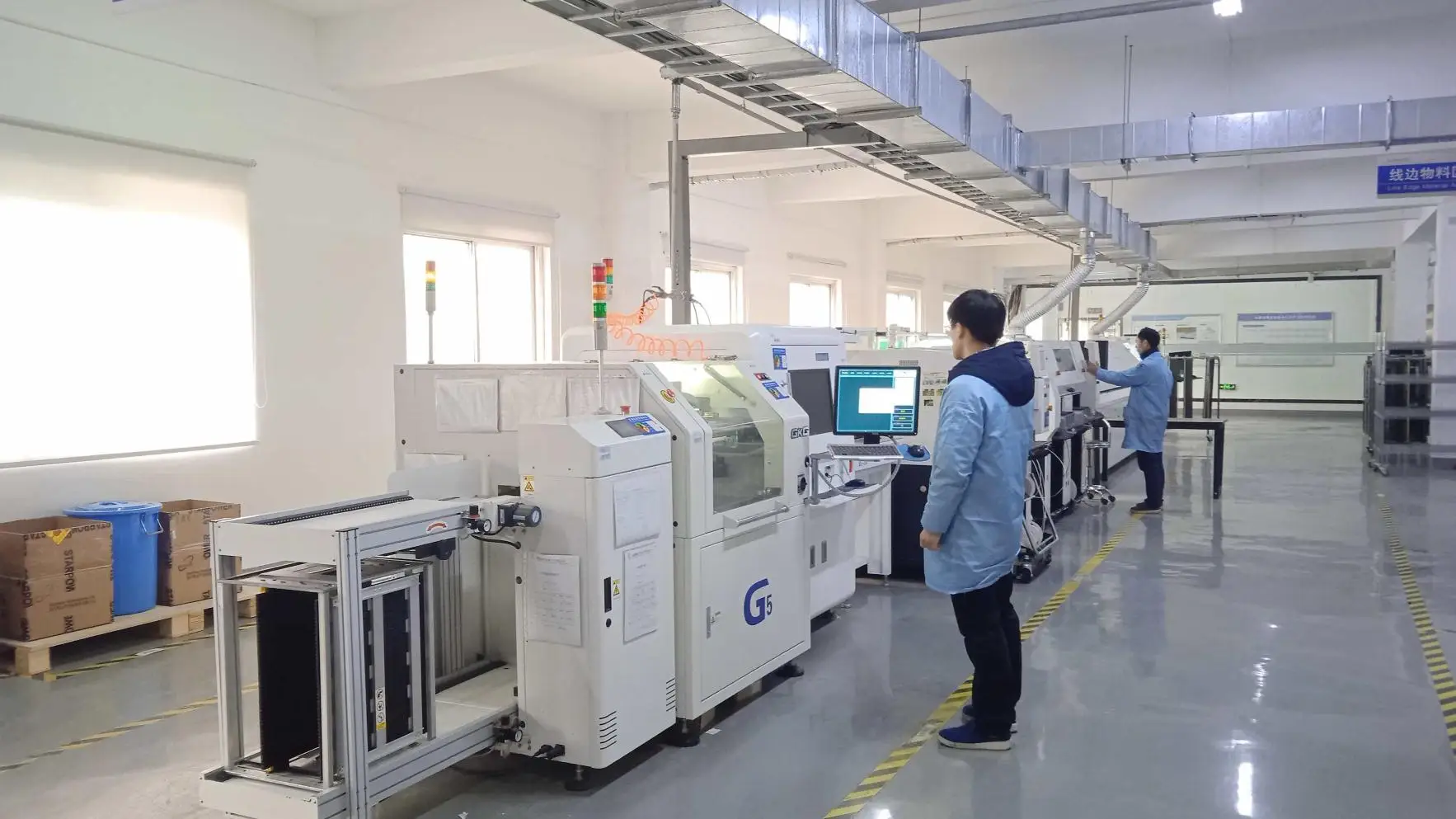

JNTECH set up in 2006, is a high-tech enterprise in Hefei, China, which integrate intelligent power electronics products’ R&D, manufacture, sales and service, focus on manufacture of solar pump inverter, solar off-grid inverter relative solar products. All our products have passed CE and TUV certifications. Jntech solar pump system and off grid system are used in more than 50 countries in the world, especially in UNDP, UNHCR, UNICEF,OCHA, ICRC, NGO projects in Asia, Middle East, and African countires.
Jntech Service
Technical and Requirement Communication Before Sales
Engineers Training in Customer's Office or Jntech Factory
Chinese Engineer or Local Agent Engineer Technical Support At Site
JNTECH Certifications
ISO9001, IS014001, OHSAS18001,TUV,CE,AAA credit management system,Third level qualification of power project construction, National high-tech enterprises
JNTECH in the world
Jntech has left footprints in more than 60 countries in the world .Jntech make the world greener, we focus on supply green energy and clean water to all of the world.
Contact
Похожие товары
Kamoer 12 В DC ирригационная машина автоматическая сроки интеллектуальные системы полива
Садовый полив орошения спринклер висит вверх ногами сопла
0,22-0,30 $

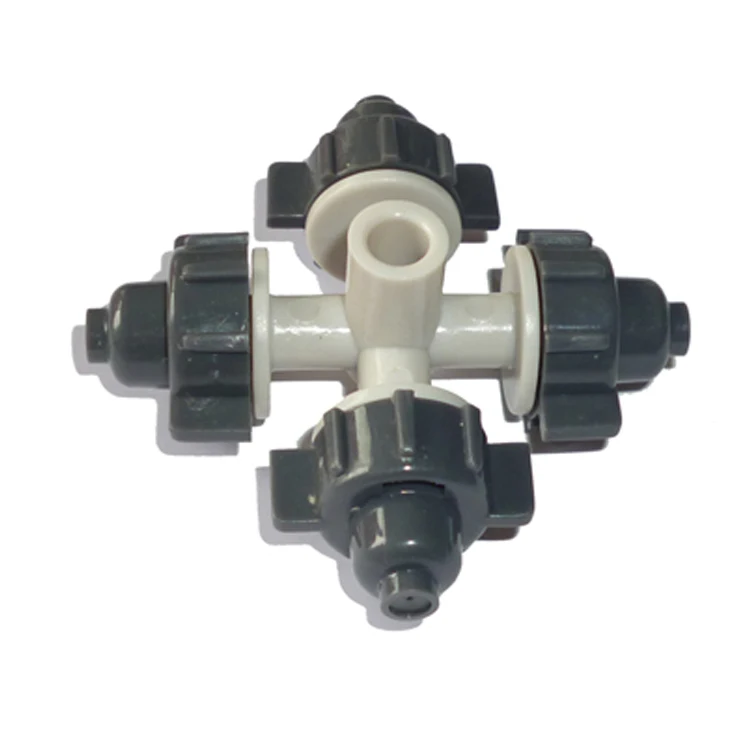

4 способа опрыскивателя
Простой в подключении пластиковый парниковый распылитель оросительная система мини-спринклер Набор садовых спринклеров для ирригационных систем
2,10-2,30 $
Заводская арматура

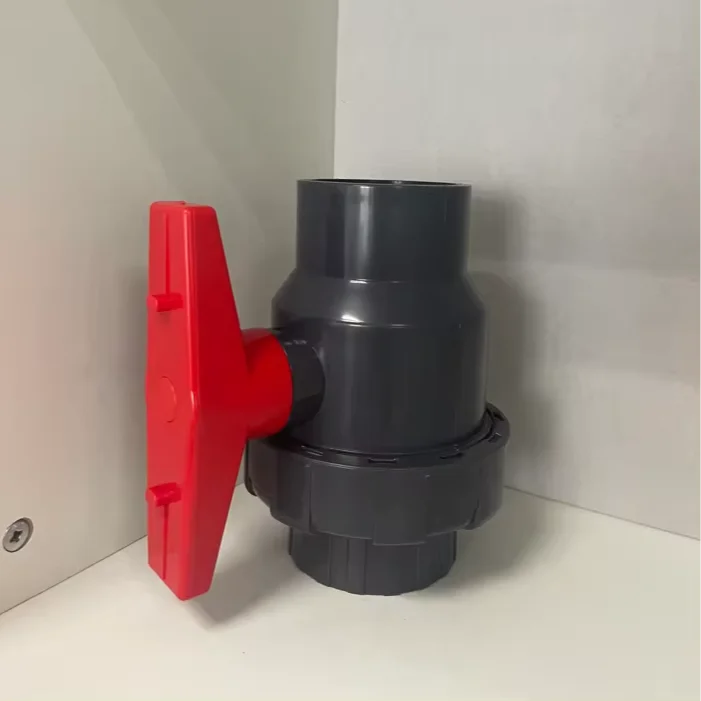

Полевой ирригационный внутренний и внешний винтовой шаровой клапан Фитинги Соединительный
