Большой запас NK25/20 твердое масло наружное кольцо игольчатые роликовые
1,80 $ - 2,00 $

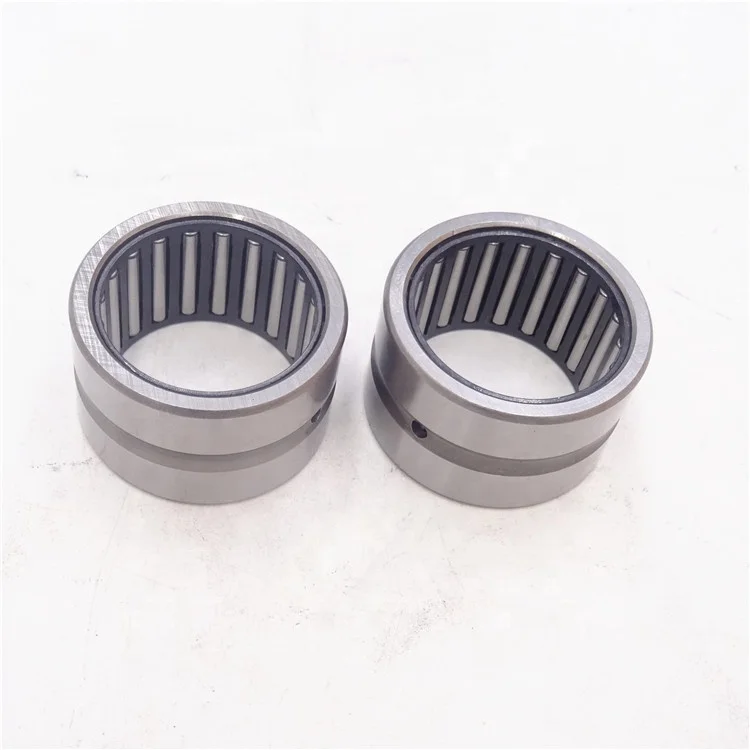

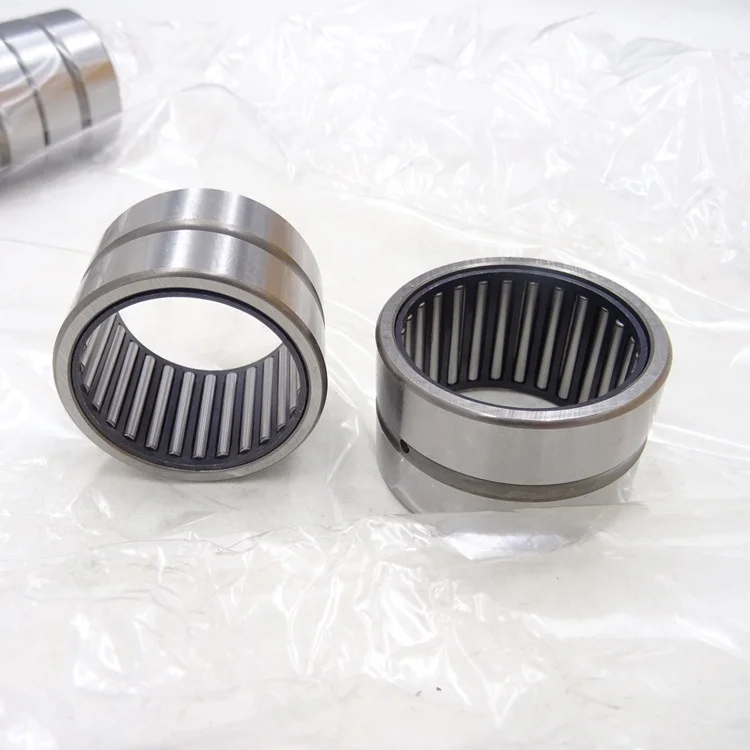

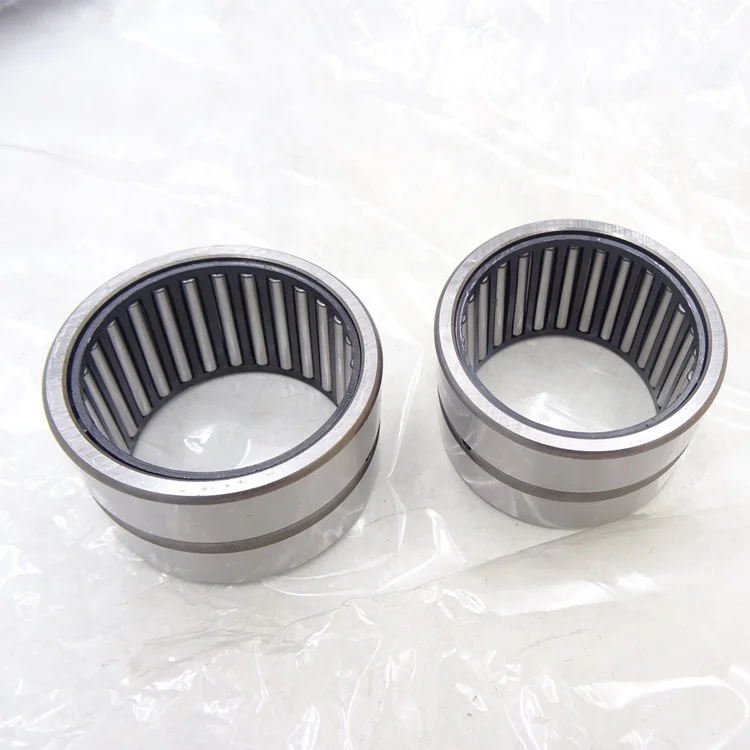

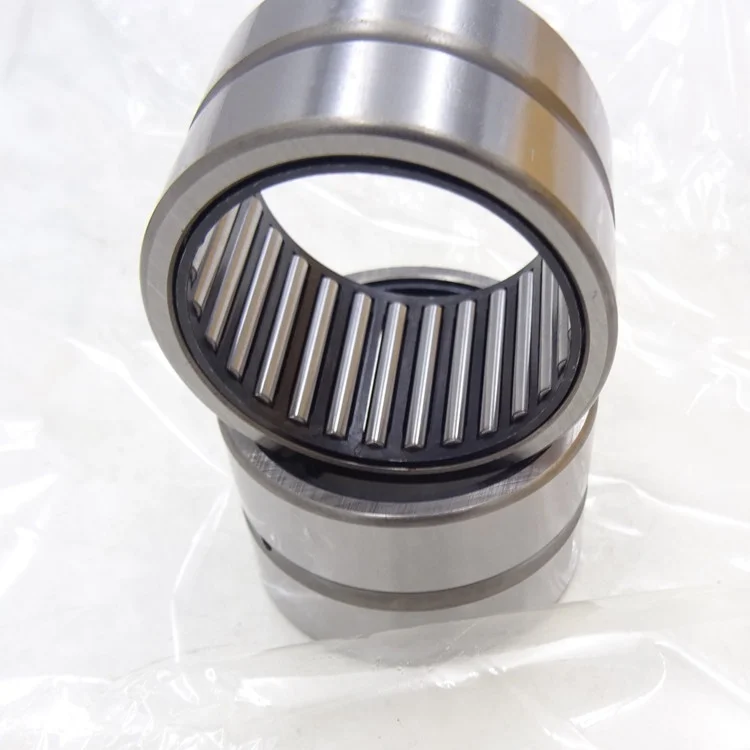

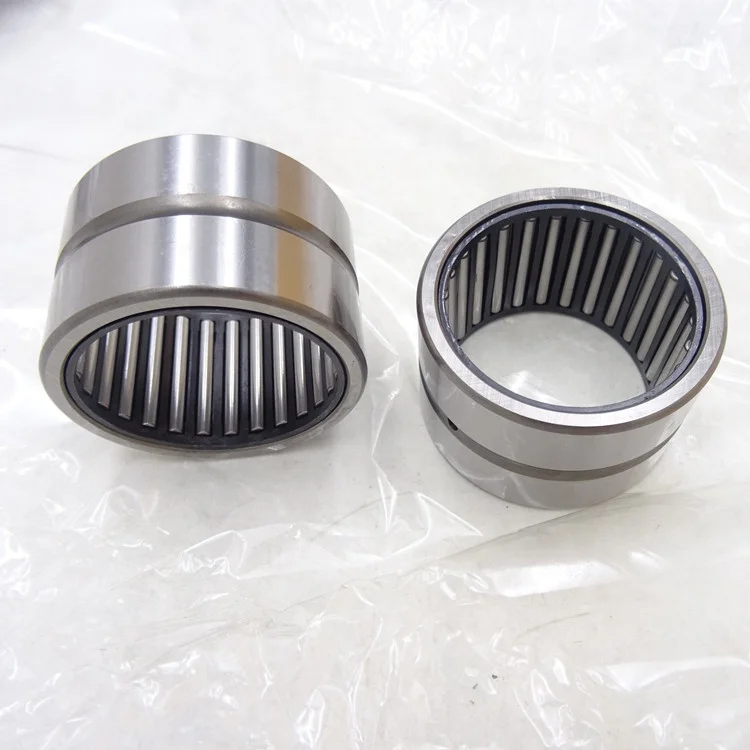

Игольчатый роликовый подшипник без внутреннего кольца размер 37x47x30 мм
- Категория: Needle Bearings >>>
- Поставщик: Jinan Maolei Bearing Co. Ltd.
Сохранить в закладки 1600675077166:
Описание и отзывы
Характеристики
Packing & Delivery
Before your order online, contact me for more discount please!
Packaging Details A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle
Delivery Time Shipped in 2 days after payment
Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and needle roller assembly featuring small section height,big load capacity & rigidity,compact structure and small size,high rotating accuracy with the structure of disposed inner ring.
Needle roller bearing is characterized by multiple structures,broad adaptability and easy installation.It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry andetc. Various machinery equipment. With this kind of bearing,machine design can realize the goal of small-scale & light weight.
This kind of bearing has multiple structural styles for the choice of customers,such as narrow & broad series,with or without inner rings,cages,rib or sealings. It can be designed according to the special structural requirements of customers as well.
Dimensional tolerance and geometrical accuracy is based on GB/T5801. Mutual difference of needle roller diameter is 2 um,and the precision grade is class G2(ISO GB/T309) The diameter of inscribed circle conforms to tolerance grade F6 before the fitting of outer ring with cage and roller assembly. Bearing radial running clearance conforms to the value defined by class 0 group of GB/T4604 Special precision grade in based on GB/T307.1 For fuller information on the special requirement of bearing running clearance, inscribed circle and precision grade,please contact our company.
Material for needle roller is GCr15 bearing steel,quench-hardening HRC60-65
Material for inner and outer rings is GCr15 bearing steel,quench-hardening HRC60-65
Material for cages is quality low-carbon steel or reinforced nylon.
Bearing running clearance and inner-cutting roundness should be regulated according to different conditions.
Machine tolls should be used for press-in fitting or thermal fitting when install the bearing.
Limited by plastic cages(suffixed with TN) and sealing-element material ,operating temperature
is -30℃--+100℃
For general-disposition design of bearings,refer to the relevant recommendation in the applied
technology of roller bearings.
Type | Needle Roller Bearing Ring |
Model | TAF374730 |
Size | 37 x 47 x 30 mm |
Weight | 0.116 KG/PCS |
Service | OEM and Customized Marking |
Marking | Laser / Mechanical / Electrical corrosion |
Clearance | C0, C3,C4 |
Accuracy | P0 , P6 , P5 , P4 |
| Shaft dia. mm | Part No. | Fw/mm | D/mm | C/mm | Mass/g |
| 32 | TAF 324220 | 32 | 42 | 20 | 68 |
| TAF 324230 | 42 | 30 | 102 | ||
| RNA 49/28 | 45 | 17 | 76.5 | ||
| RNA 69/28 | 45 | 30 | 133 | ||
| 35 | GTR 324530 | 35 | 45 | 30 | 152 |
| TAF 354520 | 45 | 20 | 73.5 | ||
| TAF 354530 | 45 | 30 | 112 | ||
| RNA 4906 | 47 | 17 | 72.5 | ||
| RNA 6906 | 47 | 30 | 125 | ||
| TR 354830 | 48 | 30 | 139 | ||
| GTR 354830 | 48 | 30 | 163 | ||
| 37 | TAF 374720 | 37 | 47 | 20 | 77.5 |
| TAF 374730 | 47 | 30 | 117 | ||
| 38 | TAF 384820 | 38 | 48 | 20 | 79 |
| TAF 384830 | 48 | 30 | 119 | ||
| TR 385230 | 52 | 30 | 168 | ||
| GTR 385230 | 52 | 30 | 195 | ||
| 40 | TAF 405020 | 40 | 50 | 20 | 83 |
| TAF 405030 | 50 | 30 | 125 | ||
| RNA 49/32 | 52 | 20 | 96 | ||
| RNA 69/32 | 52 | 36 | 172 | ||
| TR 405520 | 55 | 20 | 129 | ||
| GTR 405520 | 55 | 20 | 144 |
Jinan Maolei Bearing Co., Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.
The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.
We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.
Package: A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Payment Term: A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union
Our Services
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
FAQ
Q: Are you trading company or manufacturer ?
A: We are the manufacture of bearings for more than 20 years, "Quality is our culture
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q: What is your terms of payment ?
A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union.
D.Paypal.
Any questions, please don't hesitate to contact us!
Welcome your inquiry!
Похожие товары
Игольчатый роликовый подшипник 48R5420-1 в сборе 48x54x20
0,80 $ - 2,00 $

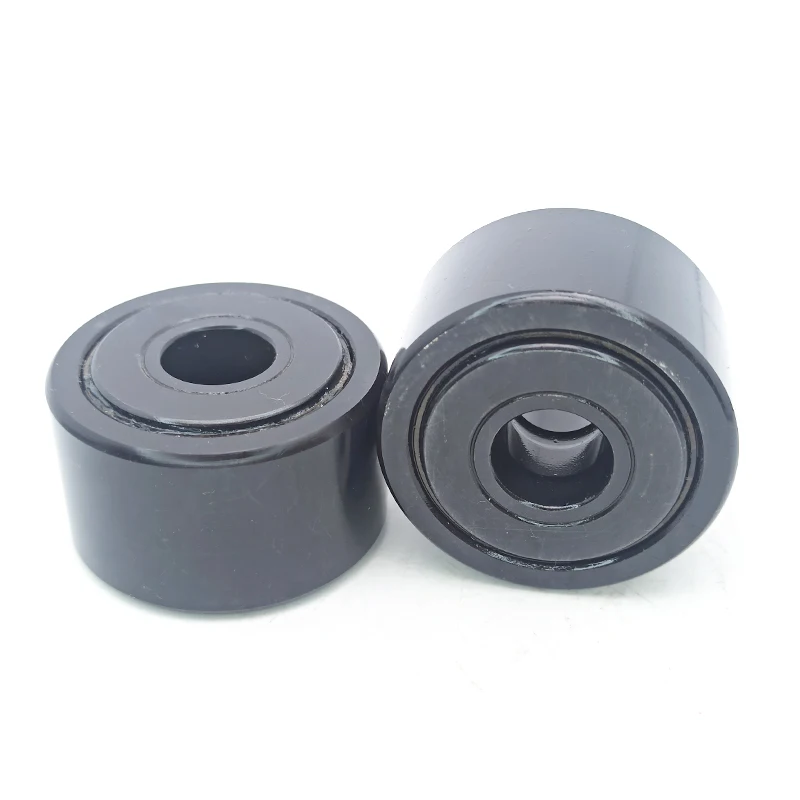

Дюймовый ролик игольчатые подшипники толкателя клапана YCRS-12 YCRS-14 YCRS-16 YCRS-18 YCRS-20 YCRS-22 YCRS-24 YCRS-26 YCRS-28 YCRS-30
2,50 $ - 3,20 $

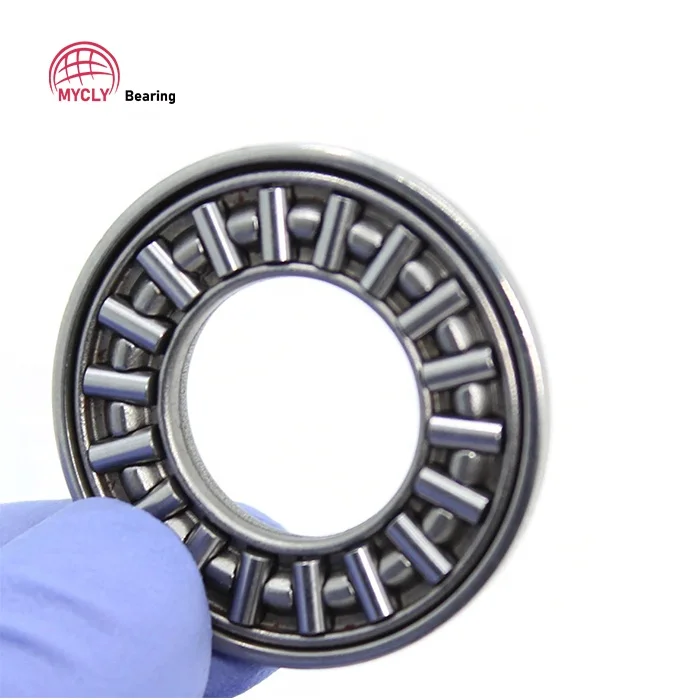

23x33x3,2 мм AXW17 продажа Осевой Упорный игольчатый роликовый подшипник AXW17 подшипники

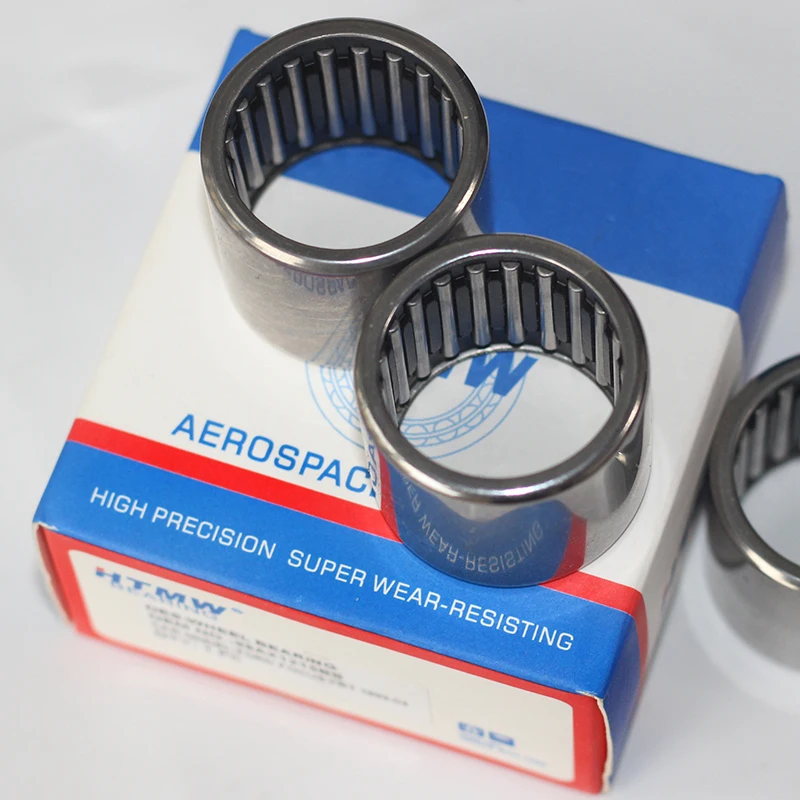

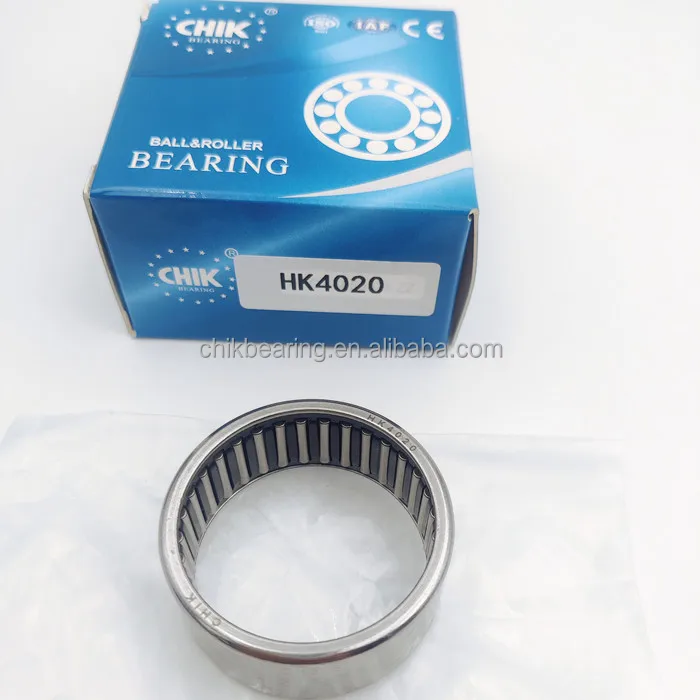

Игольчатые роликовые подшипники HTMW HK2514 внутренний размер 25 мм внешний 32 ширина
