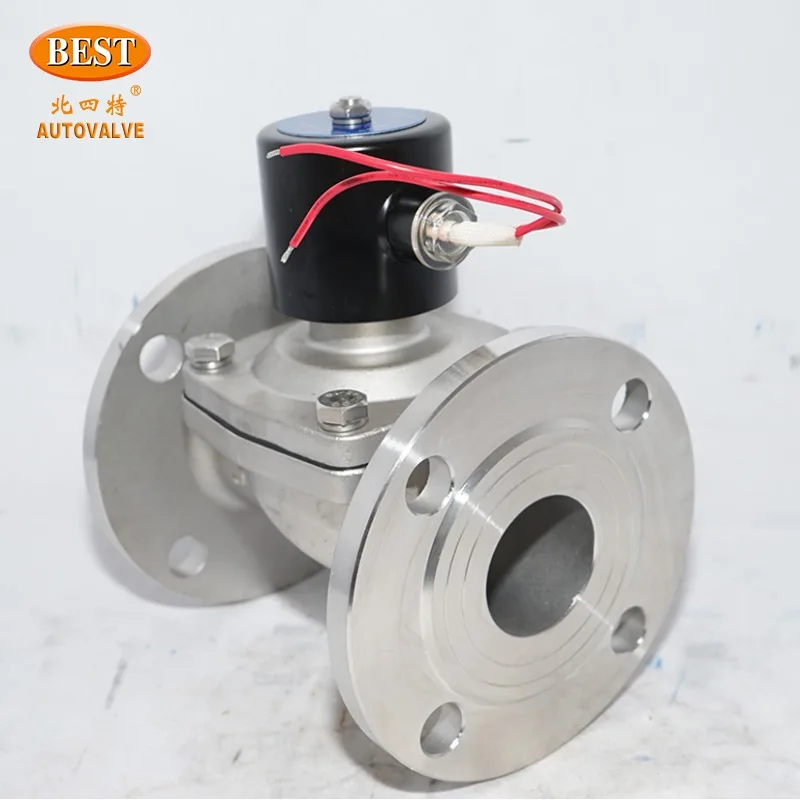

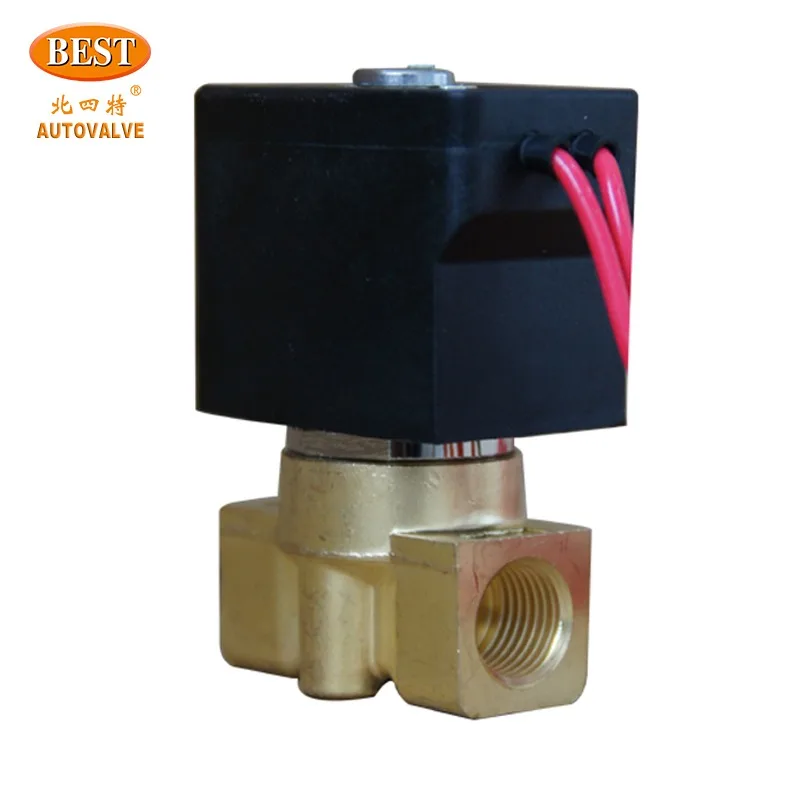

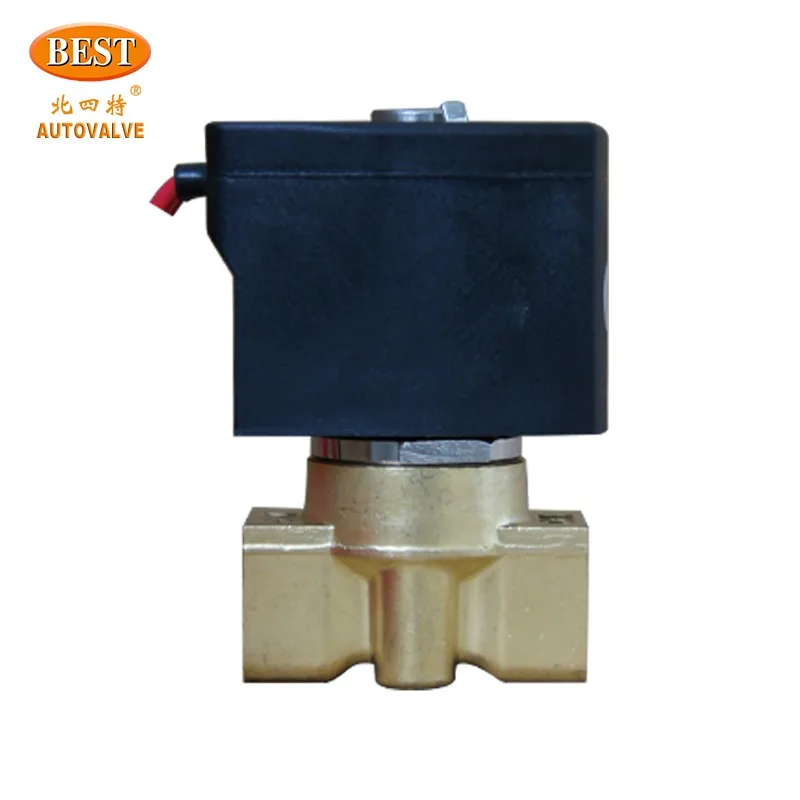

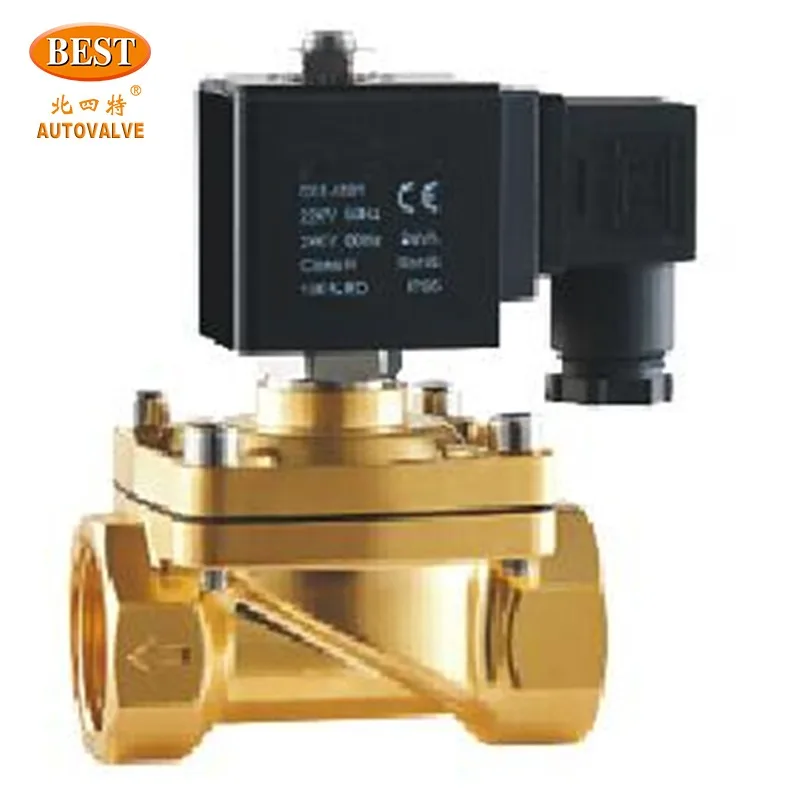

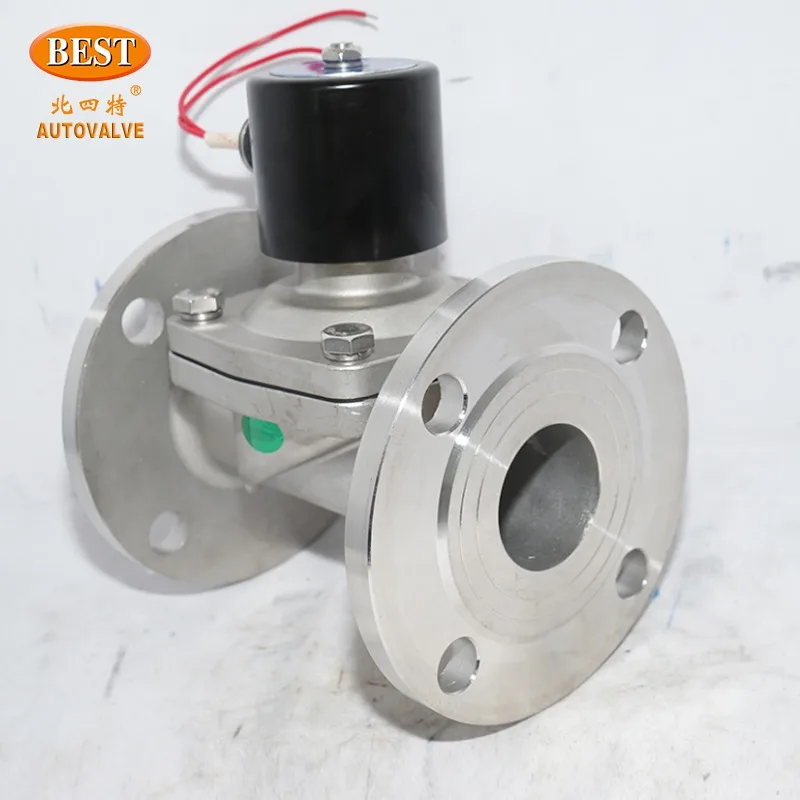

Z101 серии 2/2 способ ходовые непосредственные действующие шаг мембранный вакуумный электромагнитный клапан Valvula
- Категория: >>>
- Поставщик: Shanghai Best Automation Technology Co. Ltd.
Сохранить в закладки 1600675363961:
Описание и отзывы
Характеристики
Product Overview
Key Specifications/Special Features:
01.Export oriented
02.Valve body material: Forged brass (code:[T])
02.Leakage: 0ml/min
03.Max. action frequency: 3times/s
04.Max. pressure tolerance: 2kgf/cm2
05.Ambient temperature: -15~75℃
06.Kinematic viscosity value of applicable medium: ≤25CSt (mm2/s)
07.DN2.5~05 with direct acting structure, DN10~100 with step-by-step direct acting structure, reliably operated under zero pressure differential
08.Serialized mature products, small size, stable performance
09.Mounted at any angle, keep coil vertically upward&installed horizontally which may extend life span
10.Diaphragm material: Normal Ib---NBR (code:N), specialⅡc---EPDM (code:E), Ⅲc---EPDM (code:E)
11.Body material: Normal---forged brass (code:[T]), SS304 (code:B), cast iron (code:C)---limited for DN65~100
special---SS316 (code:R)---for DN2.5~05, normal material is SS316
12.Normal voltage: AC220/AC230/AC240V 50/60Hz, DC24V, tolerance ±10%, customization accepted
02.Valve body material: Forged brass (code:[T])
02.Leakage: 0ml/min
03.Max. action frequency: 3times/s
04.Max. pressure tolerance: 2kgf/cm2
05.Ambient temperature: -15~75℃
06.Kinematic viscosity value of applicable medium: ≤25CSt (mm2/s)
07.DN2.5~05 with direct acting structure, DN10~100 with step-by-step direct acting structure, reliably operated under zero pressure differential
08.Serialized mature products, small size, stable performance
09.Mounted at any angle, keep coil vertically upward&installed horizontally which may extend life span
10.Diaphragm material: Normal Ib---NBR (code:N), specialⅡc---EPDM (code:E), Ⅲc---EPDM (code:E)
11.Body material: Normal---forged brass (code:[T]), SS304 (code:B), cast iron (code:C)---limited for DN65~100
special---SS316 (code:R)---for DN2.5~05, normal material is SS316
12.Normal voltage: AC220/AC230/AC240V 50/60Hz, DC24V, tolerance ±10%, customization accepted
FEATURES AT A GLANCE
Products Description
Company Profile
Company Introduction
Year of Incorporation: 2003
BEST’s Market: Overseas and domestic
BEST’s Sales Methods: ODM, OEM, through licensed agents
Research and Development Team: 15 Research and design specialists
Sales Network: More than 20 countries including the US, CanadaGermany, the UK, the Netherlands, Italy, Ukraine, Dubai, and Japan
Certificates: IS09001-2015 certified
Company Strength
With the concept of ‘be humane first; win the war by comprehensive strength’, BEST people put pioneered technology, elaborate crafts, product quality and customers' benefit first, and it develops during practice to be better, more professional and more economic!
Customer case
Our products are widely used in all walks of life and have been unanimously recognized by customers
World Expo 2010 Shanghai
High-speed rail application
Ship and warship application
Powder tanker/vehicle
New type fuel boiler
Textile machinery industry
Conveying equipment/automatic storage industry
Office automation industry
Medical chemical industry
Rubber machinery/machine tool industry
Solar industry
Other equipment manufacturing industries
Honors and Qualifications
In 2020, our company was rated as one of the top ten honest enterprises by the government
CE Certificate
CE Certificate
CE Certificate
Business License
Certificate of Honor
Trademark Registration Certificate
Certification of ISO9001
Quality Management System
Quality Management System
Production License of Special
Equipment for Safety Valve
Equipment for Safety Valve
Production License of Special
Equipment for Ordinary Valve
Equipment for Ordinary Valve
Product packaging
Shipping
Big warehouse
Forklift and Support
Method of payment
FAQ
• Standard payment terms:pay50% deposit in advance. 50% balance before shipment.
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
• Online trade assurance order,all is up to you.
• More payment terms could be provided
(T/T,PAYPAL,WESTERN UNION,MoneyGram).
We are manufacturer, we have produced valves for more than 20 years. So we have competitive price. OEM ODM OBM are optional.
2. What's your payment terms?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3. What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece. We also can provide the samples.
4. What about the delivery time?
Sample needs about 3 working days, for large order, delivery time will be according to your quantity.
5. Would you have a discount if l have a large order?
A:Yes. We could offer different discount according to your order quantity.
6. Where is the factory located?
Welcome to visit our factory in Shanghai.
Contact:
SHANGHAI BEST AUTOMATION TECHNOLOGY Co.,Ltd.
Address:8th Floor, Oriental Auto Parts City 3rd New Office Building, No.35, Dingbian Road, Jiading District, Shanghai, China
Email :pollyanna(at)bestautovalve.com / sale01(at)bestautovalve.com Pollyanna
Address:8th Floor, Oriental Auto Parts City 3rd New Office Building, No.35, Dingbian Road, Jiading District, Shanghai, China
Email :pollyanna(at)bestautovalve.com / sale01(at)bestautovalve.com Pollyanna
Похожие товары
Водонепроницаемый динамик BT C6, подарки, гаджет, музыкальный проигрыватель, наружный беспроводной динамик для душа
Оптовая продажа с фабрики, разноцветная Высококачественная 100% чесаная хлопчатобумажная пряжа 32s/2, хлопчатобумажная пряжа для машинного плетения

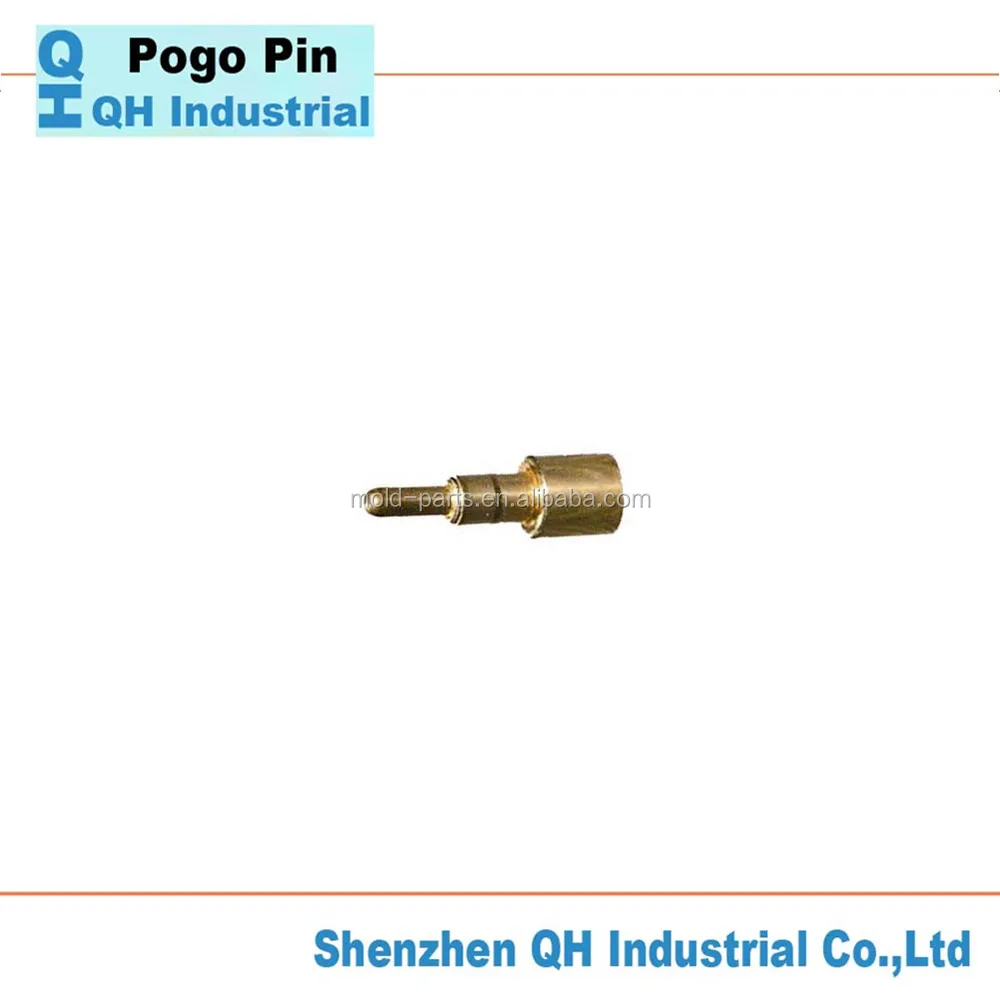

Pogo pin устройство используется для смарт-браслет

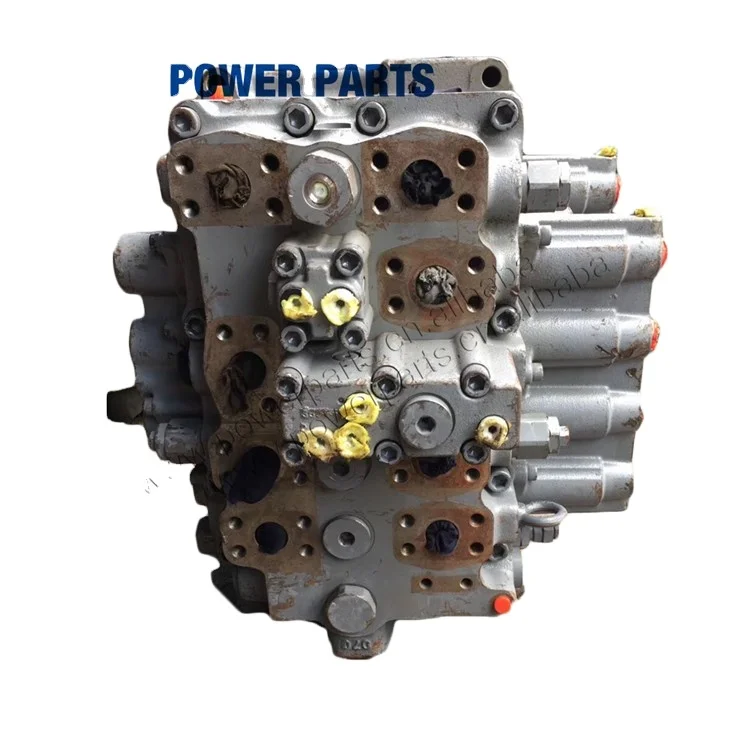

EX100-5 EX120-5 EX130-5 главный распределительный клапан для экскаватора запчасти 4330216 4366958 4366958

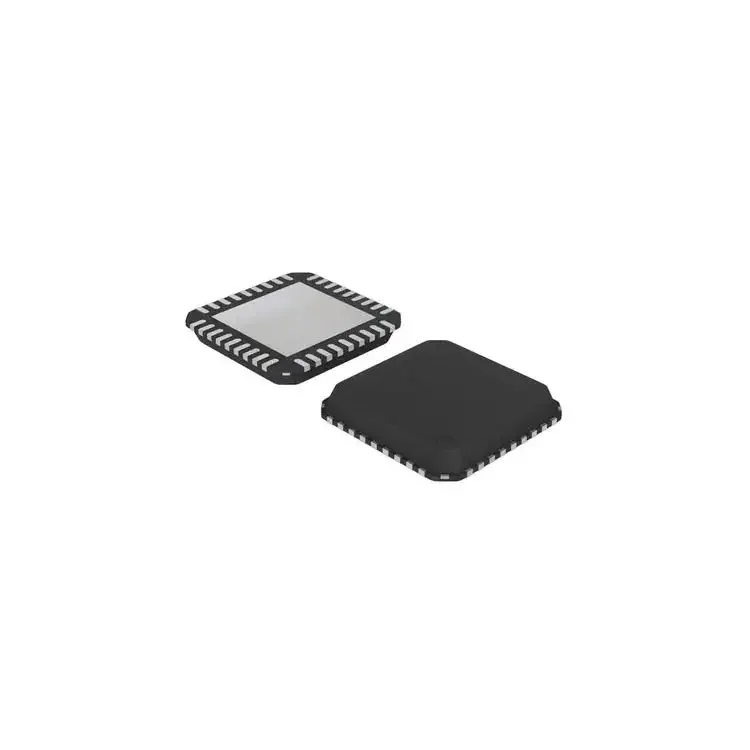

Новая интегральная схема полноскоростная/многоформатная SD/MMC и MS флэш-контроллер USB 2,0 3,3 В лоток 36-PUSB2240-AEZG-06
