Huastlink HC540 поддержка IMEI / TTL изменения 300 Мбит/с беспроводной OpenWRT VPN PPTP L2TP OPENVPN двойной WAN 4G маршрутизатор
- Категория: >>>
- Поставщик: Shenzhen Huachuangyilian Electronics Co. Ltd.
Сохранить в закладки 1600675424567:
Описание и отзывы
Характеристики

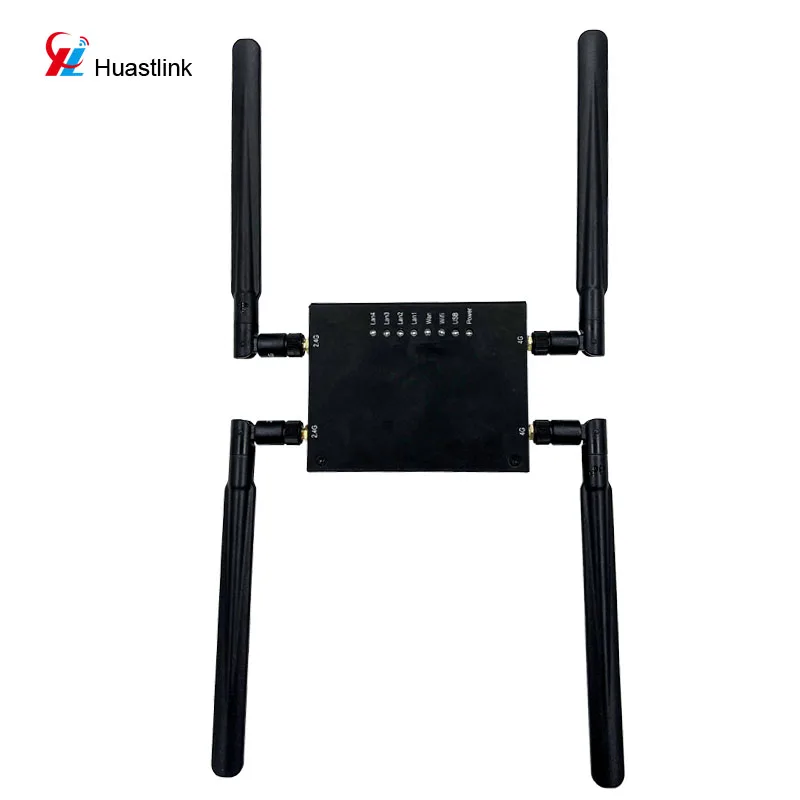

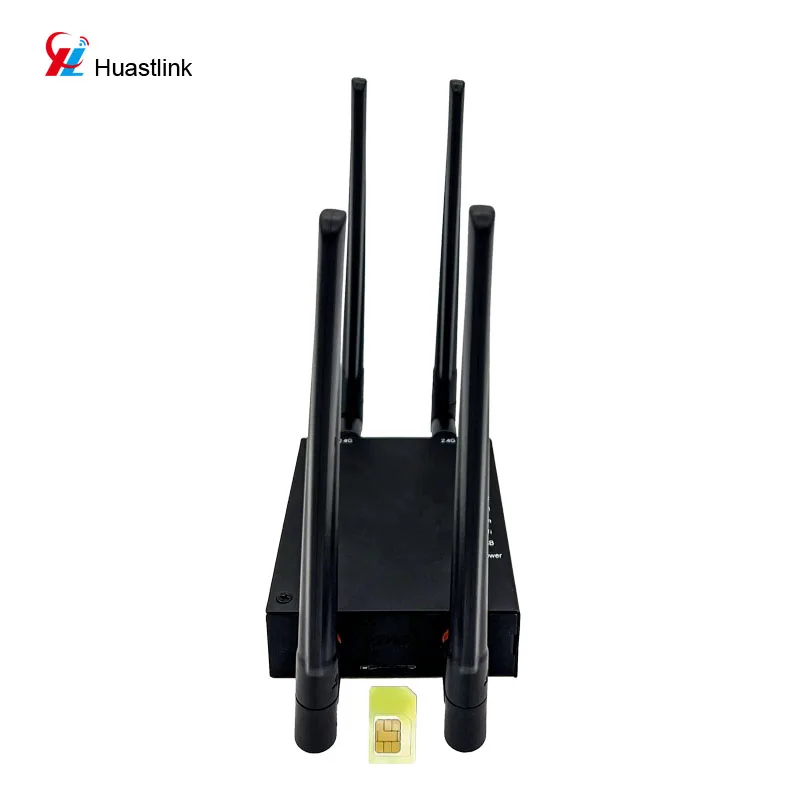

Huastlink HC540 Support IMEI / TTL Changes 300Mbps Wireless OpenWRT VPN PPTP L2TP OPENVPN Dual WAN 4G Router
HC540 (USA Version)
FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5
WCDMA:B2/B4/B5
HC540 (Europe Version)
LTE FDD: B1/B3/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: B3/B8
HC540 (Australia Version)
LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8/B4
GSM: B2/B3/B5/B8
HC540 Feature
MTK760A Chipet
16MB Flash+128MB RAM(Max.32MB+256MB)
1 WAN port+4 LAN ports
1 USB port+1 TF slot
1 SIM slot
4 Removable Antennas
2.4G Wifi, up to 300Mbps
Preload openWRT system

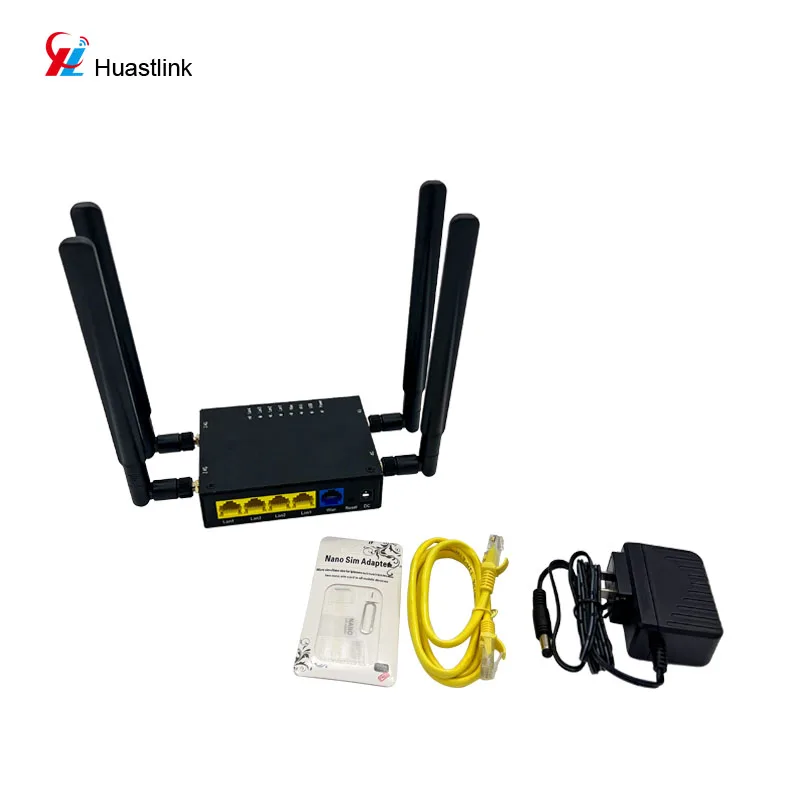

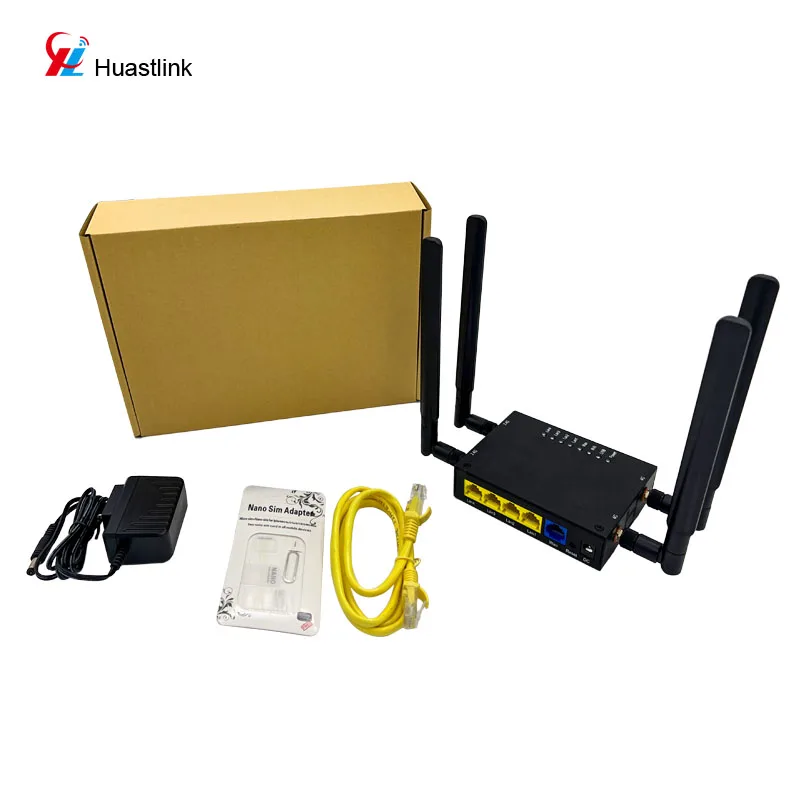

PACKING LIST
1pcs 4G router HC540
1pcs RJ45 Patch cable
1pcs 12V Power adpater
1pcs SIM adapter

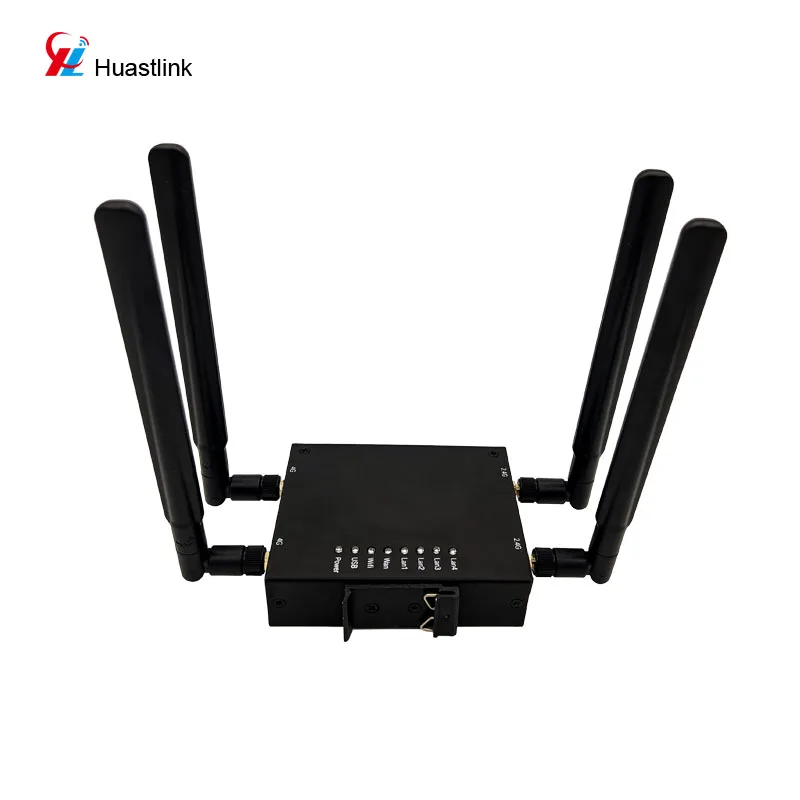

Pre-design din-rail installation position
If you need din-rail installation, please contact us in advance.
Antennas Option:
Sucker Antennas With SMA Connector, default 1.5meter cable (cable length can be customization)
If you want to use this device in the vehicle, please tell us in advance then we can match vehicle power cable
Specification
Hardware | ||
Main Chipset | MT7620A | |
RAM | DDR2 128MB (MAX DDR2 256MB) | |
SPI FLASH | 16MB (MAX 32MB) | |
Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac, IEEE802.11a, IEEE 802.3, IEEE 802.3u | |
RT Power | 802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; | |
Reception Sensitivity | 802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER | |
Work Channel | 2.4GHz choose: 1-13 | |
Wireless Rate | Max. 300Mbps | |
Work Frequency | 2.4GHz | |
Antenna | 2* 5dBi antenna or 4*5dbi external antenna (With 3G/4G) | |
Interface | 1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100/100M WAN port (Auto MDI/MDIX) 4*10/100/100M LAN port (Auto MDI/MDIX) | |
LED | Power, USB, 2.4G, WAN, LAN1, LAN2, LAN3, LAN4 | |
Button | Reset | |
Max Power consumption | < 12W | |
Others | ||
Work Environments | Operating Temperature：-10℃ ~ 45℃； Storage Temperature：-40℃~ 70℃； Operating Humidity：0%~90% non-condensing Storage Humidity：0%~90% non-condensing | |
Adapter | 12V 1A | |
Authentication | CE, FCC, RoHs | |
Other accessories | Power adapter, Ethernet cable | |
Company Profile
Why Choose US?
Brief:
* Professional with many years experience from 2004
* Have our own factory in Shenzhen,China
* Most competitive price from material supplier base on huge orders to them
* Experienced an effective inner cost control system through whole process
Quality Control：
* Raw material test,Online production test,PCS test,finished product test
* Providing relative solution
* CE,FCC,RoHS,SGS approved Factory
Service:
* OEM /ODM service and support
* Free promotion material if needed
* Clients service one-to-one
* Effective communication within 24 hours
* Attend Hongkong Fair / Carton Fair to meet customer face to face
* New design and style collection updating for customer
* Professional with many years experience from 2004
* Have our own factory in Shenzhen,China
* Most competitive price from material supplier base on huge orders to them
* Experienced an effective inner cost control system through whole process
Quality Control：
* Raw material test,Online production test,PCS test,finished product test
* Providing relative solution
* CE,FCC,RoHS,SGS approved Factory
Service:
* OEM /ODM service and support
* Free promotion material if needed
* Clients service one-to-one
* Effective communication within 24 hours
* Attend Hongkong Fair / Carton Fair to meet customer face to face
* New design and style collection updating for customer
Shenzhen Huachuangyilian Electronics Co.,Ltd. is a professional wireless network and telecommunication equipment developer and manufacturer, we have a professional production factory around 20,000 square metes and a team of more than 100 R&D engineers.
We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
Our vision are providing best service to customers.
We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
Our vision are providing best service to customers.
FAQ
Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available.
Do your products meet our standards?
Yes, almost all our products have CE,ROHS,FCC,etc.
How to proceed an order?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
How do you ship the goods and how long does it take to arrive?
We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Can you customized logo and packaging?
Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
Low MOQ, 1pc for sample checking is available.
Do your products meet our standards?
Yes, almost all our products have CE,ROHS,FCC,etc.
How to proceed an order?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
How do you ship the goods and how long does it take to arrive?
We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Can you customized logo and packaging?
Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
Recommend Products
Похожие товары
Кресло для отдыха из стекловолокна в форме яблока
58,00 $ - 108,00 $

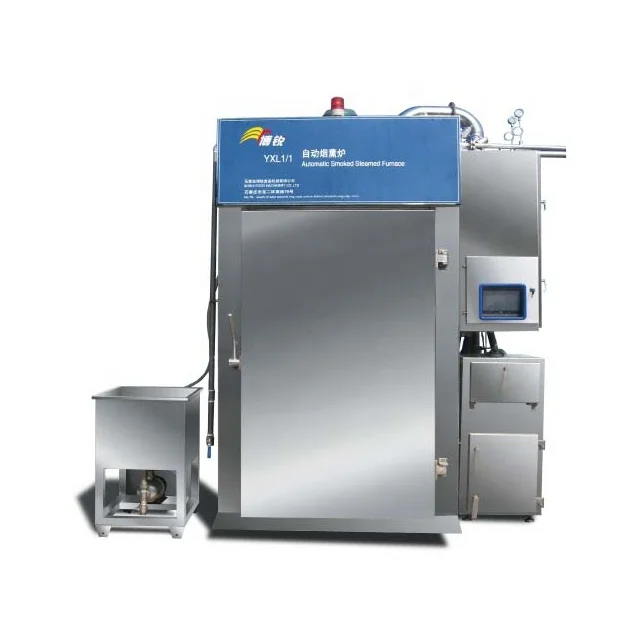

Печь для приготовления бекона/колбасы/домашние колбасные машины для курения

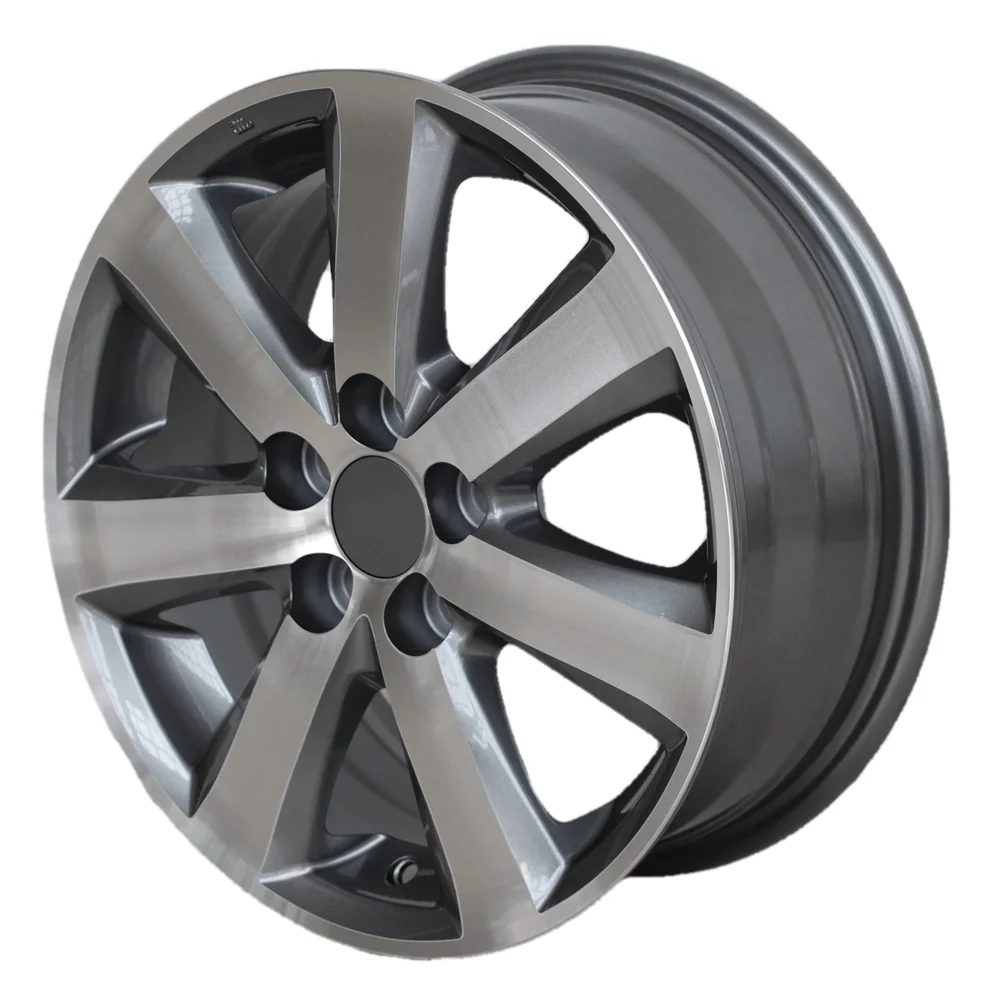

Китай, оптовая продажа, Лидер продаж, легковые автомобили 15 дюймов 5*100 для Toyota auris celica corolla altis sport prius, подключаемый

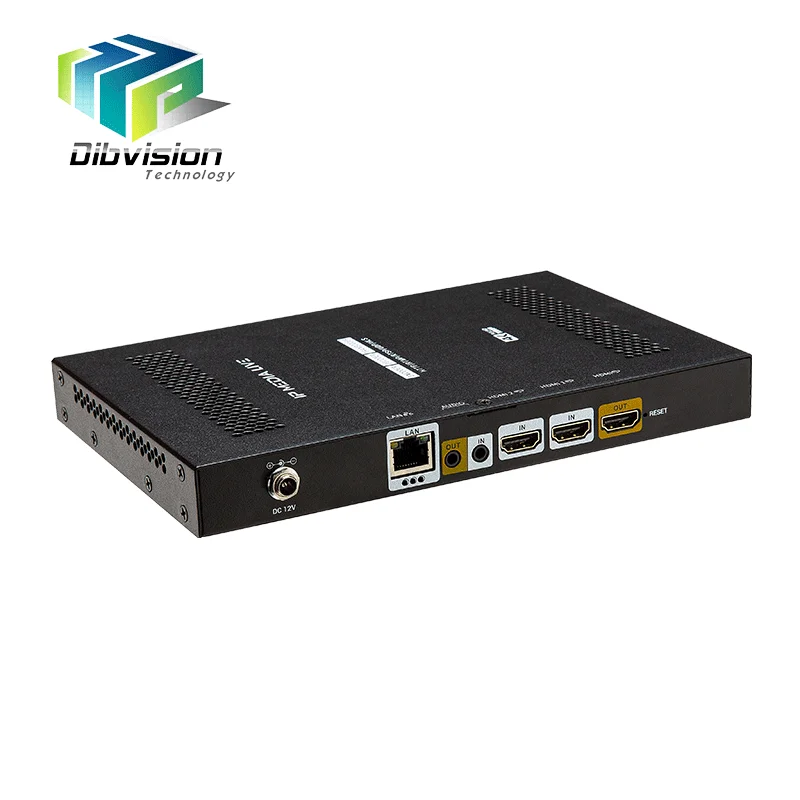

2 канала 4k 30fps аппаратный кодер 4ch ip перекодировки видео декодер sdi поток

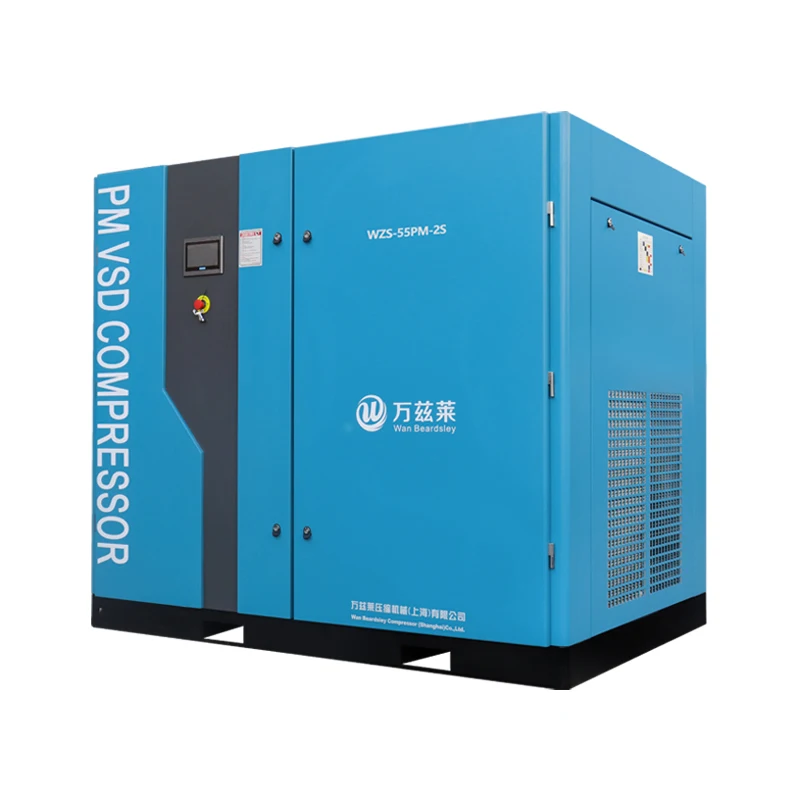

Высокоэффективный 55 кВт 8 бар стационарный энергосберегающий Pm Vsd двухступенчатый поворотный винтовой воздушный компрессор для общего промышленного оборудования
13 100,00 $

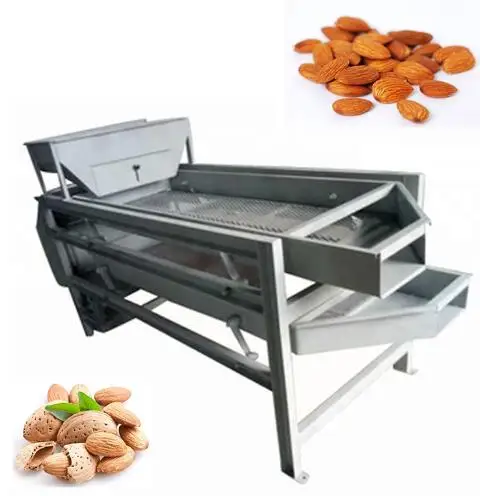

500 кг/ч миндаля дробилка абрикосовых косточек крекинга машина для чистки
