Technical Paramenters
Short overview MEM TQ-1515 heat press
-Pneumatic double station transfer press for medium and large batches.
-Pressure balancing system on heat plate and bottom plate.
-Adjustable air pressure by air reducing valve with water separator.
-CE certificated and RoHS certificated.
-Lifetime factory on-line service.
-Pressure balancing system on heat plate and bottom plate.
-Adjustable air pressure by air reducing valve with water separator.
-CE certificated and RoHS certificated.
-Lifetime factory on-line service.

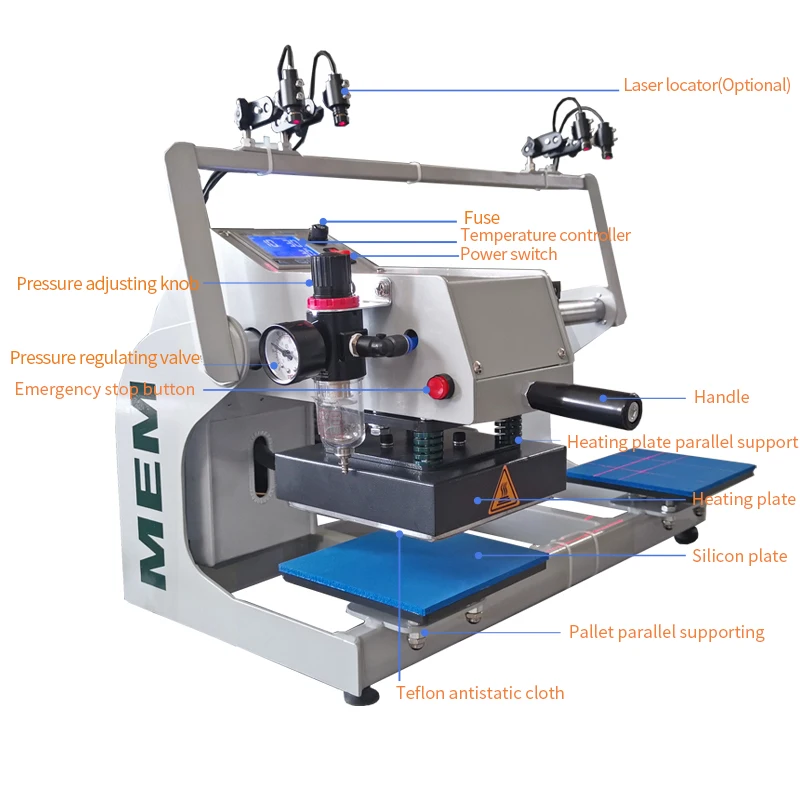

MEM TQ-1515 pneumatic double station heat press
a. Temperature controller
b. Fuse
c. Power switch

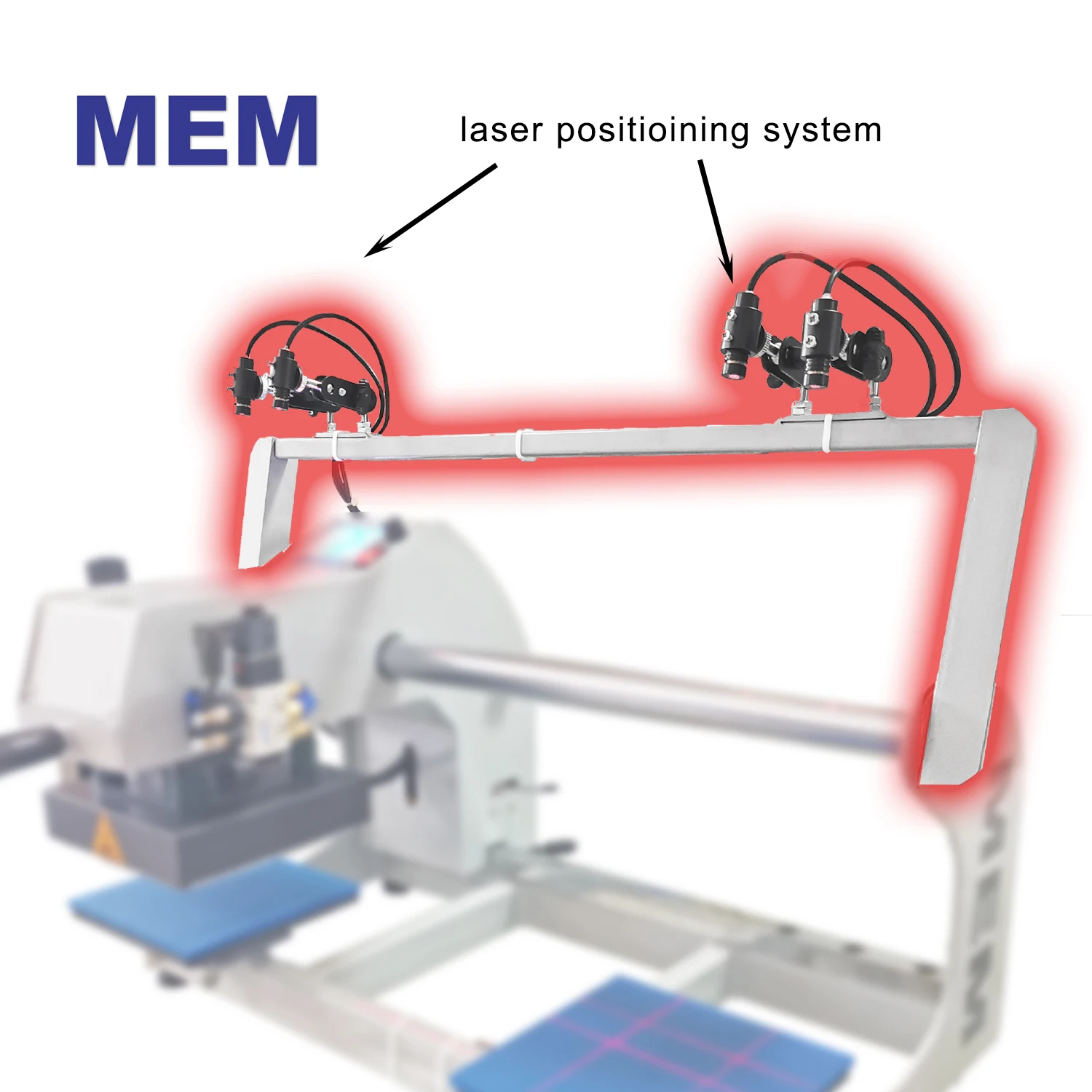

d. Laser positioning system (optional part)
e. Solenoid valve
f. Handle
g. Bottom pressure balancing system
h. Air reducing valve
i. Emergency stop button
j. Heat plate
k. Bottom platen
Model | TQ 1515 |
Voltage and powder | 220V(600W) or 110V(600W) Check voltage at back side of the head |
Time Range | 0-999 sec. |
Max. Temp. | 260 C/ 500 F |
Heat plate size | 15x15 cm(6"x6") |

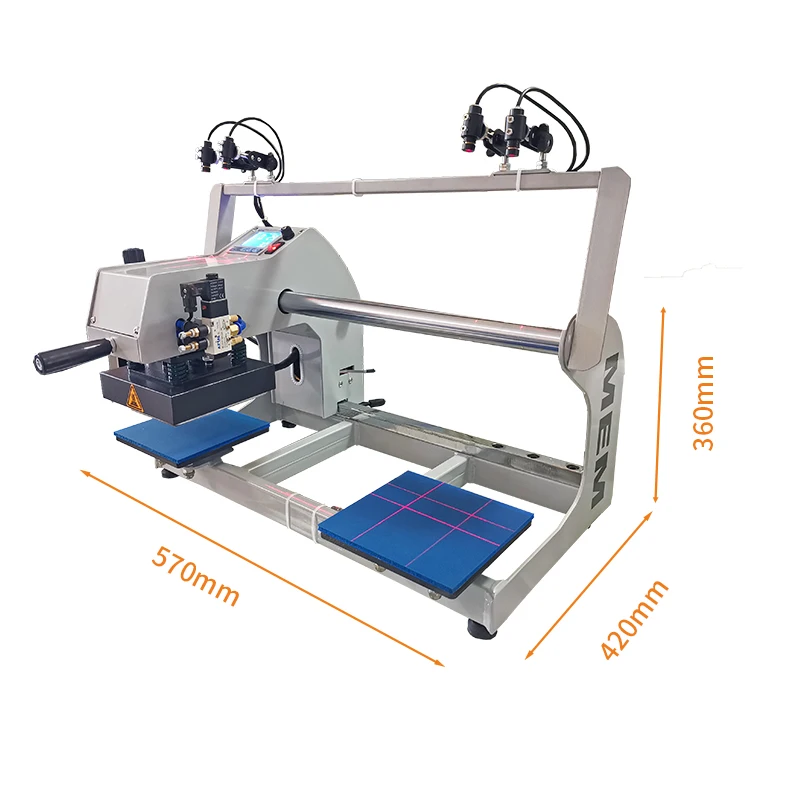

Dimensions(L*W*H) | 540x420x360mm(22"*17"*14") |
Shipping dimensions(L*W*H) | 640x450x400mm(25"*18"*16") |
Shipping weight | 31kgs(68lbs) |
Max. press thickness | 40mm |
Products Description

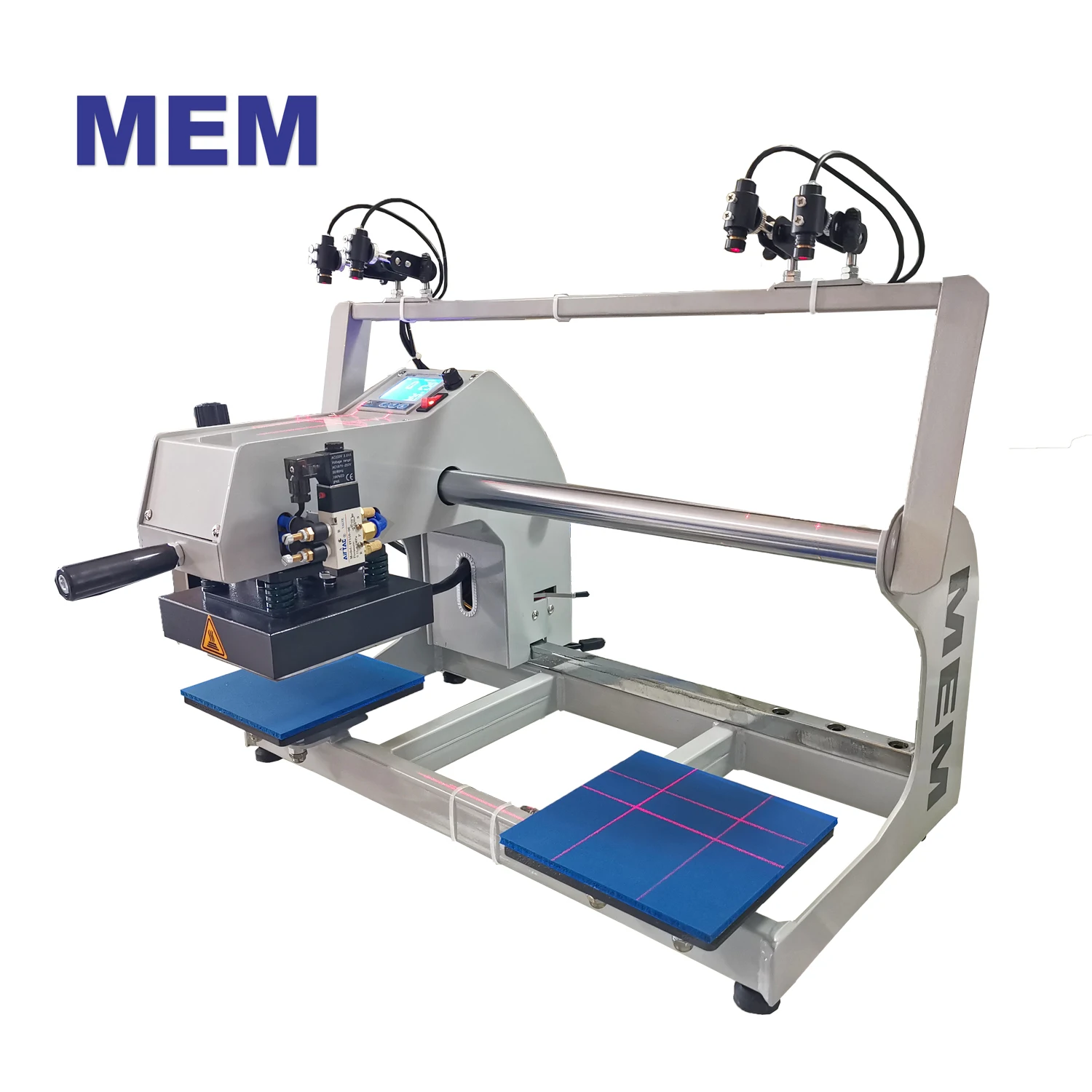

MEM TQ-1515 pneumatic double station heat press
This provides the operator with the best possible features and equipment needed for today's various heat transfer applications. Using the MEM TQ-1515 double station heat press, all common heat transfer processes (flock, flex, sublimation, transfer, Inkjet-flex etc.) can be conducted professionally and with highest productivity.
The desired settings can be set easily with the temperature controller. The pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.
With the temperature controller, temperature (°C and °F) and pressing time can be adjusted. The Set Value are showing the setting value, the Temperature digits are showing the actual value. Counter (reset after power off) function that counts the number of transfers that have already been made during the current session could be enabled, contact MEM for counter function enable instruction.
On the side of the solenoid valve there are two silver/golden screws which restricting the air flow speed of the cylinder.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
If the screws are screwed out, it accelerates up/down process of the cylinder.
When the screws are screwed in, it slows down up/down process of the cylinder
Fix the respective setting with the corresponding counter nuts by tightening them by hand.
Maintenance and cleaning
Maintenance work should always be accomplished with the press switched off and cooled down.
The plug must first be disconnected from the power socket.
Consult Technical Support before carrying out any maintenance work.
Clean the press regularly with a soft cloth and mild household cleaner to remove adhesive residues etc.
Air compressor
TQ-1515 requires air compressor with minimum 300w (0.4 hp) and 15L (4 gallon) hold tank.
Connect 5mm inner diameter (usually 8mm outer diameter) air hose to the machine. Charge the compressor to 0.6-0.7 Mpa, up to 0.8 Mpa (120 psi) if possible.
Connect 5mm inner diameter (usually 8mm outer diameter) air hose to the machine. Charge the compressor to 0.6-0.7 Mpa, up to 0.8 Mpa (120 psi) if possible.
Set the desired air pressure on the air reducing valve of the heat press by pulling up the cap at the top end and then turning it. After the pressure is set, push the cap back down. The set pressure should be lower than on the manometer of the compressor. Commonly used pressures are between 0.4 to 0.6 Mpa (60 to 90 psi).
Power supply
Connect the heat press to a power socket using the connection cable supplied.
Switch on the press with the red power switch.
Switch on the press with the red power switch.
Operating transfers
1.Set the desired air pressure on the air reducing valve of the heat press by pulling up the cap at the top end and then turning it. After the pressure is set, push the cap back down.
2. Bring the press head into an end position right or left. The heat plate will press automatically when the head reaches either end.
3. After the timer count to zero, the heat plate lifts automatically.
4. By pressing the red emergency stop button, transfer process can be stopped at any time.
2. Bring the press head into an end position right or left. The heat plate will press automatically when the head reaches either end.
3. After the timer count to zero, the heat plate lifts automatically.
4. By pressing the red emergency stop button, transfer process can be stopped at any time.
Details Images
Packing & Delivery
Standard export wooden case packing to make sure the machine safety during the transportation. Customer can be rest assured.
Company Profile
FAQ
1. Is your company manufacturer or trading company?
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China. We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.
We are manufacturer, we design and manufacture heat press machines, tunnel tryers and screen printing machines in Shenyang, China. We have more than 20 years experiences in printing field.
2. Do you provide OEM service?
Yes, we could do OEM and print your logo on the machines.
3. Are the machines CE Approved?
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
All our machines have CE certification.
4. Our country's voltage and plug are different. How do you solve it?
We will customize the voltage and plug type for you.
5. Do you inspect finished products?
Yes. Each step of production will be inspected by our QC department.
6. How about the guarantee?
Warranty is 1 year including all the parts.
Thoughtful service
Lifetime factory on-line service.24H online service
A good partner for you
A good partner for you
