Дешевый японский бренд FOTON двигатель 160 л.с. дизель 4x2 высококачественный компрессор мусоровоз
19 980,00 $
Новый изготовленный Бренд FAW грузовик для сбора сжатых отходов подвесные мусорные баки хорошая цена уплотненный мусоровоз продажи
- Категория: >>>
- Поставщик: Hubei Shengda Automobile Co. Ltd.Hubei Ltd.
Сохранить в закладки 1600678094061:
Описание и отзывы
Характеристики
specification

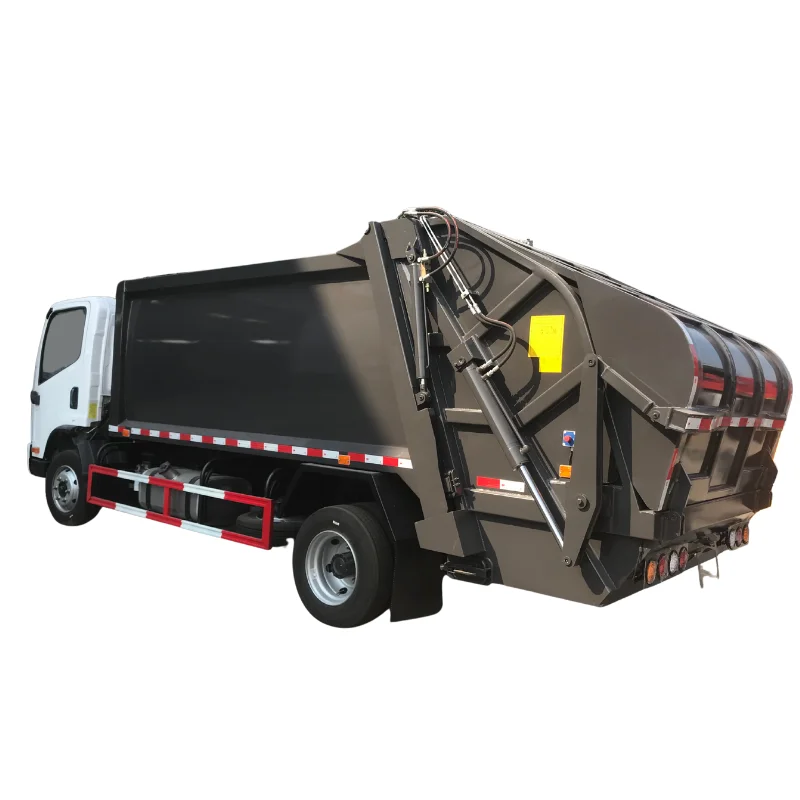

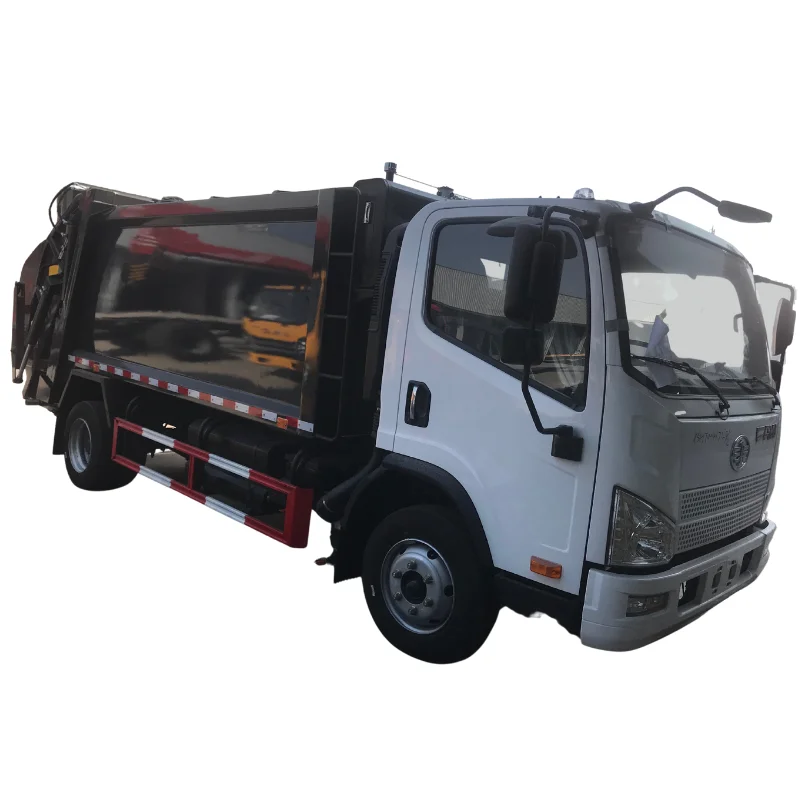

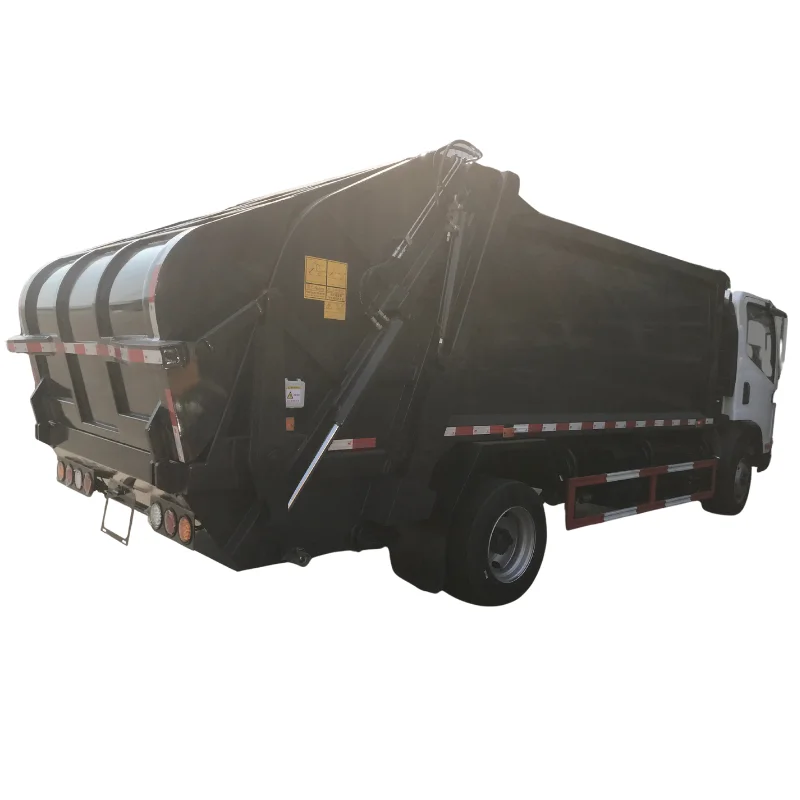

High quality and competitive price FAW brand 4*2 LHD 8cubic meters compacted garbage truck for sale
FAW brand TIGER VH flathead single row driver cab,
3860mm wheelbase
4*2 LHD, RHD optional
4*2 LHD, RHD optional
YC4D130-33 yuchai 130hp diesel 4214ml
Wanliyang 6 speed manual gears,
8.25R16 TIRES*6+1 spare,
maintenance-free batteries, air cut braking, air conditioner, larger radiator, etc.
The volume of the compactor garbage van is 8m3,and with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional
compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Wanliyang 6 speed manual gears,
8.25R16 TIRES*6+1 spare,
maintenance-free batteries, air cut braking, air conditioner, larger radiator, etc.
The volume of the compactor garbage van is 8m3,and with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional
compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc.
More information, please feel free to contact with Mr.Yoki Ray.
Whatsapp/Wechat/Mob.: 0086 18808669661.
Whatsapp/Wechat/Mob.: 0086 18808669661.
Products Description
Product name | FAW brand 4*2 compacted garbage truck for sale | ||||||
volume | 8cubic meters | ||||||
wheelbase | 3860mm | ||||||
engine | YC4D130-33 yuchai 130hp diesel 4214ml | ||||||
tire | 8.25R16 tires*6+1 spare | ||||||
gearbox | 6 forward gears with 1 reverse gear, manual type | ||||||
total mass | 9490kgs | ||||||
curb mass | 5798kgs | ||||||
overall dimension | 7270*2275*2650（mm） | ||||||
Compressed garbage truck is also called Compression garbage truck, compactor garbage truck,Waste Compactors truck.Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system.Compression type garbage truck can realize garbage collection and transportation capacity reduction, sealing, no secondary pollution, reduce the labor intensity of sanitation workers, improve labor efficiency and other needs. It is widely used in collection, compression and transit garbage which come from cities, towns, rural areas, large factories and mining enterprises and living areas of colleges and universities.
We can manufacture and sell 3cubic meters-23cubic meters compressed garbage trucks.
Details Images

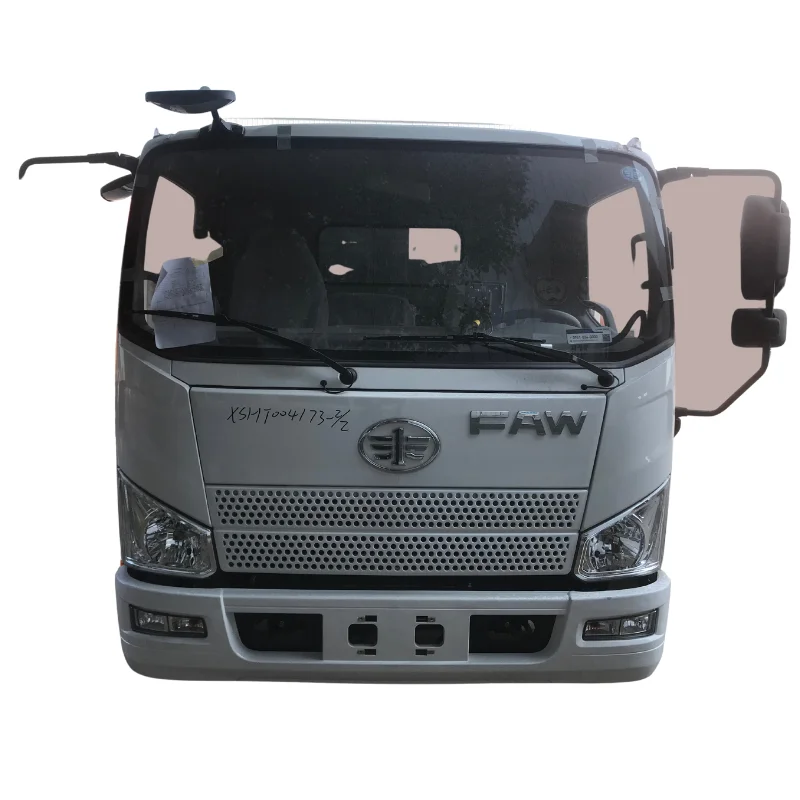

FAW brand TIGER VH flathead single row driver cab,
bigger wastes collecting van
14cbm SHACMAN brand compressed garbage trucks
SINOTRUK HOWO compacted garbage truck 10T
4CBM FAW brand RHD refuse garbage truck for sale
Our Advantages
The rear loader garbage trucks, garbage compactor truck, refuse garbage truck, compression garbage truck, etc.
1. collecting waste easily, changing the
2. high compression ratio, large loading volume;
3. automatic working,
4. perfect economic
5. double insurance system
6. choosing changover mechanism: choosing changover mechanism.
1. collecting waste easily, changing the
2. high compression ratio, large loading volume;
3. automatic working,
4. perfect economic
5. double insurance system
6. choosing changover mechanism: choosing changover mechanism.
Manufacturing Technique

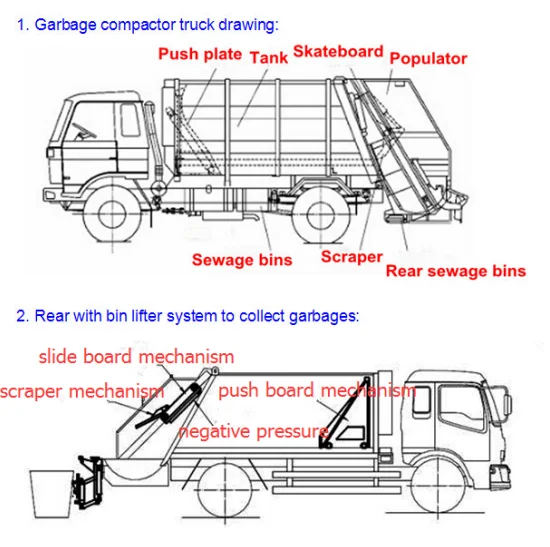

The working principles of compression garbage truck
Garbage basket：it is adopting the frame structure of welding the strengthen beam and steel, beatiful outlook, light weight, good load-carrying capability, non deformablity. The push shovel manufactured by steel skeleton and folded panel, not only delicate structure, but also making the garbage evenly, discharging clean thoroughly. The precompresser is made up of precompresser shell, operating slide, skimmer blade, etc. every compartment adopting good load carrying bean sheet or van structure, firm structure, ligh weight. The basket used phosphide anti-rust treatment, and coated with anti-rust painting.
Hydraulic system: using the eletronic control and hydrualic control through controlled converting to make sure every activity accuratly and reliably. Adopting leading hydraulic lifting safety circuit,improving the using reliablity and efficiency. The principle is installing holding balancing valve in the hydraulic lifting cylinder. The valve stops the direct connecting between lifting cylinder and hydraulic hose, even the pipeline bursts, the precompresser cannot fall down suddenly as an accident, improving the safety.
Charging and discharging way: flip bucket mechanism charging and discharging, non pollution to operation staff.
There is a special rubber strip sealing the garbage basket and precompresser, good sealing, without the second time pollution.
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
