Печь с порошковым покрытием система отопления порошковая печь 6 м
- Категория: >>>
- Поставщик: Huizhou Guanjie Technology Co. Ltd.
Сохранить в закладки 1600680343379:
Описание и отзывы
Характеристики
Product Description

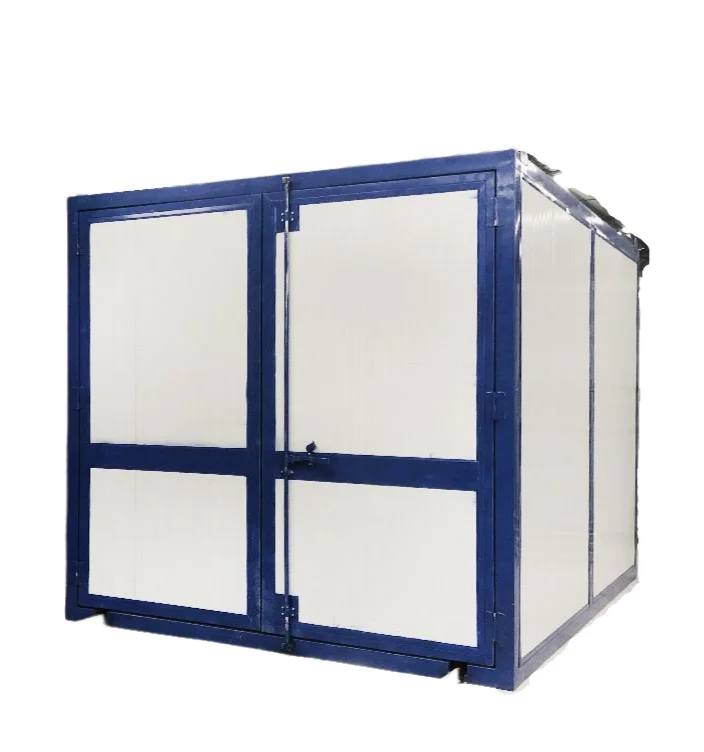

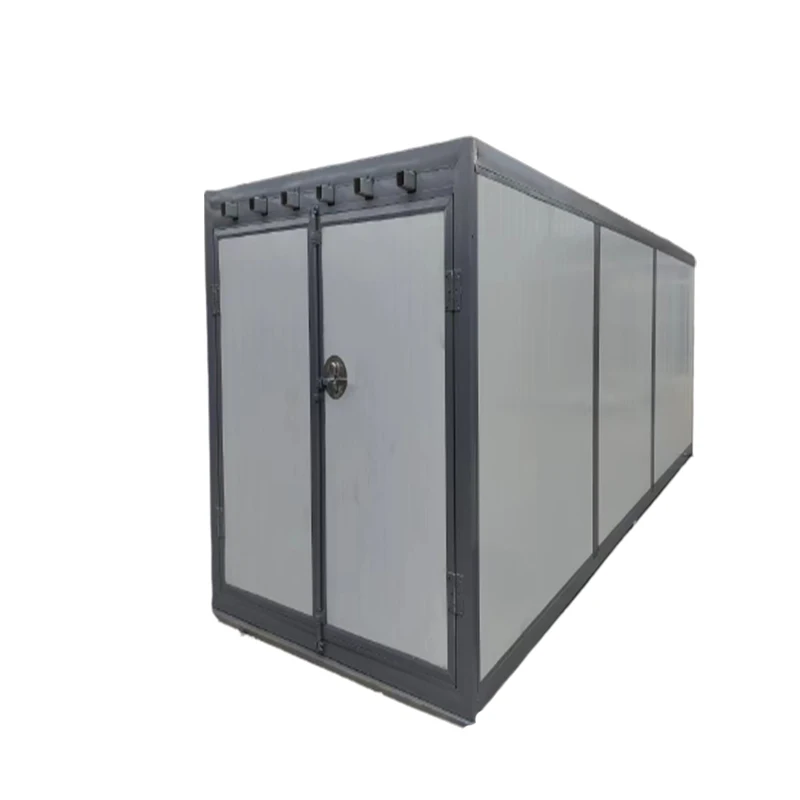

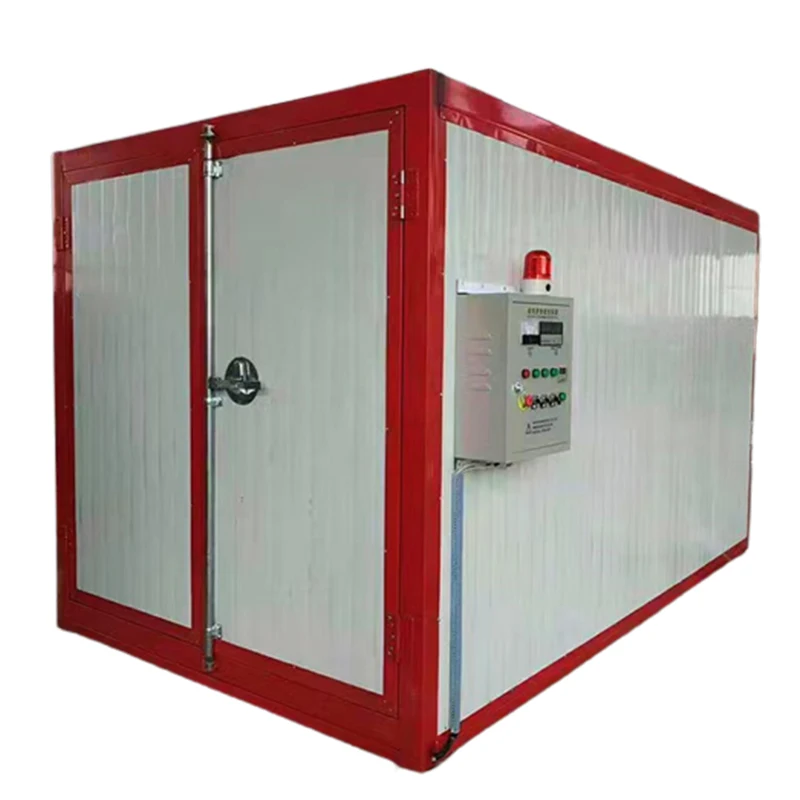

Guanjie Powder oven
The powder curing oven is a part of the powder coating line.
Objective:
The workpiece surface of powder coating heating to the specified temperature and heat preservation corresponding time,
melting, flow flat, curing.
melting, flow flat, curing.
powder curing oven
powder curing oven
powder curing oven
powder curing oven
powder curing oven
powder curing oven
powder curing oven
powder curing oven
Upgrade option
Explosion-proof device
Audible alarm
Gas concentration alarm
Tri-color indicator
Programmable Thermostat
Temperature recorder
Process steps:
Spraying good workpiece push curing oven, heating to the predetermined temperature (usually 185 degrees) and heat
preservation corresponding time (20 minutes). The High temperature heat resistance Circulating fan can Can guarantee the oven internal places (including corner) have the same temperature. Blow on take out cooling namely get finished.

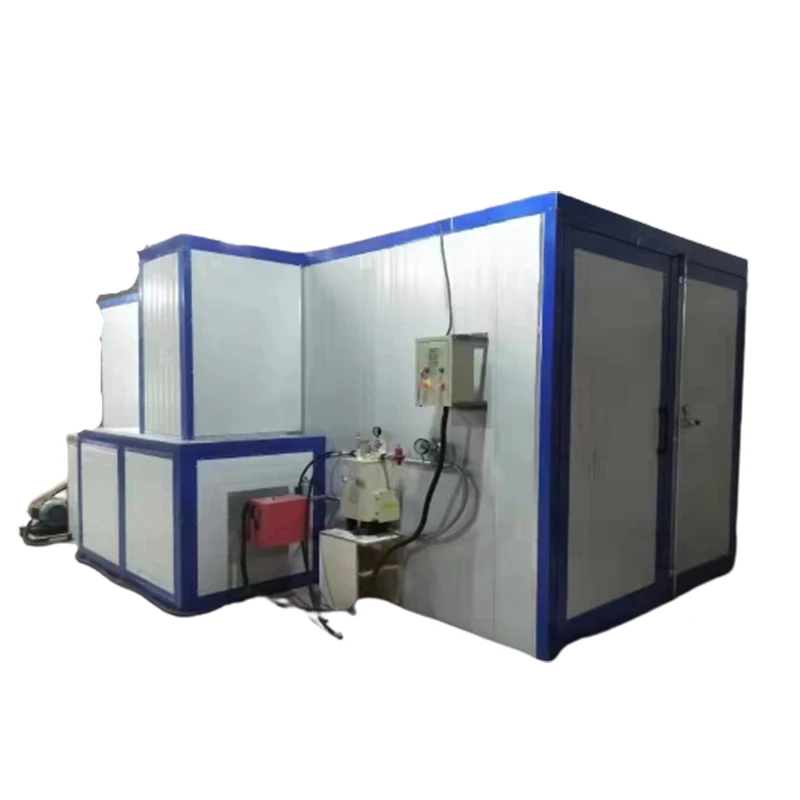

Working principle of Gas curing oven
1. Heating curing oven, Start the fan button, the fan start to work, then the burner start to work followed so that the curing
oven being heated.
2. Set the temperature 180 degrees(0-300 degrees), While the temperature up to be the set temperature, the burner stop working.After the heat preservation time being 10 minutes (0-60 minutes), the bell alarm. The next, close all control units so that the heating system and fan stop working.
3. Open the curing oven door, taking out workpieces.
According to the customer's requirement, We can made all kinds size of curing oven.
Details Images
Intelligent temperature control
Automatic constant temperature
Automatic power off Regularly report to the police
Equipped with leakage protection device
Fireproof rock wool board
Fireproof insulation wall rock wool board
Adopt 100mm fireproof rock wool insulation board
Excellent thermal insulation effect
Stainless steel heating tube
Stainless steel heating tube heating up fast,
Evenly heated,
Good heat dissipation performance and reliable quality
Galvanized square pipe
Practical galvanized square pipe anti-rust,
Corrosion resistance,
High temperature resistance, reliable quality
Application
metal
Car wheels
Car wheels
Car wheels
Application:
This powder spray booth is an economical solution for basic powder coating operations, with a filter powder collecting
system. For job shops, first-time powder coating and to assist large in-house powder coating operations, these powder spray booths offer a variety of configuration options.
Specification
Powder Curing Oven Parameter | ||
Entrance door | Powder coating surface aluminum alloy binding framework (Thickness：1.8mm) , 2 sets side hung door (One at front one at rear) ,each one size is：800*1200mm.(W*H) | |
Air fan | One set motor air fan on the top of the roof for air circulate. | |
Outer size | Width1300*Depth1900*Heght2100mm | |
Wall panel | 100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet, with anti-slide checkered plate. | |
Roof | 100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet, with anti-slide checkered plate. | |
Heating system | Be equipped with 48pcs infrared lamps. The operating temperature can reach 250℃. | |
Floor | 100mm rock wool panel anti fired insulation material with 0.526mm 2-sided iron sheet, with anti-slide checkered plate. | |
Control box | Export type. Microcomputer controlling system, which can program all the functions in each phase of every cycle work. Including adjusting the parameters of the time, temperature, and main circuit has multiprotection, to control the light, time, spraying, temperature, baking, failure indicator, and emergency stopand so on. Reasonbale structure and stable performance. | |
Packing & Delivery
Wooden case
Company Profile
Huizhou Guanjie Technology Co., Ltd. was established in 2000. The factory is located in Shenzhen, the forefront city of China's reform and opening up.
It is a professional manufacturer of industrial automation painting equipment, which integrates design, development, manufacture, installation and commissioning, technical training and perfect after-sales service.
The company currently employs nearly 180 people (25 senior professional engineers and 20 senior technicians, including 35 engineering technicians with college or higher education).
The factory area is nearly 10,000 square meters and has complete and sophisticated machinery processing and testing equipment.
It is a professional manufacturer of industrial automation painting equipment, which integrates design, development, manufacture, installation and commissioning, technical training and perfect after-sales service.
The company currently employs nearly 180 people (25 senior professional engineers and 20 senior technicians, including 35 engineering technicians with college or higher education).
The factory area is nearly 10,000 square meters and has complete and sophisticated machinery processing and testing equipment.
