Заводская цена большой мощности 1 мВт генератор природного газа Турбинный
- Категории: Gas Turbine Generators >>>
- Поставщик: Jiangsu,Haut,Mechanical,Co.,Ltd.
Сохранить в закладки:
Описание и отзывы
Характеристики
Technical Parameters
| General Specifications | Accessories List | ||

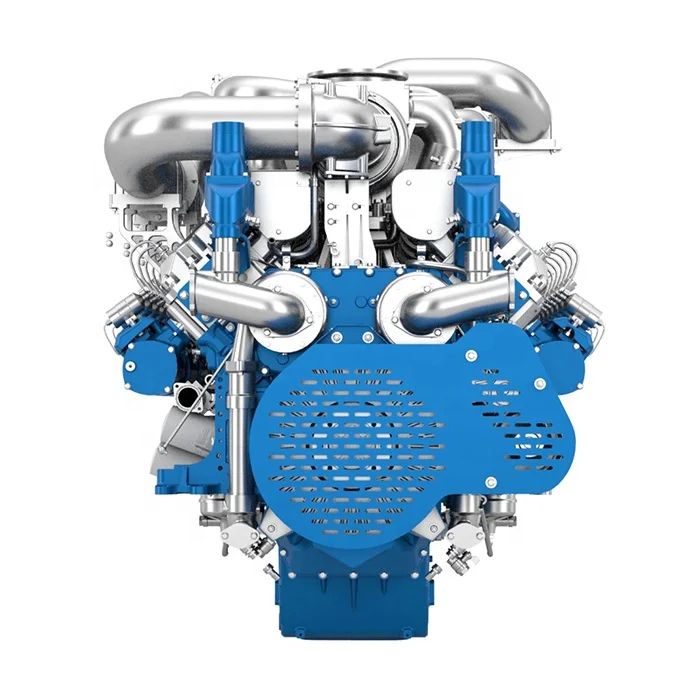

| Gas Engine | 16M33D1280NG10 | Engine Brand | Weichai |
| Rated power | 1000KW/1250KVA | Weichai Gas Engine | 1 set |
| Engine power | 1280KW | Haut generator | 1 set |
| Voltage | 230 / 400 Volts AC | Self starting control panel | 1 set |
| Current | 1800A | Starting battery | 2pieces |
| Frequency | 50HZ/60HZ | Connecting line | 3 roots |
| Speed | 1500RPM/1800RPM | Elbow | 1 set |
| Power efficiency | 0.8(Lag) | muffler | 1 set |
| Aspiration (Asp.) | 16 | Charger | 1 set |
| Governor | At Vee | Cushioning pad | 1 set |
Gas consumption(m³/kW.h) | <0.32 | Spare parts toolbox | 1 set |
| Dimensions L*W*H | 3155×1050×1541 | Random appendage | 1 set |
| Weight | 3550kg | ||
| Approvals | ISO9001, ISO14001, CE | ||
| Warranty | 12 months or working in 1500 hours, whichever | ||
Soundproof/Silent/Mobile trailer Box:
1. Silent box: Acid pickling and phosphating treatment, anti-rust, anti-corrosion
2. Noise Level@7m: 72dB(A)
3. Color optional
4. Oil tank mounted on base frame for 8-12 Hours working
5. Excellent ventilation
6. Security and Safety
Our Advantages:
1. Solve technical problems and provide international warranty service for the engine within 24 hours
2. Design customized products according to customer requirements
3. Polyester varnish, anti-corrosion, protect the appearance and prevent rain
4. Test for two hours before delivery
5. ISO9001 and CE certification, strictly guarantee the quality
Delivery standard configuration:
1. Generator Set Distributor Random Technical Documents
2. Diesel engine, radiator / Muffler / Unit manual
3. Alternator / connection elbow / unit product quality certificate
4. Steel structure chassis / Battery and cable / Control screen
5. MCCB air protection switch / Damping pad / Engine original quality file
6. Generator original quality documents
