Гибридный Инвертор солнечной энергии Wi Fi/ЖК дисплей 1000 Вт 1200 48 В
- Категория: >>>
- Поставщик: Dongguan Snat Energy Technology Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1600680922070:
Описание и отзывы
Характеристики

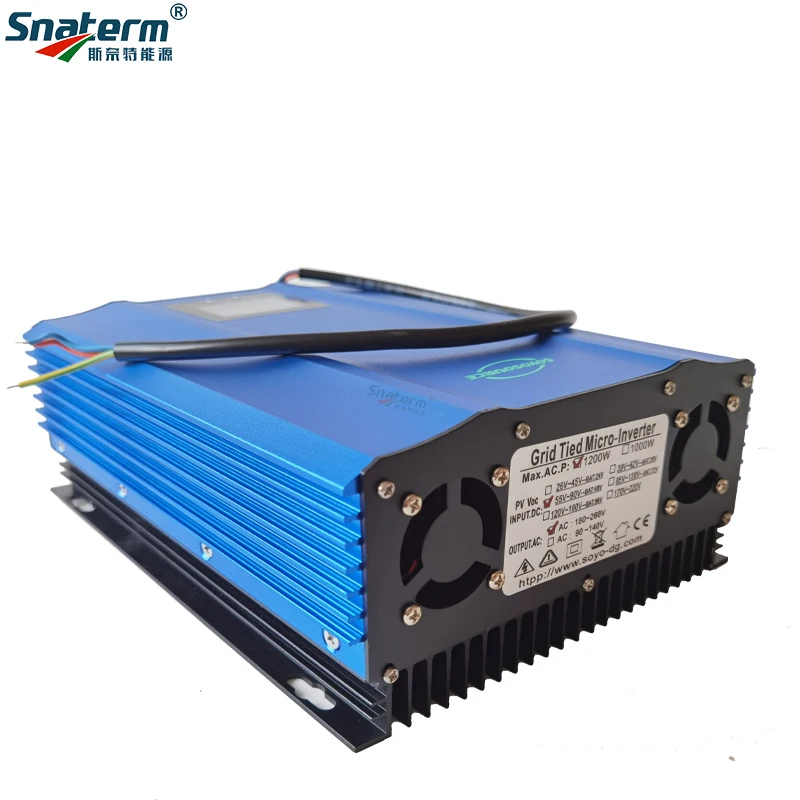

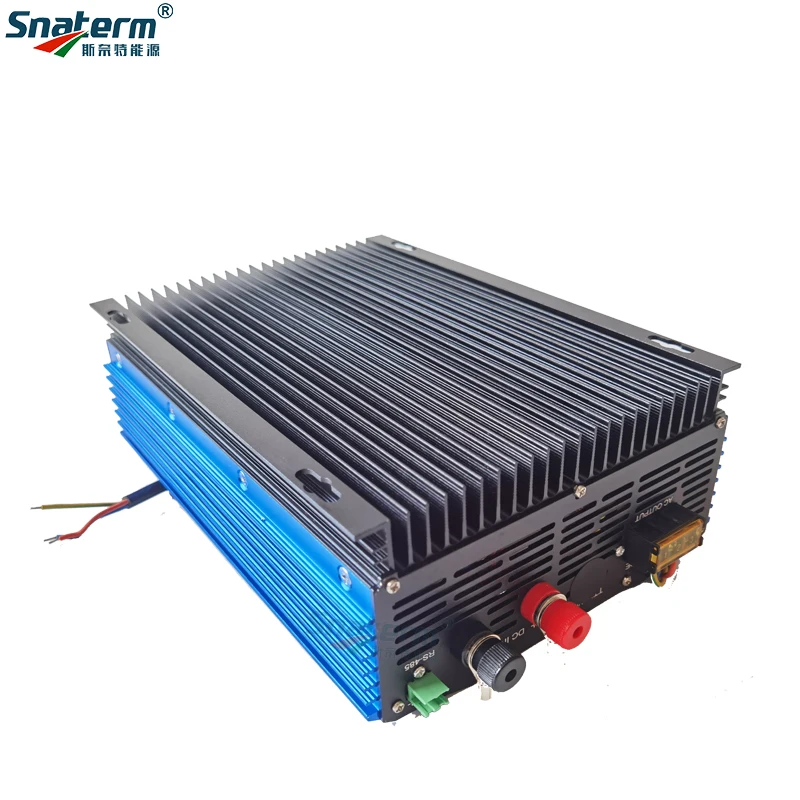

WI-FI /LCD 1000W 1200W hybrid solar power inverter 48V Solar Grid Tie Converter with limiter
MPPT 1000W 1200W Battery Discharge Auto-Limit Solar DC24V 48V 72V 96V AC110V- 240V Grid Tie Inverter with Limiter Sensor
For 1000W MPPT solar grid tie inverter,2 kinds of DC input voltage specifications can be selected:
1 PV-voc voltage range: 26V~45V or 24v battery
2 PV-voc voltage range: 40V-60V or 36v battery
For 1200W MPPT solar grid tie inverter,3 kinds of DC input voltage specifications can be selected:
1 PV-voc voltage range: 55V~90V or 48V battery
2 PV-voc voltage range: 80V-125V or 72V battery
3 PV-voc voltage range:120V-180V or 96V battery
For 1000W MPPT solar grid tie inverter,2 kinds of DC input voltage specifications can be selected:
1 PV-voc voltage range: 26V~45V or 24v battery
2 PV-voc voltage range: 40V-60V or 36v battery
For 1200W MPPT solar grid tie inverter,3 kinds of DC input voltage specifications can be selected:
1 PV-voc voltage range: 55V~90V or 48V battery
2 PV-voc voltage range: 80V-125V or 72V battery
3 PV-voc voltage range:120V-180V or 96V battery
Features
1. With imported high-speed main control chip and power device to improve system stability.
2. Advanced Maximum power point tracking (MPPT)to ensure the high efficiency of system.
3. Efficiency of MPPT > 99%.
4. Solar modules can be serial/parallel input for easy adjustment of system combination power.
5. High-efficiency and frequency transformer,sufficient patents.
6. Anti-islanding technology.
7. Multiple software, hardware system protection, advanced modular design, safe and reliable.
8. LCD rich content display function, user interface, clear and intuitive.
9. Lightweight, easy to install, operate and maintain.
10. Supports access to various DC sources for discharge and can be used as energy-saving
feedback electronic loads.
11. Support RS-485 communication function, data transmission and remote control to operate

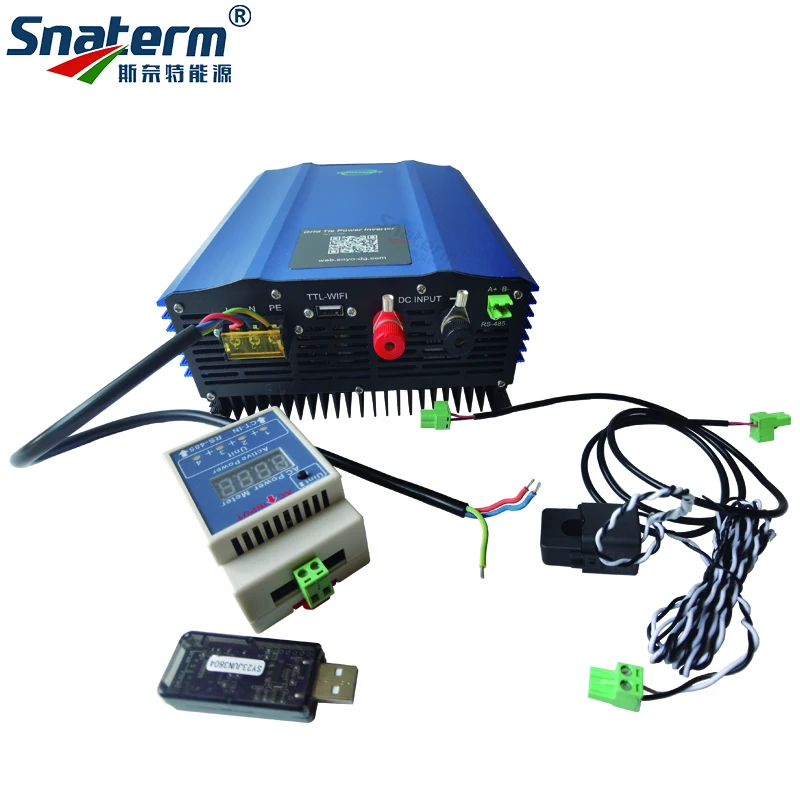

How to connect the sensor?

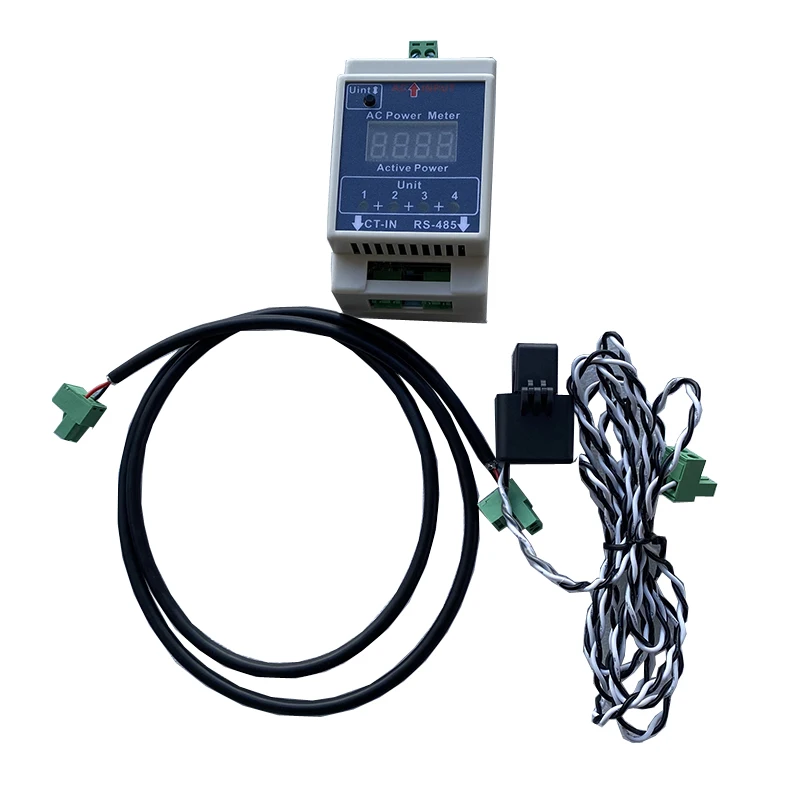

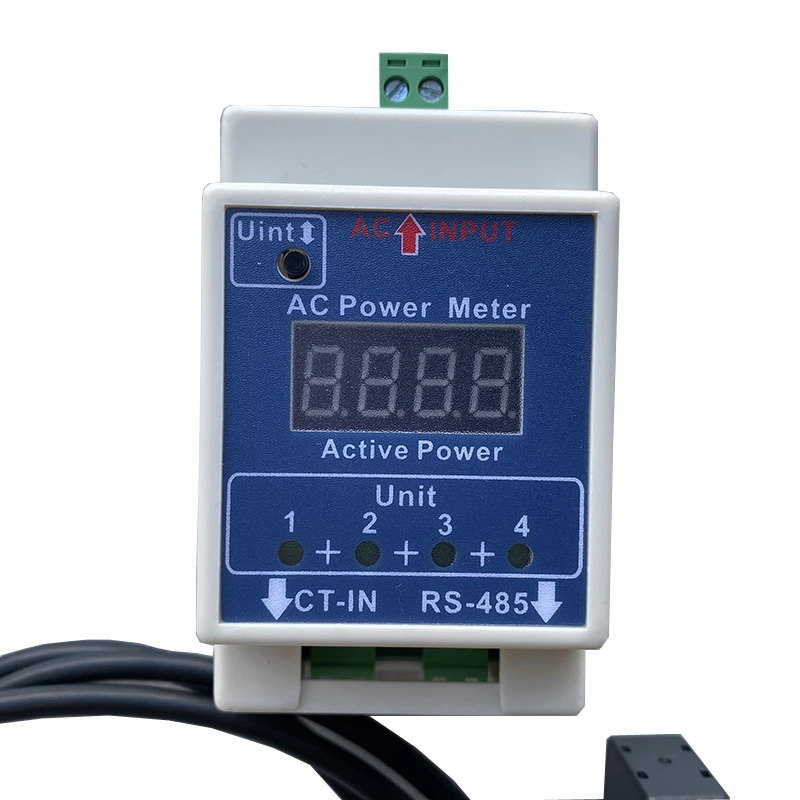

1.conect the RS485 cable of the AC power acquisition meter to the 485 port of the inverter.
2.Plug the connection terminal of the transmitted current sensor into the port of the collector "CT-IN" (no +-)
3.Connect the AC power supply port "AC-IN" of the collector to the same AC power supply for the load. After the connection, it
will light up.
4.In the inverter LCD, enter the "battery grid connection", through the SET {Bat AutoLimit Grid}
5.Connect the inverter to AC power first, then connect the battery, the inverter will automatically output the same power as the
power detected by the collector.Therefore, the inverter will not have excess electricity to be sent to the grid (ie: automatic
limiter function)
6.One acquisition meter can connect 5 unit grid tie inverter
Product Description
Certifications
Company Profile
Products & packaging
FAQ
Q1: Do you accept OEM business?
A1:We accept OEM with your autherization.
Q2:Which market do you already sell?
A2:We already ship to Europe, Middle East, South America, Asia, Africa etc
Q3:What is the warranty for this inverter?
A3:, All products are at least 2year warranty.
Q4: What is the shipping way?
A4: DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q5:What is the payment method?
A5:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q6: What is the standard of package?
A6: Export standard package or special package according to customer requirement
Q7: What kind of product quality your factory offer?
A7:We offer most competitive prices with best quality
Q8:How can I make sure it's a secure transaction ?
A8: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money
will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will
release us the money.
Q9:How to become your agent?
A9:Contact us through Alibaba, we will give you the best price and look forward to your greetings
A1:We accept OEM with your autherization.
Q2:Which market do you already sell?
A2:We already ship to Europe, Middle East, South America, Asia, Africa etc
Q3:What is the warranty for this inverter?
A3:, All products are at least 2year warranty.
Q4: What is the shipping way?
A4: DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q5:What is the payment method?
A5:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q6: What is the standard of package?
A6: Export standard package or special package according to customer requirement
Q7: What kind of product quality your factory offer?
A7:We offer most competitive prices with best quality
Q8:How can I make sure it's a secure transaction ?
A8: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money
will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will
release us the money.
Q9:How to become your agent?
A9:Contact us through Alibaba, we will give you the best price and look forward to your greetings
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2. Import duties, taxes and charges are not included in the item price or shipping charges.These charges are Buyer’s
responsibility.
3.If you didn't receive the item after 55 days, please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays caused by the customs,Import duties,taxes or other customscharges.
5.If you need more fast delivery, contact us to use Fedex, DHL, TNT,UPS ect and pay the extra freight cost.
6.Remote area addition fee(UPS & FedEx & DHL)A Remote Area is defined as a post code or in the absence of post code, a suburb/town name that is difficult to serve. A delivery to one of the following post codes and towns would attract a Remote Area surcharge.
7. 100% QC before shipment.
2. Import duties, taxes and charges are not included in the item price or shipping charges.These charges are Buyer’s
responsibility.
3.If you didn't receive the item after 55 days, please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays caused by the customs,Import duties,taxes or other customscharges.
5.If you need more fast delivery, contact us to use Fedex, DHL, TNT,UPS ect and pay the extra freight cost.
6.Remote area addition fee(UPS & FedEx & DHL)A Remote Area is defined as a post code or in the absence of post code, a suburb/town name that is difficult to serve. A delivery to one of the following post codes and towns would attract a Remote Area surcharge.
7. 100% QC before shipment.
Feedback:
Please feel free to contact us if there is any problems.We will try our best sloving it. If You Are Satisfied With Our Product,Kindly Leave Full-stars and Good Feedback For us. Your Feedback will Encourage us DO it Better In The Further . Thanks!
Customer Reviews
Похожие товары
Яж решеточный инвертор 3kva работы HPS-3kva яж одна фаза Гибридный
15 611,34-16 742,59 ₽
B 17.0kw/20.0kw/25.0kw трехфазный сетчатый инвертор

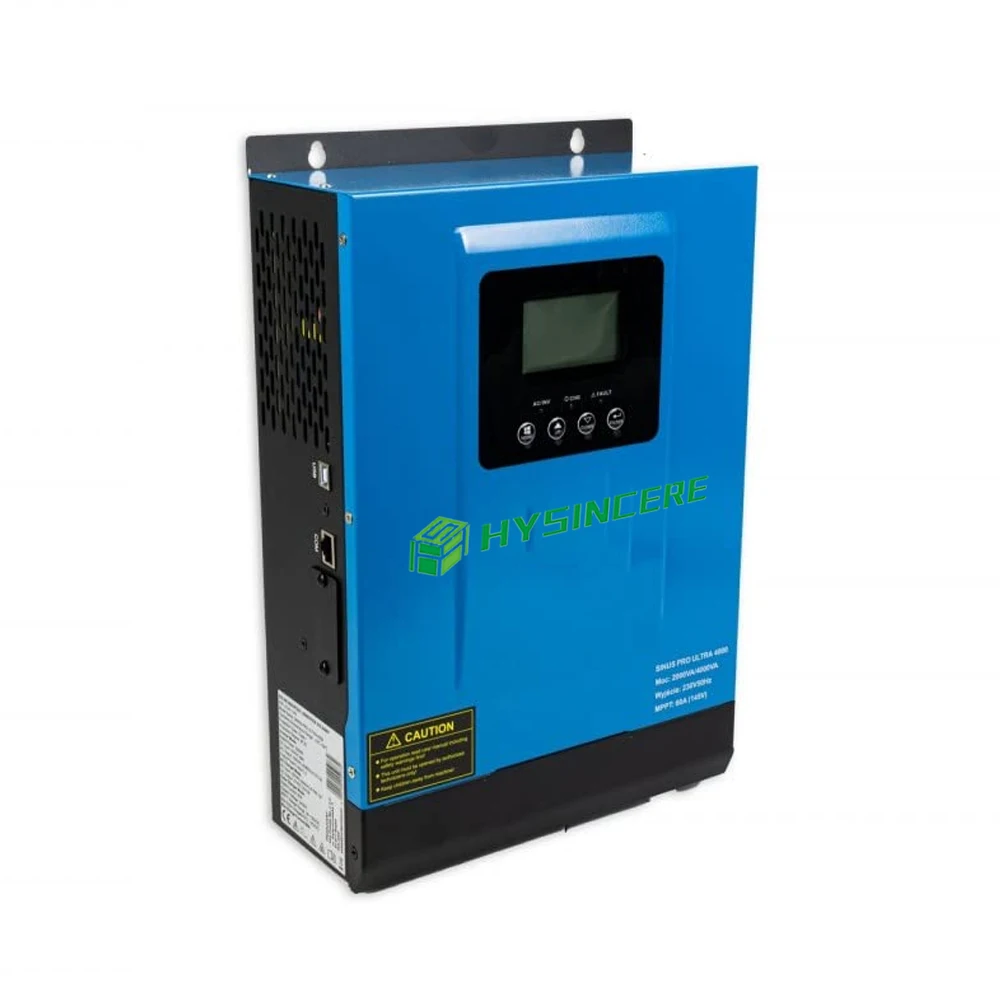

5.5kw Гибридный солнечный инвертор для домашнего применения автономный производства солнечной энергии
35 623,26-41 845,16 ₽

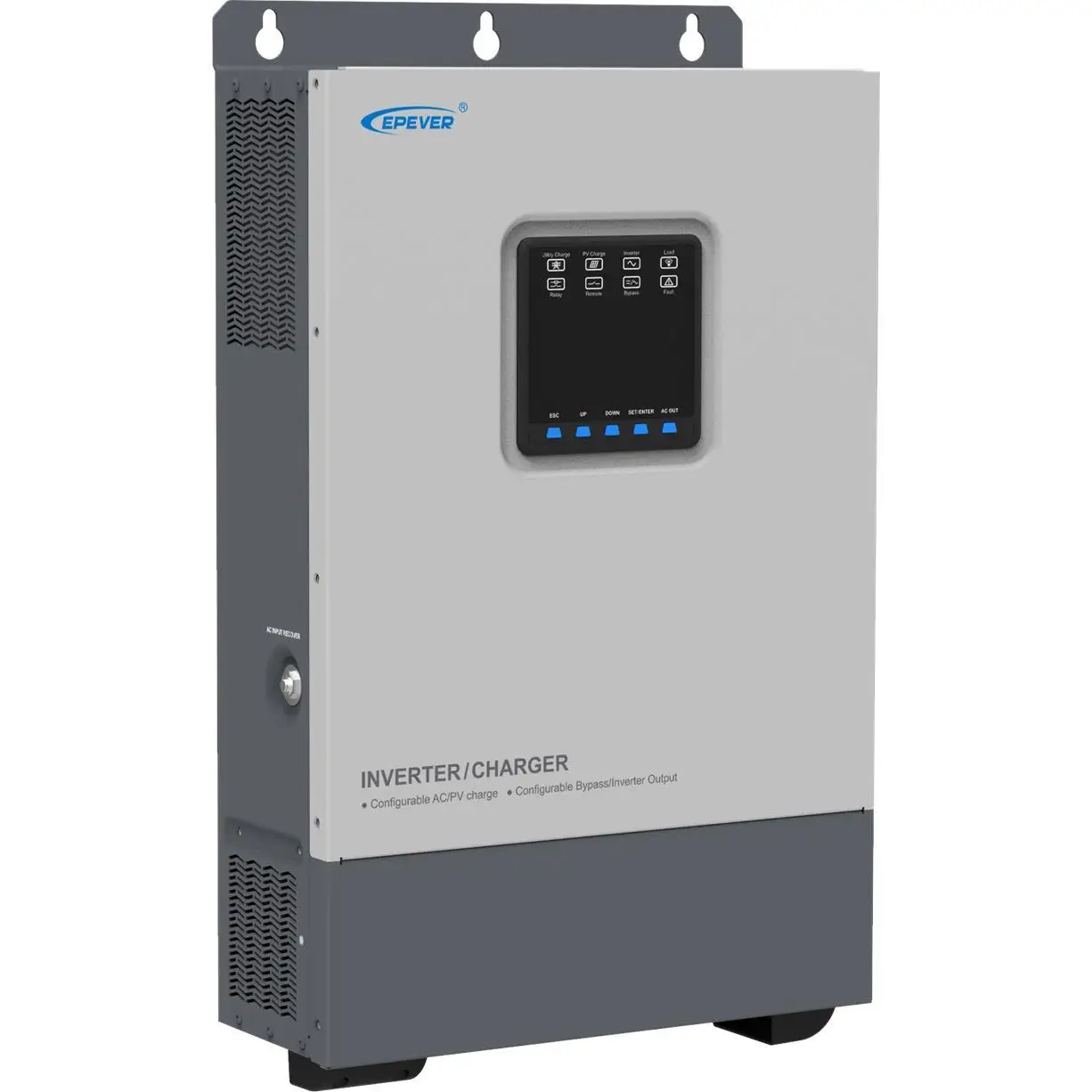

Оптовая цена солнечной системы питания инвертор UP3000-HM5041 гибридное зарядное устройство
52 603,41-55 997,18 ₽

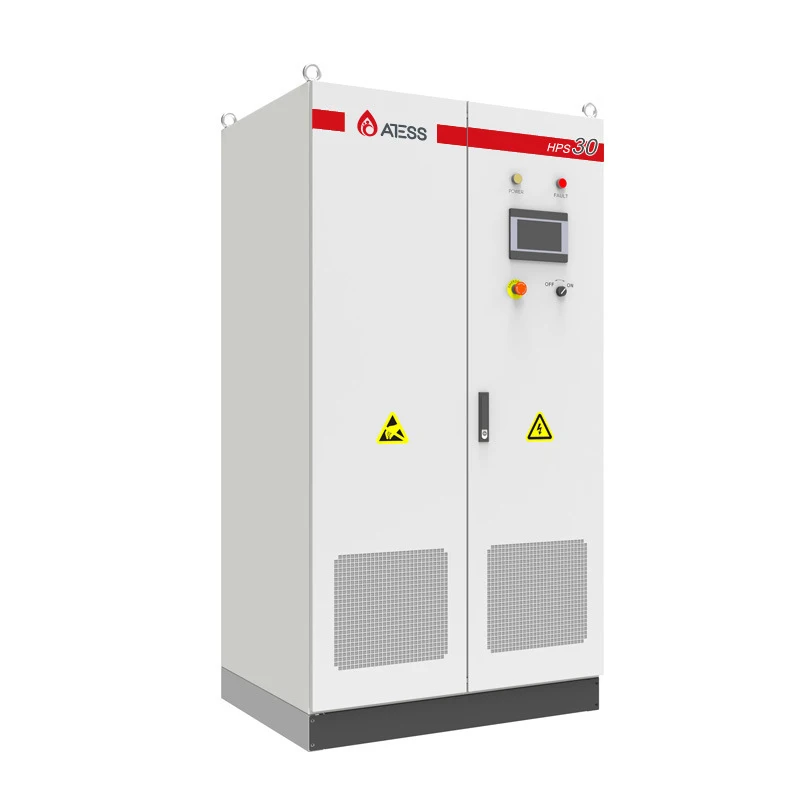

Гибридный инвертор ATESS HPS30 HPS50 HPS100 HPS150
