High Quality GXY-360 Geological Exploration Drilling Rig 400m Depth Water Well with Good Condition
4 500,00 $
Верхняя буровая установка для бурения камней
- Категория: >>>
- Поставщик: Jining Fangze Machinery Co. Ltd.Jining Ltd.
Сохранить в закладки 1600681449600:
Описание и отзывы
Характеристики
top hammer drill rig gold drilling machine rock drilling rig
Product Description
Pneumatic DTH drilling rig
Using :
Before the coal mining, coal mines drilled gas drainage (discharge) holes, grouting fire prevention holes, coal seam water
injection holes, anti-burst pressure relief holes, water exploration holes, geological exploration holes and coal mine underground
drilling.
Introductions:
This model is equipped with a dual-motor rotary head and a multi-way valve with adjustable rotary speed. The rotary torque can
reach 2200N.m, which meets the needs of 76 drill pipes and 130 bores. The rotation speed can reach up to 150 revolutions, which
meets the needs of some customers for high-speed drilling in soft rock formations. At the same time, the 920 series models are
equipped with engineering tracks and plunger motors as standard, which increase the leveling function, improve the climbing and
cross-country performance of the equipment, and can adapt to complex terrain conditions. Vertical holes can be drilled for slopes
to meet the needs of different working conditions.
Using :
Before the coal mining, coal mines drilled gas drainage (discharge) holes, grouting fire prevention holes, coal seam water
injection holes, anti-burst pressure relief holes, water exploration holes, geological exploration holes and coal mine underground
drilling.
Introductions:
This model is equipped with a dual-motor rotary head and a multi-way valve with adjustable rotary speed. The rotary torque can
reach 2200N.m, which meets the needs of 76 drill pipes and 130 bores. The rotation speed can reach up to 150 revolutions, which
meets the needs of some customers for high-speed drilling in soft rock formations. At the same time, the 920 series models are
equipped with engineering tracks and plunger motors as standard, which increase the leveling function, improve the climbing and
cross-country performance of the equipment, and can adapt to complex terrain conditions. Vertical holes can be drilled for slopes
to meet the needs of different working conditions.
Product Paramenters
Model | HW920 |
Engine brand | Yuchai |
Power（KW） | 58 |
Drilling pipe size（mm） | φ76*3000 |
Drilling diameter（mm） | φ90-130 |
Max.torque（N.m） | 2200 |
Rotation speed（rpm） | 0-150 |
Pushing force（kN） | 15 |
Lifting force（kN） | 25 |
The way of pushing | Cylinder chain |
Leveling angle | ±10° |
Walking Speed（km/h） | 2.5 |
Gradeability | 30° |
Weight（kg） | 4000 |
Transport Dimensions（mm） | 5700*2130*2200 |

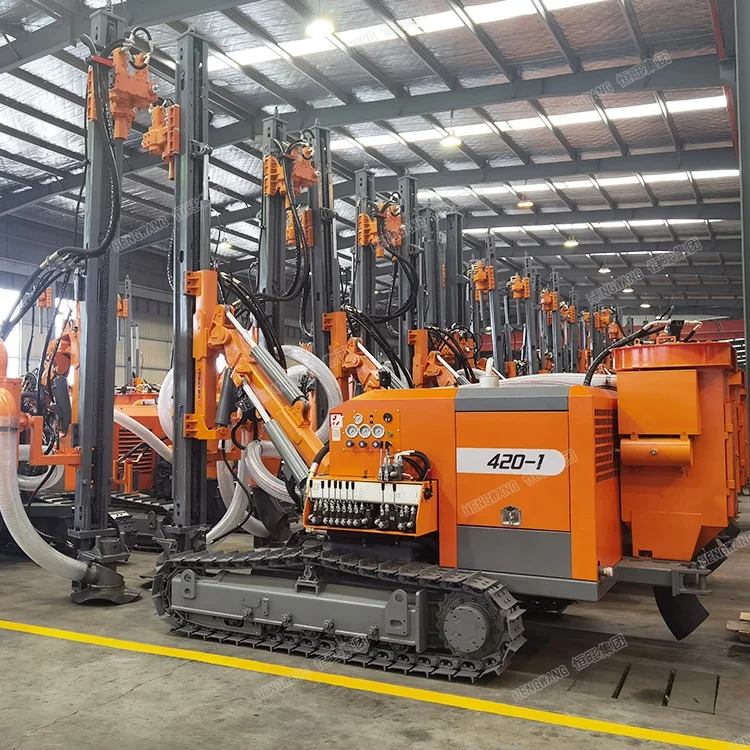

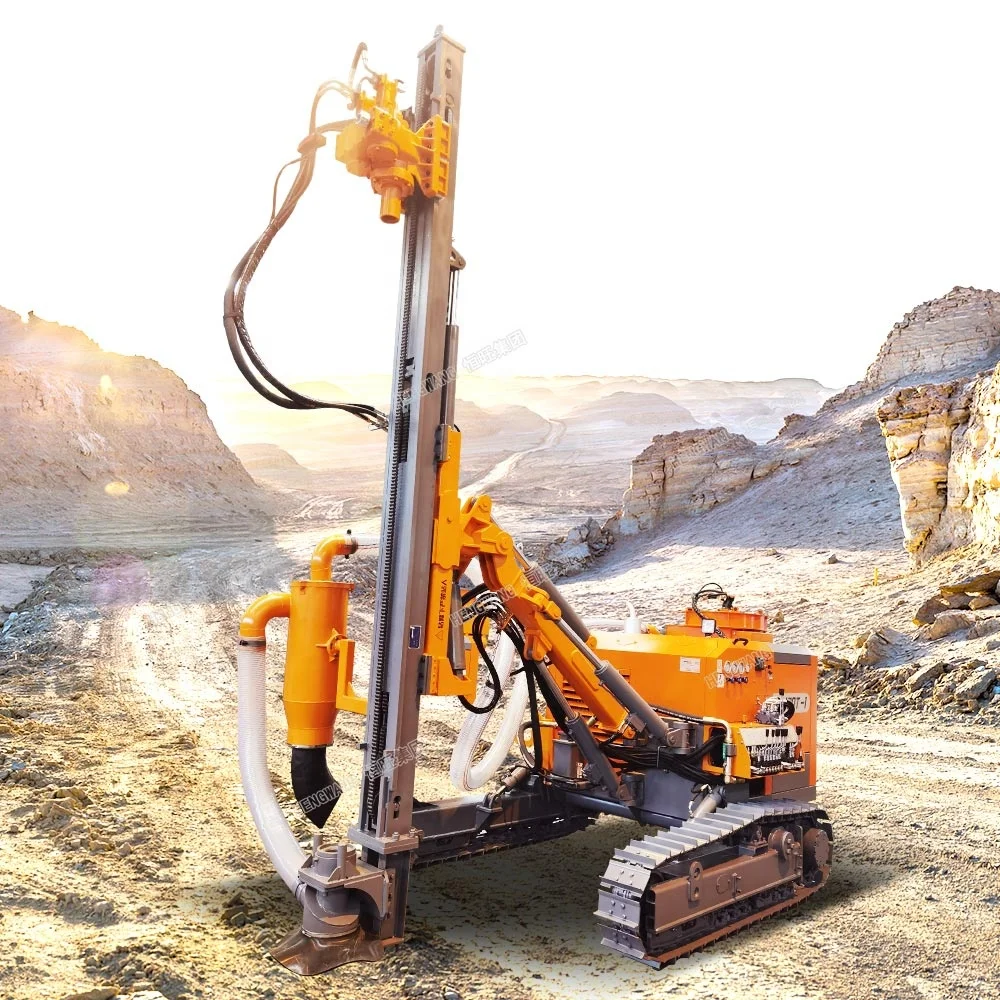

Details Images

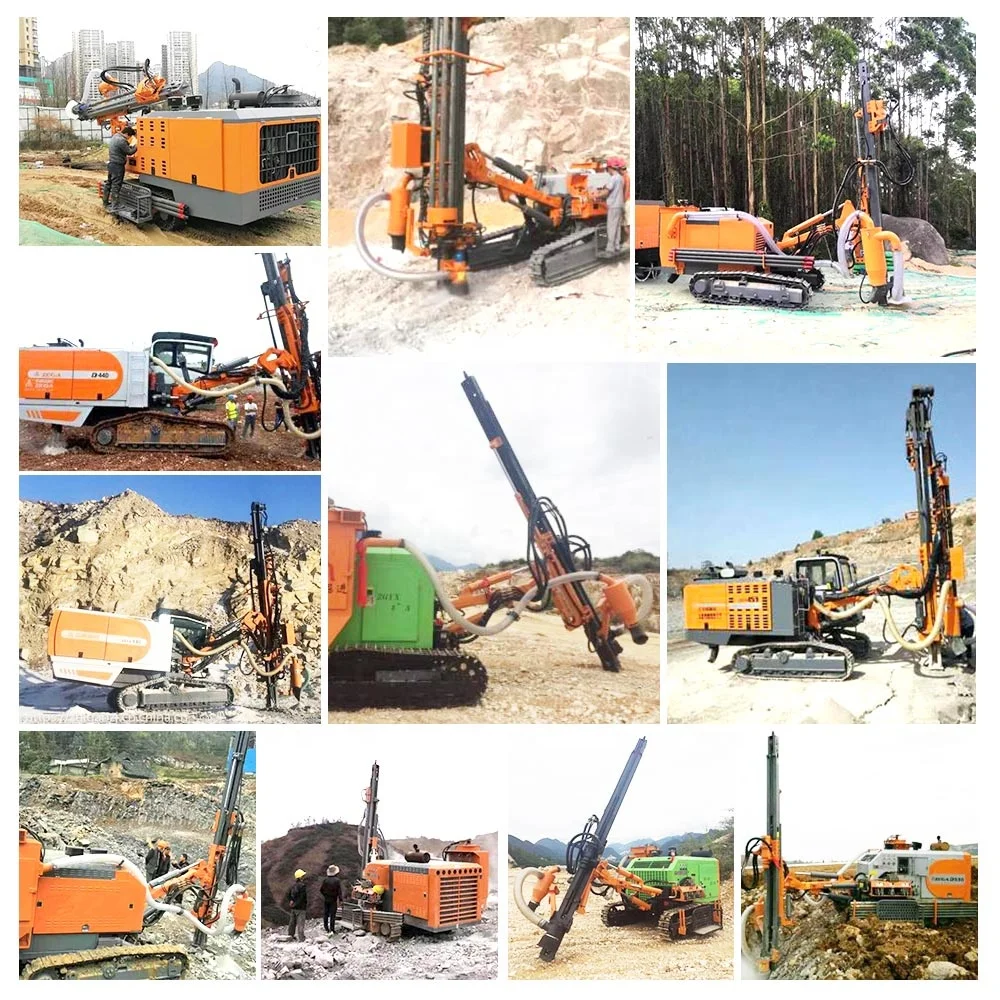

Wide range of use
Customer Feedback

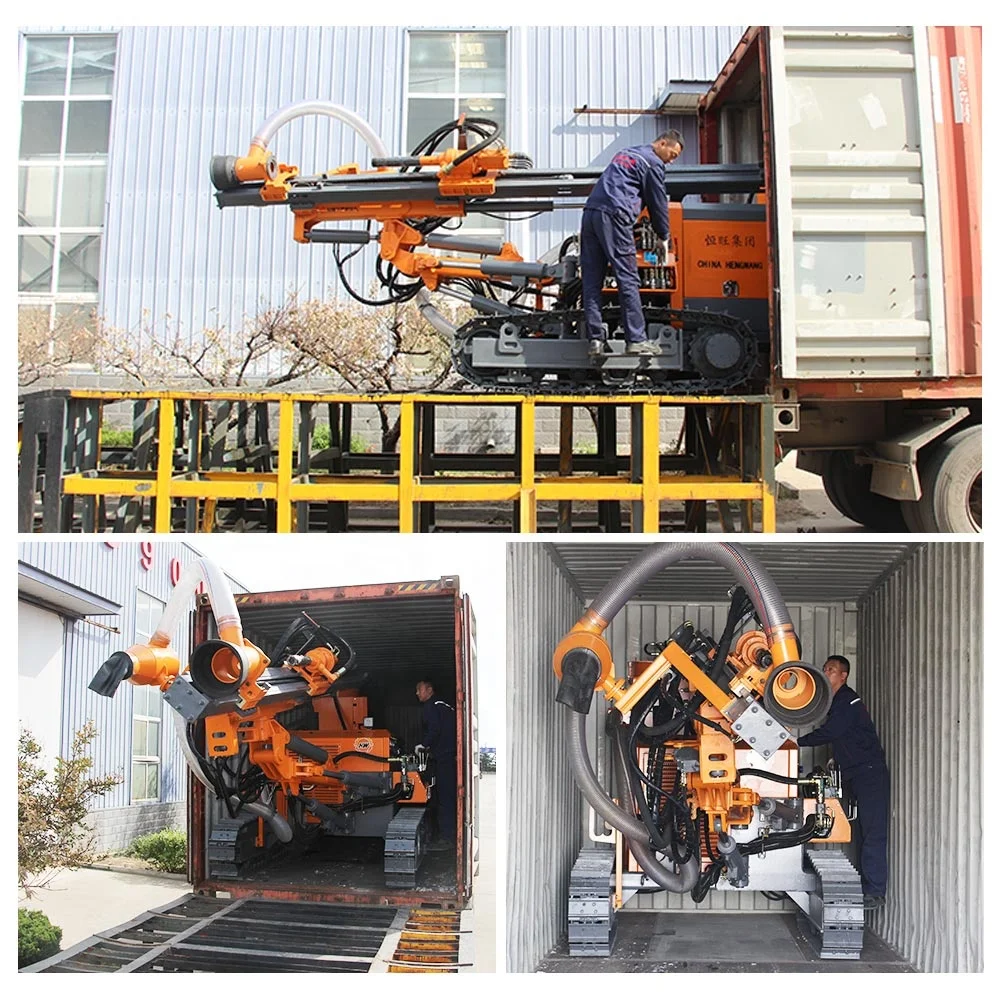

Packing & Delivery
In terms of transportation, we generally provide sea freight and support a variety of payment methods. You can receive this drilling rig you like at the port. We guarantee that we will not charge any intermediate fees and additional fees that exceed the shipping cost. We only hope that you will be faster and more efficient. Get Your Favorite drilling machine at a Discount

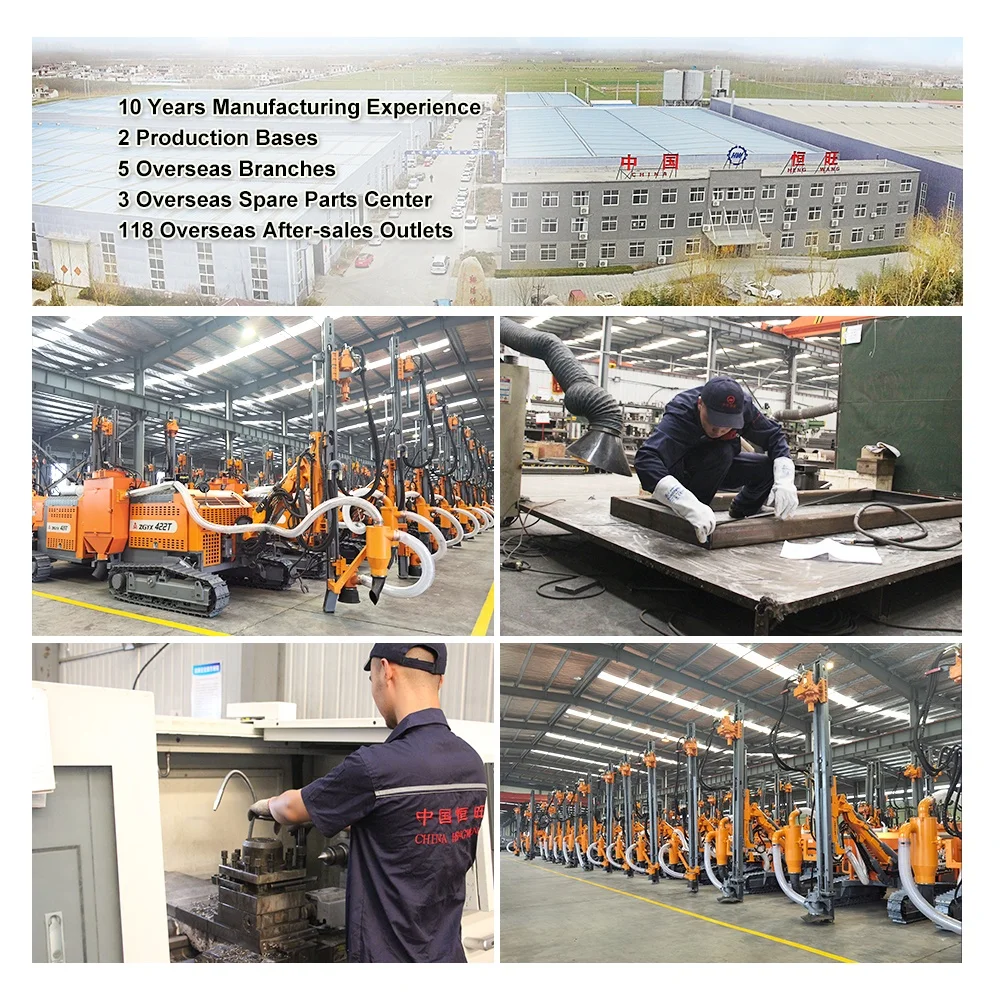

Company Profile
