Инвертор Seplos 14S 16S 24 В 48 100 А 150 200 инвертор промышленного класса RS485 литий ионные батареи Lifepo4 Smart

Сохранить в закладки 1600681697354:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Specification


Battery type and serial number
LFP(16S/15S)
NCM(14S/13S)
Continuously charging/discharging current
50A/75A/100A/150A/200A
50A/75A/100A/150A/200A
Communication protocol
CANBUS(default)or RS485
CANBUS(defult) RS485
Custom function
Heating function、External switch
Heating function、External switch
Working temperature
-20℃-70℃
Pre-charging
0-3000ms
Current Balance
Passive balance
150mA(Max)



Power consumption
Working mode power consumption
<40mA
Sleeping mode power consumption
0uA


Capacity protection
Nominal capacity
5-500Ah
Remaining capacity protection
5%



      Short Circuit             protection
Short circuit protection lock
Continuously short in output circuit
Short circuit protection lock times
5 times
Short circuit protection lock release
Connected with charger

Individual cell voltage protection
Over voltage protection
3650mV
4200mV
Under voltage protection
2700mV
2900mV


Voltage protection
Over voltage protection
57.6V
58V
Under voltage protection
41.6V
40.6V


Current protection
Over current protection
60A/85A/110/160A/210A
Over current protection time delay
30mS
Current limiting(charging)
Passive current limiting
10A

Heating function
Start
0℃
Stop
10℃

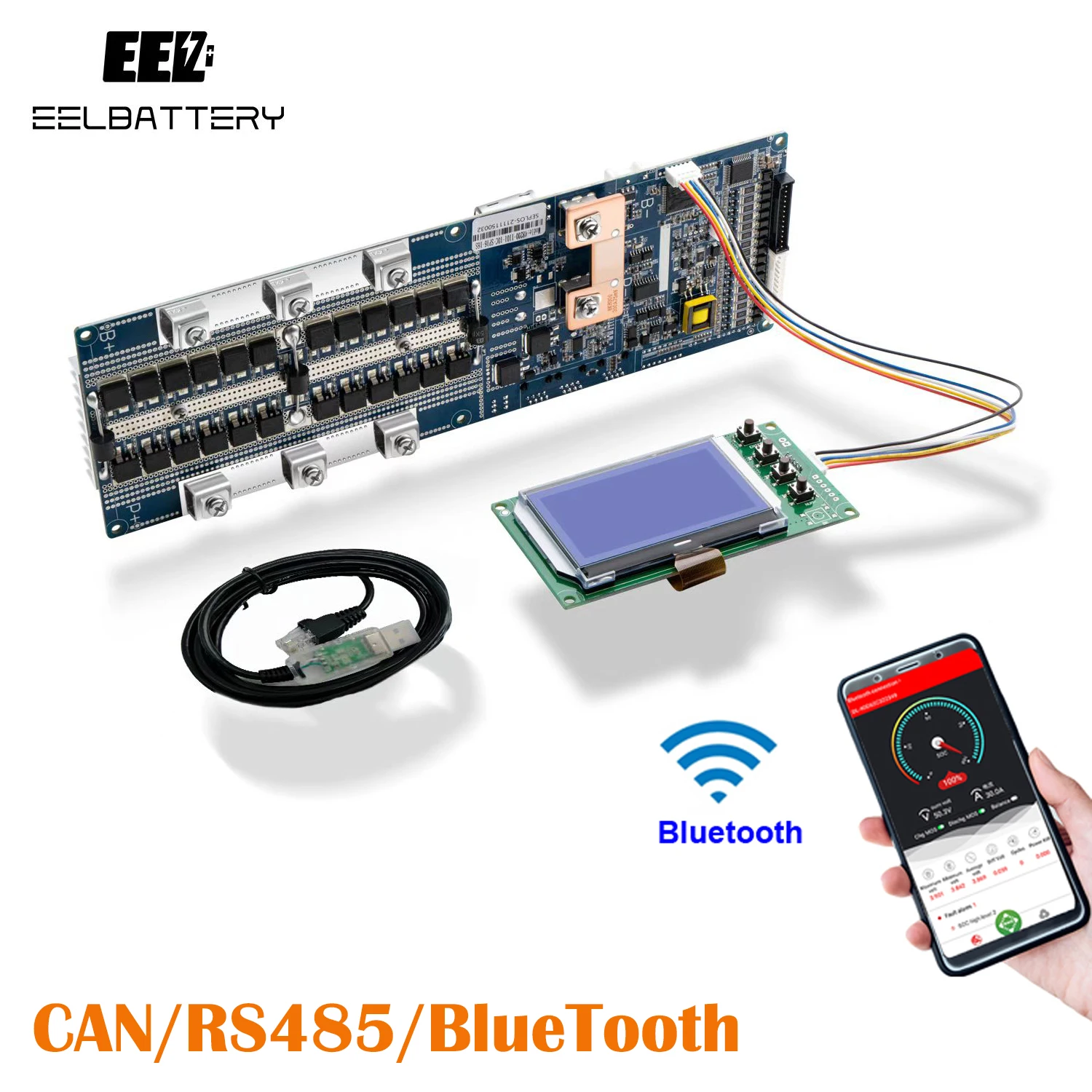

1. This smart bms with CANBUS/RS485 module is compatible with lifepo4 & lithium NCM battery pack
2.BMS support CANBUS communication protocol and RS485 communication protocol.
3.Our BMS can support up to max 16 units in parallel operation.
4.The main functions are: CANBUS communication,RS485 communication,passive balance,individual cell over voltage protection,Over(under)voltage protection,temperature protect,over charge (discharge)protection, over current protection, Short circuit protection.


Advantage:
1. High stability
2. High compatibility, suitable for most mainstream inverters on the market
3. High added value
4. The role of information collection
5. Excellent heat dissipation
6. Different from other BMS on the market, it has a longer service life



Product Description


Seplos 8S 16S 24V 48V 100A 150A 200A CAN/RS485 Industrial Grade Inverter Lifepo4 Battery Lithium Ion Batteries JK JBD Seplos Smart BMS










RS485 protocol is compatible with following inverters brand

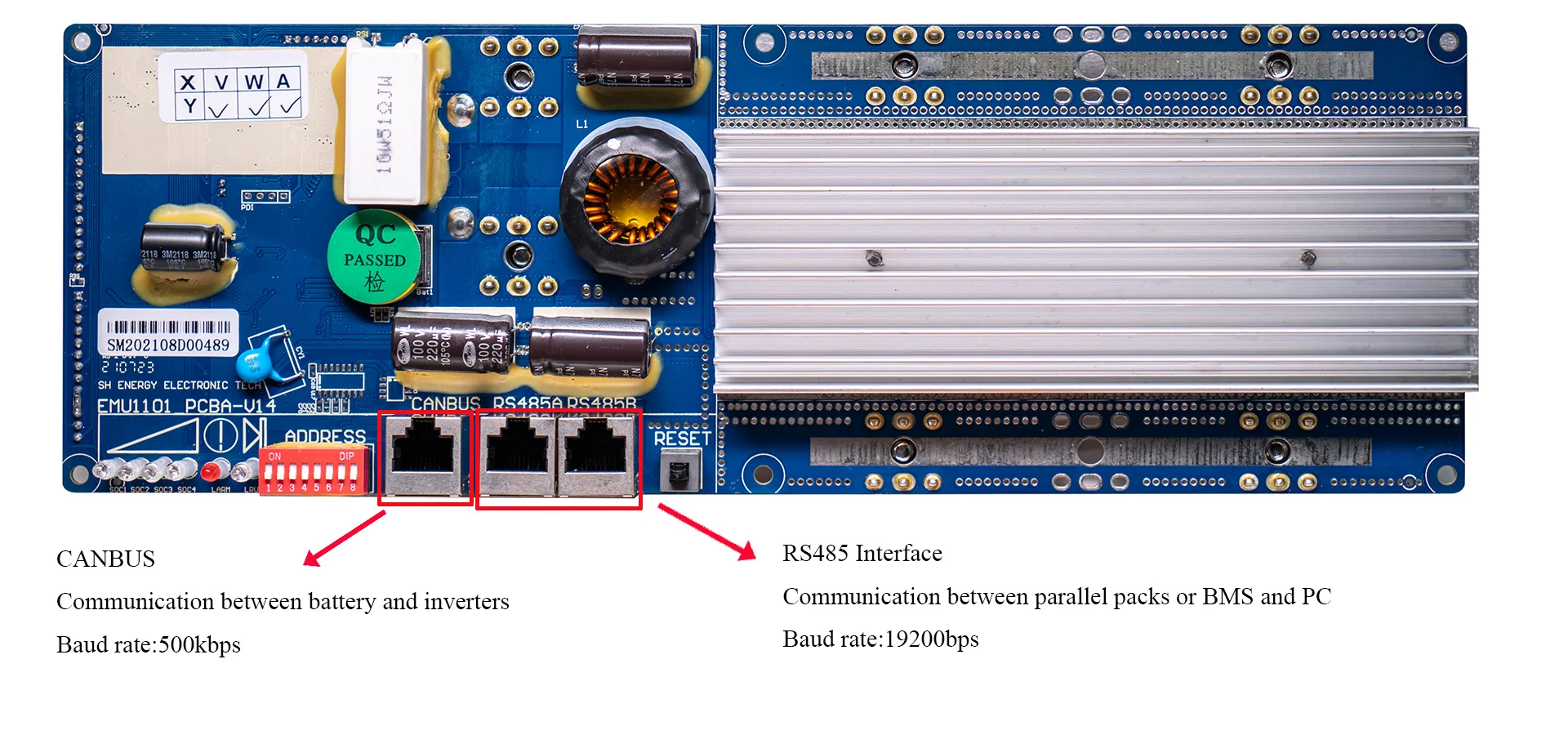

Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching
inverter brand, which can be automatically matched or manually switched:
*Pylontech
*Voltronic power
*Growatt-SPF
*SRNE



CANBUS protocol is compatible with following inverters brand
The CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
*Pylontech
* Goodwe
* Growatt SPF&SPH
* Victron
* LUX POWER
* Sofar
* DEYE
* Studer
* MUST
* TBB POWER
* SOLIS
* SMA
If your inverter brand not in the list, please kindly ask the inverter supplier to provide the protocol to define. And send protocol to us, we'll help to solve it.

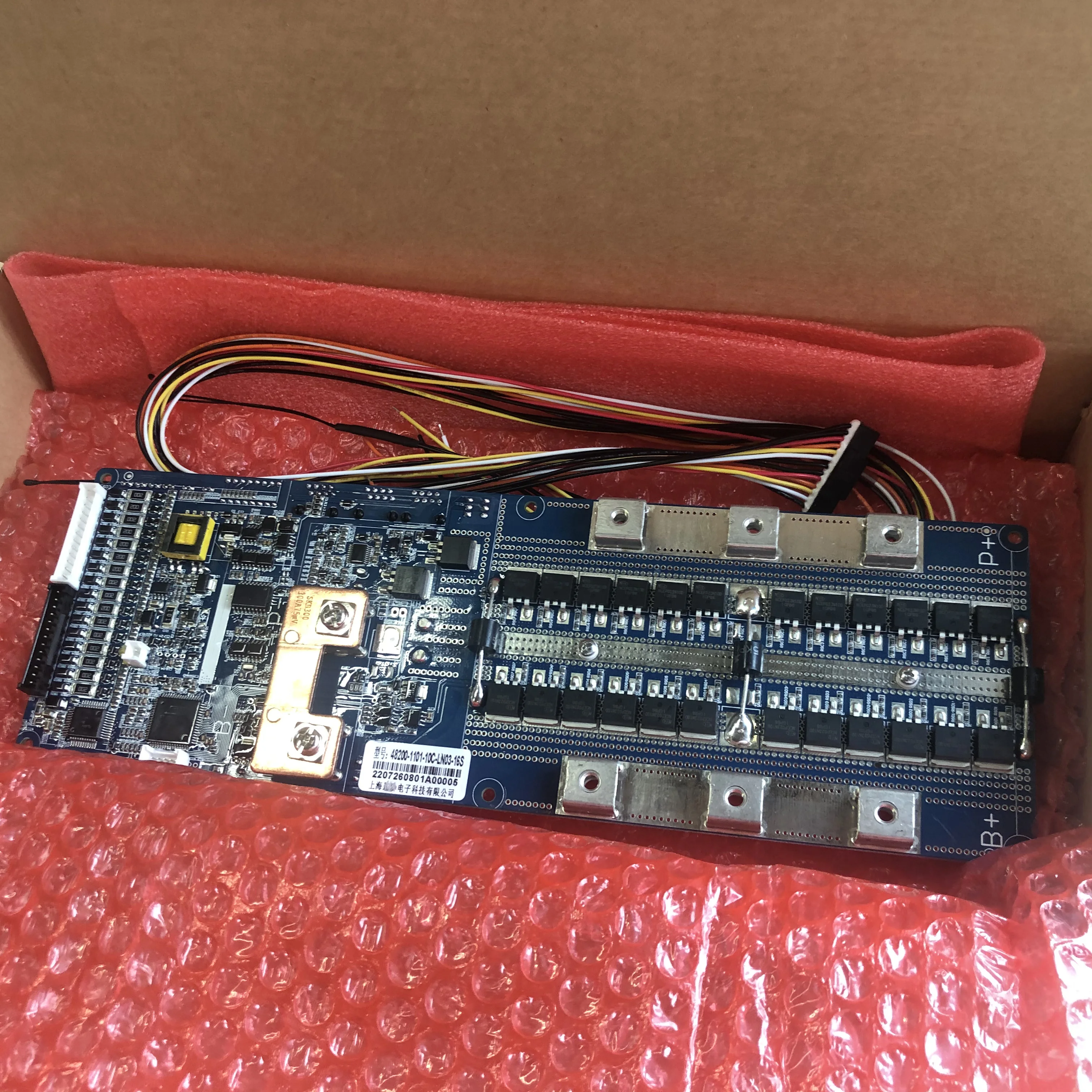

Packing & Shipipng




In well protected carton box with PE foam with signal wires

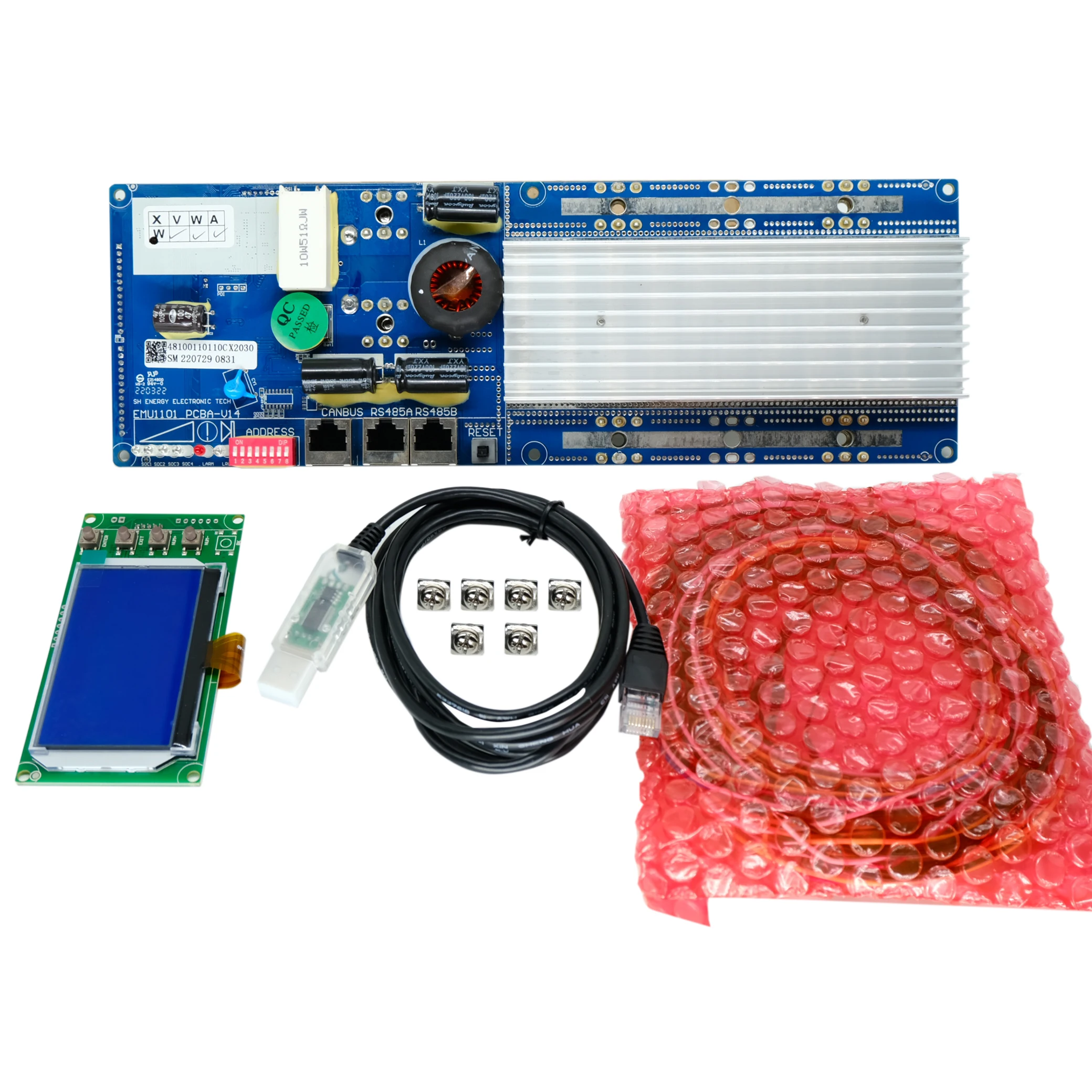

BMS*1(Built-in CAN or RS485, select according to requirements)
Connecting line*1





Pls note we can't deliver to the following address directly
USA: Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska,Hawaii also not included.
Portugal: Azores and Madeira
Spain:Canary Islands, hueda,Missily and melilia and some other Island
Russia: Kamchatka Peninsula
Other:Some remote areas not listed,please provide shipping address and zip code to to us to check.


Company Profile








EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS,UN38.3,CE,UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical device. Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!


Certifications






FAQ


1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.What can you buy from us?
LiFePO4 Battery Cell,LiFePO4 Battery Pack,Powerwall,BMS,Energy Storage Battery,inverter,one stop solution on solar energy system products.

3. What services can we provide?
a.100% original direct sales
b.Each bms will be tested before shipping.
c.After sales support and technical guidance
d.Support customization
e.Sample available, the freight is the cheap.
f.The price of all models is the version with Bluetooth software
g.If you require the hardware version, please contact us firstly

4,I am a distributor. Can I cooperate for a long time?
A: Yes,Individual pricing for large scale projects and wholesale demands is available.
