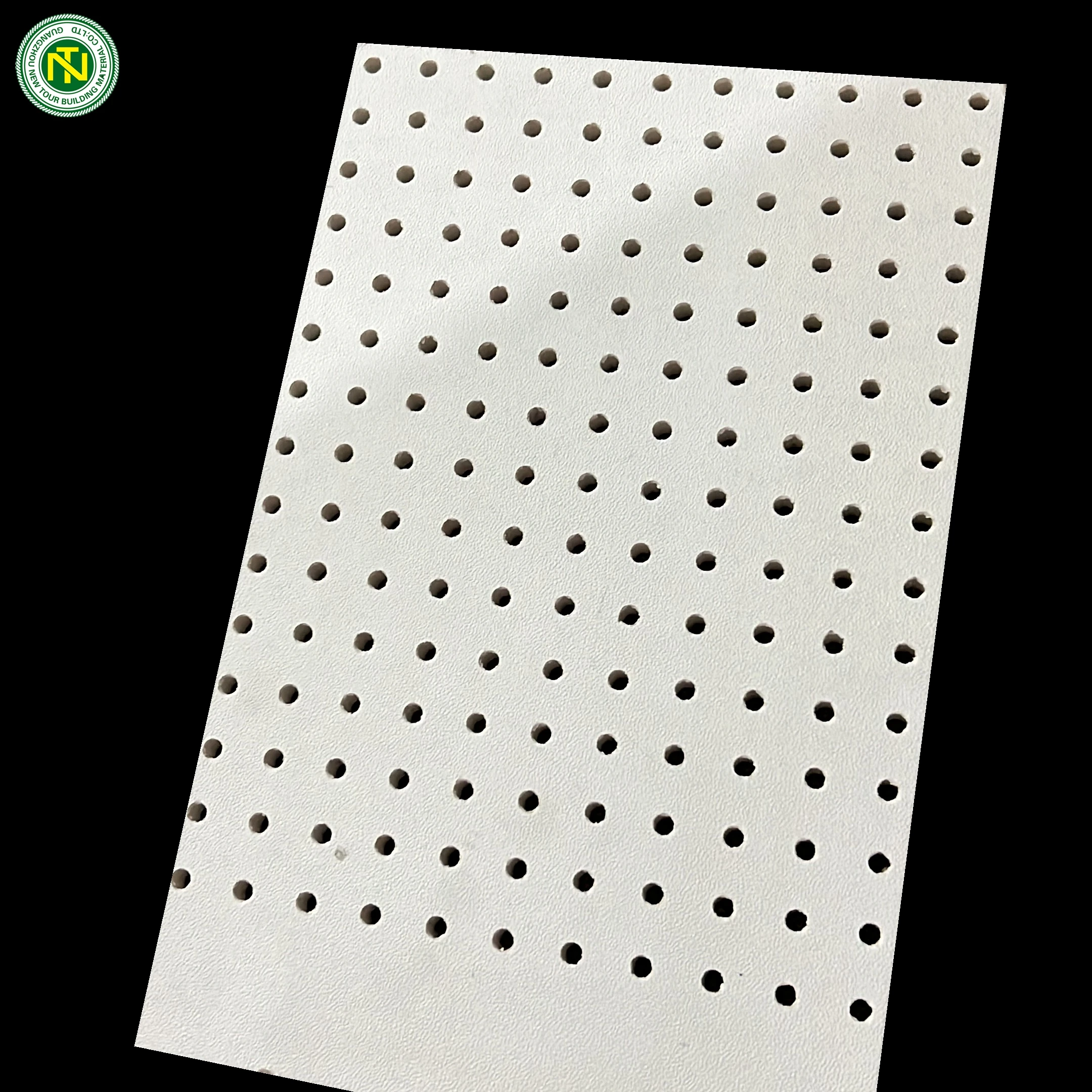

Стандартный Перфорированный гипсокартон/Огнестойкий/водостойкий/гипсокартон 9,5 мм/12,5 мм упаковка для поддонов
1,25 $ - 2,35 $
Мини ПК GF Link 11 поколения N5105 Barebone | NVME 4 * In tel 2 5G i225 NICs слот для SIM карты 1DP 1HDMI
- Категория: >>>
- Поставщик: Guanfeng Network Technology (Shenzhen) Co. Ltd.
Сохранить в закладки 1600682393384:
Описание и отзывы
Характеристики
Product Description
GF-Link 11th Generation N5105 Barebone | NVME 4*In-tel 2.5G i225 NICs SIM Card Slot 1DP 1HDMI Mini PC
Our company offer OEM OR ODM service, any details please kindly send us inquiries,thanks.
Company Instruction
Products Description
Detailed Processor parameter Link:
https://www.intel.com/content/www/us/en/products/sku/212328/intel-celeron-processor-n5105-4m-cache-up-to-2-90-ghz/specifications.html?wapkw=n5105
https://www.intel.com/content/www/us/en/products/sku/212328/intel-celeron-processor-n5105-4m-cache-up-to-2-90-ghz/specifications.html?wapkw=n5105
Product Highlight
- 4*Intel i226 2.5G RJ45 Ethernet Controllers, 2*USB3.0.
- 2*DDR4 SO-DIMM 2133/2400 MHz RAM slots, maximum support 16GB.
- 1*SATA + 1*M.2 NVME
- Support 1 x HD-MI + 1 x DP
- 1*SIM slot, 1*MPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
- Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
- 2*DDR4 SO-DIMM 2133/2400 MHz RAM slots, maximum support 16GB.
- 1*SATA + 1*M.2 NVME
- Support 1 x HD-MI + 1 x DP
- 1*SIM slot, 1*MPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
- Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
Brand | Guanfeng | ||||||
CPU | Onboard Intel ® Core ™ N5105, FCBGA1338, 2 core 4 threads, 1.10GHz Base Frequency, 4MB Cache cache, TDP6W | ||||||
Memory | 2 x DDR4 260PIN SO-DIMM slots (memory support voltage 1.2V), Max. support 16GB | ||||||
Storage | 1 x SATA | ||||||
1 x M .2 (2280) NVME only (SATA interface M is not supported.2, PCIe 2X ) | |||||||
Extended Bus | 1 x MINI PCIE interface | ||||||
Network Cards | 4 x Onboard Intel i226 network card chip | ||||||

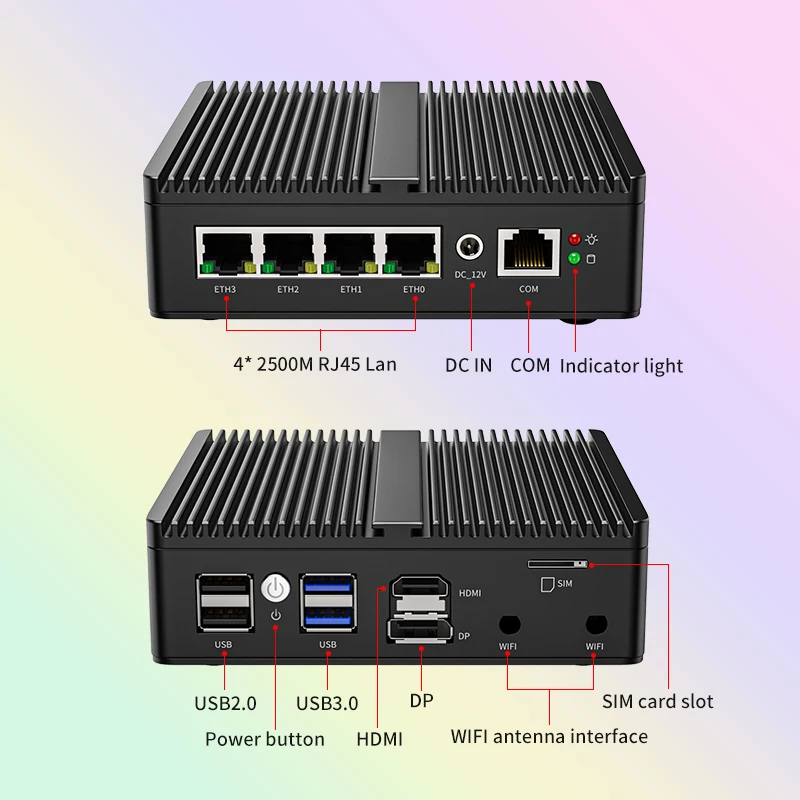

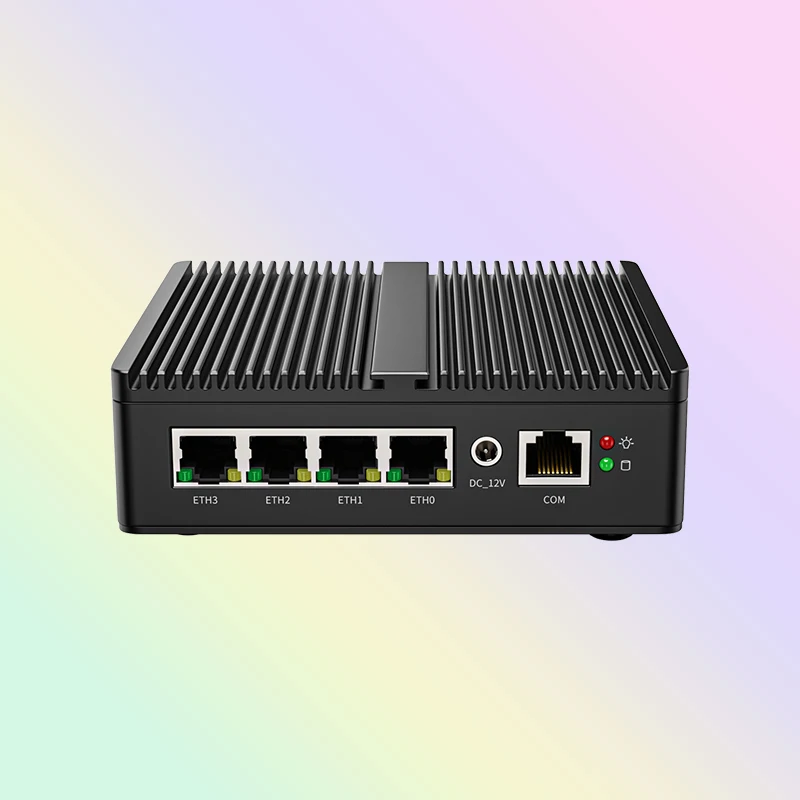

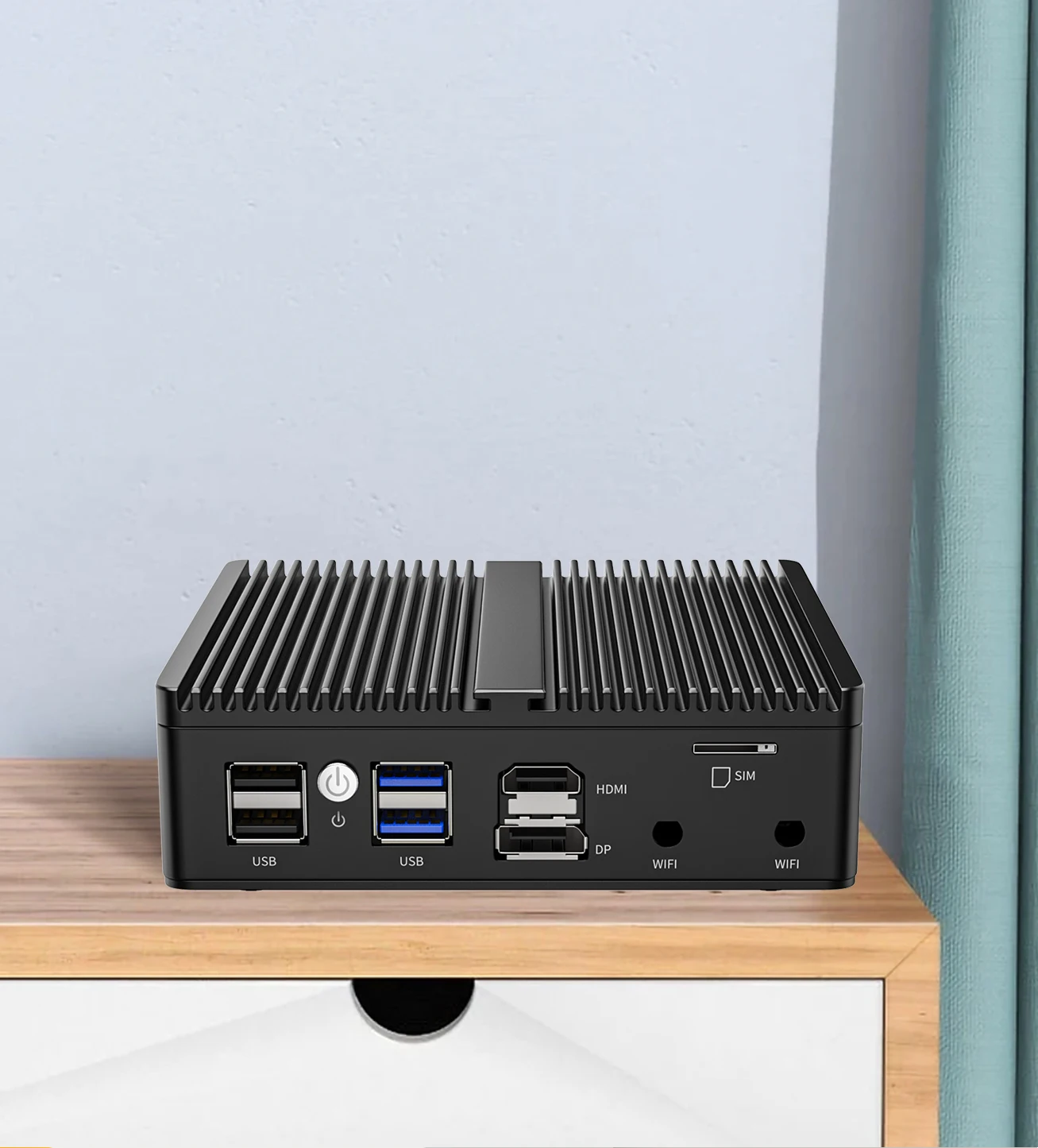

Rear Panel Input/Output | 1 x DC_IN power supply interface | 1 x Double-layer USB 3.0 interface | |||||
1 x DP + 1 x HDMI interface | 1 x PWR_BTN Switch Button | ||||||
1 x LED indicator | 1 x Double-layer USB2.0 interface | ||||||

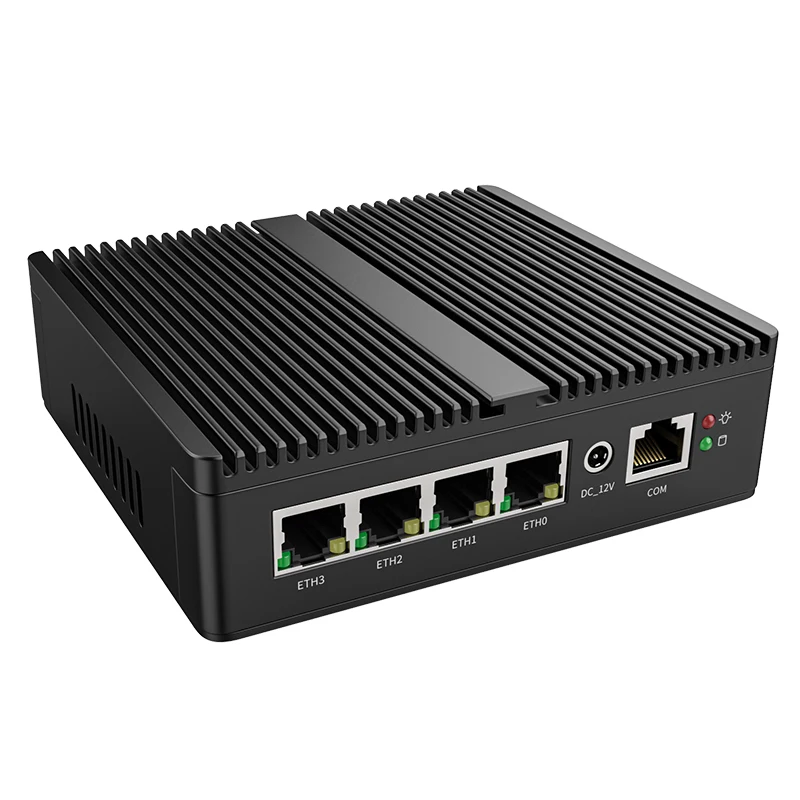

1 x RJ45_COM port | 4 x RJ45 LAN interfaces | ||||||
Onboard Input/Output | 1 x SATA power supply interface | 1 x SIM card slot | |||||
Power Supply | DC _IN 12V | ||||||
Working Temperature | -20~55 ℃ | ||||||
Dimension of motherboard | 120mm x 120mm | ||||||
Ambient Temperature | 5~90℃ Relative humidity, no condensation | ||||||
Customization Services
free.
* MOQ: No MOQ Limitation
* White and silver available
2. LOGO customization - Silk screen
* MOQ: Depends on the unit value, please contact us for more details
* The exact cost depends on the complexity of the logo
3. LOGO customization - BIOS LOGO
* MOQ: 20 units
* Free
* White and silver available
2. LOGO customization - Silk screen
* MOQ: Depends on the unit value, please contact us for more details
* The exact cost depends on the complexity of the logo
3. LOGO customization - BIOS LOGO
* MOQ: 20 units
* Free
* MOQ: 50 units
* Free remote testing
5. Package customization
* MOQ: 100 units
* Free
6. Motherboards customization
* Please contact us for more details
FAQ
Q: How many months warranty? Tks you.
A: There is one year warranty. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about 30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less, cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q:How many devices does PFsense support?
A: Inferring your question a bit, I think you're asking how many clients would be supported if pfSense were installed on this device? If so, it's a somewhat difficult question to answer, as the answer will depend not only on the number of devices, but also what you're asking pfSense to do with all the traffic that would be going through it. Are you encrypting all the traffic to an external VPN provider? Are you running IPS / IDS? If you're looking to implement a default firewall, this device can pass traffic at line speed (~940Mbps).
A: There is one year warranty. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about 30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less, cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q:How many devices does PFsense support?
A: Inferring your question a bit, I think you're asking how many clients would be supported if pfSense were installed on this device? If so, it's a somewhat difficult question to answer, as the answer will depend not only on the number of devices, but also what you're asking pfSense to do with all the traffic that would be going through it. Are you encrypting all the traffic to an external VPN provider? Are you running IPS / IDS? If you're looking to implement a default firewall, this device can pass traffic at line speed (~940Mbps).
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Verified Information
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing and Delivery
Length (cm) | Width (cm) | Height (cm) | |
Small Box (1 unit) | 23 | 18 | 13 |
Medium Box (5 units) | 47 | 34 | 21 |
Large Box (10 units) | 62 | 43 | 20 |
Похожие товары
Оптовая продажа миниатюрные фигурки из ПВХ пластиковые животных ферма морская рыба коллекционные игрушки-сюрпризы для детей украшения

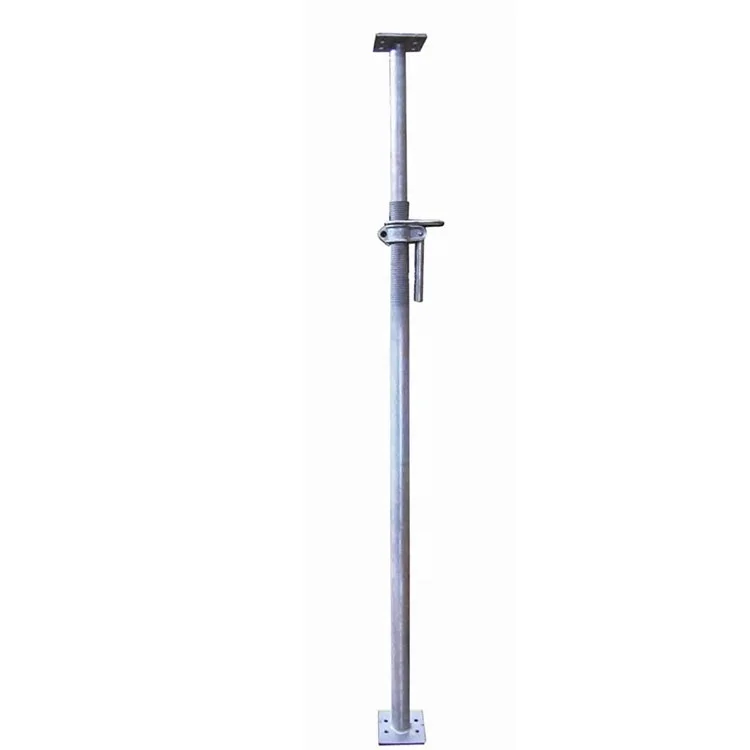

Легкая оцинкованная регулируемая стальная опора легкая и
Многофункциональная трехполюсная розетка питания с 5 отверстиями и двумя USB-портами с переключателем
2,38 $ - 2,45 $
Новинка 2022, трендовый ноутбук с беспроводным зарядным устройством, внешним аккумулятором, USB-накопителем и лампой для бизнеса, роскошный подарок
15,00 $ - 19,50 $
Оптовая продажа, рекламная Роскошная Подарочная тетрадь, деловой подарок, термос, чашка, настраиваемый подарочный набор тетрадей с ручкой и бутылкой
1,58 $ - 2,38 $

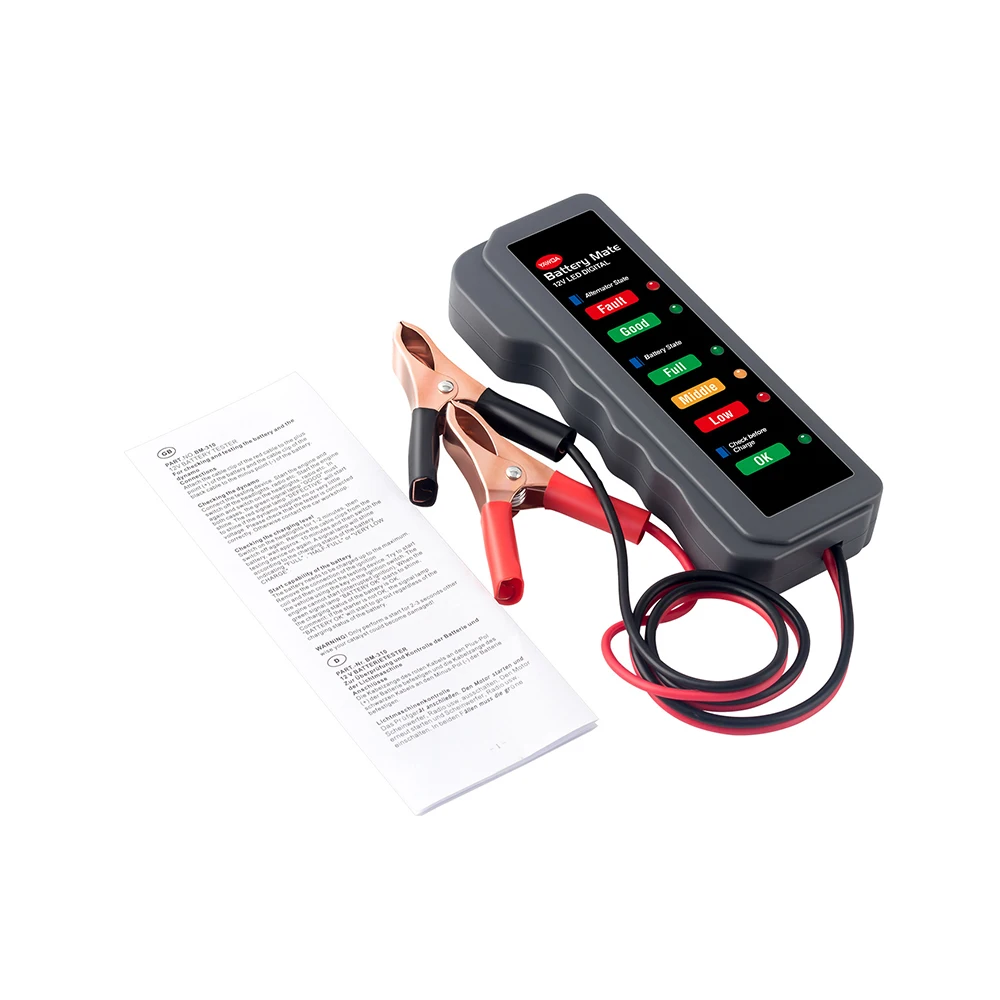

12V Авто батарея тестер BM310 и автомобиля Тормозная жидкость масло тестер ручка тормоза цифровой тестер автомобильное ведро тестирования диагностический инструмент
1,40 $ - 1,85 $

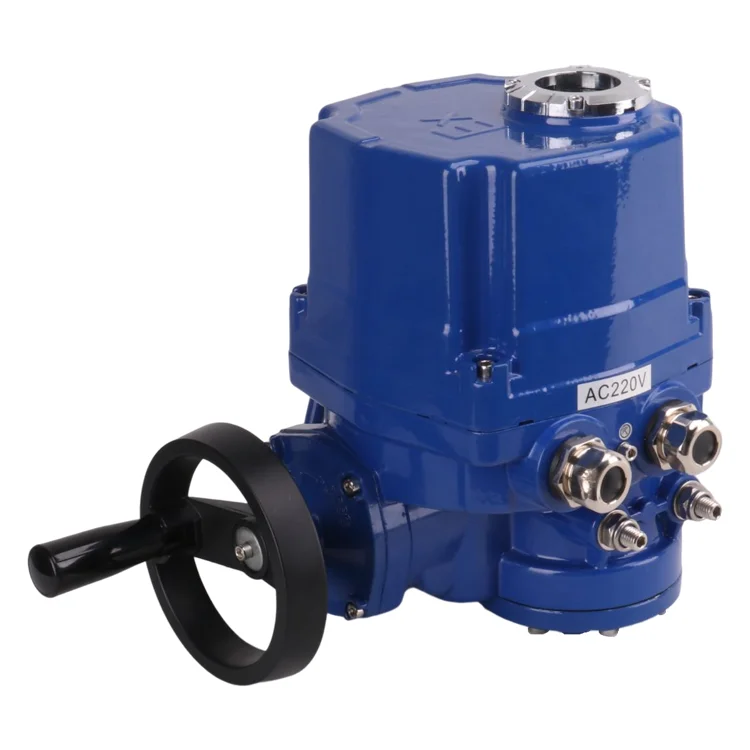

Производитель вентилей 90 вращение 110V 220VAC Nm100 клапан электрический привод для
