Частицы титана высокой чистоты GR1
80,00 $ - 100,00 $
Популярная трубка в виде кости собаки титановые вращающиеся насадки для распыления материалы покрытия PVD
- Категория: Other Titanium >>>
- Поставщик: Advanced Targets Materials Co. Ltd.
Сохранить в закладки 1600685247402:
Описание и отзывы
Характеристики
Product Description

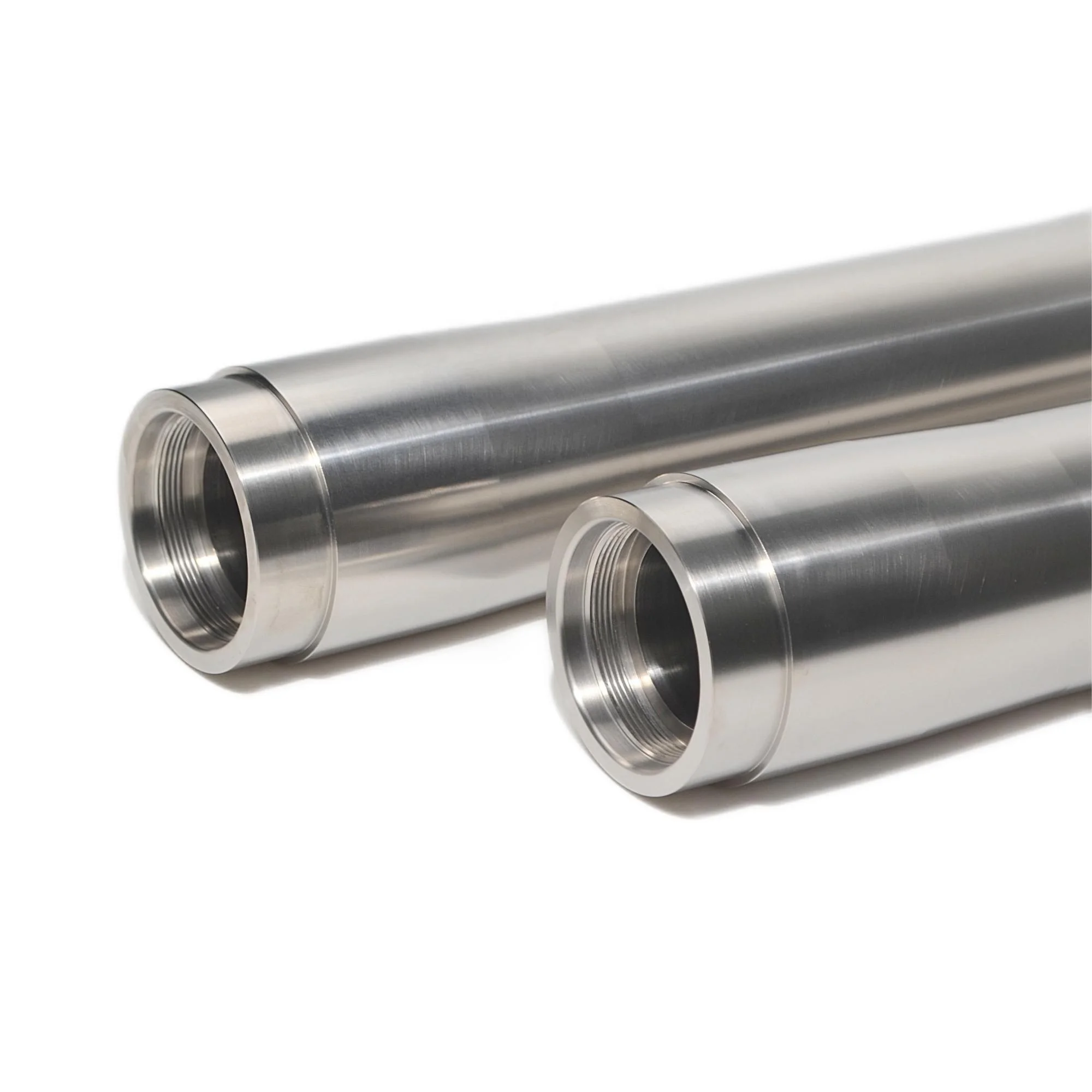

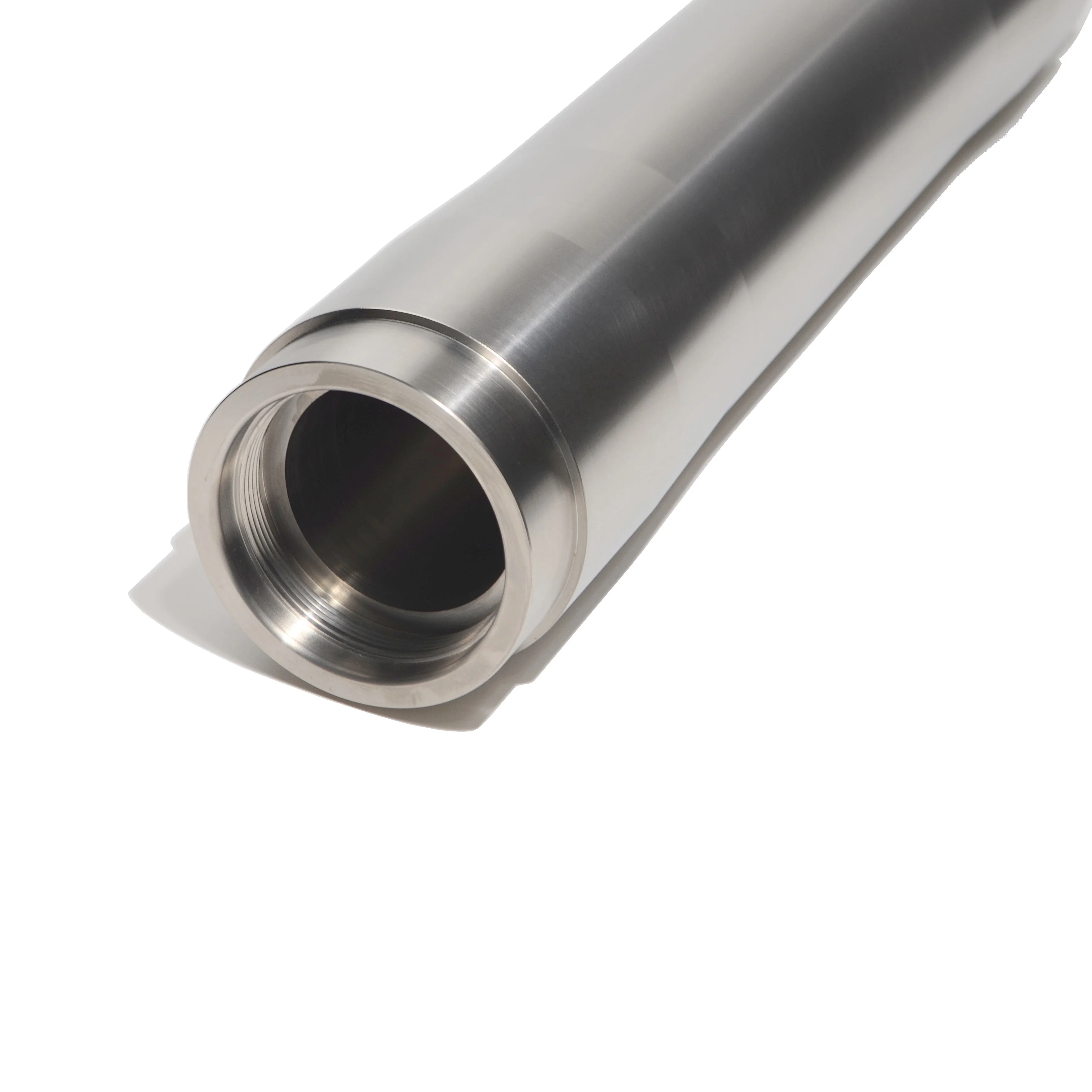

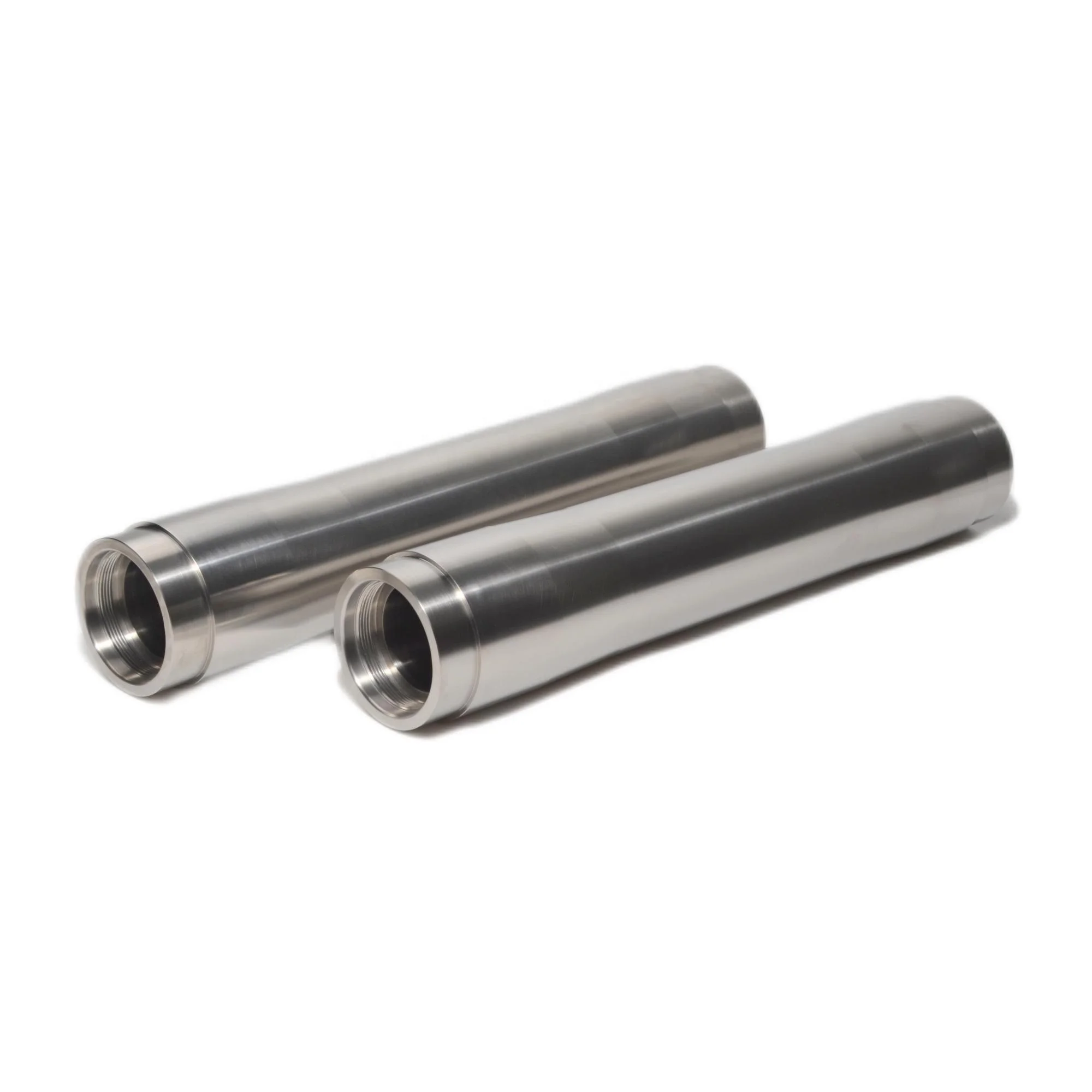

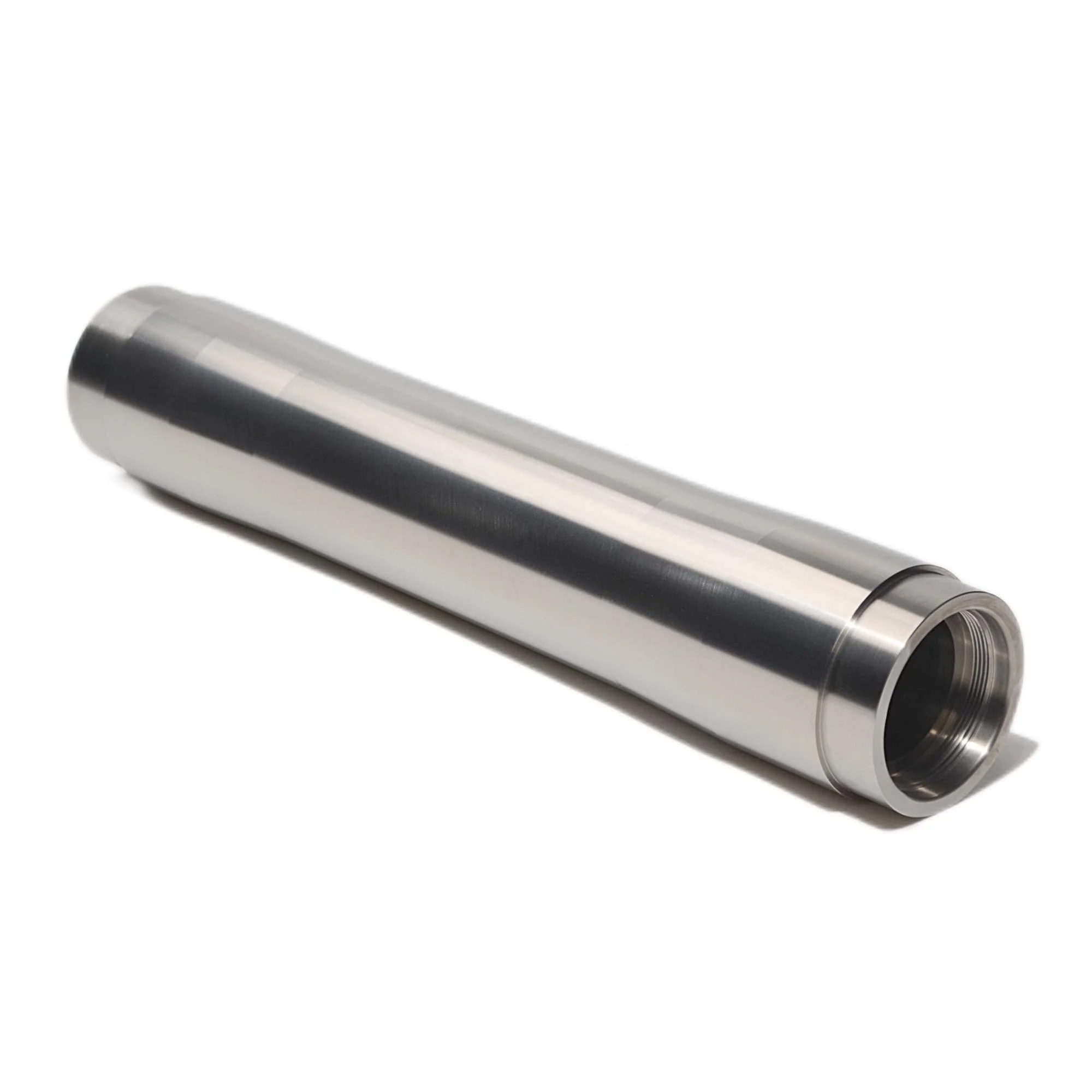

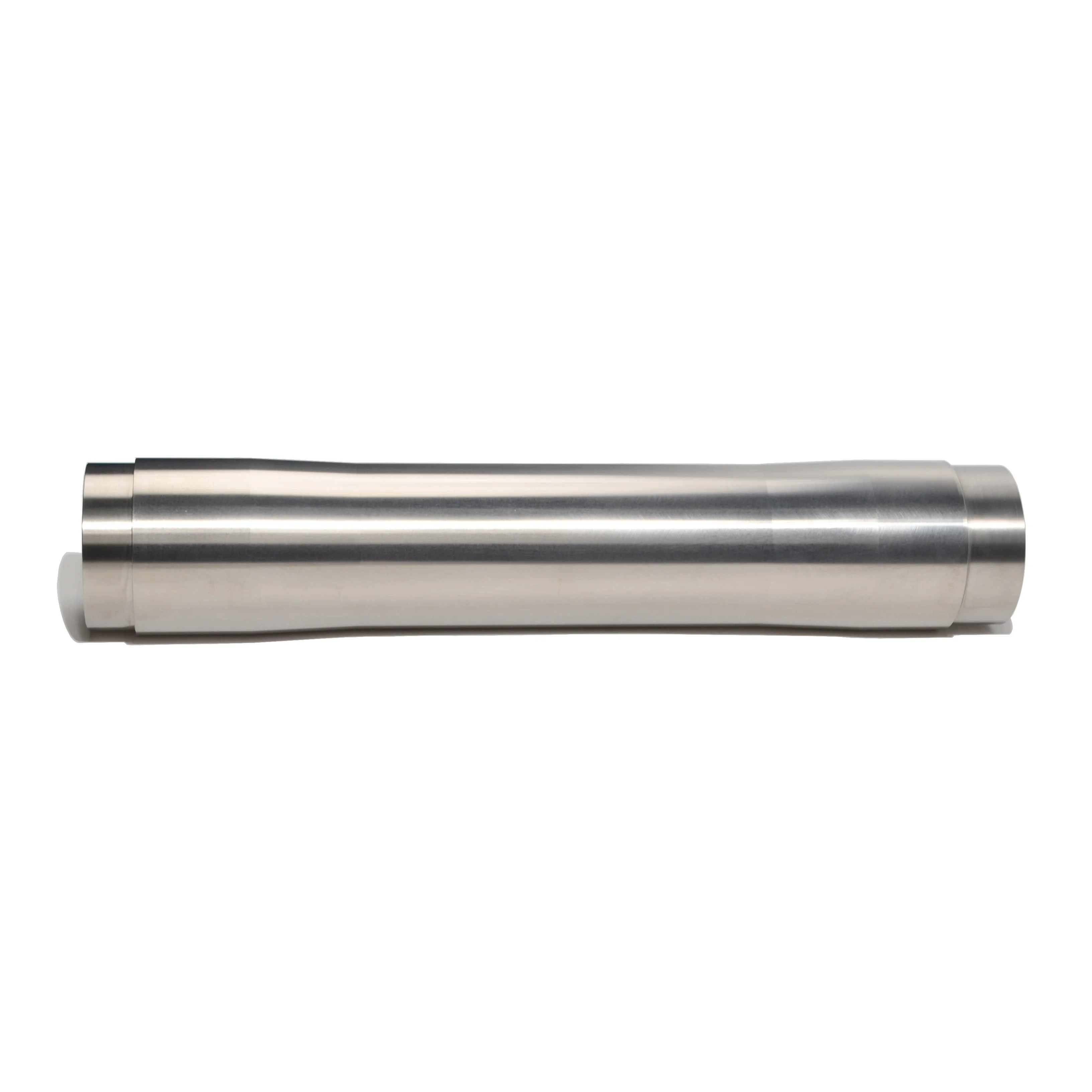

Popular size dog bone shape titanium rotary sputtering target
Size: OD95*ID61*L504mm
Popular standard size or OEM machining
Popular standard size or OEM machining
purity level
Advanced Targets can offer a wide range of sputtering targets from purity of 99.5% to 99.995%
Advantage：
(1) Smooth surface without pore,scratch and other imperfection
(2) Grinding or lathing edge, no cutting marks
(3) Unbeatable level of material purity
(4) High ductility
(5) Homogeneous micro structure
(6) Laser marking for your special item with name, brand, purity size and so on
(2) Grinding or lathing edge, no cutting marks
(3) Unbeatable level of material purity
(4) High ductility
(5) Homogeneous micro structure
(6) Laser marking for your special item with name, brand, purity size and so on
Other advantage:
high quality materials such as titanium targets
(1)100 % density = 4.51 g/cm³
(2)Dimensional stability
(3)Enhanced mechanical properties
(4)Uniform grain size distribution
(5)Small grain sizes
Item | N ≤ | C ≤ | H ≤ | Fe ≤ | O ≤ | Al ≤ | V ≤ |
GR1 | 0.03 | 0.08 | 0.05 | 0.2 | 0.18 | ||
GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | ||
GR3 | 0.03 | 0.08 | 0.015 | 0.3 | 0.35 | ||
GR4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | ||
GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 |
GR6 | 0.03 | 0.08 | 0.015 | 0.3 | 0.2 | 4.0-4.6 | |
GR7 | 0.03 | 0.08 | 0.015 | 0.5 | 0.25 | ||
GR9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 |
GR11 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | ||
GR12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 |
Popular Usage
All kinds of Ti targets including circle type, planar type, rotary type.Ti targets are mainly used in the electronic information industry, such as integrated circuit, flat panel display, tooling and automobile industry. Different industries have different requirements for Ti targets. For example, the purity of Ti targets is about 99.5% in the decoration and tooling industry, and 99.995 in the integrated circuit industry.
Improve wear resistance, reduce friction coefficient and prevent adhesion. It is a kind of coating on CNC tools.
Details Images
High density
Uniform and fine grained micro structure
Homogeneous concerning distribution of chemical elements
Low content of residual impurities
Uniform and fine grained micro structure
Homogeneous concerning distribution of chemical elements
Low content of residual impurities
Company Introduction
Advanced Targets Materials Co., Ltd is one of the leading manufacturers of sputtering targets, arc cathodes and evaporation materials for PVD thin film companies worldwide. Advanced Targets has extensive experience in the manufacturing and development of sputtering targets and arc cathodes. Driven by the spirit of innovation, Advanced Targets has made many research and development progress, some of which cooperate with the Institute of Process Engineering of the Chinese Academy of Sciences and the National Center for Nonferrous Metals and Electronic Materials.
Advanced Targets products have provided services to the world's leading PVD service providers. Consistent high quality and cost-effectiveness are the main advantages of Advanced Targets. Relying on material science and material processing expertise,Advanced Targets has won a good reputation worldwide.
Driven by the mission of "innovation, integrity and quality", Advanced Targets has provided a series of high-quality sputtering targets and arc cathodes, which have been recognized by many well-known companies in the field of PVD films.
Advanced Targets products have provided services to the world's leading PVD service providers. Consistent high quality and cost-effectiveness are the main advantages of Advanced Targets. Relying on material science and material processing expertise,Advanced Targets has won a good reputation worldwide.
Driven by the mission of "innovation, integrity and quality", Advanced Targets has provided a series of high-quality sputtering targets and arc cathodes, which have been recognized by many well-known companies in the field of PVD films.
Our Typical products:
Dimension /mm | Ti TA1 | TiAl 30/70 | TiAl 33/67 | TiAl 50/50 | TiAl 50/50 | Cr 99.8% | CrAI 30/70 | TiSi 80/20 | WC 99.9% |
∅63*32 | • | • | • | • | • | • | • | • | |
∅100*32 | • | • | • | • | • | • | • | • | |
∅105*16 | • | • | • | • | • | • | • | • | |
∅160*12 | • | • | • | • | • | • | • | • | |
170*75*12 | • | • | • | • | |||||
331*174*24 | • | • | • | • | • | • | • | ||
400*88*10 | • | • | • | • | • | • | • | ||
574*174*20 | • | • | • | • | • | • | • | ||
741*191*18 | • | • | • | • | • | • | • | ||
754*154*18 | • | • | • | • | • | • | • | ||
1701*132*12 | • | • | • | • | • | • | |||
Process | Melting | HIP | HIP | HIP | Melting | HIP | HIP | HIP | HIP |
CrAIB/CrAISiW/ AITiCrSiX etc are also well used for some special needs.
Certification
(2)Every pcs of sputtering targets from the powder materials item&number, mixing workers,outgas and HIP time,machining person and packing details are all made ourselves. All of those step can promise you once a new sputtering target or method is created ,it could be copied and kept to support a stabel quality products.
(3) With MSDS and COA test report for every single order.
Shipping & Packing
vacuum packing
Every pieces of the all targets will be in vacuum packing separately first to avoid oxidation,contaminated,contact touch and so on.
Non fumigation wooden box packing outside
Vacuum packing sputter will be packed in cartons with fixed support
FAQ
1. Are you trading company or manufacturer ?
Advanced Targets: We are a professional manufacturer of PVD targets, powder metallurgical/Melting/plasma spray are the main process we focused on.
2．What is HIP process?
HIP is a short name of Hot isostatic Pressing. This technology is forming process combining simultaneous heating and pressing to consolidate powders in high temperature, high pressure as well as under argon(Ar) atmosphere, primarily used to eliminate voids and defects in materials. HIP is mainly applied to a wide range of Materials, it is the best fabrication methods for Cr targets and powder metallurgy aluminum alloy targets.
3. Do you have some experience if supplying hardcoating materials?
Advanced Targets: We have been keep supplying many kinds of targets servicing for Eifeler/Balzers/ Hauzer/Platit/Kobelco/isys and other coating systems. They are satisfied by our good service and stable products quality.
4: How long is your delivery time?
Advanced Targets: 15 days after order date for
those regular size or samples, Normally 30 days for batch quantity.
those regular size or samples, Normally 30 days for batch quantity.
5. Do you have quality control system:
Advanced Targets: Yes, we have been ISO 9001 qualified since 2015.And our quality control system have been mutual accepted by IQNET(International Certification Network).
6: Do you have Minimum order quantity requirement?
Advanced Targets: For common products, we do not have MOQ requirement. For R&D products, we can supply sample.
7: What is your payment method?
Advanced Targets: T/T in advance, Paypal, Western Union and etc..
Похожие товары

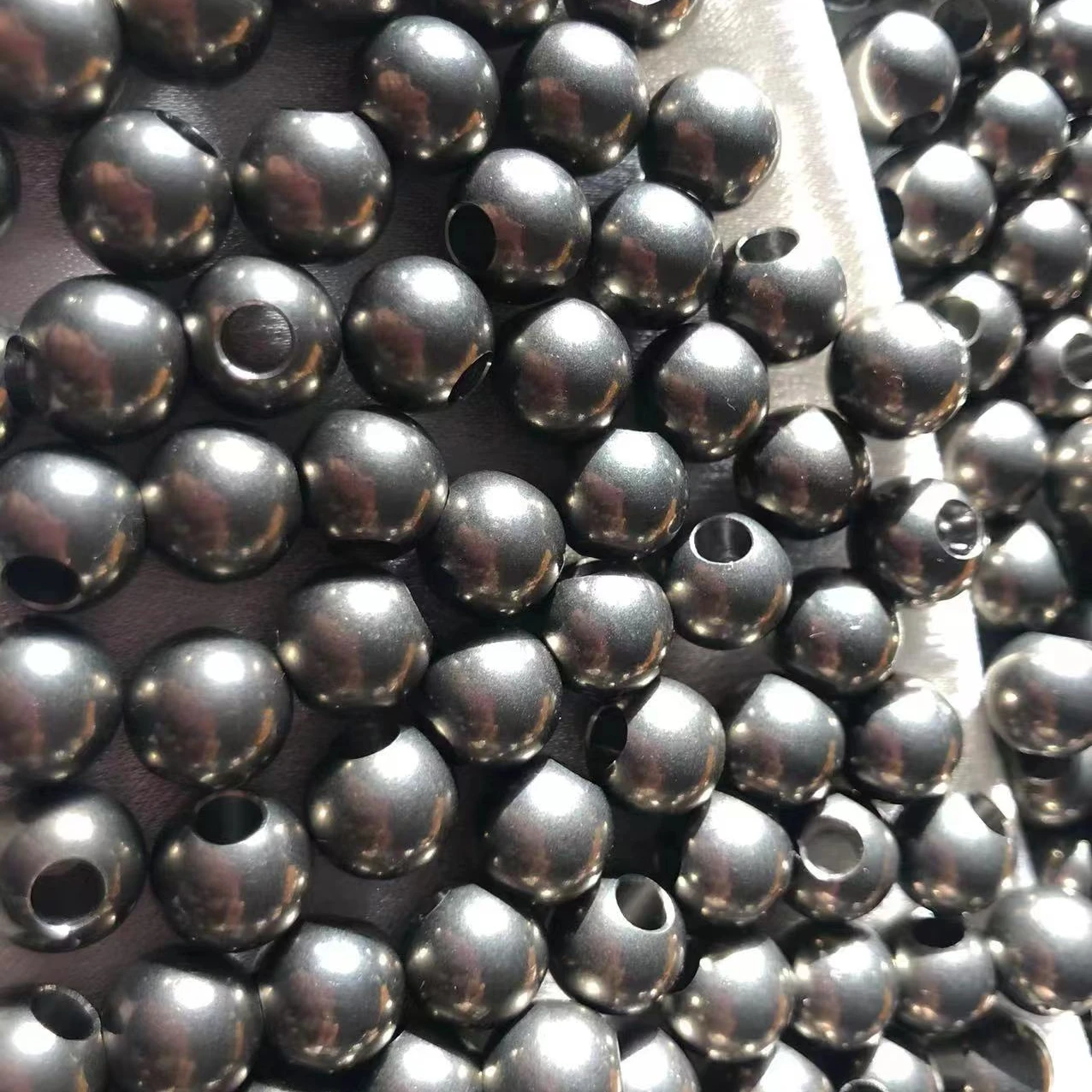

Бусины из титанового сплава
Отличная черепная титановая сетка для

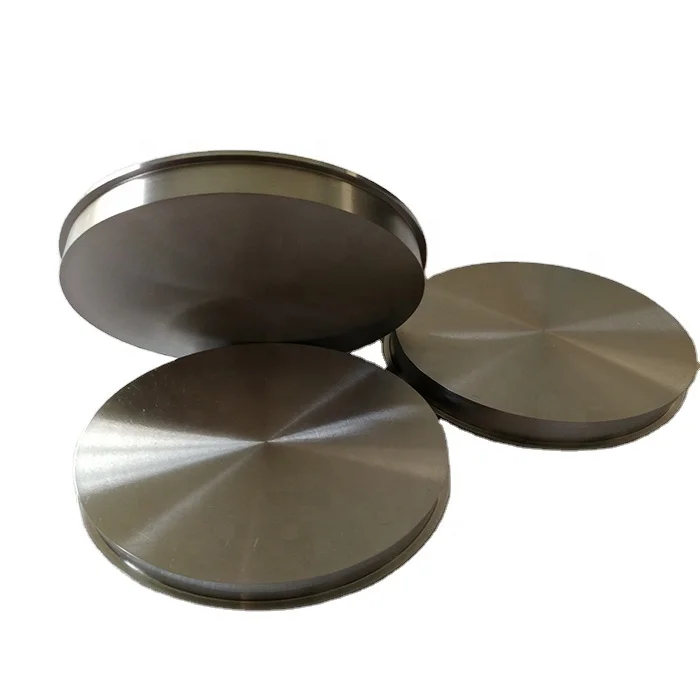

Титановая мишень для гальванического поля и вакуумного

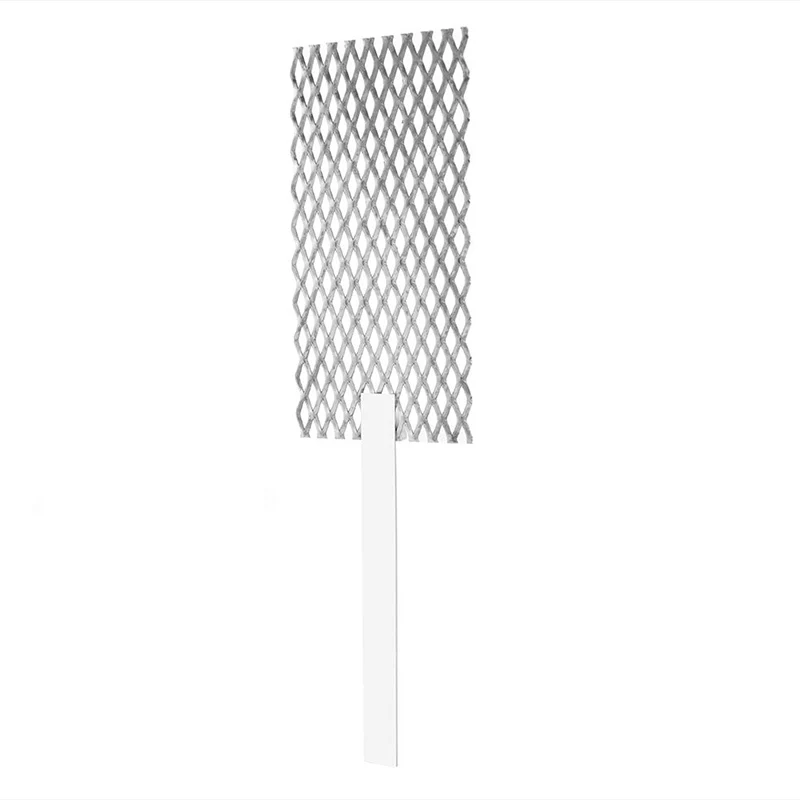

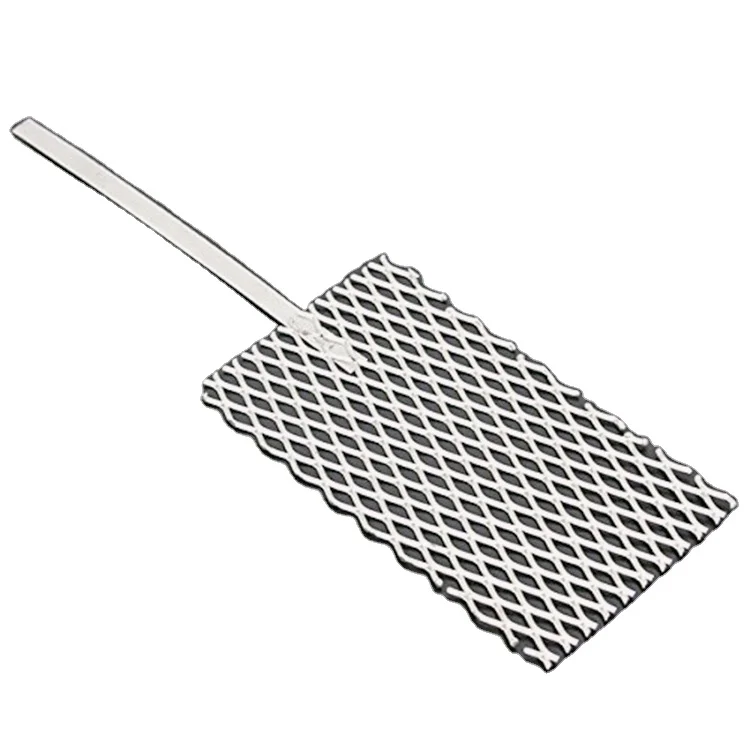

Анодная родиевая палладиевая пластинизированная титановая сетка для изготовления ювелирных изделий с

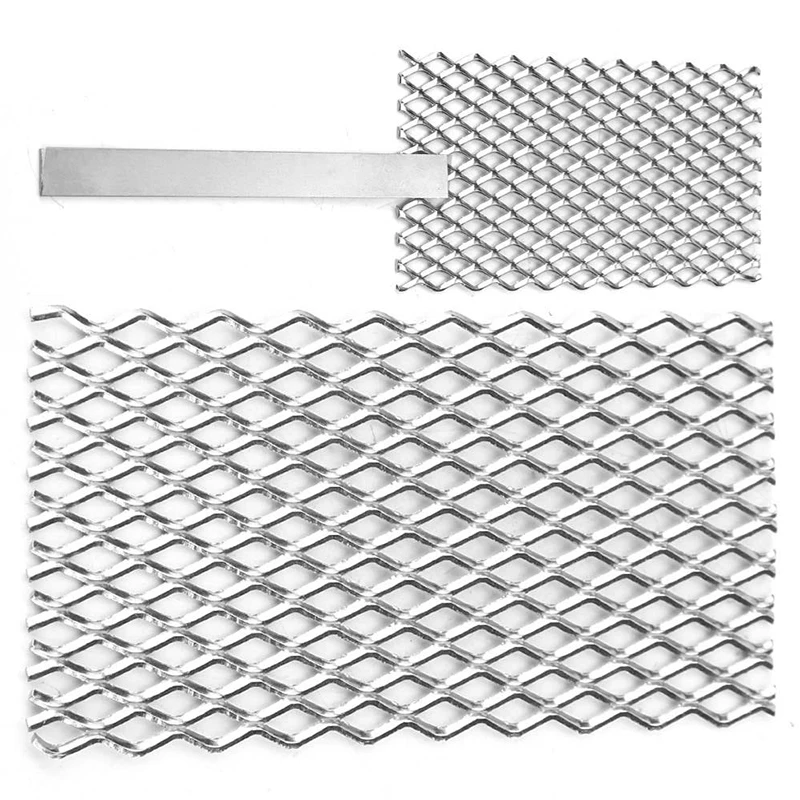

Gr. 1 Grade IR O2 Ta2 O5 Coated Titanium Anode Mesh for
MMO электрод для хлорированного промышленного мини см3
29,60 $ - 36,80 $

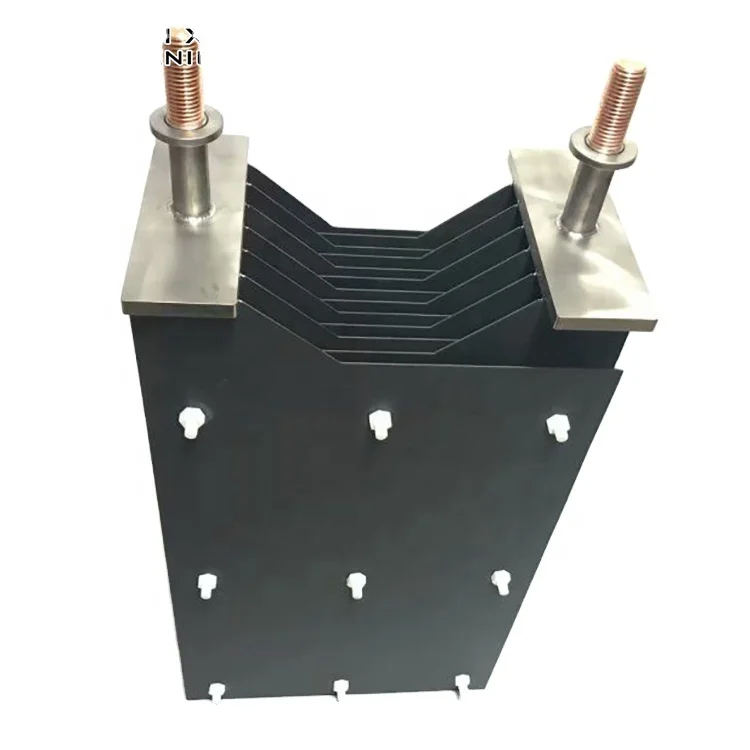

Ru-ir-sn эффективный анод и катодный электрод MMO анод титановый электрод. Длительный срок службы. Лучшая цена пластина 100x100 мм
